Page 1

All about the

Use & Care

of your Built-In Range

TABLE OF CONTENTS

Welcome & Congratulations ...................................2

Important Safety Instructions .................................3

Features at a Glance ..............................................6

Before Setting Surface Controls ..............................7

Setting Surface Controls ........................................9

Before Setting Oven Controls ...............................11

www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352

Setting Oven Controls ..........................................13

Self-Cleaning .......................................................19

Care & Cleaning (Cleaning Chart) .........................21

Care & Cleaning ..................................................22

Before You Call ..................................................25

Major Appliance Warranty ....................................28

318205829 (January 2012) Rev. A

Page 2

WELCOME & CONGRATULATIONS

Product Registration

The PRODUCT REGISTRATION CARD

should be ﬁ lled in completely, signed and returned to Electrolux Home Products.

Serial Plate Location

Congratulations on your purchase of a new appliance! At Electrolux Home Products, we are very proud of our product and are completely committed to providing you with the best service possible. Your satisfaction is our number one priority.

We know you’ll enjoy your new appliance and Thank You for choosing our product. We hope you consider us for future purchases.

PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS

This Use & Care Manual contains general operating instructions for your appliance and feature information for several models. Your product may not have all the described features. The graphics shown are representative. The graphics on your appliance may not look exactly like those shown. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating and maintaining any appliance.

NOTE

Please record your model and serial numbers below for future reference.

Model Number: Serial Number: Purchase Date:

Please attach sales receipt here for future reference.

Page 3

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance. Save these instructions for future reference.

DEFINITIONS

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

WARNING

This symbol will help alert you to situations that may cause serious bodily harm, death or property damage.

CAUTION

This symbol will help alert you to situations that may cause bodily injury or property damage.

IMPORTANT

IMPORTANT indicates installation, operation or maintenance information which is important but not hazard-related.

WARNING

Tip Over Hazard

• Remove all tape and packaging wrap before using the appliance. Destroy the carton and plastic bags after unpacking the appliance. Never allow

children to play with packaging material. Do not remove the wiring label and other literature attached to the appliance. Do not remove model/serial number plate.

• Proper Installation. Be sure your appliance is properly installed and grounded by a qualiﬁ ed technician in accordance in the United States with the National Electrical Code ANSI/NFPA No. 70-latest edition, and local code requirements, and in Canada with CSA C22.1 PART 1-latest edition and local code requirements. Install only

per installation instructions provided in the literature package for this range.

Ask your dealer to recommend a qualiﬁ ed technician

and an authorized repair service. Know how to disconnect the electrical power to the appliance at the circuit breaker or fuse box in case of an emergency.

• User Servicing. Do not repair or replace any part of the appliance unless speciﬁ cally recommended in the manuals. All other servicing

should be done only by a qualiﬁ ed technician to reduce the risk of personal injury and damage to the appliance.

• Never modify or alter the construction of an appliance by removing leveling legs, panels, wire covers, anti-tip brackets/screws, or any other part of the product.

A child or adult can tip the range • and be killed.

Verify the anti-tip device has been • installed to ﬂ oor or wall.

Ensure the anti-tip device is re-engaged to ﬂ oor or • wall when the range is moved.

Do not operate the range without the anti-tip device • in place and engaged.

Failure to follow these instructions can result in • death or serious burns to children and adults.

Range Leveling Leg

To check if the anti-tip bracket is installed properly, use both arms and grasp the rear edge of range back. Carefully attempt to tilt range forward. When properly installed, the range should not tilt forward.

Refer to the anti-tip bracket installation instructions supplied with your range for proper installation.

Anti-Tip Bracket

WARNING

Stepping, leaning, sitting or pulling down on the door or the drawer of this appliance can result in serious injuries and also cause damage to the appliance. Do not allow children to climb or play around

the appliance. The weight of a child on an open door may cause the appliance to tip, resulting in serious burns or other injury. An open drawer when hot may cause burns.

WARNING

Do not use the oven or warm & serve drawer (if equipped) for storage.

• Storage in or on Appliance. Flammable materials should not be stored in an oven, near surface burners or in the warm & serve drawer (if equipped). This includes paper, plastic and cloth

items, such as cookbooks, plastic ware and towels, as well as ﬂ ammable liquids. Do not store explosives, such as aerosol cans, on or near the appliance. Flammable materials may explode and result in ﬁ re or property damage.

Page 4

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

Do not store items of interest to children in the cabinets above the appliance. Children climbing on the cooktop to reach items could be seriously injured.

• Do not leave children alone. Children should not be left alone or unattended in the area where an appliance is in use. They should never be allowed to

sit or stand on any part of the appliance.

• DO NOT TOUCH SURFACE UNITS, AREAS NEAR THESE UNITS, OVEN HEATING ELEMENTS OR INTERIOR SURFACES OF THE OVEN OR WARMER DRAWER (if equipped). Both surface units and oven

heating elements may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. During and after use, do not touch, or let clothing or other ﬂ ammable materials touch these areas until they have had sufﬁ cient time to cool. Among these areas are the cooktop, surfaces facing the cooktop, the oven vent openings and surfaces near these openings, oven door and window.

• Wear Proper Apparel. Loose-ﬁ tting or hanging garments should never be worn while using the appliance. Do not let clothing or other ﬂ ammable

materials contact hot surfaces.

WARNING

NEVER use your appliance as a space heater to heat or warm the room.

• Do Not Use Water or Flour on Grease Fires. Smother the ﬁ re with a pan lid, or use baking soda, a dry chemical or foam-type extinguisher.

• When heating fat or grease, watch it closely. Fat

or grease may catch ﬁ re if allowed to become too hot.

• Use Only Dry Pot holders. Moist or damp pot holders on hot surfaces may result in burns from steam. Do not let the pot holders touch hot surface

units. Do not use a towel or other bulky cloth instead of a pot holder.

• Do Not Heat Unopened Food Containers. Buildup of pressure may cause the container to burst and result in injury.

• Remove the oven door from any unused appliance if it is to be stored or discarded.

IMPORTANT

Do not attempt to operate the appliance during a power failure. If the power fails, always turn off the unit. If the unit is not turned off and the power

resumes, the appliance will not operate and an error message will be displayed. Once the power resumes, reset the clock and the oven function.

CAUTION

Electronic controllers can be damaged by cold temperatures. When you use your appliance for the ﬁ rst time, or if it has not been used for a long period of time, make sure that it has been exposed to a temperature above 0°C/32°F for at least 3 hours before connecting it to the power supply.

IMPORTANT INSTRUCTIONS FOR USING YOUR COOKTOP

• Know which knob controls each surface heating

unit. Place pan of food on the element before turning

it on, and turn the element off before removing the pan.

•

Use Proper Pan Size—This appliance is equipped with

one or more surface burners of different sizes. Select utensils having ﬂ at bottoms large enough to cover the surface unit. The use of undersized utensils will expose a portion of surface heating unit to direct contact and may result in ignition of clothing. Proper relationship of utensil to the surface will also improve efﬁ ciency .

• Utensil Handles Should Be Turned Inward

and Should Not Extend Over Adjacent Surface Units—To reduce the risk of burns, ignition of

ﬂ ammable materials, and spillage due to unintentional contact with the utensil. The handle of the utensil should be positioned so that it is turned inward, and does not extend over adjacent surface unit.

• Do not use Searing Grill on the cooktop—The Searing grill is not designed for use on the cooktop. Doing so may result in a ﬁ re.

• Never Leave Surface Units Unattended—Boilovers cause smoking and greasy spillovers that may ignite, or a pan that has boiled dry may melt.

• Protective Liners—Do not use aluminum foil to line oven bottom or any other part of the appliance. Only use aluminum as recommended for baking if used as a cover placed on the food. Any other used of protective liners or aluminum foil may result in a risk of electric shock or ﬁ re or a short circuit.

• Glazed Cooking Utensils—Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed

Page 5

IMPORTANT SAFETY INSTRUCTIONS

utensils are suitable for cooktop service without breaking due to the sudden change in temperature. Check the manufacturer’s recommendations for cooktop use.

• Do Not Use Decorative Surface Burner Covers. If an element is accidentally turned on, the decorative cover will become hot and possibly melt. Burns will occur if the hot covers are touched. Damage may also be done to the cooktop.

FOR GLASS COOKTOP ONLY

• Do Not Clean or Operate a Broken Cooktop— If

cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact a qualiﬁ ed technician immediately.

• Clean Cooktop Glass with Caution— If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid a steam burn. Some cleaners can produce harmful fumes if applied to a hot surface.

• Avoid Scratching the Cooktop Glass with Sharp Objects.

IMPORTANT SAFETY INSTRUCTIONS FOR USING YOUR OVEN

• Use Care When Opening Oven Door or Warm

& Serve Drawer (if equipped)—Stand to the side

of the appliance when opening the door/drawer of a hot appliance. Let hot air or steam escape before you remove or replace food in the oven/drawer.

• Keep Oven Vent Ducts Unobstructed. The oven is

vented at the front above the oven door. Touching the surfaces in this area when the oven is operating may cause severe burns. Also, do not place plastic or heatsensitive items on or near the oven vent. These items could melt or ignite.

WARNING

• Do not use a broiler pan without its insert. Broiler pan and grid allow dripping fat to drain and be kept away from the high heat of the broiler.

• Do not cover the broiler grid or oven bottom with aluminum foil. Exposed fat and grease could ignite.

• Do not touch a hot oven light bulb with a damp cloth. Doing so could cause the bulb to break. Disconnect the appliance or shut off the power to the appliance before removing and replacing the bulb.

IMPORTANT SAFETY INSTRUCTIONS FOR CLEANING YOUR OVEN

• Clean the appliance regularly to keep all parts free of grease that could catch ﬁ re. Exhaust fan

ventilation hoods and grease ﬁ lters should be kept clean. Do not allow grease to accumulate. Greasy deposits in the fan could catch ﬁ re. Refer to the hood manufacturer’s instructions for cleaning.

• Cleaners/Aerosols—Always follow the manufacturer’s recommended directions for use. Be aware that excess residue from cleaners and aerosols may ignite causing damage and/or injury.

• Clean in the self-cleaning cycle only the parts of the appliance listed in this Owner’s Guide. Before

using the self-cleaning cycle of the appliance, remove all utensils stored in the appliance.

• Do not clean the oven door gasket. The door gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket.

• Do not use oven cleaners. No oven cleaner or oven liner protective coating of any kind should be used in or around any part of the appliance.

• Remove oven racks. Oven racks color will change if left in the oven during a self-cleaning cycle.

NEVER cover any slots, holes or passages in the oven bottom or cover an entire rack with materials such as aluminum foil. Doing so blocks

air ﬂ ow through the oven and may cause carbon monoxide poisoning. Aluminum foil linings may trap heat, causing a ﬁ re hazard.

• Placement of Oven/Warm & Serve Drawer (if

equipped) Racks. Always place oven/Warm & Serve

Drawer (if equipped) racks in desired location while appliance is cool. Remove all utensils from the rack before removing rack. If rack must be moved while oven is hot, use extreme caution. Use pot holders and grasp the rack with both hands to reposition. Do not let pot holders contact the hot oven element or interior of the oven/Warm & Serve Drawer (if equipped).

CAUTION

The health of some birds is extremely sensitive to the fumes given off during the self-clean cycle of any wall oven. Move birds to another well ventilated room.

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.

Page 6

FEATURES AT A GLANCE

Your built-in range Features:

1. Control panel.

2. Left front element control.

3. Left rear element control.

4. Right rear element control.

5. Right front element control.

6. Element on indicator light.

7. Electronic oven control with kitchen timer.

8. Automatic oven door light switch.

9. Oven vent.

10. Self-clean door latch.

11. Broil element.

12. Self-cleaning oven interior.

13. Oven interior light with removable cover.

14. Adjustable interior oven rack(s).

15. Large 1-piece oven door handle.

16. Full width oven door with window.

17. Storage drawer.

18. Ceramic glass cooktop.

20. 6” single radiant element.

20. Keep warm radiant element.

21. 6” single radiant element.

22. 6”/9” double radiant element.

23. 12” single radiant element.

24. Ceramic glass cooktop.

25. Hot surface indicator light.

NOTE

The features shown for your appliance may vary according to model type & color.

Page 7

BEFORE SETTING SURFACE CONTROLS

About the ceramic glass cooktop

The ceramic cooktop has radiant surface elements located below the surface of the glass. The design of the ceramic cooktop outlines the area of the surface element underneath. Be sure to match the pan size with the diameter of the element outline on the cooktop and only ﬂ at-bottom cookware should be used.

The type and size of cookware, the number of surface elements in use and their settings, are all factors that will affect the amount of heat that will spread to areas beyond the surface elements. The areas surrounding the elements may become hot enough to cause burns.

About the radiant surface elements

The element temperature rises gradually and evenly. As the temperature rises, the element will glow red. To maintain the selected setting the element will cycle on and off. The heating element retains enough heat to provide a uniform and consistent heat during the off cycle.

For efﬁ cient cooking, turn off the element sever al minutes before cooking is complete. This will allow residual heat to complete the cooking process.

Element ON & hot surface indicator lights

Your appliance is equipped with two different types of radiant surface control indicator lights that will glow on the backguard- the Element On indicator light and the hot surface indicator lights.

The element ON indicator lights are located on the control panel (Figure 1) between the two radiant element control knob and will glow when a surface element is turned ON.

The hot surface indicator light located on the cooktop (Figure 2) will glow when any surface cooking area heats up and will remain on until the glass cooktop has cooled to a MODERATE level.

Hot surface indicator light location

Figure 2

NOTE

Radiant elements have a limiter that allows the element to cycle ON and OFF, even at the HI setting. This helps to prevent damage to the ceramic smooth top. Cycling at the HI setting is normal and can occur if the cookware is too small for the radiant element or if the cookware bottom is not ﬂ at.

Be sure to read detailed instructions for ceramic glass cooktop cleaning in the General Care & Cleaning section and Before You Call checklist section of this Use and Care Guide.

Element ON indicator light location

Figure 1

Page 8

BEFORE SETTING SURFACE CONTROLS

Using proper cookware

The size and type of cookware used will inﬂ uence the setting needed for best cooking results. Be sure to follow the recommendations for using proper cookware as illustrated in Figures 1 & 2.

Cookware should have ﬂ at bottoms that make good contact with the entire surface heating element (Figure

1). Check for ﬂ atness by rotating a ruler across the bottom of the cookware (Figure 2).

Cookware material types

The cookware material determines how evenly and quickly heat is transferred from the surface element to the pan bottom. The most popular materials available are:

Aluminum- Excellent heat conductor. Some types of food will cause it to darken (Anodized aluminum cookware resists staining & pitting). If aluminum pans slide across the ceramic glass cooktop, they may leave metal marks which will resemble scratches. Remove these marks immediately.

Copper- Excellent heat conductor but discolors easily. May leave metal marks on ceramic glass (see Aluminum above).

Stainless steel- Slow heat conductor with uneven cooking results. Is durable, easy to clean and resists staining.

Cast iron- A poor heat conductor however will retain heat very well. Cooks evenly once cooking temperature is reached. Not recommended for use on ceramic cooktops.

Porcelain-enamel on metal- Heating characteristics will vary depending on base material. Porcelain-enamel coating must be smooth to avoid scratching ceramic cooktops.

Glass- Slow heat conductor. Not recommended for ceramic cooktop surfaces because it may scratch the glass.

Figure 1

Figure 2

NOTE

Due to the high intensity of heat generated by the surface elements, the glass surface will turn green when the element will be turned off. This phenomenon is normal and the glass will come back to its original white color after it has completely cooled down. (White glass cooktops only).

Surface cooking settings

Use the chart to determine the correct setting for the type of food you are preparing. Note: The size and type of cookware used will inﬂ uence the setting needed for best cooking results.

Recommended Setting for Surface Element

Setting Type of Cooking

HIGH (HI) Start most foods; bring water to a boil

and pan broiling.

MEDIUM HIGH (7-8)

MEDIUM (4-6) Maintain a slow boil; thicken sauces

MEDIUM LOW (2 - 3)

LOW (LO) Keep warm, melting and simmering.

Continue a rapid boil; frying, deep fat frying.

and gravies; steaming vegetables. Keep foods cooking; poaching and

stewing.

Page 9

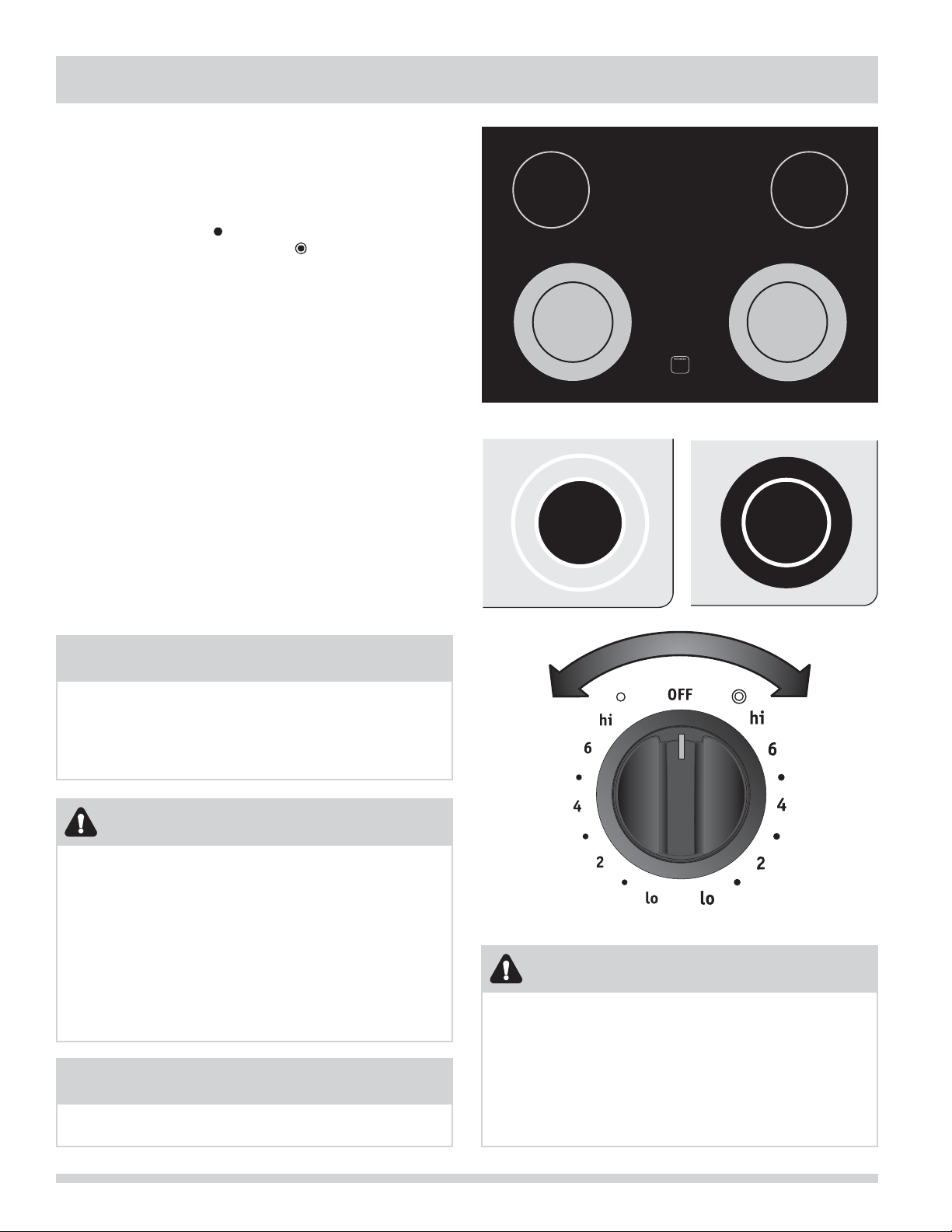

Single radiant surface elements

The cooktop has 2 SINGLE radiant surface elements: the left rear position (Figure 1) and the right rear position (Figure 1).

To Operate the Single Radiant Surface Elements

1. Place correctly sized cookware on the radiant surface

element.

2. Push in and turn the surface control knob in either direction to the desired setting (Figure 2). Start most cooking operations on a higher setting and then turn to a lower setting to ﬁ nish cooking. Each surface element provides a constant amount of heat at each setting. A glowing red surface heating area extending beyond the bottom edge of the cookware indicates the cookware is too small for the surface heating area.

3. When cooking has completed, turn the surface control knob to OFF before removing the cookware.

NOTE

The surface “Element On” indicator lights will glow when one or more elements are turned on. A quick glance at these indicator lights when cooking is ﬁ nished is an easy check to be sure all surface elements are turned off.

SETTING SURFACE CONTROLS

Figure 1

NOTE

See Recommended Setting for Surface Element table on page 8.

CAUTION

Do not place plastic items such as salt and •

pepper shakers, spoon holders or plastic wrappings on cooktop when it is in use. These

items could melt or ignite. Potholders, towels or wooden spoons could catch ﬁ re if placed too close to the surface elements.

• Do not allow aluminum foil, or ANY material

that can melt to make contact with the ceramic glass cooktop. If these items melt on

the cooktop they will damage the ceramic cooktop.

Figure 2

CAUTION

Radiant surface elements may appear to have cooled after they have been turned OFF. The hot surface indicator light will turn ON and will continue to glow until the glass cooktop has cooled down to a moderate level. The glass surface may still be hot and burns may occur if the glass surface is touched before the indicator light has turned OFF. The message may remain on even though the controls are turned OFF.

Page 10

SETTING SURFACE CONTROLS

Dual Surface Radiant Element

The cooktop is equipped with 2 dual radiant surface elements located at the left front (Figure 1) and the right front (Figure 1) position. Symbols around the knob are used to indicate which coil of the dual radiant element will heat. The symbol indicates that only the inner coil will heat (Figure 2). The symbol indicates that both inner and outer coils will heat (Figure 3). You may switch from either coil setting at any time during cooking.

To Operate the Dual Surface Element

1. Place correctly sized cookware on the dual surface element.

2. Push in and turn the control knob to the inner coil symbol for smaller cookware (Figure 4) or to inner and outer coil symbol for larger cookware (Figure 4). Turn the knob to adjust the setting if needed. Start most cooking operations on a higher setting and then turn to a lower setting to ﬁ nish cooking. Each surface element provides a constant amount of heat at each setting. A glowing red surface heating area extending beyond the bottom edge of the cookware indicates the cookware is too small for the surface heating area.

3. When cooking has completed, turn the surface

control knob to OFF before removing the cookware.

Figure 1

Figure 3Figure 2

NOTE

CAUTION

Do not place plastic items such as salt and •

pepper shakers, spoon holders or plastic wrappings on cooktop when it is in use. These

items could melt or ignite. Potholders, towels or wooden spoons could catch ﬁ re if placed too close to the surface elements.

• Do not allow aluminum foil, or ANY material

that can melt to make contact with the ceramic glass cooktop. If these items melt on

the cooktop they will damage the ceramic cooktop.

NOTE

See Recommended Setting for Surface Element table on page 8.

Figure 4

CAUTION

Page 11

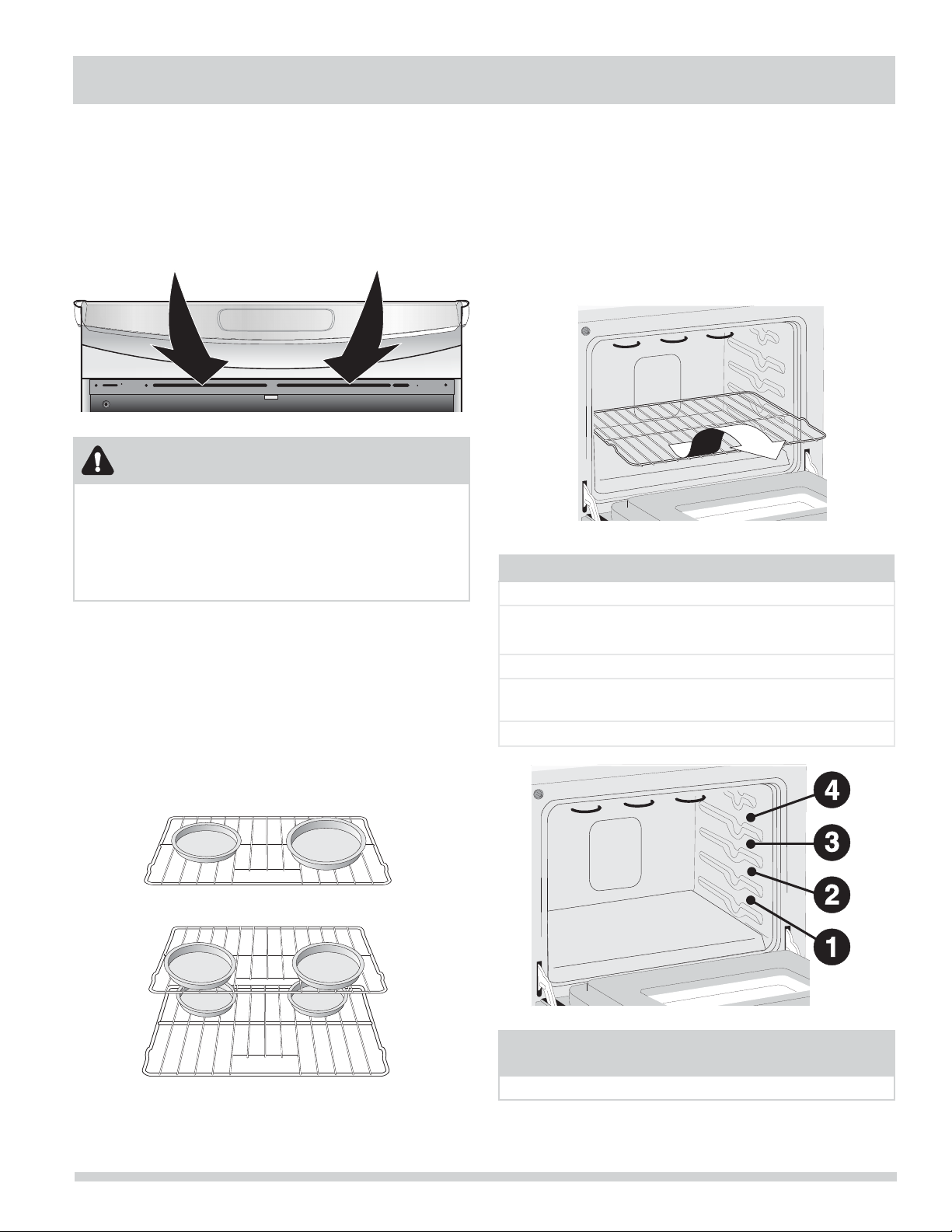

BEFORE SETTING OVEN CONTROLS

Oven Vent Location

The oven is vented Through the front panel and visible when the oven door is open. When the oven is on, warm air is released through the vent. This venting is necessary for proper air circulation in the oven and good baking results. DO NOT block the vent. Doing so may cause cooking failures, ﬁ re or damage to the appliance.

CAUTION

Some models are equipped with a blower which runs in baking and self-cleaning mode to keep all internal components at a cool temperature. The blower may keep running even if the oven has been turned off, until the components have cooled down.

Air circulation in the oven

If using 1 rack, place in center of oven. If using multiple racks, stagger cookware as shown.

For best air circulation and baking results allow 2-4" (5-10 cm) around the cookware for proper air circulation and be sure pans and cookware do not touch each other, the oven door, sides or back of the oven cavity. The hot air must circulate around the pans and cookware in the oven for even heat to reach around the food.

Arranging oven racks

ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO OPERATING THE OVEN). Always use oven mitts when using the oven. To remove an oven rack, pull the rack forward until it stops. Lift up front of rack and slide out. To replace an oven rack, ﬁ t the rack onto the guides on the oven walls. Tilt the front of the rack upward and slide the rack back into place.

Recommended rack positions

Food Broiling meats, chicken or ﬁ sh

Cookies, cakes, pies, biscuits & mufﬁ ns

Using a single rack 2 or 3 Using two racks 2 and 4

Frozen pies, angel food cake, yeast, bread, 1 or 2 casseroles, small cuts of meat or poultry

Turkey, roast or ham 1

Position

3 or 4

1 or 2

Single Oven Rack

Multiple Oven Racks

Rack positions

NOTE

Always use caution when removing food from the oven.

Page 12

BEFORE SETTING OVEN CONTROLS

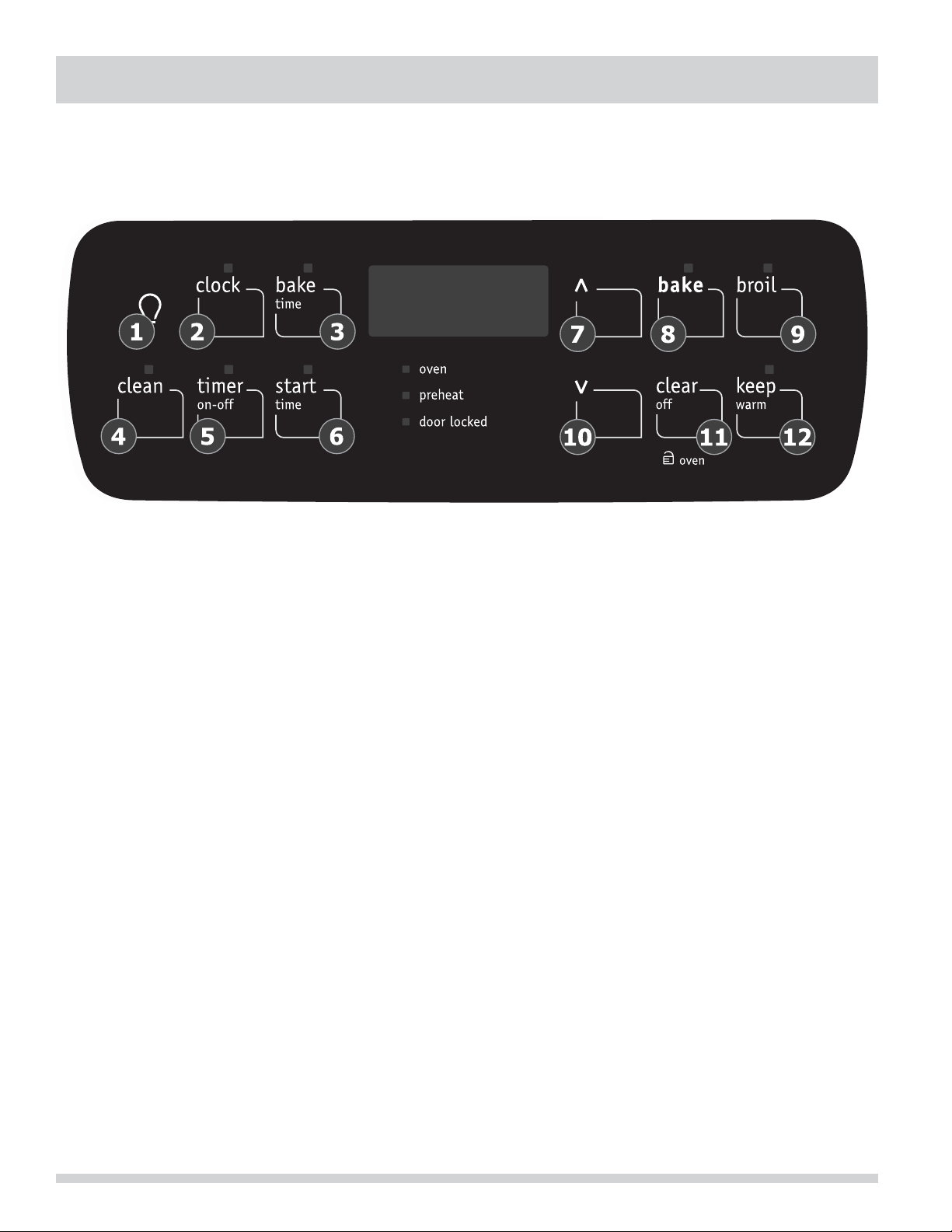

Control pad features

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various features and functions of the oven as described below. Detailed instructions for each feature and function follow later in this Use & Care Guide.

1. Oven interior light pad— Used to turn oven

interior light ON or OFF.

2. Clock set pad— Used to set the time of day.

3. Bake time pad— Used to enter the length of the

baking time.

4. Clean pad— Used to select the Self-Cleaning cycle.

5. Timer on-off pad— Used to set or cancel the

minute timer. The minute timer does not start or stop cooking. Also, TIMER pad is used to set the Continuous Bake feature.

6. Start time pad— Used to set the desired start time

for baking & Self-Clean. May be used with Bake Time to program a delayed bake or clean cycle.

7. Up arrow pad— Used along with the function pads

to select oven temperature, cook time, start time (when programming an automatic start time), time of day, clean time and minute timer.

8. Bake pad—Used to select the bake function.

9. Broil pad— Used to select the variable broil

function.

10. Down arrow pad— Used along with the function pads to select oven temperature, cook time, start time (when programming an automatic start time), time of day, clean time and minute timer.

11. Clear off pad— Used to clear any function previously entered except the time of day and minute timer. Press Clear to stop cooking. Also the Clear pad is used to activate oven lockout setting.

12. Keep warm pad— Use to keep the dishes and food warm until served.

Page 13

SETTING OVEN CONTROLS

TO SET THE CLOCK

When the range is ﬁ rst plugged in, or when the power supply to the range has been interrupted, the display will ﬂ ash "12:00".

1. Press CLOCK brieﬂ y (do not hold pad down).

2. Within 5 seconds, press and hold the or until the correct time of day appears in the display.

Note: The clock cannot be changed during any Bake

or Self-Clean cycle.

NOTE

The time of day • must ﬁ rst be set in order to operate the oven.

To turn the • time of day display OFF or ON in the

display press CLOCK and hold for 15 seconds (the control will beep once) and then release. This feature does not remove the set time of day from the memory of the control. When the display is turned OFF the time of day will reappear for a few seconds any time the

CLOCK pad is touched.

FOR A SILENT CONTROL PANEL

When choosing a function, a beep will be heard each time a pad is pressed. If desired, the control can be programmed for silent operation. Press and hold START TIME. After 7 seconds, the control will beep once. This will block the controls from sounding when a pad is pressed. To return the sound, press and hold DELAY

START again for 7 seconds until the control beeps once.

TO SET THE MINUTE TIMER:

1. Press TIMER on-off.

2. Press the increments. Press and hold the to increase the time in 10 minute increments. The timer can be set for any amount of time from 1 minute to 11 hours and 59 minutes.

Note: If the pad is pressed ﬁ rst, the timer will

advance to 11 hours and 59 minutes.

3. The display shows the timer countdown in minutes until 1 minute remains. Then the display will countdown in seconds.

4. When the set time has run out, the timer will beep 3 times. It will then continue to beep 3 times every 60 seconds until TIMER on-off is pressed.

NOTE

The indicator light located above the • TIMER on-off pad will glow while the minute timer is active.

The minute timer does not start or stop cooking. It •

serves as an extra timer in the kitchen that will beep when the set time has run out. The minute timer can be used alone or during any of the other oven functions. When the minute timer is in use with any other function, the minute timer will be shown in the display . T o view other functions, press the pad for that function.

To Change the Minute Timer while it is in use:

While the timer is active and shows in the display, press and hold the or to increase or decrease the time.

to increase the time in one minute

To Cancel the Minute Timer before the set time has run out:

Press TIMER on-off.

Page 14

SETTING OVEN CONTROLS

TO SET CONTROL FOR CONTINUOUS BAKE OR 12 HOUR ENERGY SAVING

The oven control has a built-in 12 Hour Energy Saving feature that will shut off the oven if the control is left on for more than 11 hours and 59 minutes. The oven can be programmed to override this feature for continuous baking.

To set control for continuous baking:

1. Press and hold TIMER on-off down for 5 seconds until tone is heard, " — — hr" will appear in display for continuous cooking. The current time of day will return to the display.

2. To cancel the Continuous Bake function, press TIMER on-off and hold for 5 seconds until tone is heard. "12hr" will appear in display indicating that the control has returned to the 12 Hour Energy Saving feature.

SETTING TEMPERATURE DISPLAY — FAHRENHEIT OR CELSIUS:

The BROIL and ARROW pads control the Fahrenheit or Celsius temperature display modes. The oven control can be programmed to display temperatures in Fahrenheit or Celsius. The oven has been preset at the factory to display in Fahrenheit. The oven can be programmed for any temperature from 170°F to 550° (77°C to 287°C).

To change display from Fahrenheit to Celsius or Celsius to Fahrenheit

1. Press BROIL. “- -” appears in the display.

2. Press and hold the until “Hi” appears in the display.

3. Press and hold BROIL until °F or °C appears in the display.

4. Press the or to change °F to °C or °C to °F.

5. Press any control pad to return to normal operating mode.

TO SET CONTROL FOR OVEN LOCKOUT

The control can be programmed to lock the oven control pads and lock the oven door

To set the Lockout feature:

1. Press CLEAR Off and hold for 3 seconds. “Loc” will appear in display, the “Door Locked” indicator light will ﬂ ash and the motor driven door lock will begin to close automatically. DO NOT open oven door while the indicator light is ﬂ ashing. Allow about 15 seconds for the oven door to lock. Once the oven door is locked, the current time of day will appear in the display.

2. To cancel the Lockout feature, press CLEAR Off and hold for 3 seconds. The control will unlock the oven door and resume normal operation.

NOTE

If any control pad is pressed while in the Oven Lockout mode, “Loc” will appear in the display until the control pad is released.

Page 15

SETTING OVEN CONTROLS

SETTING BAKE

The BAKE pad controls normal baking. The oven can be programmed to bake at any temperature from 170°F to 550°F.

Baking Tips:

• Preheat your oven before using the bake mode.

• Use only one rack and center the pans as much as possible on rack 2 or 3.

• If using two racks, place the oven racks in positions 2 and 4.

• Allow 2” to 4” (5,1 to 10,2cm) around the utensil(s) for proper air circulation.

• Be sure the pans do not touch each other, the door, sides or back of the oven.

To Set the Controls for Baking:

1. Press BAKE. “— — —” appears in the display.

2. Within 5 seconds, press the or . The display

will show “350°F (177°C)”. By pressing and holding the or , the temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).

3. 7 seconds after the or pad is released, the

oven will begin heating to the selected temperature. When the displayed temperature reaches the desired baking temperature, the preheat indicator light will turn OFF and the control will sound 3 beeps.

NOTE

Pressing CLEAR Off will stop the feature at any time.

To Change the Oven Temperature after Baking has Started:

1. Press BAKE.

2. Press the or pad to increase or decrease the

set temperature.

SETTING KEEP WARM

The Keep warm pad turns ON the Keep Warm feature and will maintain an oven temperature of 170°F (77°C). The Keep warm feature will keep oven baked foods warm for serving up to 3 hours after cooking has ﬁ nished. After 3 hours the Keep Warm feature will shut the oven OFF automatically. The Keep Warm feature may be used without any other cooking operations or can be used after cooking has ﬁ nished using Bake time or

Delayed timed BAKE.

To set Keep warm:

1. Arrange the interior oven racks and place baked food in the oven.

2. Press the Warm pad. "- -" will appear in the display and the Keep Warm indicator light above the pad will turn ON.

NOTE

If no further pads are touched within 6 seconds the request to turn ON Keep Warm will be cleared.

3. Press the or pad to start. "Hld" will be displayed.

4. To turn Keep Warm OFF at any time press the CLEAR Off pad. The Keep Warm indicator light above the pad will turn OFF.

To set Warm to turn ON automatically:

1. Arrange the interior oven racks and place food in the oven. Set the oven properly for Timed bake or Delayed timed Bake.

2. Press the Warm pad. "- -" will appear in the display and the Keep Warm indicator light above the pad will turn ON.

3. Press the or pad to start. Keep Warm is set to turn ON automatically after Timed Bake or Delayed Start Bake has ﬁ nished.

4. To turn Keep Warm OFF at any time press the CLEAR Off pad. The Keep Warm indicator light above the pad will turn OFF.

Page 16

SETTING OVEN CONTROLS

SETTING BAKE TIME

Bake Time allows the oven to be set to cook for a speciﬁ c length of time and shut off automatically.

The oven will shut off and will beep when the countdown is ﬁ nished.

To program the oven to begin baking immediately and to shut off automatically:

1. Be sure the clock is set for the correct time of day.

2. Arrange interior oven r ack(s) and place the food in the oven.

3. Press the BAKE pad. “— — —°” appears in the display.

4. Within 5 seconds, press the or pad. The display will show “350°F (177°C)”. By holding the or pad, the temperature can then be adjusted in 5°F increments (1° if the control is set to display Celsius).

5. Wait 7 seconds to accept the temperature.

6. Press the BAKE TIME pad. “0:00” will ﬂ ash in the display (MIN:SEC) and (HR:MIN) if programmed for more than 60 minutes.

7. Press the or pad until the desired baking time appears in the display.

8. The oven will turn ON and begin heating.

NOTE

Baking time can be set for any amount of time between 1 minute to 11 hours 59 minutes.

Press CLEAR Off when baking has ﬁ nished or at any time to cancel the Timed Bake feature.

When the timed bake ﬁ nishes:

1. “End” will show in display. The oven will shut off automatically.

2. The control will beep 3 times. The control will continue to beep 3 times every 30 seconds until

CLEAR Off is pressed.

SETTING START TIME

The automatic timer of the Start Time will turn the oven on and off at the time you select in advance.

NOTE

If your clock is set for normal 12 hour display mode the Delayed Timed Bake or Delayed Timed Convection Bake cycle can never be set to start more than 12 hours in advance. T o set for Delayed Timed Bake or Delayed Timed Convection Bake 12-24 hours in advance set the control for the 24 hour time of day display mode.

To program the oven for a delayed bake start time:

1. Be sure that the clock is set with the correct time of day.

2. Arrange interior oven r ack and place the food in the ov en.

3. Press the BAKE pad. “— — —°” appears in the display.

4. Within 5 seconds, press the or pad. The display will show “350°F (177°C). ” By holding the or pad, the temperature can then be adjusted in 5°F increments (1° if the control is set to display Celsius).

5. Wait 7 seconds to accept the temperature.

6. Press the START TIME pad. The earliest possible start time will appear in the display.

7. Press the or pad until the desired start time appears in the display and wait 7 seconds to accept.

NOTE

If it is desired to have the oven shut off automatically after a set time; enter a BAKE TIME at this step.

8. Once the controls are set, the control calculates the time when baking will start and stop.

9. The oven will turn ON at the delayed start time and begin heating.

Press CLEAR Off when baking has completed or at any time to cancel the Delayed Time Bake feature.

When the timed bake ﬁ nishes:

NOTE

After the Timed Bake feature has activated, press BAKE TIME to display the bake time remaining in the Bake Time

mode. Once Bake Time has started baking, a beep will sound when the oven temperature reaches the set temperature.

1. “End” will show in display. The oven will shut off

automatically.

2. The control will beep 3 times. The control will

continue to beep 3 times every 30 seconds until

CLEAR Off is pressed.

CAUTION

Use caution with the BAKE TIME and START TIME features. Use the automatic timer when cooking cured or frozen meats and most fruits and vegetables. Foods that can easily spoil such as milk, eggs, ﬁ sh, meat or poultry, should be chilled in the refrigerator ﬁ rst. Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed. Eating spoiled food can result in sickness from food poisoning.

Page 17

SETTING OVEN CONTROLS

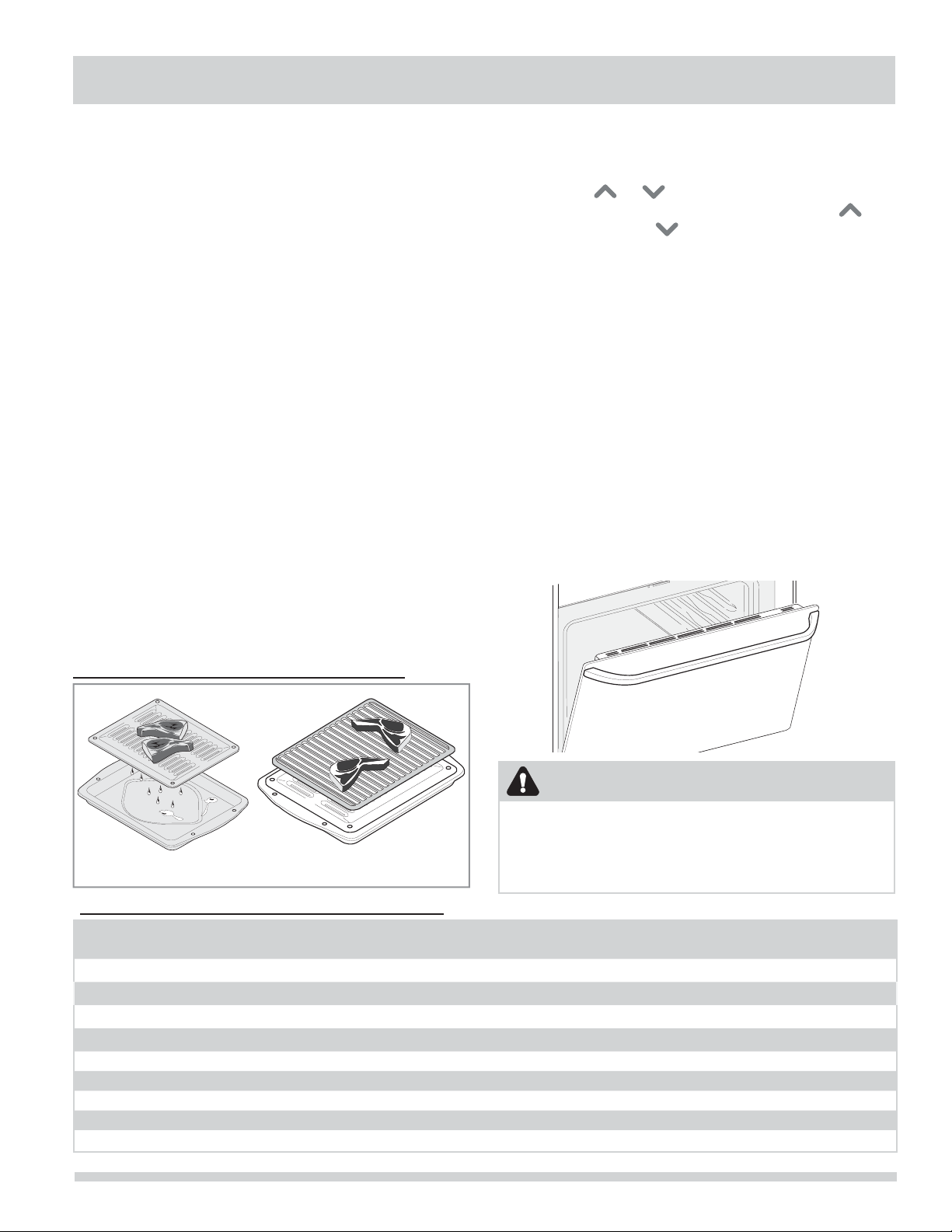

SETTING BROIL

This mode is best for meats, ﬁ sh and poultry up to 1” thick. Broiling is a method of cooking tender cuts of meat by direct heat under the broil element of the oven. The high heat cooks quickly and gives a rich, brown outer appearance. The BROIL pad controls the Broil feature. An optional Searing Grill, Broiler Pan and Insert are available via the enclosed accessories brochure (Figure 2 & 3). The optional broil pan and broil pan insert used together allow dripping grease to drain and be kept away from the high heat of the oven broiler. The oven can be programmed to broil at Lo (400°F) or Hi (550°F).

Broiling Tips:

• For optimum browning, preheat the broil element for 2 minutes.

• Broil one side until the food is browned; turn and cook on the second side. Season and serve.

• Always pull the rack out to the “stop” position before turning or removing food.

• Always use the broiler pan and its cover when broiling. It allows the dripping grease to be kept away from the high heat of the broil element (see Figure 2).

• For best broiling results, broil with the oven door in the broil stop position (see Figure 1).

• If using a Searing Grill (available by mail order), preheat the grill for 5 to 10 minutes before placing your meat.

• DO NOT use the broil pan without the insert. DO NOT cover the broil pan insert with foil. The exposed grease could catch ﬁ re.

Accessories available via the enclosed brochure:

Broiler Insert

Searing Grill

To set a Broil:

1. Arrange the interior oven rack

2. Press the BROIL pad. “- -” will appear in the display.

3. Press the or pad until the desired broil setting level appears in the display. Press the pad for HI broil or the pad for LO broil. Most foods may be broiled at the HI broil setting. Select the LO broil setting to avoid excess browning or drying of foods that should be cooked to the well-done stage.

4. Preheat for 2 minutes before broiling.

5. Place the broiler pan insert on the broiler pan. Then place the food on the broiler pan insert. DO NOT use the broiler pan without the insert. DO NOT cover the broiler insert with foil. The exposed grease could ignite.

6. Place the broiler pan on the oven rack. Be sure to center the broiler pan directly under the broiler element. Make sure the oven door is in the broil

stop position (See Figure 1).

7. Broil on one side until food is browned; turn and cook on the second side. Season and serve. Note: Always pull the rack out to the stop position before turning or removing food.

8. To stop broiling press CLEAR Off.

Broil stop position

WARNING

Should an oven ﬁ re occur , leave the oven door closed and

Broiler Pan

Figure 2 Figure 3

Electric Oven Broiling Table Recommendations

Food Item

Steak 1” thick 3rd or 4th HI 6:00 4:00 Rare

Pork Chops 3/4” thick 3rd or 4th HI 8:00 6:00 Well Chicken - Bone In 3rd LO 20:00 10:00 Well Chicken - Boneless 3rd or 4th LO 8:00 6:00 Well

Fish 3rd HI 13:00 - Well Shrimp 3rd HI 5:00 - Well Hamburger 1” thick 3rd or 4th HI 9:00 7:00 Medium

Rack

Position

3rd or 4th HI 7:00 5:00 Medium

3rd or 4th HI 10:00 8:00 Well

Broiler Pan & Insert

Temperature

Setting

turn off the oven. If the ﬁ re continues, throw baking soda on the ﬁ re or use a ﬁ re extinguisher . DO NOT put water or ﬂ our on the ﬁ re. Flour may be explosive and water can cause a grease ﬁ re to spread and cause personal injury.

Cook Time

1st side 2nd side

Doneness

Page 18

SETTING OVEN CONTROLS

ADJUSTING OVEN TEMPERATURE

Your oven control has been precisely set at the factory. This setting may differ from your previous oven however, so your recipe times may not give you the results you expect. If you think that the oven is cooking too hot or too cool for your recipe times, you can adjust the control so that the oven cooks hotter or cooler than the temperature displayed.

NOTE

Oven temperature adjustments made will not change the Self-Clean feature temperature.

To adjust the oven temperature

1. Press BAKE.

2. Set the temperature to 550°F (287°C) by pressing and holding the .

3. Within 2 seconds, press and hold BAKE until the 2 digit display appears. Release BAKE. The display now indicates the amount of degrees offset between the original factory temperature setting and the current temperature setting. If the oven control has the original factory calibration, the display will read “0”.

4. The temperature can now be adjusted up or down 35°F or 19°C, in 5°F or 1°C steps by pressing and holding the or . Adjust until the desired amount of offset appears in the display. When lowering the oven temperature, a minus sign (-) will appear before the number to indicate that the oven will be cooler by the displayed amount of degrees.

5. When you have made the desired adjustment, press

CLEAR Off to go back to the time of day display.

OVEN LIGHT

The oven is equipped with 2 oven lights. The oven lights will turn on automatically, when the oven door is opened.

The oven light may be turned on when the door is closed by using the oven light pad located on the control panel. The oven light key will toggle the lights at full intensity.

To toggle the Oven Lights ON and OFF:

1. Press OVEN LIGHT . The interior oven lights are covered with a glass shield held

by a wire holder . The glass shield must be in place whenever the oven is in use.

T o change the interior o ven lights, see “Changing the oven light” in the Care & Cleaning section.

Page 19

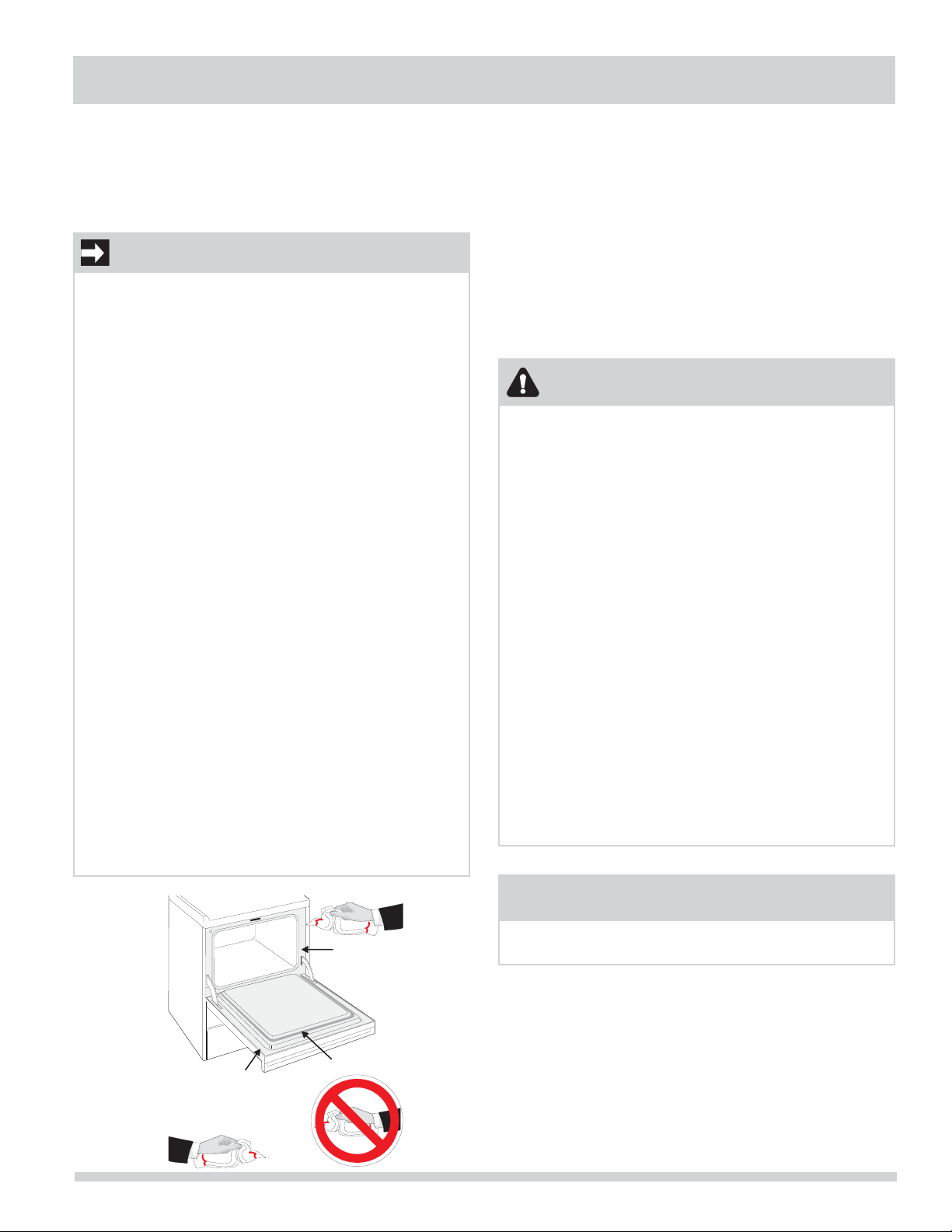

SELF-CLEANING

A self-cleaning oven cleans itself with high temperatures (well above normal cooking temperatures) which eliminate soils completely or reduces them to a ﬁ ne powdered ash you can wipe away with a damp cloth.

IMPORTANT

Adhere to the following cleaning precautions:

• DO NOT use oven cleaners or oven protective

coatings in or around any part of the oven interior.

• DO NOT clean the oven door gasket. The woven material of the oven door gasket is essential for a good seal. Care should be taken not to rub, damage or remove the gasket.

• DO NOT use any cleaning materials on the oven door gasket. Doing so could cause damage.

• Remove the broiler pan and insert, all utensils and ANY ALUMINUM FOIL. These items cannot withstand high cleaning temperatures and will melt.

• Completely remove ALL OVEN RACKS and ANY ACCESSORIES. If the oven racks are not removed, they will lose their special coating properties and will no longer slide in and out of the oven cavity effortlessly.

• Remove any excessive spillovers in the oven

cavity before starting the Self-Cleaning cycle. To clean, use hot, soapy water and a cloth. Large spillovers can cause heavy smoke or ﬁ re when subjected to high temperatures. DO NOT allow food spills with a high sugar or acid content (such as milk, tomatoes, sauerkraut, fruit juices or pie ﬁ lling) to remain on the surface as they may leave a dull spot even after cleaning.

• Clean any soil from the oven frame, the door liner outside the oven door gasket and the small area at the front center of the oven bottom. These areas heat sufﬁ ciently to burn soil on. Clean with soap and water.

What to Expect during Cleaning

While the oven is in operation, the oven heats to temperatures much higher than those used in normal cooking. Sounds of metal expansion and contraction are normal. Odor is also normal as the food soil is being removed. Smoke may appear through the oven vent.

If heavy spillovers are not wiped up before cleaning, they may ﬂ ame and cause more smoke and odor than usual. This is normal and safe and should not cause alarm. If available, use an exhaust fan during the self-cleaning cycle.

CAUTION

To avoid possible burns use care when opening the oven door after the Self-Cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or steam to escape.

During the Self-Cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave small children unattended near the appliance.

The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning cycle of any range. Move birds to another well-ventilated room.

DO NOT line the oven walls, racks, bottom or any other part of the range with aluminum foil. Doing so will destroy heat distribution, produce poor baking results and cause permanent damage to the oven interior (aluminum foil will melt to the interior surface of the oven).

DO NOT force the oven door open. This can damage the automatic door locking system. Use caution when opening the door after the Self-Cleaning cycle is completed. The oven may still be VERY HOT.

DO HAND

CLEAN DOOR

DO HAND

CLEAN FRAME

DO NOT HAND

CLEAN OVEN

DOOR GASKET

NOTE

See additional cleaning information for the oven door in the General Care & Cleaning section.

Page 20

SELF-CLEANING

SELF-CLEAN TIME LENGTH

For satisfactory results, use a 2 hour Self-Clean cycle for light soils and a 3 hour cycle for average or a 4 hour cycle for heavy soils.

NOTE

The kitchen area should be well ventilated using an open window, ventilation fan or exhaust hood during the Self-Clean cycle. This will help eliminate the normal odors associated with the Self-Clean cycle.

To Set the Controls for a Self-Clean Cycle or a Delayed Start Self-Clean Cycle:

NOTE

If you do not want to start a Delayed Self-Clean Cycle, skips steps 2 & 3.

1. Be sure the clock shows the correct time of day.

2. Press START TIME. The “ : “ in the time of day will ﬂ ash.

3. Press and hold the pad to scroll to the time to start the delayed Self-Clean cycle. Release the pad when the desired time is displayed.

4. Press CLEAN. “— — —” appears in the display.

5. Press the or once. “3:00” appears in the display for a 3 hour cycle. To change to a 2 hour cycle press . “2:00” appears in the display or to select a 4 hour cycle press . “4:00” appears in the display.

As soon as the controls are set, the motor driven

lock will begin to close automatically and the “DOOR LOCK” indicator light will ﬂ ash. DO NOT open the oven door while the light is ﬂ ashing (it takes about 15 seconds for the oven door to lock).

6. “CLn” will appear in the display during the Self-Clean cycle and the “DOOR LOCK” light will glow until the Self-Cleaning cycle is complete or cancelled and the oven temperature has cooled.

When the Self-Clean Cycle is Completed:

1. The time of day or “End” will appear in the display window and the “Clean” and “DOOR LOCK” light will continue to glow.

2. Once the oven has cooled down for about 1 HOUR and the “DOOR LOCK” light has gone out, the oven door can be opened.

3. If “End” is in the display and the Select Clean indicator light remains ON, press CLEAR. The time of day will appear in the display.

NOTE

When the oven is cool, wipe away any residue or powdered ash with a damp cloth or paper towel.

Stopping or Interrupting a Self-Cleaning Cycle:

If it becomes necessary to stop or interrupt a SelfCleaning cycle:

1. Press CLEAR.

2. Once the oven has cooled down for about 1 HOUR and the “DOOR LOCK” light has gone out, the oven door can be opened.

3. Restart the Self-Clean cycle once all conditions have been corrected.

CAUTION

To avoid possible burns use care when opening the oven door after the Self-Cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or steam to escape.

DO NOT force the oven door open. This can damage the automatic door locking system. Use caution when opening the door after the Self-Cleaning cycle is completed. The oven may still be VERY HOT.

Page 21

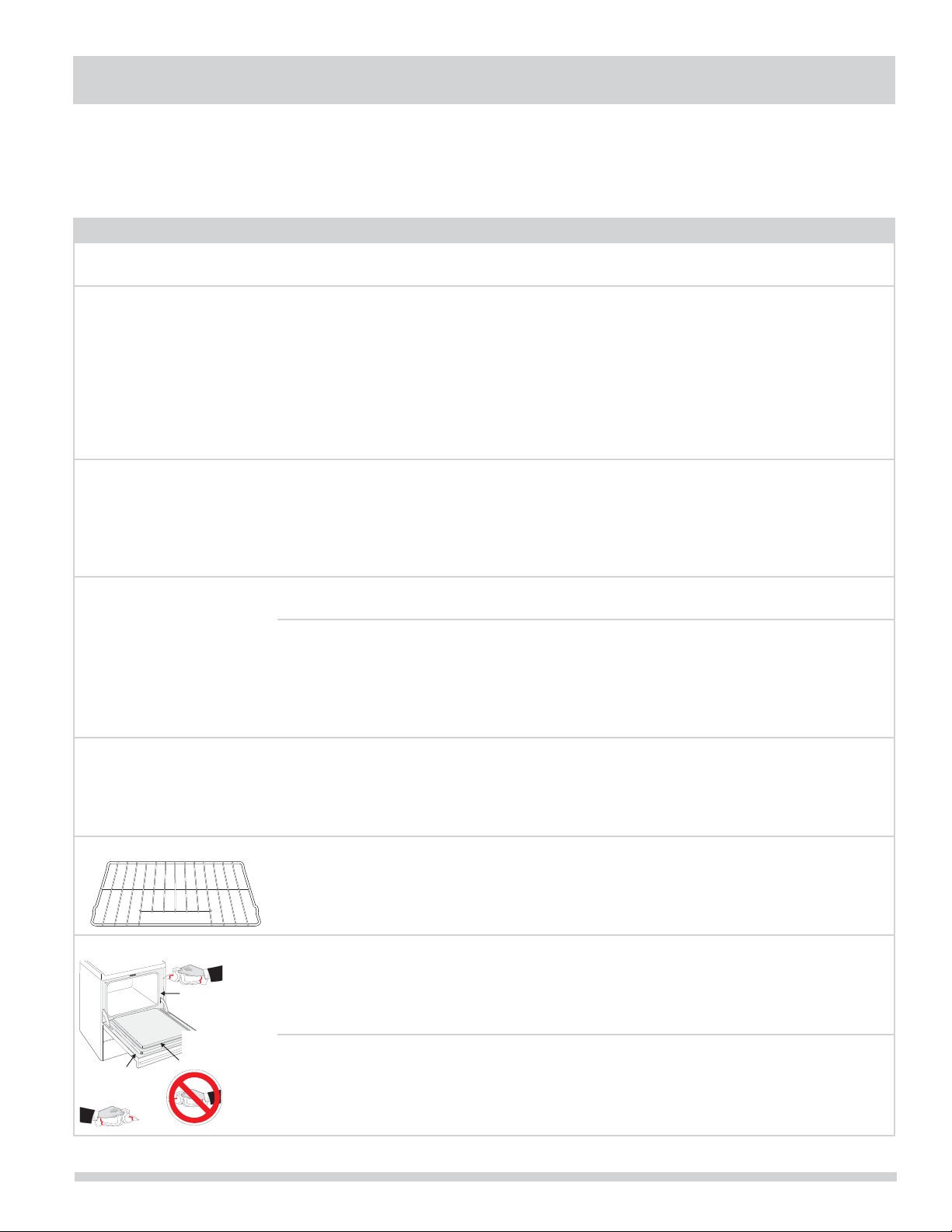

CARE & CLEANING (Cleaning Chart)

Cleaning various parts of your appliance

Before cleaning any part of the appliance, be sure all controls are turned off and the appliance is COOL. REMOVE SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANING WILL REDUCE THE NUMBER OF MAJOR CLEANING LATER.

Surfaces How to Clean Aluminum (trim pieces) &

Vinyl Glass, Painted and Plastic

Body Parts, Control Knobs & Decorative Trim Pieces

Control Panels Before cleaning the control panel, turn all controls to OFF and remove the control

Porcelain Enamel Burner Grates, Cooktop

Surface, Below Cooktop, Broiler Pan & Insert (some models), Door Liner, Oven Bottom & Burner Drip Pans

Stainless Steel (some models) Oven Door & Drawer Front Panel and Decorative Trim

Oven Racks Remove racks. See «To remove and to replace an oven rack» under Oven vent(s) and

Oven Door

DO HAND

CLEAN FRAME

DO NOT HAND

CLEAN OVEN

DOOR GASKET

DO HAND

CLEAN DOOR

Use hot, soapy water and a cloth. Dry with a clean cloth.

Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of vinegar and water. Follow by rinsing the area with clean water; dry and polish with a soft cloth. Glass cleaners may be used if sprayed on a soft cloth ﬁ rst. DO NOT spray liquids directly on the control pad and display area. Do not use large amounts of water on the control panel - excess water on the control area may cause damage to the appliance. Do not use other liquid cleaners, abrasive cleaners, scouring pads, or paper towels - they will damage the ﬁ nish. To remove control knobs, turn to the OFF position; grasp ﬁ rmly and pull straight off the shaft. To replace knobs after cleaning, line up the ﬂ at sides of both the knob and the shaft; then push the knob into place.

knobs. To remove, pull each knob straight off the shaft. Clean as instructed above. Squeeze excess water from the cloth before wiping the panel; especially when wiping around the controls. Excess water in or around the controls may cause damage to the appliance. To replace knobs after cleaning, line up the ﬂ at sides of both the knob and the shaft; then push the knob into place.

Clean burner grates, broiler pan and insert (some models) in the dishwasher and dry upon removal. If soils are not removed, follow the cooktop cleaning instructions below.

Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution of clear water and ammonia. If necessary, cover difﬁ cult spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, then scrub with a soap-ﬁ lled scouring pad. Rinse and wipe dry with a clean cloth. Remove all cleaners or the porcelain may become damaged during future heating. DO NOT use spray oven cleaners on the cooktop.

Clean stainless steel with hot, soapy water and a dishcloth. Rinse with clean water and a cloth. Do not use cleaners with high concentrations of chlorides or chlorines. Do not use harsh scrubbing cleaners. Only use kitchen cleaners that are especially made for cleaning stainless steel. Always be sure to rinse the cleaners from the surface as bluish stains may occur during heating that cannot be removed.

racks. Use a mild, abrasive cleaner, following manufacturer’s instructions. Rinse with clean water and dry. After cleaning the racks, rub the sides of the racks with wax paper or a cloth containing a small amount of baby oil or salad oil (this will make the racks glide easier into the rack positions).

Use soap & water to thoroughly clean the top, sides and front of the oven door. Rinse well. You may use a glass cleaner on the outside glass of the oven door. DO NOT immerse the door in water. DO NOT spray or allow water or the glass cleaner to enter the door vents. DO NOT use oven cleaners, cleaning powders or any harsh abrasive cleaning materials on the outside of the oven door.

DO NOT clean the oven door gasket. The oven door gasket is made of a woven material, on Self-Cleaning models, which is essential for a good seal. Care should be taken not to rub, damage or remove this gasket.

Page 22

CARE & CLEANING

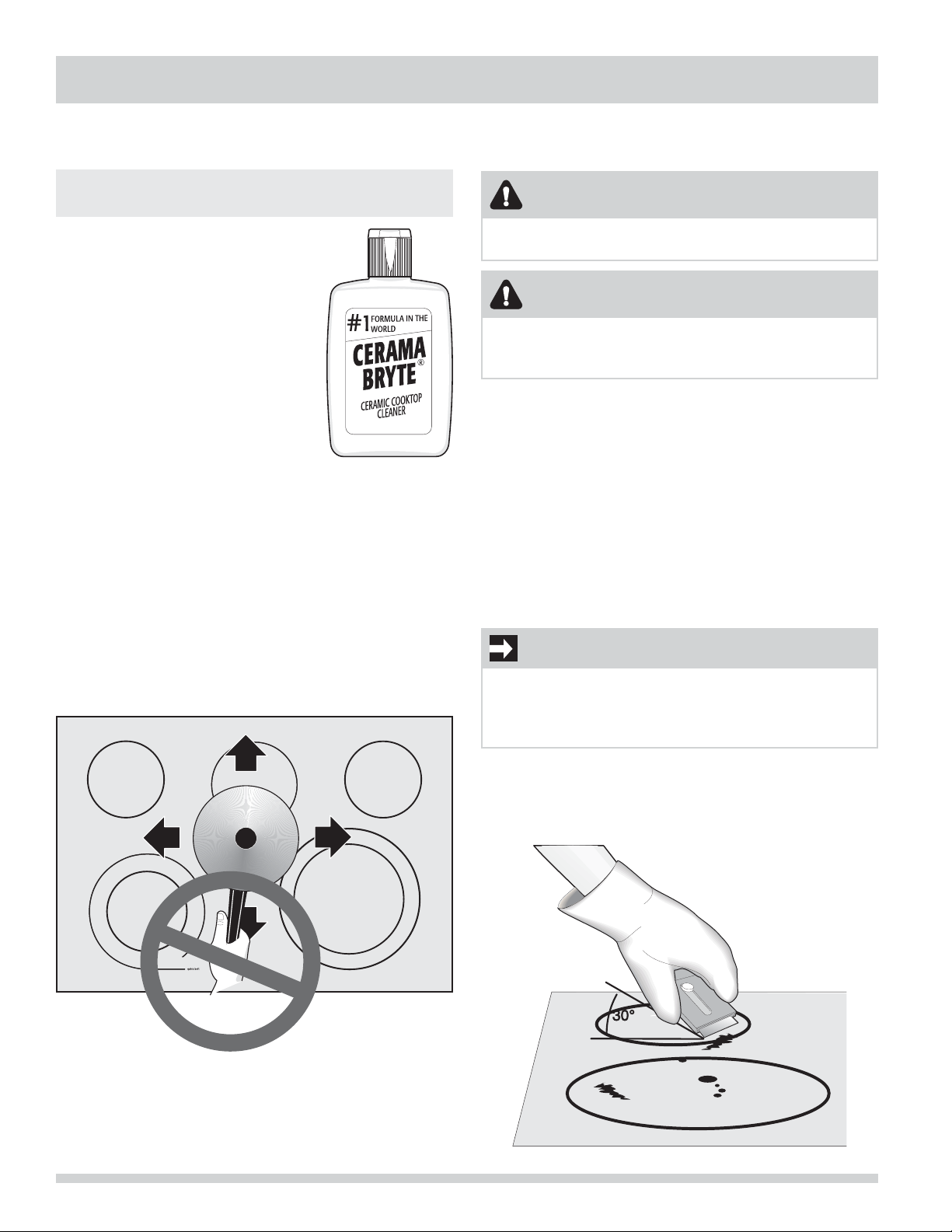

Ceramic glass cooktop cleaning & maintenance

Consistent and proper cleaning is essential to

maintaining your Ceramic glass cooktop.

Prior to using your cooktop for the ﬁ rst time, apply the recommended CERAMA BRYTE® Cleaning Creme to the ceramic surface. Clean and buff with a non abrasive cloth or pad. This will make cleaning easier when soiled from cooking. The special cooktop cleaning cream leaves a protective ﬁ nish on the glass to help prevent scratches and abrasions.

Sliding aluminum or copper clad bottom pans on the cooktop can cause metal markings on the cooktop surface. These marks should be removed immediately after the cooktop has cooled using the cooktop cleaning cream. Metal marks can become permanent if not removed prior to future use.

Cookware (cast iron, metal, ceramic or glass) with rough bottoms can mark or scratch the cooktop surface. Do

not slide anything metal or glass across the cooktop. Do not use your cooktop as a cutting board or work

surface in the kitchen. Do not cook foods directly on the cooktop surface without a pan. Do not drop heavy or hard objects on the glass cooktop, or they may crack it.

Cleaning recommendations for the ceramic glass cooktop

CAUTION

Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.

WARNING

DO NOT use a cooktop cleaner on a hot cooktop.

The fumes can be hazardous to your health, and can chemically damage the ceramic glass surface.

For light to moderate soil:

Apply a few drops of CookTop® Cleaning Creme directly to the cooktop. Use a paper towel or use a non- abrasive plastic type no-scratch pad to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly, leaving no residue.

For heavy, burned on soil:

Apply a few drops of CookTop® Cleaning Creme directly to the soiled area. Rub the soiled area using a non- abrasive plastic type no-scratch pad, applying pressure as needed. Do not use the pad you use to clean the cooktop for any other purpose.

IMPORTANT

Damage to the ceramic glass cooktop may occur if you use an abrasive type scratch pad. Only use cleaning products that have been speciﬁ cally designed for ceramic glass cooktop.

If soils remain, carefully scrape soils with a metal razor blade scraper, holding scraper at a 30 degree angle to the surface. Remove loosened soils, then apply a few drops of cleaning cream and buff surface clean.

Page 23

CARE & CLEANING

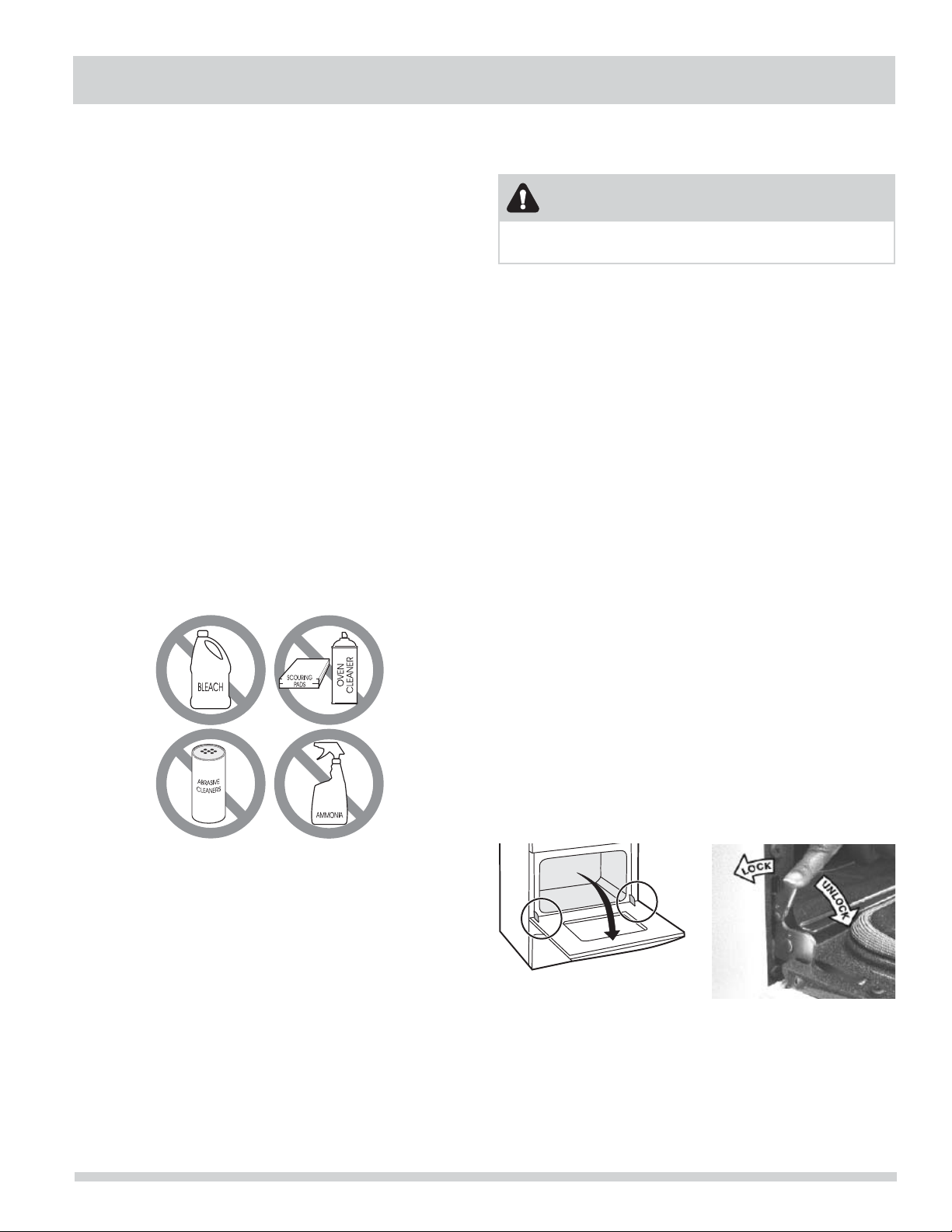

Cleaning recommendations for the ceramic glass cooktop (continued)

Plastic or foods with a high sugar content:

These types of soils need be removed immediately if spilled or melted onto the ceramic cooktop surface. Permanent damage (such as pitting of the cooktop surface) may occur if not removed immediately. After turning the surface elements OFF, use a razor blade scraper or a metal spatula with a mitt and scrape the soil from the hot surface (as illustrated). Allow the cooktop to cool, and use the same method for heavy or burned on soils.

Do not use the following on the ceramic glass cooktop:

• Do not use abrasive cleaners and scouring pads, such as metal and some nylon pads. They may scratch the cooktop, making it more difﬁ cult to clean.

• Do not use harsh cleaners, such as chlorine bleach, ammonia or oven cleaners, as they may etch or discolor the cooktop.

• Do not use dirty sponges, cloths or paper towels, as they can leave soil or lint on the cooktop which can burn and cause Special Caution for Aluminum Foil and Aluminum Cooking Utensils

Removing and replacing the lift-off oven door

CAUTION

The door is heavy. For safe, temporary storage, lay the door ﬂ at with the inside of the door facing down.

To Remove Oven Door:

1. Open oven door completely (horizontal with ﬂ oor -

See Figure 1).

2. Pull the door hinge locks on both left and right door hinges down from the oven frame completely towards the oven door (See Figure 2). A tool such as a small ﬂ at-blade screwdriver may be required.

3. Firmly grasp both sides of oven door along the door sides (Do not use the oven door handle - See Figure 3).

4. Close the door to the broil stop position (the oven door will stop into this position just before fully closing).

5. With the oven door in the broil stop position, lift the oven door hinge arms over the roller pins located on each side of the oven frame (See Figure 4).

To Replace Oven Door:

1. Firmly grasp both sides of oven door along the door

sides (Do not use the oven door handle - See Figure 3).

2. Holding the oven door at the same angle as the removal position, seat the hook of the hinge arm over the roller pins located on each side of the oven door frame (See Figure 4). The hook of the hinge arms must be fully seated onto the roller pins.

3. Fully open the oven door (horizontal with ﬂ oor - See Figure 1).

4. Push the door hinge locks up towards and into the oven frame on both left and right oven door hinges (See Figure 2) to the locked position.

5. Close the oven door.

• Aluminum foil

Use of aluminum foil will damage the cooktop. Do not

use under any circumstances.

• Aluminum utensils

Since the melting point of aluminum is much lower

than that of other metals, care must be taken when aluminum pots or pans are used. Pans that boil dry may permanently damage cooktop by breaking, fusing to, or marking it.

Care and cleaning of stainless steel

Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the appearance of stainless parts. Refer to the General Care & Cleaning table for detailed cleaning instructions.

Door Hinge locations

with oven door fully open

Figure 1

Figure 2

Page 24

CARE & CLEANING

Around

Changing oven light

CAUTION

Oven door

Hinge

Figure 3 Figure 4

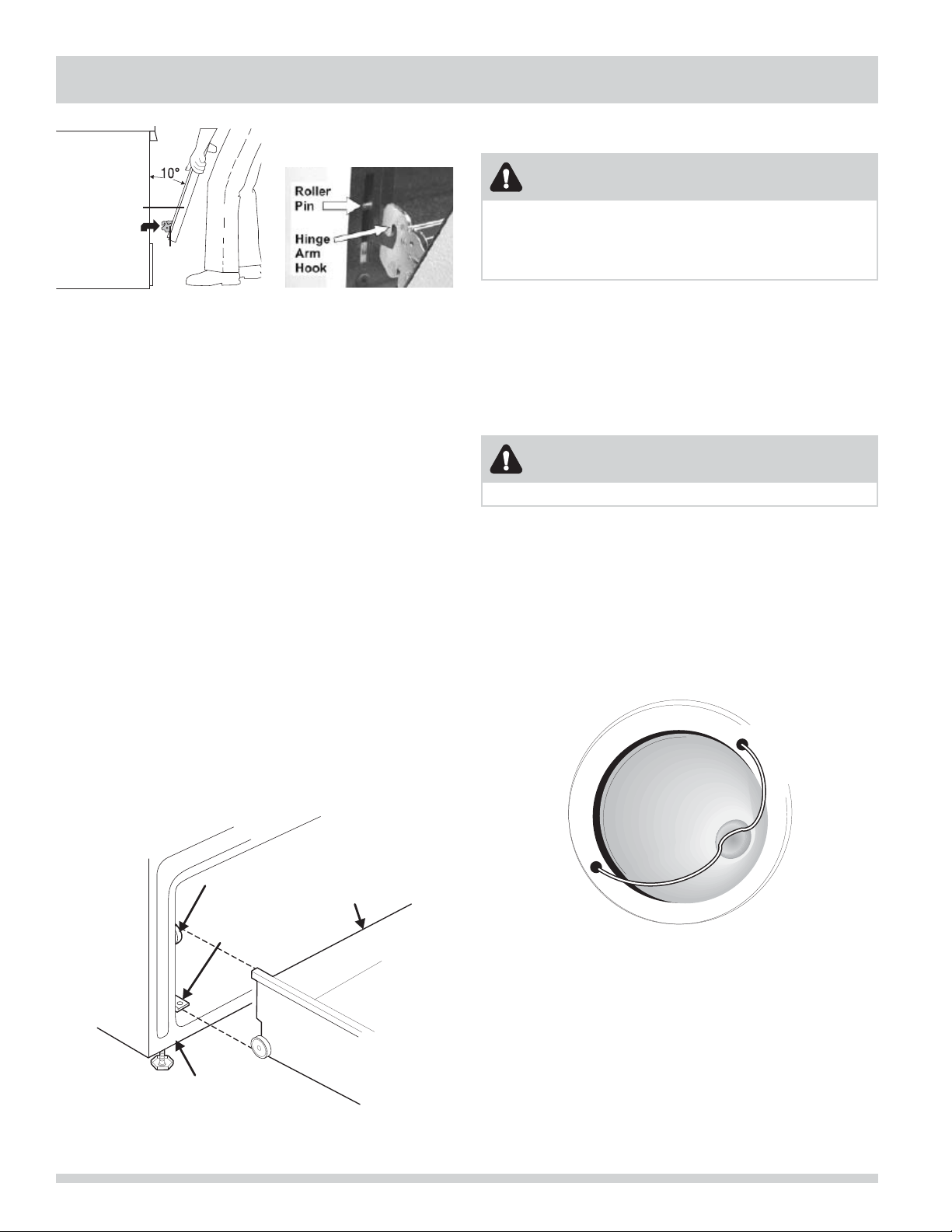

Special door care instructions - Most oven

doors contain glass that can break. Read the following recommendations:

1. Do not close the oven door until all the oven racks are fully in place.

2. Do not hit the glass with pots, pans, or any other object.

3. Scratching, hitting, jarring or stressing the glass may weaken its structure causing an increased risk of breakage at a later time.

To remove and replace storage drawer

Use the storage drawer for storing cooking utensils. The drawer can de removed to facilitate cleaning under the range. Use care when handling the drawer.

Removing and Replacing Storage Drawer To remove the drawer:

1. Pull empty drawer out to the roller guide stop.

2. Tilt the drawer up and pull it out over the rollers.

To replace the drawer:

1. Insert the rear end of the drawer into the opening.

2. Fit the drawer end rollers onto the guide rails.

3. Push the drawer in until it stops, then lift to allow the

rollers to clear the roller guide stop, and push in.

Be sure the oven is unplugged and all parts are COOL before replacing the oven light bulb. Do not turn the oven light on during a self-cleaning cycle. High temperature will reduce lamp life.

On some models an interior oven light will turn on automatically when the oven is opened. The oven light may be turned on when the door is closed by using the oven light switch located on the Electronic Oven control. The oven light bulb is covered with a glass shield held in place by a wire holder. THIS GLASS SHIELD MUST ALWAYS BE IN PLACE WHEN THE OVEN IS IN USE.

CAUTION

BE SURE OVEN IS COOL

To Replace the Light Bulb:

1. Turn the power off at the main source.

2. Wear a leather-faced glove for protection against

possible broken glass.

3. Replace bulb with a 40 Watt appliance bulb only.

4. For self-cleaning oven, press wire holder to one side

to release glass shield, change bulb and be sure to replace glass shield.

Roller Storage

Drawer Roller Guide

Front Frame

Page 25

BEFORE YOU CALL (Solutions to Common Problems)

Oven baking

For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the oven for roasting meat or baking casseroles.

The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.

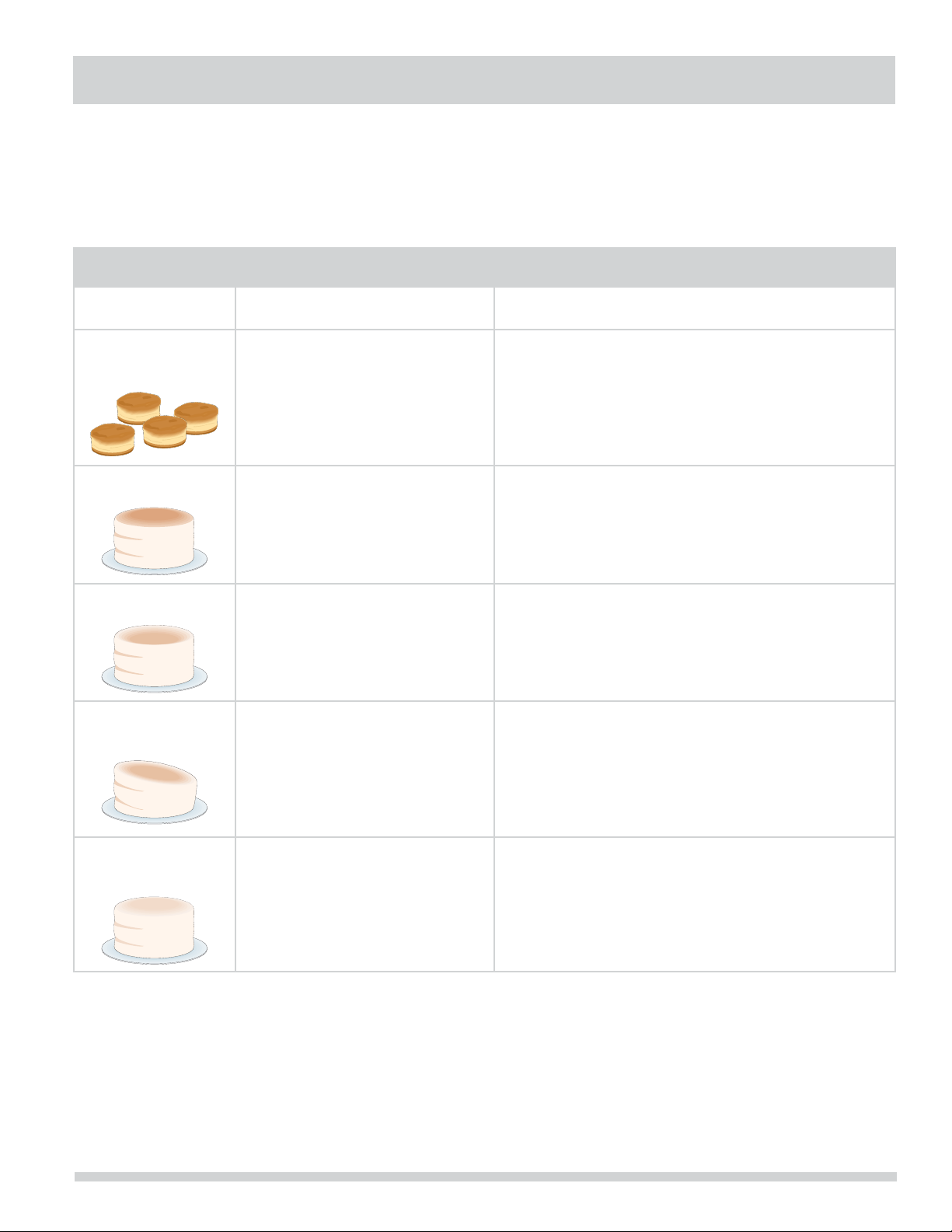

Baking Problems and Solutions Chart

Baking Problems

Cookies and biscuits burn on the bottom.

Cakes too dark on top or bottom.

Cakes not done in the center.

Cakes not level. • Range not level.

Foods not done when cooking time is up.

Causes Corrections

• Cookies and biscuits put into the oven before the preheating time is completed.

• Oven rack overcrowded.

• Dark pan absorbs heat too fast.

• Cakes put into the oven before preheating time is completed.

• Rack position too high or low.

• Oven too hot.

• Incorrect pan size.

• Pan not centered in oven.

• Pan too close to oven wall or rack overcrowded.

• Pan warped.

• Oven too cool.

• Oven overcrowded.

• Oven door opened too frequently.

• Allow oven to preheat to the selected temperature before placing food in oven.

• Choose pan sizes that will permit 5.1cm to 10.2cm (2” to 4”) of air space on all sides when placed in the oven.

• Use a medium-weight aluminum baking sheet.

• Allow oven to preheat to the selected temperature before placing food in the oven.

• Use proper rack position for baking needs.

• Set oven temperature 25°F/12°C lower than recommended.

• Use pan size suggested in recipe.

• Use proper rack position and place pan so there is

5.1cm to 10.2cm (2” to 4”) of space on all sides of pan.

• Place a marked glass measuring cup ﬁ lled with water on the center of the oven rack. If the water level is uneven, refer to the installation instructions for leveling the range.

• Be sure to allow 5.1cm to 10.2cm (2” to 4”) of clearance on all sides of each pan in the oven.

• Do not use pans that are dented or warped.

• Set oven temperature 25°F/12°C higher than suggested and bake for the recommended time.

• Be sure to remove all pans from the oven except the ones to be used for baking.

• Open oven door only after shortest recommended baking time.

Page 26

BEFORE YOU CALL (Solutions to Common Problems)

IMPORTANT

Before you call for service, review this list. It may save you time and expense. The list includes common

occurrences that are not the result of defective workmanship or materials in this appliance.

OCCURRENCE POSSIBLE CAUSE/SOLUTION Range is not level. Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust

leveling legs at base of range until the rack is level. When range is level, cooktop may appear out of alignment if countertop is not level.

Weak, unstable ﬂ oor. Be sure ﬂ oor is level and can adequately support range. If ﬂ oor is sagging or slopping, contact a carpenter to correct the situation.

Kitchen cabinet misalignment may make range appear to be unlevel. Be sure cabinets are square and have sufﬁ cient room for range clearance.

Cannot move appliance easily. Appliance must be accessible for service.

Entire range or oven does not operate.

Oven control beeps and displays any F code error (ex.: F11)

Oven light does not work.

Surface unit does not heat.

Surface units too hot or not hot enough.

Drip bowls are pitting or rusting.

Drip bowls turning color or distorted out of shape.

Metalmarks. Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils on

Cabinets not square or are built in too tight. Contact a cabinet maker to correct the problem. Contact builder or installer to make appliance accessible. Carpet interferes with range. Provide sufﬁ cient space so range can be lifted over carpet. Gas line is hard-plumbed. Have a ﬂ exible C.S.A international approved metal appliance

connector installed. Make sure cord/plug is plugged tightly into outlet. Service wiring is not complete. Call an authorized servicer. Electrical power outage. Check house lights to be sure. Call your local electric company for

service. Electronic control has detected a fault condition. Press CLEAR to clear the display and stop

beeping. Reprogram oven. If fault recurs, record fault number. Press CLEAR and call an authorized servicer for assistance.

Replace or tighten bulb. See Changing Oven Light section in this Use & Care Guide. Electrical power outage. Check house lights to be sure. Call your local electric company for service. No power to the appliance. Check steps under "Entire Range or Oven Does Not Operate" in

this Before you Call checklist. Incorrect control setting. Make sure the correct control is on for the surface unit to be used. Incorrect control setting. Make sure the correct control is on for the surface unit to be used. Lightweight or warped pans used. Use only ﬂ at, evenly balanced, medium or heavyweight

cookware. Flat pans heat better than warped pans. Cookware materials and weight of the material affect heating. Heavy-and medium- weight pans heat evenly. Because lightweight pans heat unevenly, foods may burn easily.

Foods with acids, such as tomatoes, if allowed to stand in/on bowls will cause corrosion. Remove and wash drip bowls as soon as possible after spillover.

Normal environment. Houses along sea coast are exposed to salt air. Protect bowls as much as possible from direct exposure to salt air.

Bottom surface of cookware extends beyond surface elements and touches cooktop surface. This can cause high enough temperatures to discolor the drip bowls. DO NOT use cookware of this type. Pan sizes should be matched to the size of the element. Replacement drip bowls may be purchased from your dealer.

cooktop surface. Use a ceramic-glass cooktop cleaning cream to remove the marks. "Cooktop Cleaning - Ceramic Glass Cooktop Models" section under General Cleaning.

Page 27

BEFORE YOU CALL (Solutions to Common Problems)

OCCURRENCE POSSIBLE CAUSE/SOLUTION Scratches or

abrasions on cooktop surface.

Brown streaks or specks.

Areas of discoloration with metallic sheen.

Poor baking results. Many factors affect baking results. Make sure the proper rack position is used. Center

Fan noise during cooking operation.

Flames inside oven or smoking from vent.

Oven smokes excessively during broiling.

Self-cleaning cycle does not work.

Soil not completely removed after selfcleaning cycle.

Excessive smoking from oven vent.

Coarse particles such as salt or sand between cooktop and utensils can cause scratches. Be sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not affect cooking and will become less visible with time.

Cleaning materials not recommended for ceramic-glass cooktop have been used. See "Cooktop Cleaning - Ceramic Glass Cooktop Models" section under General Cleaning.

Cookware with rough bottom has been used. Use smooth, ﬂ at-bottomed cookware. Boilovers are cooked onto surface. Use razor blade scraper to remove soil. "Cooktop

Cleaning - Ceramic Glass Cooktop Models" section under General Cleaning. Mineral deposits from water and food. Remove using a ceramic-glass cooktop cleaning

cream. Use cookware with clean, dry bottoms.

food in the oven and space pans to allow air to circulate. Allow the oven to preheat to the set temperature before placing food in the oven. Try adjusting the recipes’ recommended temperature or baking time. If you feel the oven is too hot or cool, see "Adjusting Your Oven Temperature" section in the Electronic Oven Control Guide.

A cooling fan may automatically turn on and off to cool internal parts. It is normal, and the fan may continue to run even after oven is turned off.

Excessive spillovers in oven. Set self-clean cycle for a longer cleaning time. Excessive spillovers in oven. This is normal, especially for pie spillovers or large amounts of

grease on the oven bottom. Wipe up excessive spillovers before starting the self-clean cycle. If ﬂ ames or excessive smoke are present, stop the self-clean cycle and follow the steps under "Stopping or Interrupting the Self-Cleaning Cycle" in the Electronic Oven Control Guide.

Control(s) not set properly. Follow instructions under "Setting Oven Controls". Make sure oven is opened to Broil Stop Position. Meat too close to the element. Reposition the rack to provide proper clearance between the

meat and the element. Preheat broil element. Preheat broil element for searing. Grid on broiler pan wrong side up and grease not draining. Always place grid on the broiler

pan with ribs up and slots down to allow grease to drip into pan. Grease has built up on oven surfaces. Regular cleaning is necessary when broiling

frequently. Old grease or food spatters cause excessive smoking. Control(s) not set properly. Follow instructions under "Oven Cleaning" in the Electronic Oven

Control Guide. Control(s) not set properly. Follow instructions under "Oven Cleaning" in the Electronic Oven

Control Guide. Self-cleaning cycle was interrupted. Stop time must be 2 to 4 hours past the start time.

Follow steps under "Stopping or Interrupting the Self-Cleaning Cycle" in the Electronic Oven Control Guide.

Set Self-Clean cycle for a longer cleaning time. Failure to clean bottom front, top of oven or door areas outside oven seal. These areas

are not in the Self-Cleaning area, but get hot enough to burn on food residue. Clean these areas before starting the Self-Clean cycle. Burned-on residue may be cleaned with a stiff nylon brush and water or nylon scrubber. Be careful not to damage the oven gasket.

Excessive spillovers in oven, especially for pie spillovers or large amounts of grease on the oven bottom. Wipe up excessive spillovers before starting the Self-Clean cycle. If ﬂ ames or excessive smoke are present, stop the Self-Clean cycle and follow the steps under "Stopping or Interrupting the Self-Cleaning Cycle" in the Electronic Oven Control Guide.

Page 28

MAJOR APPLIANCE WARRANTY

Your appliance is cov ered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.

Exclusions

If You Need Service

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily

determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased "as-is" are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for

appliances not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,

shelves, etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air ﬁ lters, water ﬁ lters, other consumable, or knobs, handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the ﬁ nish of appliance or home incurred during installation, including but not limited to ﬂ oors, cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, ﬁ res, or acts of God.

DISCLAIMER OF IMPLIES WARRANTIES; LIMITATION OF REMEDIES

Customer’s sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein. Claims based on implied warranties, including warranties of merchantability or fitness for particular purpose, are limited to one year or the shortest period allowed by law, but not less than one year. Electrolux shall not be liable for consequential or incidental damages such as property damage and incidental expenses resulting from any breach of this written limited warranty or any implied warranty. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration of implied warranties, so these limitations or exclusions may not imply to you. This written warranty gives you specific legal rights. You may also have other rights that vary from state to state.

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained contacting Electrolux at the addresses or phone numbers below.

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or speciﬁ cations as described or illustrated are subject to change without notice.

Canada

USA

1.800.944.9044 Electrolux Home Products, Inc., 10200 David Taylor Drive Charlotte, NC 28262

Electrolux Canada Corp.

Mississauga, Ontario, Canada

1.800.265.8352

5855 Terry Fox Way

L5V 3E4

Frigidaire FFES3027LS User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
