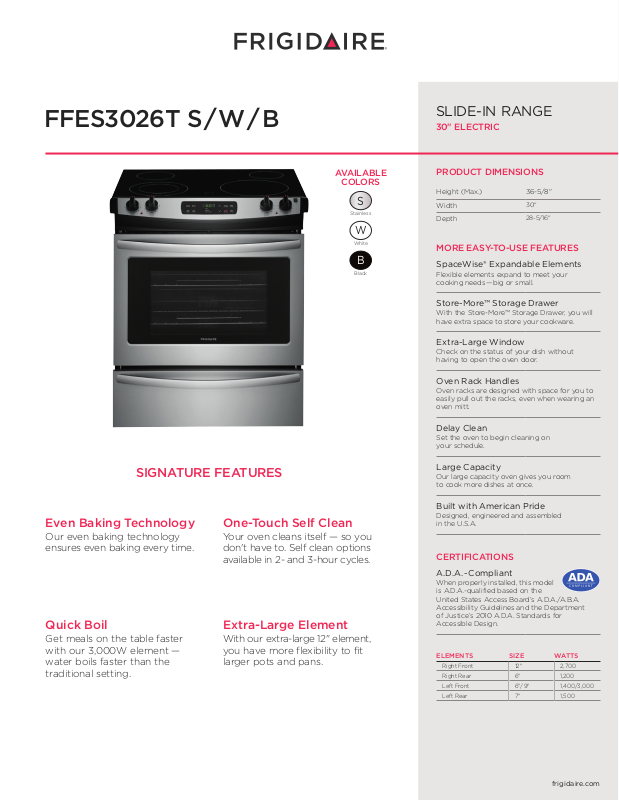

Frigidaire FFES3026TW Specification Sheet
FFES3026T S / W / B
S
W
B
SLIDE-IN RANGE
30" ELECTRIC
AVAILABLE
COLORS
Stainless
White
Black
PRODUCT DIMENSIONS
Height (Max.) 36-5/8"
Width
Depth
30"
28-5/16"
MORE EASY-TO-USE FEATURES
SpaceWise® Expandable Elements
Flexible elements expand to meet your
cooking needs — big or small.
Store-More™ Storage Drawer
With the Store-More™ Storage Drawer, you will
have extra space to store your cookware.
Extra-Large Window
Check on the status of your dish without
having to open the oven door.
Oven Rack Handles
Oven racks are designed with space for you to
easily pull out the racks, even when wearing an
oven mitt.
Delay Clean
Set the oven to begin cleaning on
your schedule.
SIGNATURE FEATURES
Even Baking Technology
Our even baking technology
ensures even baking every time.
Quick Boil
Get meals on the table faster
with our 3,000W element —
water boils faster than the
traditional setting.
One-Touch Self Clean
Your oven cleans itself — so you
don't have to. Self clean options
available in 2- and 3-hour cycles.
Extra-Large Element
With our extra-large 12" element,
you have more flexibility to fit
larger pots and pans.
Large Capacity
Our large capacity oven gives you room
to cook more dishes at once.
Built with American Pride
Designed, engineered and assembled
in the U.S.A.
CERTIFICATIONS
A.D.A. - Compliant
When properly installed, this model
is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A.
Accessibility Guidelines and the Department
of Justice’s 2010 A.D.A. Standards for
Accessible Design.
ELEMENTS SIZE WATT S
Right Front 12" 2,700
Right Rear 6" 1,200
Left Front 6"/ 9" 1,400/3,000
Left Rear 7" 1,500
frigidaire.com
FFES3026T S / W / B
SLIDE-IN RANGE
30" ELECTRIC
FEATURES
Oven Control / Timing System Ready-Select® Controls
Surface Type Black Ceramic Glass
Window Large
Exterior Door Finish
Handle Design
Convection System
Oven Cleaning System Self-Clean
Drawer Functionality Storage
Stainless Steel ( S ),
Color-Coordinated ( W / B )
Stainless Steel ( S ),
Color-Coordinated ( W / B )
OVEN CONTROLS
Bake Yes
Broil Variable
Keep Warm
Add-a-Minute
Delay Start Yes
Self Clean 2, 3, Hours
Steam Clean
Delay Clean Yes
Kitchen Timer Yes
Timed Cook Option Yes
Auto Oven Shut-O 12 Hours
COOKTOP FEATURES
Right Front Element (Watts) 12" – 2,700
Right Rear Element (Watts) 6" – 1,200
Left Front Element (Watts) 6" / 9" – 1,400 / 3,000
Left Rear Element (Watts) 7" – 1,500
Center Element (Watts)
Hot Surface Indicator Light Ye s
Coil Cooktop / Drip Bowls
OVEN FEATURES
Capacity (Cu. Ft.) 4.6
Oven Light 1 Halogen
Hidden Bake Element
Rack Configuration 2 Handle Racks
Baking System Even Baking Technology
Broiling System Vari-Broil™ Hi / Lo
Bake Element / Broil Element (Watts) 2,750 / 3,400
OPTIONAL ACCESSORIES
Rear Filler Kit – White (W) / Black (B)
Side Panel Kit – White (W) / Black (B)
Backguard Kit – White (W) / Black (B)
(W) PN # 903113-9011
(B) PN # 903113-9010
(W) PN # 903074-9011
(B) PN # 903074-9010
(W) PN # 903046-9011
(B) PN # 903046-9010
CERTIFICATIONS
A.D.A. Compliant
Sabbath Mode (Star-K® Certified)
1
Yes
SPECIFICATIONS
Oven Interior ( H x W x D ) 17-1/2" x 24-1/8" x 18-3/4"
Power Supply Connection Location Left Bottom Rear
Voltage Rating 240V / 208V / 60 Hz
Connected Load
(kW Rating) @ 240 / 208 Volts
Amps @ 240 / 208 Volts 33 / 32.5
Minimum Circuit Required (Amps) 40
Shipping Weight (Approx.) 200 Lbs.
1
When properly installed, this model is A.D.A.-qualified based on the United States
Access Board’s A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s 2010
A.D.A. Standards for Accessible Design.
2
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC only electrical
supply with ground required on separate circuit fused on both sides of line.
11.8 / 8.9 kW
2

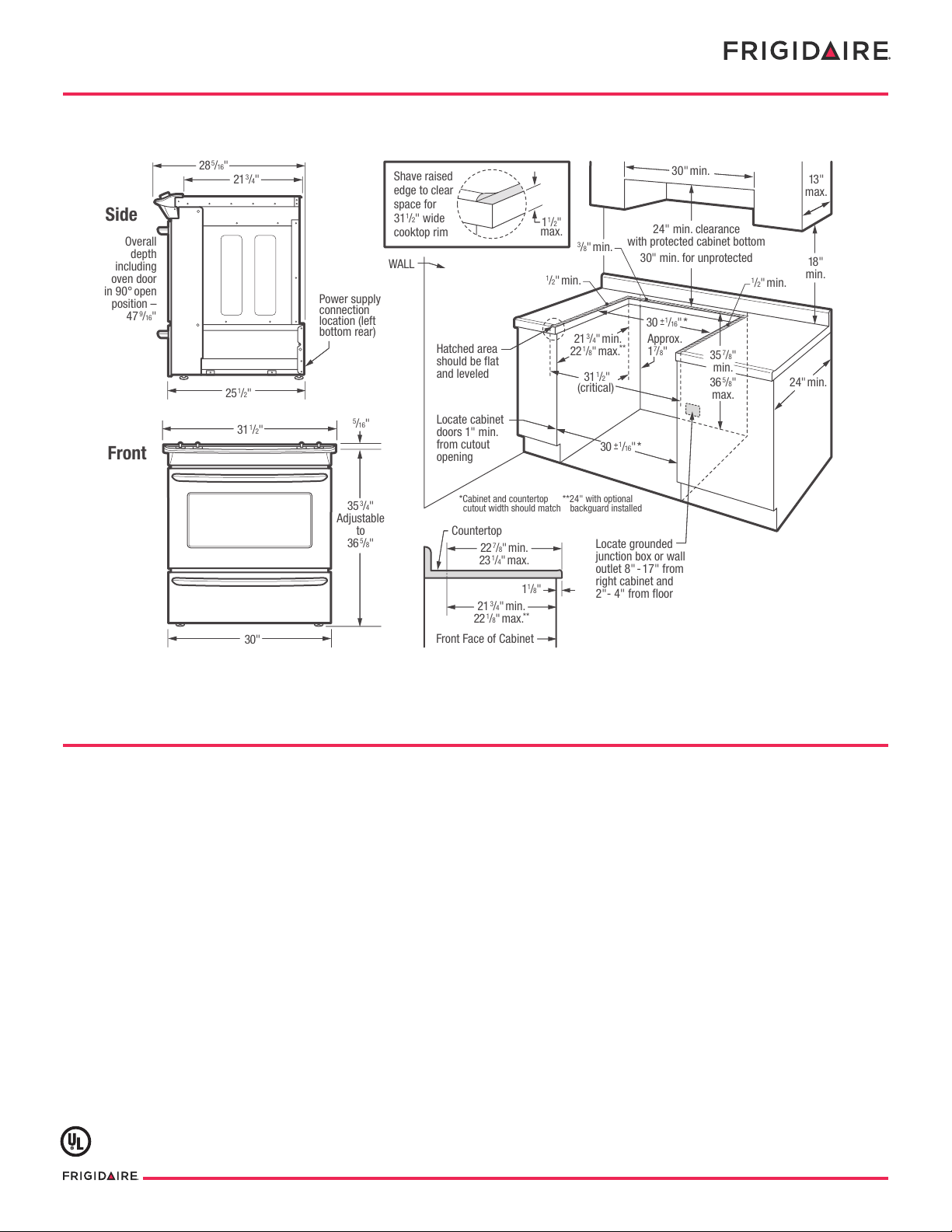

PRODUCT DIMENSIONS
A - Height (Min. / Max.) 35-7/8" / 36-5/8"
B - Width 30"
C - Depth 28-5/16"
Depth with Door Open 90˚ 47-9/16"
CABINET CUTOUT DIMENSIONS
Height (Min. / Max.) 35-7/8" / 36-5/8"
Width (Min. / Max.) 29-15/16" / 30-1/16" *
Depth (Min. / Max.) 21-3/4" / 22-1/8" **
*Cutout and countertop cutout width should match.
**24" with optional backguard installed.
C
A
B
Extreme
protrusion
•
USA
10200 David Taylor Drive
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
© 2018 Electrolux Home Products, Inc.
FFES3026T 02/18
