Frigidaire FFES3026TB Installation

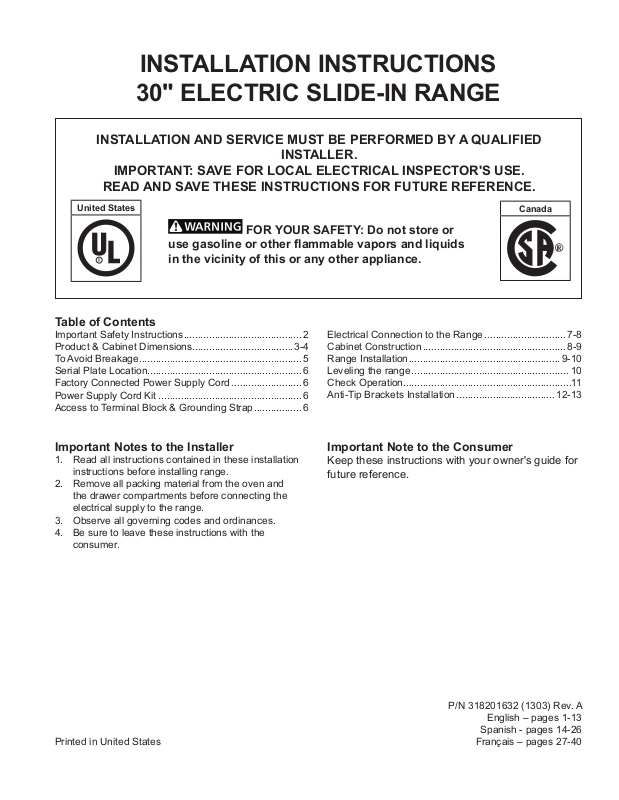

INSTALLATION INSTRUCTIONS

30" ELECTRIC SLIDE-IN RANGE

INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED

INSTALLER.

IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.

READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

United States

FOR YOUR SAFETY: Do not store or

use gasoline or other ammable vapors and liquids in the vicinity of this or any other appliance.

Table of Contents

Important Safety Instructions .......................................... 2

Product & Cabinet Dimensions....................................3-4

To Avoid Breakage .......................................................... 5

Serial Plate Location....................................................... 6

Factory Connected Power Supply Cord ......................... 6

Power Supply Cord Kit ...................................................6

Access to Terminal Block & Grounding Strap ................. 6

Important Notes to the Installer

1. Read all instructions contained in these installation instructions before installing range.

2. Remove all packing material from the oven and the drawer compartments before connecting the electrical supply to the range.

3. Observe all governing codes and ordinances.

4. Be sure to leave these instructions with the consumer.

Canada

Electrical Connection to the Range ............................. 7-8

Cabinet Construction ................................................... 8-9

Range Installation ...................................................... 9-10

Leveling the range ........................................................ 10

Check Operation............................................................11

Anti-Tip Brackets Installation ................................... 12-13

Important Note to the Consumer

Keep these instructions with your owner's guide for future reference.

Printed in United States

P/N 318201632 (1303) Rev. A

English – pages 1-13

Spanish - pages 14-26

Français – pages 27-40

30" ELECTRIC SLIDE-IN RANGE INSTALLATION INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.

This symbol will help alert you to situations that may cause serious bodily harm, death or

property damage.

damage.

This symbol will help alert you to situations that may cause bodily injury or property

Cold temperatures can damage the

electronic control. When using the appliance for the

rsttime,orwhentheappliancehasnotbeenused

for an extended period of time, be certain the unit has been in temperatures above 32°F (0°C) for at least 3 hours before turning on the power to the appliance.

• Be sure your range is installed and grounded properly by a qualied installer or service technician.

• This range must be electrically grounded in accordance with local codes or, in their absence, with the National Electrical Code ANSI/NFPA No. 70—latest edition in United States or with CSA Standard C22.1, Canadian Electrical Code, Part 1 in Canada.

• Theinstallationofappliancesdesignedfor

manufactured (mobile) home installation must conform with Manufactured Home Construction and Safety Standard, title 24CFR, part 3280 [Formerly the Federal Standard for Mobile Home Construction and Safety, title 24, HUD (part 280)] or when such standard is not applicable, the Standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups), ANSI Z225.1/NFPA 501Alatest edition, or with local codes in United States and with CAN/CSA-Z240 MH in Canada.

• Make sure the wall coverings around the range can withstand the heat generated by the range.

• Before installing the range in an area covered with linoleum or any other synthetic oor covering, make sure the oor covering can withstand heat at least 90°F (32,2°C) above room temperature without shrinking, warping or discoloring. Do not

install the range over carpeting unless you place an insulating pad or sheet of ¼" (0,64 cm) thick plywood between the range and carpeting.

Never leave children alone or

unattended in the area where an appliance is in

use. As children grow, teach them the proper, safe use of all appliances. Never leave the oven door open when the range is unattended.

Stepping, leaning or sitting on the door or drawer of this range can result in serious injuries and can also cause damage to the range.

• Do not store items of interest to children in the cabinets above the range. Children could be

seriously burned climbing on the range to reach items.

• To eliminate the risk of burns or re by reaching over heated surface units, cabinet storage space above the surface unit should be avoided.

If cabinet storage is to be provided the risk can be reduce by installing a range hood that project horizontally a minimum of 5 inches beyond the bottom of the cabinet.

• Do not use the oven as a storage space. This creates a potentially hazardous situation.

• Never use your range for warming or heating the

room. Prolonged use of the range without adequate ventilation can be dangerous.

• Do not store or use gasoline or other ammable vapors and liquids near this or any other appliance. Explosionsorrescouldresult.

• Reset all controls to the "off" position after using

a programmable timing operation.

FOR MODELS WITH SELF-CLEAN FEATURE:

• Remove oven racks, broiler pan, food and other utensils before self-cleaning the oven. Wipe up

excess spillage. Follow the precleaning instructions in the Owner's Guide.

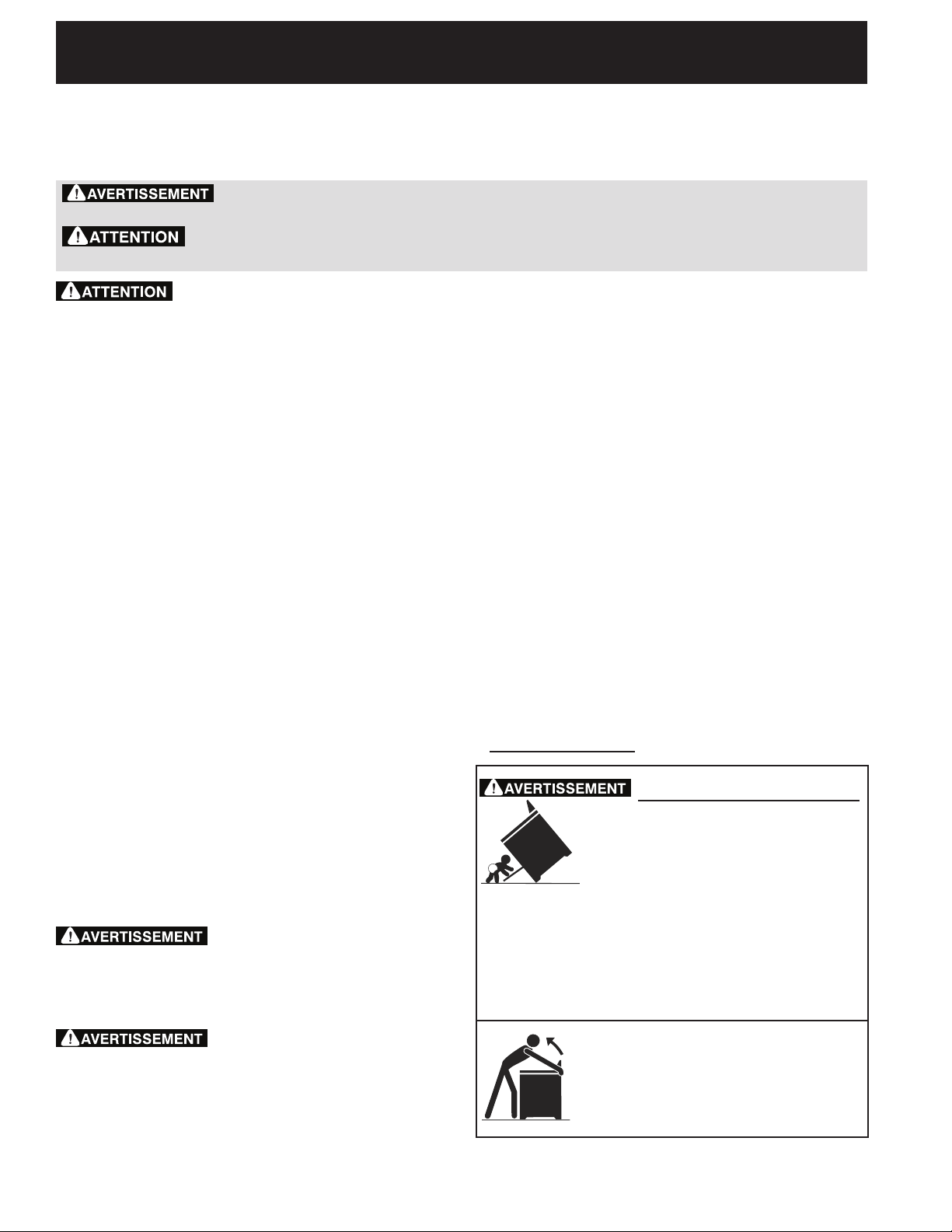

Tip Over Hazard

A child or adult can tip the range and • be killed.

Verify the anti-tip device has been •

installedtooororwallasper

installation instructions.

Ensuretheanti-tipdeviceisre-engagedtoooror•

wall when the range is moved. Do not operate the range without the anti-tip device •

in place and engaged. Failure to follow these instructions can result in •

death or serious burns to children and adults.

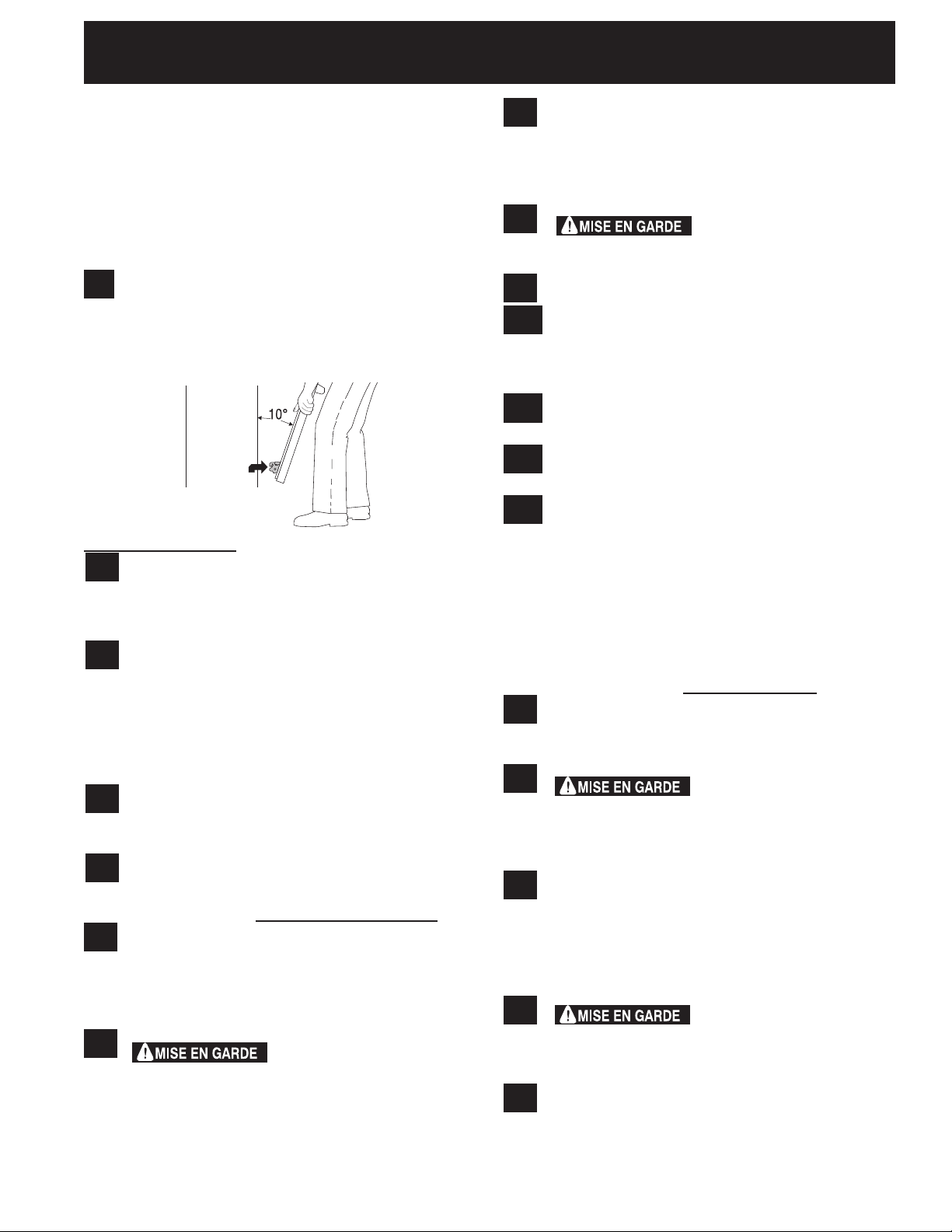

To check if the anti-tip bracket is installed properly, use both arms and grasp the rear edge of range back. Carefully attempt to tilt range forward. When properly installed, the range should not tilt forward.

Refer to the anti-tip bracket installation instructions supplied with your range for proper installation.

30" ELECTRIC SLIDE-IN RANGE INSTALLATION INSTRUCTIONS

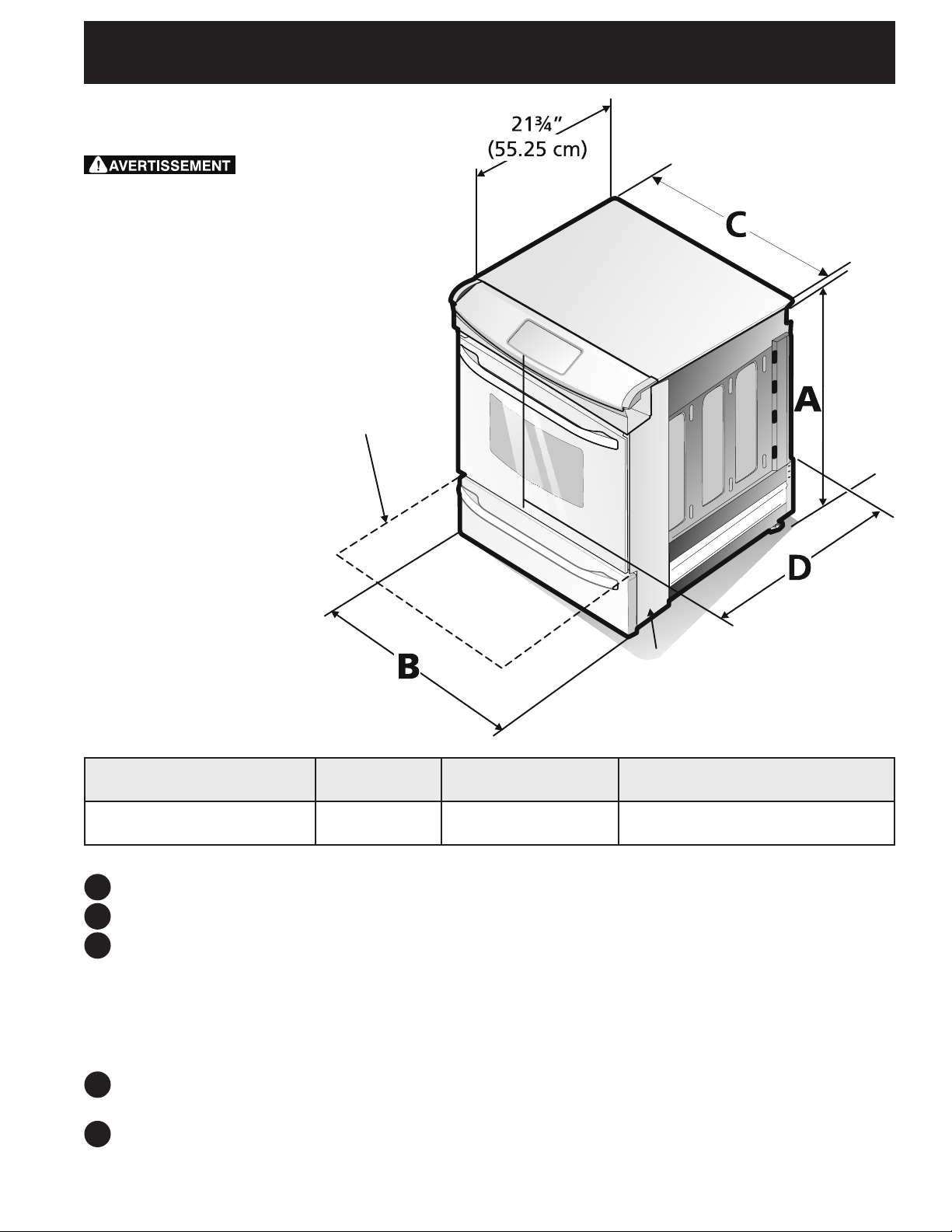

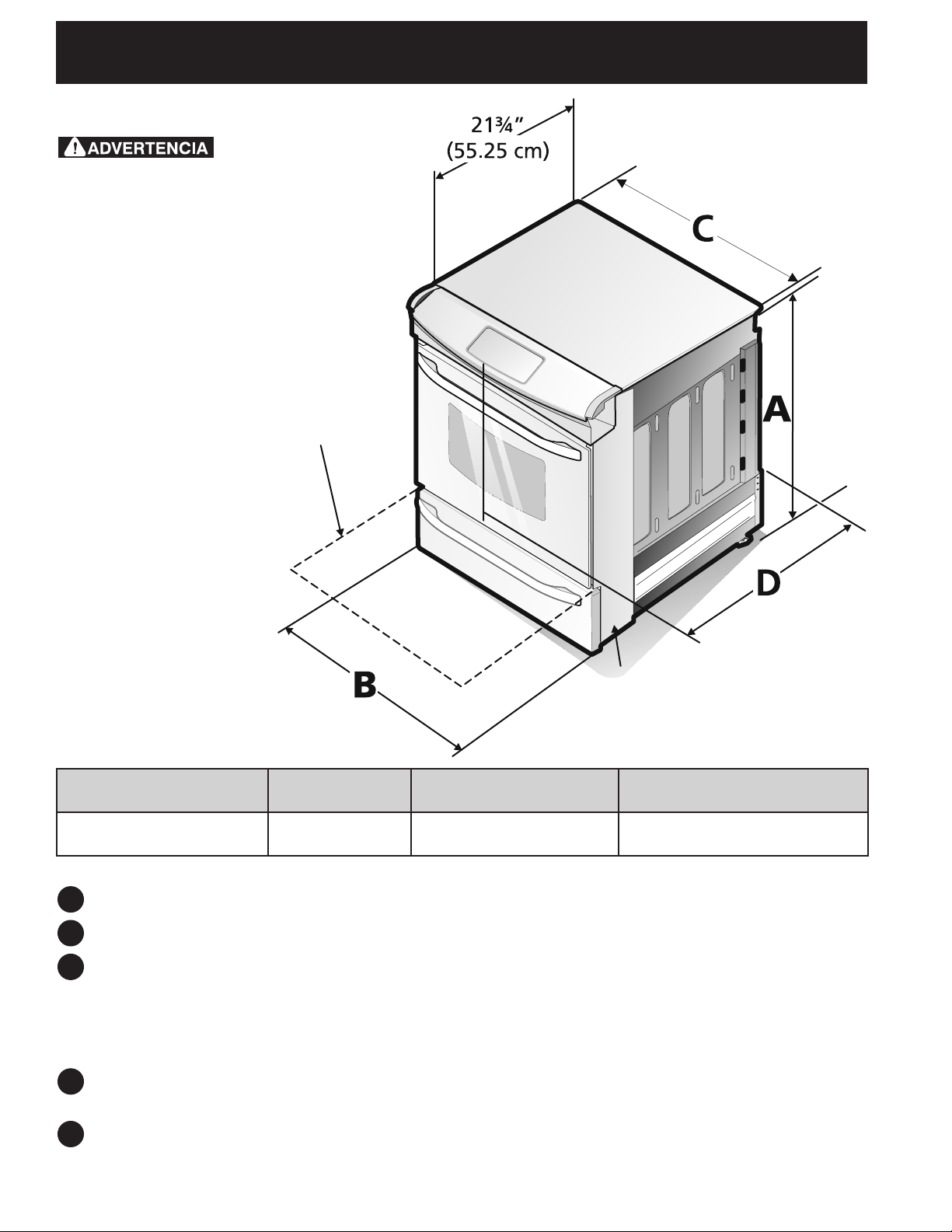

Product Dimensions

Do not

install the unit in the

cabinet before reading next two pages.

Open Door

(see note 5)

Side Panel

A. HEIGHT

(Under Cooktop)

35 3/4" (90,8 cm)

36 5/8" (93 cm)

B. WIDTH

30" (76,2 cm) 31 1/2" (80 cm) 28 5/16" (71,9 cm)

C. COOKTOP

WIDTH

D. TOTAL DEPTH TO FRONT

OF RANGE

NOTE:

 Donotpinchthepowersupplycordortheexiblegasconduitbetweentherangeandthewall.

Do not seal the range to the side cabinets.

24" (61 cm) minimum clearance between the cooktop and the bottom of the cabinet when the

bottomofwoodormetalcabinetisprotectedbynotlessthan¼"(0,64cm)ameretardantmillboard

covered with not less than No. 28 MSG sheet metal, 0,015" (0,4 mm) stainless steel, 0,024" (0,6 mm) aluminum, or 0,020" (0,5 mm) copper.

30" (76,2 cm) minimum clearance when the cabinet is unprotected.

For cutouts below 22 7/8" (58,1 cm), appliance will slightly show out of the cabinet.

Allow at least 19 ¼" (48,9 cm) clearance for door depth when it is open.

30" ELECTRIC SLIDE-IN RANGE INSTALLATION INSTRUCTIONS

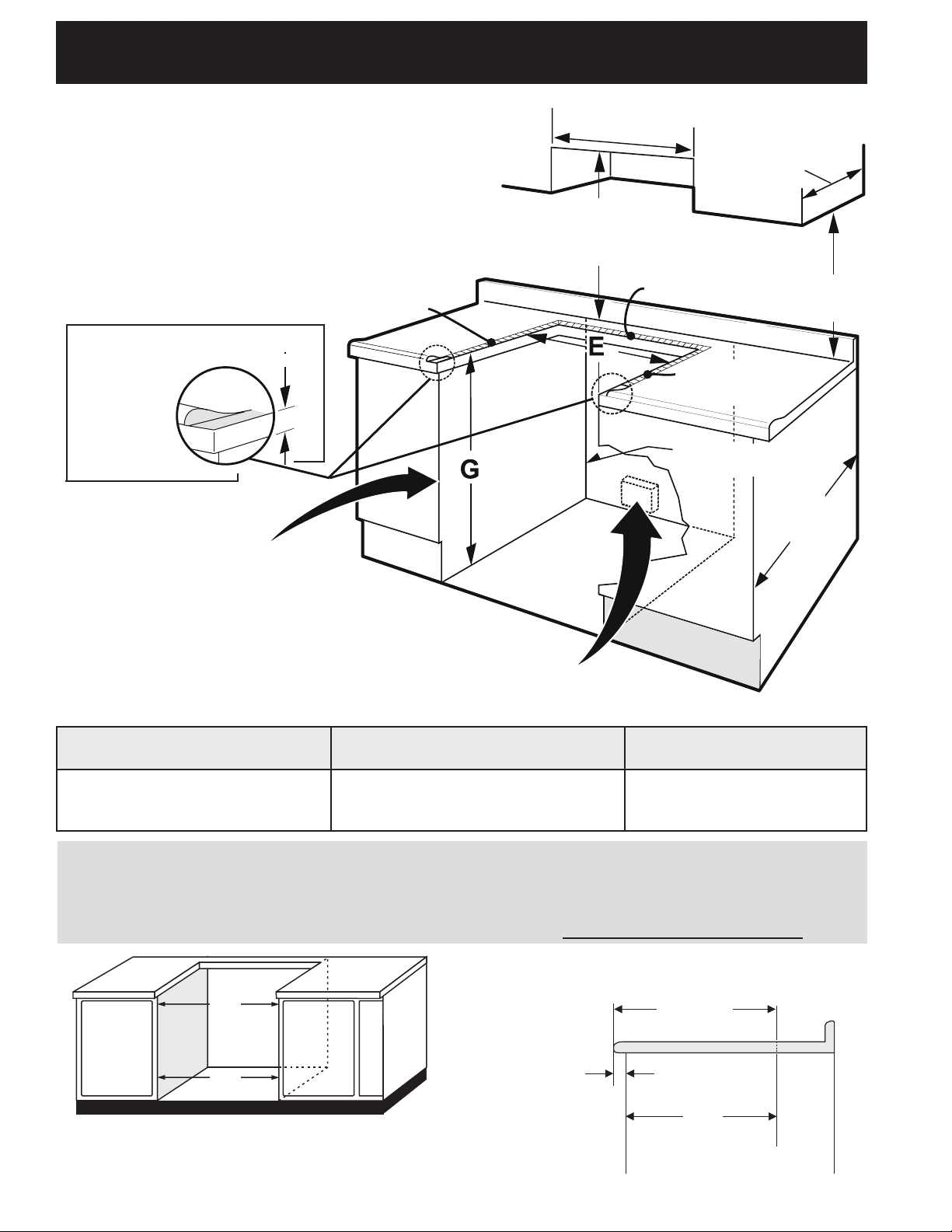

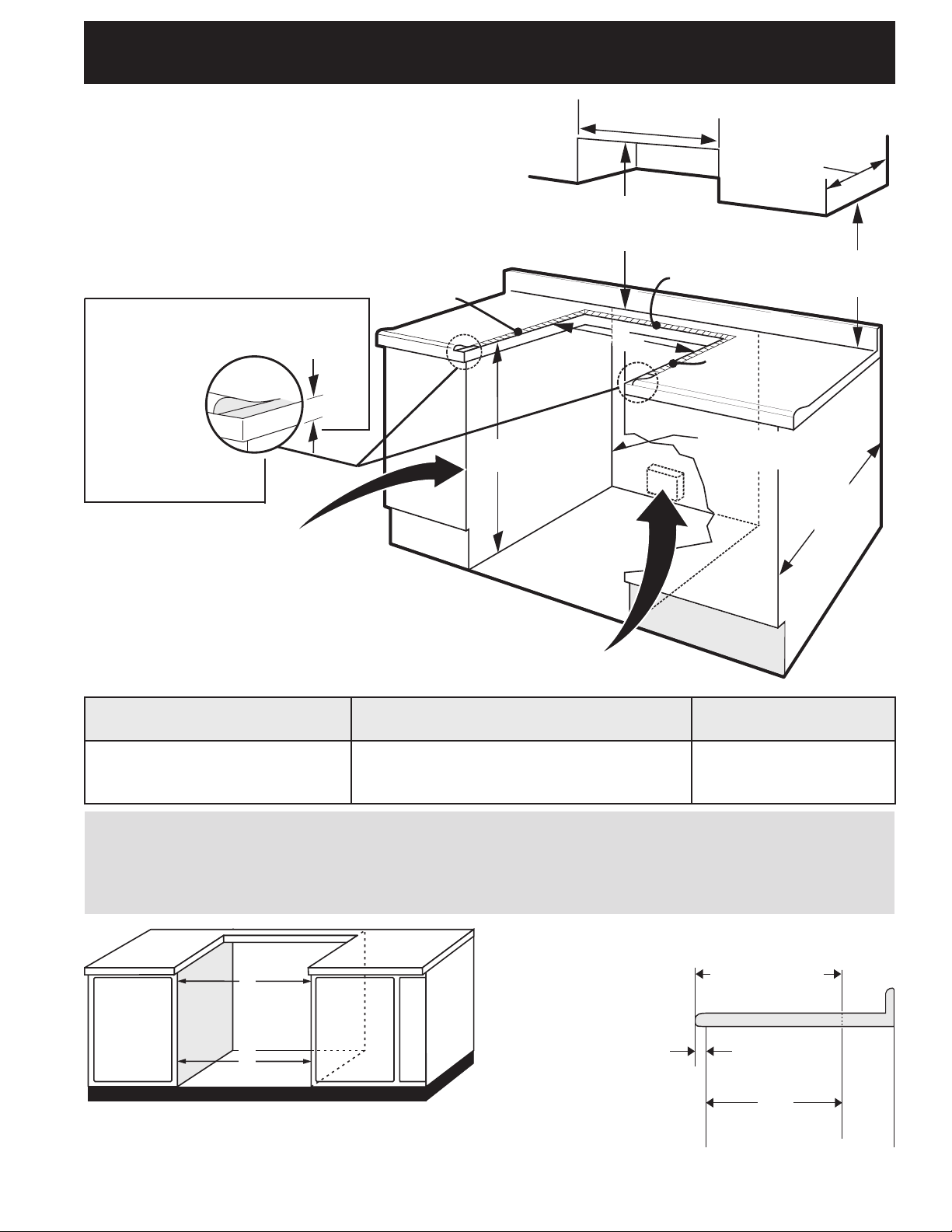

Cabinet Dimensions

Countertop hatched surfaces should be at & leveled.

Shave Raised Edge To Clear Space for 31½" (80 cm) Wide Cooktop Rim.

Locate Cabinet Doors 1" (2,5 cm) Min. From Cutout Opening

1½" Max.

(3,8 cm Max.)

½" Min.

(1,3 cm) Min.

30" Min.

(76,2 cm) Min.

30" Min. (See page 3,

note 3)

(76,2 cm) Min. (See

page 3, note 3)

3/8" Min.

(0,95 cm) Min.

13"

(33 cm)

18" Min.

(45,7 cm) Min.

½" Min.

(1,3 cm) Min.

Approx. 1 7/8"

(4,8 cm)

24" Min.

(61 cm) Min.

Grounded Junction Box or Wall Outlet Should Be

Located 8" to 17" (20,3 - 43,2 cm) From Right Cabinet

and 2" to 4" (5,1-10,2 cm) From Floor

E. CUTOUT WIDTH

(Countertop and cabinet)***

30±1/16"

(76,2±0,16 cm)

F. CUTOUT DEPTH

21 3/4" (55,2 cm) Min. 22 1/8" (56,2 cm) Max

24" (61 cm) Min. with backguard

G. HEIGHT

OF COUNTERTOP

35 7/8" (91,1 cm) Min.

36 5/8" (93 cm) Max.

***IMPORTANT: To avoid cooktop breakage for cutout width (E dimension) of more than 30 1/16" (76,4 cm), make sure the appliance is centered in the counter opening while pushing into it. Raise leveling legs and the rear adjustable wheels at a higher position than the cabinet height (see page

5), insert the appliance in the counter and then level. Make sure the unit is supported by the leveling legs at the front and the wheels at the back and NOT by the cooktop itself.

22 7/8"(58,1 cm) min.

23 1/4"(59,05 cm) max.

(see Note 4)

1 1/8"

(2,86 cm)

FRONT OF

IMPORTANT: Cabinet and countertop

CABINET

Ref.

width should match the cutout width.

30" ELECTRIC SLIDE-IN RANGE INSTALLATION INSTRUCTIONS

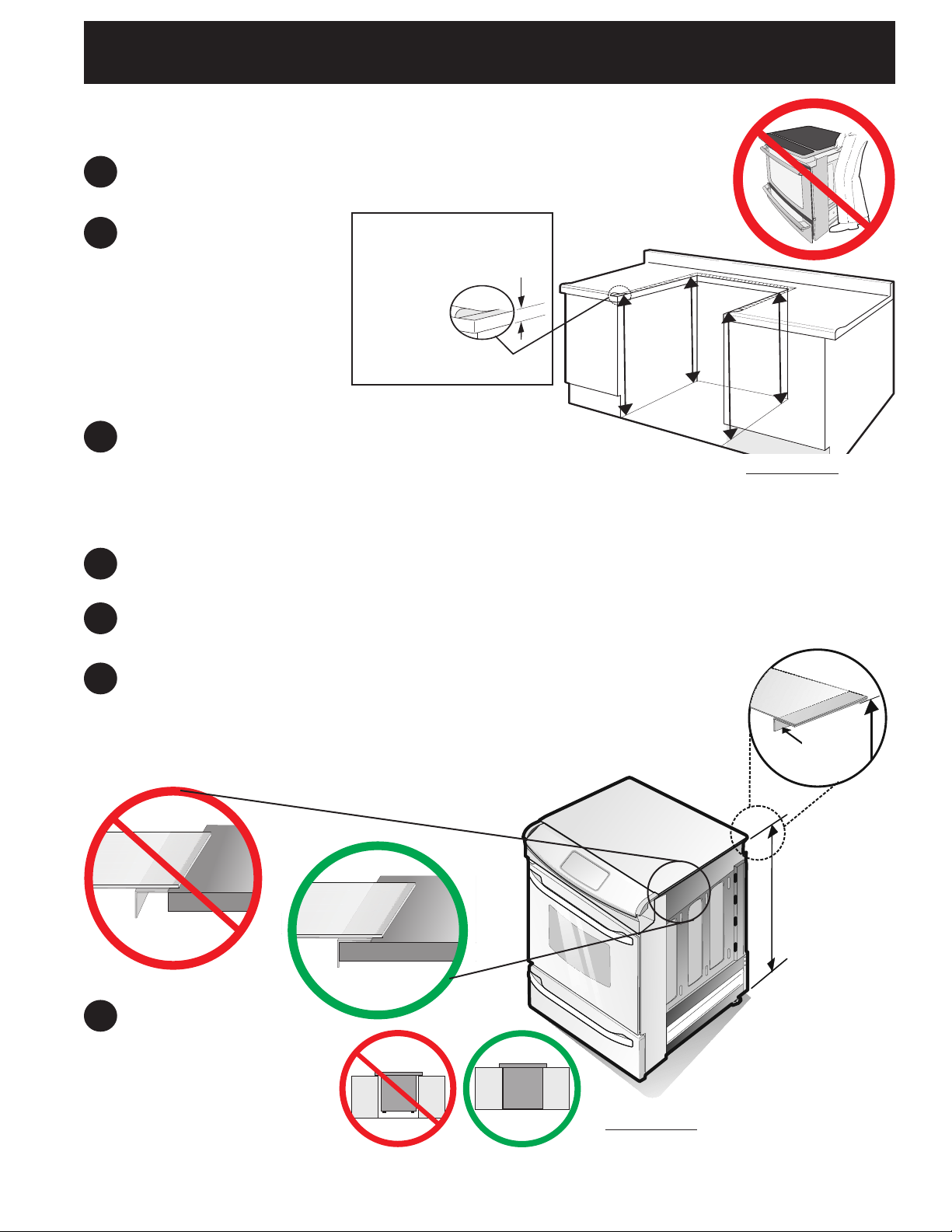

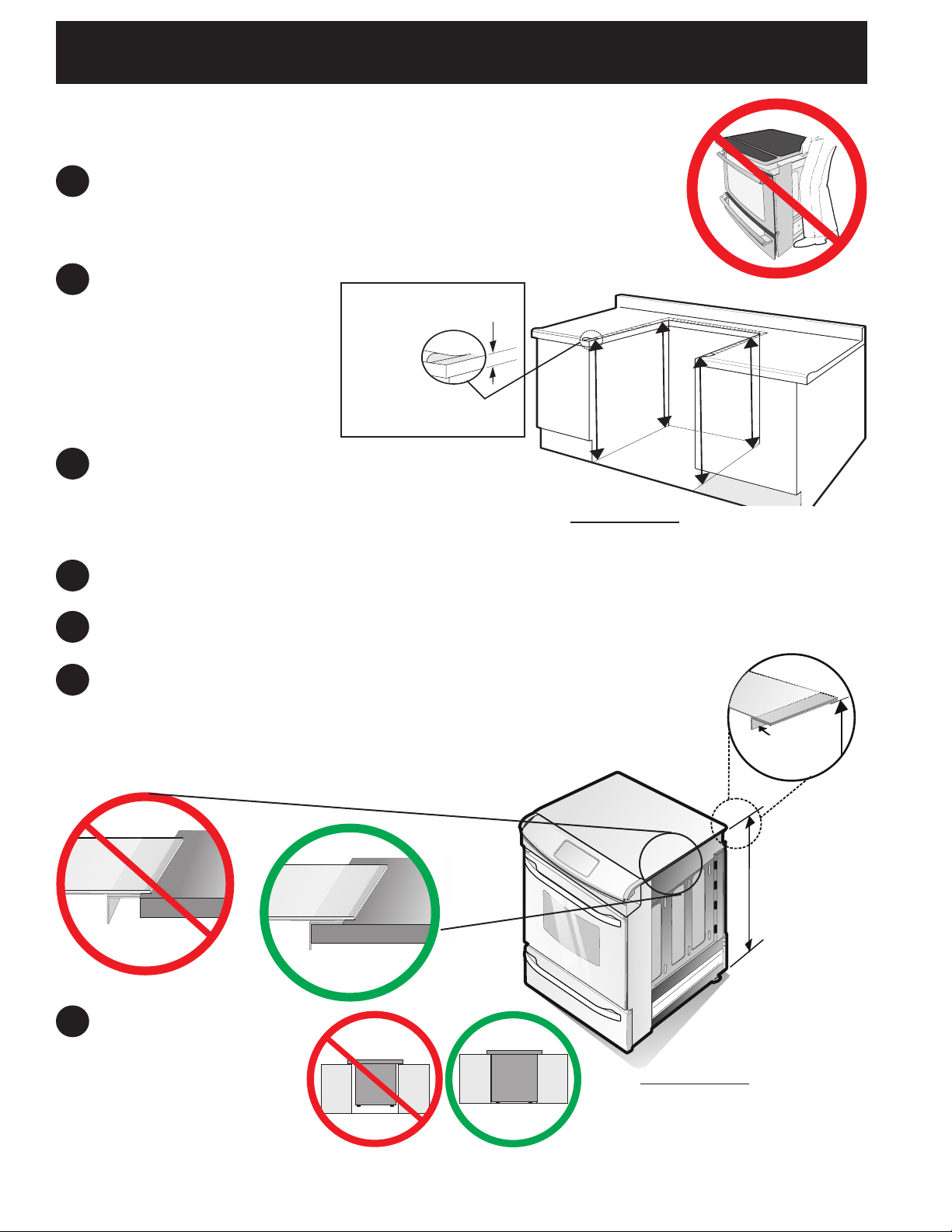

To avoid breakage: Do NOT handle or manipulate the unit by the cooktop.

Thecounter-toparoundthecut-outshouldbeatandleveled(see

hatched area on illustration 1)

Before installing the unit,

measure the heights of the two (2) cabinet sides (H1-4), front and back (see illustration 1) from

theoortothetopofthe

Shave Raised Edge to Clear Space for a 31½" (80 cm) Wide Cooktop.

1 ½" Max.

(3.8 cm Max.)

counter.

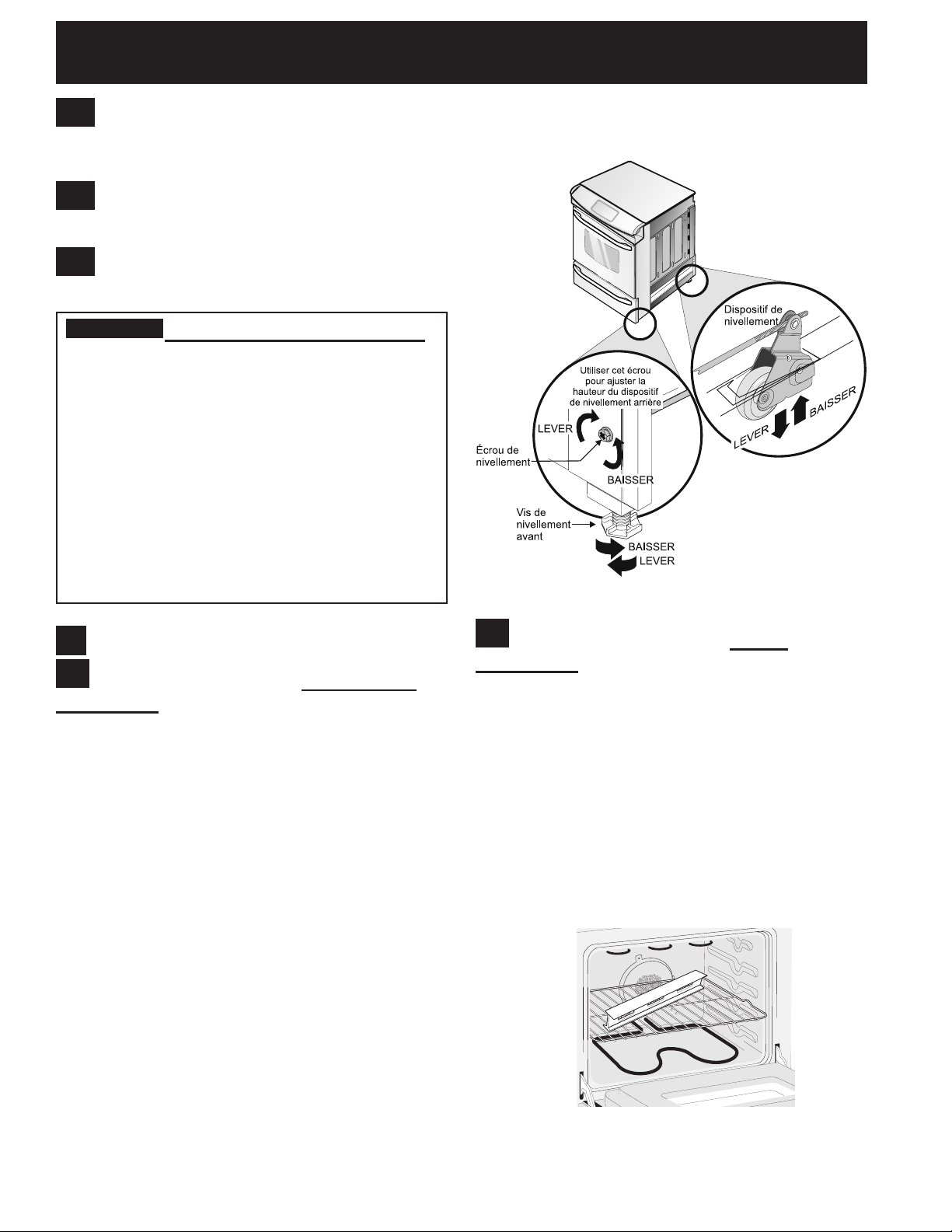

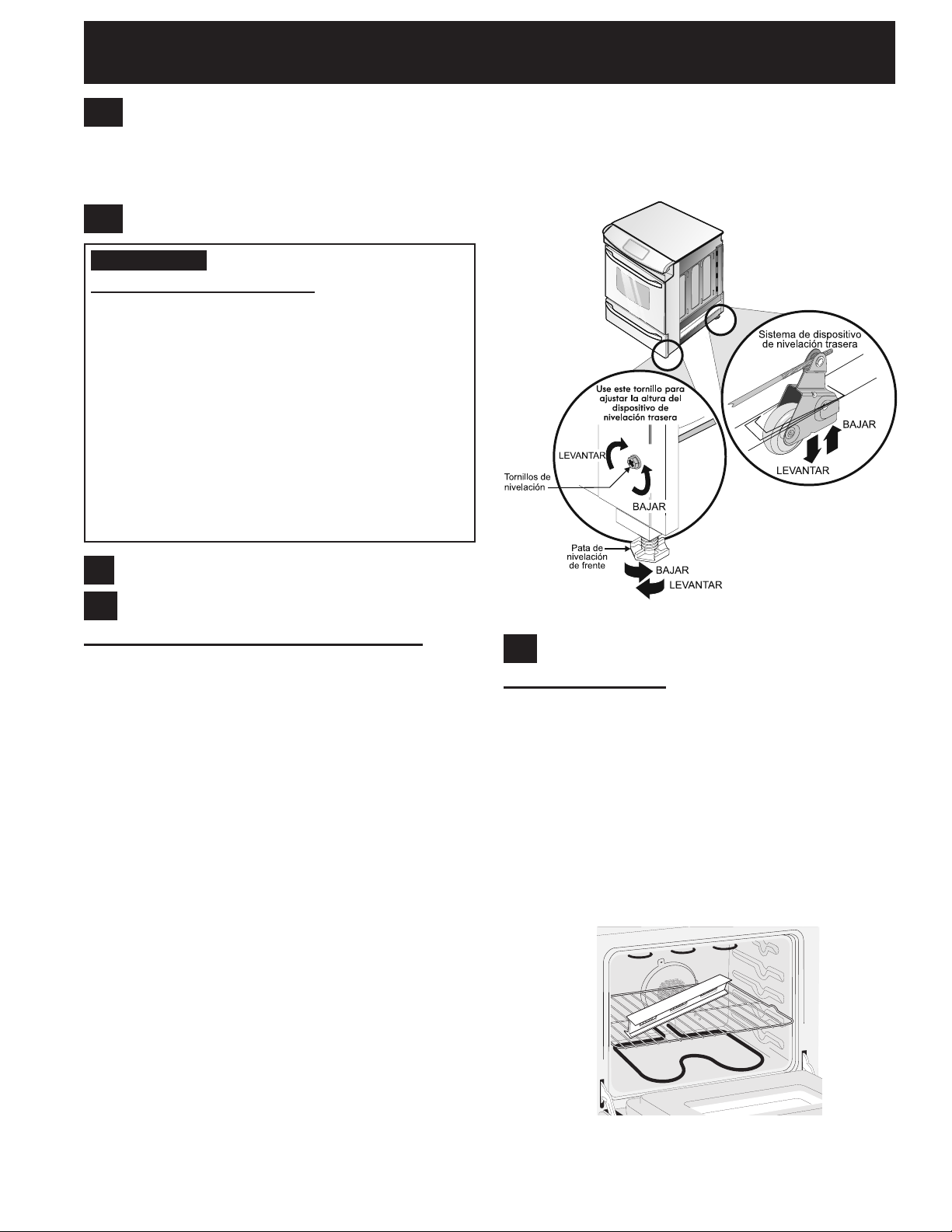

Level the range using the leveling legs and leveling

device (if equipped) so that the height from the

oortotheundersideofthecooktopglassframeis

Illustration 1

greater than the tallest cabinet measurement by at least 1/16" (0,16 cm) (see illustration 2).

Slide the unit into the cabinet. Make sure the center of the unit is aligned with the center of

the cabinet cut-out.

Remove the protective channels on each side of the cooktop (if provided).

ThemetalangeundereachsideofthecooktopMUST be placed

over the cabinet countertop for proper unit support. The cooktop should NOT rest directly on the countertop (see illustration 2) or else it could cause damage to the cooktop voiding the warranty. Level the unit if needed.

Metal Flange

After the installation,

MAKE SURE that the unit is supported by the leveling legs and NOT by the cooktop.

To successfully install the range, the initial level

heightfromoor

to underside of cooktop frame should be at least 1/16" (0,16 cm) taller than cabinet sides as measured in step 2.

Illustration 2

30" ELECTRIC SLIDE-IN RANGE INSTALLATION INSTRUCTIONS

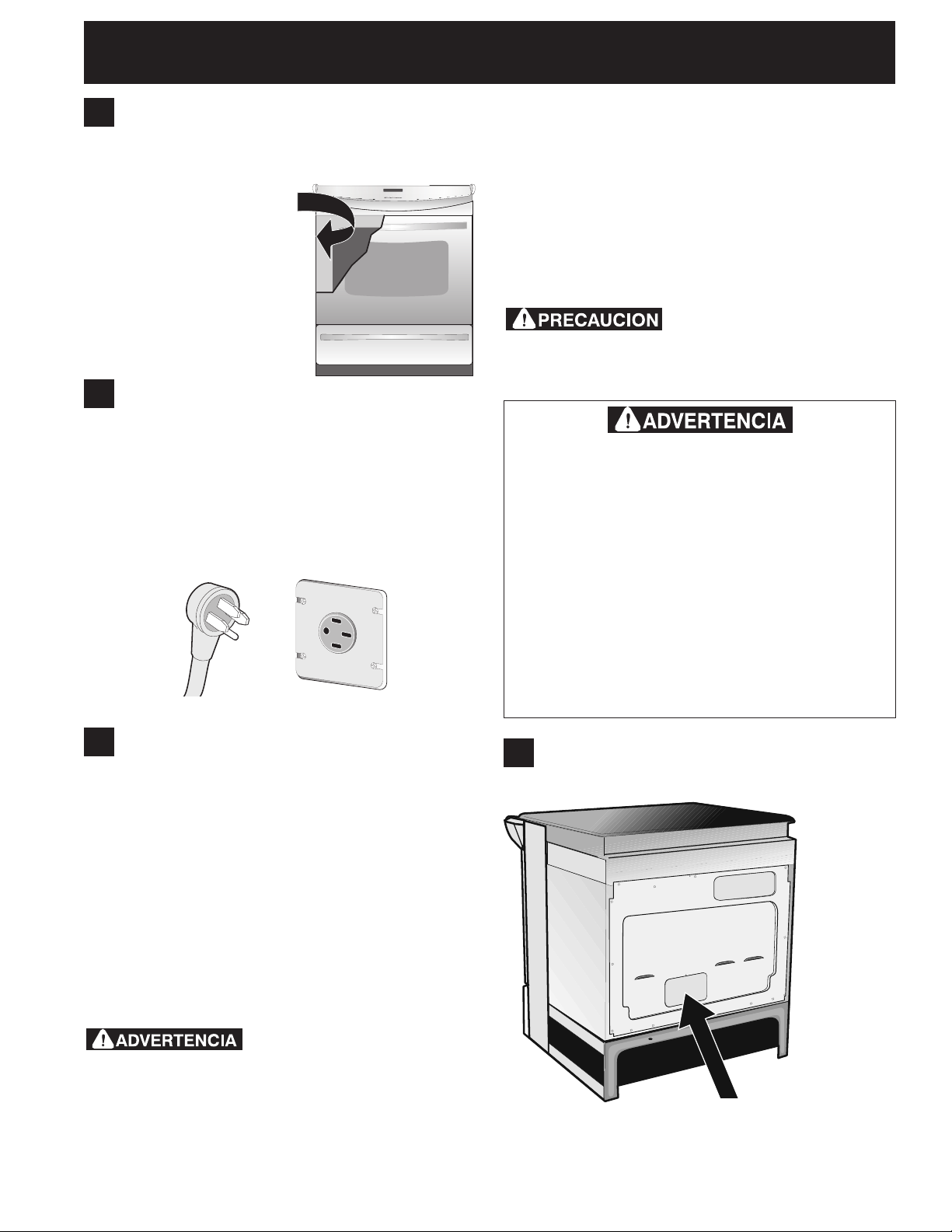

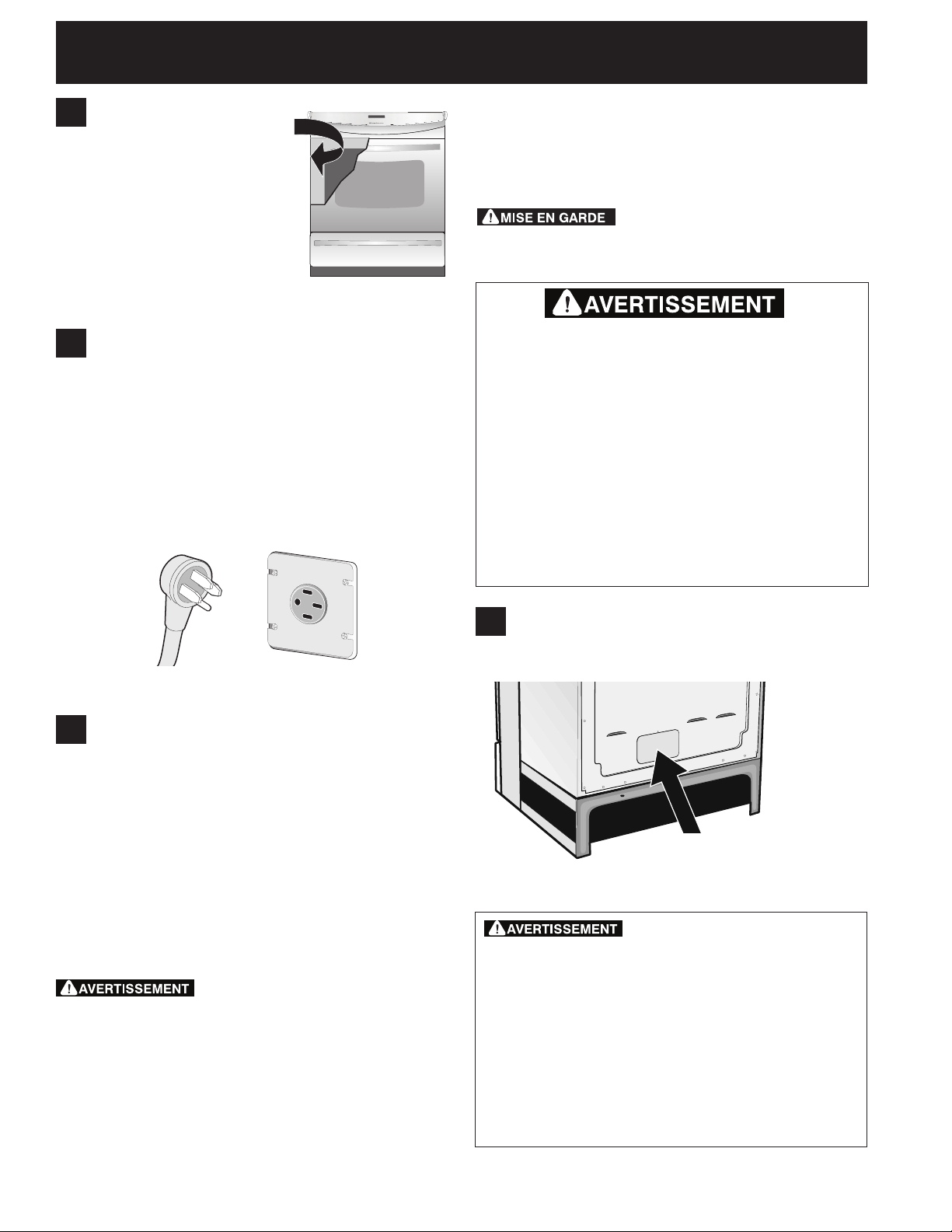

Serial Plate Location

Youwillndthemodelandserial

number printed on the serial plate. The serial plate is located as shown.

Remember to record the serial number for future reference.

Factory Connected Power

Supply Cord (Canada only)

This range is equipped with a factory-connected power cord (see Figure 1). Cord must be connected to a grounded 120/240 volt or 120/208 volt range outlet. If

nooutletisavailable,haveoneinstalledbyaqualied

electrician.

Electrical Shock Hazard

• Electrical ground is required on this appliance.

• Do not connect to the electrical supply until appliance is permanently grounded.

• Disconnect power to the circuit breaker or fuse box before making the electrical connection.

• This appliance must be connected to a grounded, metallic, permanent wiring system, or a grounding connector should be connected to the grounding terminal or wire lead on the appliance.

Failure to do any of the above could result in a re, personal injury or electrical shock.

Access to Terminal Block &

Grounding Strap (U.S.A.)

Canada Style

Figure 1

Power Supply Cord Kit (U.S.A.)

The user is responsible for connecting the power supply cord to the connection block located behind the back panel access cover.

This appliance may be connected by means of

permanent"hardwiring";exiblearmoredor

nonmetallic shielded copper cable (when local code allow it) or by means of a power supply cord kit.

NOTE: Electric Slide-in Range is shipped from factory

with11/8"(2,9cm)dia.holeasshownongure3.Ifa

larger hole is required, punch out the knockout.

Risk of re or electrical shock exists if an incorrect size range cord kit is used, the Installation Instructions are not followed, or the strain relief bracket is discarded.

For mobile homes, new installations or recreational vehicles, use only a power supply kit designed for a range at 125V/250V 50A recommended (minimum 40A). Cord must have either 3 (when local code permits grounding through neutral) or 4 conductors. Terminal on end of wires must be either closed loop or open spade lug with upturned ends. Cord must have strain-relief clamp.

Do not loosen the nuts which secure the factory-installed range wiring to terminal block while connecting range. Electrical failure or loss of electrical connection may occur.

Remove the wire cover here

for access to terminal block

Figure 2

This appliance is manufactured with the frame grounded by connection of a grounding strap between the neutral power supply terminal and the frame. If used in USA, in a new branch circuit installation (1996 NEC), mobile home or recreational vehicle, where local code do not permit grounding through neutral (white) wire or in Canada; remove the grounding strap from the frame and cut the other end, near the neutral terminal. Connect the appliance in

usual manner.

30" ELECTRIC SLIDE-IN RANGE INSTALLATION INSTRUCTIONS

Electrical Connection to the

Range (U.S.A.)

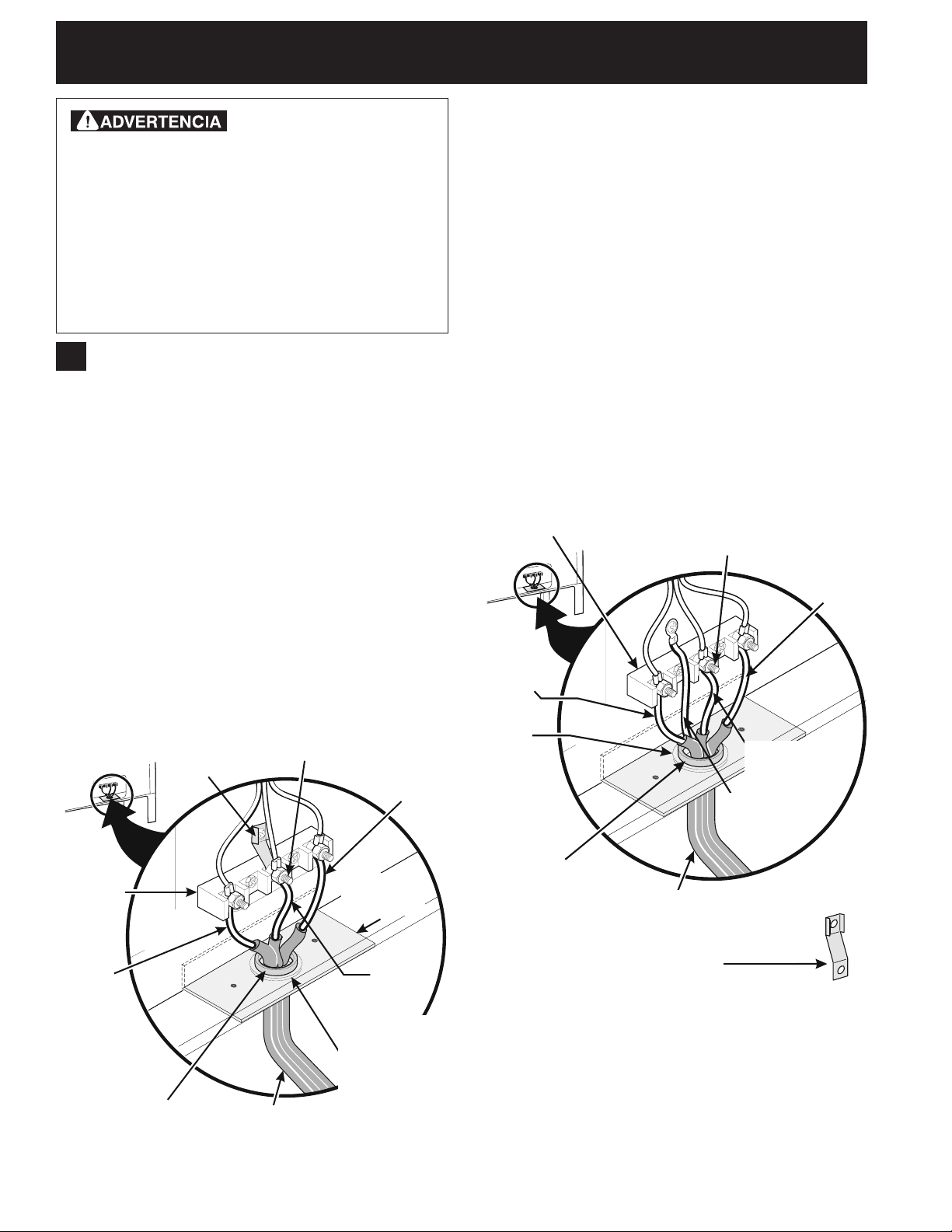

Three Conductor Wire Connection to

Range

If local codes permit connection of the frame grounding conductor to the neutral wire of the copper power supply cord (see Figure 3):

1. Removethescrewwhichisxingtherearwire

cover, then remove the rear wire cover (access cover) to expose range terminal connection block (see Figure 2).

2. Using the nuts supplied in the literature package, connect the neutral of the copper power supply cord to the center silver-colored terminal of the terminal block, and connect the other wires to the outer terminals. Match wires and terminals by color (red wires connected to the right terminal, black

wiresconnectedtotheleftterminal)(seegure3).

3. Put back the rear wire cover using the screw removed on step 1.

Grounding Strap

Silver Colored Terminal

Red Wire

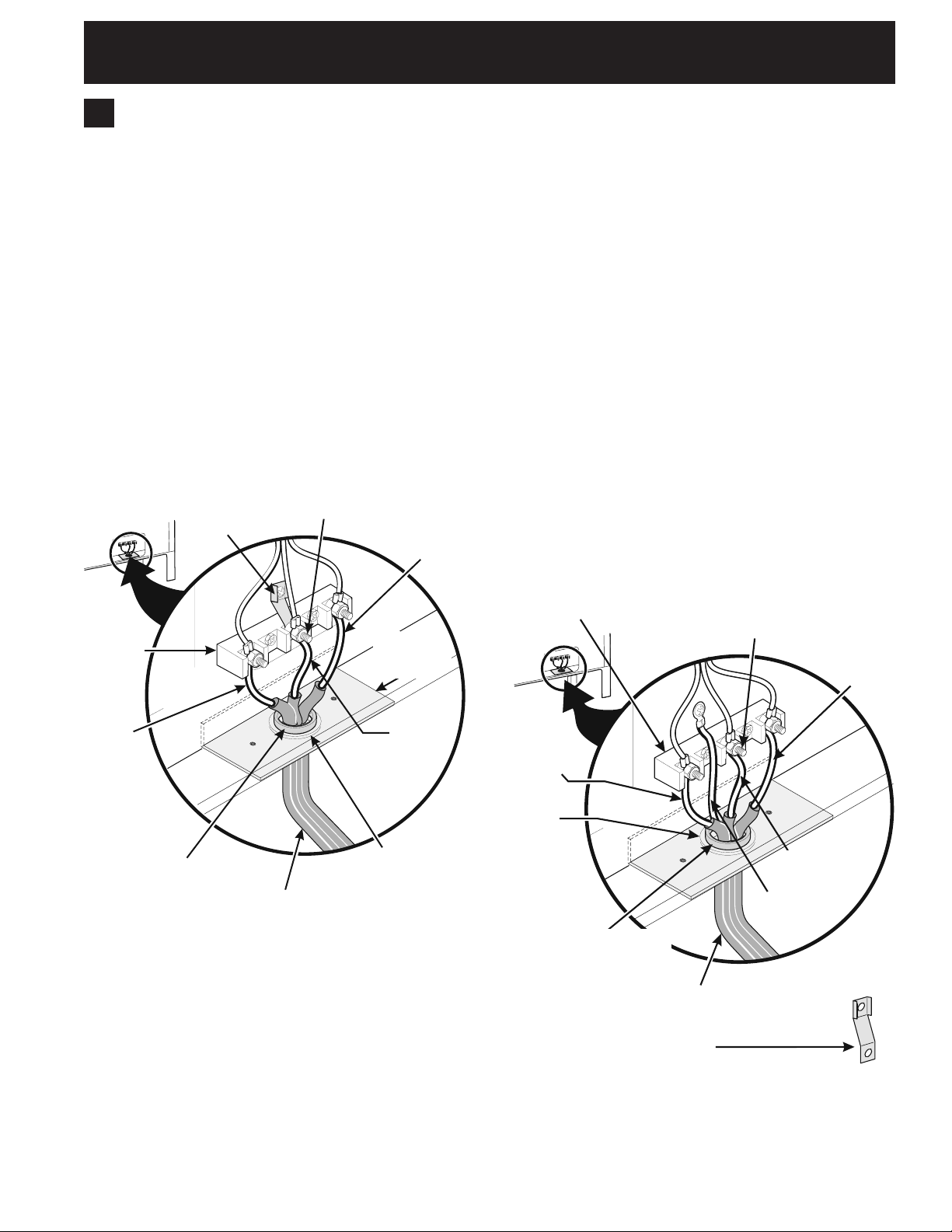

Four Conductor Wire Connection to Range

Where local codes does NOT permit connection of the frame grounding conductor to the neutral wire of the copper power supply cord (see Figure 4):

1. Removethescrewwhichisxingtherearwire

cover, then remove the rear wire cover (access cover) to expose range terminal connection block (see Figure 2).

2. Remove the grounding strap from the terminal block and from the appliance frame.

3. Using the nuts supplied with the literature package, connect the ground wire (green) of the copper power supply cord to the frame of the appliance with the ground screw, using the hole in the frame where the ground strap was removed (see Figure 4).

4. Connect the neutral of the copper power supply cord to the center silver-colored terminal of the terminal block, and connect the other wires to the outer terminals. Match wires and terminals by color (red wires connected to the right terminal, black wires connected to the left terminal).

5. Put back the rear wire cover using the screw removed on step 1.

Terminal Block

Black Wire

A User Supplied Strain-relief Must Be Installed at This Location.

To 240 V Receptacle

Figure 3

Cord

Mounting

Plate

Neutral

(White Wire)

1 1/8" (2,9 cm) Dia.

Direct Connection

Hole. Punch Out

Knockout for 1 3/8"

(3,5 cm) Dia. Cord

Kit Hole.

Black Wire

1 1/8" (2,9 cm) Dia. Direct Connection Hole. Punch Out Knockout for 1 3/8" (3,5 cm) Dia. Cord Kit Hole.

A User Supplied Strain-relief Must Be Installed at This Location

NOTE: Be sure to remove the supplied grounding strap.

Figure 4

Silver Colored Terminal

Red Wire

Neutral (White Wire)

Ground (Bare Copper Wire)

To 240 V Receptacle

30" ELECTRIC SLIDE-IN RANGE INSTALLATION INSTRUCTIONS

¾”

(1.9 cm)

¾”

(1.9 cm)

31½”

(81 cm)

Direct Electrical Connection to the Circuit Breaker, Fuse Box or Junction Box

If the appliance is connected directly to the circuit

breaker,fuseboxorjunctionbox,useexible,armored

or nonmetallic sheathed copper cable (with grounding wire). Supply a U.L. listed strain-relief at each end of the cable. At the appliance end, the cable goes through the Direct Connection Hole (see Figure 4) on the Cord Mounting Plate. Wire sizes (copper wire only) and connections must conform to the rating of the appliance.

Where local codes permit connecting the appliance-grounding conductor to the neutral (white) wire (see Figure 5):

1. Be sure that no power is supplied on the cable from residence.

2. Remove the grounding strap from the terminal block and from the appliance frame.

3. In the circuit breaker, fuse box or junction box:

a) Connect the green (or bare copper) wire, the

white appliance cable wire, and the neutral (white) wire together.

b) Connect the 2 black wires together. c) Connect the 2 red wires together.

Cable from Residence

Neutral

(white) Wire

Red Wires

Black Wires

Green (or Bare Copper) Wire

Red Wires

Green (or Bare Copper) Wire

Junction

Box

Cable from Residence

Cable from

Appliance

White Wire

Black Wires

White Wire

U.L.-listed Conduit Connector (or CSA listed)

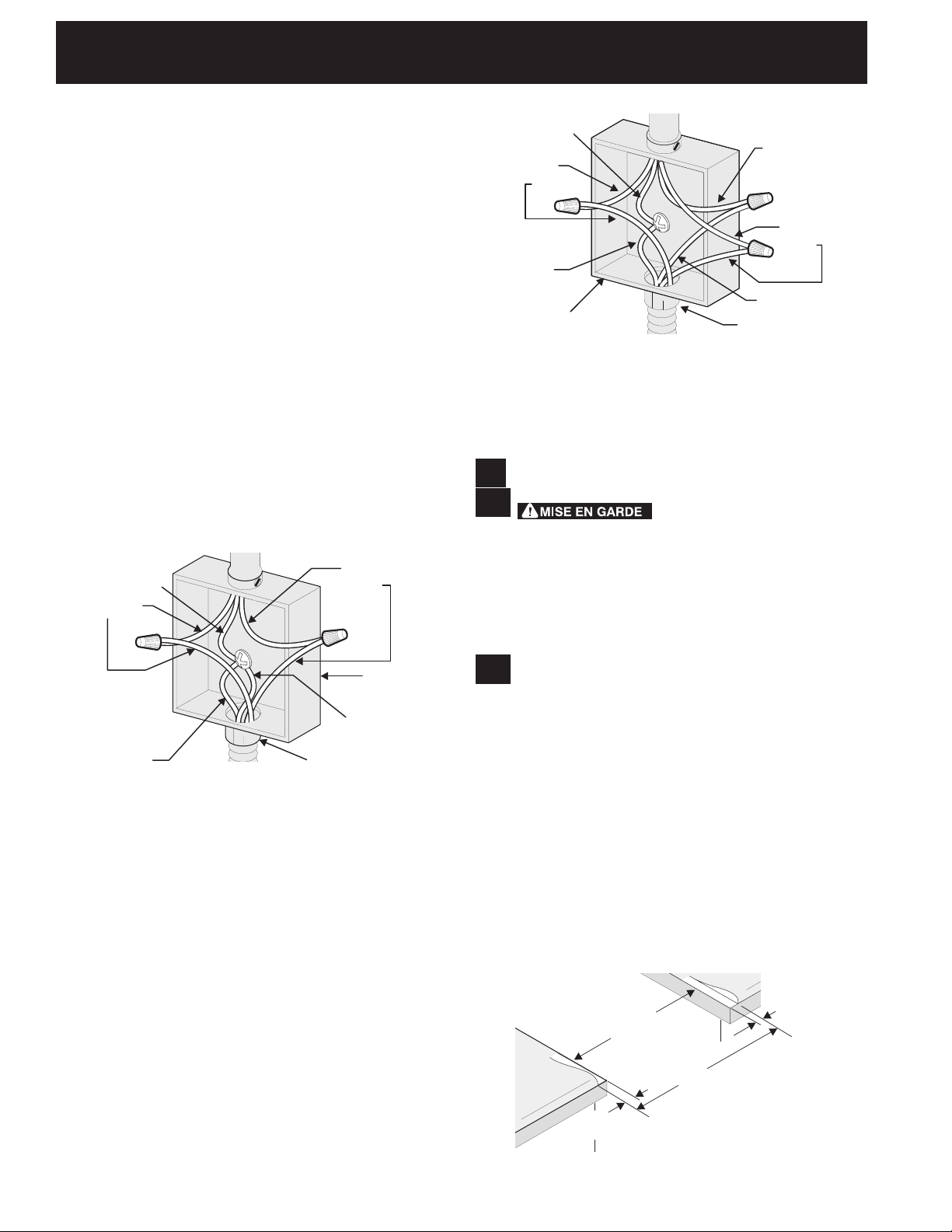

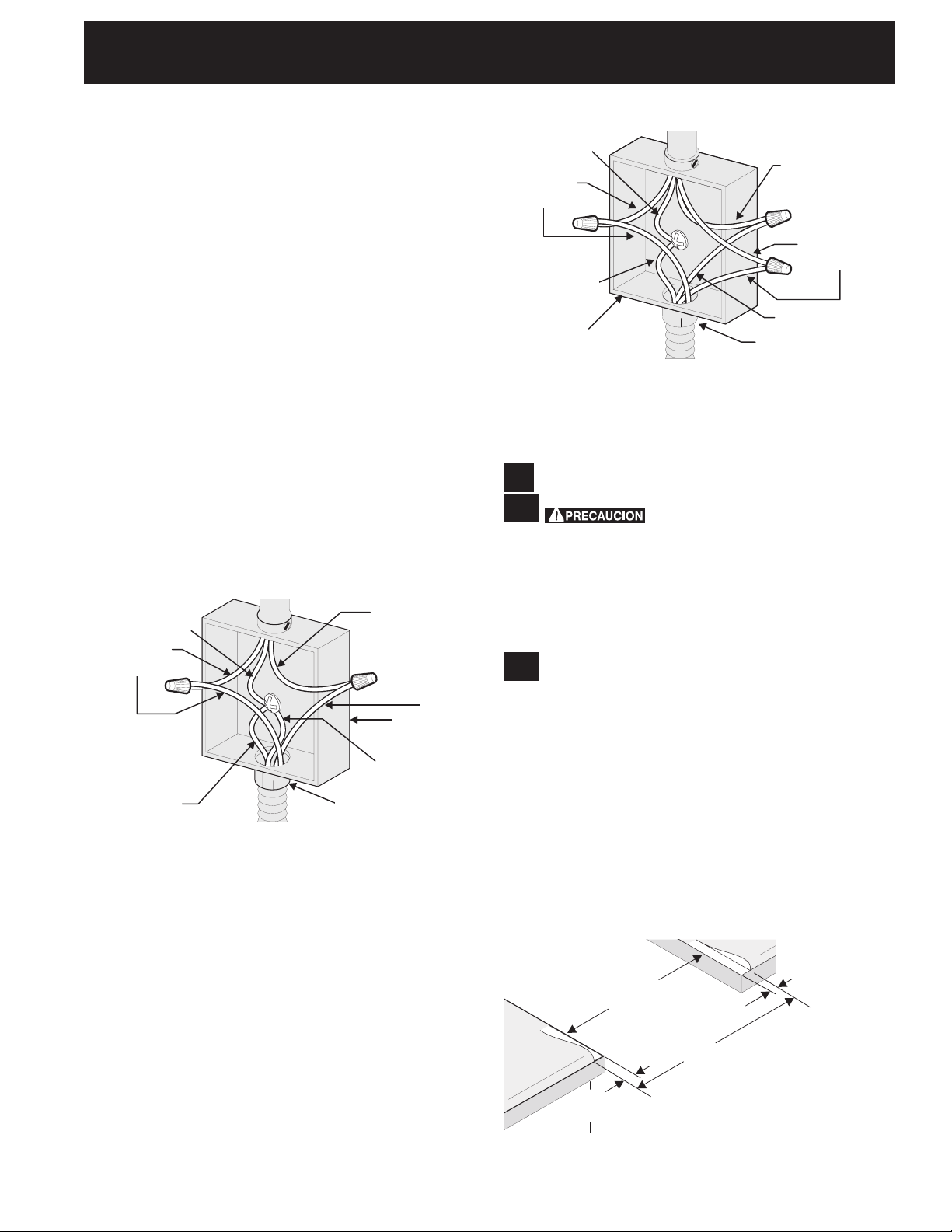

Figure 6 – 4-Wire Electrical System

(Example: Junction Box)

Cabinet Construction

6.1

To eliminate the risk of burns

orrebyreachingoverheatedsurfaceunits,donot

have cabinet storage space above the range. If there is cabinet storage space above range, reduce risk by installing a range hood that projects horizontally a minimum of 5" (12,7 cm) beyond the bottom of the cabinet.

Junction

Box

White Wire

Green (or Bare Copper) Wire

Cable from

Appliance

U.L.-listed Conduit Connector (or CSA listed)

Figure 5 - 3-Wire (Grounded Neutral) Electrical

System (Example: Junction Box)

Where local codes DO NOT permit connecting the appliance-grounding conductor to the neutral (white) wire, or if connecting to 4-wire electrical system (see Figure 6):

1. Be sure that no power is supplied on the cable

from residence.

2. Remove the grounding strap from the terminal

block and from the appliance frame.

3. In the circuit breaker, fuse box or junction box:

a) Connect the white appliance cable wire to the

neutral (white) wire. b) Connect the 2 black wires together. c) Connect the 2 red wires together. d) Connect the green (or bare copper) grounding

wire to the grounding wire of the circuit breaker,

fuse box or junction box.

6.2

Countertop Preparation

• Thecooktopsidesoftherangetoverthecutout

edge of your countertop.

• Ifyouhaveasquare nish (at) countertop, no

countertop preparation is required. Cooktop sides lay directly on edge of countertop.

• Formed front-edged countertops must have

moldededgeshavedat3/4"(1,9cm)fromeach

front corner of opening (Figure 7).

• Tile countertops may need trim cut back 3/4" (1,9

cm) from each front corner and/or rounded edge

attened(Figure7).

• If the existing cutout width is greater than 30 1/16" (76,4 cm), reduce the ¾" (1,9 cm) dimension.

Min.

Cutout

Width

Formed or tile countertop

trimmed ¾" (1,9 cm) back at

front corners of countertop

opening.

Figure 7

30" ELECTRIC SLIDE-IN RANGE INSTALLATION INSTRUCTIONS

• Countertop must be level. Place a level on the

countertop,rstsidetoside,thenfronttoback.Ifthe

countertop is not level, the range will not be level. The oven must be level for satisfactory baking results.

Cooktopsidesofrangetoveredgesofcountertop

opening

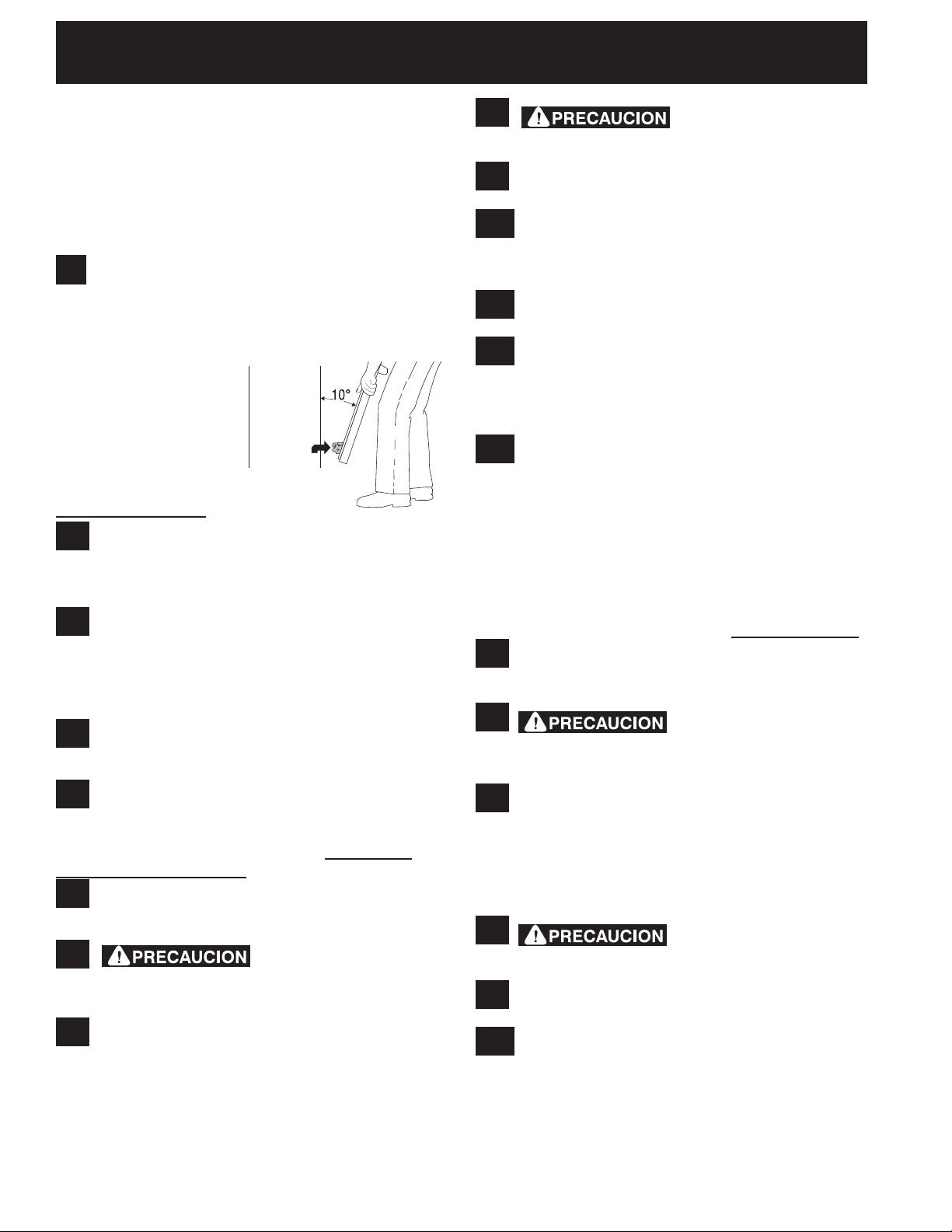

Range Installation

Important Note: Door removal is not a requirement for

installation of the range, but is an added convenience. Refer to the Use and Care Guide for oven door removal instructions.

Figure 8

Standard Installation

7.1

The range cooktop overlaps the countertop at

thesidesandtherangerestsontheoor.The

cooktop is 31½" (80 cm) wide.

7.2

Install base cabinets 30" (76,2 cm) apart. Make

sure they are plumb and level before attaching cooktop. Shave raised countertop edge to clear 31½" (80 cm) wide range top rim.

7.3

Install cabinet doors 32" (81,3 cm) min. apart so

as not to interfere with range door opening.

7.4

Cutout countertop exactly as shown on page 4.

For models equipped with Leveling Device:

7.5

Make sure the front leveling legs and the rear

leveling device are setup higher than the height of the cabinet.

7.6

Install the anti-tip bracket at

this point before placing the range at its nal

position. Follow the installation instructions on page 12 or on the anti-tip bracket template supplied with the range.

7.7

To provide an optimum installation, the top

surface of the countertop must be level and

at(lieonthesameplane)aroundthe3sides

that are adjacent to range cooktop. Proper

adjustmentstomakethetopatshouldbemade

or gaps between the countertop and the range cooktop may occur.

7.8

To reduce the risk of damaging

your appliance, do not handle or manipulate it by the ceramic glass. Manipulate with care.

7.9

Position range in front of the cabinet opening.

7.10

Make sure that the cooktop glass which

overhangs the countertop clears the countertop. If necessary, raise the unit by lowering the leveling legs.

7.11

Slide the range into the cutout opening and

center it before leveling it.

7.12

Level the range (see section 8). Theoor

where the range is to be installed must be level. Follow the instructions under "Leveling the Range- Models Equipped with Leveling Device".

7.13

Adjust leveling legs so that the underside of the

cooktop is sitting on the countertop. Carefully screw in (refer to Leveling the range: Models equipped with Leveling Device") the back leveling leg until the cooktop glass overhang touches slightly the countertop. Then carefully screw in the front two leveling legs until the cooktop glass overhang touches slightly the countertop.

For models equipped with Leveling Leg only (no leveling device):

7.5

Make sure the four leveling legs (front and rear)

are setup higher than the height of the cabinet.

7.6

Install the anti-tip bracket at

this point before placing the range at its nal

position. Follow the installation instructions on page 13 or on the anti-tip bracket template supplied with the range.

7.7

To provide an optimum installation, the top

surface of the countertop must be level and

at(lieonthesameplane)aroundthe3sides

that are adjacent to range cooktop. Proper

adjustmentstomakethetopatshouldbemade

or gaps between the countertop and the range cooktop may occur.

7.8

To reduce the risk of damaging

your appliance, do not handle or manipulate it by the ceramic glass. Manipulate with care.

30" ELECTRIC SLIDE-IN RANGE INSTALLATION INSTRUCTIONS

7.9

Position range in front of the cabinet opening.

7.10

Make sure that the glass which overhangs the

countertop clears the countertop. If necessary, raise the unit by lowering the leveling legs.

7.11

Level the range(seesection8).Theoor

where the range is to be installed must be level. Follow the instructions under "Leveling the Range-Models Equipped with Leveling Legs".

7.12

Slide the range into the cutout opening.

IMPORTANT

Installation With Backguard

The cutout depth of (21 3/4" (55,2 cm) Min., 22 1/8" (56,2 cm) Max.) needs to be increased to 24" (61 cm) when installing a backguard.

Installation With End Panel

A End Panel kit can be ordered through a Service Center.

Installation With Side Panels

A Side Panels kit can be ordered through a Service Center. Note: Install cabinet doors 32" (81,3 cm) min. apart so as not to interfere with range door opening.

If Accessories Needed :

6. After leveling the range, the rear leveling legs (located beside the rear wheels) must be lowered

almosttotheoorlevel(leaveasmallgap).Thisis

necessary to secure the unit to the anti-tip bracket.

Leveling the range

8.1

Models Equipped with Leveling Device

Level the range after installation in the cutout

opening.

1. Open the range drawer. The leveling screws control the height of the rear wheels.

2. Adjust the appliance wheels and legs as follows until the underside of the cooktop surface is sitting level on the countertop (Figure 9). a. To adjust the front legs, use a wrench on

the leg base and turn clockwise to lower or counterclockwise to raise.

b. To adjust the rear wheels, use a ratchet

or a nutdriver and turn the leveling screws counterclockwise to lower or clockwise to raise.

3. Check if the range is level by installing an oven rack in the center of the oven and placing a level on the rack (Figure 10).

4. Take 2 readings with the level placed diagonally in one direction and then the other. Level the range, if necessary, by adjusting the leveling legs and wheels.

5. If the range cannot be level, contact a carpenter to

correctsaggingorslopingoor.

Figure 9

8.2

Models Equipped with Leveling Legs

Level the range and set cooktop height before installation in the cut-out opening.

1. Install an oven rack in the center of the oven.

2. Place a level on the rack (see Figure 10). Take 2 readings with the level placed diagonally in one direction and then the other. Level the range, if necessary, by adjusting the 4 leg levelers with a wrench (see Figure 16).

3. Taking care to not damage the countertop, slide range into cutout opening and double check for levelness.

Figure 10

30" ELECTRIC SLIDE-IN RANGE INSTALLATION INSTRUCTIONS

Check Operation

Refer to the Use and Care Guide packaged with the range for operating instructions and for care and cleaning of your range.

Do not touch the elements. They may

be hot enough to cause burns.

Remove all packaging from the oven and the warmer drawer (if equipped) before testing.

9.1

Operation of Surface Elements

Turn on each of the four surface elements and check to see that they heat. Check the surface element indicator light(s), if equipped.

9.2

Operation of Oven Elements

The oven is equipped with an electronic oven control. Each of the functions has been factory checked before shipping. However, it is suggested that you verify the operation of the electronic oven controls once more. Refer to the Use & Care Guide for operation. Follow the instructions for the Clock, Timer, Bake, Broil, Convection (some models) and Clean functions.

Bake–After setting the oven to 350°F (177°C) for baking, the lower element in the oven should become red.

Broil–When the oven is set to BROIL, the upper element in the oven should become red.

Convection (some models)–When the oven is set to CONV. BAKE/ROAST at 350°F (177°C), the convection element cycles on and off and the convection fan turns. The convection fan will stop turning when the oven door is opened during convection baking or roasting.

Warmer Drawer (some models)–Set the control to HI and check to see the drawer is heating.

When Power Connection is Completed

Make sure all controls are left in the OFF position.

Model and Serial Number Location

The serial plate is located on the oven front frame behind the oven door (some models) or behind the drawer (some models).

When ordering parts for or making inquiries about your range, always be sure to include the model and serial numbers and a lot number or letter from the serial plate on your range.

Before You Call for Service

Read the Before You Call for Service Checklist and operating instructions in your Use & Care Guide. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance.

Refer to your Use & Care Guide for service phone numbers.

Clean–When the oven is set for a self-cleaning cycle, the upper element should become red during the preheat portion of the cycle. After reaching the selfcleaning temperature, the lower element will become red.

30" ELECTRIC SLIDE-IN RANGE INSTALLATION INSTRUCTIONS

Range

Anti-Tip Bracket

Floor Mount

Floor

Rear of Range

Wall Mount

Wall

10.

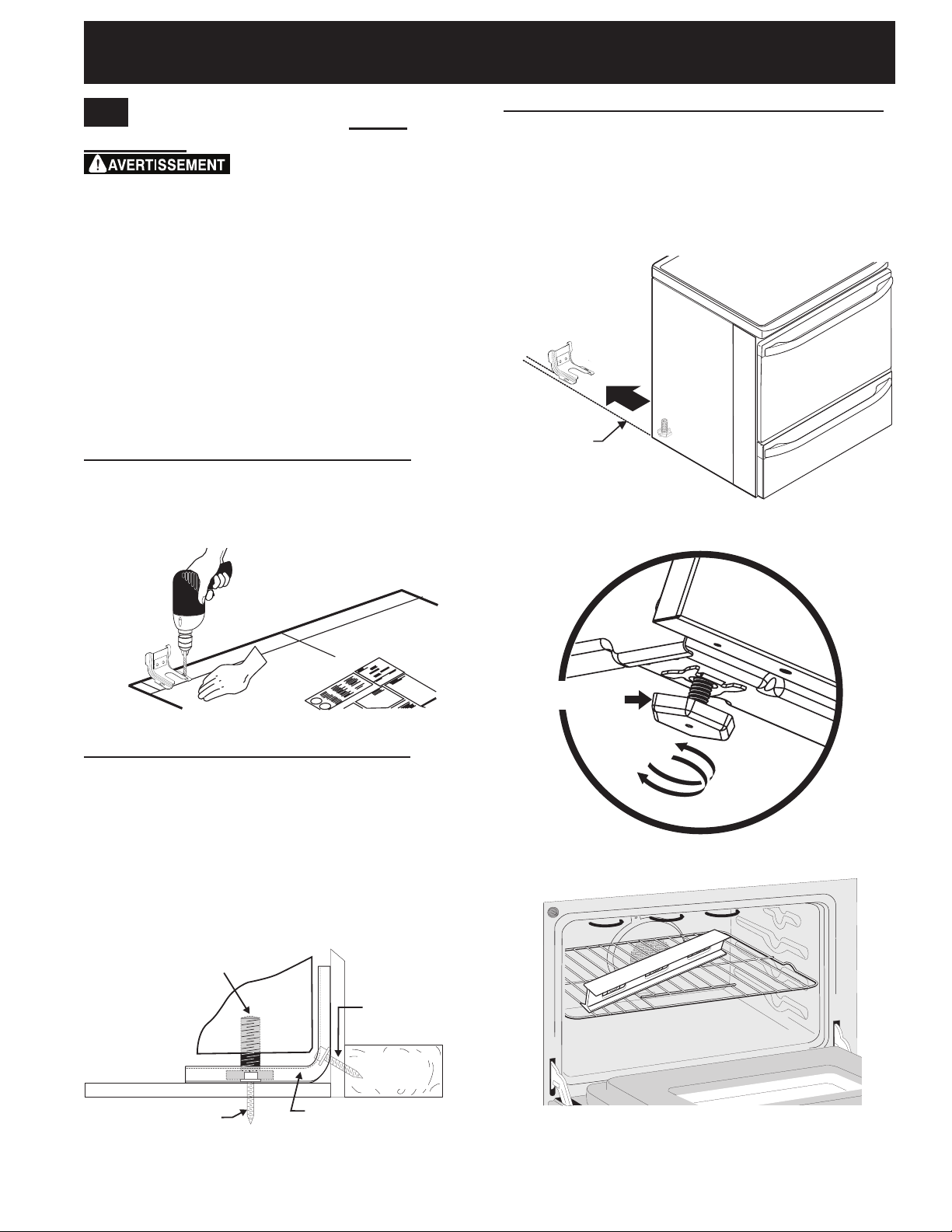

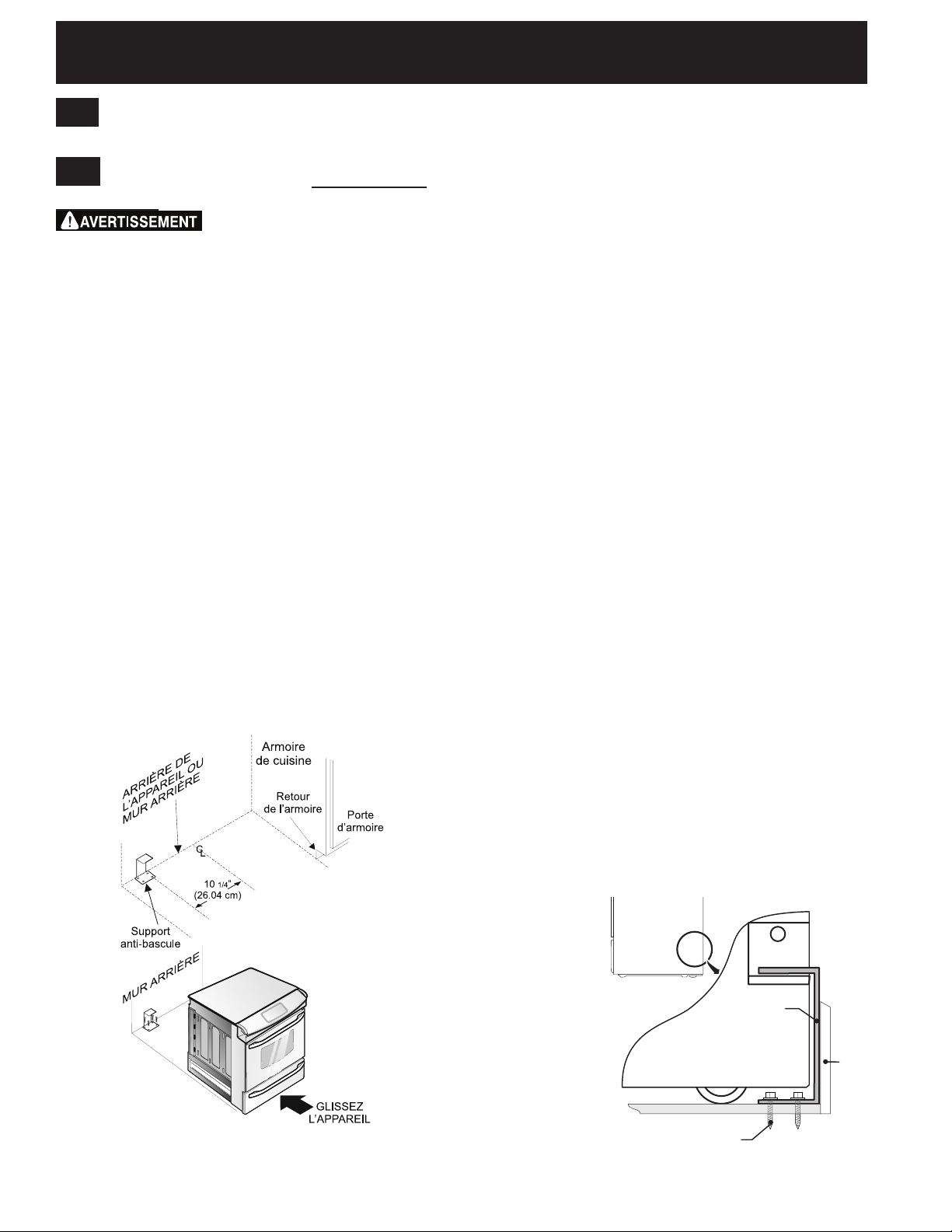

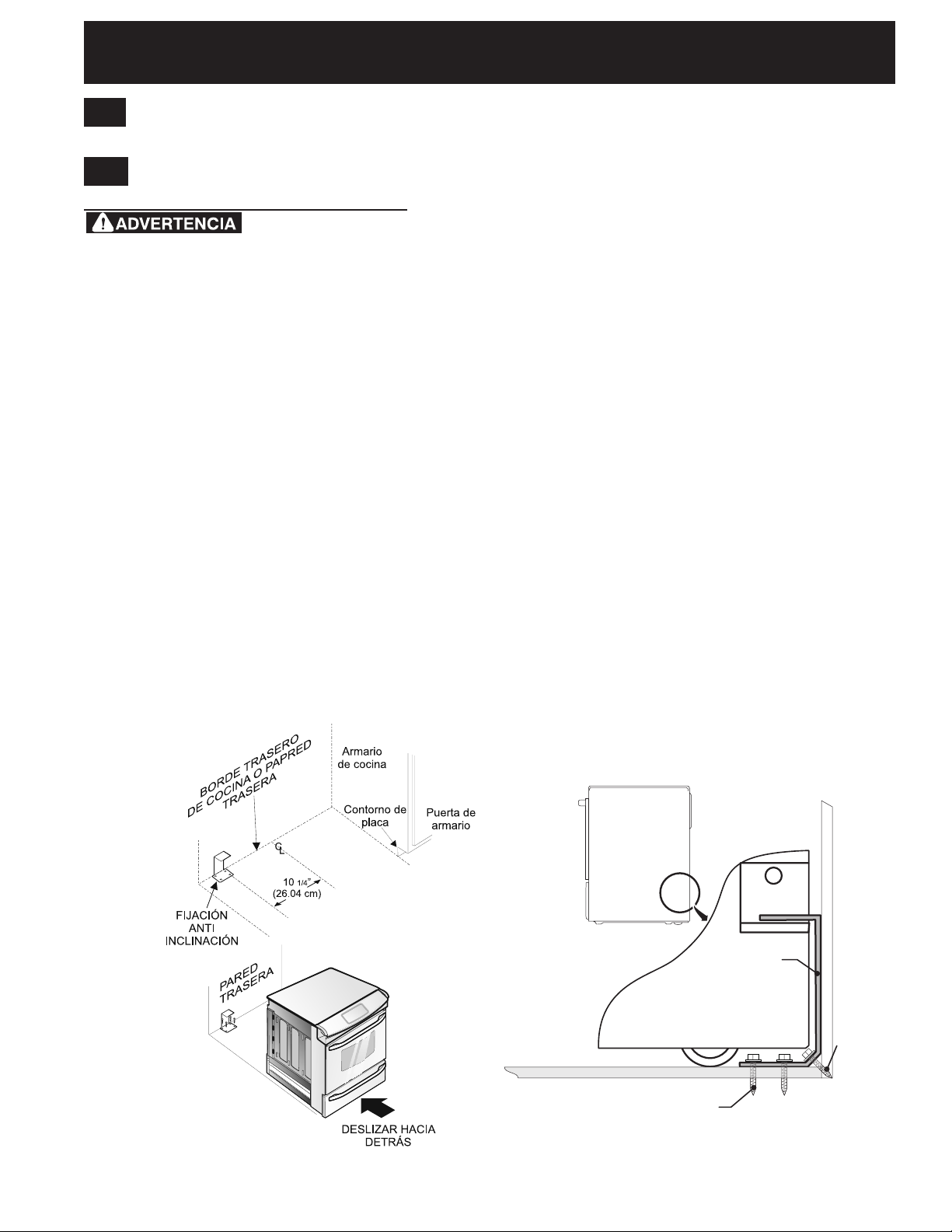

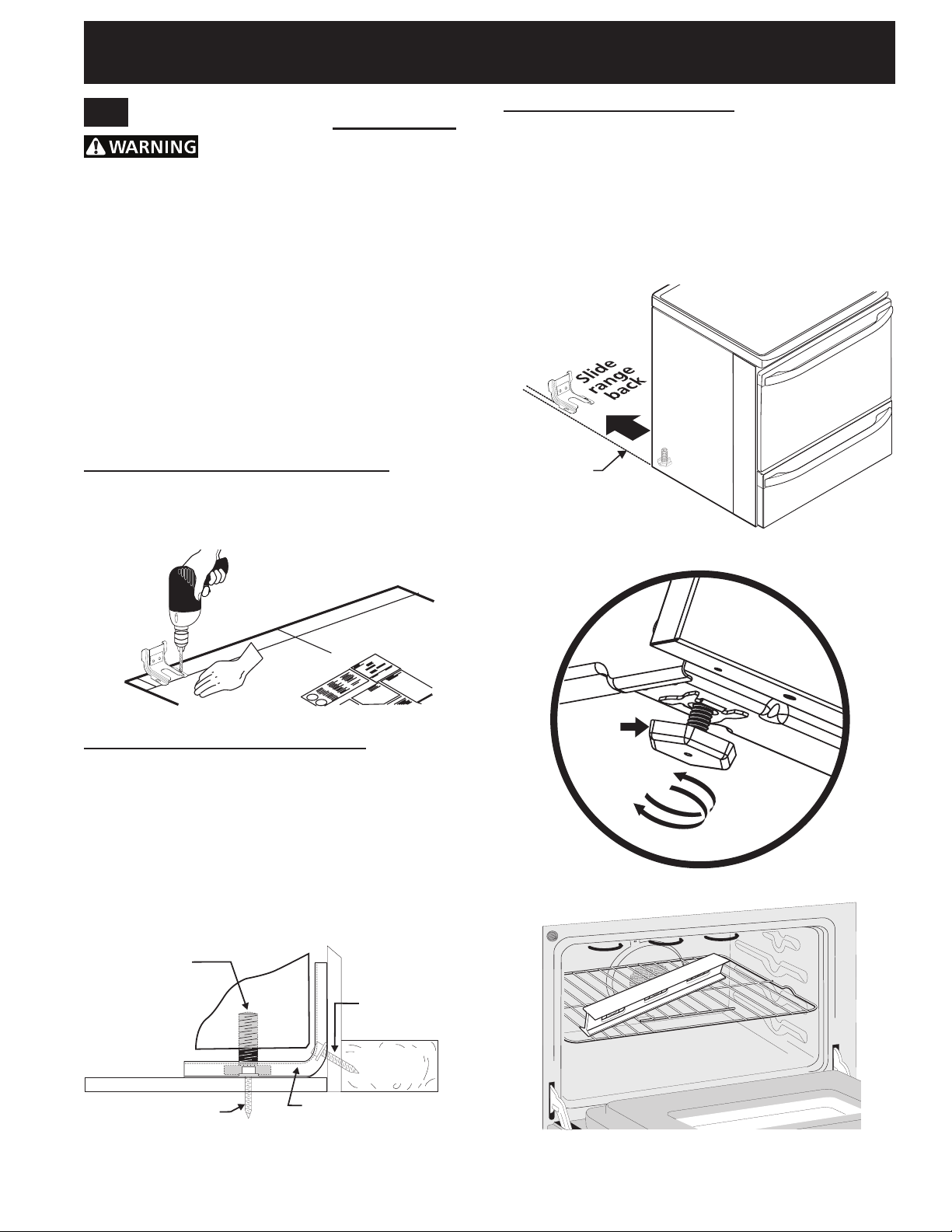

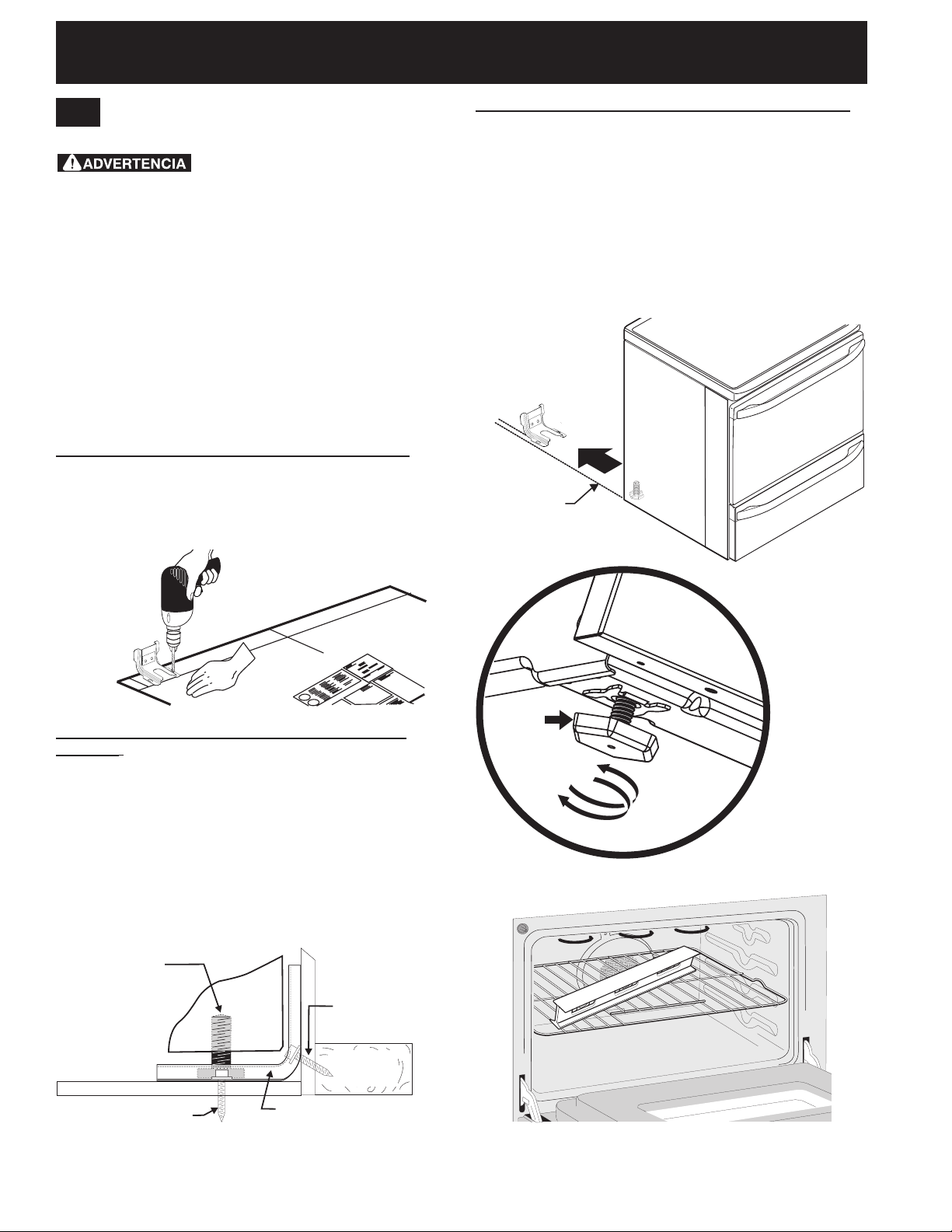

Anti-Tip Brackets Installation

10.1

Models Equipped with Leveling Device

To reduce the risk of tipping of the

range,therangemustbesecuredtotheoorby

properly installed anti-tip bracket and screws packed with the range. These parts are located in the oven. Failure to install the anti-tip bracket will allow the range to tip over if excessive weight is placed on an open door or if a child climbs upon it. Serious injury might result from spilled hot liquids or from the range itself.

Follow the instructions below to install the anti-tip brackets.

If range is ever moved to a different location, the antitip brackets must also be moved and installed with the range.

Tools Required:

Adjustable Wrench Ratchet Drill & 1/8" (0,32 cm) bit 5/16" (0,8 cm) Nutdriver Level

Theanti-tipbracketattachestotheoor(orbackwall)

at the back of the range to prevent range from tipping.

Whenfasteningbrackettotheoor,besurethatscrews

do not penetrate electrical wiring or plumbing. The screws provided will work in either wood or concrete.

1. Drawacenterline(CL)ontheoorwheretherange shouldbeinstalled.Alsodrawalineontheoorat

the range back position if there is no wall.

2. Unfoldpapertemplateandplaceitatontheoor

with the right rear corner positioned exactly on the intersection of the center and back lines you just drew before. (Use the diagram below to locate brackets if template is not available. (Figure 11))

3. Markontheoor(orwall)thelocationofthe

mounting holes shown on the template. For easier installation, 3/16" (0,48 cm) diameter pilot holes 1/2"

(1,27cm)deepcanbedrilledintotheoor(orwall).

4. Removetemplateandplacebracketonoor.Lineup holesinbracketwithmarksonoor/wallandattach

with screws provided. Bracket must be secured to

solidoororwall(Figure12).Ifattachingtoconcrete oor,rstdrill3/16"(0,48cm)dia.pilotholesusing

masonry drill bit.

5. Be sure the 4 levelling legs are at the highest position they can be.

6. Slide range into place making sure structure of the range is trapped by the anti-tip bracket (Figure 14). Lower the range by adjusting the levelling legs until the underside of the cooktop is sitting level on the countertop. Refer to “Levelling the Range” section.

7. After installation, verify that the anti-tip bracket is engaged by grasping the top rear edge of the range and carefully attempt to tilt it forward to make sure range is properly anchored.

(CL = Center line)

Figure 11

Figure 12

+ 28 hidden pages
