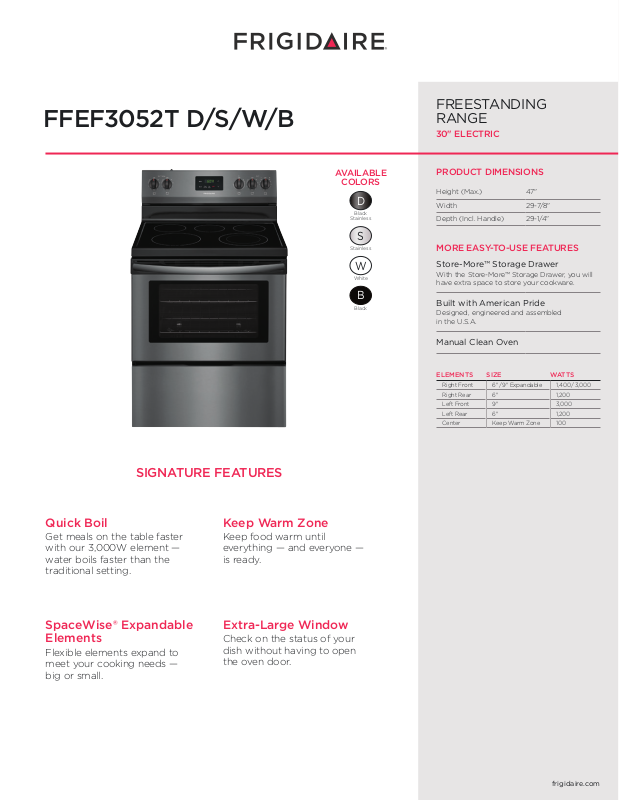

FFEF3052T D/S/W/B
D
S
W
B
FREESTANDING
RANGE
30" ELECTRIC
AVAILABLE
COLORS
Black
Stainless
Stainless
White
Black
PRODUCT DIMENSIONS
Height (Max.) 47"
Width 29-7/8"
Depth (Incl. Handle) 29-1/4"
MORE EASY-TO-USE FEATURES
Store-More™ Storage Drawer
With the Store-More™ Storage Drawer, you will
have extra space to store your cookware.
Built with American Pride
Designed, engineered and assembled
in the U.S.A.
Manual Clean Oven
ELEMENTS SIZE WATT S
Right Front 6" / 9" Expandable 1,400 / 3,000
Right Rear 6" 1,200
Left Front 9" 3,000
Left Rear 6" 1,200
Center Keep Warm Zone 100
SIGNATURE FEATURES
Quick Boil
Get meals on the table faster
with our 3,000W element —
water boils faster than the
traditional setting.
SpaceWise® Expandable
Elements
Flexible elements expand to
meet your cooking needs —
big or small.
Keep Warm Zone
Keep food warm until
everything — and everyone —
is ready.
Extra-Large Window
Check on the status of your
dish without having to open
the oven door.
frigidaire.com
FFEF3052T D/S/W/B
FREESTANDING RANGE
30" ELECTRIC
FEATURES
Oven Control / Timing System Ready-Select® Controls
Surface Type Black Ceramic Glass
Window Extra-Large
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Oven Cleaning System Manual Clean
Drawer Functionality Storage
Black Stainless (D),
Stainless (S),
Color-Coordinated (W/B)
Black Stainless (D),
Stainless (S),
Color-Coordinated (W/B)
Black (D/S),
Color-Coordinated (W/B)
OVEN CONTROLS
Bake Yes
Broil Ye s
Kitchen Timer Yes
Timed Cook Option Yes
COOKTOP FEATURES
Right Front Element (Watts)
Right Rear Element (Watts) 6" – 1,200
Left Front Element (Watts) 9" – 3,000
Left Rear Element (Watts) 6" – 1,200
Center Element (Watts) Keep Warm Zone – 100
Hot Surface Indicator Light Yes
Element “On” Indicator Light Yes
SpaceWise® Expandable
6"/ 9" – 1,400 / 3,000
OVEN FEATURES
Capacity (Cu. Ft.) 4.8
Oven Light 1 Incandescent 40W
Rack Configuration 2 Standard
Baking System Even Baking Technology
Broiling System Vari-Broil™ (Hi / Lo)
Bake Element / Broil Element (Watts) 2,600 / 3,000
SPECIFICATIONS
Oven Interior ( H x W x D ) 19-3/4" x 23" x 18-3/4"
Power Supply Connection Location Middle Bottom Rear
Voltage Rating 240V / 208V / 60Hz
Connected Load
(kW Rating) @ 240 / 208 Volts
Minimum Circuit Required (Amps) 40
Shipping Weight (Approx.) 165 Lbs.
12.5 / 9.5
PRODUCT DIMENSIONS
A - Height (Max.) 47"
B - Width 29-7/8"
C - Depth (Incl. Handle) 29-1/4"
Depth with Door Open 90˚ 45"
CABINET CUTOUT DIMENSIONS
Height (Standard) 36"
Width (Min.) 30"
Depth (Min.) 24"
36"
(Adjustable)
A
•
USA
10200 David Taylor Drive
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
C
B
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
© 2018 Electrolux Home Products, Inc.
FFEF3052T 07/18
FFEF3052T D/S/W/B
FREESTANDING RANGE
30" ELECTRIC
13"
max.
18"
min.
30" min.
C
L
30"
30"
min.*
25"
11"
22"
1/2"
24"
6"
3
Shaded area allows for flush-to-wall
installation of rear wall electrical
outlet. (All dimensions for outlet
location are maximum.)
*Note: 30" minimum clearance between top of cooking
surface and bottom of unprotected wood or metal
overhead cabinet; or 24" minimum clearance when
bottom of wood or metal overhead cabinet is protected
by not less than 1/4" flame-retardant millboard covered
with not less than No. 28 MSG sheet steel, 0.015"
stainless steel, 0.024" aluminum or 0.020" copper.
0" clearance is minimum for rear of range. Follow all
dimension requirements provided above to prevent
property damage, potential fire hazard, and incorrect
countertop and cabinet cuts.
18"
min.
Minimum
1" clearance
required
to nearest
combustible
wall on
either side
of range
above 36"
height
36"
stand.
48"
max.
Wall
Front
49"
Side
29
1/4"
25
3/4"
Power supply
connection
(middle bottom rear*)
*when viewed from front
product dimensions
are model specific
and may vary slightly
from illustration. Refer
to model’s product
specifications for
actual dimensions.
36"
(Adjustable
1
±
/8")
to
Note: Overall
INSTALLATION SPECIFICATIONS
•
Product Shipping Weight (approx.) – 165 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz, fused
on both sides of line with ground.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 12.5 / 9.5 kW
•
Recommended Circuit Breaker – 40 Amps
•
Always consult local and national electric codes.
•
Make sure wall coverings around range can withstand heat generated
by range.
•
Floor beneath range MUST be solid and level.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets installed to
either side of appliance must be no less than maximum width of appliance.
•
Range can be installed flush to wall with 0" minimum rear clearance.
•
USA
10200 David Taylor Drive
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
29
7/8"
•
Minimum 1" clearance required from edge of rangetop to nearest combustible
wall on either side of range above 36" height.
•
Allow 30" minimum clearance between top of cooking surface and bottom
of unprotected wood or metal overhead cabinet; or 24" minimum clearance
when bottom of wood or metal overhead cabinet is protected by not less
than 1/4" flame retardant millboard covered with not less than No. 28 MSG
sheet steel, 0.015" stainless steel, 0.024" aluminum or 0.020" copper.
•
To reduce risk of fire when using overhead cabinetry, install range hood
that projects horizontally a recommended minimum of 5" beyond bottom
of cabinets.
•
Follow all dimension requirements provided to prevent property damage,
potential fire hazard, and incorrect countertop and cabinet cuts.
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
© 2018 Electrolux Home Products, Inc.
FFEF3052T 07/18
