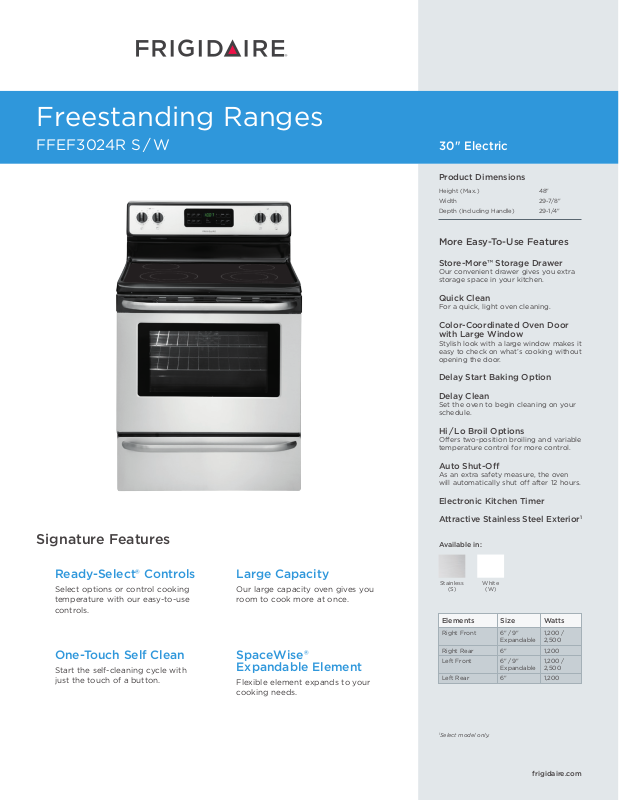

Frigidaire FFEF3024RW, FFEF3024RS Specification Sheet
Drop-In Cooktop
Freestanding Ranges
FPEC3085K S
FFEF3024R S / W
30" Electric30" Electric
Product Dimensions
Height (Max.) 48"
Width 29-7/8"
Depth (Including Handle) 29-1/4"
More Easy-To-Use Features
Store-More™ Storage Drawer
Our convenient drawer gives you extra
storage space in your kitchen.
Quick Clean
For a quick, light oven cleaning.
Color-Coordinated Oven Door
with Large Window
Stylish look with a large window makes it
easy to check on what’s cooking without
opening the door.
Delay Start Baking Option
Delay Clean
Set the oven to begin cleaning on your
schedule.
Hi / Lo Broil Options
Offers two-position broiling and variable
temperature control for more control.
Signature Features
Ready-Select® Controls
Select options or control cooking
temperature with our easy-to-use
controls.
One-Touch Self Clean
Start the self-cleaning cycle with
just the touch of a button.
Large Capacity
Our large capacity oven gives you
room to cook more at once.
SpaceWise®
Expandable Element
Flexible element expands to your
cooking needs.
Auto Shut-O
As an extra safety measure, the oven
will automatically shut off after 12 hours.
Electronic Kitchen Timer
Attractive Stainless Steel Exterior
Available in:
Stainless
(S)
Elements
Right Front
Right Rear
Left Front
Left Rear
1
Select model only.
White
(W)
Size
6" / 9"
Expandable
6"
6" / 9"
Expandable
6"
Watts
1,200 /
2,500
1,200
1,200 /
2,500
1,200
1
frigidaire.com
C
A
36"
(Adjustable)
B
Features
Oven Control / Timing System
Surface Type
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Oven Controls
Bake
Broil
Quick Bake Convection
Add-a-Minute
Delay Start
Self-Clean
Quick Clean Option
Delay Clean
Kitchen Timer
Timed Cook Option
Auto Oven Shut-O
Cooktop Features
Right Front Element (Watts)
Right Rear Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
Center Element (Watts)
Hot Surface Indicator Light
Coil Cooktop / Drip Bowls
Oven Features
Capacity (Cu. Ft.)
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake Element / Broil Element (Watts)
Certifications
A.D.A. Compliant
Sabbath Mode (Star-K® Certified)
1
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Ready-Select® Controls
Black Ceramic Glass
Extra-Large
Stainless Steel ( S ),
Color-Coordinated ( W)
Stainless Steel ( S ),
Color-Coordinated ( W )
Black ( S ),
Color-Coordinated ( W)
Quick Bake Convection
Self Clean
Storage
Yes
Variable (400-550°F)
Yes
Yes
Yes
Yes
2, 3 Hours
Yes
Yes
12 Hours
SpaceWise® Expandable
6"/ 9" – 1,200 / 2,500
6" – 1,200
SpaceWise® Expandable
6"/ 9" – 1,200 / 2,500
6" – 1,200
Yes
5.4
1
Yes
2 Standard
Even Baking Technology
Vari-Broil™ High / Low
3,500 / 3,600
19-3/4" x 24-3/8" x 19-1/8"
Middle Bottom Rear
240V / 208V / 60Hz
12.5 / 9.5
40
175 Lbs.
Freestanding Ranges
FFEF3024R S / W 30" Electric
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (max.)
B - Width
C - Depth (Including Handle)
Depth with Door Open 90˚
48"
29-7/8"
29-1/4"
49"
Cutout Dimensions
Height (standard)
Width (min.)
Depth (min.)
36"
30"
24"
•
USA
10200 David Taylor Drive
•
CANADA
FFEF3024R 08/15 © 2015 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
