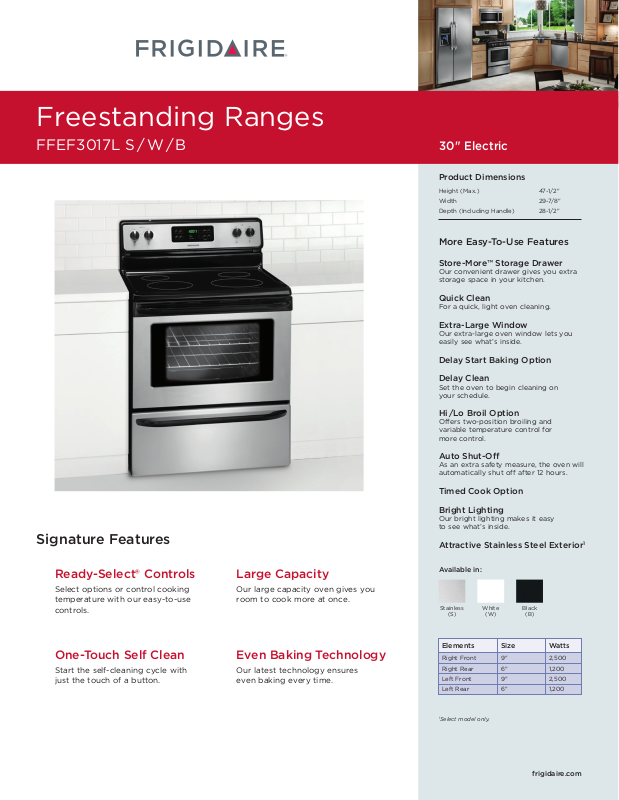

Frigidaire FFEF3017LB User Manual
Drop-In Cooktop
Freestanding Ranges
FPEC3085K S
FFEF3017L S / W / B
30" Electric30" Electric
Product Dimensions
Height (Max.) 47-1/2"
Width 29-7/8"
Depth (Including Handle) 28-1/2"
More Easy-To-Use Features
Store-More™ Storage Drawer
Our convenient drawer gives you extra
storage space in your kitchen.
Quick Clean
For a quick, light oven cleaning.
Extra-Large Window
Our extra-large oven window lets you
easily see what’s inside.
Delay Start Baking Option
Delay Clean
Set the oven to begin cleaning on
your schedule.
Hi /Lo Broil Option
Offers two-position broiling and
variable temperature control for
more control.
Signature Features
Ready-Select® Controls
Select options or control cooking
temperature with our easy-to-use
controls.
One-Touch Self Clean
Start the self-cleaning cycle with
just the touch of a button.
Large Capacity
Our large capacity oven gives you
room to cook more at once.
Even Baking Technology
Our latest technology ensures
even baking every time.
Auto Shut-O
As an extra safety measure, the oven will
automatically shut off after 12 hours.
Timed Cook Option
Bright Lighting
Our bright lighting makes it easy
to see what’s inside.
Attractive Stainless Steel Exterior
Available in:
Stainless
(S)
Elements
Right Front
Right Rear
Left Front
Left Rear
1
Select model only.
White
(W)
Size
9"
6"
9"
6"
Black
(B)
Watts
2,500
1,200
2,500
1,200
1
frigidaire.com
C
A
36"
(Adjustable)
B
Features
Oven Control / Timing System
Surface Type
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Oven Controls
Bake
Broil
Add-a-Minute
Delay Bake
Self-Clean
Quick Clean Option
Delay Clean
Kitchen Timer
Timed Cook Option
Auto Oven Shut-O
Cooktop Features
Right Front Element (Watts)
Right Rear Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
Center Element (Watts)
Hot Surface Indicator Light
Coil Cooktop / Drip Bowls
Oven Features
Capacity (Cu. Ft.)
Oven Light
Hidden Bake Element
Rack Configuration
Even Baking System
Broiling System
Bake Element / Broil Element (Watts)
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Ready-Select® Controls
Black Ceramic Glass
Extra-Large
Stainless Steel ( S ),
Color-Coordinated ( W/B )
Black ( S ),
Color-Coordinated ( W/B )
Black ( S ),
Color-Coordinated ( W/B )
Self Clean
Storage
Yes
Low and High
Yes
Yes
Yes
Yes
Yes
Yes
12 Hours
9" – 2,500
6" – 1,200
9" – 2,500
6" – 1,200
5.3
1
2 Standard
Yes
Vari-Broil™ Hi / Lo
2,600 / 3,000
21" x 24-3/8" x 19-1/8"
Middle Bottom Rear
240V / 208V / 60Hz
12.5 / 9.5
40
140 Lbs.
Freestanding Ranges
FFEF3017L S / W / B 30" Electric
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Max.)
B - Width
C - Depth (Including Handle)
Depth with Door Open 90˚
47-1/2"
29-7/8"
28-1/2"
48-3/8"
Cutout Dimensions
Height (Standard)
Width (Min.)
Depth (Min.)
36"
30"
24"
•
USA
10200 David Taylor Drive
•
CANADA
FFEF3017L 10/11 © 2011 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
