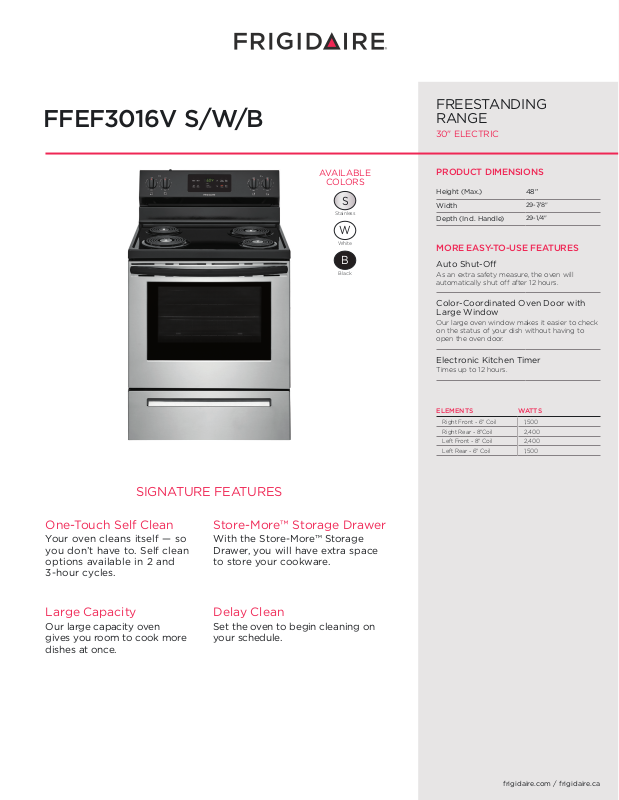

Frigidaire FFEF3016VB, FFEF3016VW, FFEF3016VS Specifications
SIGNATURE FEATURES
One-Touch Self Clean
Your oven cleans itself — so
you don’t have to. Self clean
options available in 2 and
3-hour cycles.
Store-More™ Storage Drawer
With the Store-More™ Storage
Drawer, you will have extra space
to store your cookware.
FFEF3016V S/W/B
Large Capacity
Our large capacity oven
gives you room to cook more
dishes at once.
Delay Clean
Set the oven to begin cleaning on
your schedule.
frigidaire.com / frigidaire.ca
FREESTANDING
RANGE
30" ELECTRIC
PRODUCT DIMENSIONS
Height (Max.) 48"
Width
29-7/8"
Depth (Incl. Handle)
29-1/4"
MORE EASY-TO-USE FEATURES
Auto Shut-O
As an extra safety measure, the oven will
automatically shut off after 12 hours.
Color-Coordinated Oven Door with
Large Window
Our large oven window makes it easier to check
on the status of your dish without having to
open the oven door.
Electronic Kitchen Timer
Times up to 12 hours.
ELEMENTS WATT S
Right Front - 6" Coil 1,500
Right Rear - 8"Coil 2,400
Left Front - 8" Coil 2,400
Left Rear - 6" Coil 1,500
AVAILABLE
COLORS
S
Stainless
W
White
B
Black
Specifications subject to change. Accessories information available on the web at frigidaire.com / frigidaire.ca
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com / frigidaire.ca.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
PRODUCT DIMENSIONS
A - Height (Max.) 48"
B - Width 29-7/8"
C - Depth (Incl. Handle) 29-1/4"
Depth with Door Open 90° 49"
CUTOUT DIMENSIONS
Height (Standard.) 36"
Width (Min.) 30"
Depth 25"
FEATURES
Oven Control / Timing System Ready-Select
®
Controls
Surface Type
Black Porcelain (S),
Color-Coordinated
Porcelain (W/B)
Window Extra-Large
Exterior Door Finish
Stainless (S),
Color-Coordinated
(W/B)
Handle Design
Black (S),
Color-Coordinated
(W/B)
Exterior Finish (Side Panels)
Black (S),
Color-Coordinated
(W/B)
Oven Cleaning System Self Clean
Drawer Functionality Storage
OVEN CONTROLS
Bake Yes
Broil Yes
Delay Start Yes
Self Clean 2, 3 Hours
Delay Clean Yes
Kitchen Timer Yes
Timed Cook Option Ye s
Auto Oven Shut-Off Yes
COOKTOP FEATURES
Right Front Element (Watts) 6" – 1,500
Right Rear Element (Watts) 8" – 2,400
Left Front Element (Watts) 8" – 2,400
Left Rear Element (Watts) 6" – 1,500
Coil Cooktop / Drip Bowls Yes / Black Porcelain
OVEN FEATURES
Capacity (Cu. Ft.) 5.3
Oven Light 1 Incandescent 40W
Rack Configuration 2 Standard
Baking System
Even Baking
Technology
Broiling System Vari-Broil™ (Hi / Lo)
Bake Element / Broil Element (Watts) 2,600 / 3,000
SPECIFICATIONS
Oven Interior ( H x W x D )
19-3/4" x 24-3/8" x
19-1/8"
Power Cord Connection Location Middle Bottom Rear
Voltage Rating 240V / 208V / 60Hz
Amps @ 120 Volts 11.0/8.0
Minimum Circuit Required (Amps.) 40
Shipping Weight (Approx.)
160 Lbs. (S), 150 Lbs.
(W/ B)
FFEF3016V S/W/B
FREESTANDING RANGE
30" ELECTRIC
FFEF3016V 05/19
© 2019 Electrolux Home Products, Inc.
C
A
36"
(Adjustable)
B
