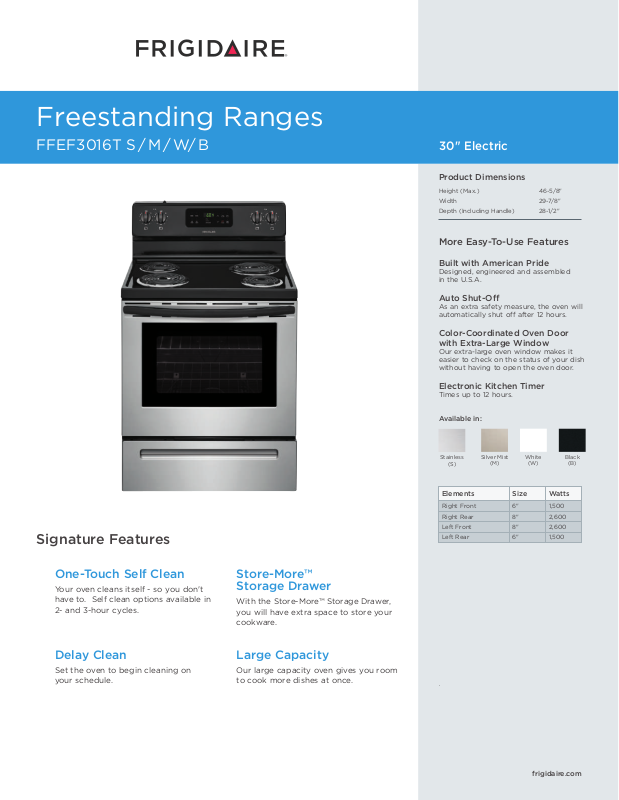

Drop-In Cooktop
Freestanding Ranges
FPEC3085K S
FFEF3016T S / M / W/ B
30" Electric30" Electric
Product Dimensions
Height (Max.) 46-5/8"
Width 29-7/8"
Depth (Including Handle) 28-1/2"
More Easy-To-Use Features
Built with American Pride
Designed, engineered and assembled
in the U.S.A.
Auto Shut-O
As an extra safety measure, the oven will
automatically shut off after 12 hours.
Color-Coordinated Oven Door
with Extra-Large Window
Our extra-large oven window makes it
easier to check on the status of your dish
without having to open the oven door.
Electronic Kitchen Timer
Times up to 12 hours.
Available in:
Signature Features
One-Touch Self Clean
Your oven cleans itself - so you don't
have to. Self clean options available in
2- and 3-hour cycles.
Delay Clean
Set the oven to begin cleaning on
your schedule.
Store-More™
Storage Drawer
With the Store-More™ Storage Drawer,
you will have extra space to store your
cookware.
Large Capacity
Our large capacity oven gives you room
to cook more dishes at once.
Stainless
(S)
Elements
Right Front
Right Rear
Left Front
Left Rear
.
Silver Mist
(M)
Size
6"
8"
8"
6"
White
(W)
Watts
1,500
2,600
2,600
1,500
Black
(B)
frigidaire.com
C
A
36"
(Adjustable)
B
Features
Oven Control / Timing System
Surface Type
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Oven Controls
Bake
Broil
Add-a-Minute
Delay Bake
Self-Clean
Quick Clean Option
Delay Clean
Kitchen Timer
Timed Cook Option
Auto Oven Shut-O
Oven Lock-Out
Cooktop Features
Right Front Element (Watts)
Right Rear Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
Center Element (Watts)
Element "On" Indicator Light
Coil Cooktop / Drip Bowls
Oven Features
Capacity (Cu. Ft.)
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake Element / Broil Element (Watts)
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Ready-Select® Controls
Black Porcelain ( S/M ),
Color-Coordinated Porcelain
( W/B )
Extra-Large
Stain. Steel ( S ), Silver Mist
( M ), Color-Coord. ( W/B )
Black ( S/M ),
Color-Coordinated ( W/B )
Black ( S/M ),
Color-Coordinated ( W/B )
Self Clean
Storage
Yes
Low and High
Yes
Yes
2, 3 Hour
Yes
12 Hours
6" – 1,500
8" – 2,600
8" – 2,600
6" – 1,500
Yes
Yes / Chrome
5.3
1
2 Standard
Even Baking Technology
Vari-Broil™ Hi / Lo
2,600 / 3,000
19-3/4" x 24-3/8" x 19-1/8"
Middle Bottom Rear
240V / 208V / 60Hz
11.5 / 8.5
40
160 Lbs.
Freestanding Ranges
FFEF3016T S / M / W / B 30" Electric
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Max.)
B - Width
C - Depth (Including Handle)
Depth with Door Open 90˚
46-5/8"
29-7/8"
28-1/2"
48-3/8"
Cutout Dimensions
Height (Standard)
Width (Min.)
Depth (Min.)
36"
30"
24"
•
USA
10200 David Taylor Drive
•
CANADA
FFEF3016T 04/17 © 2017 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
Front
29
7/8"
48"
max.
30" min.
13"
max.
25"
24"
Minimum
1" clearance
required
to nearest
combustible
wall on
either side
of range
above 36"
height
30"
6"
3
1/2"
Shaded area allows for flush-to-wall
installation of rear wall electrical
outlet. (All dimensions for outlet
location are maximum.)
C
L
22"
11"
36"
stand.
30"
min.*
Wall
18"
min.
18"
min.
*Note: 30" minimum clearance between top of cooking
surface and bottom of unprotected wood or metal
overhead cabinet; or 24" minimum clearance when
bottom of wood or metal overhead cabinet is protected
by not less than 1/4" flame-retardant millboard covered
with not less than No. 28 MSG sheet steel, 0.015"
stainless steel, 0.024" aluminum or 0.020" copper.
0" clearance is minimum for rear of range. Follow all
dimension requirements provided above to prevent
property damage, potential fire hazard, and incorrect
countertop and cabinet cuts.
Side
49"
25
3/4"
Power cord location
(middle bottom rear*)
*when viewed from front
29
1/4"
36"
(Adjustable
to
±
1
/8")
Note: Overall
product dimensions
are model specific
and may vary slightly
from illustration. Refer
to model’s product
specifications for
actual dimensions.
Freestanding Ranges
FFEF3016T S / M / W / B 30" Electric
Freestanding Range Specifications
•
Product Shipping Weight (approx.) – 160 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz,
fused on both sides of line with ground.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 11.5 / 8.5 kW
•
Recommended Circuit Breaker – 40 Amps
•
Always consult local and national electric codes.
•
Make sure wall coverings around range can withstand heat generated
by range.
•
Floor beneath range MUST be solid and level.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
•
Range can be installed flush to wall with 0" minimum rear clearance.
•
Minimum 1" clearance required from edge of rangetop to nearest
combustible wall on either side of range above 36" height.
•
Allow 30" minimum clearance between top of cooking surface and
bottom of unprotected wood or metal overhead cabinet; or 24"
minimum clearance when bottom of wood or metal overhead cabinet
is protected by not less than 1/4" flame retardant millboard covered
with not less than No. 28 MSG sheet steel, 0.015" stainless steel,
0.024" aluminum or 0.020" copper.
•
To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
•
Follow all dimension requirements provided to prevent property
damage, potential fire hazard, and incorrect countertop and
cabinet cuts.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
•
USA
10200 David Taylor Drive
•
CANADA
FFEF3016T 04/17 © 2017 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
