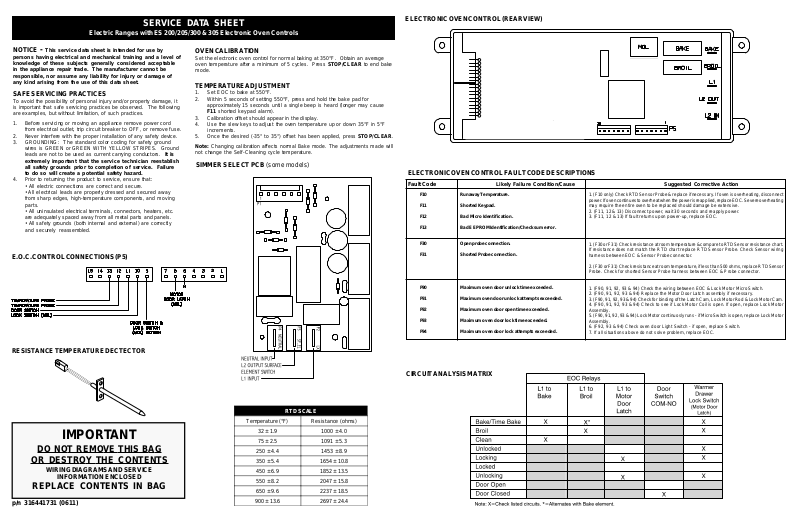

SERVICE DATA SHEET

Electric Ranges with ES 200/205/300 & 305 Electronic Oven Controls

ELECTRONIC OVEN CONTROL (REAR VIEW)

NOTICE - This service data sheet is intended for use by

persons having electrical and mechanical training and a level of
knowledge of these subjects generally considered acceptable
in the appliance repair trade. The manufacturer cannot be
responsible, nor assume any liability for injury or damage of
any kind arising from the use of this data sheet.

SAFE SERVICING PRACTICES

To avoid the possibility of personal injury and/or property damage, it
is important that safe servicing practices be observed. The following
are examples, but without limitation, of such practices.

1. Before servicing or moving an appliance remove power cord
from electrical outlet, trip circuit breaker to OFF, or remove fuse.

2. Never interfere with the proper installation of any safety device.

3. GROUNDING: The standard color coding for safety ground
wires is GREEN or GREEN WITH YELLOW STRIPES. Ground
leads are not to be used as current carrying conductors. It is

extremely important that the service technician reestablish
all safety grounds prior to completion of service. Failure
to do so will create a potential safety hazard.

4. Prior to returning the product to service, ensure that:

• All electric connections are correct and secure.

• All electrical leads are properly dressed and secured away
from sharp edges, high-temperature components, and moving
parts.

• All uninsulated electrical terminals, connectors, heaters, etc.
are adequately spaced away from all metal parts and panels.

• All safety grounds (both internal and external) are correctly
and securely reassembled.

OVEN CALIBRATION

Set the electronic oven control for normal baking at 350°F. Obtain an average
oven temperature after a minimum of 5 cycles. Press STOP/CLEAR to end bake
mode.

TEMPERATURE ADJUSTMENT

1. Set EOC to bake at 550°F.

2. Within 5 seconds of setting 550°F, press and hold the bake pad for
approximately 15 seconds until a single beep is heard (longer may cause
F11 shorted keypad alarm).

3. Calibration offset should appear in the display.

4. Use the slew keys to adjust the oven temperature up or down 35°F in 5°F
increments.

5. Once the desired (-35° to 35°) offset has been applied, press STOP/CLEAR.

Note: Changing calibration affects normal Bake mode. The adjustments made will
not change the Self-Cleaning cycle temperature.

SIMMER SELECT PCB (some models)

ELECTRONIC OVEN CONTROL FAULT CODE DESCRIPTIONS

Fault Code

F10

F11

F12

F13

Runaway Temperature.

Shorted Keypad.

Bad Micro Identification.

Bad EEPROM Identification/Checksum error.

Likely Failure Condition/Cause

1. (F10 only) Check RTD Sensor Probe & replace if necessary. If oven is overheating, disconnect
power. If oven continues to overheat when the power is reapplied, replace EOC. Severe overheating
may require the entire oven to be replaced should damage be extensive.

2. (F11, 12 & 13) Disconnect power, wait 30 seconds and reapply power.

3. (F11, 12 & 13) If fault returns upon power-up, replace EOC.

Suggested Corrective Action

E.O.C. CONTROL CONNECTIONS (P5)

RESISTANCE TEMPERATURE DECTECTOR

IMPORTANT

DO NOT REMOVE THIS BAG

OR DESTROY THE CONTENTS

WIRING DIAGRAMS AND SERVICE

INFORMATION ENCLOSED

REPLACE CONTENTS IN BAG

p/n 316441731 (0611)

RTD SCALE

Temperatur e (°F) Resistance (ohms)

32 ± 1.9 1000 ± 4.0

75 ± 2.5 1091 ± 5.3
250 ± 4.4 1453 ± 8.9
350 ± 5.4 1654 ± 10.8
450 ± 6.9 1852 ± 13.5
550 ± 8.2 2047 ± 15.8
650 ± 9.6 2237 ± 18.5

900 ± 13.6 2697 ± 24.4

F30

F31

F90

F91

F92

F93

F94

Open probe connection.

Shorted Probe connection.

Maximum oven door unlock time exceeded.

Maximum oven door unlock attempts exceeded.

Maximum oven door open time exceeded.

Maximum oven door lock time exceeded.

Maximum oven door lock attempts exceeded.

CIRCUIT ANALYSIS MATRIX

1. (F30 or F31) Check resistance at room temperature & compare to RTD Sensor resistance chart.
If resistance does not match the RTD chart replace RTD Sensor Probe. Check Sensor wiring
harness between EOC & Sensor Probe connector.

2. (F30 or F31) Check resistance at room temperature, if less than 500 ohms, replace RTD Sensor
Probe. Check for shorted Sensor Probe harness between EOC & Probe connector.

1. (F90, 91, 92, 93 & 94) Check the wiring between EOC & Lock Motor Micro Switch.

2. (F90, 91, 92, 93 & 94) Replace the Motor Door Latch assembly if necessary.

3. (F90, 91, 92, 93 & 94) Check for binding of the Latch Cam, Lock Motor Rod & Lock Motor Cam.

4. (F90, 91, 92, 93 & 94) Check to see if Lock Motor Coil is open. If open, replace Lock Motor
Assembly.

5. (F90, 91, 92, 93 & 94) Lock Motor continuosly runs - if Micro Switch is open, replace Lock Motor
Assembly.

6. (F92, 93 & 94) Check oven door Light Switch - if open, replace Switch.

7. If all situations above do not solve problem, replace EOC.

TROUBLESHOOTING SCHEMATICTROUBLESHOOTING DIAGRAM
