Frigidaire FFEF3013L User Manual

Drop-In Cooktop
Freestanding Ranges
FPEC3085K S
FFEF3013L W / B
30" Electric30" Electric

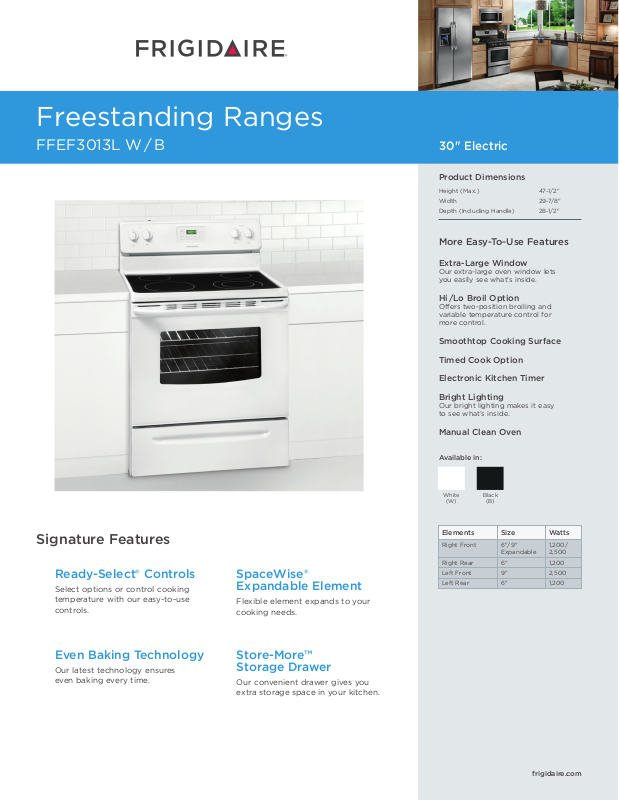

Product Dimensions
Height (Max.) 47-1/2"
Width 29-7/8"
Depth (Including Handle) 28-1/2"
More Easy-To-Use Features
Extra-Large Window
Our extra-large oven window lets you easily see what’s inside.
Hi /Lo Broil Option
Offers two-position broiling and variable temperature control for more control.
Smoothtop Cooking Surface
Timed Cook Option
Electronic Kitchen Timer
Bright Lighting
Our bright lighting makes it easy to see what’s inside.
Manual Clean Oven
Signature Features
Ready-Select® Controls
Select options or control cooking temperature with our easy-to-use controls.
Even Baking Technology
Our latest technology ensures even baking every time.
SpaceWise® Expandable Element
Flexible element expands to your cooking needs.
Store-More™ Storage Drawer
Our convenient drawer gives you extra storage space in your kitchen.
Available in:
White
(W)
Elements
Right Front
Right Rear
Left Front
Left Rear
Black
(B)
Size
6"/ 9" Expandable
6"
9"
6"
Watts
1,200 /  2,500
1,200
2,500
1,200
frigidaire.com
Features
C
A
36"
(Adjustable)
B
Oven Control / Timing System
Surface Type
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Oven Controls
Bake
Broil
Add-a-Minute
Delay Bake
Self-Clean
Quick Clean Option
Delay Clean
Kitchen Timer
Timed Cook Option
Auto Oven Shut-O
Cooktop Features
Right Front Element (Watts)
Right Rear Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
Center Element (Watts)
Hot Surface Indicator Light
Coil Cooktop / Drip Bowls
Oven Features
Capacity (Cu. Ft.)
Oven Light
Hidden Bake Element
Rack Configuration
Even Baking System
Broiling System
Bake Element / Broil Element (Watts)
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Ready-Select® Controls
Black Ceramic Glass
Extra-Large
Color-Coordinated (W / B)
Color-Coordinated (W / B)
Color-Coordinated (W / B)
Manual Clean
Storage
Yes
Low and High
Yes
Yes
SpaceWise® Expandable 6"/ 9" – 1,200 / 2,500
6" – 1,200
9" – 2,500
6" – 1,200
4.8
1
2 Standard
Vari-Broil™ Hi / Lo
2,600 / 3,000
21" x 24-3/8" x 19-1/8"
Middle Bottom Rear
240V / 208V / 60Hz
11.5 / 8.5
40
138 Lbs.
Freestanding Ranges
FFEF3013L W/ B 30" Electric
NOTE: For planning purposes only. Always consult local and national electric codes. Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Max.)
B - Width
C - Depth (Including Handle)
Depth with Door Open 90˚
47-1/2"
29-7/8"
28-1/2"
48-3/8"
Cabinet Cutout Dimensions
Height (Standard)
Width (Min.)
Depth (Min.)
36"
30"
24"
USA
10200 David Taylor Drive
CANADA
FFEF3013L 07/14 © 2014 Electrolux Home Products, Inc
5855 Terry Fox Way
Charlotte, NC 28262
Mississauga, ON L5V 3E4
1-800-FRIGIDAIRE
1-800-265-8352
frigidaire.com
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
Freestanding Ranges
FFEF3013L W/ B 30" Electric

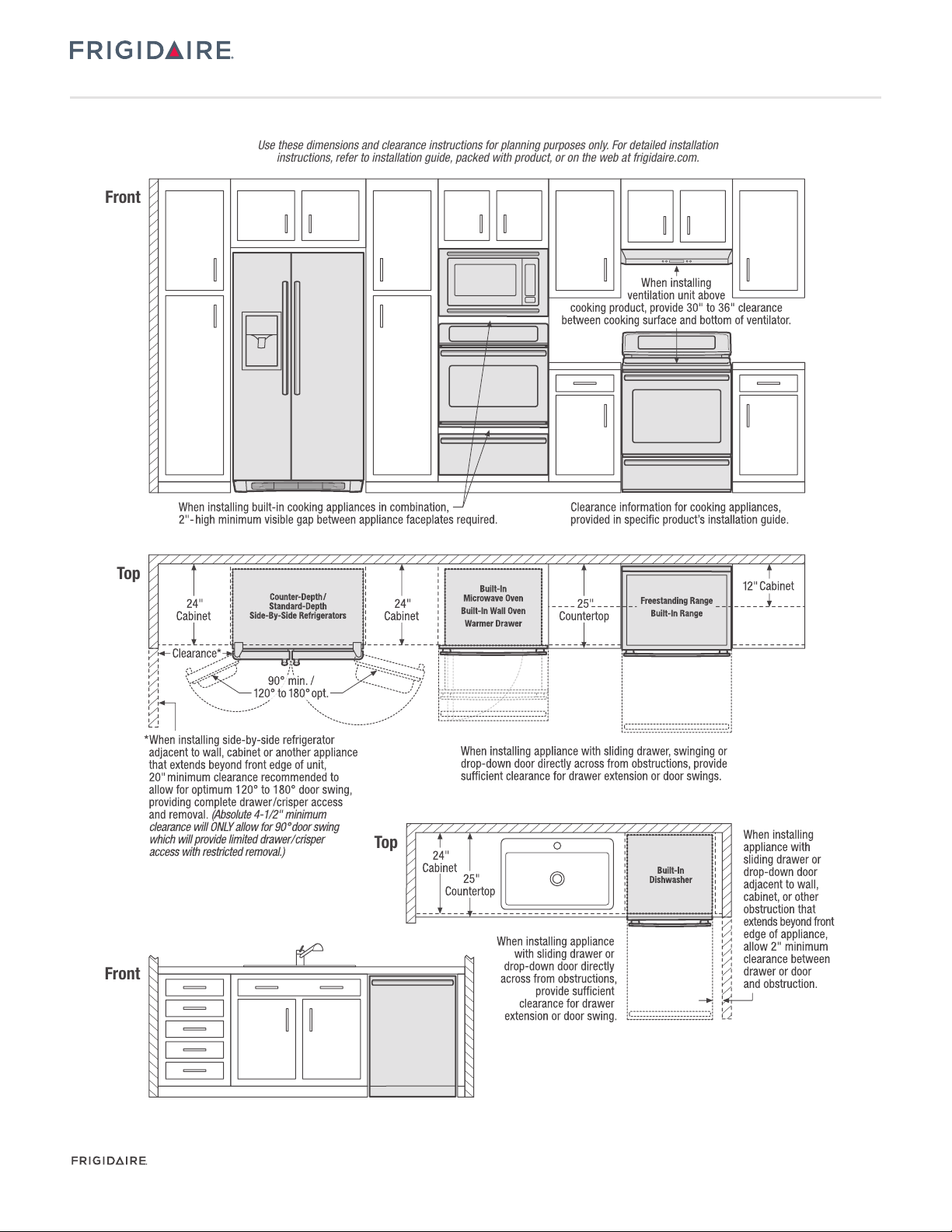

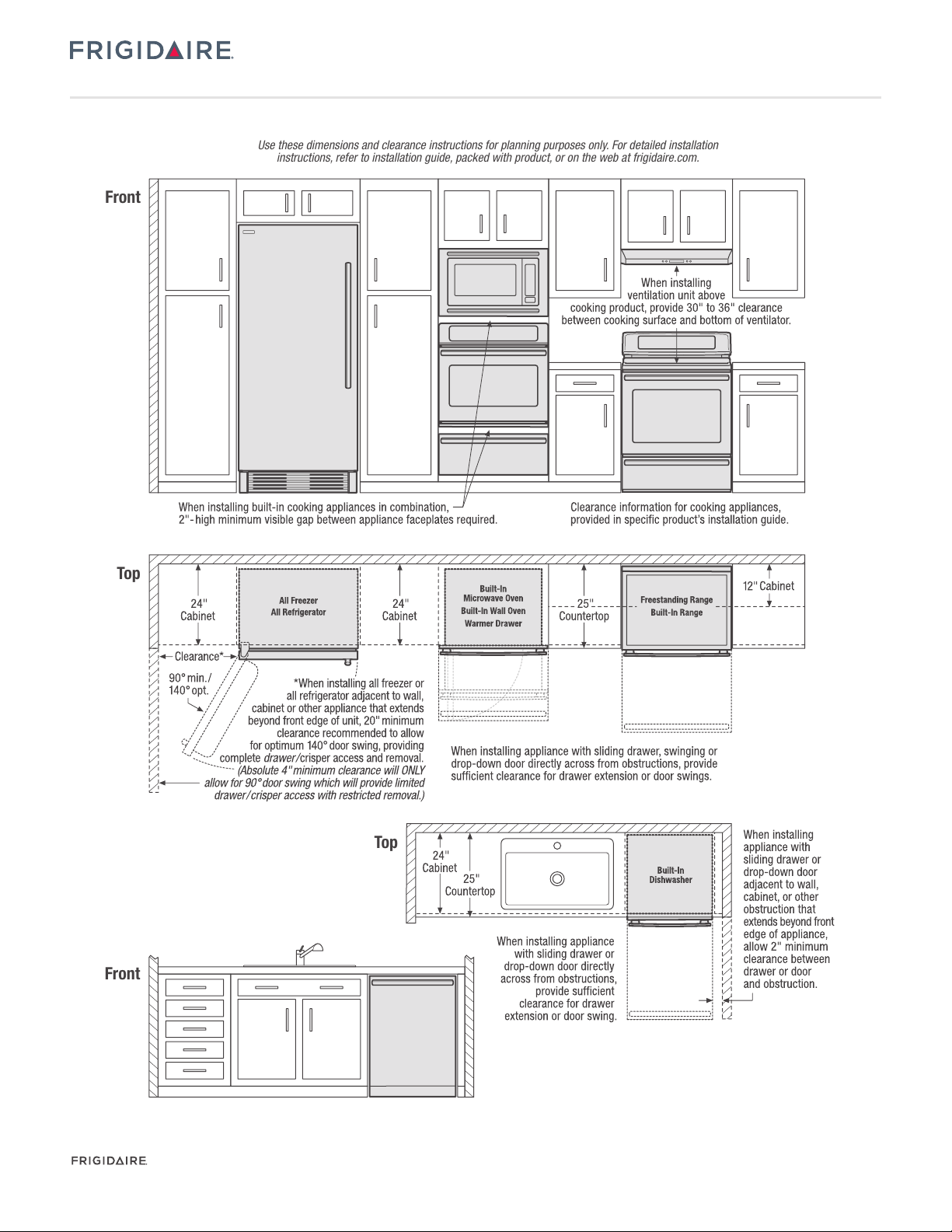

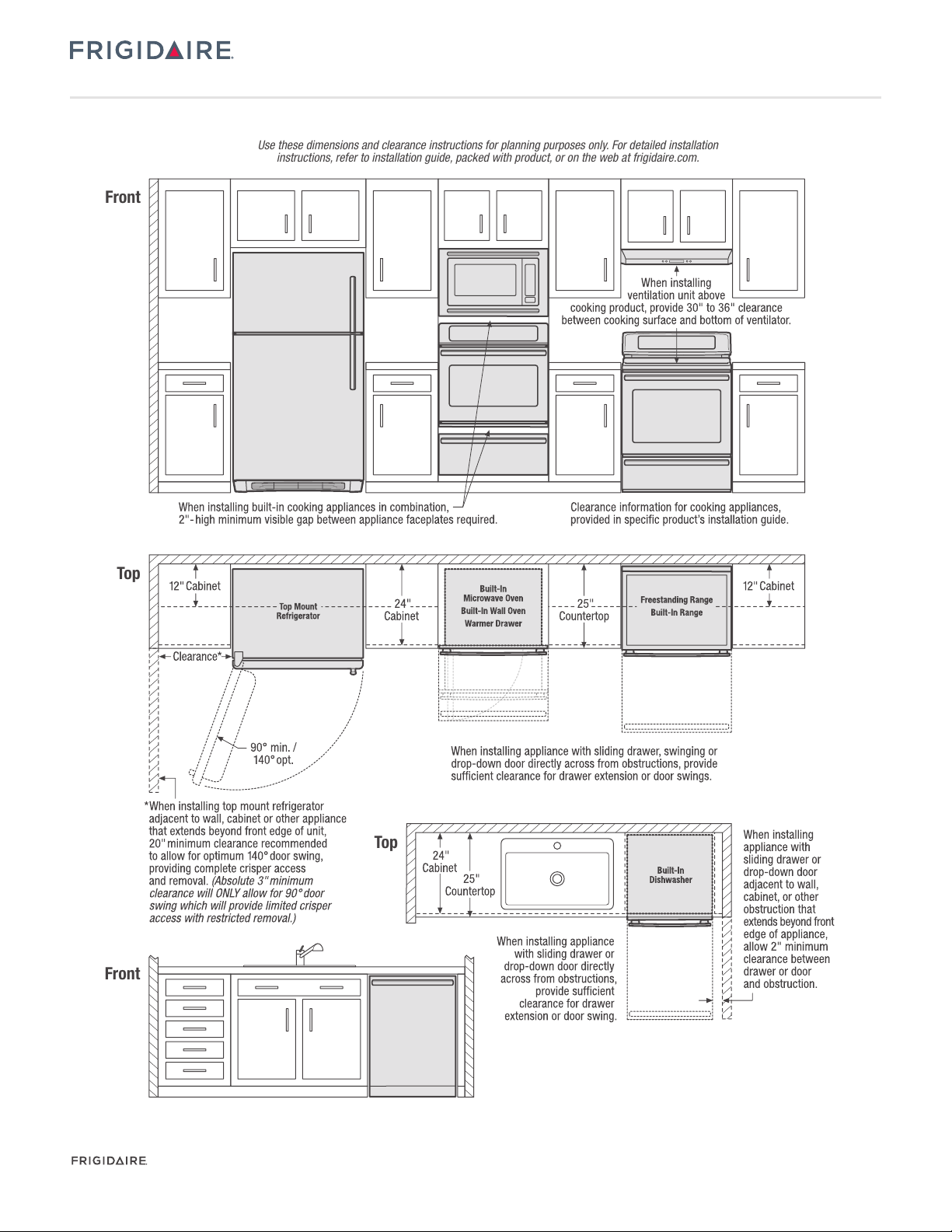

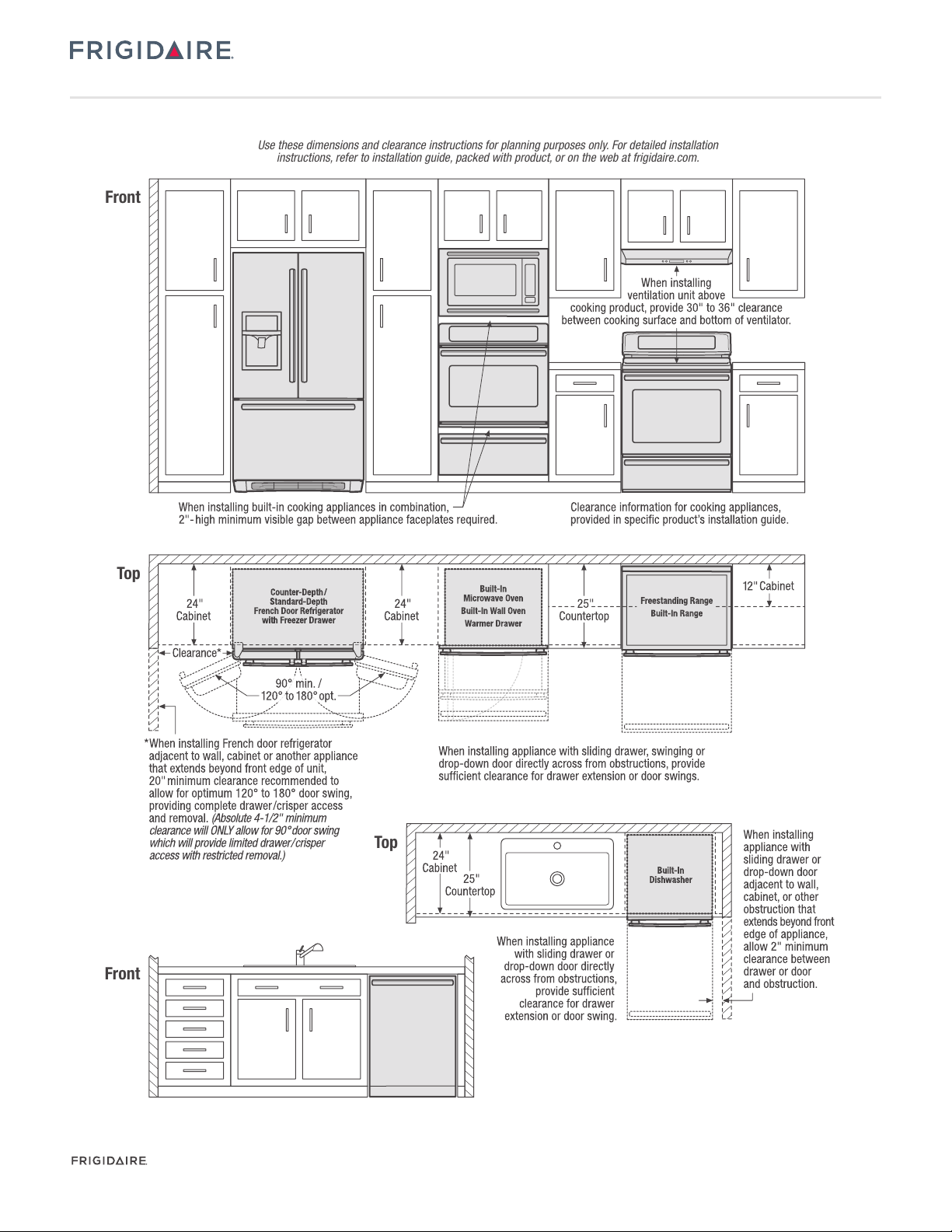

Freestanding Range Specifications
Product Shipping Weight (approx.) – 138 Lbs.
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz, fused on both sides of line with ground.
Connected Load (kW Rating) @ 240 / 208 Volts = 11.5 / 8.5 kW
Recommended Circuit Breaker – 40 Amps
Always consult local and national electric codes.
Make sure wall coverings around range can withstand heat generated by range.
Floor beneath range MUST be solid and level.
Overhead cabinetry should not exceed a 13" maximum depth.
Absolute minimum horizontal distance between overhead cabinets installed to either side of appliance must be no less than maximum width of appliance.
Range can be installed flush to wall with 0" minimum rear clearance.
Minimum 1" clearance required from edge of rangetop to nearest
Allow 30" minimum clearance between top of cooking surface and bottom of unprotected wood or metal overhead cabinet; or 24" minimum clearance when bottom of wood or metal overhead cabinet is protected by not less than 1/4" flame retardant millboard covered with not less than No. 28 MSG sheet steel, 0.015" stainless steel,
0.024" aluminum or 0.020" copper.
To reduce risk of fire when using overhead cabinetry, install range hood that projects horizontally a recommended minimum of 5" beyond bottom of cabinets.
Follow all dimension requirements provided to prevent property damage, potential fire hazard, and incorrect countertop and cabinet cuts.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
combustible wall on either side of range above 36" height.
