iNSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALiFiED iNSTALLER.
iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.
READ AND SAVE THESE iNSTRUCTiONS FOR FUTURE REFERENCE.
Clearances and Dimensions:
1. Provide adequate clearances between the range and adjacent combustible surfaces.
2. Location--Check location where the ranqewill be installed. Checkforproperelectrical supply, and the stability ofthefloor.
3. Dimensions that are shown must be used. Given dimensions provide minimum clearance. Contact surface must be solid
and level.
VIEW
...................
Minimum to
wall on either 1"-_
side of range
above 36" height.
Fig. 1
RANGE
OVERALL
DIMENSIONS
SIDE
t Minimum to
18" cabinetson
either side
_ of range.
I_-- 30" _ 0" clearance below cooking top and at rear of range.
253/4"
47-3/4"
Maximum
44 s/8" \
30-1/8'
Maximum depth r
for cabinets (/'
aboverangetop.
1÷13"÷1
_25"_
Centerline
of range
q_
t
i
I dimensions for electrical
I outlet location are maximum.J
1
I
I Dashed cubed area
' shows where the electrical
I
, outlet must be installed
I :or flush to the wall installation
- 111"
t
I-'I ......
i
"<-........ 0"
2-5/8" for models equipped
with warmer drawers"
3-I/2' for models equipped
with storage drawers
I
ii
Wall
Edge
Fig. 2
*30" MINIMUM CLEARANCE BETWEEN THE TOP OF THE COOKING SURFACE AND THE BOTTOM OF AN UNPROTECTED
WOOD OR METAL CABINET; OR 24" MINIMUM WHEN BOTTOM OF WOOD OR METAL CABINET IS PROTECTED BY NOT LESS
THAN 1/4" FLAME RETARDANT MILLBOARD COVERED WITH NOT LESS THAN NO. 28 MSG SHEET STEEL, 0.015" STAINLESS
STEEL, 0.024" ALUMINUM OR 0.020" COPPER. 0" CLEARANCE IS THE MINIMUM FOR THE REAR OF THE RANGE. FOLLOW ALL
DIMENSION REQUIREMENTS PROVIDED ABOVE TO PREVENT PROPERTY DAMAGE, POTENTIAL FIRE HAZARD, AND
INCORRECT COUNTERTOP AND CABINET CUTS.
TO ELIMINATE THE RISKOF BURNS OR FIRE BY REACHING OVER HEATED SURFACE UNITS, CABINET STORAGE SPACE LOCATED
ABOVE TH ESURFACE UNITS SHOU LD BEAVOIDED. IFCABINET STORAGE IS TO BE PROVIDED, TH E RISK CAN BE REDUCED BY
INSTALLING A RANGE HOOD THAT PROJECTS HORIZONTALLY A MINIMUM OF 5" BEYOND THE BOTTOM OF THE CABINETS.
Fig. 3
Serial Plate Locations:
Serial plate is located on the
lower right front frame of the
appliance. Alternate location
may be under cooktop.
pin 316454926(1111)
Page 2
iMPORTANT SAFETY iNSTRUCTiONS
Tip Over Hazard
, A child or adult can tip the range and be
killed.
, Verify the anti-tip device has been
installed to floor or wall.
, Ensure the anti-tip device is re-engaged
when the range is moved to floor or wall.
, Do not operate the range without the anti-tip device in
place and engaged.
, Failure to follow these instructions can result in death or
serious burns to children and adults.
Range
% leveling leg _,_J_,,_'_,_
_ bracket
__ Anti-Tip
TO check if the anti-tip bracket is installed properly, use both
arms and grasp the rear edge of range back. Carefully
attempt to tilt range forward. When properly installed, the
range should not tilt forward. Refer to the anti-tip bracket
installation instructions supplied with your range for proper
installation.
If the information in this manual is not
followed exactly, a fire or electrical shock may result
causing property damage, personal injury or death.
Important Notes to the Installer
• Read all instructions contained in these installation
instructions before installing range.
• Remove all packing material from the oven compartments
before connecting the gas & electrical supply to the range.
• Observe all governing codes and ordinances.
• Be sure to leave these instructions with the consumer.
Important Note to the Consumer
Keep these instructions with your owner's guide for future
reference.
• As when using any appliance generating heat, there are
certain safety precautions you should follow. These are
listed in the Use & Care Guide read it carefully.
• Be sure your range is installed and grounded properly by a
qualified installer or service technician.
• Make sure the wall coverings around the range can
withstand the heat generated by the range.
• To eliminate the need to reach over the surface elements,
cabinet storage space above the elements should be
avoided.
Before Starting - Tools You Will Need for leveling legs
and Anti-Tip Bracket:
• Adjustable wrench or channel lock pliers.
• 5/16" Nutdriver or Flat Head Screwdriver (__
• Electric Drill & 1/8" Diameter Drill Bit
(Masonry Drill Bit if installing in concrete).
For electrical supply connection:
• 1/4" & 3/8" Socket driver or Nutdriver.
Additional Materials You Will Need:
• Power Supply Cord or
• Copper Electrical Wiring & Metal Conduit
(for hard wiring).
NORMAL INSTALLATION STEPS
1. Anti=Tip Bracket Installation Instructions =
IMPORTANT SAFETYWARNING
To reduce the risk of tipping of the range, the range must
be secured to the floor with a properly installed Anti-Tip
Bracket and screws packed with the range. Failure to
install the anti-tip bracket will allow the range to tip over if
excessive weight is placed on an open door or if a child
climbs upon it. Serious injury might result from spilled hot
liquids or from the range itself.
If range is ever moved to a different location, the Anti-Tip
Bracket must also be moved and installed with the range.
Instructions are provided for installation in wood or cement
fastened to either the floor or wall. When installed to the
wall, make sure that screws completely penetrate dry wall
and are secured in wood or metal. When fastening to the
floor or wall, be sure that screws do not penetrate electrical
wiring or plumbing.
la. Locate the bracket
using the Anti-Tip
Template - (Bracket may
be located on either the left
or right side of the range.
Use the information below
to locate the bracket if Fig.4
template is not available).
Mark the floor or wall where left or right side of the range
will be located. If rear of range is against the wall or no
further than 1-1/4" from wall when installed, you may use
the wall or floor mount method. If molding is installed and
does not allow the bracket to fit flush against the wall,
remove molding or mount bracket to the floor. For wall
mount, locate the bracket by placing the back edge of the
template against the rear wall and the side edge of
template on the mark made referencing the side of the
range (See Fig. 4). Place bracket on top of template and
mark location of the screw holes in wall. If rear of range is
further than 1-1/4" from the wall when installed, attach
bracket to the floor. For floor mount, locate the bracket by
placing back edge of the template where the rear of the
range will be located. Mark the location of the screw holes,
shown in template.
lb. Drill pilot holes & fasten bracket - Drill a 1/8" pilot
hole where screws are to be located. If bracket is to be
mounted to the wall, drill pilot hole at an approximate 20°
downward angle (See Fig. 5).
If bracket is to be mounted to masonry or ceramic floors,
drill a 3/16" pilot hole 1-3/4" deep. The screws provided
FASTEN BRACKET (WALLORFLOORMOUNTHNG) FASTEN BRACKET (FLOORMOUNTINGONLY)
Leveling Leg -- --_1 1_--1-1/4" Max.
Floor Mount
Fig. 5
Bracket
Fig. 6
Page 3
may be used in wood or concrete material. Use a 5/16"
nut-driver or flat head screwdriver to secure the bracket in
place (See Fig. 6).
1c. Level and position range - Level range by adjusting
the (4) leveling legs with a wrench. NOTE: A minimum
clearance of 1/8" is required between the bottom of the
range and the leveling leg to allow room for the bracket.
Use a spirit level to check your adjustments. Slide range
back into position (See Fig. 7).
To check if the anti-tip bracket is installed properly, use both
arms and grasp the rear edge of range back. Carefully
attempt to tilt range forward. When properly installed, the
range should not tilt forward. Refer to the anti-tip bracket
installation instructions supplied with your range for proper
installation.
2. Electric connection requirements - This appliance
must be properly installed and grounded by a qualified
technician in accordance with the National Electrical Code
ANSI/NFPA No. 70 -- latest edition -- and Local Electrical
Code requirements.
This appliance may be connected by means of "Permanent
Wiring" or "Power Supply Cord Kit."
When installing Permanent Wiring, do not leave excess
wire in range compartment. Excess wire in the range
compartment may not allow the Rear Access Cover to be
replaced properly and could create a potential electrical
hazard if wires become pinched. Connect only as
instructed under"PERMANENTWIRE CONNECTIONS" in
Step 4b. When using flexible conduit or range cable use
flex connector or range cable strain relief (See Fig. 10).
2a. Models with factory connected power supply cord.
Note: Some models may have a factory installed three
(3) conductor power supply cord.
2b. For models requiring a power supply cord kit -
RISK OF FIRE OR ELECTRICAL SHOCK MAY OCCUR IF
AN INCORRECT SIZE RANGE CORD KIT IS USED, THE
INSTALLATION INSTRUCTIONSARE NOT FOLLOWED
OR STRAIN RELIEF BRACKET ISDISCARDED.
This appliance may be connected by means of a power
supply cord. Only a power supply cord kit rated at 125/250
volts minimum, and marked for use with ranges shall be
used. See Fig. 9 for cord kit ampere rating information.
Cord must have either three (3) or four (4) conductors.
Terminals on end of wires must be either closed loop or
open-end spade lugs with upturned ends. Cord must have
strain relief properly installed. See step 4a for 2-Wire Power
Cord Connections.
3. Electrical connection to range.
The rear access cover must be removed (Fig 8). To remove,
loosen center screw (one screw) and remove cover. The
terminal block will then be accessible.
Note: Range is shipped from factory with 1-3/8" dia. hole
as shown. To use either 7/8" dia. hole or 1-1/8" dia.
knockouts refer to Fig. 9
1-1/8" Dia. 7/8" Dia.
Knockout Hole
(See Chart) (See Chart)
Mounting
Rear
Access
Cover
Plate
1-3/8" Pocket
Hole for Cable
(See Chart) Mounting Plate
Fig. 8
Range Connection Opening Size Chart
Supply Cord Kit ampere rating information. See serial plate on range
for kilowatt rating data.
See Serial Plate on Range for
KW Rating
230 Volts
8.9 KW
8.9 KW
Cord Kit
Ampere
Rating
40/50 Amp
50 Amp
Fig. 9
Diameter (inches) of Range
connection Opening
Permanent
Cord Kit Wiring
1=3/8 in. 1-1/8 in.
1-3/8 in. 1-3/8 in.
See Range Connection Opening Size Chart (Figs. 8 & 9)
for cord kit ampere rating information. Terminals on end of
wires must be either closed loop or open-end spade lugs
with upturned ends.
Page 4
4. Power cord installation.
This appliance must be connected to a power source with a power
cord. Before wiring the range review the suggested power source
location drawing in Fig. 3.
a. Follow the manufacturer's installation instructions supplied with
the strain relief and install (also refer to Figs. 8, 9, & 10).
Strain
Relief
b. Attach the 2 power cord line connections and tighten securely to
the terminal block (See Fig. 11).
c. Attach the power cord ground connection using the supplied
grounding plate and grounding screw to the appliance back
marked "GROUND" (See Fig. 11).
Important Note: DO NOT LOOSEN the factory installed nut
connections which secure the range wiring to the terminal block.
Electrical failure or loss of electrical connection may occur if
these nuts are loosened or removed.
d. Make sure all connections are tightened securely and replace the
rear access cover (See Fig. 8).
Note: Non-terminated field wire compression connections must be set
at approximately 22in./Ibs. Always use 10 ga. wire or larger.
5. Carefully slide range into final location.
Be sure to provide all the adequate clearances and dimensions
shown in Figs. 1,2 & 3 on Page 1 before moving range into final
location.
Carefully slide appliance into final position while inserting rear leveling
leg into and fully engaging the Anti-Tip Bracket (See Fig. 7).
To check if the anti-tip bracket is installed properly, use both arms
and grasp the rear edge of range back. Carefully attempt to tilt range
forward. When properly installed, the range should not tilt forward.
Refer to the anti-tip bracket installation instructions supplied with your
range for proper installation.
Make sure the power cord folds into the remaining open floor area
behind the range warmer drawer or storage drawer area. Be sure to
check the level of the range.

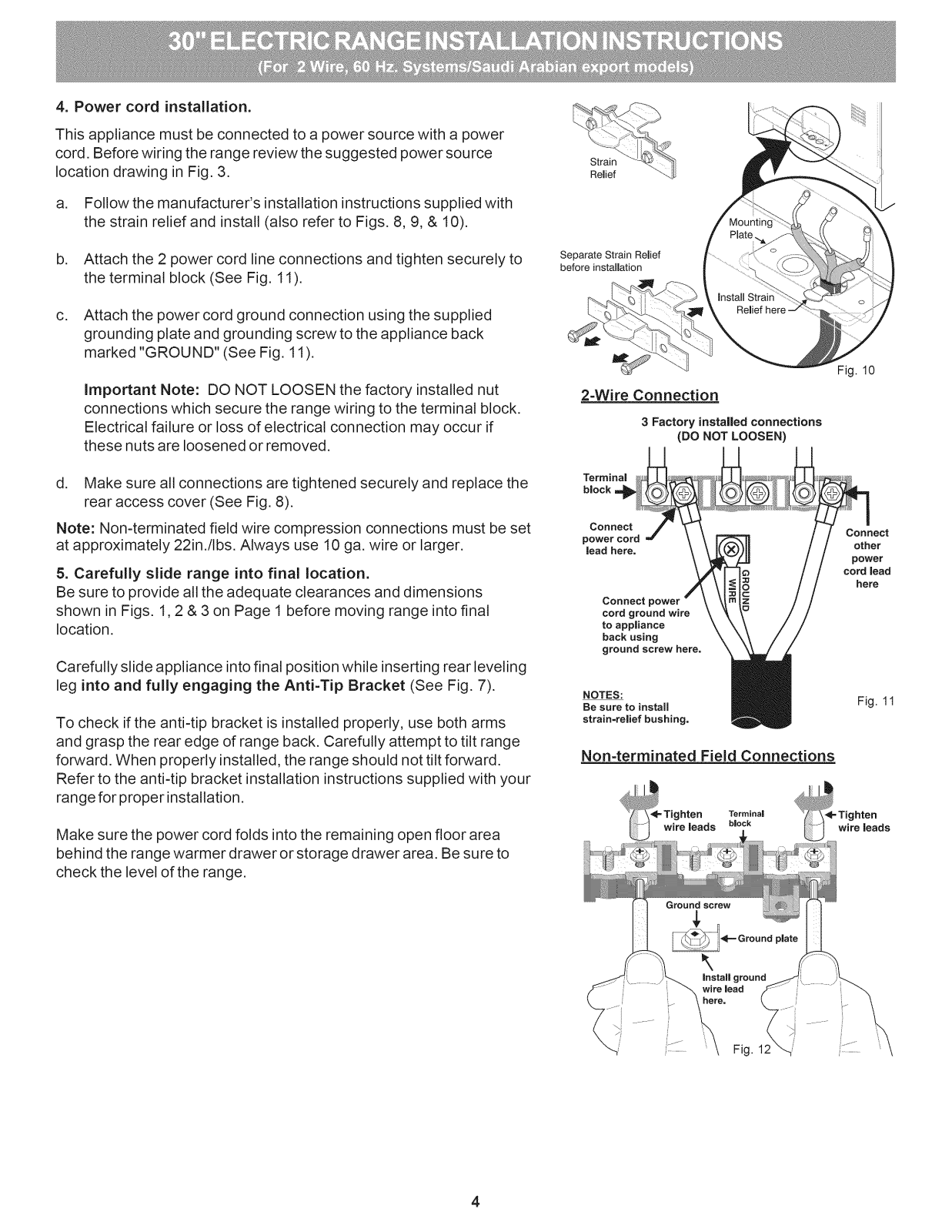

Separate Strain Relief
before installation
2=Wire Connection
3 Factory installed connections
(DO NOT LOOSEN)
Terminal
block
Connect
power cord
lead here.
Connect power
cord ground wire
to appliance
back using
ground screw here.
NOTES:
Be sure to install
strain=relief bushing.
Non=terminated Field Connections
.Tighten Terminal
wire leads block
Connect
other
power
cord lead
here
Fig. 11
=Tighten
wire leads
Fig.
Loading...
