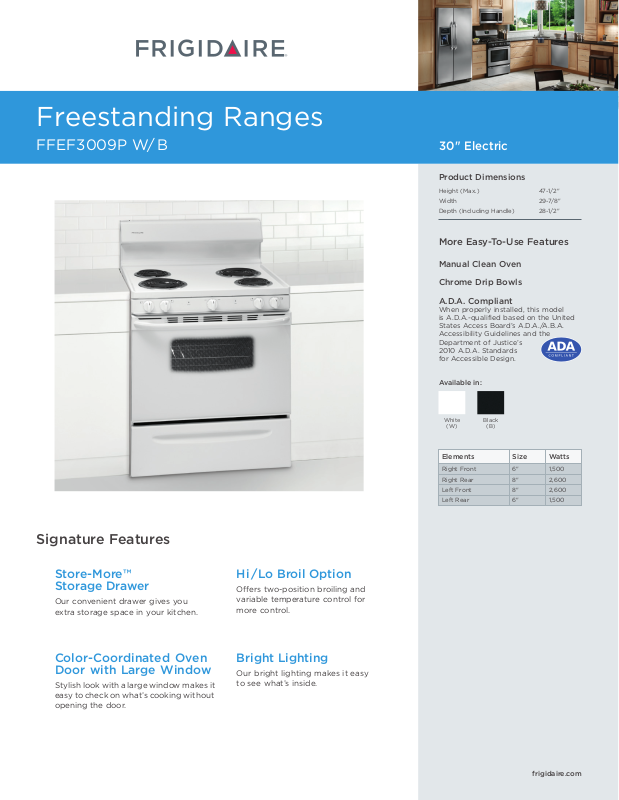

FRIGIDAIRE FFEF3009PB User Manual
Drop-In Cooktop
Freestanding Ranges
FPEC3085K S
FFEF3009P W/ B
30" Electric30" Electric
Product Dimensions
Height (Max.) 47-1/2"
Width 29-7/8"
Depth (Including Handle) 28-1/2"
More Easy-To-Use Features
Manual Clean Oven
Chrome Drip Bowls
A.D.A. Compliant
When properly installed, this model
is A.D.A.-qualified based on the United
States Access Board’s A.D.A./A.B.A.
Accessibility Guidelines and the
Department of Justice’s
2010 A.D.A. Standards
for Accessible Design.
Available in:
White
(W)
Black
(B)
Signature Features
Store-More™
Storage Drawer
Our convenient drawer gives you
extra storage space in your kitchen.
Color-Coordinated Oven
Door with Large Window
Stylish look with a large window makes it
easy to check on what’s cooking without
opening the door.
Hi /Lo Broil Option
Offers two-position broiling and
variable temperature control for
more control.
Bright Lighting
Our bright lighting makes it easy
to see what’s inside.
Elements
Right Front
Right Rear
Left Front
Left Rear
Size
6"
8"
8"
6"
Watts
1,500
2,600
2,600
1,500
frigidaire.com
Features
C
A
36"
(Adjustable)
B
Oven Control / Timing System
Surface Type
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Ready-Select® Controls
Color-Coordinated Porcelain
Large
Color-Coordinated
Color-Coordinated
Color-Coordinated
Manual Clean
Storage
Oven Controls
Bake
Broil
Add-a-Minute
Delay Bake
Self-Clean
Quick Clean Option
Delay Clean
Kitchen Timer
Timed Cook Option
Auto Oven Shut-O
Oven Lock-Out
Yes
Low and High
Cooktop Features
Right Front Element (Watts)
Right Rear Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
Center Element (Watts)
Hot Surface Indicator Light
Coil Cooktop / Drip Bowls
6" – 1,500
8" – 2,600
8" – 2,600
6" – 1,500
Yes
Yes / Chrome
Oven Features
Capacity (Cu. Ft.)
Oven Light
Hidden Bake Element
Rack Configuration
Even Baking System
Broiling System
Bake Element / Broil Element (Watts)
4.2
1
2 Standard
Vari-Broil™ Hi / Lo
2,600 / 3,000
Certifications
A.D.A. Compliant
1
Yes
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
When properly installed, this model is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and
the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
17" x 23" x 18-3/4"
Middle Bottom Rear
240V / 208V / 60Hz
11.5 / 8.5
40
150 Lbs.
Freestanding Ranges
FFEF3009P W/ B 30" Electric
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Max.)
B - Width
C - Depth (Including Handle)
Depth with Door Open 90˚
47-1/2"
29-7/8"
28-1/2"
48-3/8"
Cutout Dimensions
Height (Standard)
Width (Min.)
Depth (Min.)
36"
30"
24"
•
USA
10200 David Taylor Drive
•
CANADA
FFEF3009P 11/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FFEF3009P 11/13 © 2013 Electrolux Home Products, Inc.
Freestanding Ranges
FFEF3009P W/ B 30" Electric
Freestanding Range Specifications
•
Product Shipping Weight (approx.) – 150 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz,
fused on both sides of line with ground.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 11.5 / 8.5 kW
•
Recommended Circuit Breaker – 40 Amps
•
Always consult local and national electric codes.
•
Make sure wall coverings around range can withstand heat generated
by range.
•
Floor beneath range MUST be solid and level.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
•
Range can be installed flush to wall with 0" minimum rear clearance.
•
Minimum 1" clearance required from edge of rangetop to nearest
combustible wall on either side of range above 36" height.
•
Allow 30" minimum clearance between top of cooking surface and
bottom of unprotected wood or metal overhead cabinet; or 24"
minimum clearance when bottom of wood or metal overhead cabinet
is protected by not less than 1/4" flame retardant millboard covered
with not less than No. 28 MSG sheet steel, 0.015" stainless steel,
0.024" aluminum or 0.020" copper.
•
To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
•
Follow all dimension requirements provided to prevent property
damage, potential fire hazard, and incorrect countertop and
cabinet cuts.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Specifications
subject to change.
