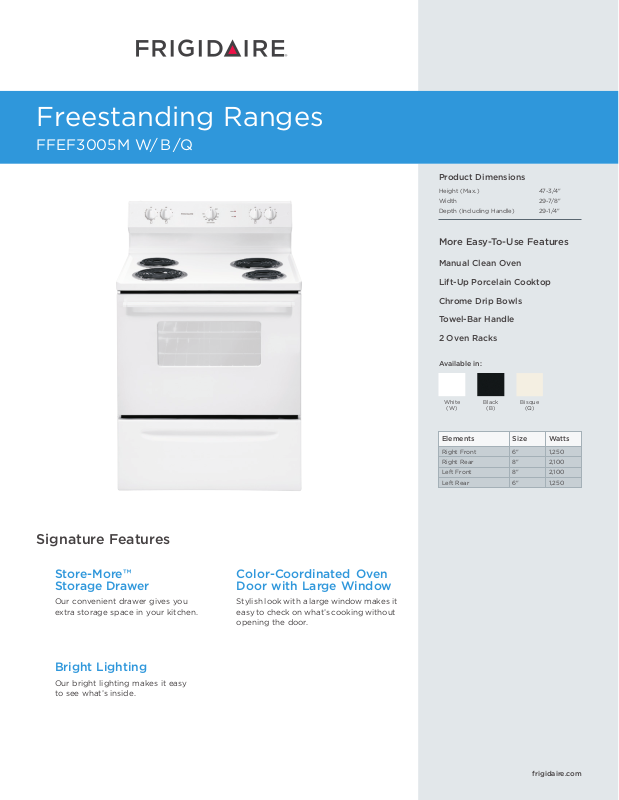

Frigidaire FFEF3005MB Specification Sheet
Drop-In Cooktop
Freestanding Ranges
FPEC3085K S
FFEF3005M W/ B /Q
30" Electric30" Electric
Product Dimensions
Height (Max.) 47-3/4"
Width 29-7/8"
Depth (Including Handle) 29-1/4"
More Easy-To-Use Features
Manual Clean Oven
Lift-Up Porcelain Cooktop
Chrome Drip Bowls
Towel-Bar Handle
2 Oven Racks
Available in:
White
(W)
Elements
Right Front
Right Rear
Left Front
Left Rear
Black
(B)
Size
6"
8"
8"
6"
Bisque
(Q)
Watts
1,250
2,100
2,100
1,250
Signature Features
Store-More™
Storage Drawer
Our convenient drawer gives you
extra storage space in your kitchen.
Bright Lighting
Our bright lighting makes it easy
to see what’s inside.
Color-Coordinated Oven
Door with Large Window
Stylish look with a large window makes it
easy to check on what’s cooking without
opening the door.
frigidaire.com
C
A
36"
(Adjustable)
B
Features
Oven Control / Timing System
Surface Type
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Oven Controls
Bake
Broil
Add-a-Minute
Delay Start
Self-Clean
Quick Clean Option
Delay Clean
Kitchen Timer
Timed Cook Option
Auto Oven Shut-O
Oven Lock-Out
Cooktop Features
Right Front Element (Watts)
Right Rear Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
Center Element (Watts)
Hot Surface Indicator Light
Coil Cooktop / Drip Bowls
Oven Features
Capacity (Cu. Ft.)
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake Element / Broil Element (Watts)
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Mechanical / No
Color-Coordinated Porcelain
Large
Color-Coordinated
Color-Coordinated
Color-Coordinated
Manual Clean
Storage
Yes
Yes
6" – 1,250
8" – 2,100
8" – 2,100
6" – 1,250
Yes
Yes / Chrome
4.2
1
2 Standard
Standard
2,600 / 3,000
15-7/8" x 23" x 19-3/16"
Middle Bottom Rear
240V / 208V / 60 Hz
10.0 / 7.5
40
144 Lbs.
Freestanding Ranges
FFEF3005M W/B/Q 30" Electric
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Max.)
B - Width
C - Depth (Including Handle)
Depth with Door Open 90˚
47-3/4"
29-7/8"
29-1/4"
49"
Cutout Dimensions
Height (Standard)
Width (Min.)
Depth (Min.)
36"
30"
24"
•
USA
10200 David Taylor Drive
•
CANADA
FFEF3005M 12/15 © 2015 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
