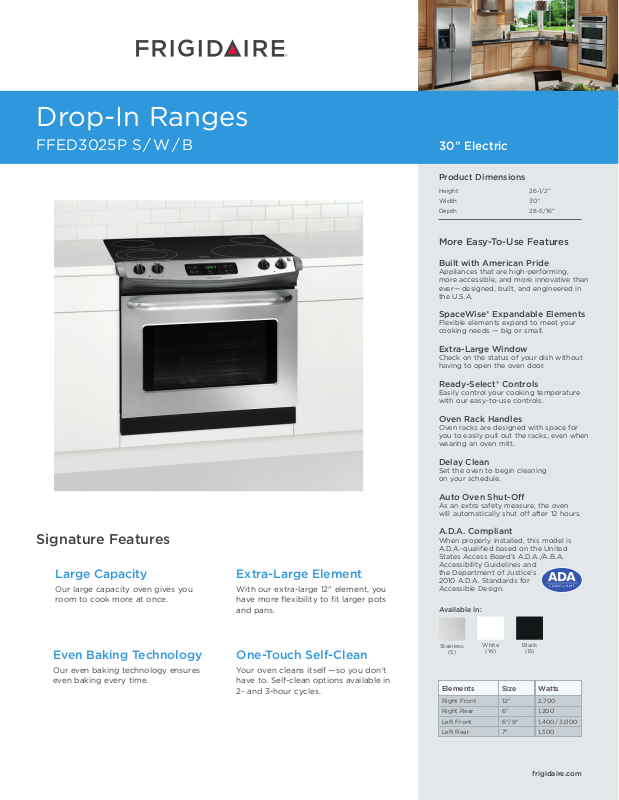

FRIGIDAIRE FFED3025PS User Manual
Drop-In Cooktop
Drop-In Ranges
FPEC3085K S
FFED3025P S / W / B
30" Electric30" Electric
Product Dimensions
Height 26-1/2"
Width 30"
Depth 28-5/16"
More Easy-To-Use Features
Built with American Pride
Appliances that are high-performing,
more accessible, and more innovative than
ever — designed, built, and engineered in
the U.S.A.
SpaceWise® Expandable Elements
Flexible elements expand to meet your
cooking needs — big or small.
Extra-Large Window
Check on the status of your dish without
having to open the oven door.
Ready-Select® Controls
Easily control your cooking temperature
with our easy-to-use controls.
Oven Rack Handles
Oven racks are designed with space for
you to easily pull out the racks, even when
wearing an oven mitt.
Signature Features
Large Capacity
Our large capacity oven gives you
room to cook more at once.
Even Baking Technology
Our even baking technology ensures
even baking every time.
Extra-Large Element
With our extra-large 12" element, you
have more flexibility to fit larger pots
and pans.
One-Touch Self-Clean
Your oven cleans itself — so you don’t
have to. Self-clean options available in
2- and 3-hour cycles.
Delay Clean
Set the oven to begin cleaning
on your schedule.
Auto Oven Shut-O
As an extra safety measure, the oven
will automatically shut off after 12 hours.
A.D.A. Compliant
When properly installed, this model is
A.D.A.-qualified based on the United
States Access Board’s A.D.A./A.B.A.
Accessibility Guidelines and
the Department of Justice’s
2010 A.D.A. Standards for
Accessible Design.
Available in:
Size
12"
6"
6"/ 9"
7"
Black
(B)
Watts
2,700
1,200
1,400 / 3,000
1,500
Stainless
(S)
Elements
Right Front
Right Rear
Left Front
Left Rear
White
(W)
frigidaire.com
Features
B
A
* To extreme
rear protrusion
C
*
Oven Control / Timing System
Surface Type
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Oven Controls
Bake
Broil
Add-a-Minute
Delay Start
Self-Clean / Clean Options
Steam Clean
Delay Clean
Kitchen Timer
Timed Cook Option
Auto Oven Shut-O
Cooktop Features
Right Front Element (Watts)
Right Rear Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
Center Element (Watts)
Hot Surface Indicator Light
Coil Cooktop / Drip Bowls
Oven Features
Capacity (Cu. Ft.)
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake Element / Broil Element (Watts)
Optional Accessories
Rear Filler Kit – Stainless Steel (S) /
White (W) / Black (B)
Backguard Kit – Stainless Steel (S) /
White (W) / Black (B)
Side Trim Kit – Stainless Steel (S) /
White (W) / Black (B)
Bottom Trim Kit – Stainless Steel (S) /
White (W) / Black (B)
Certifications
A.D.A. Compliant
Sabbath Mode (Star-K® Certified)
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 240 / 208 Volts
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
Ready-Select® Controls
Black Ceramic Glass ( S ),
Color-Coordinated Ceramic
Glass ( W / B )
Extra-Large
Stainless Steel ( S ),
Color-Coordinated ( W / B )
Stainless Steel ( S ),
Color-Coordinated ( W / B )
Black ( S ),
Color-Coordinated ( W / B )
Self-Clean
Yes
Low and High
Yes
Yes / 2, 3 Hours
2, 3 Hours (Scroll Thru)
Yes
Yes
12 Hours
12" – 2,700
6" – 1,200
6 / 9" – 1,400 / 3,000
7" – 1,500
Yes
4.6
1 Halogen
2 Handle Racks
Even Baking Technology
Vari-Broil™ Hi / Lo
2,750 / 3,400
(S) PN # 901193-901S
(W) PN # 901193-9011
(B) PN # 901193-9010
(S) PN # 903046-901S
(W) PN # 903046-9011
(B) PN # 903046-9010
(S) PN # 903076-901S
(W) PN # 903076-9011
(B) PN # 903076-9010
(S) PN # 903068-901S
(W) PN # 903068-9011
(B) PN # 903068-9010
Yes
17-1/2" x 24-1/8" x 18-3/4"
Left Bottom Rear
240V / 208V / 60 Hz
11.8 / 8.9
49.1 / 42.8
40
185 Lbs.
Drop-In Ranges
FFED3025P S / W / B 30" Electric
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
Depth with Door Open 90˚
1
When properly installed, this model is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and
the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
26-1/2"
30"
28-5/16"
47-9/16"
Cutout Dimensions
Height
Width (Min. /Max.)
Depth (Min. / Max.)
† 27-1/2" min. if additional front cabinet filler panel is
required (refer to product installation guide on web
for filler panel details)
* Cutout and countertop cutout width should match.
** 24" with optional backguard installed.
29" †
29-15/16" / 30-1/16" *
21-3/4" / 22-1/8" **
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FFED3025P 10/14 © 2014 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
30" Electric Drop-In Range
Frig Baseline
Drop-In Ranges
FFED3025P S / W / B 30" Electric
Drop-In Range Specifications
•
Product Shipping Weight (approx.) – 185 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt,
60 Hertz, fused on both sides of line with ground. (If local code
permits, range may be connected by hard-wiring or by means
of power supply cord kit.)
•
Connected Load (kW Rating) @ 240 / 208 Volts = 11.8 / 8.9 kW
•
Amps @ 240 / 208 Volts = 49.1 / 42.8 Amps
•
Recommended Circuit Breaker – 50 Amps (40 Amps minimum)
•
Always consult local and national electric codes.
•

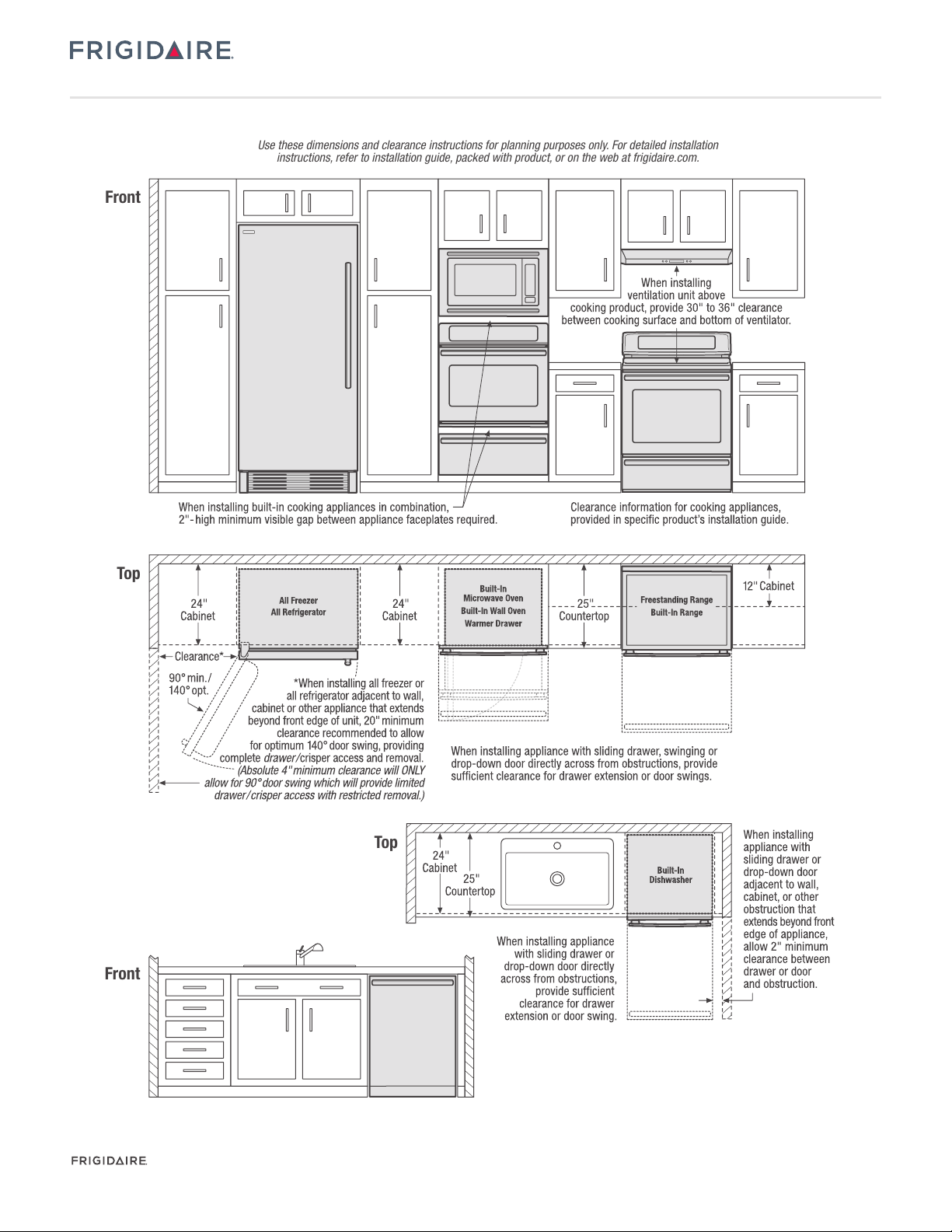

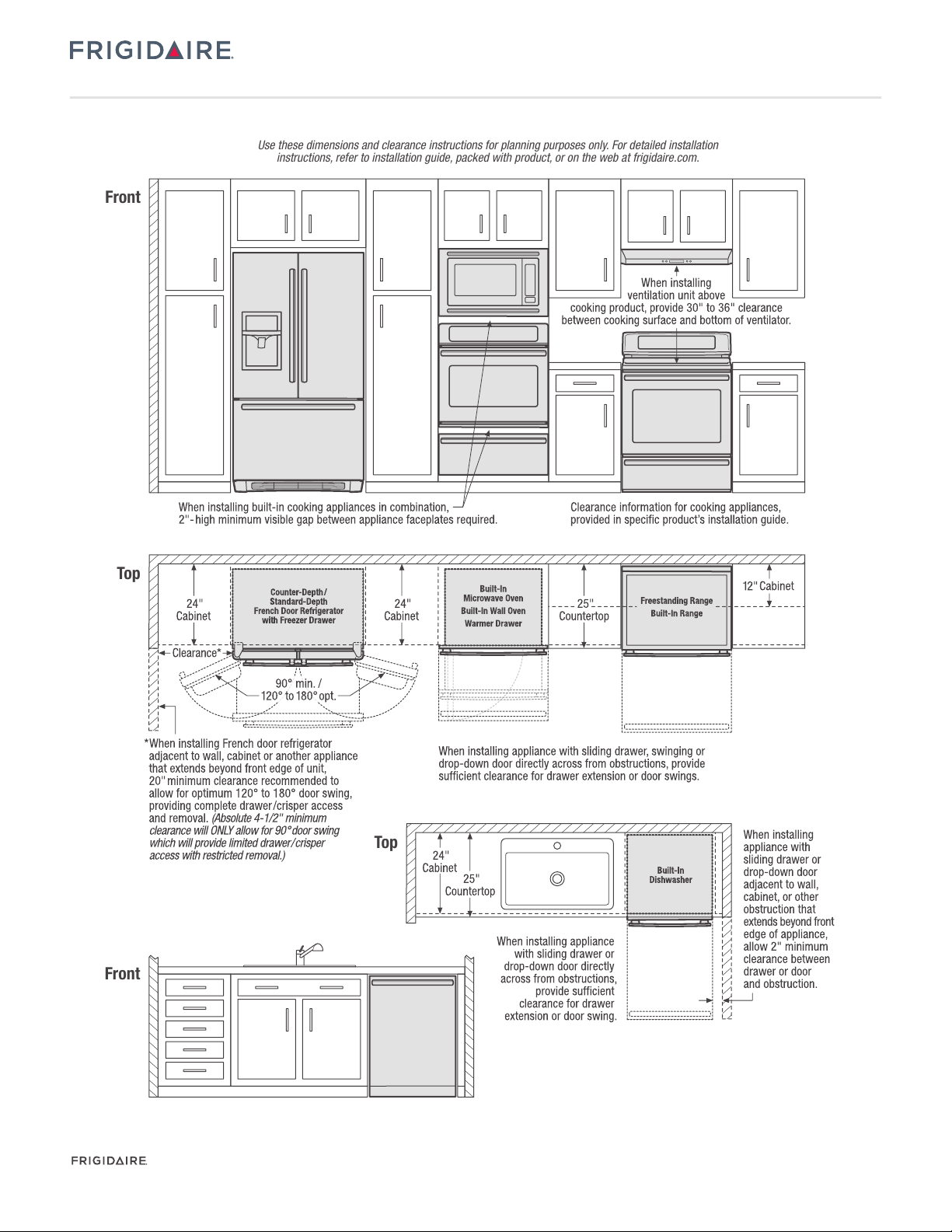

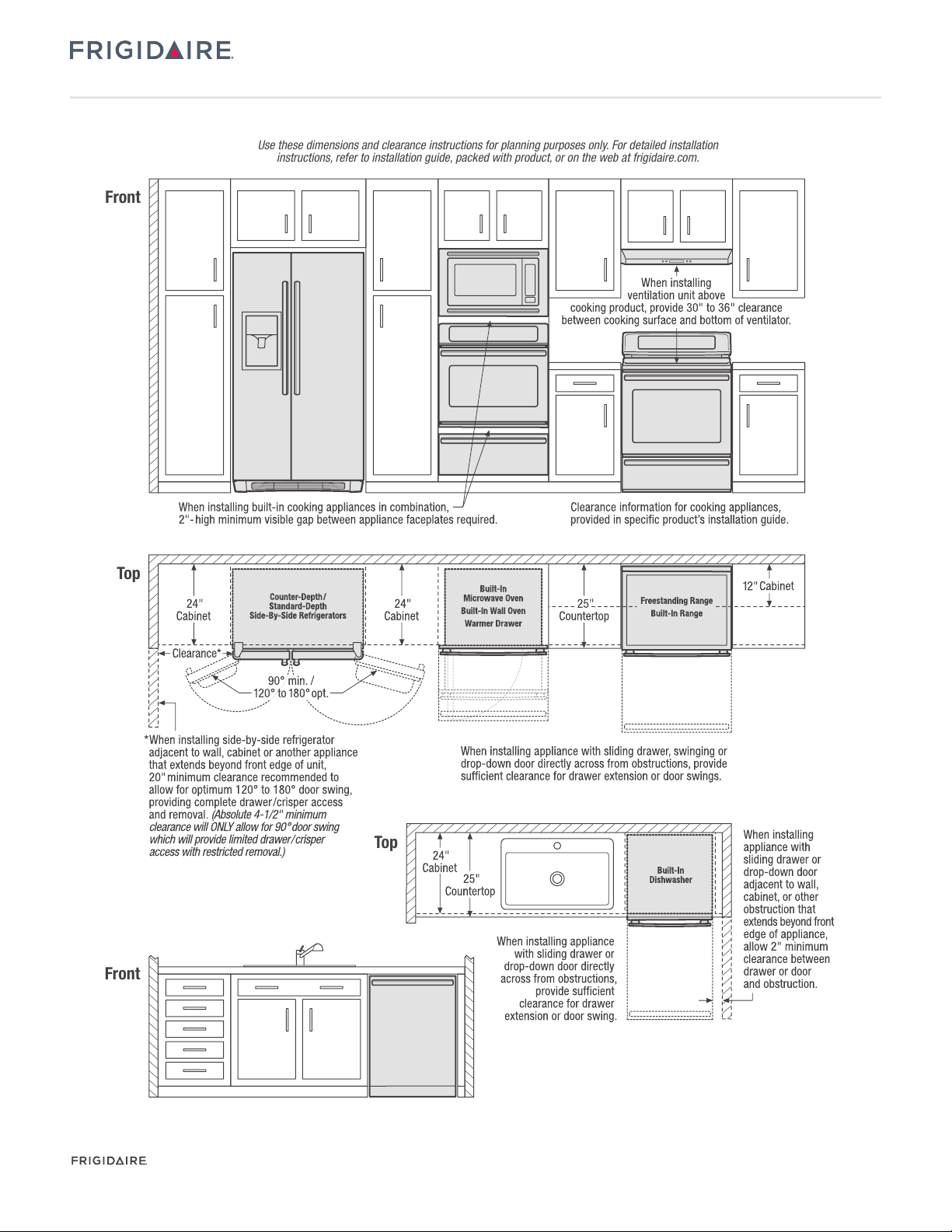

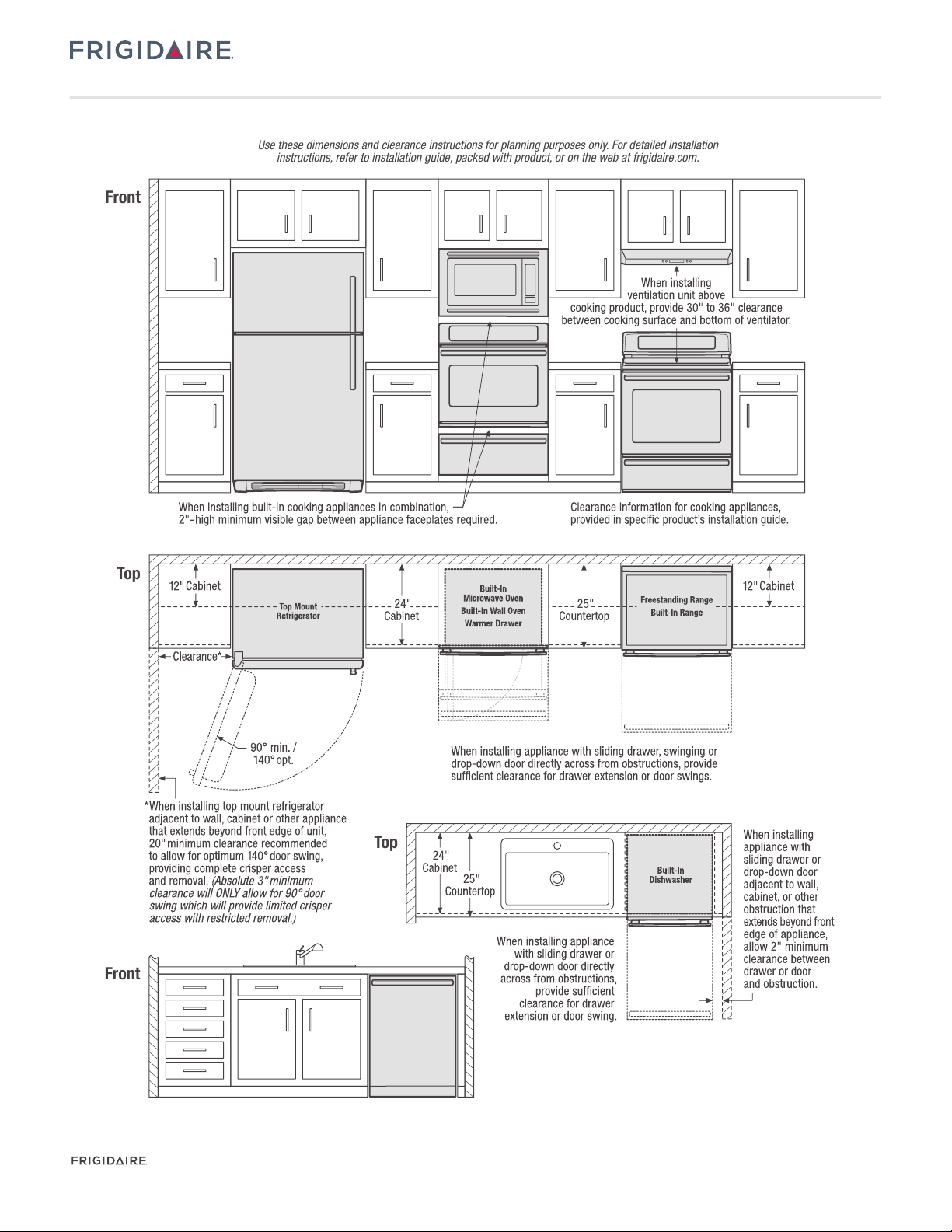

Make sure wall coverings around range can withstand heat generated
by range.
•
Linoleum or any other synthetic floor covering located beneath range,
must be capable of withstanding minimum heat of 90° F above room
temperature without shrinking, warping or discoloring. Insulating pad
or 1/4"-thick plywood required between range and a carpeted floor.
•
When installing optional Backguard Kit, cutout depth of 21-3/4"
minimum / 22-1/8" maximum needs increased to 24".
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
•
Allow 24" minimum clearance between rangetop and bottom of cabinet
when bottom of wood or metal cabinet is protected by not less than
1/4" flame-retardant millboard covered with not less than No. 28 MSG
sheet steel, 0.015" stainless steel, 0.024" aluminum or 0.020" copper.
Allow 30" minimum clearance when cabinet is unprotected.
•
To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
Countertop Preparation
Rangetop’s side flanges overlap countertop cutout edges – for detailed
preparation instructions, refer to product installation guide on the web.
•
Flat Square-Finish Countertops – require no preparation since
rangetop’s flange lays directly on countertop edge.
•
Formed Front-Edged Countertops – require front molded edge to
be shaved flat 3/4" from each front corner of opening.
•
Tile Countertops – may need trim cut back 3/4" from each front
corner of opening and /or rounded edge flattened.
•
For existing cutout width greater than 30-1/16" reduce the 3/4"
overlap dimension; for cutout width of 29", replace actual side
trim panels with smaller side trim panels, available with optional
Side Trim Kit (refer to detailed kit installation instructions).
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
Rear Filler Kit: Stainless Steel – (PN # 901193-901S),
White – (PN # 901193-9011), Black – (PN # 901193-9010).
•
Backguard Kit: Stainless Steel – (PN # 903046-901S),
White – (PN # 903046-9011), Black – (PN # 903046-9010).
•
Side Trim Kit: Stainless Steel – (PN # 903076-901S),
White – (PN # 903076-9011), Black – (PN # 903076-9010).
•
Bottom Trim Kit: Stainless Steel – (PN # 903068-901S),
White – (PN # 903068-9011), Black – (PN # 903068-9010).
•
USA
10200 David Taylor Drive
•
CANADA
FFED3025P 10/14 © 2014 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
