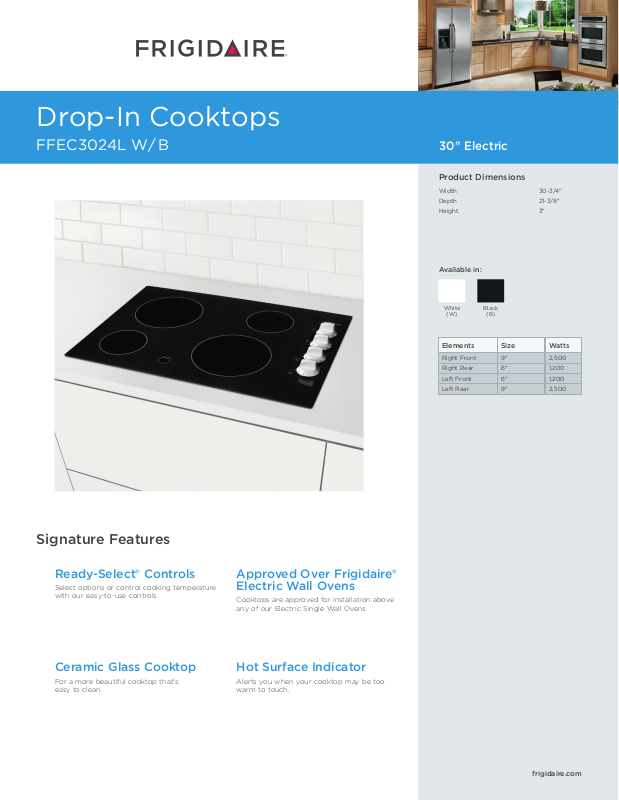

Page 1
Drop-In Cooktop
Drop-In Cooktops
FPEC3085K S
FFEC3024L W/ B
30" Electric
30" Electric
Product Dimensions
Width 30-3/4"
Depth 21-3/8"
Height 3"
Available in:
White
(W)
Elements
Right Front
Right Rear
Left Front
Left Rear
Black
(B)
Size
9"
6"
6"
9"
Watts
2,500
1,200
1,200
2,500
Signature Features
Ready-Select® Controls
Select options or control cooking temperature
with our easy-to-use controls.
Ceramic Glass Cooktop
For a more beautiful cooktop that’s
easy to clean.
Approved Over Frigidaire®
Electric Wall Ovens
Cooktops are approved for installation above
any of our Electric Single Wall Ovens.
Hot Surface Indicator
Alerts you when your cooktop may be too
warm to touch.
frigidaire.com
Page 2
A
B
C
Features
Controls
Surface Type
Right Front Element (Watts)
Right Rear Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
Hot Surface Indicator
Control Location
Knob Color
Knob Type
Ready-Select®
Color-Coordinated
Ceramic Glass
9" - 2,500
6" - 1,200
6" - 1,200
9" - 2,500
Yes
Right Side
Color-Coordinated
Plastic
Specifications
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 240 / 208 Volts
1
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Approved for Electric Single Wall Oven
Combination Installation
2
Shipping Weight (Approx.)
1
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC
only electrical supply with ground required on separate circuit fused on
both sides of line.
2
Cooktops are approved for installation above any of our Electric Single
Wall Ovens.
Right Rear
240V /208V / 60Hz
7.4 / 5.6
30.8 / 26.9
30
Yes
45 Lbs.
Drop-In Cooktops
FFEC3024L W/ B 30" Electric
NOTE: Always consult local and national electric codes. Refer to Product Installation
Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Width
B - Depth
C - Height
30-3/4"
21-3/8"
3"
Cutout Dimensions
Width (Min.)
Width (Max.)
Depth (Min.)
Depth (Max.)
Height
29-5/8"
29-7/8"
20-1/4"
20-1/2"
5"
Granite Countertop
Installation Kit available.
•
USA
10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
FFEC3024L 10/12 © 2012 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
Page 3

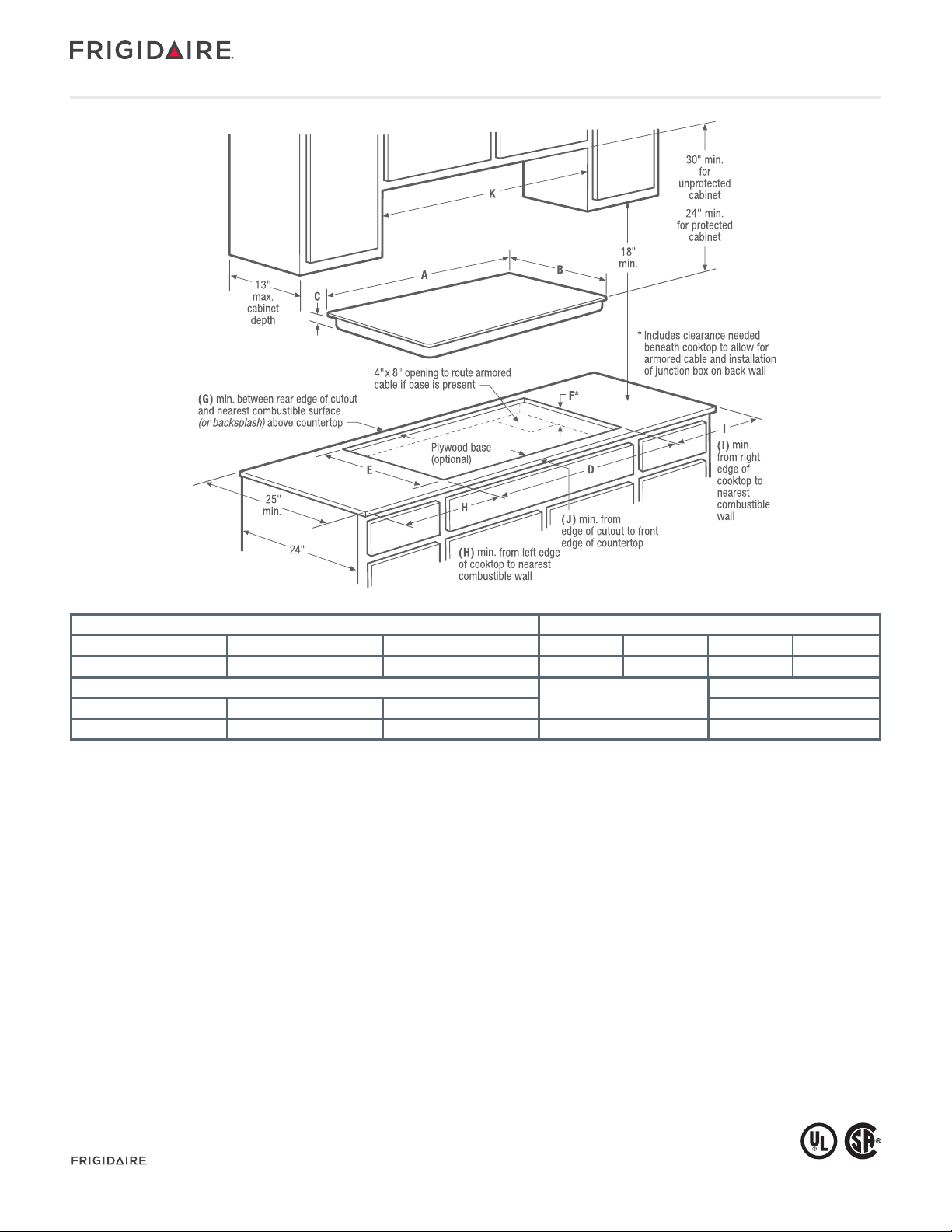

Drop-In Induction / Electric Cooktops
(Callouts MUST be charted per individual model).
Professional / Gallery / Baseline
Drop-In Cooktops
FFEC3024L W/ B 30" Electric
A - Width B - Depth C - Height G (min.) H (min.) I (min.) J (min.)
30-3/4" 21-3/8" 3" 2" 7-1/2" 7-1/2" 2-1/2"
D - Width (min. - max.) E - Depth (min. - max.) F - Height (min.)* Power Supply
29-5/8" - 29-7/8" 20-1/4" - 20-1/2"
Drop-In Cooktop Specifications
•
Product Shipping Weight (approx.) – 45 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 7.4 / 5.6 kW
•
Amps @ 240 / 208 Volts = 30.8 / 26.9 Amps
•
Recommended Circuit Breaker – 30 Amps
•
Always consult local and national electric codes.
•
Cooktop cutout height includes clearance needed beneath cooktop to
allow for armored cable and installation of junction box on back wall.
Position center of junction box 10" inward from right side of cooktop
cutout, and 12" down from underside of countertop.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than 30-3/8".
•
Allow 30" minimum clearance between top of cooktop platform
and bottom of unprotected wood or metal overhead cabinet; or 24"
minimum clearance when bottom of wood or metal overhead cabinet
is protected by not less than 1/8" flame-retardant millboard covered
with not less than No. 28 MGS sheet steel, 0.015" stainless steel,
0.024" aluminum or 0.020" copper.
Product Dimensions
Product Cutout Dimensions
5" 30-3/8" Right Rear
•
Allow 2" minimum clearance between rear edge of cutout and nearest
combustible surface (or backsplash) above countertop.
•
Allow 7-1/2" minimum required clearance from left edge of cooktop
to nearest combustible wall and 7-1/2" minimum from right edge of
cooktop to nearest combustible wall.
•
Installation of drawer beneath cooktop requires 4" minimum
clearance beneath countertop surface, and assured clearance for
electrical installation.
•
To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
•
Electric Drop-In Cooktop model FFEC3024L is approved to be
used over any Frigidaire® Electric Single Wall Oven. (Refer to
Electric Cooktop Installation Over 30" / 27" Electric Single Wall Oven
Specifications page on web.)
Note: For planning purposes only. Refer to Product Installation Guide
Optional Accessories
•
Granite Countertop Installation Kit – (PN # 903061-9010).
Required Clearances
K - Cabinet Opening Width
on the web at frigidaire.com for detailed instructions.
(min.)
Utility Connection Locations
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
FFEC3024L 10/12 © 2012 Electrolux Home Products, Inc.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
Page 4

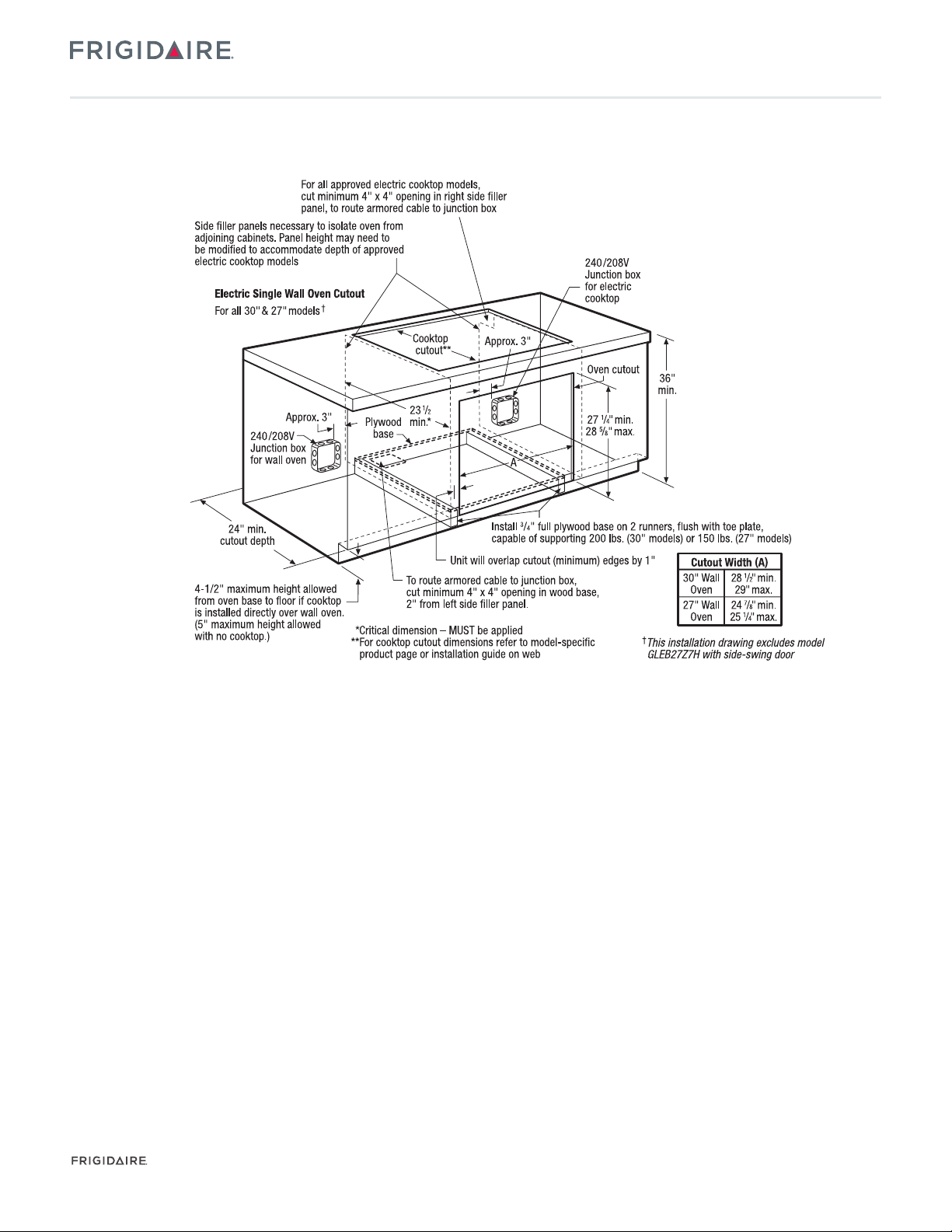

Electric Cooktop Installation
Over 30"/27" Electric Single Wall Oven
30"/ 27" Electric Single Wall Oven
Under-Counter Installation Specifications
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
For detailed electrical requirements, refer to model-specific product
page and installation guide on web.
•
Always consult local and national electric codes.
•
Minimum 21" clearance for oven door depth when open.
•
Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven’s faceplate will fit flush against
cabinet front.
•
Side filler panels necessary to isolate oven from adjoining cabinets.
•
Full oven base of solid plywood or similar material required, capable
of supporting 200 Lbs. (30" models) or 150 Lbs. (27" models).
Install over two runners and flush with toe plate.
•
Base must be level and cabinet front must be square.
•
Allow 5" maximum height from oven base to floor, if NO cooktop is
Electric Cooktop Installation Over
30"/ 27" Electric Single Wall Oven Specifications
All Frigidaire® Electric Single Wall Ovens are approved to be used
beneath any approved Frigidaire® Electric Cooktop. (This installation
page excludes approved wall oven model GLEB27Z7H. For modelspecific installation details, refer to Electric Cooktop Installation Over
27" Electric Single Wall Oven GLEB27Z7H Specifications pages on web.)
For detailed Electric Cooktop installation, refer to model-specific
product page and installation guide on web.
•
Side filler panel height may need to be modified to accommodate the
depth of approved electric cooktop models.
•
To route armored cable to junction box, cut minimum 4" x 4" opening
in right side filler panel.
•
Allow 4-1/2" maximum height from oven base to floor, if cooktop is
installed directly over wall oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
installed directly over wall oven.
•
USA
10200 David Taylor Drive
•
CANADA
EC_EW INST FR 11/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
Specifications
subject to change.
Page 5

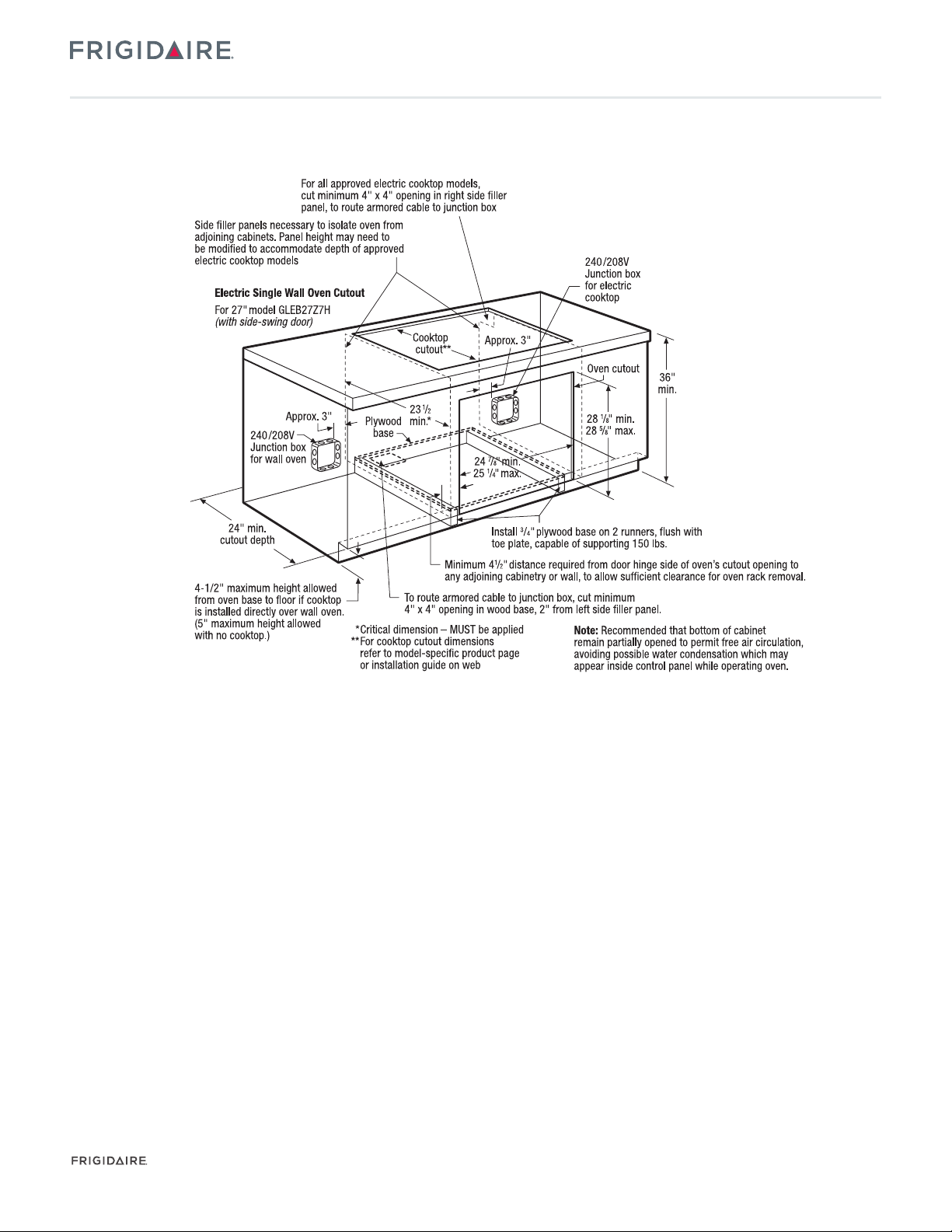

Electric Cooktop Installation
Over 27" Electric Single Wall Oven (GLEB27Z7H)
27" Electric Single Wall Oven (GLEB27Z7H)
Under-Counter Installation Specifications
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
For detailed electrical requirements, refer to model-specific product
page and installation guide on web.
•
Always consult local and national electric codes.
•
Minimum 27-1/4" clearance for oven door depth when open.
•
Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven’s faceplate will fit flush against
cabinet front.
•
Minimum 4-1/2" distance required from door hinge side of oven’s
cutout opening to any adjoining cabinetry or wall, to allow sufficient
clearance for oven rack removal.
•
Side filler panels necessary to isolate oven from adjoining cabinets.
•
Oven base of solid plywood or similar material required, capable of
Electric Cooktop Installation Over
27" Electric Single Wall Oven (GLEB27Z7H) Specifications
Frigidaire® Single Wall Oven model GLEB27Z7H is approved to be used
beneath any approved Frigidaire® Electric Cooktop.
For detailed Electric Cooktop installation, refer to model-specific
product page and installation guide on web.
•
Side filler panel height may need to be modified to accommodate the
depth of approved electric cooktop models.
•
To route armored cable to junction box, cut minimum 4" x 4" opening
in right side filler panel.
•
Allow 4-1/2" maximum height from oven base to floor, if cooktop is
installed directly over wall oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
supporting 150 Lbs. Install over two runners and flush with toe plate.
•
Base must be level and cabinet front must be square.
•
Recommended that bottom of cabinet remain partially opened to
permit free air circulation, avoiding possible water condensation
which may appear inside control panel while operating oven.
•
Allow 5" maximum height from oven base to floor, if NO cooktop is
installed directly over wall oven.
•
USA
10200 David Taylor Drive
•
CANADA
EC_EW_SS INST FR 11/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
Specifications
subject to change.
