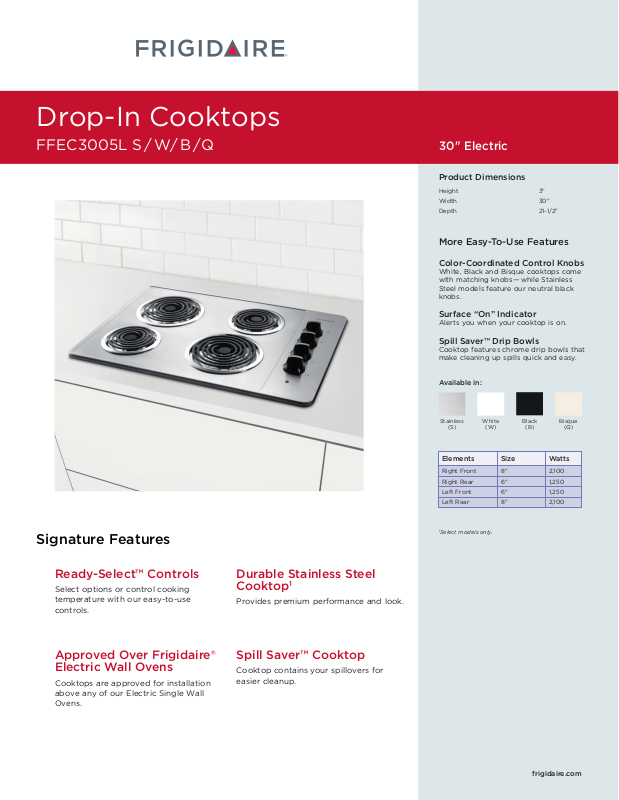

Frigidaire FFEC3005L Q, FFEC3005L S, FFEC3005L W, FFEC3005L B DATASHEET
Drop-In Cooktop
Drop-In Cooktops
FPEC3085K S
FFEC3005L S / W/ B /Q
30" Electric
30" Electric
Product Dimensions
Height 3"
Width 30"
Depth 21-1/2"
More Easy-To-Use Features
Color-Coordinated Control Knobs
White, Black and Bisque cooktops come
with matching knobs — while Stainless
Steel models feature our neutral black
knobs.
Surface “On” Indicator
Alerts you when your cooktop is on.
Spill Saver™ Drip Bowls
Cooktop features chrome drip bowls that
make cleaning up spills quick and easy.
Available in:
Stainless
(S)
White
(W)
Black
(B)
Bisque
(Q)
Signature Features
Ready-Select™ Controls
Select options or control cooking
temperature with our easy-to-use
controls.
Approved Over Frigidaire®
Electric Wall Ovens
Cooktops are approved for installation
above any of our Electric Single Wall
Ovens.
Durable Stainless Steel
Cooktop
Provides premium performance and look.
1
Spill Saver™ Cooktop
Cooktop contains your spillovers for
easier cleanup.
Elements
Right Front
Right Rear
Left Front
Left Rear
1
Select models only.
Size
8"
6"
6"
8"
Watts
2,100
1,250
1,250
2,100
frigidaire.com
B
C
A
Features
Controls
Surface Type
Right Front Element (Watts)
Right Rear Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
Hot-Surface Indicator Light
Control Location
Knob Color
Knob Type
Bowl Type
Ready-Select™
Stainless (S),
Porcelain (W / B / Q)
8" - 2,100
6" - 1,250
6" - 1,250
8" - 2,100
Yes
Right Side
Black (S),
Color-Coordinated
(W / B / Q)
Plastic
Chrome
Specifications
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 240 / 208 Volts
1
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)

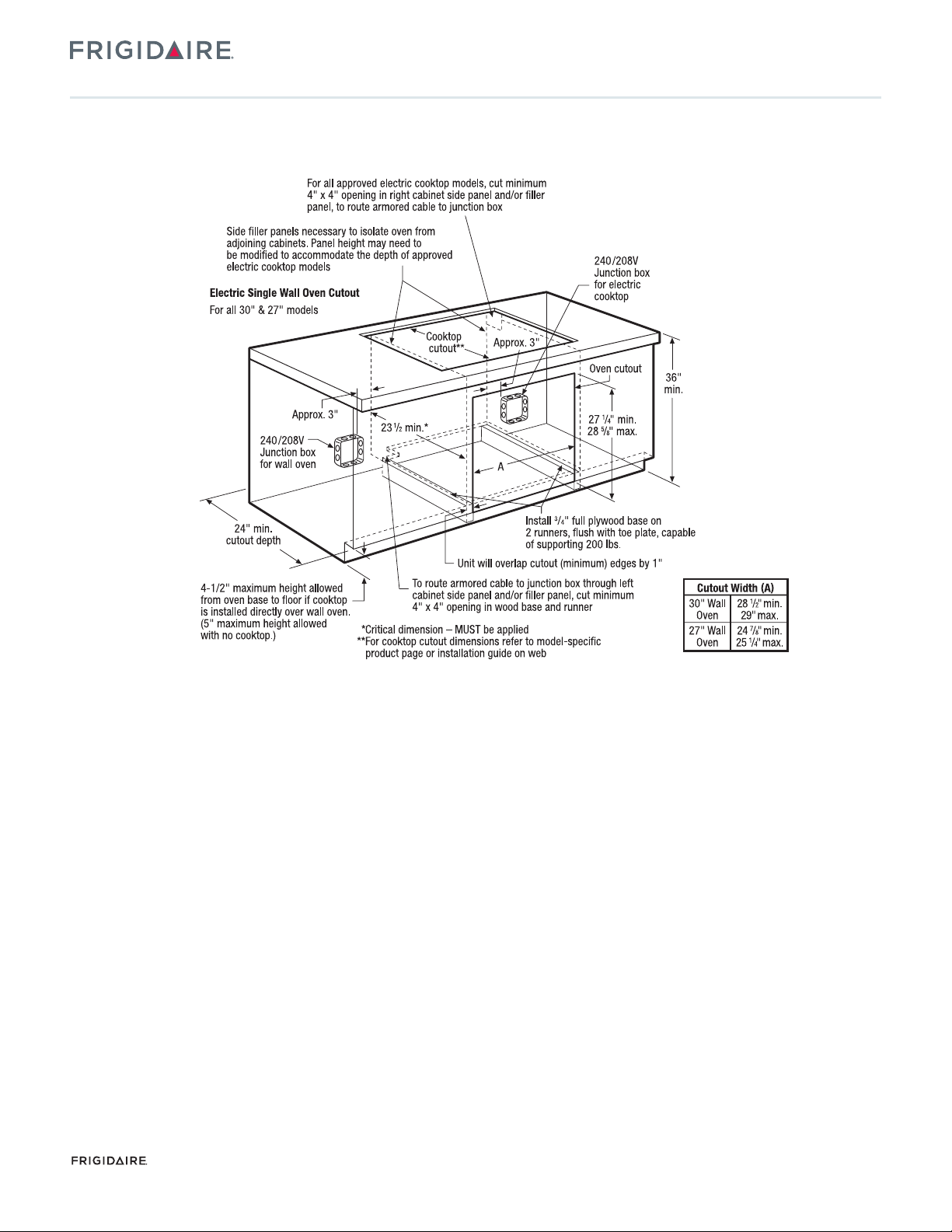

Approved for Electric Single Wall Oven
Combination Installation
2
Shipping Weight (Approx.)
1
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC
only electrical supply with ground required on separate circuit fused on
both sides of line.
2
Cooktops are approved for installation above any of our Electric Single
Wall Ovens.
Right Rear
240V /208V / 60Hz
6.7 / 5.0
22.3 / 19.2
30
Yes
30 Lbs.
Drop-In Cooktops
FFEC3005L S / W/ B /Q 30" Electric
NOTE: Always consult local and national electric codes. Refer to Product Installation
Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
3"
30"
21-1/2"
Cutout Dimensions
Height
Width (Min.)
Width (Max.)
Depth (Min.)
Depth (Max.)
5"
26-3/4"
28-1/4"
19-1/8"
20"
Granite Countertop
Installation Kit available.
•
USA
250 Bobby Jones Expressway
•
CANADA
FFEC3005L 02/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Martinez, GA 30907
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
