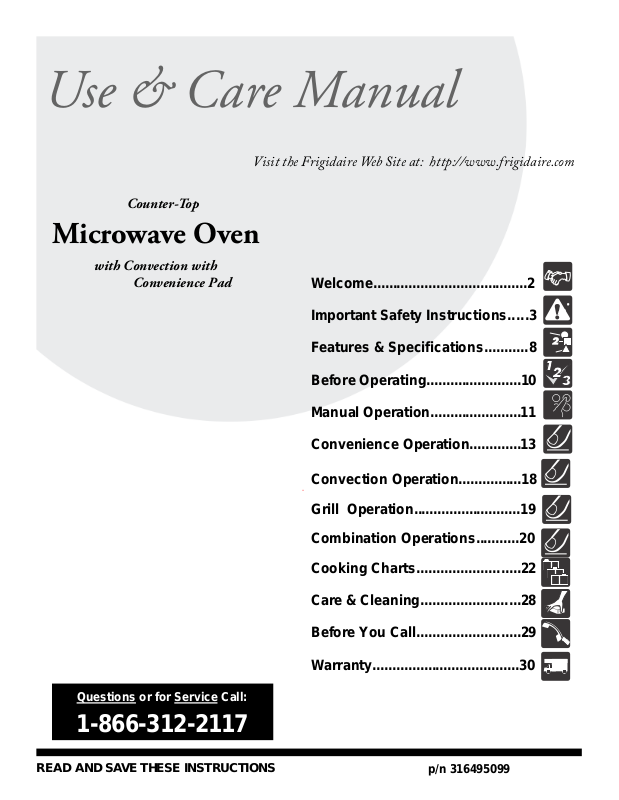

Frigidaire FFEC2605LS, FFCT1278LS User Manual
Use & Care Manual
Visit the Frigidaire Web Site at: http://www.frigidaire.com
Counter-Top
Microwave Oven
with Convection with
Convenience Pad
Welcome.......................................2
Important Safety Instructions.....3
Features & Specifications...........8
Before Operating........................10
Manual Operation.......................11
Convenience Operation.............13
Convection Operation................18
Grill Operation...........................19
Combination Operations...........20
Questions or for Service Call:
1-866-312-2117
READ AND SAVE THESE INSTRUCTIONS
Cooking Charts..........................22
Care & Cleaning.........................28
Before You Call..........................29
Warranty.....................................30
p/n 316495099
Welcome & Congratulations
Product Registration
Be sure to register your product. The
self-addressed PRODUCT
REGISTRATION CARD should be filled
in completely, signed and returned to
Electrolux Home Products.
Congratulations on your purchase of a new microwave! At Electrolux Home
Products, we are very proud of our product and are completely committed
to providing you with the best service possible. Your satisfaction is our
number one priority.
We know you’ll enjoy your new microwave and Thank You for choosing our
product. We hope you consider us for future purchases.
PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS
This Use & Care Manual provides specific operating instructions for your model.
Use your microwave only as instructed in this manual. These instructions are
not meant to cover every possible condition and situation that may occur.
Common sense and caution must be practiced when installing, operating and
maintaining any appliance.
Be sure to record your model and serial number. The serial plate is located
on the back of the microwave oven.
Please record your model and serial number and date of purchase
in the spaces provided below for future reference in case your
microwave should ever require servicing:
This Use & Care Manual contains
general operating instructions for your
appliance and feature information for
several models. Your microwave may
not have all the described features. The
graphics shown are representative. The
graphics on your microwave may not
look exactly like those shown.
Model Number: _______________________________________________
Serial Number: _______________________________________________
Purchase Date: _______________________________________________
© 2007 Electrolux Home Products, Inc.
All rights reserved.
2
Immediate hazards which
the following:
for microwave use. Popping time varies depending
to oven.
-
Hazards or unsafe practices which
-
Hazards or unsafe practices which
Important Safety Instructions
What You Need to
Know About Safety
Instructions
Warning and Important Safety Instructions appearing in
the Use & Care Guide are not meant to cover all
possible conditions and situations that may occur.
Common sense, caution, and care must be exercised
when installing, maintaining or operating a microwave.
Always contact your dealer, distributor, service agent
or manufacturer about problems or conditions you do
not understand.
Recognize Safety
Symbols, W ords, Labels
DANGER
DANGER - Immediate hazards which WILL result in
severe personal injury or death.
CAUTION
To avoid personal injury or property damage, observe
the following:
1. Do not deep fat fry in oven. Fat could overheat and
be hazardous to handle.
2. Do not cook or reheat eggs in shell or with an
unbroken yolk using microwave energy. Pressure
may build up and erupt. Pierce yolk with fork or
knife before cooking.
3. Pierce skin of potatoes, tomatoes, and similar foods
before cooking with microwave energy. When skin
is pierced, steam escapes evenly.
4. Do not operate oven without load or food in oven
cavity.
5. Use only popcorn in packages designed and labeled
for microwave use. Popping time varies depending
on oven wattage. Do not continue to heat after
popping has stopped. Popcorn will scorch or burn.
Do not leave oven unattended.
6. Do not use regular cooking thermometers in oven.
Most cooking thermometers contain mercury and
may cause an electrical arc, malfunction, or damage
to oven.
7. Do not use metal utensils in oven.
WARNING
WARNING - Hazards or unsafe practices which COULD
result in severe personal injury or death.
CAUTION
CAUTION - Hazards or unsafe practices which COULD
result in minor personal injury.
8. Never use paper, plastic, or other combustible
materials that are not intended for cooking.
9. When cooking with paper, plastic, or other
combustible materials, follow manufacturer’s
recommendations on product use.
10. Do not use paper towels which contain nylon or
other synthetic fibers. Heated synthetics could
melt and cause paper to ignite.
11. Do not heat sealed containers or plastic bags in
oven. Food or liquid could expand quickly and cause
container or bag to break. Pierce or open container
or bag before cooking.
12. To avoid pacemaker malfunction, consult physician
or pacemaker manufacturer about effects of
microwave energy on pacemaker.
SAVE THESE INSTRUCTIONS
3
Important Safety Instructions
Grounding
Instructions
WARNING
To avoid risk of electrical shock or death, this oven must be
grounded and plug must not be altered.
Oven MUST be grounded.
Grounding reduces risk of electric
shock by providing an escape wire
for the electric current if an electrical
short occurs. This oven is equipped
with a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is
properly installed and grounded. See Installation
Instructions.
Consult a qualified electrician or servicer if grounding
instructions are not completely understood, or if doubt
exists as to whether the oven is properly grounded.
Do not use an extension cord. If the product power
cord is too short, have a qualified electrician install a
three-slot receptacle. This oven should be plugged into a
separate 60 hertz circuit with the electrical ratting as
shown in specifications table. When the oven is on a
circuit with other equipment, an increase in cooking times
may be required and fuses can be blown.
Microwave operates on standard household current, 110120V.
Arcing
If you see arcing, press STOP and correct the problem.
Arcing is the term for sparks in your microwave oven. Arcing
is caused by:
Adapter Plugs
CAUTION
Attaching the adapter ground terminal to the wall receptacle
cover screw does not ground the appliance unless the
cover screw is metal, and not insulated, and the wall
receptacle is grounded through the house wiring.
Usage situations where appliance’s power cord will be
disconnected infrequently:
Because of potential safety hazards, we strongly
recommend against the use of an adapter plug. If you
still choose to use an adapter (where local codes permit), a
temporary connection can be made to a properly
grounded 2-prong wall receptacle using a UL listed adapter,
available at most hardware stores.
Have the circuit checked by a qualified electrician to make
sure the receptacle is properly grounded.
When disconnecting the power cord from the adapter,
always hold the adapter with one hand. Otherwise, the
adapter ground terminal may break with repeated use.
Should this happen, DO NOT USE the appliance until a
proper ground has again been established.
Usage situations where appliance’s power cord will be
disconnected frequently:
Do not use an adapter plug in these situations. Frequent
disconnection of the power cord places undue strain on the
adapter and leads to eventual failure of the adapter ground
terminal. Have a qualified electrician replace the 2-prong
wall receptacle with a 3-prong (grounding) receptacle
before using the appliance.
y Incorrect installation of the metal shelf so that it is
touching the microwave wall.
y Metal or foil touching the side of the oven.
y Use of foil which is not molded to the food. (The edges
act as antennas).
y Other metals, such a twist ties, poultry pins or metallic-
rimmed dishes, in the microwave.
y Recycled paper towels containing small metal pieces
used in the oven.
SAVE THESE INSTRUCTIONS
4
Federal
Important Safety Instructions
ARNING
W
Communications
Commission Radio
Frequency Interference
Statement (U.S.A. Only)
This equipment generates and uses ISM frequency energy
and if not installed and used properly, that is in strict
accordance with the manufacturer’s instructions, may
cause interference to radio and television reception. It has
been type tested and found to comply with limits for ISM
Equipment, pursuant to part 18 of FCC Rules, which are
designed to provide reasonable protection against such
interference in a residential installation.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause interference to radio or television reception, which
can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by
one or more of the following:
Ÿ Reorient the receiving antenna of the radio or
television.
Ÿ Relocate the microwave oven with respect to the
receiver.
Ÿ Move the microwave oven away from the receiver.
Ÿ Plug the microwave oven into a different outlet so that
the microwave oven and the receiver are on different
branch circuits.
The manufacturer is not responsible for any radio or
television interference caused by unauthorized
modification to this microwave oven. It is the responsibility
of the user to correct such interference.
a. A short power-supply cord is provided to reduce the
risks resulting from becoming entangled in or
tripping over a longer cord.
b. Extension cords may be used if care is exercised in
their use.
c. If an extension cord is used:
1. The marked electrical rating of the cord set or
extension cord set should be at least as great as
the electrical rating of the appliance.
2. The extension cord must be a grounding-type 3wire cord.
3. The longer cord should be arranged so that it will
not drape over the countertop or tabletop where it
can be tripped over, snagged, or pulled on
unintentionally.
If you use an extension cord, the interior light may flicker
and the blower sound may vary when the microwave oven
is on. Cooking times may be longer, too.
Radio Interference
1. Operation of the microwave oven may cause
interference to your radio, TV or similar equipment.
2. When there is interference, it may be reduced or
eliminated by taking the following measures:
1) Clean door and sealing surface of the oven.
2) Reorient the receiving antenna of radio or
television.
3) Relocate the microwave oven with respect to the
receiver.
4) Move the microwave oven away from the receiver.
5) Plug the microwave oven into a different outlet so
that microwave oven and receiver are on different
branch circuits.
SAVE THESE INSTRUCTIONS
5
Important Safety Instructions
Precautions to Avoid
Possible Exposure to
Excessive Microwave
Energy
Adhere to the following precautions:
y DO NOT attempt to operate this oven with the door
open since open door operation can result in harmful
exposure to microwave energy. It is important not to
defeat or tamper with the safety interlock switches.
y DO NOT place any object between the oven front face
and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
y DO NOT use any cleaning materials on the oven door
gasket. Doing so could cause damage.
y DO NOT operate the oven if it is damaged. It is
particularly important that the oven door close properly
and that there is no damage to:
1. door (bent),
2. hinges and latches (broken or loosened),
3. door seals and sealing surfaces.
y Oven should not be be adjusted or repaired by anyone
except properly qualified service personnel.
WARNING
Liquids such as water, coffee, or tea are able to be
overheated beyond the boiling point without appearing to
be boiling due to surface tension of the liquid. Visible
bubbling or boiling when the container is removed from
the microwave oven is not always present. THIS COULD
RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING
OVER WHEN A SPOON OR OTHER UTENSIL IS
INSERTED INTO THE LIQUID. To reduce the risk of
injury to persons:
1. Do not overheat the liquid.
2. Stir the liquid both before and halfway through heating
it.
3. Do not use straight-sided containers with narrow
necks.
4. After heating, allow the container to stand in the
microwave oven for a short time before removing the
container.
5. Use extreme care when inserting a spoon or other
utensils into the container.
SAVE THESE INSTRUCTIONS
6
When using electrical appliances, basic safety
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
4. Install or locate this oven ONLY in accordance with the
from
food. Carefully attend oven
when paper, plastic or other combustible
food in the cavity when not in use.
such as water, coffee, or tea are able
Important Safety Instructions
WARNING
When using electrical appliances, basic safety
precautions should be followed to reduce the
risk of burns, electric shocks, fire or injury to
persons or exposure to excessive microwave
energy.
1. READ ALL instructions before using oven.
2. READ AND FOLLOW the specific “PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY” on page 5.
3. This appliance must be grounded. Connect only to
properly grounded outlet. See GROUNDING
INSTRUCTIONS found on Page 4
4. Install or locate this oven ONLY in accordance with the
installation instructions in this Use & Care Manual.
5. Some products such as whole eggs and sealed
containers -for example, closed jars -are able to explode
and SHOULD NOT be HEATED in this oven.
6. Use this oven ONLY for its intended use as described in
this Use & Care Manual. Do not use corrosive
chemicals or vapors in this oven. This type of oven is
specifically designed to heat, cook, or dry food. It is not
designed for industrial or laboratory use.
7. As with any appliance, CLOSE SUPERVISION
necessary when used by CHILDREN or INFIRM
PERSONS
8. DO NOT operate this oven if it has a damaged cord or
power plug, if it is not working properly, or if it has been
damaged or dropped.
9. This oven, including power cord, must be serviced
ONLY by qualified service personnel. Special tools are
required to service oven. Contact nearest authorized
service facility for examination, repair, or adjustment.
10.DO NOT cover or block any vents or openings on the
oven.
12.DO NOT immerse cord or plug in water.
13. Keep cord AWAY from HEATED surfaces.
14.DO NOT let cord hang over edge of table or counter.
15. Review the door cleaning instructions in the Care &
Cleaning section.
16. To avoid the risk of fire in the oven cavity, injury to
persons, or exposure to excessive microwave energy.
a. DO NOT overcook food. Carefully attend oven
when paper, plastic or other combustible
materials are placed inside the oven to facilitate
cooking.
b. Remove wire twist-ties from paper or plastic bags
before placing bag in oven.
c. If materials inside the oven ignite, keep oven door
CLOSED, turn oven off and disconnect the power
cord, or shut off power at the fuse or circuit
breaker panel.
d. DO NOT use this oven cavity for storage. DO
NOT leave paper products, cooking utensils or
food in the cavity when not in use.
17.Liquids such as water, coffee, or tea are able
overheated beyond the boiling point without appearing
to be boiling due to surface tension of the liquid. Visible
bubbling or boiling when the container is removed from
the microwave oven is not always present. THIS
COULD RESULT IN VERY HOT LIQUIDS SUDDENLY
BOILING OVER WHEN A SPOON OR OTHER
UTENSIL IS INSERTED INTO THE LIQUID.
18. DO NOT heat baby bottles in oven.
19. Baby food jars shall be open when heated and
contents stirred or shaken before consumption, in
order to avoid burns.
20. DO NOT use this oven for commercial purposes. It is
made for household use only.
11.DO NOT store this oven outdoors. DO NOT use this
appliance near water -for example, near a kitchen sink,
in a wet basement, near a swimming pool or similar
locations.
SAVE THESE INSTRUCTIONS
7
Features & Specifications
C
Microwave features
Door
assembly
Interlock
system
Turntable
ring
assembly
Door Latches -
When door is closed it will
automatically shut off. If the door is opened
Window
while the oven is operating th
e magnetron
will automatically shut off.
Window with Metal Shield - Screen allows you to
view the cooking while keeping microwaves confined
within the oven.
Control Panel and Display
Glass Turntable - Center the tray on the turntable
support when using the microwave features. Food or
microwave-safe cookware is placed directly on the
glass turntable.
Black Metal Tray - Put food or appropriate cookware
directly on the black metal tray and place on the
turntable support when using grilling, convection or
combination features.
AUTO
AUTO
DEFROST
REHEAT
COOK
COMBINATION
CONVECTION GRILL
2
3
1
easy set
68594
7
POWER
TIMER
0
LEVEL
POPCORN
BEVERAGE
START
+30 sec
MELT /
KEEP
SOFTEN
WARM
SAFETY
CLOCK
STOP
LOCK
T
Turntable
Shaft
Turntable
glass
Control
panel
tray
Removable Turntable Support - The turntable
support must be in place when using the oven
NOTE: Rating plate is located on the back of the
microwave. Oven vent(s) and oven
light are located on the inside walls of the microwave
oven.
Heating Elements - You can cook frozen convenience
foods, brown already cooked foods quickly on top, or
grill foods on the top and bottom.
Rack - Used primarily for two-level convection
baking. Center the rack on the black metal tray.
(Do not use when performing microwave or
combination cooking).
8
Features & Specifications
Control panel
(1) Auto Cook
(2) Auto Reheat
(3) Defrost
AUTO
COOK
CONVECTION GRILL
1
AUTO
REHEAT
2
easy set
4
7
POWER
LEVEL
POPCORN
KEEP
WARM
SAFETY
LOCK
5
8
0
START
+30 sec
STOP
DEFROST
COMBINATION
3
6
9
TIMER
BEVERAGE
MELT /
SOFTEN
CLOCK
(4) Convection
(5) Grill
(6) Combination
(7) Power Level (10 power levels available)
(8) Timer
(9) Popcorn
(10) Beverage
(11) Keep Warm
(12) Melt/Soften
(13) START/+30 sec. ~ Begin cooking time or add time to
cooking.
(14) Safety Lock
(15) Clock
(16) Easy Set (6 instant settings)
(17) Number Pads (0-9)
(18) STOP ~ Before cooking: clears all previous settings.
During cooking: press this pad once to pause
cooking function, press this pad twice to cancel
cooking and any other entries.
9
Loading...
