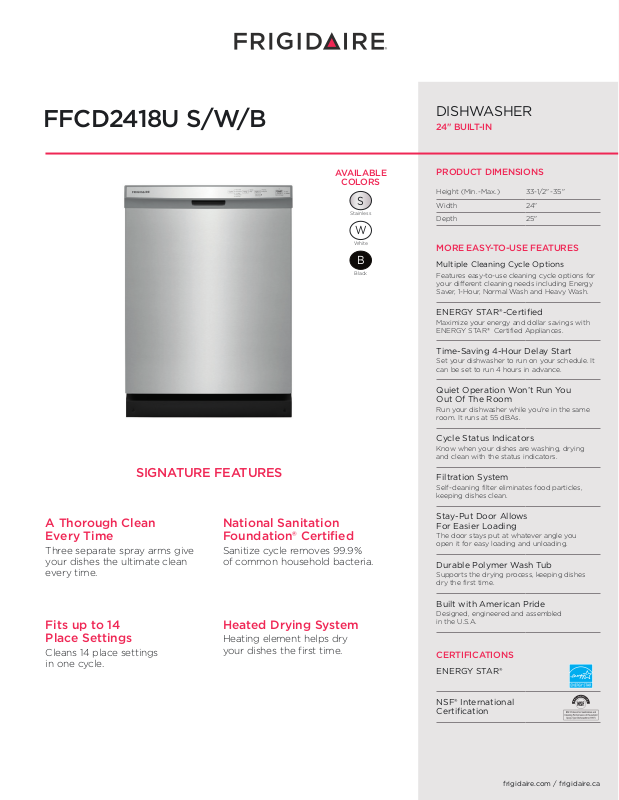

Frigidaire FFCD2418UW Specifications
FFCD2418U S/W/B
S
W
B
DISHWASHER
24" BUILT-IN
AVAILABLE
COLORS
Stainless
White
Black
PRODUCT DIMENSIONS
Height (Min. - Max.) 33-1/2" - 35"
Width 24"
Depth 25"
MORE EASY-TO-USE FEATURES
Multiple Cleaning Cycle Options
Features easy-to-use cleaning cycle options for
your different cleaning needs including Energy
Saver, 1-Hour, Normal Wash and Heavy Wash.
ENERGY STAR®-Certified
Maximize your energy and dollar savings with
ENERGY STAR® Certified Appliances.
Time-Saving 4-Hour Delay Start
Set your dishwasher to run on your schedule. It
can be set to run 4 hours in advance.
Quiet Operation Won’t Run You
Out Of The Room
Run your dishwasher while you’re in the same
room. It runs at 55 dBAs.
Cycle Status Indicators
Know when your dishes are washing, drying
and clean with the status indicators.
SIGNATURE FEATURES
A Thorough Clean
Every Time
Three separate spray arms give
your dishes the ultimate clean
every time.
Fits up to 14
Place Settings
Cleans 14 place settings
in one cycle.
National Sanitation
Foundation® Certified
Sanitize cycle removes 99.9%
of common household bacteria.
Heated Drying System
Heating element helps dry
your dishes the first time.
Filtration System
Self-cleaning filter eliminates food particles,
keeping dishes clean.
Stay-Put Door Allows
For Easier Loading
The door stays put at whatever angle you
open it for easy loading and unloading.
Durable Polymer Wash Tub
Supports the drying process, keeping dishes
dry the first time.
Built with American Pride
Designed, engineered and assembled
in the U.S.A.
CERTIFICATIONS
ENERGY STAR®
NSF® International
Certification
frigidaire.com / frigidaire.ca
FFCD2418U S/W/B
DISHWASHER
24" BUILT-IN
FEATURES
Control Design Ready-Select®
Door Latch Yes
Stay-Put Door Hinge Design Yes
Low Rinse-Aid Indicator Light Yes
Interior Color Greystone
Interior Design Tall Tub
Wash System Direct Feed
Wash Levels 5
Wash Speeds 5
Sound Package UltraQuiet™ III
Filter Poly
Filter Trap Removable
Food Disposer Hard
dB Level 55
Drying System Eortless™ Dry
CYCLES
Number of Cycles 5
PowerPlus™ (Heavy) Yes
Normal Yes
Light (1-Hour) Yes
Rinse Only Yes
Energy Saver Plus Yes
Cycle Indicator Light Yes
Control Lock Yes
OPTIONS
Heat Yes
No Heat Dry Yes
Hi-Temp Wash Ye s
NSF® Certified Sanitize Rinse Yes
Delay Start 4 Hours
RACK SYSTEM
Rack Design Standard
Rack Coating PVC
Lower Rack –
SpaceWise® Silverware Basket Standard
Upper Rack –
Rack Type Better
Cup Shelves Yes
CERTIFICATIONS
ENERGY STAR® Yes
NSF® International Certification Yes
SPECIFICATIONS
Water Inlet Location Left Bottom Front
Water Usage (Gallons) 6.0
Water Pressure (PSI) 20 – 120
Integral Air Gap on Supply Yes
Leveling Legs Yes
Power Supply Connection Location Right Bottom Front
Voltage Rating 120V / 60 Hz / 15A
Connected Load (kW Rating) @ 120 Volts
Amps @ 120 Volts 10.0
Shipping Weight (Approx.) 83 Lbs.
1
For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.
1
1.44
PRODUCT DIMENSIONS
A - Height (Min. - Max.) 33-1/2" - 35"
B - Width 24"
C - Depth 25"
Depth with Door Open 90° 49-1/4"
CUTOUT DIMENSIONS
Height (Min.) 33-1/2"
Height (Max.) 35-1/4"
Width (Min.) 24"
Depth (Min.) 25"
B
C
D
A
•
10200 David Taylor Drive
USA
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com / frigidaire.ca.
•
frigidaire.com
•
frigidaire.ca
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Specifications subject to change. Accessories information available on the web at frigidaire.com / frigidaire.ca
© 2018 Electrolux Home Products, Inc.
FFCD2418U 06/18
Meets
requirements of
ASSE 1006
