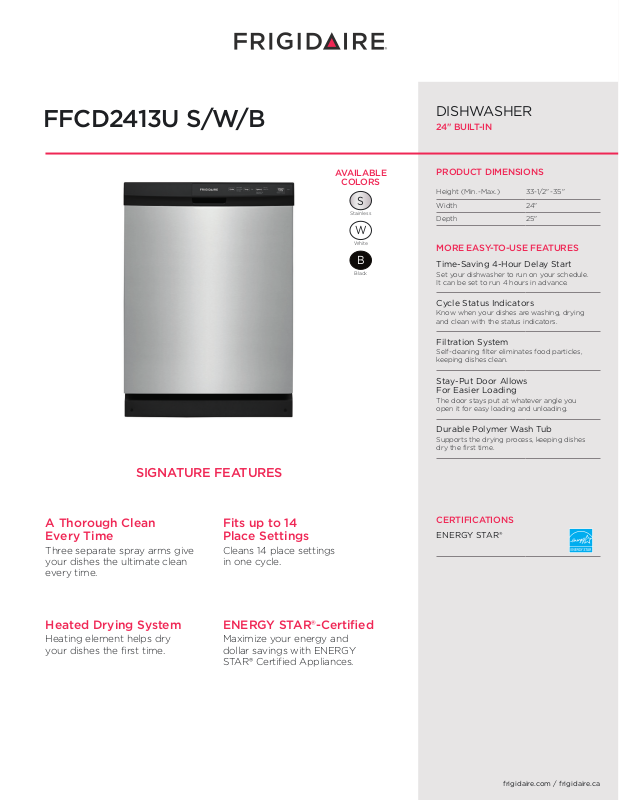

Frigidaire FFCD2413UB, FFCD2413US Specification Sheet

FFCD2413U S/W/B

S

W

B

DISHWASHER

24" BUILT-IN

AVAILABLE

COLORS

Stainless

White

Black

PRODUCT DIMENSIONS

Height (Min. - Max.) 33-1/2" - 35"

Width 24"

Depth 25"

MORE EASY-TO-USE FEATURES

Time-Saving 4-Hour Delay Start

Set your dishwasher to run on your schedule.
It can be set to run 4 hours in advance.

Cycle Status Indicators

Know when your dishes are washing, drying
and clean with the status indicators.

Filtration System

Self-cleaning filter eliminates food particles,
keeping dishes clean.

Stay-Put Door Allows
For Easier Loading

The door stays put at whatever angle you
open it for easy loading and unloading.

Durable Polymer Wash Tub

Supports the drying process, keeping dishes
dry the first time.

SIGNATURE FEATURES

A Thorough Clean
Every Time

Three separate spray arms give
your dishes the ultimate clean
every time.

Heated Drying System

Heating element helps dry
your dishes the first time.

Fits up to 14
Place Settings

Cleans 14 place settings
in one cycle.

ENERGY STAR®-Certified

Maximize your energy and
dollar savings with ENERGY
STAR® Certified Appliances.

CERTIFICATIONS

ENERGY STAR®

frigidaire.com / frigidaire.ca

FFCD2413U S/W/B

DISHWASHER

24" BUILT-IN

FEATURES

Control Design Ready-Select®
Door Latch Yes
Stay-Put Door Hinge Design Ye s
Low Rinse-Aid Indicator Light Yes
Interior Color Greystone

Interior Design Tall Tub

Wash System Direct Feed

Wash Levels 5
Wash Speeds 5
Sound Package UltraQuiet™ I
Filter Poly
Filter Trap Removable
Food Disposer Hard
dB Level 60
Drying System Static Vent

CYCLES

Number of Cycles 3
PowerPlus™ (Heavy) Yes
Normal Yes
Light Yes
Cycle Indicator Light Yes
Control Lock Yes

OPTIONS

Heat Yes
No Heat Dry Yes
Hi-Temp Wash Ye s
Delay Start 4 Hours

RACK SYSTEM

Rack Design Standard
Rack Coating P VC

Lower Rack –

SpaceWise® Silverware Basket Standard

Upper Rack –

Rack Type Basic

CERTIFICATIONS

ENERGY STAR® Yes

SPECIFICATIONS

Water Inlet Location Left Bottom Front
Water Usage (Gallons) 6.0
Water Pressure (PSI) 20 – 120
Integral Air Gap on Supply Yes
Leveling Legs Yes
Power Supply Connection Location Right Bottom Front
Voltage Rating 120V / 60 Hz / 15A
Connected Load (kW Rating) @ 120 Volts
Amps @ 120 Volts 10.0
Shipping Weight (Approx.) 83 Lbs.

1

For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.

1

1.44

PRODUCT DIMENSIONS

A - Height (Min. - Max.) 33-1/2" - 35"
B - Width 24"
C - Depth 25"
Depth with Door Open 90° 49-1/4"

CUTOUT DIMENSIONS

Height (Min.) 33-1/2"
Height (Max.) 35-1/4"
Width (Min.) 24"
Depth (Min.) 24"

B

C
D

A

•

10200 David Taylor Drive

USA

•

CANADA

5855 Terry Fox Way

•

Charlotte, NC 28262

•

Mississauga, ON L5V 3E4

•

1-800-FRIGIDAIRE

•

1-800-265-8352

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com / frigidaire.ca.

•

frigidaire.com

•

frigidaire.ca

Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.

Specifications subject to change. Accessories information available on the web at frigidaire.com / frigidaire.ca

© 2018 Electrolux Home Products, Inc.

FFCD2413U 06/18

Meets
requirements of
ASSE 1006
