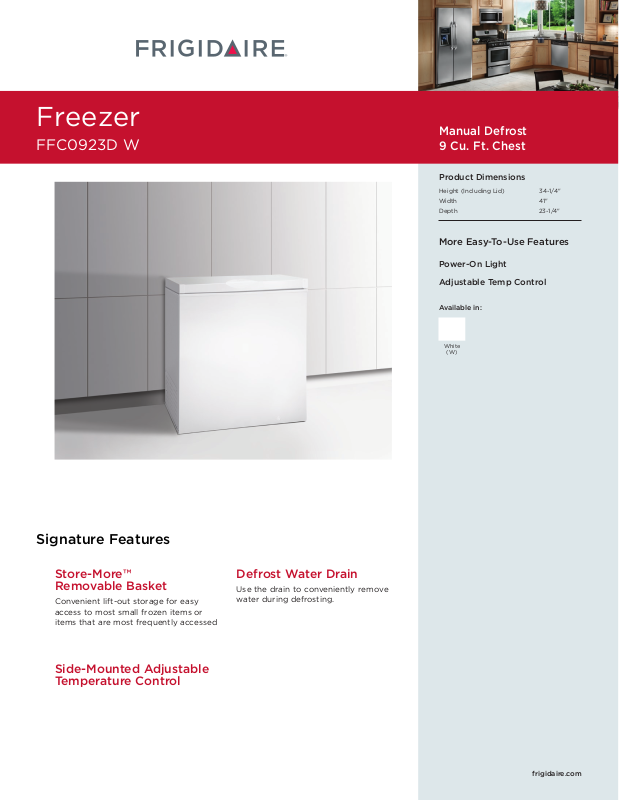

Page 1
Freezer
FFC0923D W
Manual Defrost
9 Cu. Ft. Chest
Product Dimensions
Height (Including Lid) 34-1/4"
Width 41"
Depth 23-1/4"
More Easy-To-Use Features
Power-On Light
Adjustable Temp Control
Available in:
White
(W)
Signature Features
Store-More™
Removable Basket
Convenient lift-out storage for easy
access to most small frozen items or
items that are most frequently accessed
Side-Mounted Adjustable
Temperature Control
Defrost Water Drain
Use the drain to conveniently remove
water during defrosting.
frigidaire.com
Page 2
Features
Defrost
Adjustable Temperature Control
Interior Lighting
Store-More™ Removable Baskets
Food Organization System
Defrost Water Drain
Lid Handle
Lock with Pop-Out Key
Power-On Light
Manual
Yes
2
Yes
Yes
Certifications
CSA Rating
Household
Specifications
Total Capacity (Cu. Ft.)
Annual Energy (kWH)
Annual Energy Cost (.1065 / kWH)
Power Supply Connection Location
Voltage Rating
Connected Load (kW rating) @ 115 Volts
Amps @ 115 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
An electrical supply with grounded three-prong receptacle is required.
The power supply circuit must be installed in accordance with current
edition of National Electrical Code (NFPA 70) and local codes &
ordinances.
8.8
294
$31
Bottom Rear
115V / 60Hz / 5A
1
.6
5
15
127 Lbs.
Freezer
FFC0923D W 9 Cu. Ft. Chest
NOTE: For planning purposes only. Always consult local and
national electric codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.

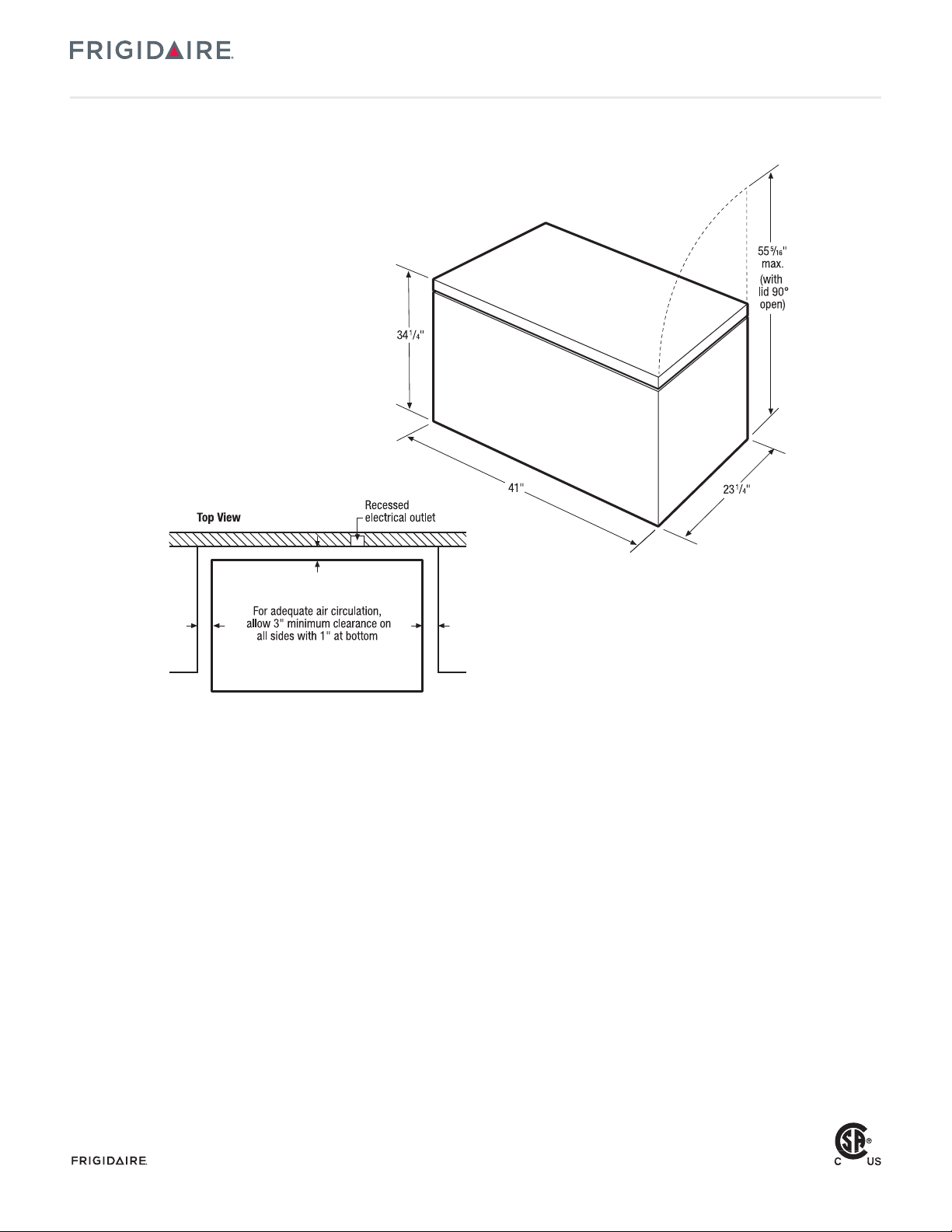

Product Dimensions
A - Height (Including Lid)
B - Width
C - Depth
Height with Lid Open 90˚
•
USA
10200 David Taylor Drive
•
CANADA
FFC0923D 11/11 © 2011 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
34-1/4"
41"
23-1/4"
55-5/16"
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
Page 3
9 Cu. Ft. Chest Freezers
Frigidaire
Freezer
FFC0923D W 9 Cu. Ft. Chest
Chest Freezer Specifications
•
Product Shipping Weight (approx.) – 127 Lbs.
•
An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
•
Voltage Rating – 115V / 60 Hz / 5 Amps
•
Connected Load (kW Rating) @ 115 Volts = 0.6 kW
•
Amps @ 115 Volts = 5 Amps
•
Always consult local and national electric codes.
•
For adequate air circulation, allow 3" minimum clearance on all
•
Locate where surrounding air temperature will not exceed 110° F,
to ensure optimum performance. (Temperatures 32° F and below
will NOT affect operation.)
•
All bottom corners of unit MUST rest firmly on solid level surface
of hard material, same height as flooring. Surface must be strong
and stable enough to support unit when fully loaded.
•
Equipped with adjustable leveling legs to ensure unit is level,
which is required in order to function properly.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
sides with 1" at bottom.
•
USA
10200 David Taylor Drive
•
CANADA
FFC0923D 11/11 © 2011 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
