FPEC3085K S
FFBD2409L S / M / W / B / Q
30" Electric24" Built-In
Product Dimensions
Height (Adjustable) 33-1/2" – 35"
Width 24"
Depth (Including Door) 25"
More Easy-To-Use Features
Delay Start
Set your dishwasher to run
on your schedule.
Ready-Select® Controls
Easily select options with the touch
of a button.
Energy Saver Plus Cycle
Eco-friendly cycle uses less energy
without compromising cleaning
performance.
Energy Saver Dry Option
No heat dry option.
Attractive Stainless Steel Exterior
Low Rinse-Aid Indicator Light
Control Lock Option
1
Signature Features
Tall-Tub Design
Our large capacity, tall-tub dishwasher
fits up to 14 place settings so you can
wash more at once.
SpaceWise®
Silverware Basket
There’s a place for all of your
silverware in our multicompartment,
removable basket.
Quiet Dishwasher
A quiet performance every time.
Multiple Cycle Options
Features easy-to-use cleaning
cycle options.
5-Level Wash Design
White Interior
UltraQuiet™ 3
Sound Reduction System
ENERGY STAR®
NSF® International
Certification
Available in:
(S)
Silver Mist
Stainless
1
Select model only.
(M)
White
(W)
Black
(B)
Bisque
(Q)
frigidaire.com
Features
B
A
D
C
Control Design
Digital Display
Door Latch
Stay-Put Door Hinge Design
Low Rinse-Aid Indicator Light
Interior Design
Interior Color
Wash System
Wash Levels / Wash Speeds
Sound Package
Filter
Filter Trap
Soft Food Disposer
dB Level
Drying System
Ready-Select®
Yes
Yes
Tall Tub
White
Direct
5 / 1
UltraQuiet™ 3
Plastic
Removable
Yes
55
Active Vent
Cycles
Number of Cycles
Heavy
Normal
Light
Delicate
Favorite
China / Crystal
Rinse Only
Energy Saver Plus
Upper Rack Wash Only
Cycle Indicator Light
Control Lock
5
Yes
Yes
Yes
Yes
Yes
Yes
Options
Heat / No Heat Dry
Hi-Temp Wash
NSF® Certified Sanitize Rinse
Delay Start
Yes
Yes
Yes
2-4-6 Hour
Rack System
Rack Design / Rack Coating
Upper Rack –
Stemware / Champagne Glass Holders
Fold-Down Tines
Cup Shelves
Lower Rack –
SpaceWise® Silverware Basket
Fold-Down Tines
Small Items Cover
Certifications
ENERGY STAR®
NSF® International Certification
Deluxe / PVC
2
Ultra 1
Yes
Yes
Specifications
Water Inlet Location
Water Usage (Gallons)
Water Pressure (PSI)
Integral Air Gap on Supply
Leveling Legs
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts
Amps @ 120 Volts
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having
2-wire service with a separate ground wire. Appliance must be
grounded for safe operation.
Left Bottom Front
6.0
20 – 120
Yes
4
Right Bottom Front
120V / 60 Hz / 15A
1
1.44
10
64 Lbs.
Dishwashers
FFBD2409L S / M / W/ B / Q 24" Built-In
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

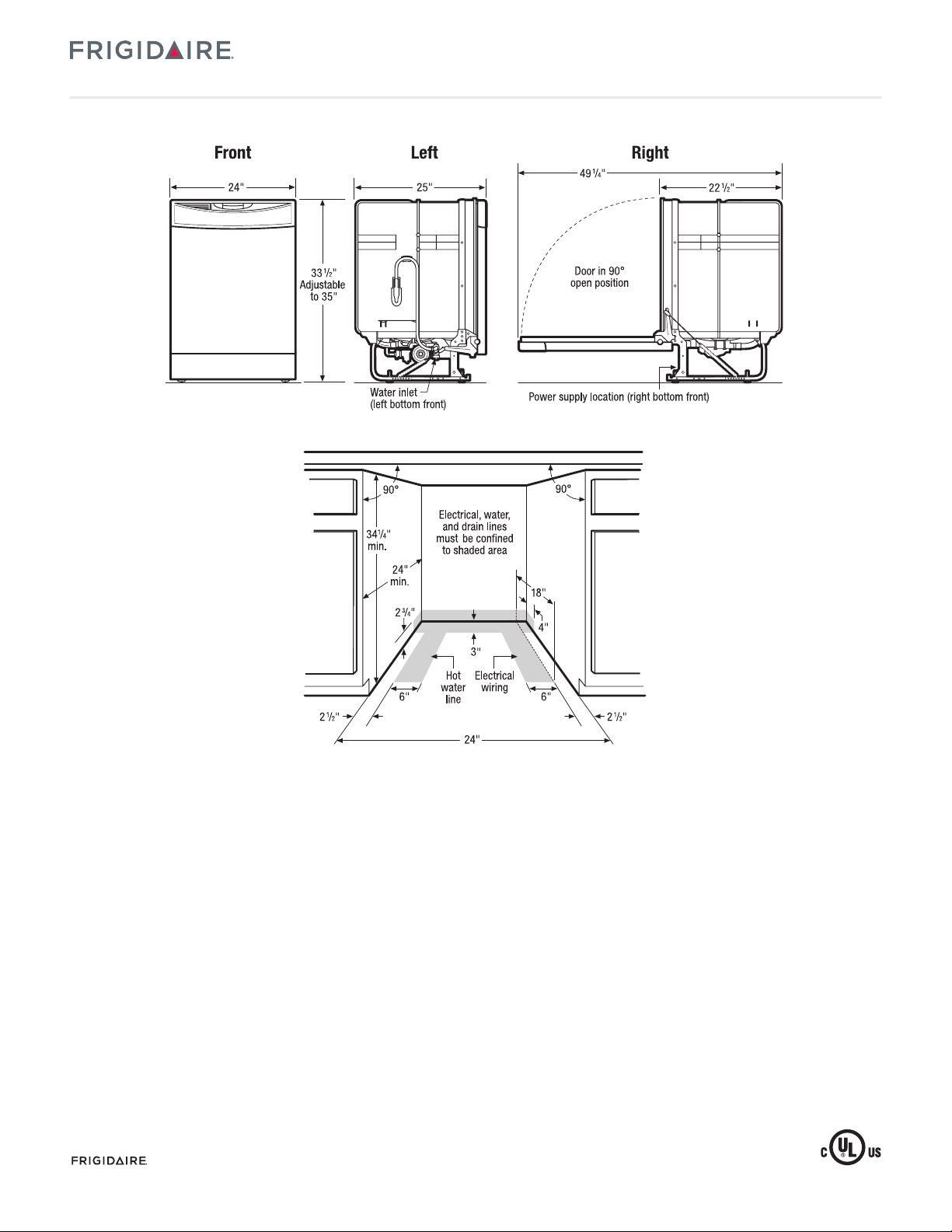

Product Dimensions
A - Height (Adjustable)
B - Width
C - Depth (Including Door)
D - Depth (To Tub Flange)
Depth with Door Open 90˚
33-1/2" – 35"
24"
25"
22-1/2"
49-1/4"
Cutout Dimensions
Height (Min.)
Height (Max.)
Width (Min.)
Depth (Min.)
Meets requirements
of ASSE 1006
34-1/4"
35-1/4"
24"
24"
•
USA
10200 David Taylor Drive
•
CANADA
FFBD2409L 01/12 © 2012 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
