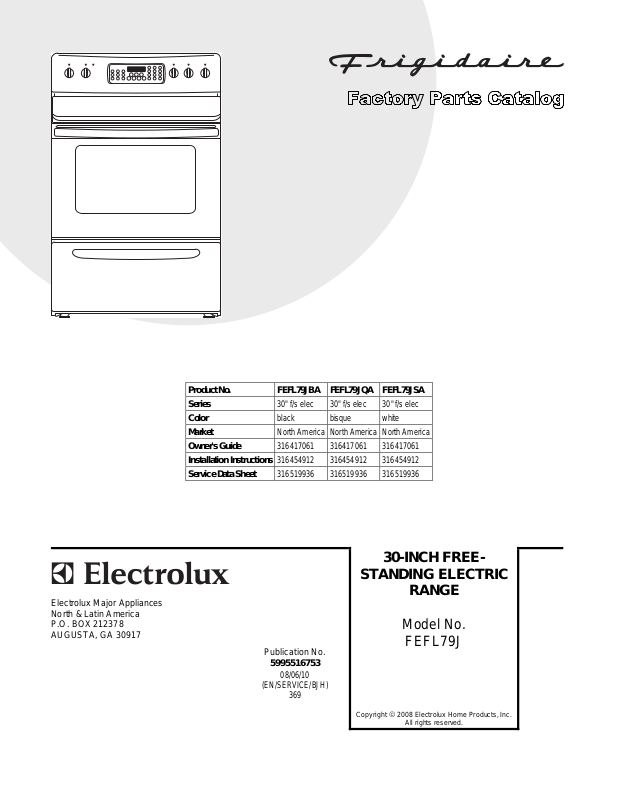

Product No. FEFL79JBA FEFL79JQA FEFL79JSA
Series 30" f/s elec 30" f/s elec 30" f/s elec
Color black bisque white
Market North America North America North America
Owner's Guide 316417061 316417061 316417061
Installation Instructions 316454912 316454912 316454912
Service Data Sheet 316519936 316519936 316519936
FEFL79H.eps T20G0099.eps T20V0218B.eps T20T0207.eps T20D0053.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995516753
08/06/10
(EN/SERVICE/BJH)
369
30-INCH FREE-
STANDING ELECTRIC
RANGE
Model No.
FEFL79J
Copyright © 2008 Electrolux Home Products, Inc.
All rights reserved.
Page 2
Publication No: 5995516753 FEFL79J
BACKGUARD
06/08 2
Page 3
FEFL79J Publication No: 5995516753
BACKGUARD
POS. NO PART NO. DESCRIPTION
1 316416100 A B C Shield, backguard, rear wall
13A# 316095503 A B C Switch, infinite, warmer
14 316022500 A B C Light/Lamp, indicator, 125 V
15 316411405 A - - Support, backguard, black, RH
15 316411407 - B - Support, backguard, bisque, RH
15 316411403 - - C Support, backguard, white, RH
15A 316411404 A - - Support, backguard, black, LH
15A 316411406 - B - Support, backguard, bisque, LH
15A 316411402 - - C Support, backguard, white, LH
19 316436266 A - - Panel, control, black
19 316436267 - B - Panel, control, bisque
19 316436265 - - C Panel, control, white
20 # 316462868 A B C Clock/Timer, electronic, ES530
20A 316419704 A - - Overlay, clock, black, ES510
20A 316419706 - B - Overlay, clock, bisque, ES510L
20A 316419705 - - C Overlay, clock, white, ES510
23 316419200 A B C Bracket, clock, (2)
31 316223002 A - - Knob, control, black
31 316223003 - B - Knob, control, bisque
31 316223000 - - C Knob, control, white
46 316437800 A B C Lens-light/lamp, indicator, clear
54 # 316436000 A B C Switch, infinite, small element
54B# 316238200 A B C Switch, infinite, dual
56 316234013 A - - Shield, backguard, black, inner
56 316234014 - B - Shield, backguard, bisque, inner
56 316234012 - - C Shield, backguard, white, inner
69 5303288565 A B C Screw, truss sqdr, 8-32 x 3/16, switch mtg
* 316021105 A B C Screw, hex head cup pt, 8-18 x 0.375, black
* 316021109 A B C Screw, 8-18 x 0.5, chrome
* 316021110 A B C Screw, 8-18 x 0.5, black
Model Index: A FEFL79J (FEFL79JBA)
B FEFL79J (FEFL79JQA)
C FEFL79J (FEFL79JSA)
# Functional Parts
3 06/08
* Non-Illustrated Parts
Page 4
Publication No: 5995516753 FEFL79J

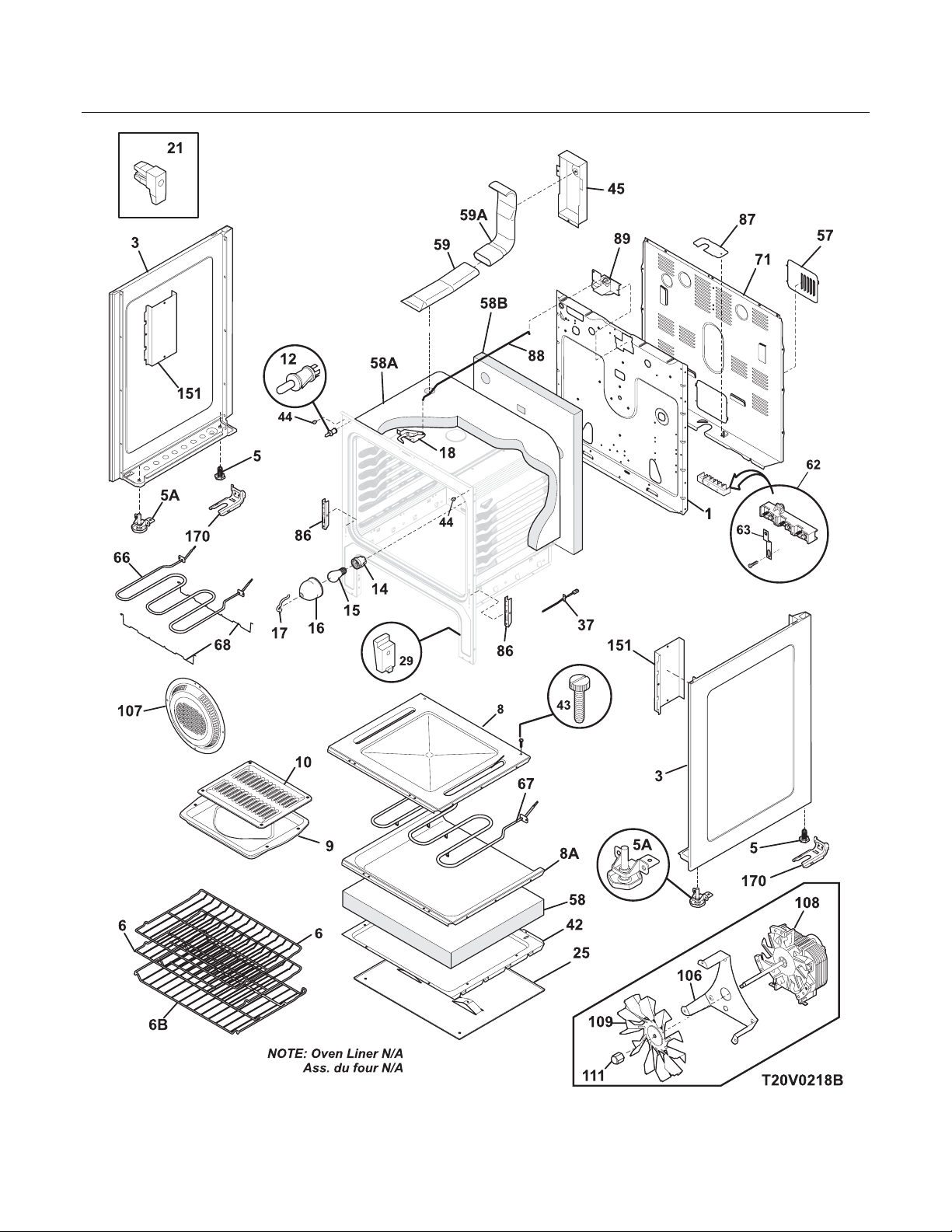

BODY
06/08 4
Page 5
FEFL79J Publication No: 5995516753
BODY
POS. NO PART NO. DESCRIPTION
1 316401800 A B C Panel, main back
3 316400118 A - - Panel, bodyside, black, RH
3 316400119 A - - Panel, bodyside, black, LH
3 316400120 - B - Panel, bodyside, bisque, RH
3 316400121 - B - Panel, bodyside, bisque, LH
3 316400116 - - C Panel, bodyside, white, RH
3 316400117 - - C Panel, bodyside, white, LH
5 316272900 A B C Screw, leveling, plastic, rear, (2)
5A 316498900 A B C Leveling Leg Assy, metal, front, (2), bracket & leg
6 316496201 A B C Rack, oven, (2)
6B 316496205 A B C Rack, oven
8 316400601 A B C Panel, oven bottom
8* 316064600 A B C Support, oven bottom
8A 316411104 A B C Base, bake element
9 316081900 A B C Pan, broilerOPTIONAL ACCESS0RY
10 316082000 A B C Insert, broiler panOPTIONAL ACCESS0RY
12 316445500 A B C Switch, oven light, door frame
14 316116400 A B C Receptacle, oven light
15 316538901 A B C Lamp, oven light
16 08011086 A B C Lens, oven light, glass
17 316087500 A B C Retainer, lens
18 # 316405800 A B C Latch Assembly, oven door
21 316408000 A B C Clip, bodyside
25 316406200 A B C Shield, heat, lower
29 316407301 A B C Glide, drawer, front
37 # 316490000 A B C Probe, oven temp
42 316407700 A B C Shield, wool, lower
43 3131732 A B C Screw, 8-18 x 1.438, oven bottom
44 316517600 A B C Spacer, oven door
45 316234100 A B C Shield, wire, vent tube
57 316457801 A B C Cover, access
58 316403802 A B C Insulation, oven sump
58A 316406602 A B C Insulation, oven wrapper
58B 316406500 A B C Insulation, oven back
59 316208401 A B C Vent Tube, assembly, w/catalyst
59A 316208304 A B C Tube, oven vent, upper
62 # 5303935271 A B C Terminal Block Kit
62* 316001003 A B C Screw, ground wire
62* 316205500 A B C Nut, hex flange, 3/8 10-32
62* 316542200 A B C Insulator
63 316542600 A B C Plate, grounding strap
66 # 316430900 A B C Element, broil, 4000W
67 316413800 A B C Element, bake, hidden
68 316429 10 0 A B C Supp ort, ele me nt, broil
71 316422304 A B C Shield, rear wall
86 316441300 A B C Receptacle, hinge
86* 316418901 A B C Screw, trilobe, 10-32 x 5/16"
87 316081200 A B C Bracket, cable mtg
Model Index: A FEFL79J (FEFL79JBA)
B FEFL79J (FEFL79JQA)
C FEFL79J (FEFL79JSA)
# Functional Parts
5 06/08
* Non-Illustrated Parts
Page 6
Publication No: 5995516753 FEFL79J
BODY
06/08 6
Page 7
FEFL79J Publication No: 5995516753
BODY
POS. NO PART NO. DESCRIPTION
88 316203500 A B C Rod, auto latch
89 # 316464300 A B C Motor-latch
106 316 404 10 0 A B C Brac k et, motor mt g.
107 316 026 70 1 A B C Cov er, fan
108# 316415800 A B C Motor, fan
109 316 136 400 A B C Blade, fan
111 316 136 60 0 A B C Nut, fan retai ner
151 316 404600 A B C Shield, bodyside
170 316 112 003 A B C Anti Tip Kit, assembly
170* 316107200 A B C Bracket, anti-tip
170* 316112500 A B C Template, anti-tip
170* 316116000 A B C Screw, concrete, 1.75", anti-tip brkt
* # 316506241 A B C Wiring Harness, main
* 316231800 A B C Cover, hole, conv. element
* 316021105 A B C Screw, hex head cup pt, 8-18 x 0.375, black
* 316021110 A B C Screw, 8-18 x 0.5, black
* 316021132 A B C Screw, 8-18 X 11/16, black
* 316089500 A B C Screw, 10-16 x .486
* 5303285179 A B C Screw, wafer head, 8-32T x 0.500, black
* 5308014215 A B C Screw, 6-20 x 0.312
Model Index: A FEFL79J (FEFL79JBA)
B FEFL79J (FEFL79JQA)
C FEFL79J (FEFL79JSA)
# Functional Parts
7 06/08
* Non-Illustrated Parts
Page 8
Publication No: 5995516753 FEFL79J

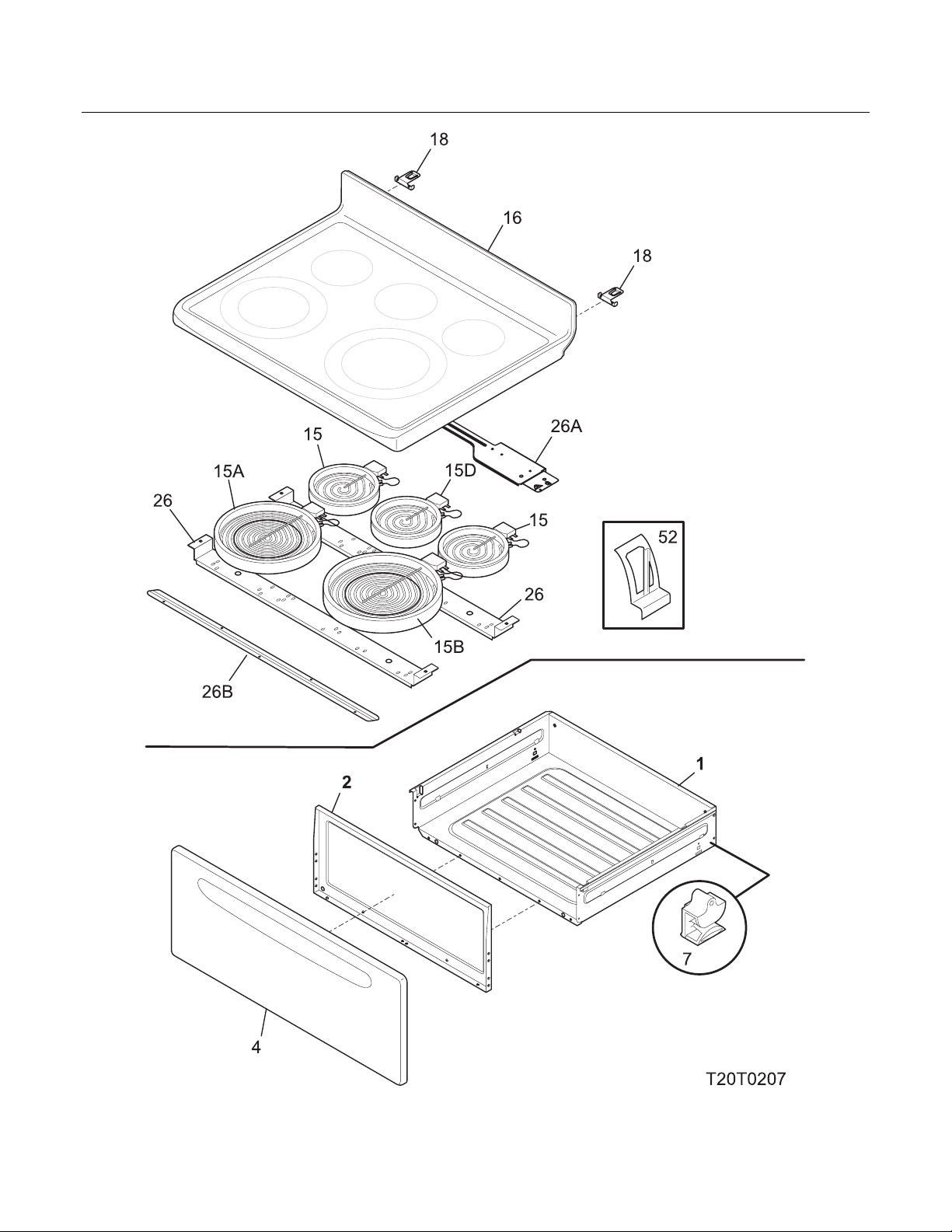

TOP/DRAWER
06/08 8
Page 9
FEFL79J Publication No: 5995516753
TOP/DRAWER
POS. NO PART NO. DESCRIPTION
1 316408703 A B C Drawer, utility
2 316403300 A B C Liner, drawer
4 316403502 A - - Panel, drawer front, black
4 316403503 - B - Panel, drawer front, bisque
4 316403501 - - C Panel, drawer front, white
7 316407400 A B C Glide, drawer, rear
15 # 318178110 A B C Element, surface, 6", 1200, (2), radiant
15A# 316418401 A B C Element, dual, 9"/6", surface, 1200W/1300W, radiant
15B# 316464901 A B C Element-surface dual, 1700W/2700W
15D# 318198832 A B C Element, surface, warmer, 100 W
16 316531924 - B - Maintop, steel/glass, bisque/black
16 316531925 A - - Maintop, steel/glass, black
16 316531923 - - C Maintop, steel/glass, white/black
18 316436600 A B C Hinge Bracket, maintop, (2)
26 316427600 A B C Channel, element support, (2)
26A 316498200 A B C Bracket-support, chassis, aluminum
26B 316214200 A B C Bracket, chassis support, front
52 316461700 A B C Clip, element mtg
* # 316466728 A B C Harness-wiring, surface
* 316468100 A B C Cleaner, smoothtop, w/sponge
* 316021105 A B C Screw, hex head cup pt, 8-18 x 0.375, black
* 316021109 A B C Screw, 8-18 x 0.5, chrome
* 316021110 A B C Screw, 8-18 x 0.5, black
* 5308014215 A B C Screw, 6-20 x 0.312
Model Index: A FEFL79J (FEFL79JBA)
B FEFL79J (FEFL79JQA)
C FEFL79J (FEFL79JSA)
# Functional Parts
9 06/08
* Non-Illustrated Parts
Page 10
Publication No: 5995516753 FEFL79J

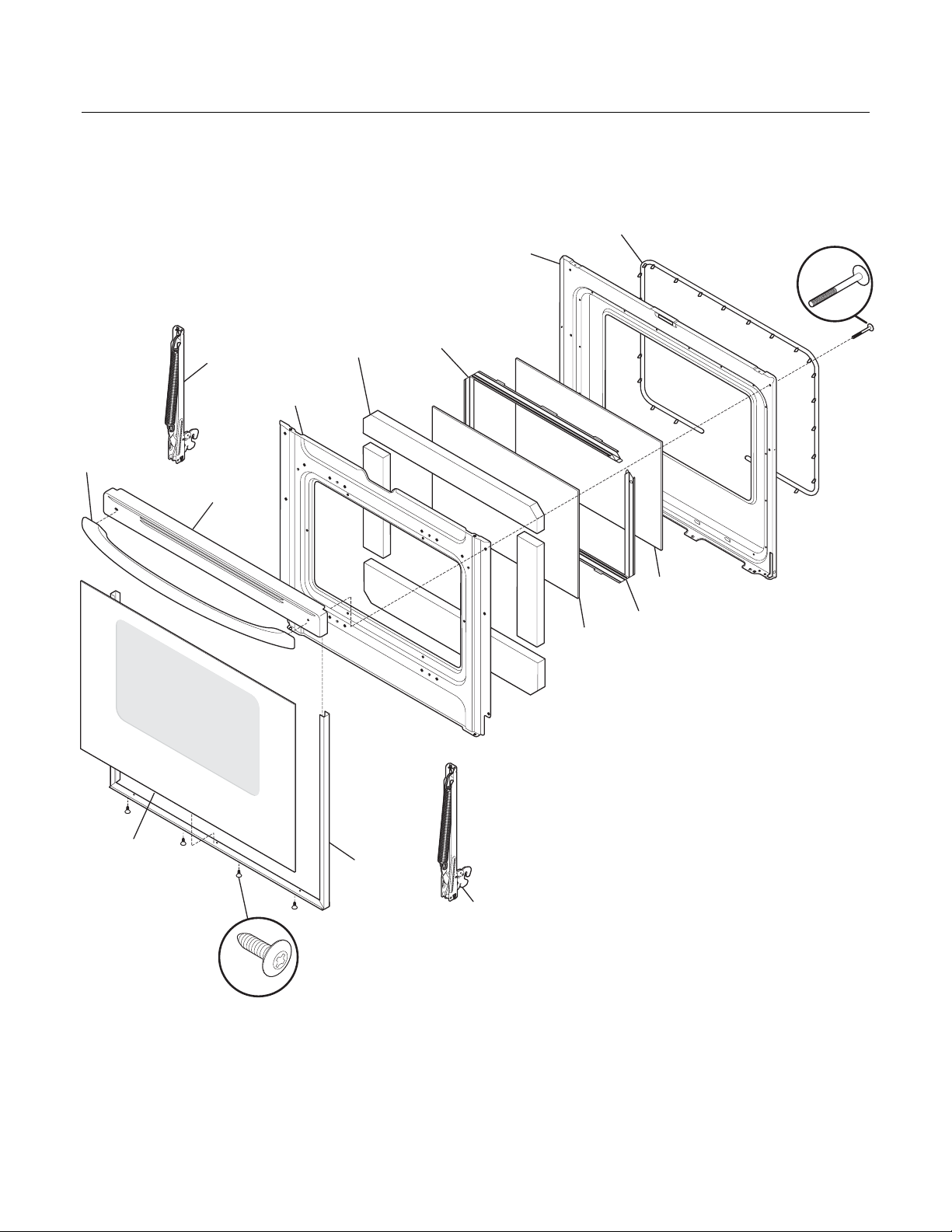

DOOR
12
9
10
39
52
23
7
17
6
16
17
8
4
3
23
T20D0053
60B
06/08 10
Page 11
FEFL79J Publication No: 5995516753
DOOR
POS. NO PART NO. DESCRIPTION
3 5303935245 A - - Trim kit-door, 3 sided, black, w/tape
3 5303935244 - B - Trim kit-door, 3 sided, bisque, w/tape
3 5303935243 - - C Trim kit-door, 3 sided, white, w/tape
4 316406401 A - - Glass, oven door, black, outer
4 316406402 - B - Glass, oven door, bisque, outer
4 316406400 - - C Glass, oven door, white, outer
6 316406306 A B C Shield, wool
7 316405600 A B C Insulation, oven door
8 316117500 A B C Glass, oven door, heat barrier
9 316423701 A B C Liner, oven door
10 316433300 A B C Screw, 10-14 x 2.125", handle mtg.
10* 316008401 A B C Washer, 3/4 OD x 1/4 ID, steel
12 316405000 A B C Seal, oven door
16 316117501 A B C Glass, oven door, inner
17 316402 40 3 A B C Spac er, door gl as s , (2)
23 316456303 A B C Hinge, oven door, blue titan, (2)
23* 316418900 A B C Screw, sims lp, #8-32 x 5/16", black
39 316270200 A - - Handle, door, black
39 316270202 - B - Handle, door, bisque
39 316270201 - - C Handle, door, white
52 316468401 A - - Cap, door trim, black
52 316468402 - B - Cap, door trim, bisque
52 316468400 - - C Cap, door trim, white
60B 316021110 A B C Screw, 8-18 x 0.5, black
* 316433603 A B C Label, anti-tip
* 316021109 A B C Screw, 8-18 x 0.5, chrome
* 5303285179 A B C Screw, wafer head, 8-32T x 0.500, black
Model Index: A FEFL79J (FEFL79JBA)
B FEFL79J (FEFL79JQA)
C FEFL79J (FEFL79JSA)
# Functional Parts
11 06/08
* Non-Illustrated Parts
