Frigidaire FEF375EQB Installation Guide
INSTALLATION AND SERVICE MUST BE PERFORMED BYA QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

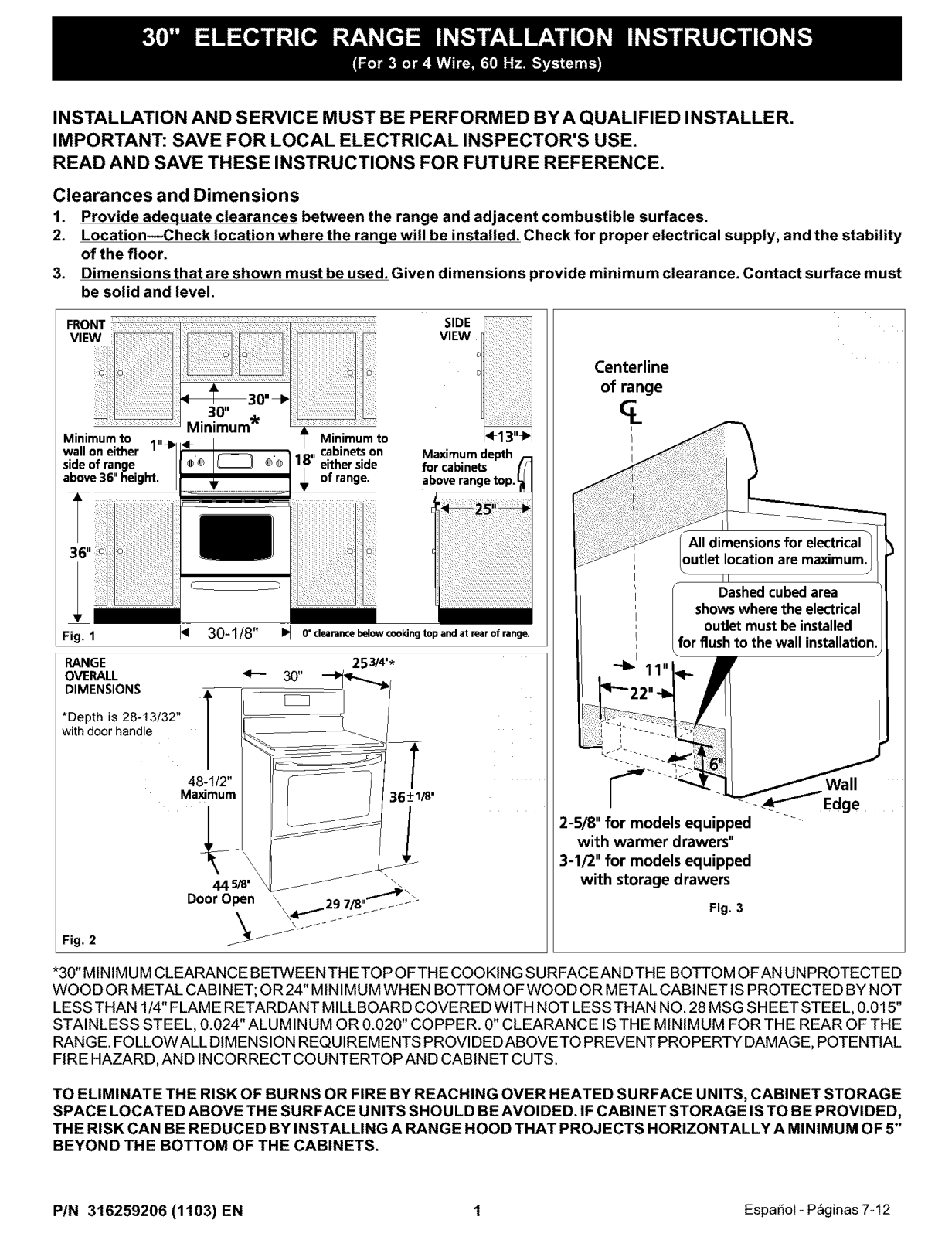

Clearances and Dimensions
1. Provide adequate clearances between the range and adjacent combustible surfaces.
2. Location--Check location where the range will be installed. Check for proper electrical supply, and the stability
of the floor.
3. Dimensions that are shown must be used. Given dimensions provide minimum clearance. Contact surface must
be solid and level.
SIDE
VIEW
Centerline
F.ON 30÷
of range
..................
Minimum to
wall on either 1"41 to
side of range
above 36" height.
_® _ ®®)18 eitherside
I /
of range.
Maximum depth r-
for cabinets [F
above range top.
I_13"_'1
/ iiiiiiiii
Fig. 1 _ 30-1/8" _ 0'clearancebelowcooldngl_pandatrearofrange.
RANGE
OVERALL
DIMENSIONS
with door handle T
DoorOpen ,,'_"_
445_"
\ 29 7/8 _- _-
253/4'*
I
.i i
2-5/8" for models equipped
with warmer drawers"
3-1/2" for models equipped
with storage drawers
Fig. 3
Wall
Edge
Fig. 2
*30"MiNiMUM CLEARANCE BETWEEN THETOP OFTHE COOKING SURFACEANDTHE BOTTOM OF AN UNPROTECTED
WOOD OR METAL CABINET; OR 24" MINIMUM WHEN BOTTOM OF WOOD OR METAL CABINET iS PROTECTED BY NOT
LESS THAN 1/4" FLAM ERETARDANT MILLBOARD COVERED WITH NOT LESS THAN NO. 28 MSG SHEET STEEL, 0.015"
STAINLESS STEEL, 0.024" ALUMINUM OR 0.020" COPPER. 0" CLEARANCE ISTHE MINIMUM FOR THE REAR OF THE
RANGE. FOLLOWALL DIMENSION REQUIREMENTS PROVIDEDABOVETO PREVENT PROPERTY DAMAGE, POTENTIAL
FIRE HAZARD, AND INCORRECT COUNTERTOP AND CABINET CUTS.
TO ELIMINATE THE RISK OF BURNS OR FIRE BY REACHING OVER HEATED SURFACE UNITS, CABINET STORAGE
SPACE LOCATED ABOVE THE SURFACE UNITS SHOULD BE AVOIDED. IF CABINET STORAGE ISTO BE PROVIDED,
TH ERISK CAN BE REDUCED BY INSTALLING A RANGE HOOD THAT PROJ ECTS HORIZONTALLY A MINIMU M OF 5"
BEYOND THE BOTTOM OF THE CABINETS.
PIN 316259206 (1103) EN 1 EspaSoI-P_ginas7-12

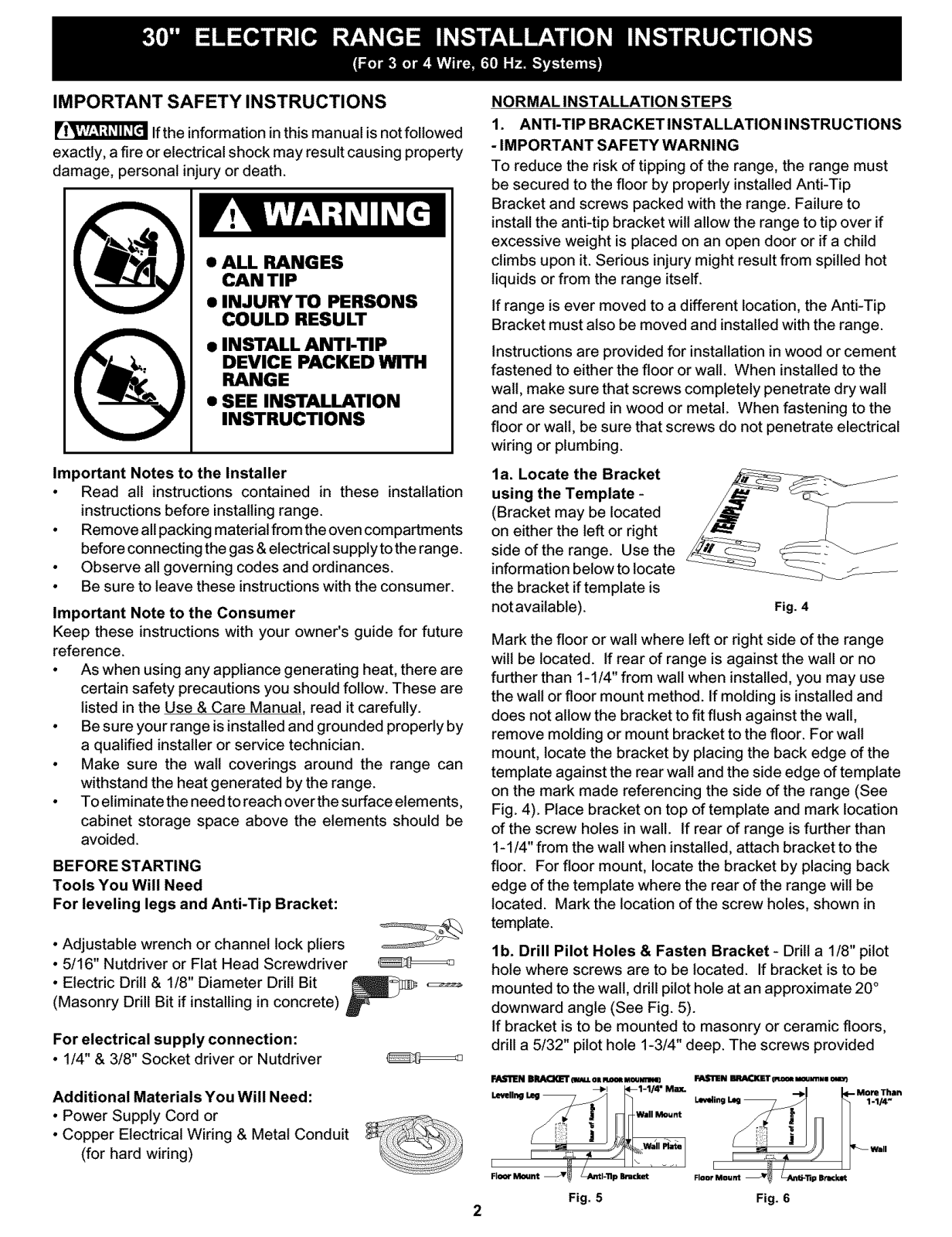

IMPORTANT SAFETY INSTRUCTIONS
Ifthe information inthis manual isnotfollowed
exactly, a fire or electricalshock may result causing property
damage, personal injury or death.
• ALL RANGES
@
CAN TiP
• INJURYTO PERSONS
COULD RESULT
• INSTALL ANTI-TIP
DEVICE PACKED WITH
RANGE
• SEE INSTALLATION
INSTRUCTIONS
Important Notes to the Installer
Read all instructions contained in these installation
instructions before installing range.
Remove all packingmaterial from the oven compartments
before connecting the gas & electrical supply to the range.
Observe all governing codes and ordinances.
Be sure to leave these instructions with the consumer.
Important Note to the Consumer
Keep these instructions with your owner's guide for future
reference.
As when using any appliance generating heat, there are
certain safety precautions you should follow. These are
listed in the Use & Care Manual, read it carefully.
Be sure your range is installed and grounded properly by
a qualified installer or service technician.
Make sure the walt coverings around the range can
withstand the heat generated by the range.
To eliminate the need to reach over the surface elements,
cabinet storage space above the elements should be
avoided.
BEFORE STARTING
Tools You Will Need
For leveling legs and Anti-Tip Bracket:
• Adjustable wrench or channel lock pliers
• 5/16" Nutdriver or Flat Head Screwdriver
• Electric Drill & 1/8" Diameter Drill Bit _
(Masonry Drill Bit if installing in concrete)
For electrical supply connection:
• 1/4" & 3/8" Socket driver or Nutdriver
Additional Materials You Will Need:
• Power Supply Cord or
• Copper Electrical Wiring & Metal Conduit
(for hard wiring)
NORMAL INSTALLATION STEPS
1. ANTI-TIP BRACKET INSTALLATION INSTRUCTIONS
- IMPORTANT SAFETY WARNING
To reduce the risk of tipping of the range, the range must
be secured to the floor by properlyinstalled Anti-Tip
Bracket and screws packed with the range. Failure to
install the anti-tip bracket wiltallow the range to tip over if
excessive weight is placed on an open door or if a child
climbs upon it. Serious injury might result from spilled hot
liquids or from the range itself.
If range is ever moved to a different location, the Anti-Tip
Bracket must also be moved and installed with the range.
Instructions are provided for installation in wood or cement
fastened to either the floor or walt. When installed to the
walt, make sure that screws completely penetrate dry wall
and are secured in wood or metal. When fastening to the
floor or wall, be sure that screws do not penetrate electrical
wiring or plumbing.
la. Locate the Bracket
using the Template -
(Bracket may be located
on either the left or right
side of the range. Use the
information below to locate
the bracket if template is
not available).
Mark the floor or wall where left or right side of the range
will be located. If rear of range is against the wall or no
further than 1-1/4" from wall when installed, you may use
the wall or floor mount method. Ifmolding is installed and
does not allow the bracket to fit flush against the wall,
remove molding or mount bracket to the floor. For walt
mount, locate the bracket by placing the back edge of the
template against the rear walt and the side edge of template
on the mark made referencing the side of the range (See
Fig. 4). Place bracket on top of template and mark location
of the screw holes in wall. If rear of range is further than
1-1/4" from the wall when installed, attach bracket to the
floor. For floor mount, locate the bracket by placing back
edge of the template where the rear of the range will be
located. Mark the location of the screw holes, shown in
template.
lb. Drill Pilot Holes & Fasten Bracket- Drill a 1/8" pilot
hole where screws are to be located. If bracket is to be
mounted to the wall, drill pilot hole at an approximate 20 °
downward angle (See Fig. 5).
If bracket is to be mounted to masonry or ceramic floors,
drill a 5/32" pilot hole 1-3/4" deep. The screws provided
r_S11EN BP,AC]i_'r twAu.onP.ooaMOUmliq0
Leveling Leg _1 1-1/4" M_
i _Wall MOunt
2
Fig. 5 Fig. 6
Fig. 4
