Frigidaire FED367DBB, FED367DQA, FED367DQB Installation Guide
INSTALLATION AND SERVICE MUST BE PERFORMED BY
A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Shave Raised Edge To
Clear 31 1/2" (81 cm)
Wide ( ooktop Rirn.
1-V2" Max.
(3.8 cm Max.)
Locate
Cabinet Doors
1" Min. from
Cut-Out
Opening
NOTE: For
29" (73.7 cm)
cutout wide opening,_
you must call for optional
side panels and clear wide
cooktop rim as shown on
page 4. Grounded Junction Box
in adjoining cabinet
Do not pinch the power supply cord between the range
and the wall.
Do not seal the range to the side cabinets.
*NOTE: Allow at least 20" (50.1 cm) clearance for door
depth when it is open.

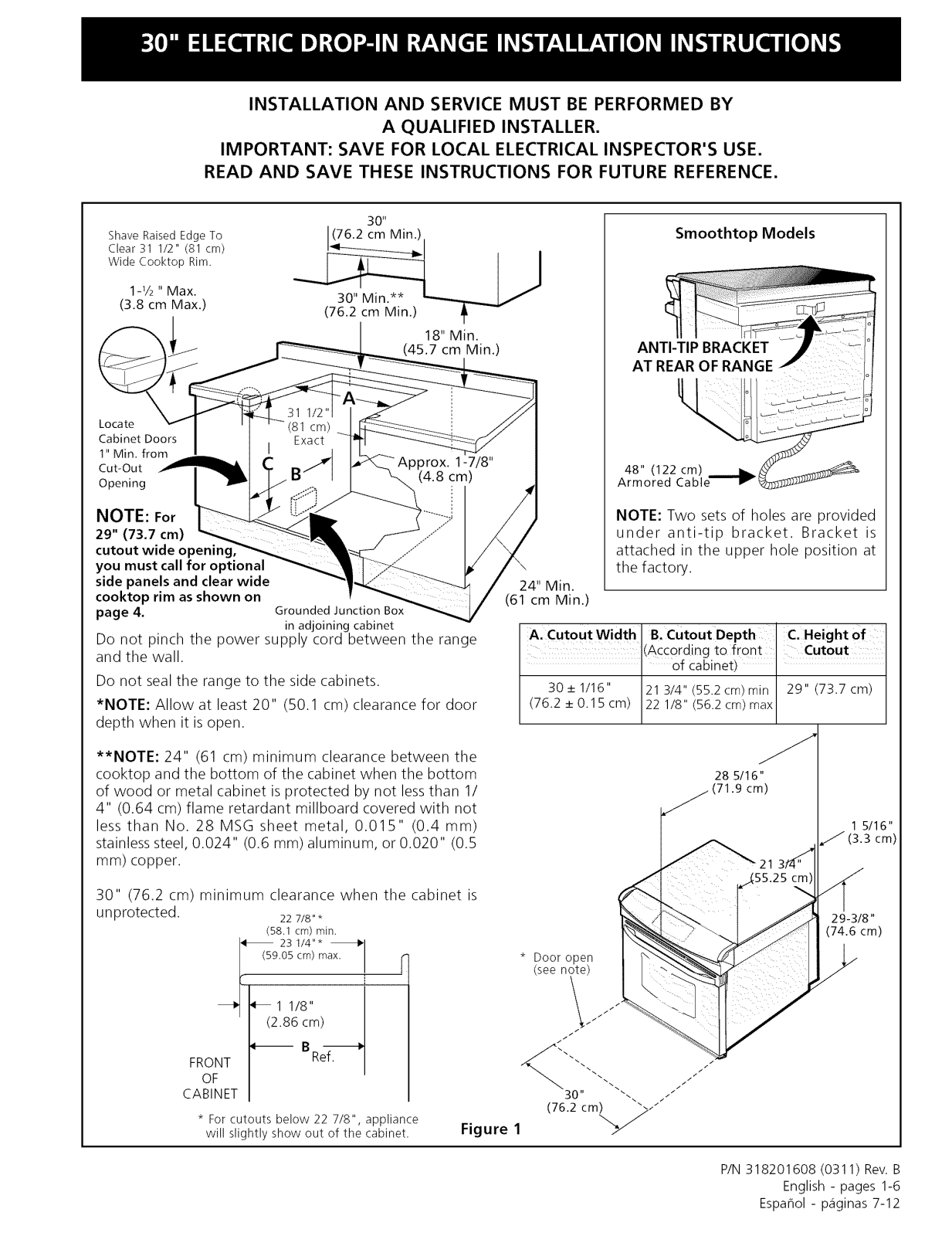

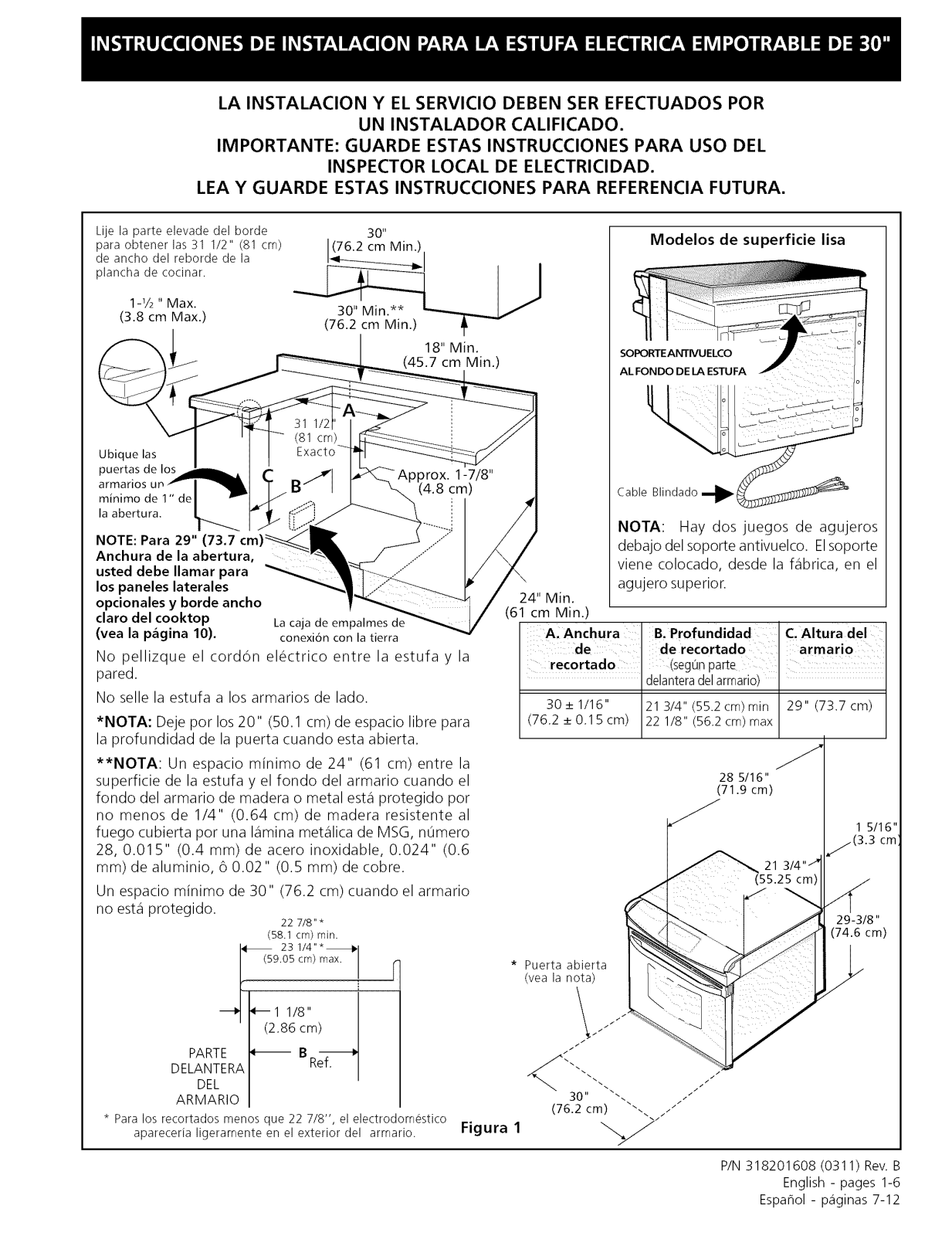

Smoothtop Models
o _
48" (122_
Armored Cable_
NOTE: Two sets of holes are provided
under anti-tip bracket. Bracket is
attached in the upper hole position at
\
24" Min.
(61 cm Min.)
AI Cutout Width B. Cutout Depth C.Height of
30_+1/16" 21 3/4" (55.2 cm) rain 29" (73.7 cm)
(76.2 _+0.15 cm) 22 1/8" (56.2 cm) max
the factory.
(According to front , Cutout
of Cabinet)
**NOTE: 24" (61 cm) minimum clearance between the
cooktop and the bottom of the cabinet when the bottom
of wood or metal cabinet is protected by not lessthan 1/
4" (0.64 cm) flame retardant millboard covered with not
less than No. 28 MSG sheet metal, 0.015" (0.4 mm)
stainless steel, 0.024" (0.6 ram) aluminum, or 0.020" (0.5
ram) copper.
30" (76.2 cm) minimum clearance when the cabinet is
unprotected. 22 7/8"*
(58.1 cm)rain.
23 1/4"*
(59.05 cm) max. I
_, 1 1/8"
(2.86 cm)
FRONT
OF
CABINET
* For cutouts below 22 7/8", appliance
will slightly show out of the cabinet.
BRe_
I
Figure 1
28 5116"
(71.9 cm)
1 5/16"
cm)
21
29-3/8"
(74.6 cm)
P/N 318201608 (0311) Rev. B
English - pages 1-6
Espanol - p_iginas 7-12

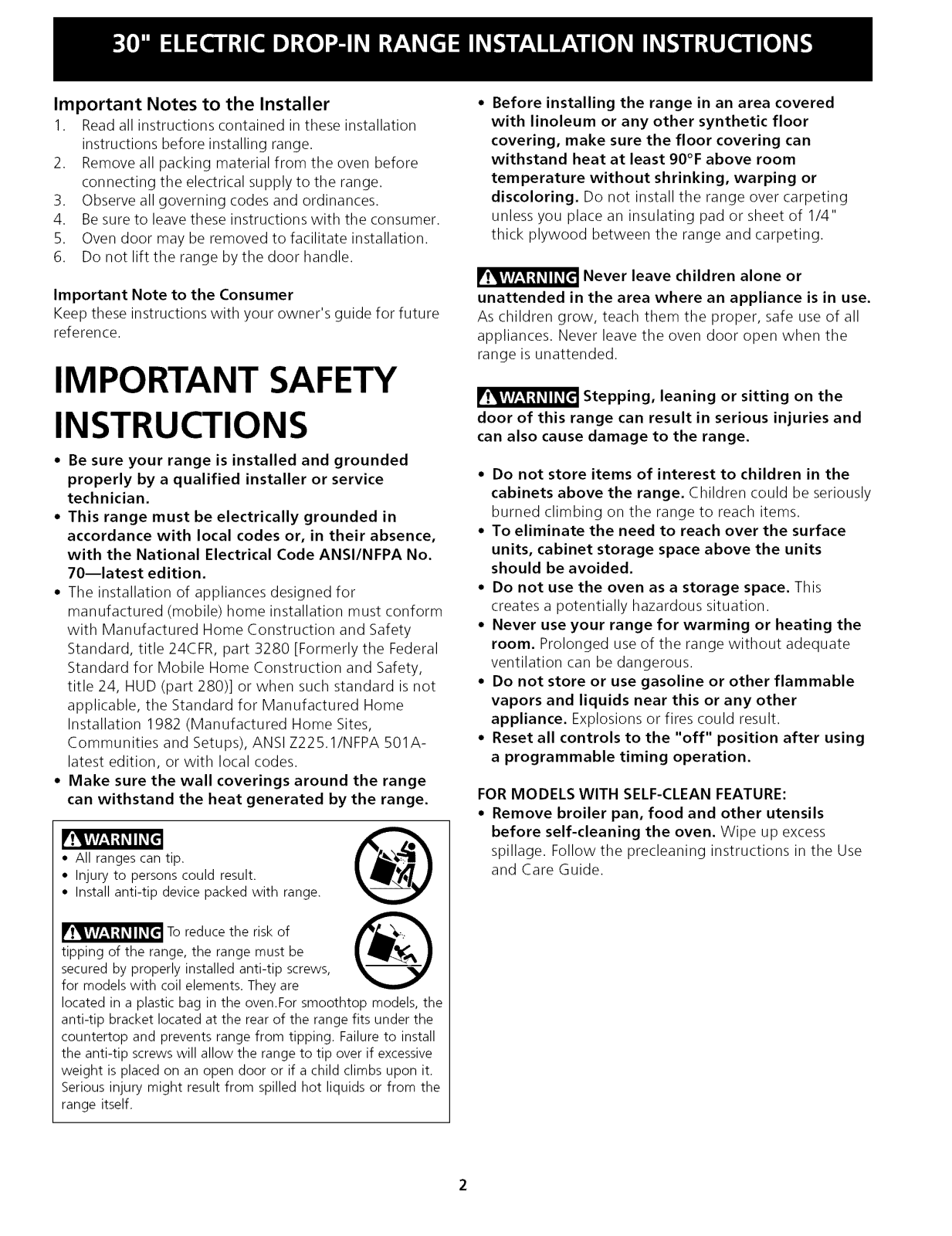

Important Notes to the Installer
1. Readall instructions contained in these installation
instructions before installing range.
2. Remove all packing material from the oven before
connecting the electrical supply to the range.
3. Observe all governing codes and ordinances.
4. Be sure to leave these instructions with the consumer.
5. Oven door may be removed to facilitate installation.
6. Do not lift the range by the door handle.
Important Note to the Consumer
Keep these instructions with your owner's guide for future
reference.

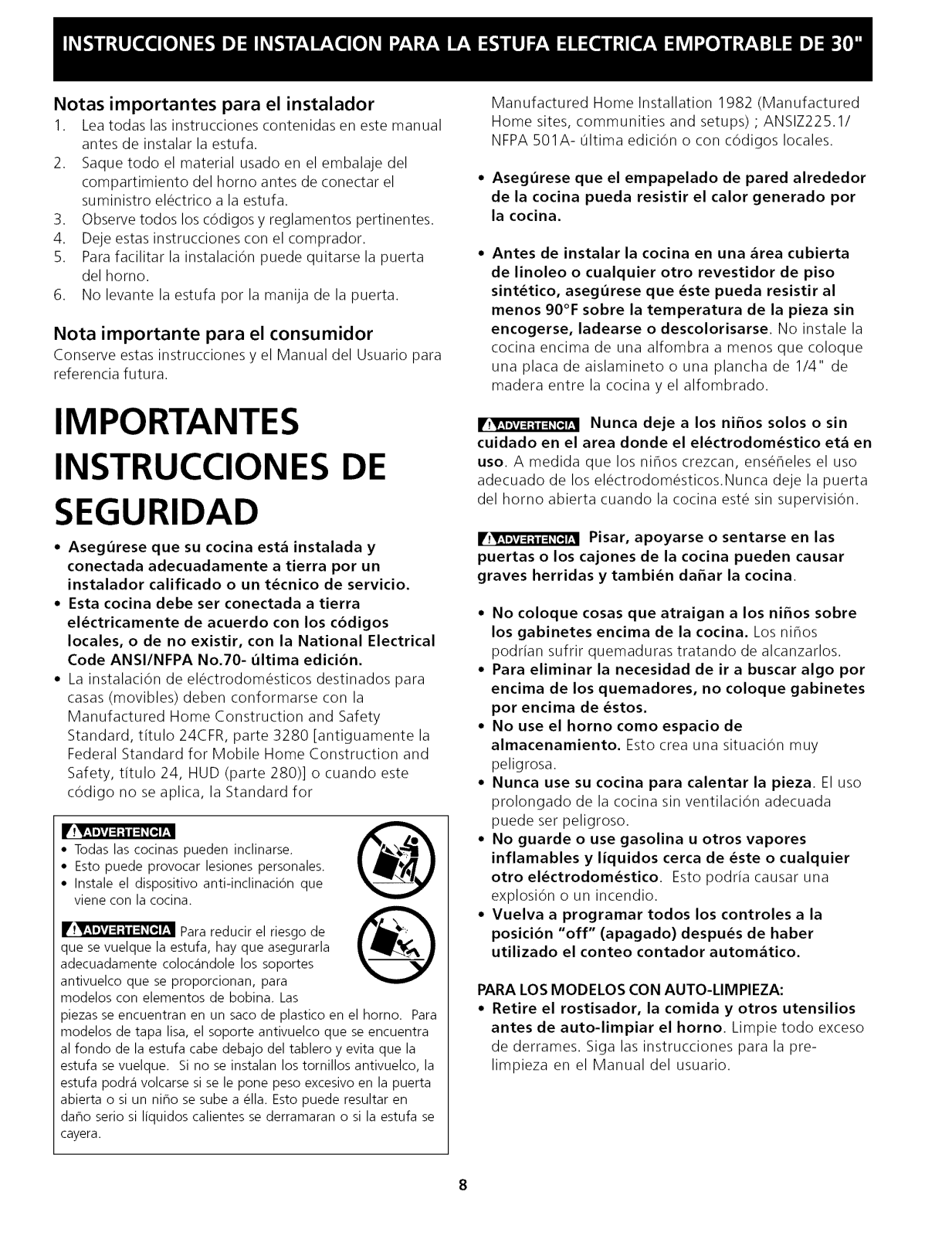

IMPORTANT SAFETY
INSTRUCTIONS
• Be sure your range is installed and grounded
properly by a qualified installer or service
technician.
• This range must be electrically grounded in
accordance with local codes or, in their absence,
with the National Electrical Code ANSI/NFPA No.
70--latest edition.
• The installation of appliances designed for
manufactured (mobile) home installation must conform
with Manufactured Home Construction and Safety
Standard, title 24CFR, part 3280 [Formerly the Federal
Standard for Mobile Home Construction and Safety,
title 24, HUD (part 280)] or when such standard is not
applicable, the Standard for Manufactured Home
Installation 1982 (Manufactured Home Sites,
Communities and Setups), ANSI Z225.1/NFPA 501A-
latest edition, or with local codes.
• Make sure the wall coverings around the range
can withstand the heat generated by the range.
• All ranges can tip.
• Injuryto personscould result.
• Install anti-tip device packed with range.
@
Before installing the range in an area covered
with linoleum or any other synthetic floor
covering, make sure the floor covering can
withstand heat at least 90°F above room
temperature without shrinking, warping or
discoloring. Do not install the range over carpeting
unless you place an insulating pad or sheet of 1/4"
thick plywood between the range and carpeting.
Never leave children alone or
unattended in the area where an appliance is in use.
As children grow, teach them the proper, safe use of all
appliances. Never leave the oven door open when the
range is unattended.
Stepping, leaning or sitting on the
door of this range can result in serious injuries and
can also cause damage to the range.
• Do not store items of interest to children in the
cabinets above the range. Children could be seriously
burned climbing on the range to reach items.
• To eliminate the need to reach over the surface
units, cabinet storage space above the units
should be avoided.
• Do not use the oven as a storage space. This
creates a potentially hazardous situation.
• Never use your range for warming or heating the
room. Prolonged use of the range without adequate
ventilation can be dangerous.
• Do not store or use gasoline or other flammable
vapors and liquids near this or any other
appliance. Explosions or fires could result.
• Reset all controls to the "off" position after using
a programmable timing operation.
FOR MODELS WITH SELF-CLEAN FEATURE:
• Remove broiler pan, food and other utensils
before self-cleaning the oven. Wipe up excess
spillage. Follow the precleaning instructions in the Use
and Care Guide.
To reduce the risk of
tipping of the range, the range must be
secured by properly installed anti-tip screws,
for models with coil elements. They are
located in a plastic bag in the oven.For smoothtop models, the
anti-tip bracket located at the rear of the range fits under the
countertop and prevents range from tipping. Failure to install
the anti-tip screws will allow the range to tip over if excessive
weight is placed on an open door or if a child climbs upon it.
Serious injury might result from spilled hot liquids or from the
range itself.

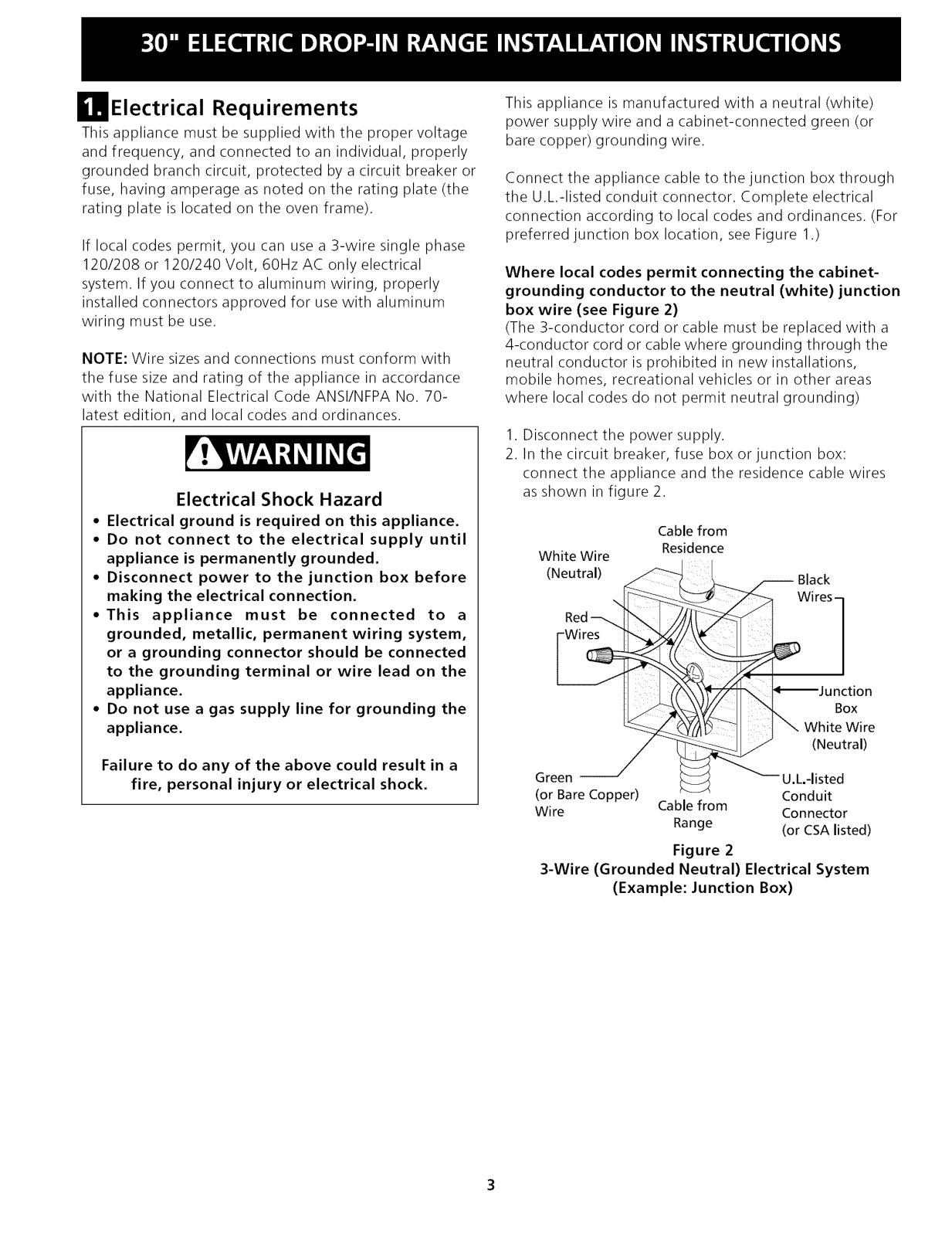

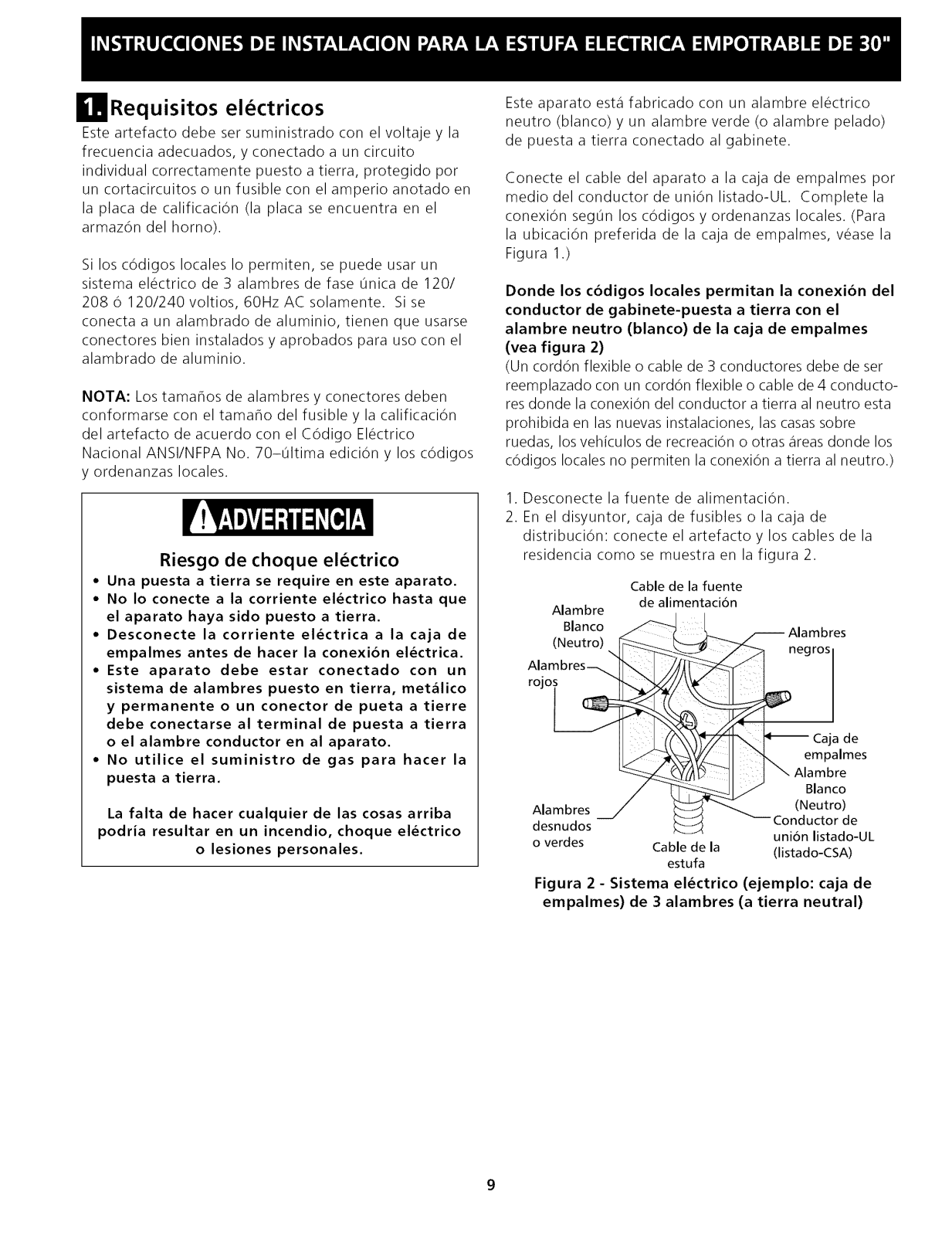

l Electrical Requirements
This appliance must be supplied with the proper voltage
and frequency, and connected to an individual, properly
grounded branch circuit, protected by a circuit breaker or
fuse, having amperage as noted on the rating plate (the
rating plate is located on the oven frame).
If local codes permit, you can use a 3-wire single phase
120/208 or 120/240 Volt, 60Hz AC only electrical
system. If you connect to aluminum wiring, properly
installed connectors approved for use with aluminum
wiring must be use.
NOTE: Wire sizes and connections must conform with
the fuse size and rating of the appliance in accordance
with the National Electrical Code ANSI/NFPA No. 70-
latest edition, and local codes and ordinances.
Electrical Shock Hazard
• Electrical ground is required on this appliance.
• Do not connect to the electrical supply until
appliance is permanently grounded.
• Disconnect power to the junction box before
making the electrical connection.
• This appliance must be connected to a
grounded, metallic, permanent wiring system,
or a grounding connector should be connected
to the grounding terminal or wire lead on the
appliance.
• Do not use a gas supply line for grounding the
appliance.
Failure to do any of the above could result in a
fire, personal injury or electrical shock.
This appliance is manufactured with a neutral (white)
power supply wire and a cabinet-connected green (or
bare copper) grounding wire.
Connect the appliance cable to the junction box through
the U.L.-listed conduit connector. Complete electrical
connection according to local codes and ordinances. (For
preferred junction box location, see Figure 1.)
Where local codes permit connecting the cabinet-
grounding conductor to the neutral (white) junction
box wire (see Figure 2)
(The 3-conductor cord or cable must be replaced with a
4-conductor cord or cable where grounding through the
neutral conductor is prohibited in new installations,
mobile homes, recreational vehicles or in other areas
where local codes do not permit neutral grounding)
1. Disconnect the power supply.
2. In the circuit breaker, fuse box or junction box:
connect the appliance and the residence cable wires
as shown in figure 2.
Cable from
White Wire
(Neutral)
Green _ U.L.-listed
(or Bare Copper) Conduit
Wire Cable from Connector
3-Wire (Grounded Neutral) Electrical System
(Example: Junction Box)
Residence
Wires -
Box
White Wire
(Neutral)
Range (or CSA listed)
Figure 2

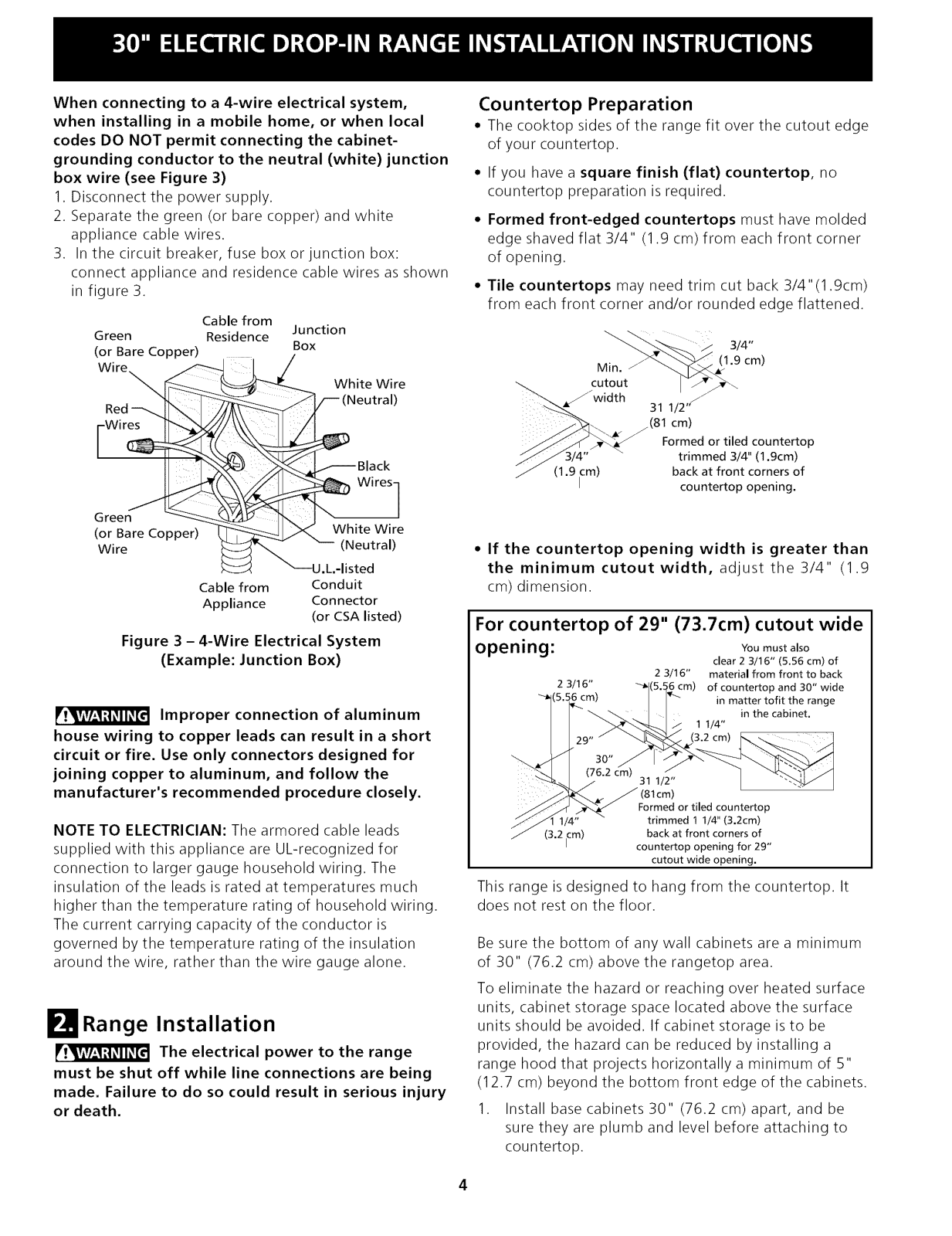

When connecting to a 4-wire electrical system,
when installing in a mobile home, or when local
codes DO NOT permit connecting the cabinet-
grounding conductor to the neutral (white) junction
box wire (see Figure 3)
1. Disconnect the power supply.
2. Separate the green (or bare copper) and white
appliance cable wires.
3. In the circuit breaker, fuse box or junction box:
connect appliance and residence cable wires as shown
in figure 3.
Cable from
Green Residence Junction
(or Bare Copper) Box
White WireRed eutral)
W i re _N
FWir
_"_2x_ _Black
Green
(or Bare Copper) _ _ _ white Wire
Wire _ _" _ }Neu! ral)
"--4J,L,-listed
Cable from Conduit
Appliance Connector
(or CSA listed)

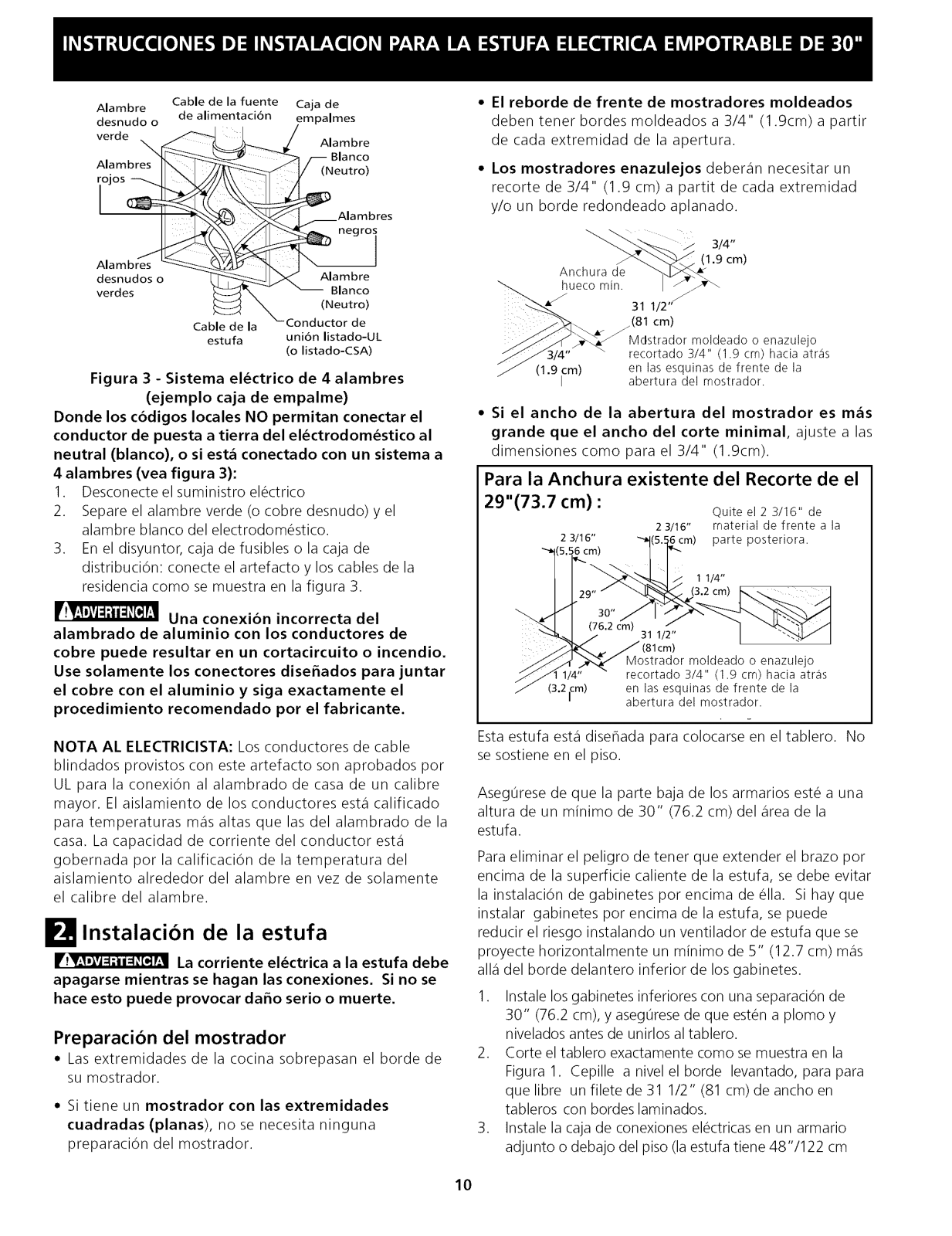

Figure 3 - 4-Wire Electrical System
(Example: Junction Box)
Improper connection of aluminum
house wiring to copper leads can result in a short
circuit or fire. Use only connectors designed for
joining copper to aluminum, and follow the
manufacturer's recommended procedure closely.
NOTE TO ELECTRICIAN: The armored cable leads
supplied with this appliance are UL-recognized for
connection to larger gauge household wiring. The
insulation of the leads is rated at temperatures much
higher than the temperature rating of household wiring.
The current carrying capacity of the conductor is
governed by the temperature rating of the insulation
around the wire, rather than the wire gauge alone.

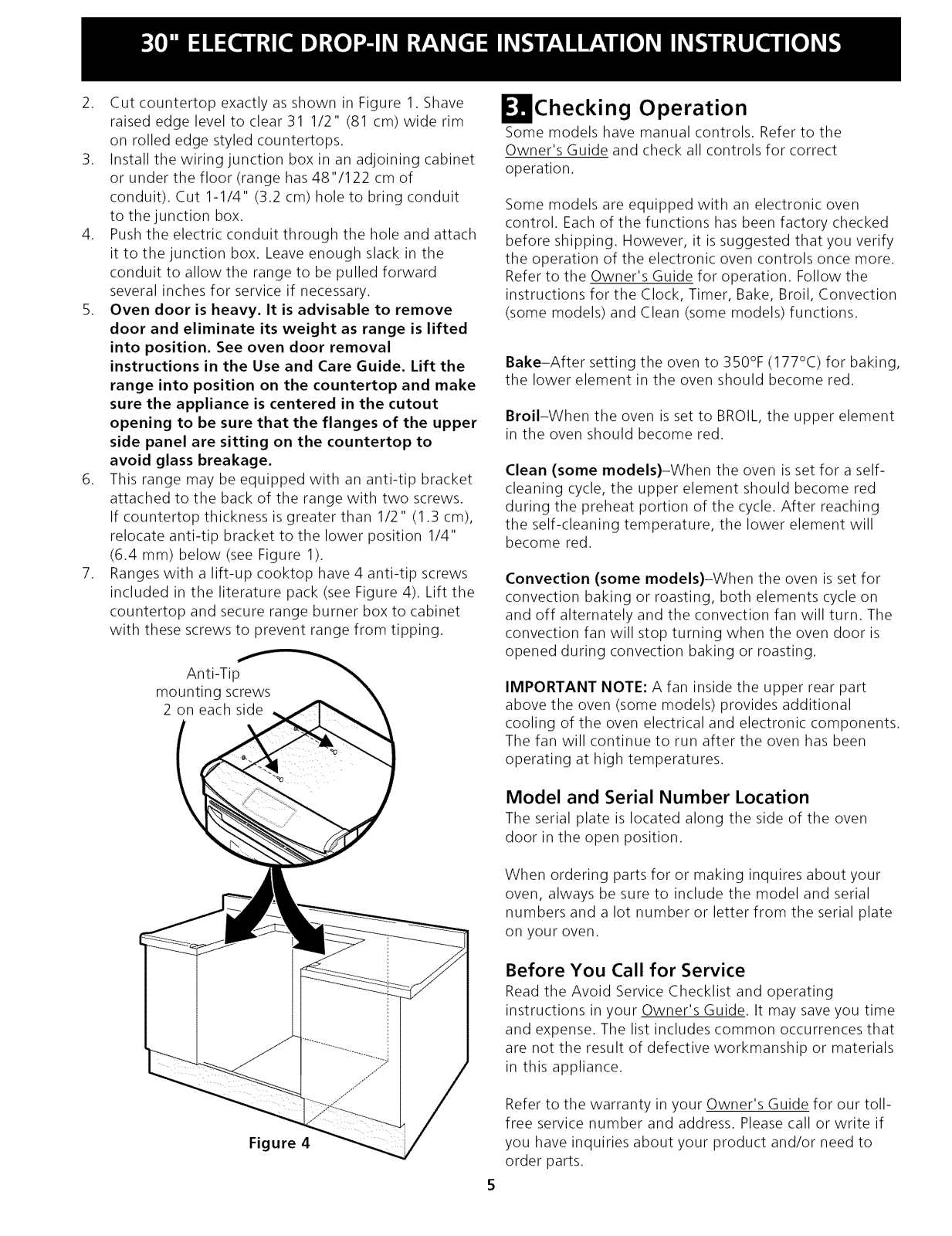

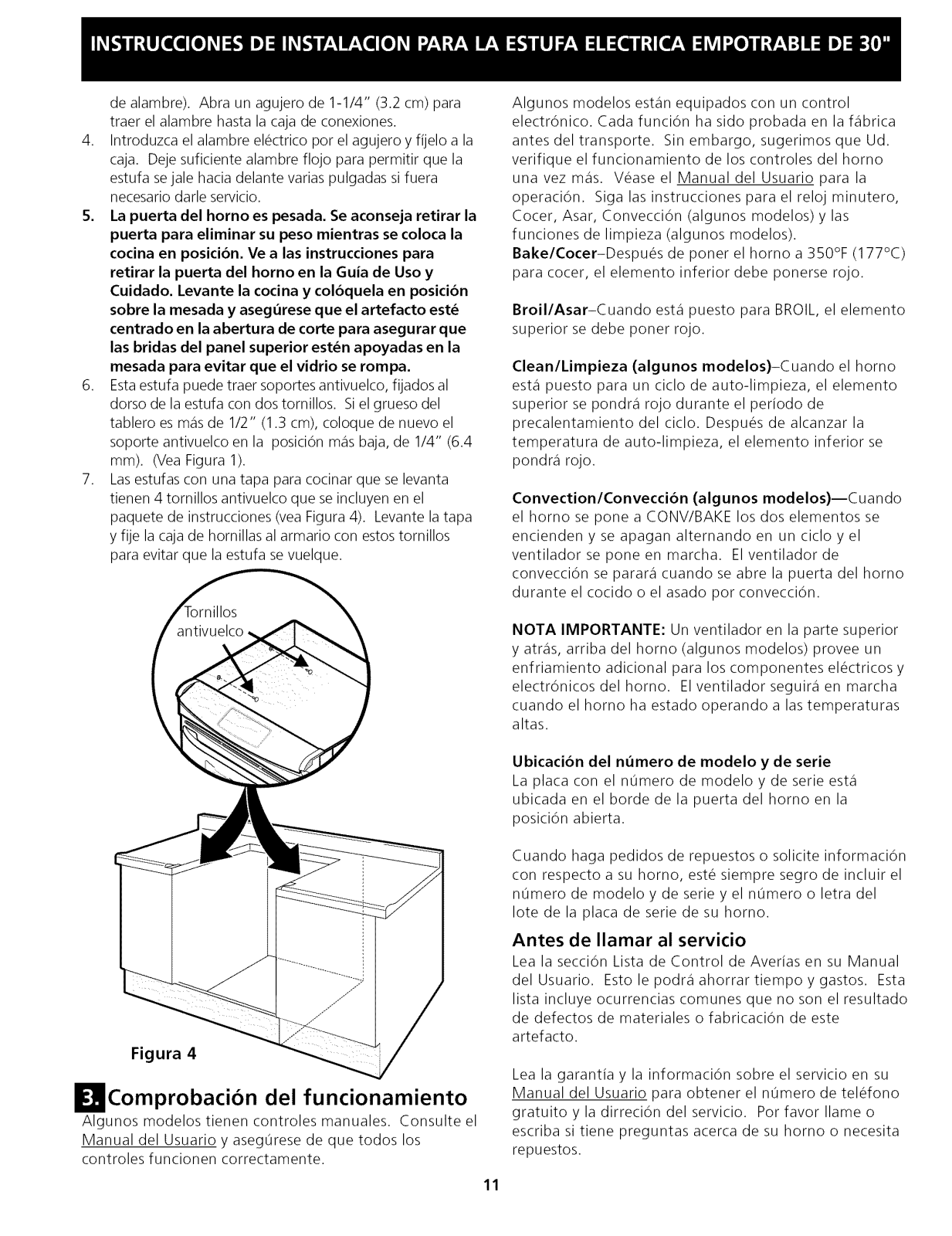

Range Installation
The electrical power to the range
must be shut off while line connections are being
made. Failure to do so could result in serious injury
or death.
Countertop Preparation
° The cooktop sides of the range fit over the cutout edge
of your countertop.
• If you have a square finish (flat) countertop, no
countertop preparation is required.
• Formed front-edged countertops must have molded
edge shaved flat 3/4" (1.9 cm) from each front corner
of opening,
• Tile countertops may need trim cut back 3/4"(1.9cm)
from each front corner and/or rounded edge flattened.
3/4"
Min. (1.9 cm)
cutout
_/'width 31 1/2 ';j
f(81 cm)
/ Formed or tiled countertop
(1.9 icm) back at front corners of
* If the countertop opening width is greater than
the minimum cutout width, adjust the 3/4" (1.9
cm) dimension.
trimmed 3/4" (1.9cm)
countertop opening.
For countertop of 29" (73.7cm) cutout wide
openina: Youmustalso
2 3/16" material from front to back
2 3/16" _ cm) of countertop and 30" wide
6 cm) in matter tofit the range
Formed or tiled countertop
trimmed 1 1/4" (3.2cm)
(3.2 icm)
back at front corners of
countertop opening for 29"
cutout wide opening.
This range is designed to hang from the countertop. It
does not rest on the floor.
Be sure the bottom of any wall cabinets are a mimmum
of 30" (76.2 cm) above the rangetop area.
To eliminate the hazard or reaching over heated surface
units, cabinet storage space located above the surface
units should be avoided. If cabinet storage is to be
provided, the hazard can be reduced by installing a
range hood that projects horizontally a minimum of 5"
(12.7 cm) beyond the bottom front edge of the cabinets.
1. Install base cabinets 30" (76.2 cm) apart, and be
sure they are plumb and level before attaching to
countertop.
clear 2 3/16" (5.56 cm) of
in the cabinet.
1 I/4"
Loading...
