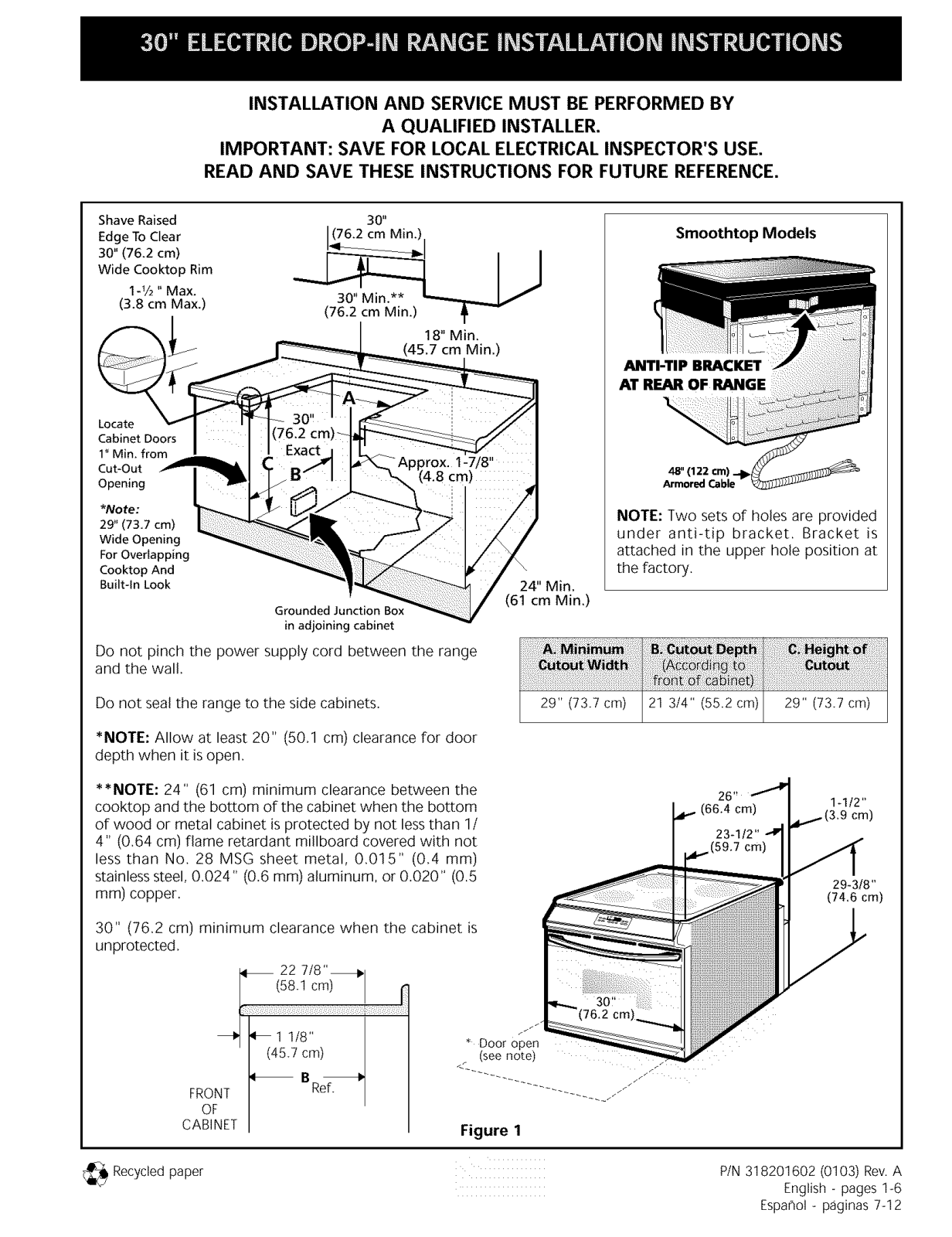

Frigidaire FED300ASD, FED355ABF, FED355ASF, FED367ABF, FED367AQF Installation Guide

...

INSTALLATION AND SERVICE MUST BE PERFORMED BY

A QUALIFIED INSTALLER.

IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.

READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Shave Raised EdgeToClear

30" (76.2 crn)

Wide Cooktop Rim

1-1/2" Max.

(3.8 cm Max.)

30"

(76.2 cm Min.)

(76.2 cmMin.) _ --

18" Min.

(4._ Min.)

Locate

Cabinet Doors

1" Min. from

Cut-Out Opening

*Note:

29" (73,7 cm) Wide Opening

For Overlapping

Cooktop And

Built-ln Look

Grounded Junction Box

in adjoining cabinet

Do not pinch the power supply cord between the range

and the wall,

Smoothtop Models

ANTI-TIP

AT REAR OF RANGE

48" (122 cm) _

NOTE: Two sets of holes are provided under anti-tip bracket. Bracket is

attached in the upper hole position at the factory.

24" Min.

(61 cm Min.)

Do not seal the range to the side cabinets, *NOTE: Allow at least 20" (50,1 cm) clearance for door

depth when it is open.

**NOTE: 24" (61 cm) minimum clearance between the cooktop and the bottom of the cabinet when the bottom of wood or metal cabinet is protected by not lessthan 1/

4" (0.64 cm) flame retardant millboard covered with not

less than No. 28 MSG sheet metal, 0.015" (0,4 mm) stainless steel, 0.024" (0,6 mm) aluminum, or 0.020" (0.5

mm) copper,

30" (76.2 cm) minimum clearance when the cabinet is

unprotected,

22 7/8"_

58.1 cm

_1 1/8"

(45.7 cm)

1 i

---...... ;.<

FRONT

CABINET

BRe_

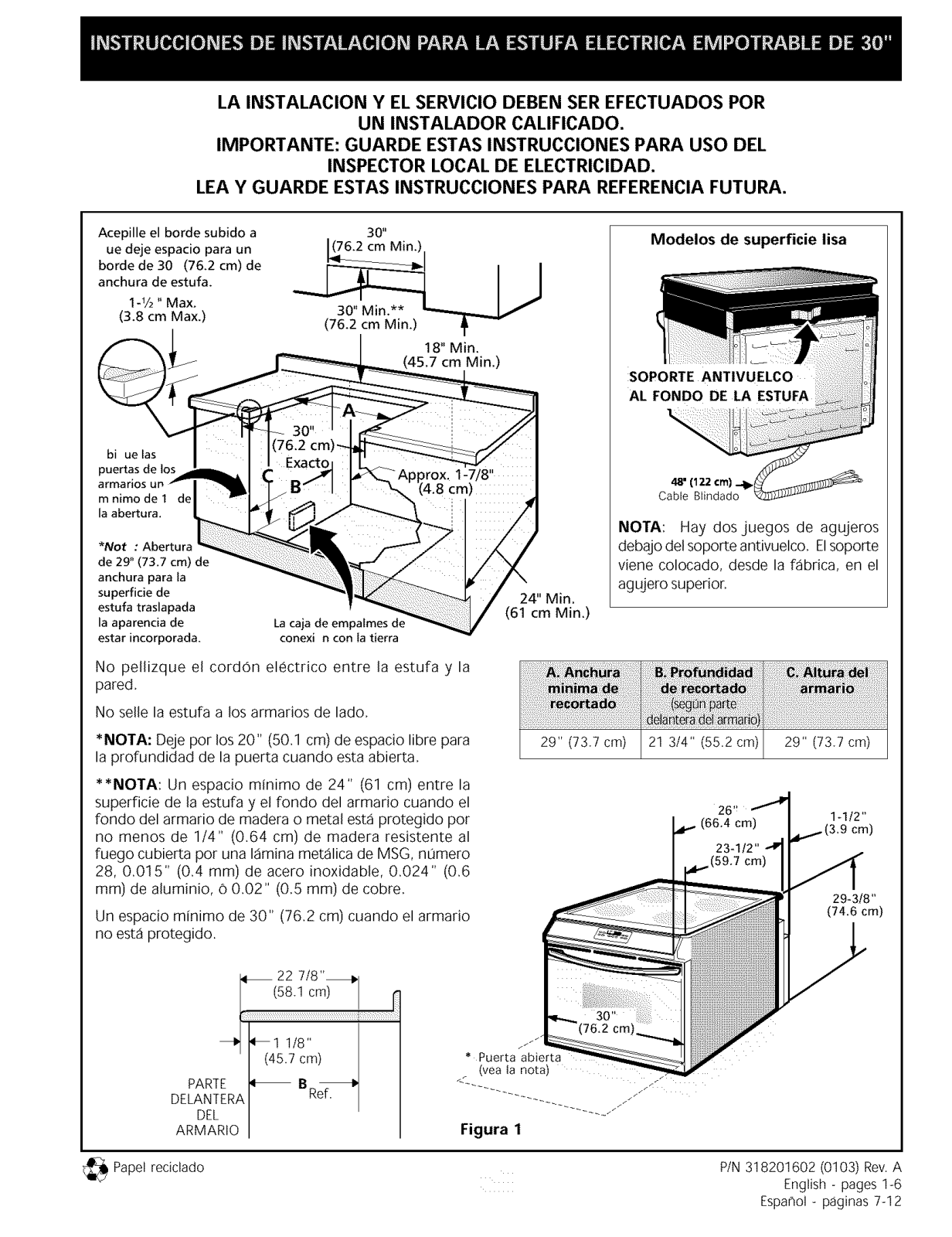

Figure 1

* Door open

(see note)

29" (73.7 cm) 21 3/4" (55.2 cm) 29" (73.7cm)

26" _1 1_1/2"

• (66.4 cm) ,I _.(3.9 ca)

2 -1/2" r--

29-3!6"

(74,6 cm)

_Recycled paper

PIN 318201602 (0103) Rev.A

English - pages 1-6

Espar_ol- p4ginas 7-12

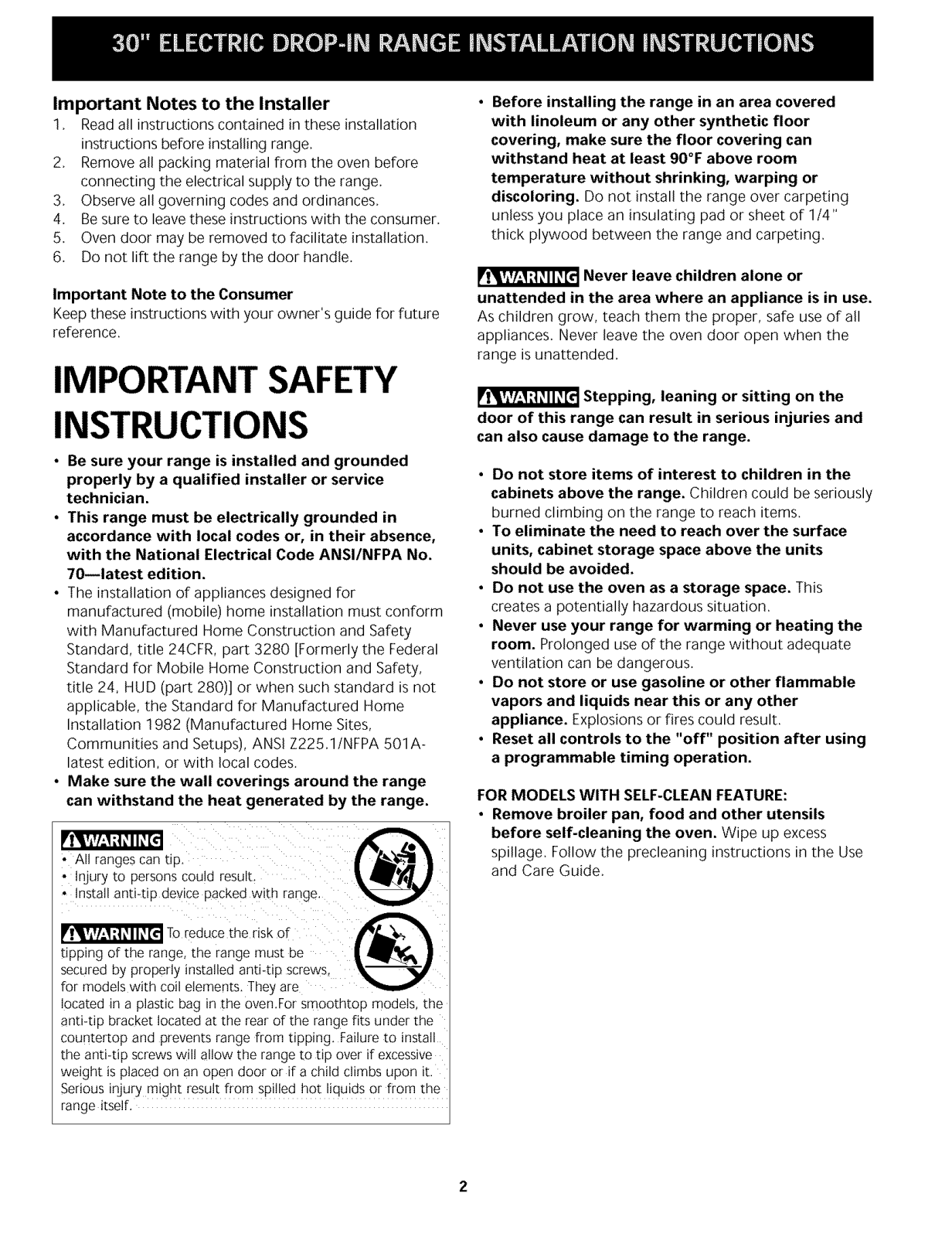

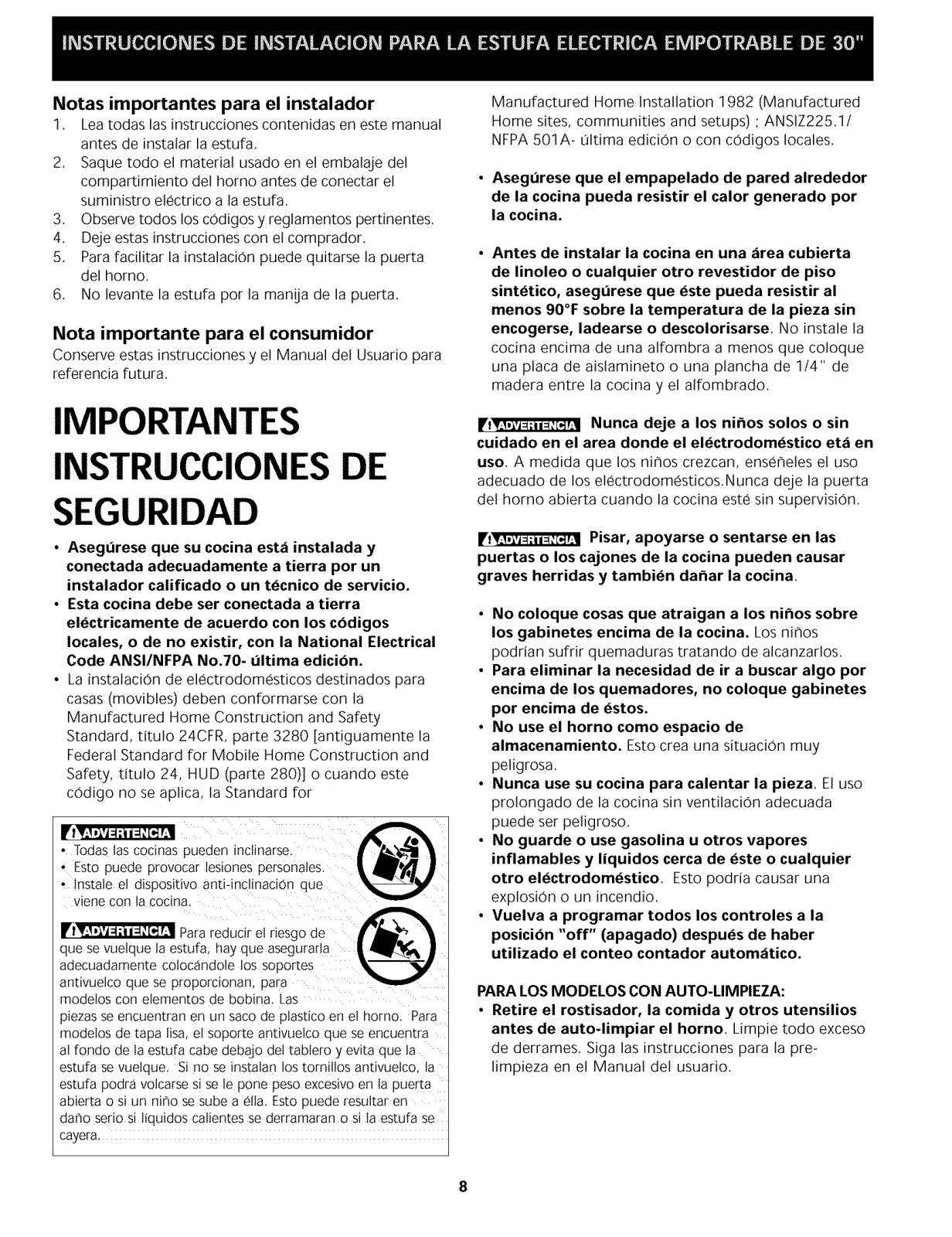

Important Notes to the Installer

1, Read all instructions contained in these installation

instructions before installing range,

2, Remove all packing material from the oven before

connecting the electrical supply to the range,

3, Observe all governing codes and ordinances, 4, Besure to leavethese instructions with the consumer,

5, Oven door may be removed to facilitate installation.

6, Do not lift the range by the door handle,

Important Note to the Consumer

Keep these instructions with your owner's guide for future

reference.

IMPORTANT SAFETY INSTRUCTIONS

• Be sure your range is installed and grounded properly by a qualified installer or service

technician.

• This range must be electrically grounded in accordance with local codes or, in their absence

with the National Electrical Code ANSI/NFPA No. 70--latest edition.

• The installation of appliances designed for

manufactured (mobile) home installation must conform

with Manufactured Home Construction and Safety Standard, title 24CFR, part 3280 [Formerly the Federal

Standard for Mobile Home Construction and Safety, title 24, HUD (part 280)] or when such standard is not applicable, the Standard for Manufactured Home

Installation 1982 (Manufactured Home Sites,

Communities and Setups), ANSI Z225,1/NFPA 501A-

latest edition, or with local codes.

• Make sure the wall coverings around the range

can withstand the heat generated by the range.

• All rangescan riD,

• Injuryto Dersonscoula result

• Installanu-[ o ae_ce oacKeawlrn ranae

• Before installing the range in an area covered

with linoleum or any other synthetic floor covering, make sure the floor covering can

withstand heat at least 90°F above room temperature without shrinking, warping or

discoloring. Do not install the range over carpeting

unless you place an insulating pad or sheet of 1/4"

thick plywood between the range and carpeting.

_ Never leave children alone or

unattended in the area where an appliance is in use.

As children grow, teach them the proper, safe use of all appliances. Never leave the oven door open when the range is unattended.

Stepping, leaning or sitting on the

door of this range can result in serious injuries and can also cause damage to the range.

• Do not store items of interest to children in the cabinets above the range. Children could be seriously

burned climbing on the range to reach items.

• To eliminate the need to reach over the surface

units, cabinet storage space above the units should be avoided.

• Do not use the oven as a storage space. This creates a potentially hazardous situation.

• Never use your range for warming or heating the room. Prolonged use of the range without adequate ventilation can be dangerous.

• Do not store or use gasoline or other flammable

vapors and liquids near this or any other appliance. Explosions or fires could result.

• Reset all controls to the "off" position after using a programmable timing operation.

FOR MODELS WITH SELF-CLEANFEATURE:

• Remove broiler pan, food and other utensils before self-cleaning the oven. Wipe up excess

spillage. Follow the precleaning instructions in the Use and Care Guide,

_To reduce the risk of tipping of the range, [ne range mus[ De

secured by properly qs[aHea anu-_ Dscrews for models wl[n cc e_ements. They are

located in a o_asuc bag n[ne oven.For smoothtoD - adels, the anti-tip bracKet located at the rear of the range fits under the countertoo ano oreven[s ranoe from tiDoin J. Failure to insta the anti-tip screws will allow the range to tip over if excessive weight is placed on an open door or ifa child climbs upon it.

Serious injury might result from spilled hot liquids or from the

range itself.

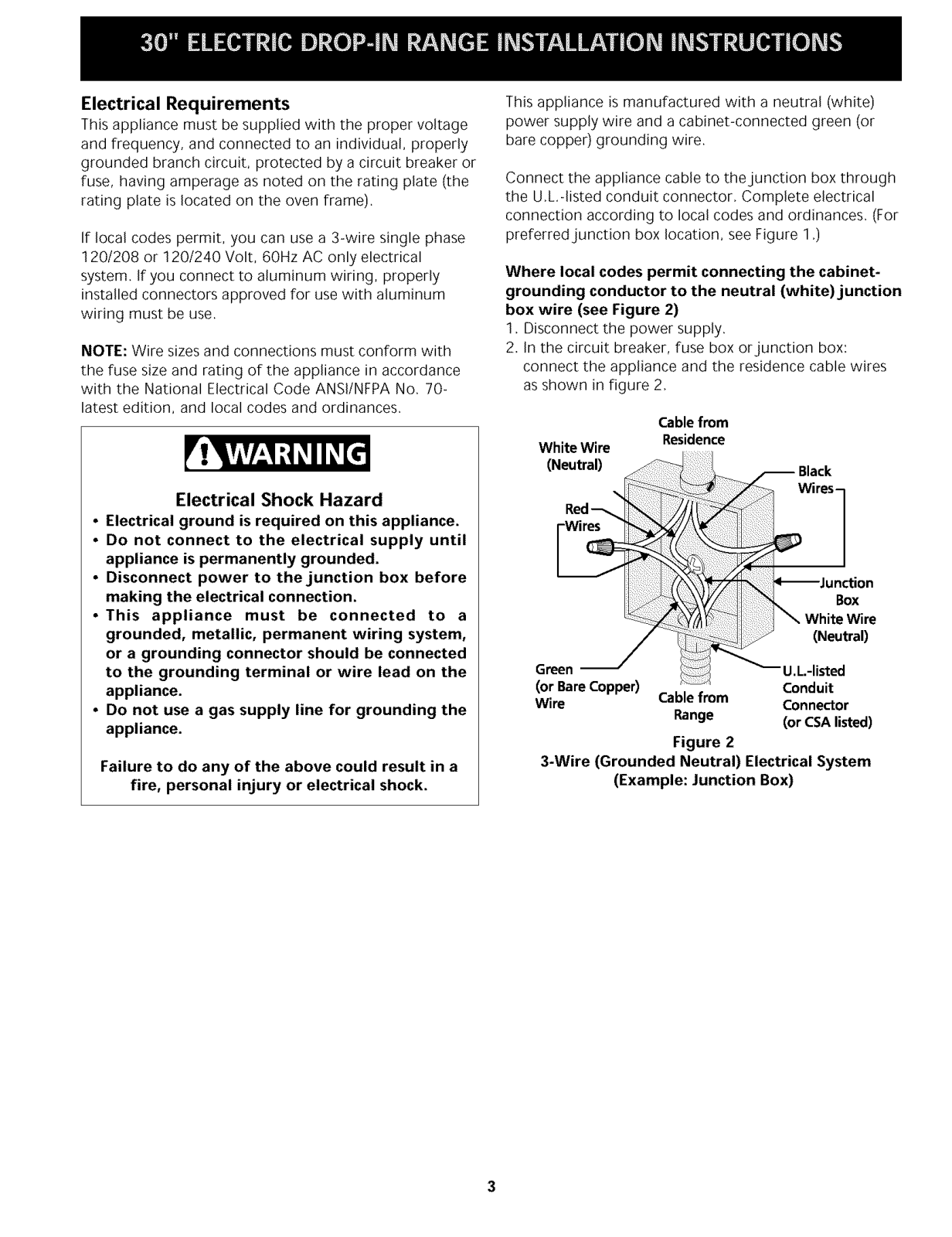

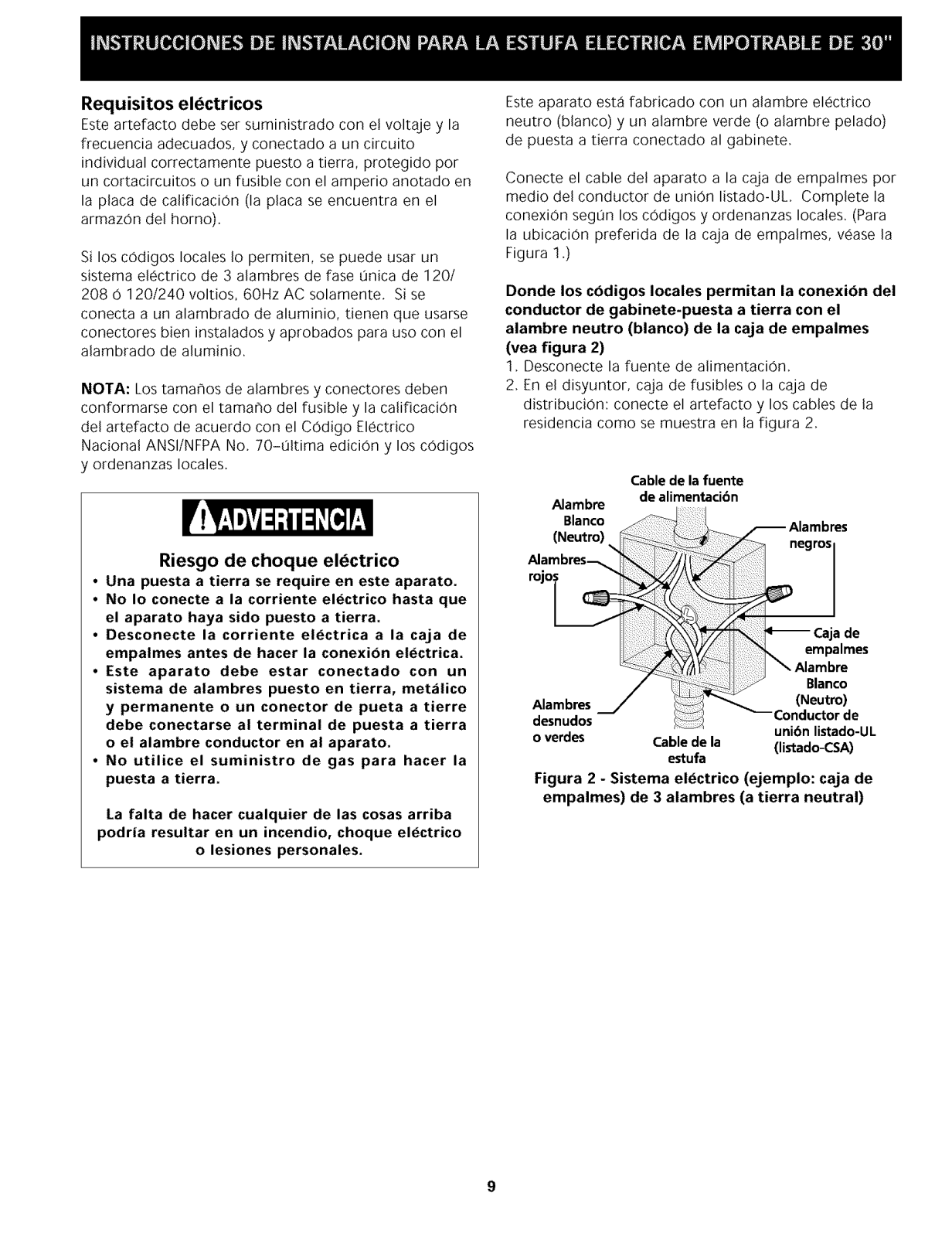

Electrical Requirements

This appliance must be supplied with the proper voltage and frequency, and connected to an individual, properly grounded branch circuit, protected by acircuit breaker or

fuse, having amperage as noted on the rating plate (the rating plate is located on the oven frame).

If local codes permit, you can use a 3-wire single phase 120/208 or 120/240 Volt, 60Hz AC only electrical

system. If you connect to aluminum wiring, properly

installed connectors approved for use with aluminum

wiring must be use.

NOTE: Wire sizes and connections must conform with

the fuse size and rating of the appliance in accordance with the National Electrical Code ANSI/NFPA No. 70-

latest edition, and local codes and ordinances.

Electrical Shock Hazard

, Electrical ground is required on this appliance. , Do not connect to the electrical supply until

appliance is permanently grounded.

, Disconnect power to the junction box before

making the electrical connection.

, This appliance must be connected to a

grounded, metallic, permanent wiring system, or a grounding connector should be connected to the grounding terminal or wire lead on the appliance.

, Do not use a gas supply line for grounding the

appliance.

Failure to do any of the above could result in a

fire, personal injury or electrical shock.

This appliance is manufactured with a neutral (white)

power supply wire and a cabinet-connected green (or bare copper) grounding wire.

Connect the appliance cable to the junction box through the U,L.-listed conduit connector, Complete electrical

connection according to local codes and ordinances. (For

preferredjunction box location, see Figure 1,)

Where local codes permit connecting the cabinet- grounding conductor to the neutral (white)junction box wire (see Figure 2)

1. Disconnect the power supply. 2, In the circuit breaker, fuse box orjunction box:

connect the appliance and the residence cable wires asshown in figure 2,

Cablefrom

White Wire

Residence

(Neutral)

Wires I

Box

(Neutral)

Green U.L.-listed (or Bare Copper) Conduit

Wire Cable from Connector

Range (or CSA listed)

Figure 2

3-Wire (Grounded Neutral) Electrical System

(Example: Junction Box)

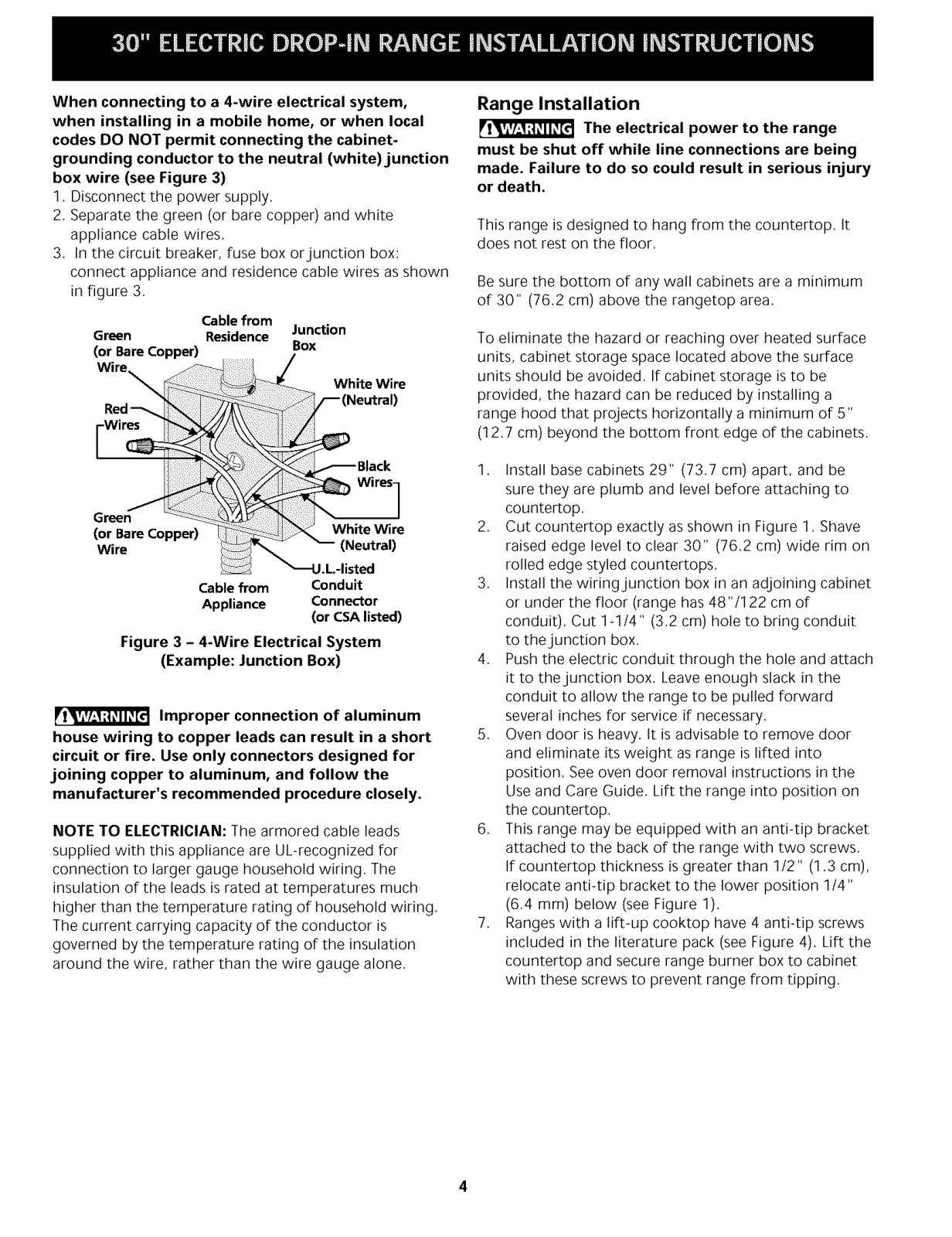

When connecting to a 4-wire electrical system, when installing in a mobile home, or when local

codes DO NOT permit connecting the cabinet- grounding conductor to the neutral (white)junction box wire (see Figure 3)

1, Disconnect the power supply. 2, Separate the green (or bare copper) and white

appliance cable wires,

3, In the circuit breaker, fuse box or junction box:

connect appliance and residence cable wires as shown in figure 3.

Cable from

Green Residence Junction (or Bare Copper) Box

White Wire

Green

(or Bare Copper) White Wire

Wire (Neutral)

Cable from Conduit

Appliance Connector

(or CSA listed)

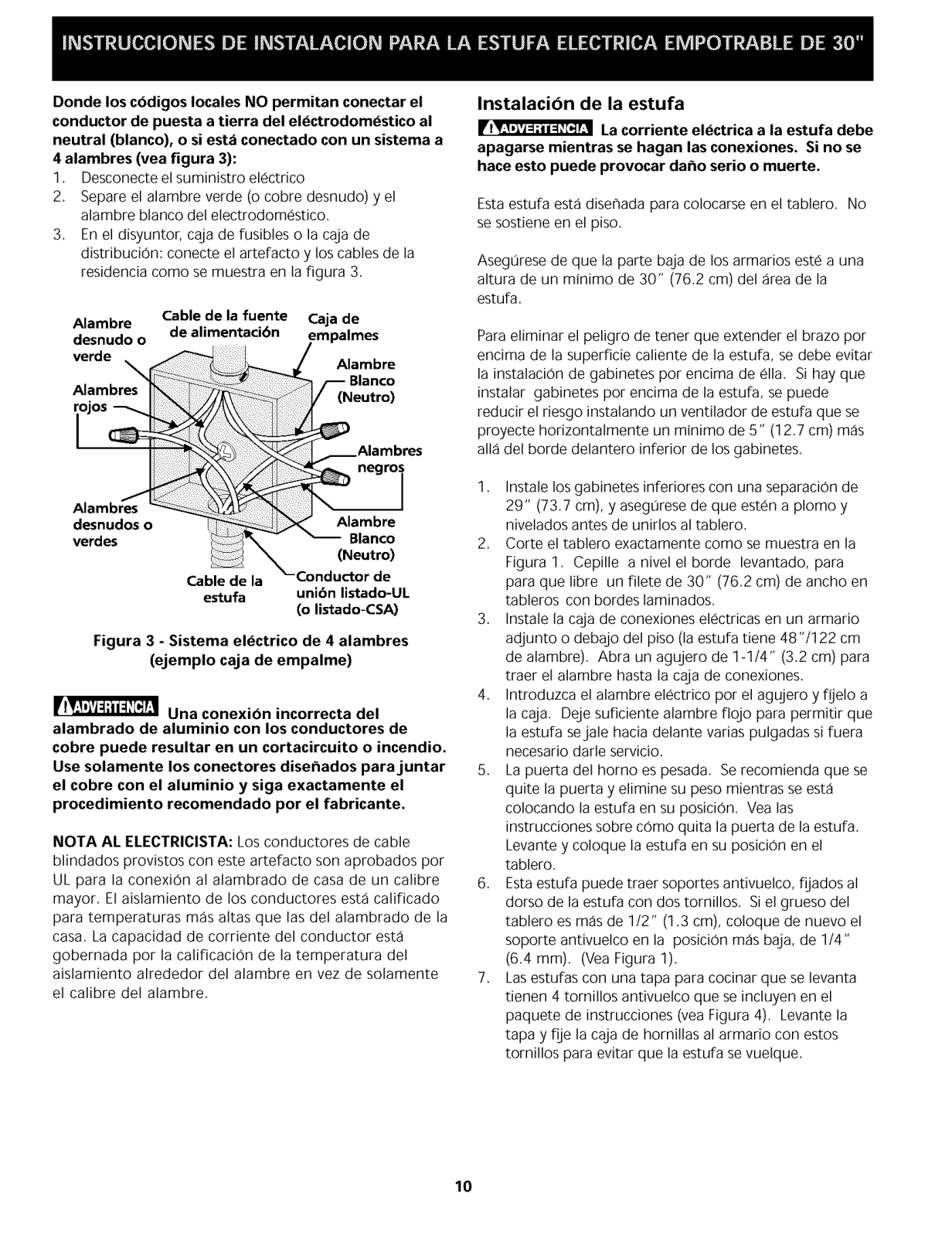

Figure 3 - 4-Wire Electrical System

(Example: Junction Box)

Improper connection of aluminum

house wiring to copper leads can result in a short circuit or fire. Use only connectors designed for

joining copper to aluminum, and follow the

manufacturer's recommended procedure closely.

NOTE TO ELECTRICIAN: The armored cable leads

supplied with this appliance are UL-recognized for connection to larger gauge household wiring. The

insulation of the leads is rated at temperatures much

higher than the temperature rating of household wiring, The current carrying capacity of the conductor is governed by the temperature rating of the insulation around the wire, rather than the wire gauge alone.

Range Installation

The electrical power to the range

must be shut off while line connections are being made. Failure to do so could result in serious injury

or death.

This range isdesigned to hang from the countertop, it does not rest on the floor.

Be sure the bottom of any wall cabinets are a minimum

of 30" (76,2 cm) above the rangetop area,

To eliminate the hazard or reaching over heated surface

units, cabinet storage space located above the surface units should be avoided. If cabinet storage isto be

provided, the hazard can be reduced by installing a

range hood that projects horizontally a minimum of 5"

(12.7 cm) beyond the bottom front edge of the cabinets.

1, Install base cabinets 29" (73,7 cm) apart, and be

sure they are plumb and level before attaching to countertop.

2, Cut countertop exactly as shown in Figure 1. Shave

raised edge level to clear 30" (76,2 cm) wide rim on rolled edge styled countertops,

3, Install the wiring,junction box in an adjoining cabinet

or under the floor (range has 48"/122 cm of conduit), Cut 1-1/4" (3.2 cm) hole to bring conduit to the,junction box.

4, Push the electric conduit through the hole and attach

it to the junction box, Leave enough slack in the

conduit to allow the range to be pulled forward several inches for service if necessary,

5, Oven door is heavy. It is advisable to remove door

and eliminate its weight as range is lifted into

position, See oven door removal instructions in the Use and Care Guide, Lift the range into position on

the countertop.

6, This range may be equipped with an anti-tip bracket

attached to the back of the range with two screws,

If countertop thickness is greater than 1/2" (1,3 cm),

relocate anti-tip bracket to the lower position 1/4"

(6.4 mm) below (see Figure 1),

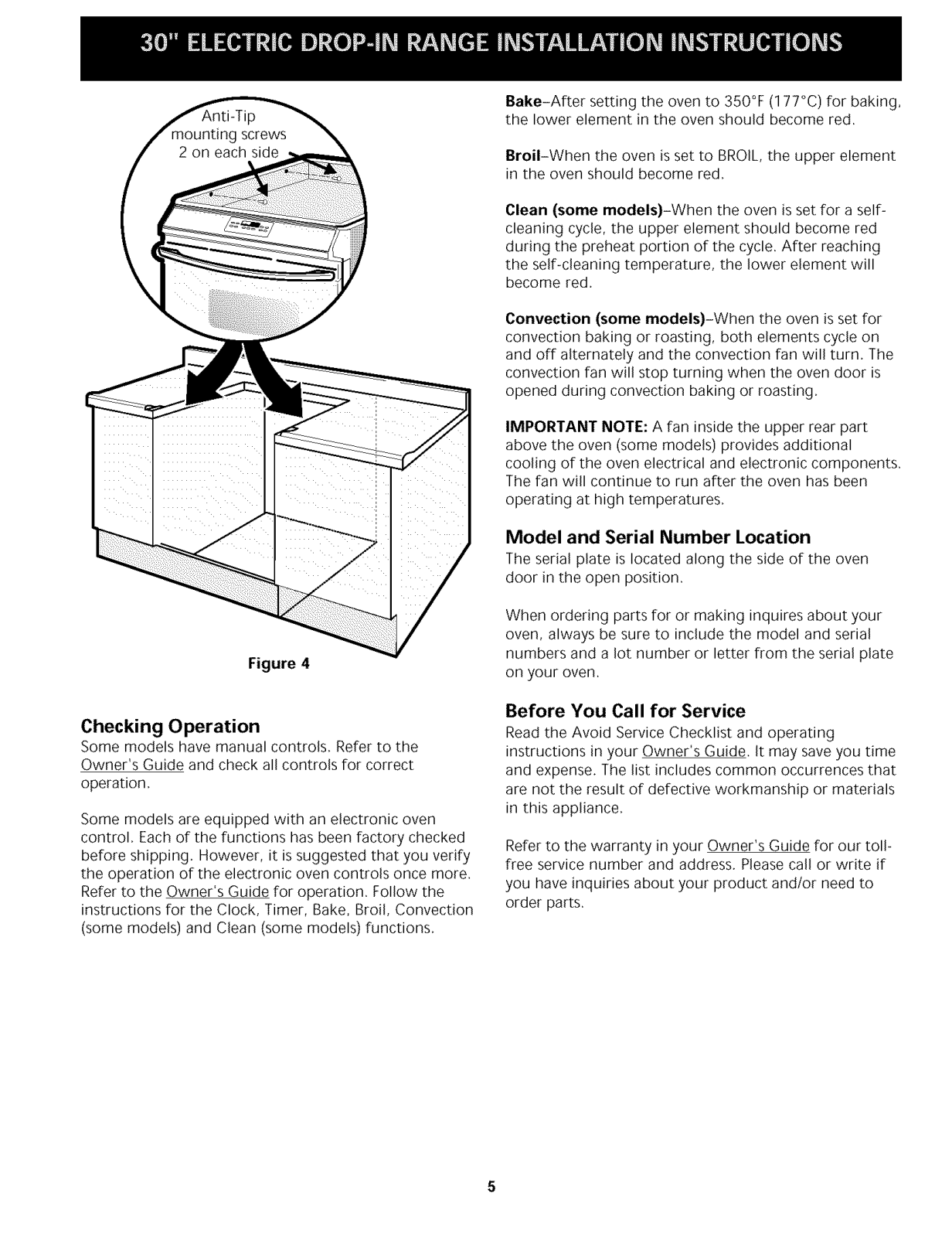

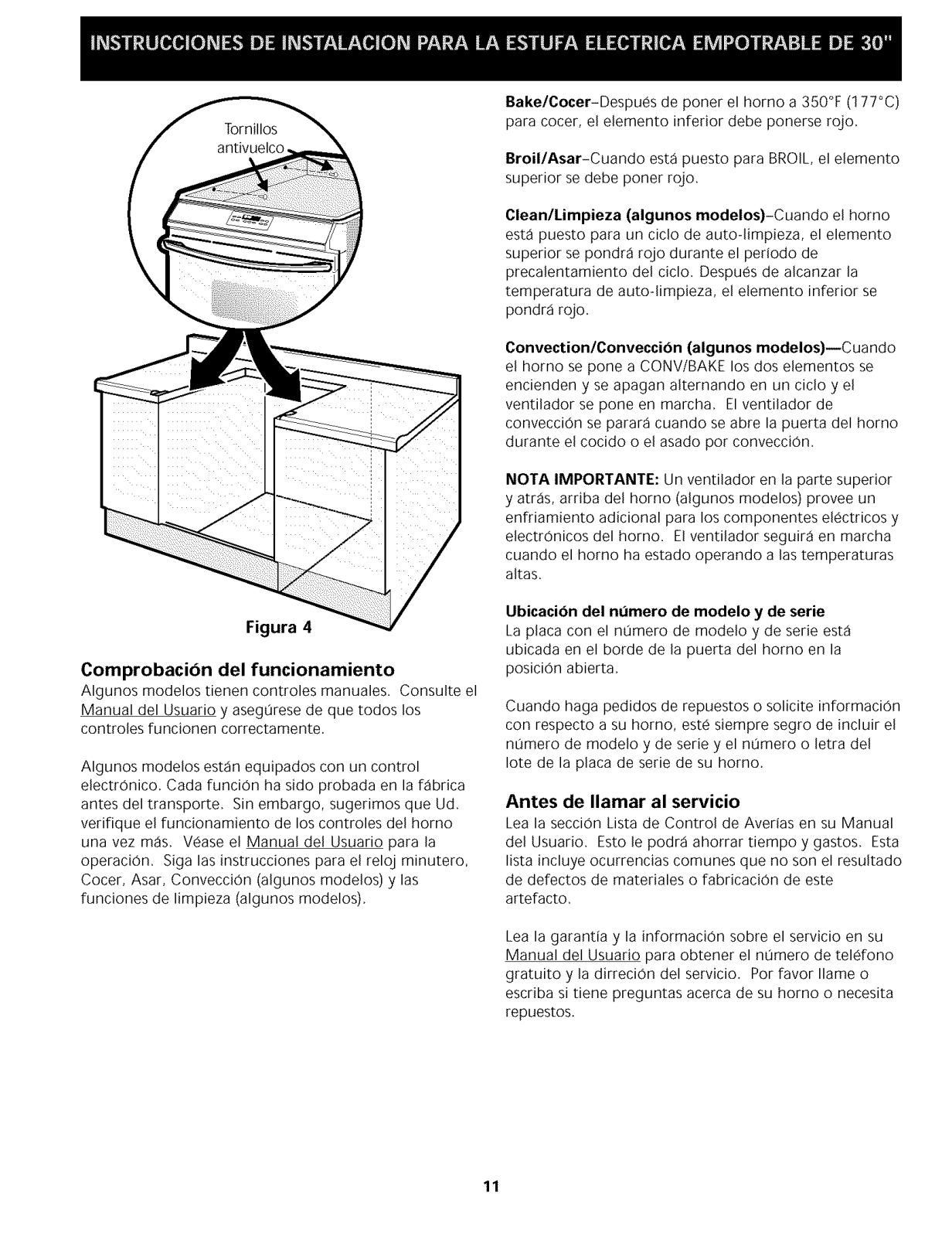

7, Ranges with a lift-up cooktop have 4 anti-tip screws

included in the literature pack (see Figure 4), Lift the countertop and secure range burner box to cabinet with these screws to prevent range from tipping.
