Frigidaire FEC32C4AS1, FEC32C4AQD, FEC32C4ACD, FEC32C4AC1, FEC30S6DQC Owner’s Manual

Visit the Frigidaire Web Site at:

http://www, frigidaire,com

CONTENTS Page

Versi6n en espa_ol..........................................................2

Product Registration .......................................................2

Important Safety Instructions ......................................3-4

Selecting SurfaceCooking Utensils.................................5

Specialty Pans& Trivets ..................................................5

CanningTips & Information ............................................6

Setting SurfaceControls .................................................6

Indicator Lights (Coil ElementsModels) .........................6

CeramicGlassCooktop (Some Models)..................... 7-10

Typesof Heating Units Used........................................... 7

Hot Surface Indicator Light .............................................7

Warm Zone Feature.........................................................8

SpecialCautionfor Aluminum Foil

and Aluminum CookingUtensils .....................................9

Things to Remember.......................................................9

Useand Careof GlassSurface................................... 9-10

GeneralCleaning..................................................... 11-12

Avoid ServiceChecklist ........................................... 13-14

Notes............................................................................. 15

Warranty........................................................................ 16

READ AND SAVE THESE INSTRUCTIONS 3182oo612(o511)Rev.F

Product Registration

Register Your Product

The PRODUCT REGISTRATION CARD

should befilled incompletely, signed and
returned to the Electrolux Home Products

North America.

Version en espa_ol

Sideseaobtener una copia en espanol de
este Manual del Usuario, sirvase escribir a
ladirecciOn quese incluye acontin uaciOn.

Solicite la P/N318204004.

Electrolux Home Products

Attn : Care Use

P.O. Box212378

Augusta, GA 30917

Thank you for choosing this appliance. The information contained within this
Owner's Guide will instruct you on how to properly operate and care for your
cooktop. Pleaseread through the information contained in your literature pack to

learn more about your new appliance.

Record Your ModeJ and Serial Numbers

Record inthe space provided belowthe model andserialnutubers found on the serial
plate located on the burner box under the cooktop or inside the burner box.

Model Number:

Serial Number:

Date Purchased:

This Owner's Guide contains general operating instructions for your cooktop and
featu reinformation for severalmodels. Your cooktop may not have allthe described

features.

Note: The instructions appearing in thisOwner's Guide are not meant to cover every

possible condition and situation that mayoccur. Common senseand caution must be
practiced when installing, operating and maintaining any appliance.

Important: Keep a copy of your bill of sale.
The date on the bill establishes the warranty period service be required. Place it
where it can be easily retrieved. If serviceisperformed while the appliance isunder
warranty, you may have to show your bill of sale.

© 2001 White Consolidated Industries
All rights reserved 2

iMPORTANT SAFETY iNSTRUCTiONS

Read all instructions before using this appliance.

Save these instructions for future reference.

This guide contains important safety symbols and instructions. Please pay special attention to these symbols and follow all

instructions given. Here is a brief explanation of the use of these symbols.

This symbol will help alert you to situations that may cause serious bodily harm, death or property damage.

_This symbol will help alert you to situations that may cause bodily injury or property damage.

• Remove all tape and packaging wrap before using the
appliance. Destroy the carton and plastic bags after
unpacking the appliance. Never allow children to play with

packaging material.

• Proper Installation. Be sure your appliance is properly
installed and grounded by a qualified technician in

accordance with the National Electrical Code No. 70 - latest
edition in the United States, or CSA C22.1, Part 1 in Canada,

and local code requirements. Install only per installation
instructions provided in the literature package for this
appliance.

Ask your dealer to recommend a qualified technician and an
authorized repair service. Know how to disconnect the electrical
power to the appliance at the circuit breaker or fuse box in case
of an emergency.

• User Servicing. Do not repair or replace any part of the
appliance unless specifically recommended in the manuals.
All other servicing should be done only by a qualified technician
to reduce the risk of personal injury and damage to the
appliance.

• Never rood ify or alter the construction of a n appliance such
as removal of panels, wire covers or any other permanent
part of the appliance.

• Storage on Appliance. Flammable materials should not be
stored near surface units. This includes paper, plastic and
cloth items, such as cookbooks, plasticware and towels, as well
as flammable liquids. Do not store explosives, such as aerosol
cans, on or near the appliance. Flammable materials may

explode and result in fire or property damage.

DO NOT TOUCH SURFACE UNITS OR AREAS NEAR THESE
UNITS. Surface units may be hot even though they are dark in

color. Areas near surface units may become hot enough to cause

burns. During and after use, do not touch, or let clothing or other
flammable materials touch these areas until they have had
sufficient time to cool. Among these areas are the cooktop and
areas facing the cooktop.

• Wear Proper Apparel. Loose-fitting or hanging garments
should never be worn while using the appliance. Do not let

clothing or other flammable materials contact hot surfaces.

Never use your appliance for warming or

heating the room.

• Do Not Use Water or Flour on Grease Fires. Smother the fire
with a pan lid, or use baking soda, a dry chemical or foam-

type extinguisher.

• When heating fat or g rease, watch it closely. Fat or g teasemay
catch fire if allowed to become too hot.

Use Only Dry Pot holders. Moist or damp pot holders on hot

surfaces may result in burns from steam. Do not let the pot

holders touch hot surface units. Do not use a towel or other bulky

cloth instead of a pot holder.

• Do Not Heat Unopened Food Containers. Buildup of pressure

may cause the container to burst and result in injury.

IMPORTANT SAFETY INSTRUCTIONS FOR

USING YOUR COOKTOP

• Know which knob controls each surface unit.

_Do not store items of interest to children in the
cabinets above the appliance. Children climbing on the cooktop

to reach items could be seriously injured.

• Do not leave children alone. Children should not be left
alone or unattended in the area where an appliance is in

use. They should never be allowed to sit or stand on any part of
the appliance.

Clean the appliance regularly to keep all parts free of grease
that could catch fire. Exhaust fan ventilation hoods and grease
filters should be kept clean. Do not allow grease to accumulate
on hood or filter. Greasydeposits in the fan could catch fire. When
flaming food under the hood, turn fan on. Refer to hood

manufacturer's instructions for cleaning.

Use Proper Pan Size. This appliance is equipped with one or
more surface units of different sizes. Select utensils having flat
bottoms large enough to cover the surface unit. The use of

undersized utensils will expose a portion of the surface heating
unit to direct contact and may result in ignition of clothing. Proper
relationship of utensil to element will also improve efficiency.

iMPORTANT SAFETY iNSTRUCTiONS (continued)

• Utensil Handles Should Be Turned inward and Not Extend
Over Adjacent Surface Units. To reduce the risk of burns,

ignition of flammable materials, and spillage due to
unintentional contact with the utensil.

• Never Leave Surface Units Unattended. Boilovers cause
smoking and greasy spillovers that may ignite, or a pan that has

boiled dry may melt.

• Protective Liners. Do not use aluminum foil to line any part of

the appliance. Only use aluminum foil as recommended for

baking if used as a cover placed on the food. Any other use of
protective liners or aluminum foil may result in a risk of electric

shock or fire or short circuit.

• Glazed Cooking Utensils. Only certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are

suitable for range top service without breaking due to the
sudden change in temperature. Check the manufacturer's
recommendations for cooktop use.

• Do Not Use Decorative Surface Element Covers. If an element
is accidentally turned on, the decorative cover will become hot

and possibly melt. Burns will occur if the hot covers are touched.
Damage may also be done to the appliance.

FOR COOKTOPS WiTH COiL ELEMENTS ONLY

• Do Not immerse or Soak Removabme Surface Heating Emements.
Surface heating elements should never be immerse in water. Heating

elements clean themselves during normal operation.

• Make Sure Drip Pans or Drip Bowls Are in Pmace.Absence of these
pans or bowls during cooking may subject wiring or components
underneath to damage.

FOR CERAMIC-GLASS COOKTOP ONLY

• Do Not Cmean or Operate a Broken Cooktop. If cooktop should
break, cleaning solutions and spillovers may penetrate the broken

cooktop and create a risk of electric shock. Contact a qualified
technician immediately.

• Clean Cooktop with Caution. If a wet sponge or cloth is used to

wipe spills on a hot cooking area, be careful to avoid a steam burn.

Some cleaners can produce harmful fumes if applied to a hot surface.

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances

known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential
exposure to such substances.

SAVE THESE INSTRUCTIONS

Selecting Surface Cooking Utensils

Forbest results and energy conservation, choose cooking utensils that have these characteristics:

*GOOD POOR

W

o Curved and warped pan bottoms.

W

Pans should have flat bottoms that make

good contact with the entire surface ele-

ment. Check for flatness by rotating a ruler

across the bottom. There should be no
gaps between the pan and ruler.

Note: Always use a utensil for its intended
purpose. Follow manufacturer's instruc-

tions. Some utensils were not made to be

used in the oven or on the cooktop.

Specialty Pans & Trivets

1" t

• Flat bottom and straight sides.

Tight fitting lids.
Weight of handle doesnot tilt pan. Pan

iswell balanced.

e Pansizesmatchthe amount of food to

be preparedand the sizeof the surface

element.

e Madeof material that conductsheat

well.

• Easy to clean.

Specialty pans such as lobster pots, griddles

and pressure cookers may be used but must
conform to the above recommended cook-

ware requirements.

Woks with flat bottoms suitable for
use on your cooktop are available in

most cookshop or hardware stores.
Round-bottomed woks(with asupport
ring that does not extend beyond the
heating element) may also be used.
The metal ring was designed to
support the wok safelywhen it isfilled
with large amounts of liquids (soup
making) or fat (frying).

Pan overhangs unit by more than 2.B
cm(l").

W

liiiiiiiiii_iiiiiiiiii!iii!@i:_i!i!

o Heavyhandletilts pan.

Pan is smaller than element.

w

Iiiiiiiiiiiiiiii_ii.i_i@iliiii_ii_ii_iiii_i!

iii!iiiiiiiiii!ii!iilli

DO NOT use awok if it is equipped with
a metal ring that extends beyond the
surface element. Becausethis ring traps
heat, the surface element and cooktop
surface could be damaged.

DO NOT use two
elements (if the cooktop is not
equipped with bridge element) to heat

one large pan such as a roaster or
griddle, or allow cooking utensils to

boil dry. The bottom surface of the
pan in either of these situations could

cause discoloring or crazing of the
porcelain enamel range surface, and

damage to the surface elements and/
or damage to the drip pans (if

equipped).

Wire trivets: Do not use wire trivets.
Cookware bottoms must be in direct
contact with the surface elements.

For glass smoothtop models, only flat
bottomed woks (without support rings)

may be used.

Canning Tips &

Information

Canning can generate

large amounts of steam. Use extreme

caution to prevent burns. Always raisethe

lid to vent steam away from you.

I. Use tested recipes and follow instructions carefully. Check with your local

Cooperative Agricultural Extension Serviceora manufacturer of glassjarsfor the

latest canning information.

2. Useflat-bottomed canners only. Heat isspread more evenly when the bottom
surface is flat.

3. Center canner on the surface element.

4. Startwith hot water and a high heat setting to reduce the time it takes to bring
the water to a boil; then reduce the heat setting aslow as possible to maintain

a constant boil.

5. It isbest to can small amounts and light loads.

Prevent damage to cooktop:

I. Do not use water bath or pressure canners that extend more than one inch

beyond the edge of the surface element.

2. Do not leave water bath or pressure canners on high heat for an extended
amount of time.

3. Alternate surface elements between each batch to allow the units and
surrounding surfaces to cool down. Try to avoid canning on the same element

all day.

Safe canning requires that harmful micro-organisms are destroyed

and the jars are sealed completely. When canning in a water bath canner, a gentle
but steady boil must be maintained continuously for the required time.

Setting Surface Controls

1. Placethe pan on the surface element.

2. Push in and turn the surface element control knob to desired setting.

3. The surface signal light will glow when one or more elements are turned on. Always turn
the element off before removing the pan.

The suggested settings found in the chart below are based on cooking in medium-weight
aluminum pans with lids. Settings may vary when using other types of pans.

Note: The size and type of utensil used, and the amount
and type of food being cooked will influence the setting
needed for best cooking results.

Do not place plastic items such as salt and

pepper shakers, spoon holders or plastic wrappings on top
of the cooktop when it is in use. These items could melt or
ignite. Pot holders, towel or wood spoons could catch fire if
placed too close to the element.

NOTE: Control knob shown is typical only.

Setting Type of Cooking

MAX or HI Start most foods, bring water to a

boil, pan broiling.

MEDIUM Maintain a slow boil, thicken sauces

and gravies, steam vegetables.

MEDIUM LOW Keep foods cooking, poach, stew.

MIN or 1 Keep warm, melt, simmer.

Indicator

Some models have an indicator light for each heating unit, other models have an indicator light for each pair of heating units,
also some other models have an indicator light for all heating units.
The indicator light glows assoon asa heating unit isturned on. Check if the indicator light glows when the control knob of the
individual heating unit isturned on. If the knob isset to avery Iowtemperature setting, the indicator may glowand yet, the heating
unit may not be heating at all. If this happens, turn the knob to a higher setting until the heating unit comes on.

When cooking isfinished, aquick glance at the indicator lights in an easy check to be sure all the control knobs have been turned

OFF.

lllgnlS (coil elements models)

6

Ceramic Glass

The ceramic-glass cooktop has electric heating coils located below the ceramic glass surface. The design of the glass cooktop
outlines the area of the surface heating unit below. Most importantly, make sure the diameter of the pan matches the diameter
of the surface unit. Heat istransferred up through the surface of the cooktop. Only flat-bottomed pans should be used. The type
and sizeof the cookwa re, number of surface un itsin useand the settings of the surface units are factors that will affect the amount
of heat that will spread to areas surrounding the units. The areassurrounding the units may become hot enough to cause burns.

The cooktop should not be used asacutting board or work surface. Dropping heavy or hard objects on the cooktop may crack it.

Panswith rough bottoms may scratchthe cooktop surface.Placingfoods directly on the smoothtop surface(without cooking utensils)
isnot recommended asdifficult cleaning will result and foods may smoke and cause a potential fire hazard. Never usethe griddle

or similar cooking sheet on the ceramic glass cooktop.

LOOKIOp (some models)

Types of heating units used

Depending on model, three types of heating units may be found under the ceramic glass cooktop:

- Regular (single coil) radiant elements of various diameters or shapes.

- Expandable type (double circuits) radiant elements of various diameters or shapes.

- Bridge Expandable type (triple circuits) radiant elements of various diameters or shapes.

Regular radiant elements (some models)

The ceramic glass design shows the location of the heating surfaces.

Control knobs are used to set the heat power levels; knobs need first to be pressed in when at OFF
position, then turned to the desired heat settings.

A glowing red surface unit extending beyond the bottom edge of the cooking utensil indicates the

utensil istoo small for the unit. The control knob does not have to be set exactly on a particular mark.
Usethe marksasaguide and adjust the control knob asneeded. Thehot surface and surface indicator
lights will glow.

Control Knob For Expandable

and Bridge Elements

The surface control knobs shown

below may not look identical to the
surface control knobs on you rappli-
ance; it isonly representational.

Expandable radiant elements (some models)

This heating unit combines the characteristics of a small and a large regular radiant

heating unit. Itsprincipal advantage isto allow small and large utensils to be used on

the same heating unit, therefore increasing the cooktop flexibility.

Heat power levels are adjusted by a special control knob that has a dual set of
graduations; for small utensils usethe small graduations; the inner surface only will be
heating. Forlarger utensilsusethe larger graduations; the whole surfacewill be heating.

The hot surface and surface indicator lights will glow when the heating unit isturned ON.

Bridge Radiant elements (some models)
Itsprincipal advantage isto allow you to create larger cooking zone for larger pan such
asroaster, griddle or some other specialty pans.

Forthe bridge element operation, usethe larger graduations on the control knob.
Forfull bridge element operation turn on the rear element also.

To operate only the front element, use the small graduations on the control knob.

Hot Surface Indicator Light (some modeJs)

Some models have an indicator light located on the ceramic glass cooktop that glows assoon as
the glass begins to warm up. When the heating unit isturned off, itwill continue to glow as long

asthe glass remains warm enough to cause burns. Other models have ahot surface indicators per
element arranged in a cluster. Their location is as shown in the illustration.

Indicator

(Typical 30" cooktop shown)

Ceramic Glass

.ooKtop somemodelg

Warm Zone Feature (some models)

To operate the warm zone

Your appliance is equipped with a warm zone. The purpose of the warm zone is to keep hot cooked foods at serving
temperature. Always start with hot food. It is not recommended to heat cold food on the warm zone.

Use the warm zone to keep cooked foods hot such as: vegetables, gravies, casseroles, soups, stews, breads, pastries and
oven-safe dinner plate.

All food placed on the warm zone should be covered with lid or aluminum foil to maintain quality. For best results, when
warming pastries or breads, the cover should have an opening to allow moisture to escape. Do not use plastic warp to cover
food, Plastic may melt onto the surface and be very difficult to clean,

Use only dishware, utensils and cookware recommended for oven and cooktop use on the warm zone.

Unlike the surface elements, the warm zone will not glow red when it is hot. Always use potholders or oven

mitts when removing food from the warm zone ascookware and plates will not be hot.

Indicator lights
The hot surface indicator light, located under the cooktop, will come on when the control issetand will continue to glow until the

glass cooktop has cooled down to moderate level.

To Set the Warm Zone Control

I. To set the control, push in and turn the knob. The temperatures are approximate, and are designate

by HI, MED and LO.However, the control can be set at any position between HIand LOfor different
levels of heating.

2. When done, turn the control to OFF.The warm zone will remain warm until the hot surface indicator
light goes off.

Temperature Selection

Referto the chart for recommended heating levels.Ifaparticular food isnot listed, start with the medium level, and adjust asneeded.
Most food can be kept at serving temperatures by using the medium level

Warm Zone Recommended Food Settings Chart

Food item Heating Food item Heating

Level Level

Breads/Pastries Sauces

Casseroles Soups (cream)

Dinner Plate with Food Stews
Eggs Vegetables

Gravies Fried Foods

Meats Hot Beverages

LO MED
LO MED
LO MED
LO MED
LO HI
MED HI

Soups (liquid)

HI

Ceramic Glass

L.OOKIOp (some models)(continued)

Special Caution for Aluminum Foil and Aluminum Cooking Utensils

I) Aluminum foil

Use of aluminum foil will damage the cooktop. Do not use under any circumstances.

2) Aluminum utensils
The melting point of aluminum being much lower than that of other metals, care must be taken when aluminum pots or pans
are used. If allowed to boil dry, not only will the utensil be ruined, but also permanent damage in the form of breakage, fusing

or marking may affect the ceramic glass surface.

Sliding alumin um or copper clad bottom pans on the cooktop can cause metal markings
on the cooktop surface. These marks should be removed immediately after the cooktop

hascooled using the cooktop cleaning cream. Metal markscan become permanent if not
removed prior to future use.

Cookware (cast iron, metal, ceramic or glass)with rough bottoms can mark or scratch
the cooktop surface. Do not slide anything metal or glass acrossthe cooktop. Do not

useyour cooktop asacutting board or work surface in the kitchen. Do not cook foods

directly on the cooktop surface without a pan.

Do not drop heavy or hard objects on the glass cooktop, they may cause it to crack.

Things to Remember

1. AVOID using bleach and don't use ammonia to clean the ceramic surface.

2. Do not put plastic items on warm cooking areas.

3. Never slide oven racks across cooktop surface. They may scratch or metalmark the cooktop.

4. If cooktop should break, do not use cooktop or attempt to clean it. Call your authorized
service technician immediately.

5. Never usea trivet or metal stand between the cooking utensil and the ceramic cooktop. The ceramic
surface may be scratched, metal marked or etched by such items.

6. Sugaryspills can cause pitting of your cooktop surface. Therefore, you must begin cleaning the spills
while the cooktop isstill hot. Use caution when following the steps below.
a) Turn off all surface units and remove all pans immediately.
b) Wearing an oven mitt, use a razor blade scraper to scrapethe hot spill out of the cooking zone to

a cooler area on the cooktop.

c) AIIowthe cooktop to cool.

Use and Care of Glass Surface

Problem Cause To Remove

Fine "brown
lines" (tiny

scratches or
abrasions which
have collected
soil)

Metal marking
(mark or black

marks).

Brown streaks
and specks.

Coarse particles (salt,
sand, sugar or grit)

between bottom of
cookware and cooktop

that are not removed
before cooking.

Using incorrect cleaning

materials.

Sliding or scraping
metal utensils or oven

shelves across cooktop.

Cleaning with a
sponge or dishcloth

that has been used
for other kitchen tasks.

NOTE: Due to the high intensity of heat generated by the surface elements, the glass surface will turn green when the element

will be turned off. This phenomenon is normal and the glass will come back to its original white color after it has
completely cooled down. (White glass cooktops only).

To Prevent

Clean cooktop after
every use.

Daily use of cleaner

cream.

Do not slide cookware

across cooktop.

Use cleaner cream

with clean, damp paper
towel.

Tiny scratches are not removable.
They can be minimized by

continual use of cleaner cream.
Such scratches do not affect

cooking.

Apply cleaner cream
with dampened paper

towel to a cooled surface.

Use a small amount of cleaner

cream with clean, damp paper
towel.

Ceramic Glass

_.OOKIOp (some models) (continued)

Use and Care of Glass Surface (continued)

Cleaning Materials for Ceramic Glass Cooktop
Some cleaning materials may contain an ingredient which can damage the cooktop. Use recommended
materials only (seebelow). Cleaner cream should be usedregularly. Prior to using your cooktop for the first

time, apply a cleaner cream to the ceramic surface. A sample of CERAMA BRYTE® cleaner cream is
supplied with your range. More are available in stores if needed.

Use only recommended cleaning products and follow these basic cleaning suggestions.

1. BEFORETHECOOKTOP ISUSED.Thoroughly clean and saturate the cooktop with cleaner cream.
a) Dampen clean paper towel and clean unit.
b) Wipe off with another clean, damp paper towel; then wipe dry.

2. For normal daily cleaning, apply a dab of cleaner cream in the center of each unit-area to be
cleaned. Start with approximately I/8 teaspoon. (Apply more if needed). Then, proceed as stated
above in (a and b).

3. Make sure bottom of cookware and cooking area are clean and dry.

4. Select heat settings and cookware large enough for food and liquid. This stops boilovers and spatterings.

5. Wipe up food spills and spatters before they burn into surface.

IMPORTANT Regularly use cleaner cream. If you run out of cleaner cream, use one of the cleansers listed.

Be sure to get a new supply of cleaner cream.

Never mix cleaning products! Mixtures may interact, with damaging or hazardous results.

CEP_M]CcooKTOP1

cLEANER

CERAMA BRYTE®

(Cleaner cream for

ceramic cooktops)

Do Use on Ceramic Glass Cooktop

I. Baking soda.

2. Non-impregnated plastic and nylon pads.

3. For burned on material, scrape with single-edged razor blade, held at a 30° angle.

4. Ceramic glass cleaning cream.

5. CERAMA BRYTE® cleaner cream.

Do not Use on Ceramic Glass Cooktop

1. Avoid pads, that can leave marks and scratches.

2. Avoid heavy-duty cleansing powders, these can scratch, depending on their abrasiveness and cleaning pressure applied.

3. Avoid chemical oven cleaners. These can etch the cooktop surface and are caustic.

4. Avoid rust stain removers containing hydrofluoric acid.

5. Avoid using bleach and don't use ammonia.

Special Cleaning Instructions for Mineral Deposits and Discolorations
Problem: A gray brown stain that is not removed when using cleaner cream.
Cause: Condensation, when cooking, often collects and drips from cookware. The minerals found in water supply and foods may

cause a gray or brown film to develop on cooktop. This film issothin it cannot be felt and appears to be under cooktop.

To Prevent: Daily and proper use of cleaner cream.

To Remove:

- Wet surface with water and sprinkle on cleaner cream.

- Scrub with clean, damp paper towel until stain disappears.

- Clean remaining paste away with damp paper towel.

- Apply dab of cleaner cream and polish with a clean paper towel.

WARNING

- Do not use cleansers on a heated surface. Fumescould be hazardous. Wait for area to cool before cleaning.

- Do not use cleaner cream to clean porcelain, paint or aluminium.

10

General Cleaning

Prior to cleaning the coil elements make sure they are cold and that control knobs are set

at OFF.

Never immerse the coil elements in water.

Never leave covers on the coil elements as they could be permanently

damaged if turned on by accident.

To Remove and Replace Surface Elements and Drip Bowls (some models)

Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.

Be careful

not to bend terminal ends
when replacing elements

after cleaning.

To Remove

1. Lift up edge of surface element acrossfrom terminal end just enough to clear the edge of
the drip bowl.

2. Gently slide the surface element out of the terminal plug.

3. Lift the drip bowl up and out.

To Replace

1. Line up the opening of the drip bowl with the terminal plug.

2. Hold the surface element aslevelaspossible and slidethe terminal end th rough the opening
and into the terminal plug.

3. Be sure the surface element is level to reduce the hazard of pans sliding off the element.

To Raise the Top for Cleaning

1. Graspthe sides and lift from the front. Some models may havea lift-up rod to support the top in its raised position. Lift the top
only high enough to allow the support rod to fit into place,then gently lower the cooktop onto the raised rod.

2. Clean underneath using a clean cloth and hot, soapy water.

3. Gently lower the cooktop into the frame. Ifyour model has asupport rod, lower the support rod, then gently lower the cooktop
into the frame.

_When lowering the lift-up cooktop, grasp the sideswith fingertips only. Be careful not to pinch fingers. DO NOT
drop or bend the cooktop when raising or lowering. This could damage the surface.

11

General Cleaning (Continue€

Cleaning Various Parts of Your Cooktop

Before cleaning any part of the cooktop, be su re all controls are turned OFF and the cooktop is COOL. REMOVE SPILLOVERS AND
HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANING WILL REDUCE THE NUMBER OF MAJOR CLEANING LATER.

Surfaces How to Clean

Aluminum (Trim Pieces) Use hot, soapy water and a cloth or paper towel. Dry with a clean cloth.

Glass, Painted and Plastic For general cleaning, use hot soapy water and a cloth. For more diffku/t softs and built-up grease,
Control Knobs, Body Parts, and apply a liquid detergent directly onto the soil. Leave on soil for 30 to 60 minutes. Rinsewith a damp

Decorative Trim cloth and dry. DO NOT use abrasive cleaners on any of these materials; they can scratch or dull the

finish. Commercial glass cleaners recommended for glass cooktops may also be used.

Control Panel

Surface Elements and Drip
Bowls

Porcelain Enamel
Cooktop

I/Vipe the control panel dean after each use. Before cleaning the control panel, turn all controls to
OFFand remove the control knobs. To remove, pull each knob straight off the shaft. Clean using hot,
soapy water and a cloth. Besure to squeeze excesswater from the cloth before wiping the panel;

especiallywhen wiping around the controls. Excesswater in or around the controls may cause damage
to the appliance. To replace knobs after cleaning, line up the flat sidesof both the knob and the shaft;
then push the knob into place.

Surface elements can be unplugged and removed to make cleaning the drip bowls easier. The surface
elements clean themselves when they are turned on. Food spilled on a hot element will burn off. Food
spilled on a cool element can be cleaned with a damp cloth--any remaining soil will burn off the next

time the element is used. NEVERIMMERSE A SURFACEELEMENTIN WATER. To remove surface
elements and drip bowls, follow the instructions under General Cleaning.

To clean drip bowls, wash in hot, soapy water or in the dishwasher. Rinse and dry while still warm.
Hard-to-remove, burned-on soils can be removed by soaking the drip bowls for about 20 minutes

in a slightly diluted liquid cleanser or a solution made of equal parts ammonia and water. A nylon
scrubber may be used after soaking. DO NOT use abrasive cleansers or steel wool, as they will scratch
the surface. Always rinse with clean water and polish, and dry with a soft cloth or paper towel. To
replace drip bowls and surface elements, follow the instructions under General Cleaning.

Gentle scouring with a soapy scouring pad will remove most spots. Rinsewith a 1:1 solution of clear
water and ammonia. If necessary, cover difficult spots with an ammonia-soaked paper towel for 30

to 40 minutes. Rinsewith clean water and a damp cloth, and then scrub with a soap-filled scouring
pad. Rinseand wipe dry with a clean cloth or paper towel. Remove all cleaners or the porcelain may
become damaged during future heating. DO NOT use spray oven cleaners on the cooktop.

Stainless Steel, Chrome
(brushed)

Decorative Trim Cooktop

Ceramic -Glass
Cooktop

Cover stubborn spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean
water and a cloth. A soapy, nylon mesh scouring pad may be used carefully on stainless steel; not
on chrome. Cleaners made especially for stainless steel, chrome or copper are also recommended.
Do not use metal-type scouring pads on brushed chrome. This could cause the brushed chrome to
change to ayellowish tint. Rinse all cleaners before operating cooktop. Bluish stains may result due

to heat combining with the cleaning material and they cannot be removed.

See Ceramic-Glass Cooktop in this Owner's Guide.

12

Avoid Service Checklist

Beforeyou call for service, review this list. It may saveyou time and expense. The list includes common occurrences that are not
the result of defective workmanship or materials in this appliance.

OCCURRENCE

Entire cooktop does not operate.

Surface element does not heat,

Surface element too hot or not hot

enough,

POSSIBLECAUSE/SOLUTION

House fuse hasblown or circuit breaker hastripped. ChecWreset breaker or replace

fuse. If the problem isa circuit overload, have this situation corrected by a qualified
electrician.

Service wiring not complete. Contact installation agent or dealer.

Power outage. Check house lights to be sure. Call local electric company.

No power to appliance. Check/reset breaker or replace fuse. If the problem is a
circuit overload, or improper connection of the armored cable supplied with the
appliance, have this situation corrected by a qualified electrician.

Too low heat setting. Turn control to a slightly higher setting until element comes on.

Incorrect control is on. Besure to use correct control for the element to be used.

Incorrectcontrol setting. Raiseor lower setting until proper amount of heatisobtained.

Dial markings are an indicator of relative heat settings and will vary slightly.

Lightweight or warped pansbeing used. Useonly flat, evenly balanced, medium or

heavyweight cookware.

Voltage is incorrect. Besure appliance is properly connected to the specified power
source.

Food not heating evenly.

Scratches or abrasions on ceramic

glass cooktop surface.

Use only flat bottom, evenly balanced, medium or heavyweight cookware. Pans

having a flat bottom heat better than warped pans. Cookware material affects

heating. Heavyand medium weight pans heat evenly. Becauselightweight pans heat

unevenly, foods may burn easily.

Improper cookware. Select flat-bottomed cookware of a proper sizeto fit element.

Incorrectcontrol setting. Raiseor lower setting until proper amount of heatisobtained.

Coarse particles(suchassaltor sand)arebetween cooktop and utensil. Besurecooktop
surface and bottom of utensils are clean before use. Small scratches do not affect

cooking and will become lessvisible with use.

Cleaning materials not recommended for glassceramic cooktop havebeen used. See
Ceramic-Glass Cooktop section in this Owner's Guide.

Cookware with rough bottom hasbeen used.Useflat-bottomed, smooth utensils.See
Selecting Surface Cooking Utensils in this Owner's Guide.

13

Avoid Service Checklist (continued)

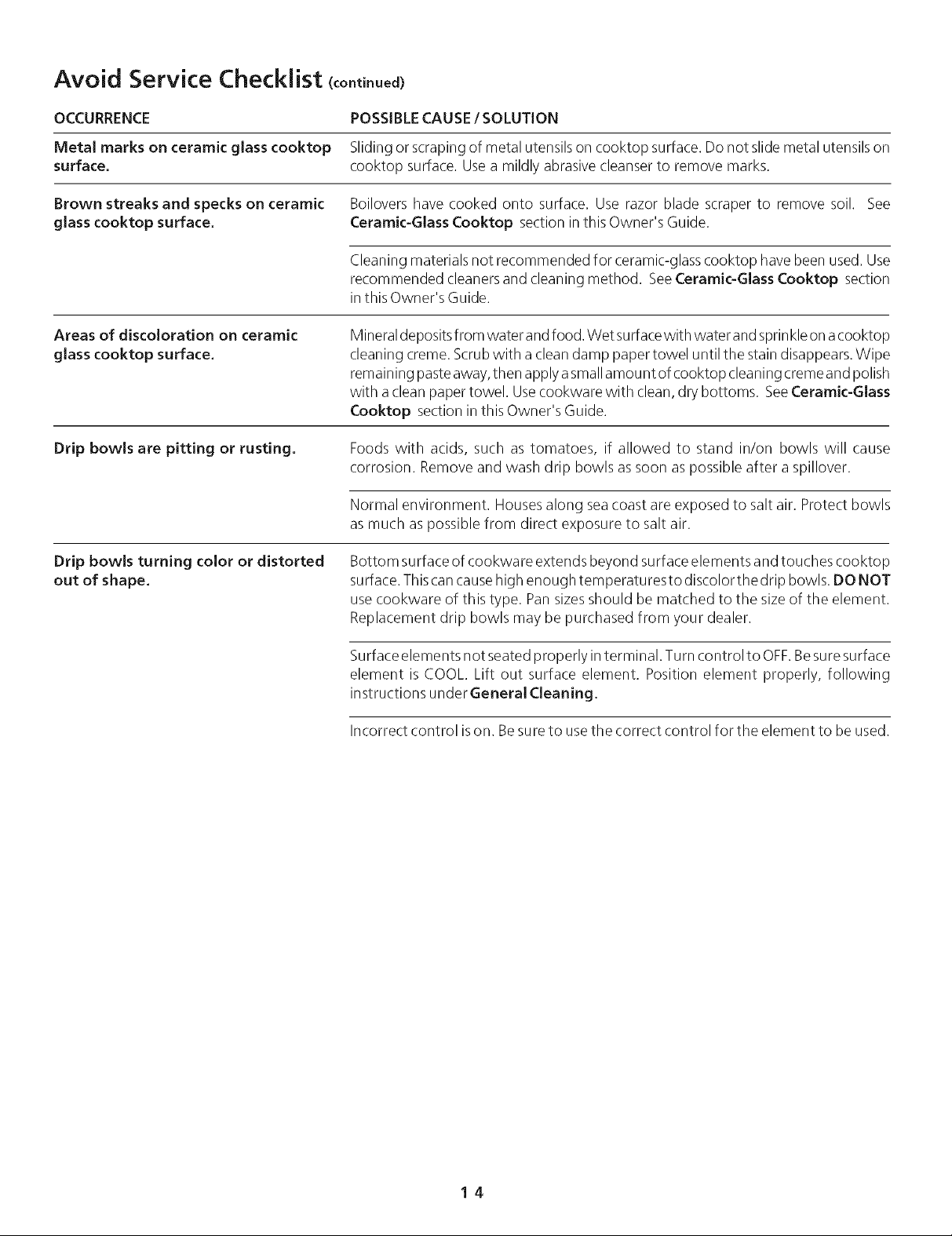

OCCURRENCE POSSIBLECAUSE/SOLUTION
Metal marks on ceramic glass cooktop Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensilson

surface, cooktop surface. Use a mildly abrasive cleanser to remove marks.

Brown streaks and specks on ceramic Boilovers have cooked onto surface. Use razor blade scraper to remove soil. See
glass cooktop surface. Ceramic-Glass Cooktop section in this Owner's Guide.

Cleaning materials not recommended for ceramic-glasscooktop have been used. Use
recommended cleanersand cleaning method. SeeCeramic-Glass Cooktop section
in this Owner's Guide.

Areas of discoloration on ceramic
glass cooktop surface.

Drip bowls are pitting or rusting. Foods with acids, such as tomatoes, if allowed to stand in/on bowls will cause

Drip bowls turning color or distorted
out of shape.

Mineraldeposits from water and food. Wet surfacewith water and sprinkleon acooktop
cleaning creme. Scrubwith a cleandamp paper towel until the stain disappears.Wipe

remaining pasteaway,then applyasmallamount of cooktop cleaningcreme and polish

with aclean paper towel. Usecookware with clean,dry bottoms. SeeCeramic-Glass

Cooktop section in this Owner's Guide.

corrosion. Remove and wash drip bowls as soon as possible after a spillover.

Normal environment. Housesalong seacoast are exposed to salt air. Protect bowls
asmuch as possible from direct exposure to salt air.

Bottom surface of cookwa reextends beyond surface elements and touches cooktop
surface.Thiscancausehigh enough temperaturesto discolor the drip bowls. DONOT

usecookware of this type. Pan sizesshould be matched to the size of the element.
Replacement drip bowls may be purchased from your dealer.

Surfaceelements not seated properly interminal. Turn control to OFF.Besuresurface
element is COOL. Lift out surface element. Position element properly, following

instructions under General Cleaning.

Incorrect control ison. Be sureto usethe correct control for the element to be used.

14

Notes

15

Major Appliance Warranty information

Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be
defective in materials or workmanship when such appliance is installed, used and maintained in

accordance with the provided instructions.

Exclusions

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased "as-is" are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or

knobs, handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip

charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the finish of appliance or home incurred during installation, including but not limited to

floors, cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT

REPAIR OR REPLACEMENTAS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE

LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE
YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH

AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS
WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR
LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS

MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY
ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period

Service should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.

Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp.

Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under
this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as
described or illustrated are subject to change without notice.

USA

1.800.944.9044
Electrolux Major Appliances

North America
P.O. Box 212378

Augusta, GA 30907

[] Electrolux

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada

Canada

1.800.668.4606

L5V 3E4
