Product No. FEC26C2ACD FEC26C2AQD FEC26C2ASD
38054111510C4 3805411151044 3805411151014
Series 26" elec 26" elec 26" elec
Color stainless bisque white
Market North America North America North America
Wiring Diagram 318046901 318046901 318046901
Owner's Guide 318200612 318200612 318200612
Installation Instructions 318201410 318201410 318201410
FEC26C2A.eps LA9923G37B.eps LA9923V38.eps 318046901.eps
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995403028
04/02/02
(EN/SERVICE/ECL)
377
ELECTRIC COOK-TOP
RANGE
Model No.
FEC26C2A
Copyright © 2004 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995403028 FEC26C2A
CONTROL PANEL
02/04 2
FEC26C2A Publication No: 5995403028
CONTROL PANEL
POS. NO PART NO. DESCRIPTION
14 # 318044822 A B C Light, indicator, clear
16 5303291992 A B C Plate, instrument mtg
19 318242500 A - - Panel, control, white
19 318242502 - B - Panel, control, black
19 318242501 - - C Panel, control, bisque
36 318196633 A - - Knob, control, white
36 318196634 - B - Knob, control, black
36 318196635 - - C Knob, control, bisque
46 5303297274 A B C Lens, indicator light
54 # 318220009 A B C Switch, surface unit, small
54A# 318220010 A B C Switch, surface unit, large
* 318146010 A B C Bushing, switch
69 5303323134 A B C Screw, switch mtg., 8-32 x 0.188
110 5303324191 A B C Washer, flat
111 5303272289 A B C Seal, indicat or ligh t
163 318014100 A B C Spacer
* 3051070 A B C Screw, hex washer head, 10-24 x 0.438, special
* 5303311306 A B C Screw, 8-18 x 0.375
* 5303323140 A B C Screw, ground, 10-32 x 0.375
* 5304410665 A B C Screw, 10-32 x 5/8
Model Index: A FEC26C2A (FEC26C2ASD)
B FEC26C2A (FEC26C2ACD)
C FEC26C2A (FEC26C2AQD)
# Functional Parts
3 02/04
* Non-Ilustrated Parts
Publication No: 5995403028 FEC26C2A
MAIN TOP/SURFACE UNITS
02/04 4
FEC26C2A Publication No: 5995403028
MAIN TOP/SURFACE UNITS
POS. NO PART NO. DESCRIPTION
15 # 3051450 A B C Element, surface, 8" large
15A# 3051449 A B C Element, surface, 6" small
16 318159005 A - - Main Top, white
16 318159002 - B - Main Top, stainless
16 318159050 - - C Main Top, bisque
17 3016817 A B C Rod, maintop support
18 318074310 A B C Hinge, maintop, (2)
19 # 318067056 A B C Pan, surface element, large, chrome
19A# 318067046 A B C Pan, surface element, small, chrome
27 # 318223409 A B C Terminal Block, surface element, 24", yellow leads
27 # 318223422 A B C Terminal Block, surface element, 18", white leads
27 # 318223423 A B C Terminal Block, surface element, 36", brown leads
27 # 318223424 A B C Terminal Block, surface element, 36", orange leads
28 5303017715 A B C Medallion, 1 1/2"dia, black, surface element
46 318077312 A B C Burner Box
63 5303291326 A B C Plate, grounding
93 5303304731 A B C Bracket, terminal block
183 5304410665 A B C Screw, 10-32 x 5/8
* # 318078532 A B C Box & wires assy
* 08067961 A B C Fastener, clip cable
* 08016432 A B C Screw, truss head, 8-18 x 0.375
* 5303300195 A B C Screw, 10-32 x 0.375, terminal block, (2)
Model Index: A FEC26C2A (FEC26C2ASD)
B FEC26C2A (FEC26C2ACD)
C FEC26C2A (FEC26C2AQD)
# Functional Parts
5 02/04
* Non-Ilustrated Parts
Publication No: 5995403028 FEC26C2A

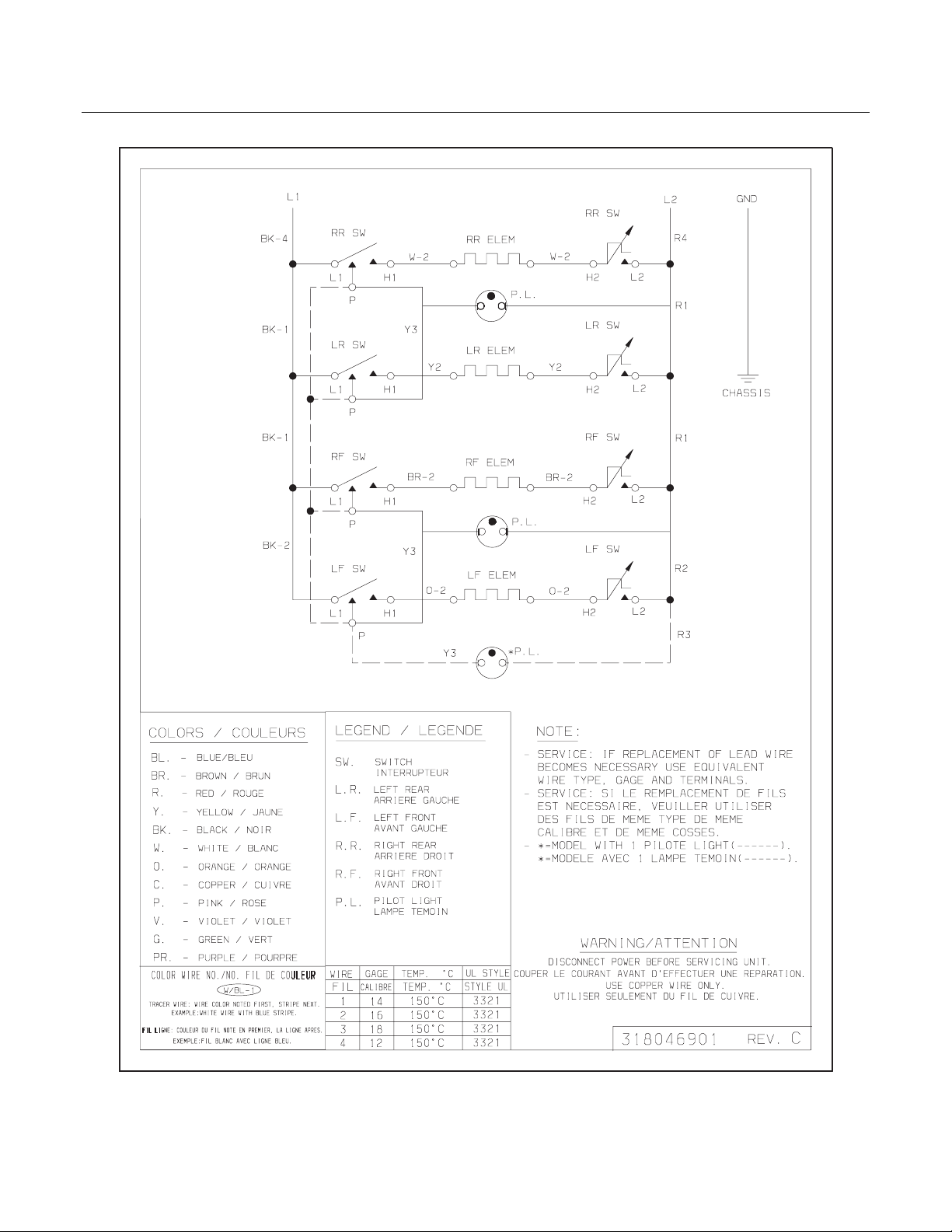

WIRING DIAGRAM
02/04 6
