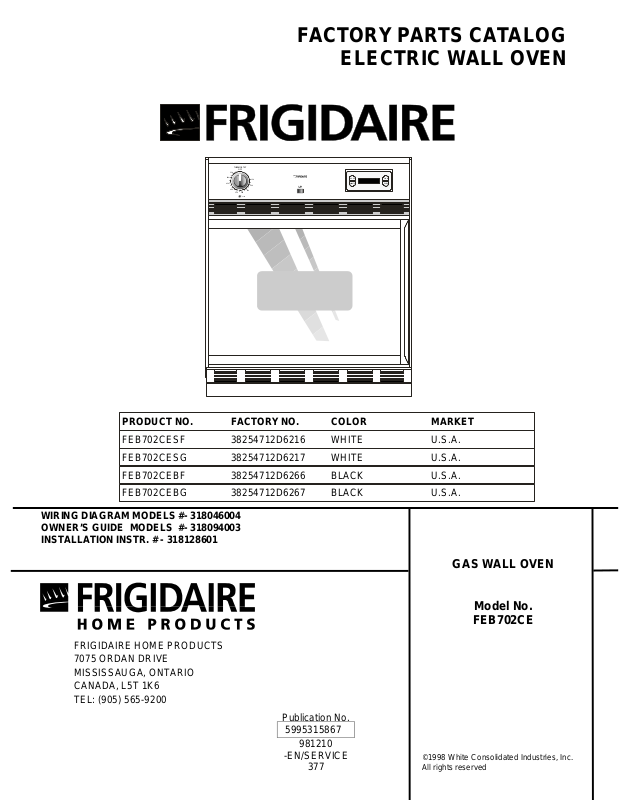

FAC TORY PARTS CAT A LOG

ELEC TRIC WALL OVEN

THERMOS TAT

OFF

550

500

150

450

200

400

250

350

300

OVEN

OVEN LIGHT

HOUR

MINUTE

CLOCK

TIMER

PRO DUCT NO. FAC TORY NO. COLOR MARKET

FEB702CESF 38254712D6216 WHITE U.S.A. FEB702CESG 38254712D6217 WHITE U.S.A. FEB702CEBF 38254712D6266 BLACK U.S.A. FEB702CEBG 38254712D6267 BLACK U.S.A.

WIRING DI A GRAM MODELS #- 318046004 OWNER’S GUIDE MODELS #- 318094003 IN STAL LA TION INSTR. # - 318128601

FRIGIDAIRE HOME PROD UCTS 7075 ORDAN DRIVE MISSISSAUGA, ON TARIO CANADA, L5T 1K6 TEL: (905) 565-9200

GAS WALL OVEN

Model No.

FEB702CE

Pub li ca tion No.

5995315867

981210

-EN/SER VICE 377

Pub li ca tion No. FEB702CE 5995315867

CON TROL PANEL

68

18

99

18A

65

21

99

23

20

12

100

19

24

14

69

12/98 2

32

42

LAP23G0274

A = FEB702CE (FEB702CESF) B = FEB702CE (FEB702CESG) C = FEB702CE (FEB702CEBF) D = FEB702CE (FEB702CEBG)

POS. NO PART NO DE SCRIP TION

12 # 318058300 A B C D Ther mo stat-oven 14 5303320424 A B C D Light/Lamp 18 5303302377 A B C D End Cap RH 18 A 5303302378 A B C D End Cap LH 19 318129602 A B Panel-control white 19 318129603 C D Panel-control black 20 # 318011919 A Clock/Timer 20# 318013907 B Clock/Timer 20 # 318011918 C Clock/Timer 20# 318013908 D Clock/Timer 21 5303299529 A B Trim-canopy white 21 318027900 C D Trim-canopy black 23 318015720 A C Bracket 23 318015721 B D Bracket 24 # 316005607 A B Switch-rocker white 24 # 316005602 C D Switch-rocker black 32 318017206 A B Knob-thermostat white 32 318017205 C D Knob-thermostat black 42 318026908 A B - - Trim-vent white 42 318026906 - - C D Trim-vent black 65 5304401696 A B C D Cover-control hous ing 68 5303302376 A B C D Housing control 69 5303323134 A B C D Screw 8-32 X 3/16 99 5303320683 A B Screw, 6-20 X 3/8 (white) 99 5303307406 C D Screw, 6-32 X 3/8 (black) 100 318112200 A B C D Plate switch mtg * 5303308458 A B C D Screw 10-24 X ¼ * 5303211311 A B C D Screw #8 X ½ * 3201861 A B C D Screw, 6 X 3/8

FEB702CE Pub li ca tion No.

5995315867

CON TROL PANEL

# = Func tional Part 3 12/98 * = Non-Illustrated Part
