Frigidaire FEB374CHBA, FEB374CHSA, FEB374CHTA, FEB386CEBA, FEB386CEBC Installation Guide
...
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
Your new wall oven has been designed to fit a limited variety of cutout sizes to make the job of installing
easier. The first step of your installation should be to measure your current cutout dimensions and
compare them to the cutout dimensions chart below for your model. You may find little or no cabinet
work will be necessary.
Do not remove spacers (if equipped) on the
side walls and/or on the back of the built-in oven. These
spacers center the oven in the space provided. The oven
must be centered to prevent excess heat buildup that may
result in heat damage or fire.
NOTE: Base must be capable of supporting
150 pounds (68 kg).
** NOTE: Allow at least 19 3/8" (49.2 cm)
clearance for door depth when it is open.
NOTE: Dimension G is critical to the proper
installation of the built-in oven. If the oven
decorative moulding does not but against
the cabinet, or if noise is heard on
convection models, verify dimension G to
assure it is according to the required
dimension.
NOTE: For a cutout height greater than H
Min. dimension add one 2" (5 cm) wide
wood shim to each side of the opening
under the appliance side rails.

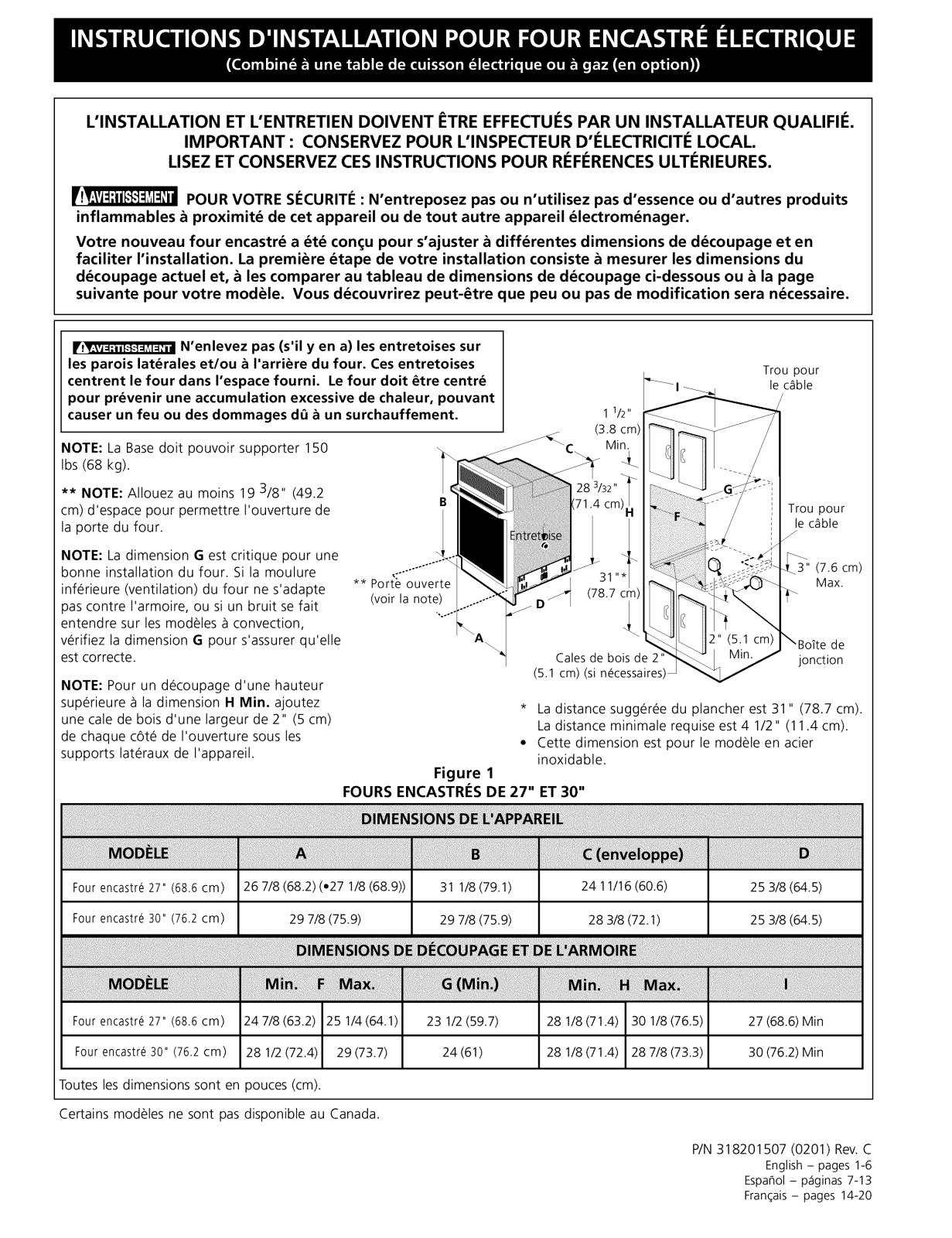

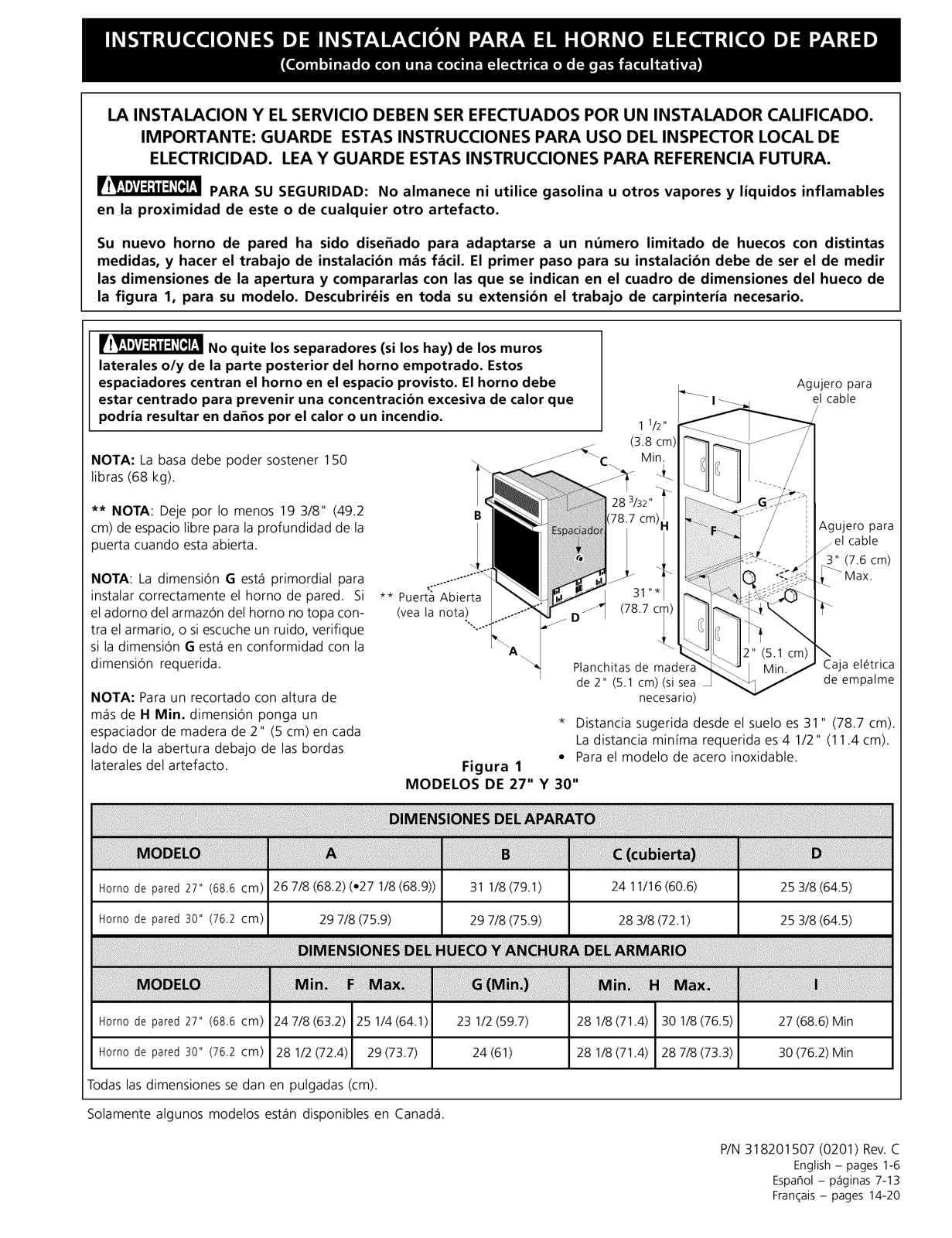

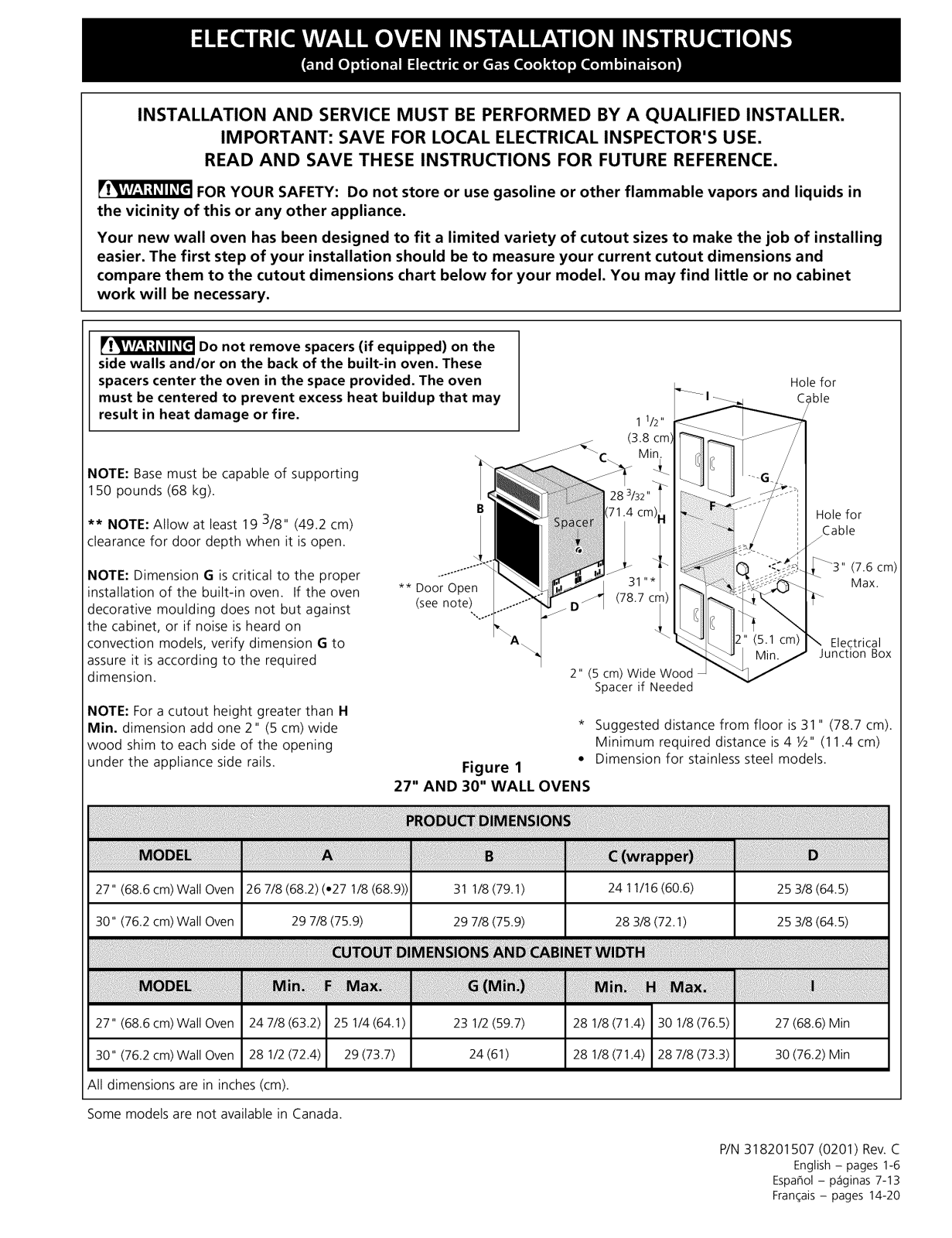

27" AND 30" WALL OVENS
Figure 1
(78.7 c_.
2" (5 cm) Wide Wood
Spacer if Needed
Suggested distance from floor is 31" (78.7 cm).
Minimum required distance is 4 1/2"(11.4 cm)
Dimension for stainless steel models.
Hole for
O_ble
Hole for
zCable
Junction Box
Electrical
(7.6 cm)
Max.
27" (68.6 cm) Wall Oven 26 7/8 (68.2) (,27 1/8 (68.9))
30" (76.2 cm) Wall Oven 29 7/8 (75.9)
All dimensions are in inches (cm).
Some models are not available in Canada.
31 1/8 (79.1) 24 11/16 (60.6) 25 3/8 (64.5)
29 7/8 (75.9) 28 3/8 (72.1) 25 3/8 (64.5)
P/N 318201507 (0201) Rev. C
English - pages 1-6
Espa_ol - p_tginas 7-13
Fran_ais - pages 14-20

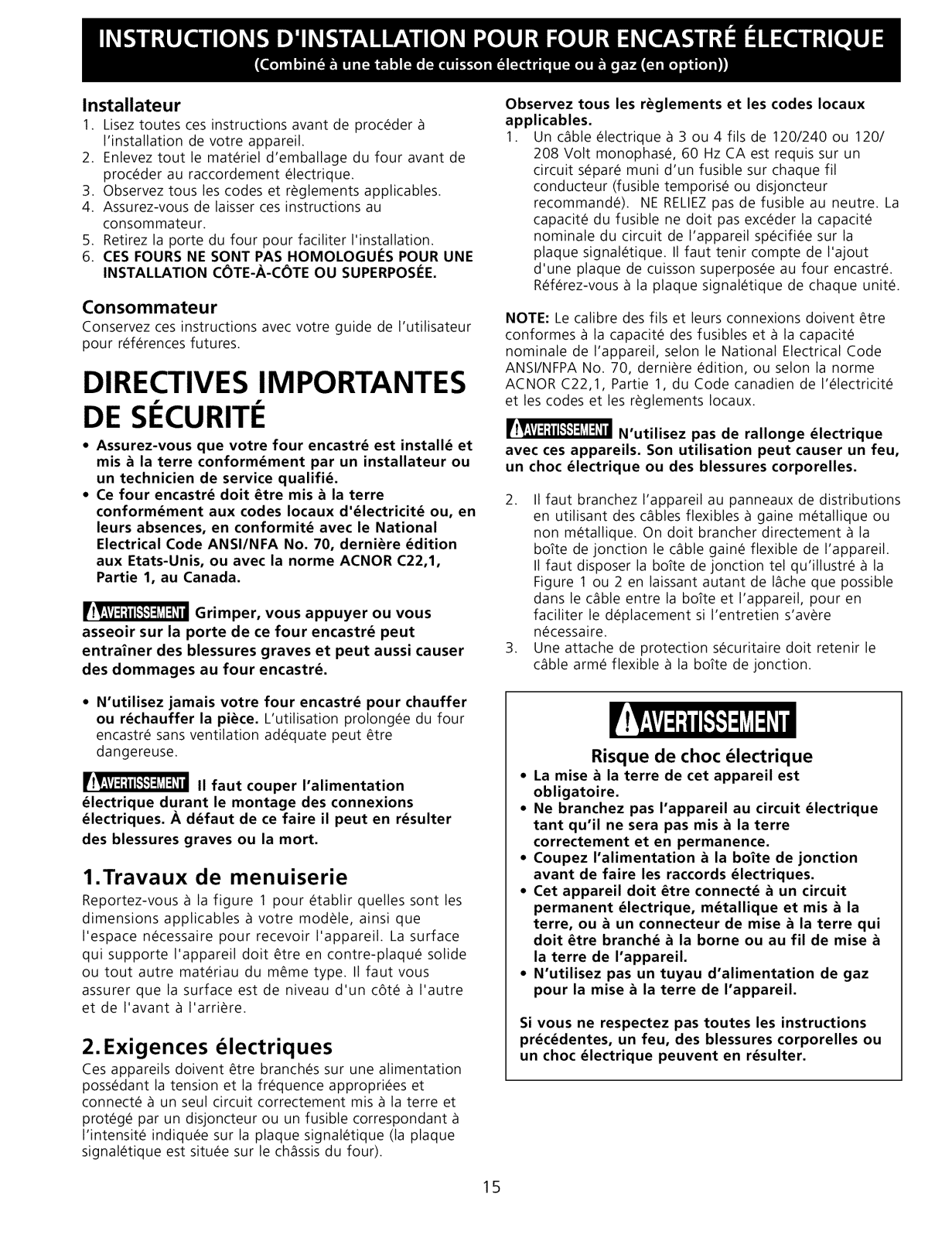

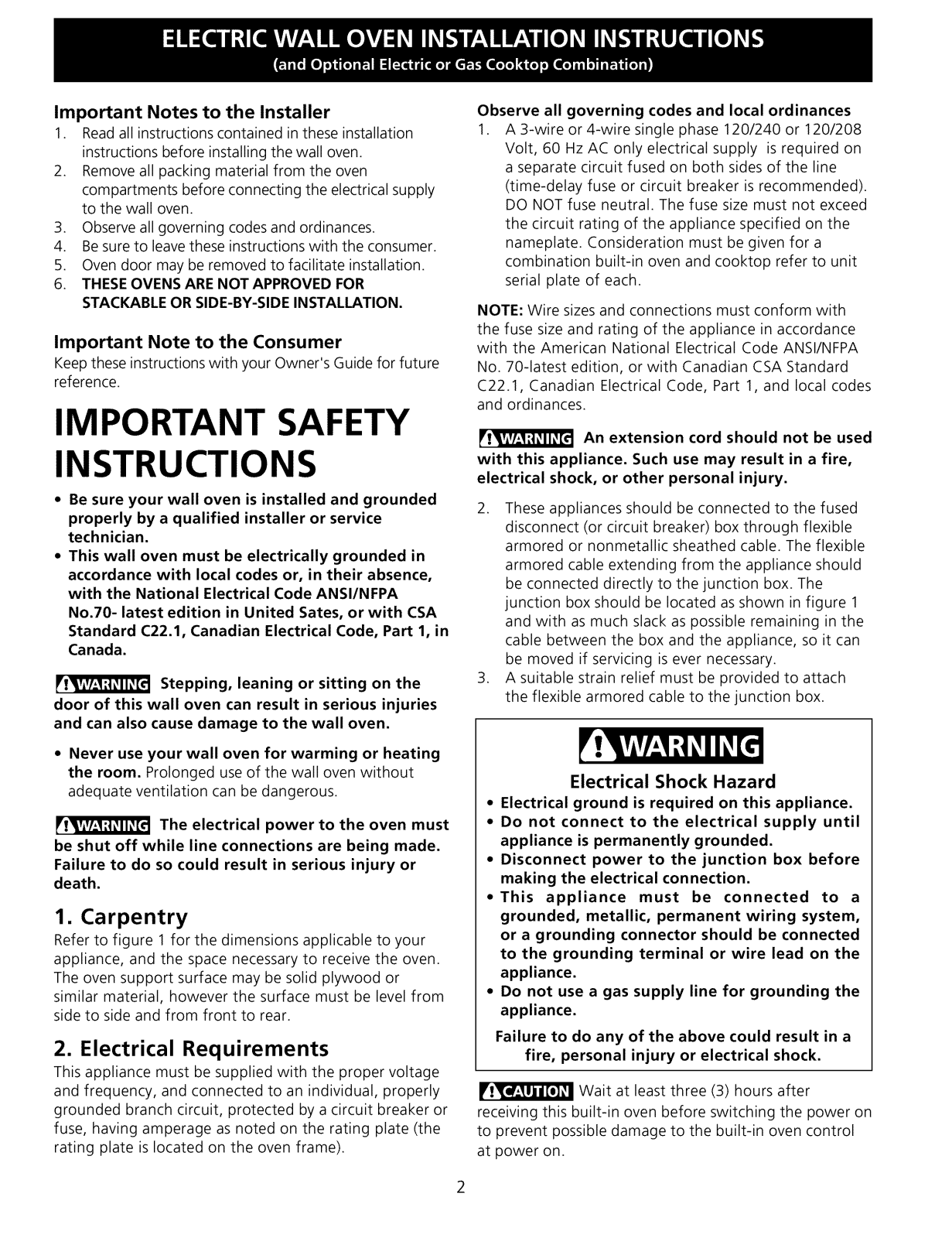

Important Notes to the Installer
1. Readall instructionscontained inthese installation
instructions before installing the wall oven.
2. Remove all packing material from the oven
compartments before connecting the electrical supply
to the wall oven.
3. Observe all governing codes and ordinances.
4. Besure to leavethese instructions with the consumer.
5. Oven door may be removed to facilitate installation.
6. THESEOVENS ARE NOT APPROVED FOR
STACKABLEOR SIDE-BY-SIDE INSTALLATION.
Important Note to the Consumer
Keep these instructions with your Owner's Guide for future
reference.
IMPORTANT SAFETY
INSTRUCTIONS
• Be sure your wall oven is installed and grounded
properly by a qualified installer or service
technician.
• This wall oven must be electrically grounded in
accordance with local codes or, in their absence,
with the National Electrical Code ANSI/NFPA
No.70- latest edition in United Sates, or with CSA
Standard C22.1, Canadian Electrical Code, Part 1, in
Canada.
Stepping, leaning or sitting on the
door of this wall oven can result in serious injuries
and can also cause damage to the wall oven.
Observe all governing codes and local ordinances
1. A 3-wire or 4-wire single phase 120/240 or 120/208
Volt, 60 Hz AC only electrical supply is required on
a separate circuit fused on both sides of the line
(time-delay fuse or circuit breaker is recommended).
DO NOT fuse neutral. The fuse size must not exceed
the circuit rating of the appliance specified on the
nameplate. Consideration must be given for a
combination built-in oven and cooktop refer to unit
serial plate of each.
NOTE: Wire sizes and connections must conform with
the fuse size and rating of the appliance in accordance
with the American National Electrical Code ANSI/NFPA
No. 70-latest edition, or with Canadian CSA Standard
C22.1, Canadian Electrical Code, Part 1, and local codes
and ordinances.
An extension cord should not be used
with this appliance. Such use may result in a fire,
electrical shock, or other personal injury.
2. These appliances should be connected to the fused
disconnect (or circuit breaker) box through flexible
armored or nonmetallic sheathed cable. The flexible
armored cable extending from the appliance should
be connected directly to the junction box. The
junction box should be located as shown in figure 1
and with as much slack as possible remaining in the
cable between the box and the appliance, so it can
be moved if servicing is ever necessary.
3. A suitable strain relief must be provided to attach
the flexible armored cable to the junction box.
• Never use your wall oven for warming or heating
the room. Prolonged use of the wall oven without
adequate ventilation can be dangerous.
The electrical power to the oven must
be shut off while line connections are being made.
Failure to do so could result in serious injury or
death.
1. Carpentry
Refer to figure 1 for the dimensions applicable to your
appliance, and the space necessary to receive the oven.
The oven support surface may be solid plywood or
similar material, however the surface must be level from
side to side and from front to rear.
2. Electrical Requirements
This appliance must be supplied with the proper voltage
and frequency, and connected to an individual, properly
grounded branch circuit, protected by a circuit breaker or
fuse, having amperage as noted on the rating plate (the
rating plate is located on the oven frame).
Electrical Shock Hazard
• Electrical ground is required on this appliance.
• Do not connect to the electrical supply until
appliance is permanently grounded.
• Disconnect power to the junction box before
making the electrical connection.
• This appliance must be connected to a
grounded, metallic, permanent wiring system,
or a grounding connector should be connected
to the grounding terminal or wire lead on the
appliance.
• Do not use a gas supply line for grounding the
appliance.
Failure to do any of the above could result in a
fire, personal injury or electrical shock.
Wait at least three (3) hours after
receiving this built-in oven before switching the power on
to prevent possible damage to the built-in oven control
at power on.
2

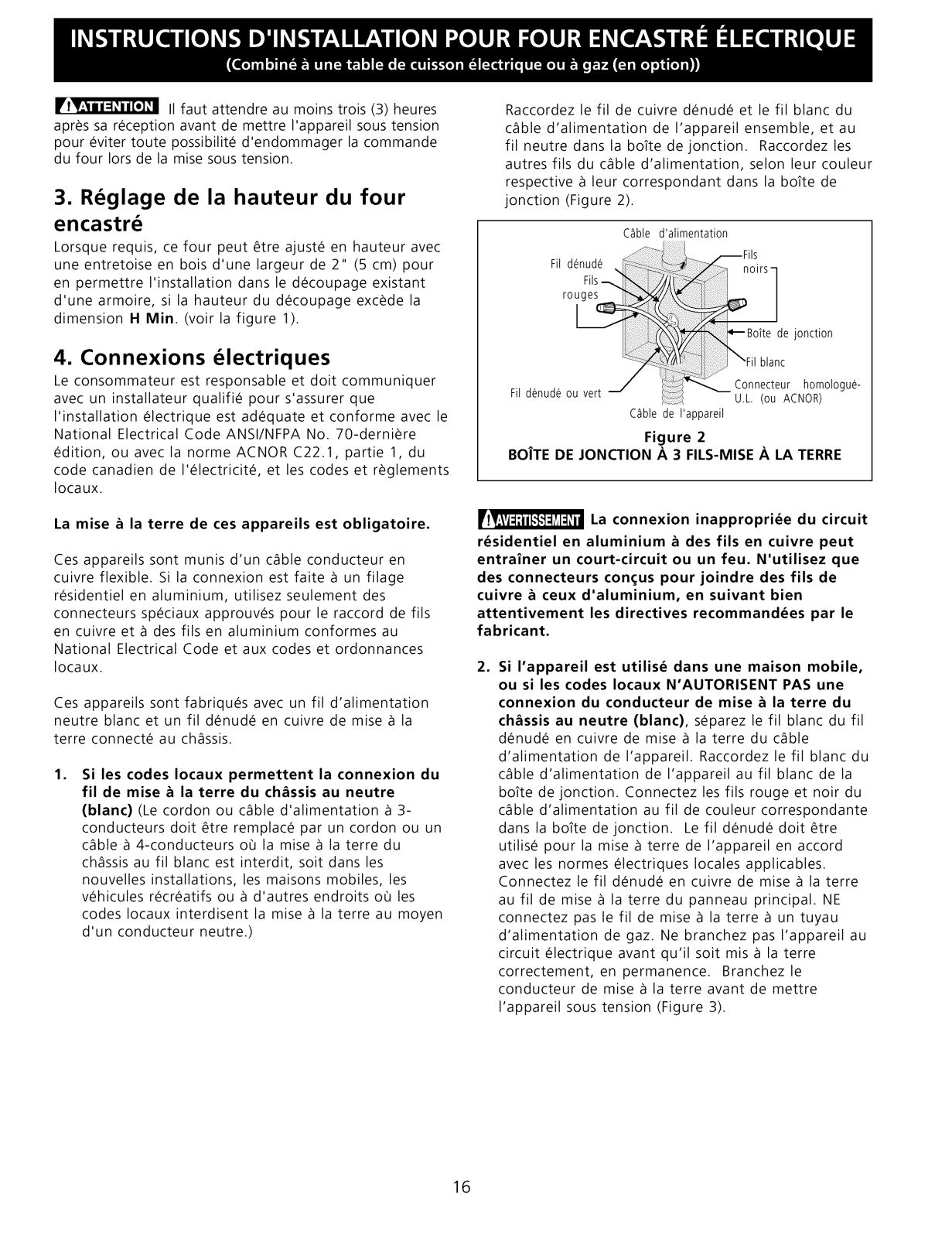

3. Adjusting Oven Height
Oven height can be adjusted with 2" (5 cm) wide wood
shims when needed to fit into an existing cabinet cutout
opening, when cutout height exceeds H Min. dimension
(see Figure 1).
Improper connection of aluminum
house wiring to copper leads can result in a short
circuit or fire. Use only connectors designed for
joining copper to aluminum, and follow the
manufacturer's recommended procedure closely.
4. Electrical connection
It isthe responsibility and obligation of the consumer to
contact a qualified installer to assure that the electrical
installation is adequate and is in conformance with the
National Electrical Code ANSI/NFPA No. 70-latest edition,
or with CSA Standard C22.1, Canadian Electrical Code,
Part 1, and local codes and ordinances.
Electrical ground is required on this appliance.
These appliances are equipped with a copper conductor
flexible cable. If connection is made to aluminum house
wiring, use only special connectors which are approved
for joining copper and aluminum wires in accordance
with National Electrical Code and local codes and
ordinances.
These appliances are manufactured with a white neutral
power supply wire and a frame connected green or bare
copper grounding wire.
.
If local codes permit connection of the frame
grounding conductor to the neutral (white) wire.
(The 3-conductor cord or cable must be replaced with
a 4-conductor cord or cable where grounding through
the neutral conductor is prohibited in new
installations, mobile homes, recreational vehicles or
in other areas where local codes do not permit
neutral grounding)
Connect the green (or bare copper) wire and the
white wire from the appliance cable to the supply
cable ground wire (white or bare) inside the junction
box. Connect the remaining wires inside the junction
box from the power supply cable to the matching
colors of the appliance cable wires (figure 2).

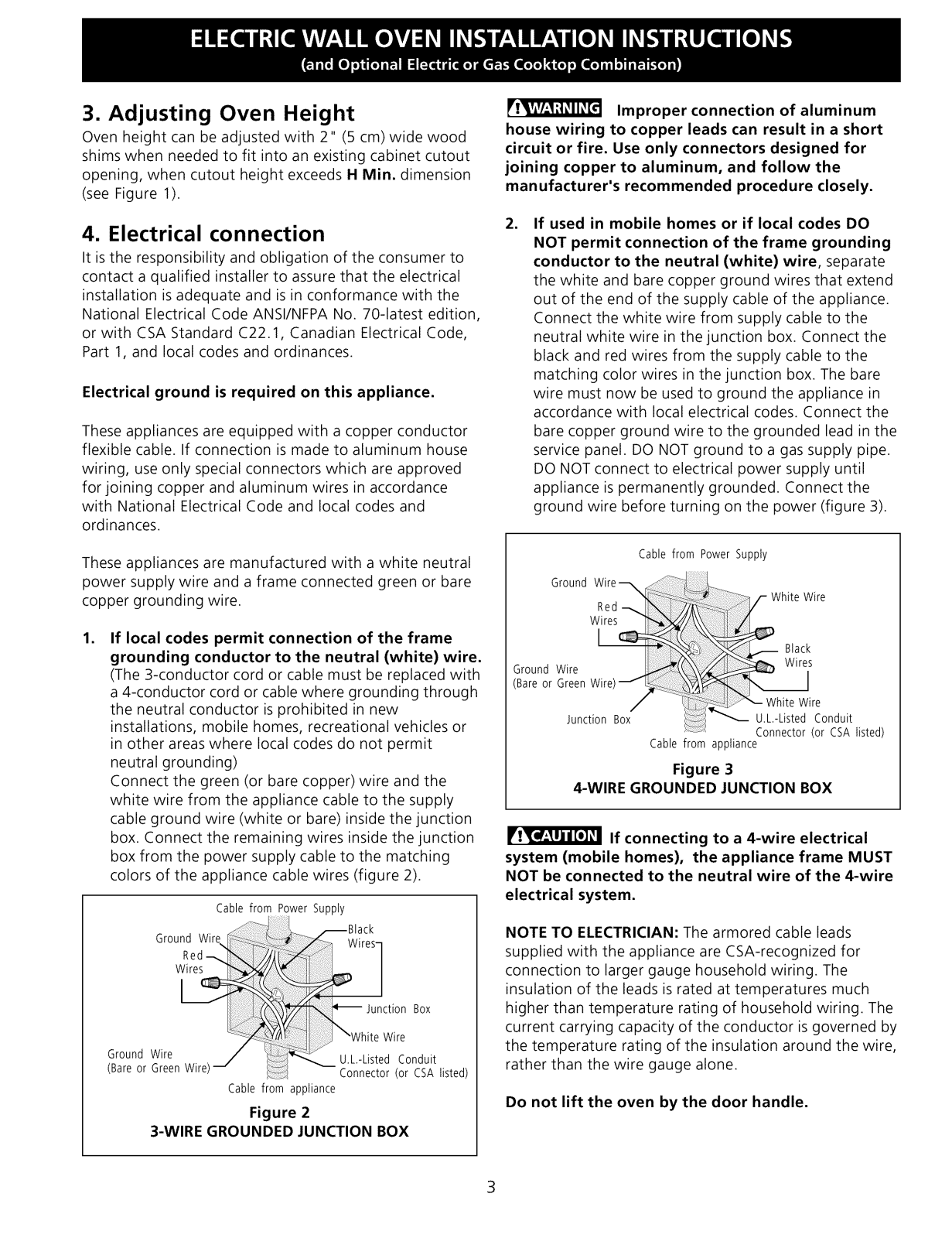

Cable from Power Supply
Black
Ground Wit Wires
Red 1
ction Box
Ground Wire
(Bare or _ U.L.-Listed Conduit
Green (or CSA listed)Connector
Cable from appliance
Figure 2
3-WIRE GROUNDED JUNCTION BOX
Wire
. If used in mobile homes or if local codes DO
NOT permit connection of the frame grounding
conductor to the neutral (white) wire, separate
the white and bare copper ground wires that extend
out of the end of the supply cable of the appliance.
Connect the white wire from supply cable to the
neutral white wire in the junction box. Connect the
black and red wires from the supply cable to the
matching color wires in the junction box. The bare
wire must now be used to ground the appliance in
accordance with local electrical codes. Connect the
bare copper ground wire to the grounded lead in the
service panel. DO NOT ground to a gas supply pipe.
DO NOT connect to electrical power supply until
appliance is permanently grounded. Connect the
ground wire before turning on the power (figure 3).

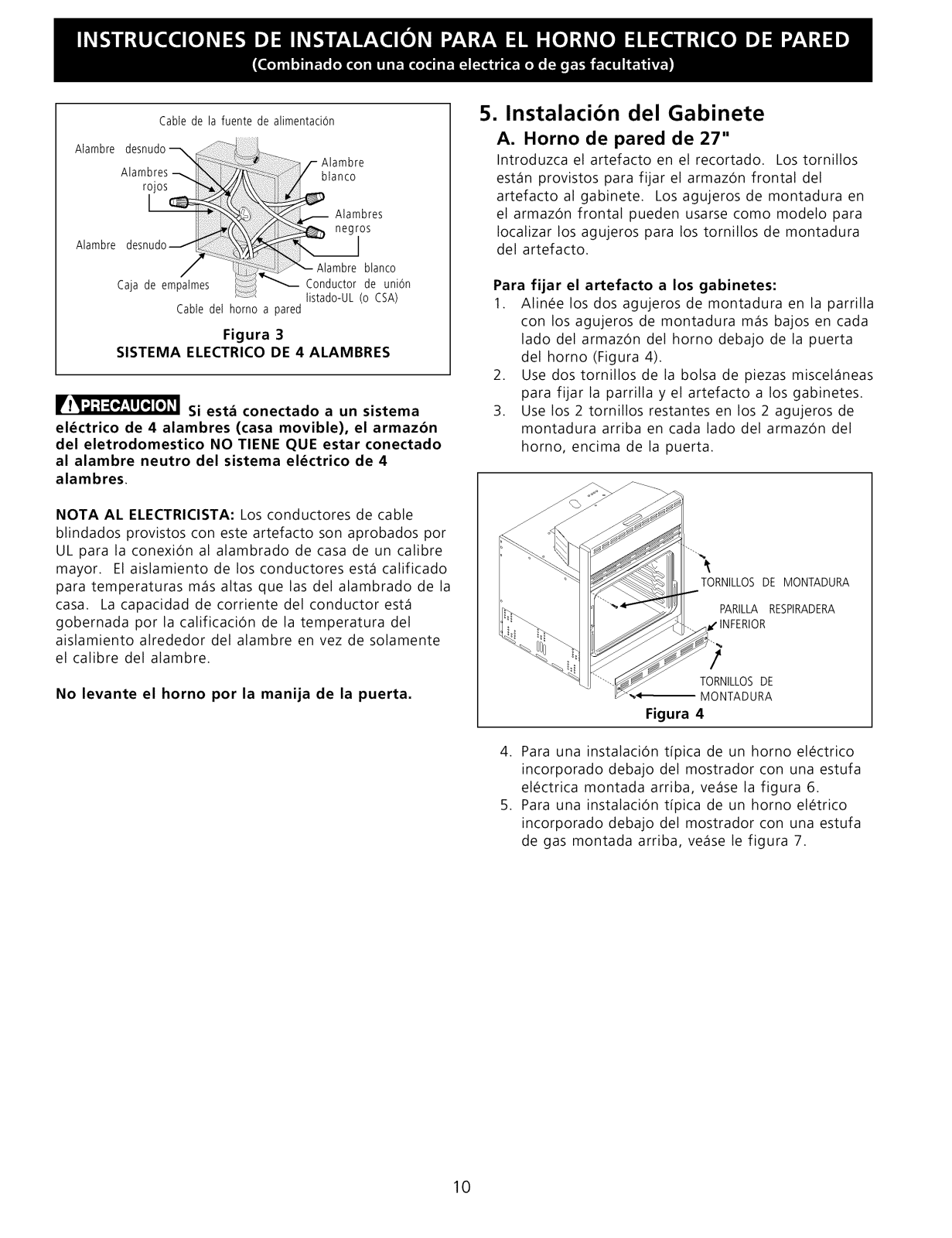

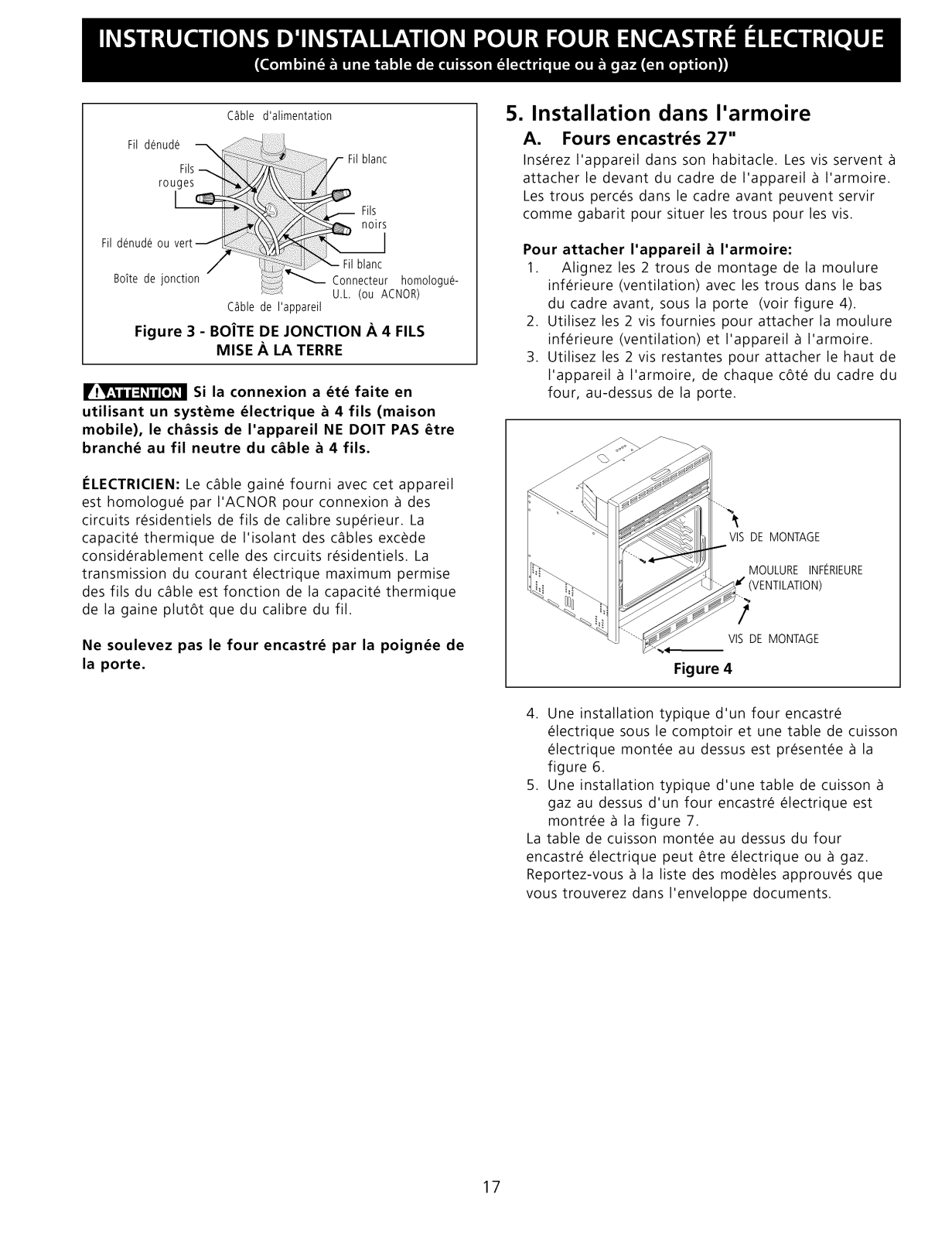

Cable from Power Supply
U.L.-Listed Conduit
Cable from appliance
Connector (or CSA listed)
Figure 3
4-WIRE GROUNDED JUNCTION BOX
If connecting to a 4-wire electrical
system (mobile homes), the appliance frame MUST
NOT be connected to the neutral wire of the 4-wire
electrical system.
NOTE TO ELECTRICIAN: The armored cable leads
supplied with the appliance are CSA-recognized for
connection to larger gauge household wiring. The
insulation of the leads is rated at temperatures much
higher than temperature rating of household wiring. The
current carrying capacity of the conductor is governed by
the temperature rating of the insulation around the wire,
rather than the wire gauge alone.
Do not lift the oven by the door handle.
3
5. Cabinet Installation
A. 27" Wall Oven
Insert appliance into cutout. Use the screws provided
to fasten the front frame of the appliance to the
cabinet. The mounting holes in the front frame of
appliance may be used as a template to locate the
appliance mounting screw holes.
To fasten the appliance to the cabinet:
1. Line up the 2 mounting holes on the decorative
trim (ventilation) (taped to the oven side panel)
with the lower mounting holes on each side of the
oven frame, below the oven door (see figure 4).
2. Use 2 screws from the miscellaneous parts bag to
secure the decorative trim (ventilation) and
appliance to the cabinetry.
3. Use the remaining 2 screws for mounting the
appliance in the upper two mounting holes on
each side of the oven frame, above the door.
"--.
MOUNTING
REW
DECORATIVE TRIM
VENTILATION)
/
MOUNTING
SCREW
Figure 4
driver (square drive preferred, however a No. 2
Phillips@or Quadrex@ screw driver can also be
used). (If not removed, open the door to remove the
screws, located at the upper end of the side trim).
3. Insertthe unit into the cabinet opening. Slideunit
inward leaving 1 3/8" (3.5 cm) clearance between
the oven decorative trim and cabinet. Pull the
armored cable through the hole inthe floor and
toward the junction box while moving the appliance
inward. Use the second set of holes inthe side frame
of the unit asa guide to find the position of the anti-
tip brackets on the sides of the cabinet opening.
Mark the position of the anti-tip brackets as shown in
Figure 5.
4. Pullout the oven approximately 1 foot (30.5 cm)
away from the cabinet. Reposition each bracket on
the cabinet and drill 1/8" pilot holes. Fastenthe
brackets in place using the 2 screws supplied (#10 x
1 I/4" long).
If needed, add wood spacers at the anti-tip bracket
locations to reduce the cabinet opening to 28 I/2"
(72.4 cm).
Now push the unit in and against the cabinet, then
attach the unit to the anti-tip brackets using the 2
screws removed earlier from the side frame.
.
Fortypical under counter installation of an electric
built-in oven with an electric cooktop above, see
Figure 6.
.
Fortypical under counter installation of an electric
built-in oven with a gas cooktop mounted above, see
Figure 7.
4. For typical Under counter installation of an electric
built-in oven with an electric cooktop mounted
above, see Figure 6.
5. Fortypical under counter installation of an electric
built-in oven with a gas cooktop mounted above,
see Figure 7.

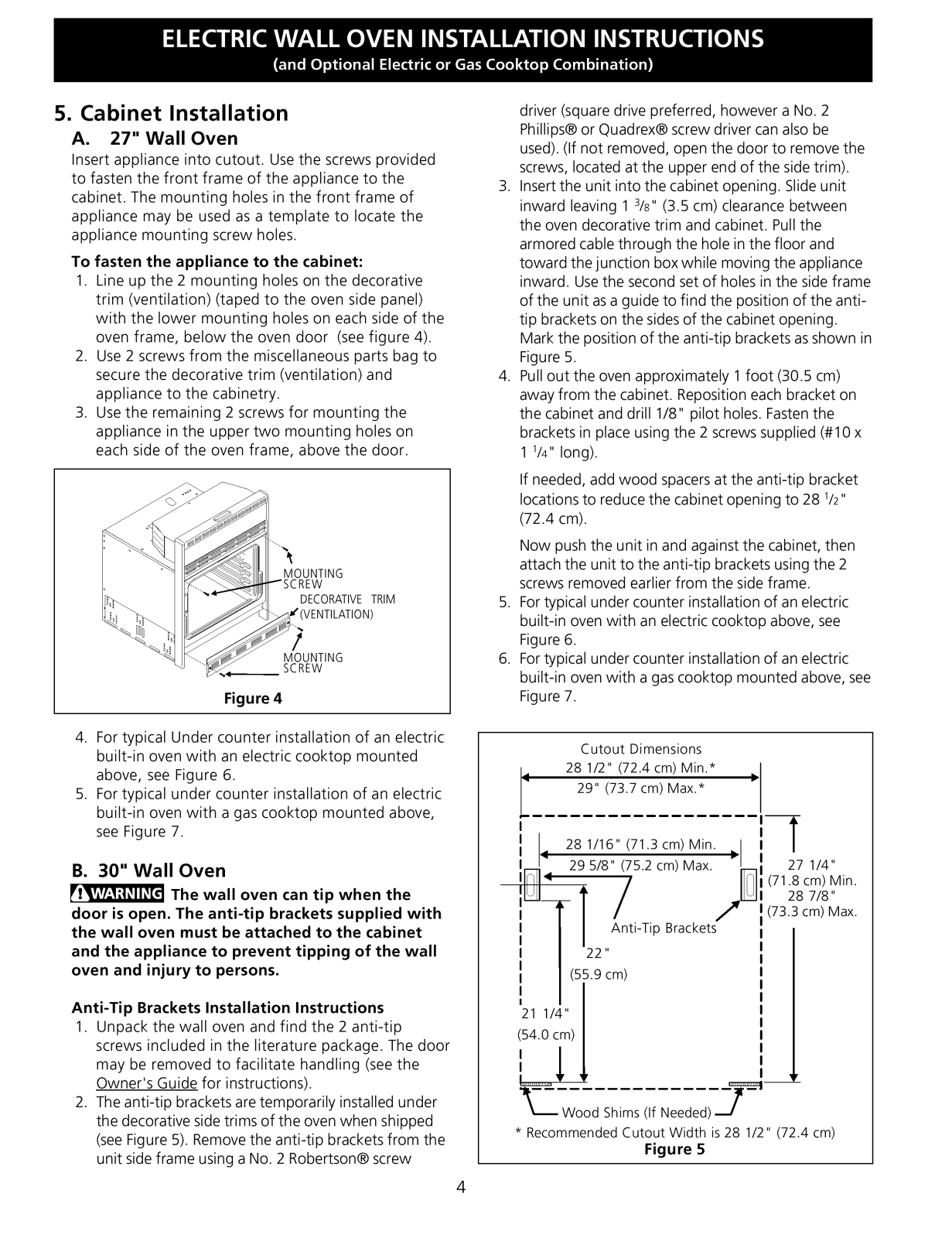

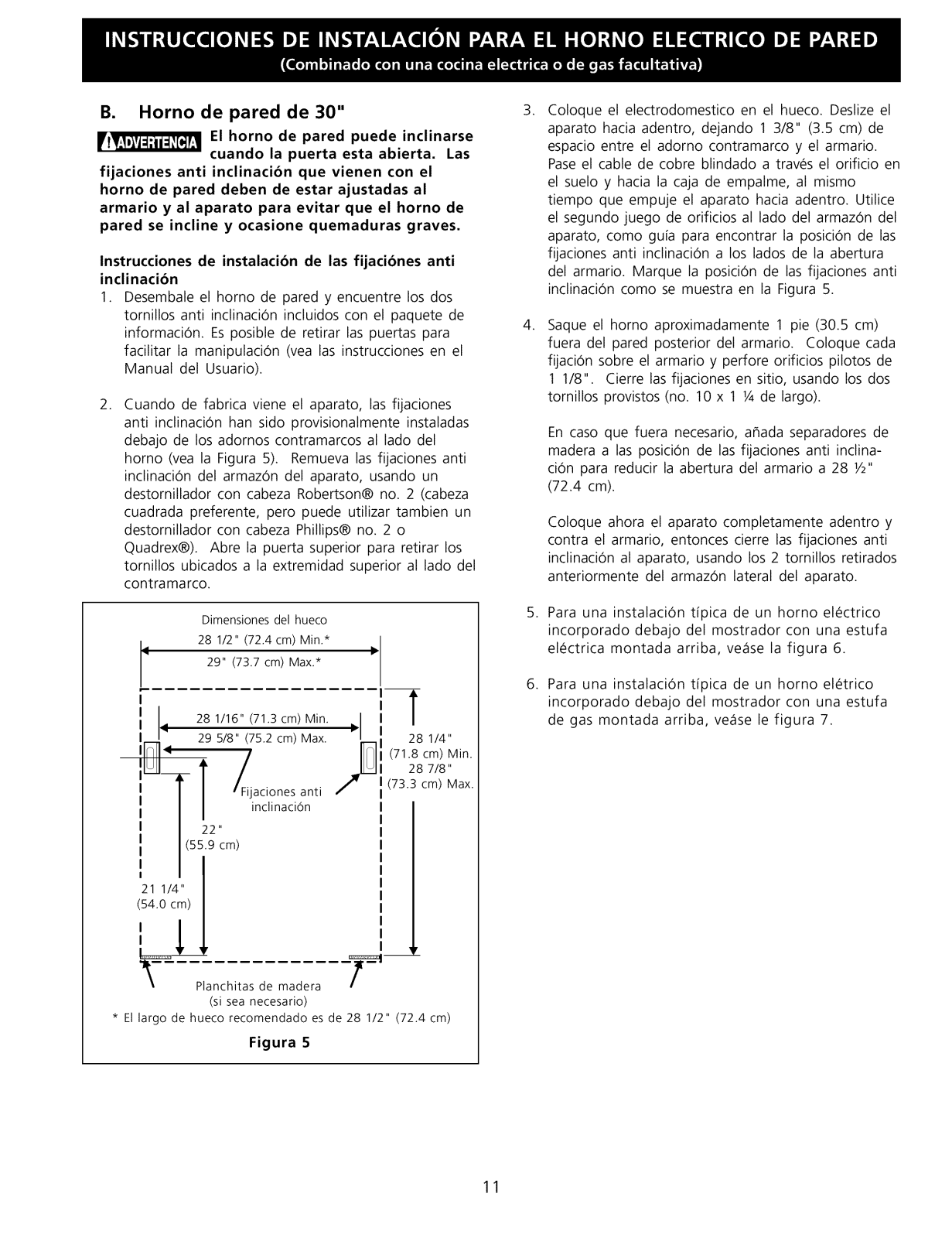

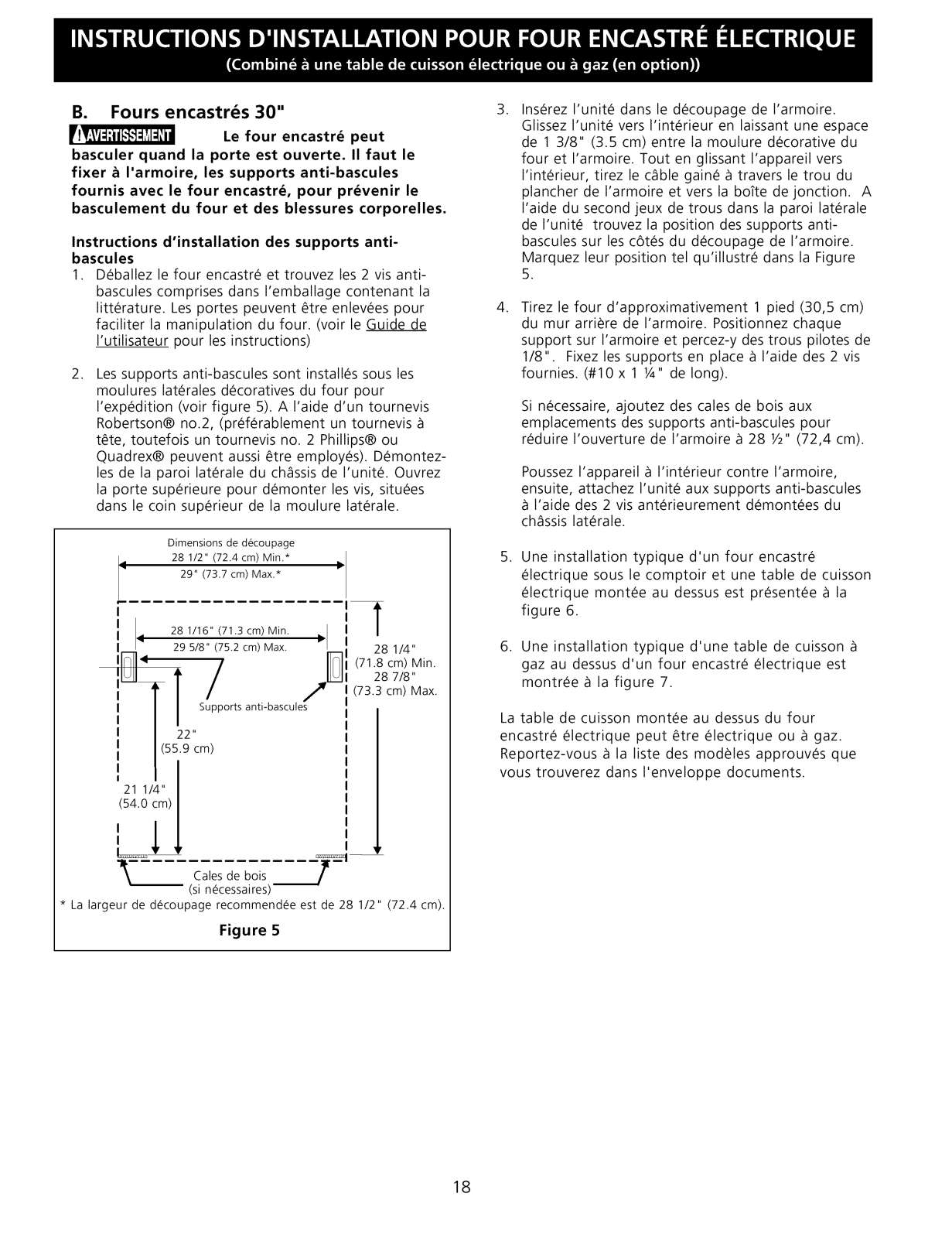

B. 30" Wall Oven
The wall oven can tip when the
door is open. The anti-tip brackets supplied with
the wall oven must be attached to the cabinet
and the appliance to prevent tipping of the wall
oven and injury to persons.
Anti-Tip Brackets Installation Instructions
1. Unpack the wall oven and find the 2 anti-tip
screws included in the literature package. The door
may be removed to facilitate handling (see the
Owner's Guide for instructions).
2. The anti-tip brackets are temporarily installed under
the decorative side trims of the oven when shipped
(see Figure 5). Remove the anti-tip brackets from the
unit side frame using a No. 2 Robertson@ screw
Cutout Dimensions
4 28 1/2" (72.4 cm)Min.* I_
29" (73.7cm) Max.*
l---f
28 1/16" (71.3 cm)Min. I/
I_ _1 29 5/8" (75.2 cm)Max. I'Z I 27 1/4"
',101',, / l[ll'(718cm) Min"
i___ . _ _ I 28 7/8 "
, / /" (733cm/Max
', / / Anti-Tip Brackets
I / 22"
[ /(s. s.9cm)
21 1/4" I
54.0cm) I
_-Wood Shims(If Needed)Y
* RecommendedCutout Width is28 1/2" (72.4 cm)
Figure 5
4
Only certain cooktop models may be installed over cer-
tain built-in electric oven models, listed by the MFG ID
number (seethe insert sheet included in the literature
package).
To reduce the riskof
personal injury and
tipping of the wall
oven, the wall oven
must be secured to
the cabinet (s) by anti-
tip brackets.
208/240 Volt junction box
for built-in oven.
Side filler panels are necessaryto iso-
late the unit from adjoining cabinets.
Panel height should allow for installa-
tion of approved cooktop models.
Approx. 3"
(7.5 cm)
36" Min.
(91.4 cm) Min.
Use3/4" (1.9 cm) plywood, installed
on two runners, flush with toe plate.
Must be capable of supporting 150
:)ounds (68 kg).
* If no cooktop is installed directly over
the oven unit, 5" (12.7 cm) maximum
isallowed above the floor.

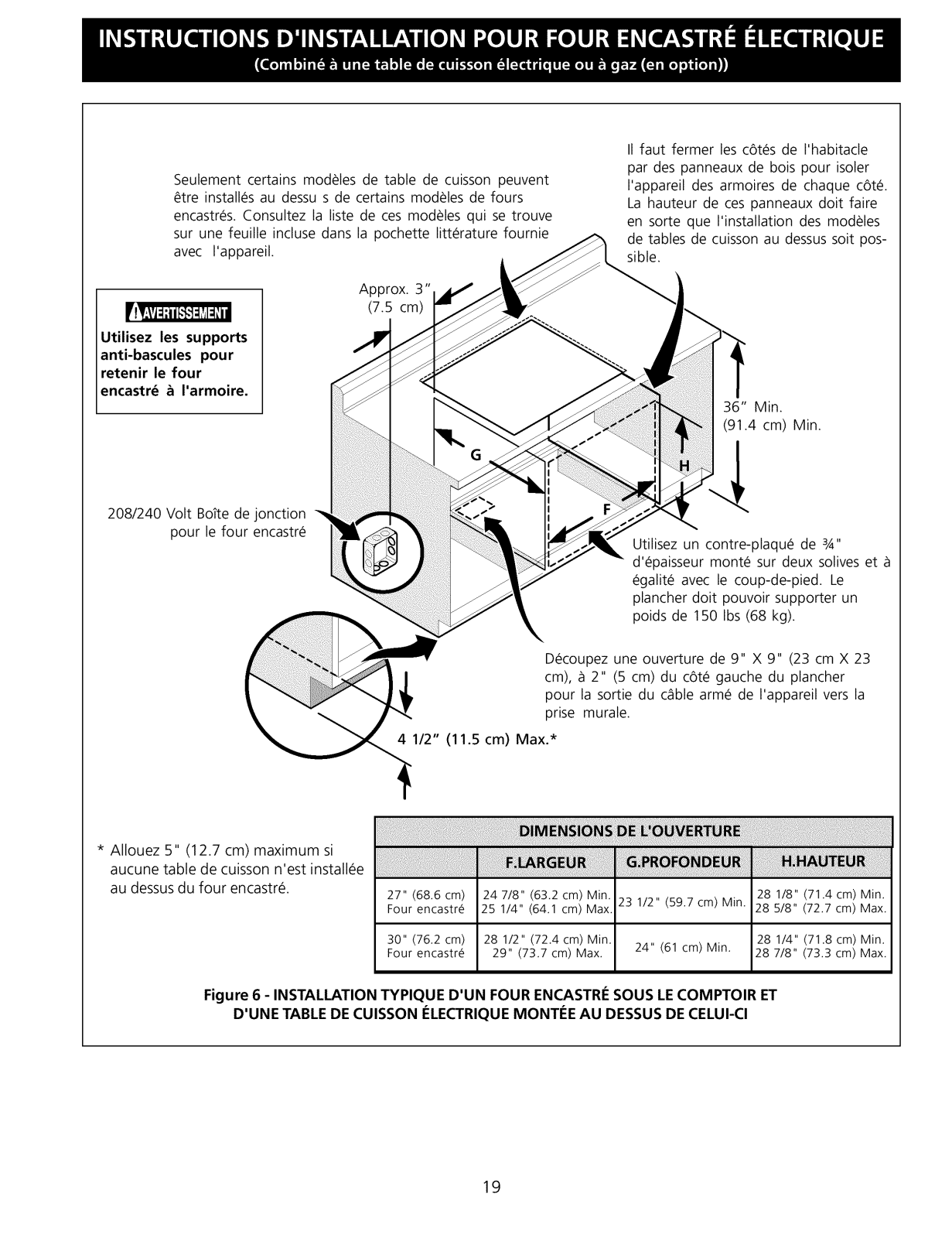

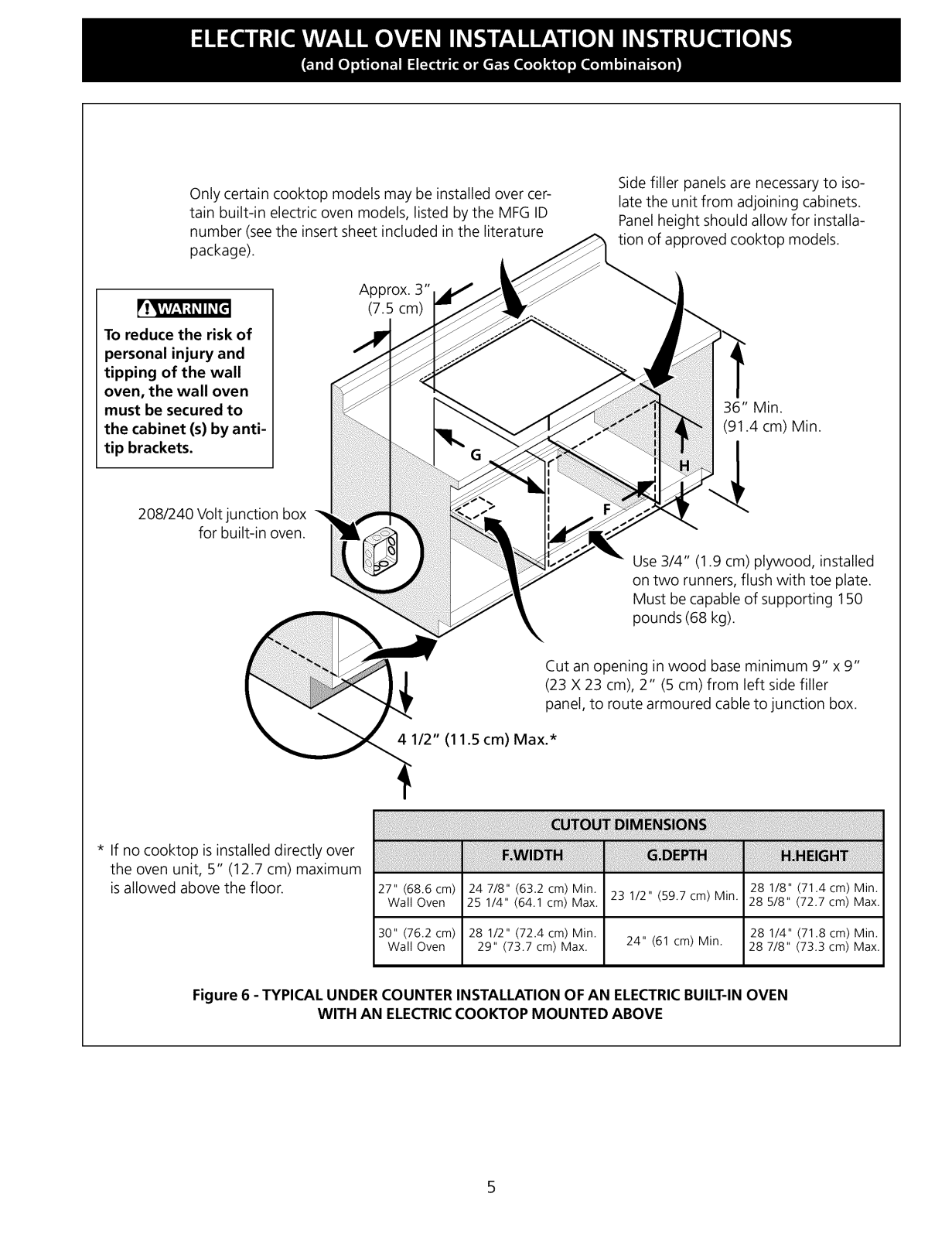

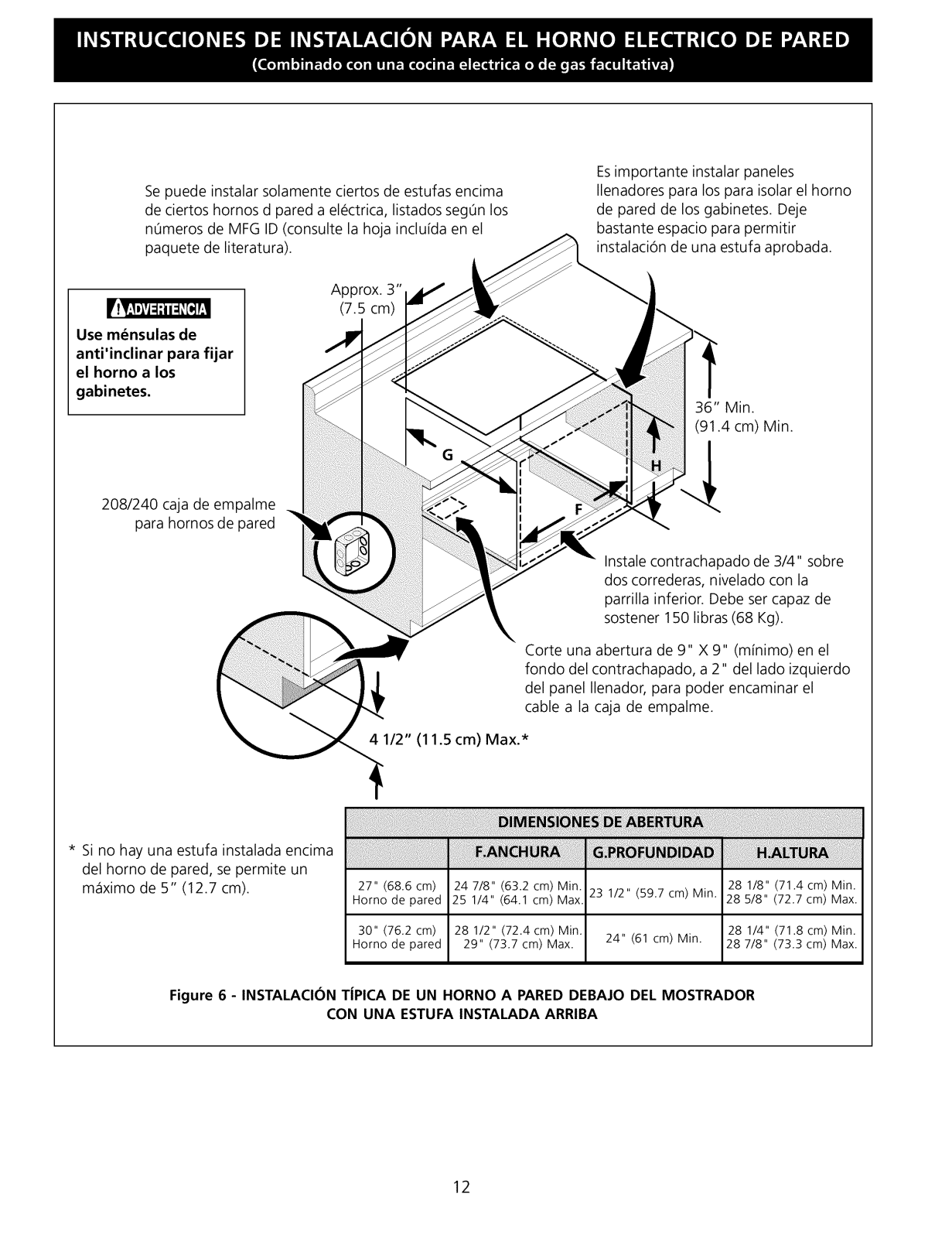

Figure 6 - TYPICAL UNDER COUNTER INSTALLATION OF AN ELECTRIC BUILT-IN OVEN
WITH AN ELECTRIC COOKTOP MOUNTED ABOVE
Cut an opening in wood base minimum 9" x 9"
(23 X 23 cm), 2" (5 cm) from left side filler
panel, to route armoured cable to junction box.
4 1/2" (1 1.5 cm) Max.*
" 28 1/8" (71.4 cm) Min.
27 (68.6 cm) 24 7/8" (63.2 cm) Min. 23 1/2" (59.7 cm) Min. 28 5/8" (72.7 cm) Max.
Wall Oven 25 1/4" (64.1 cm) Max.
30" (76.2 cm) 28 1/2" (72.4 cm) Min. 28 1/4" (71.8 cm) Min.
Wall Oven 29" (73.7 cm) Max. 24" (61 cm) Min. 28 7/8" (73.3 cm) Max.
Flexible Appliance
Wall Oven Cabinet

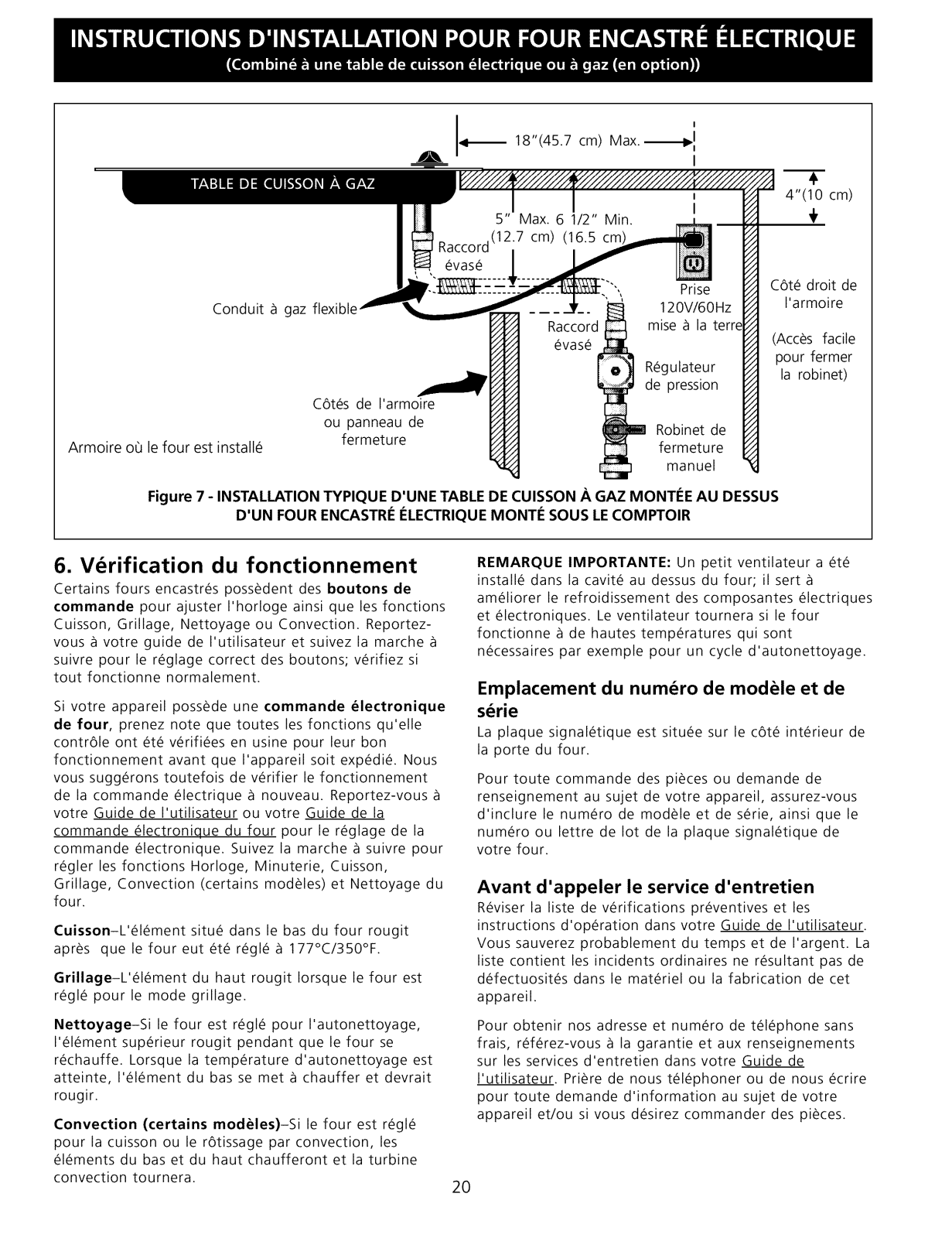

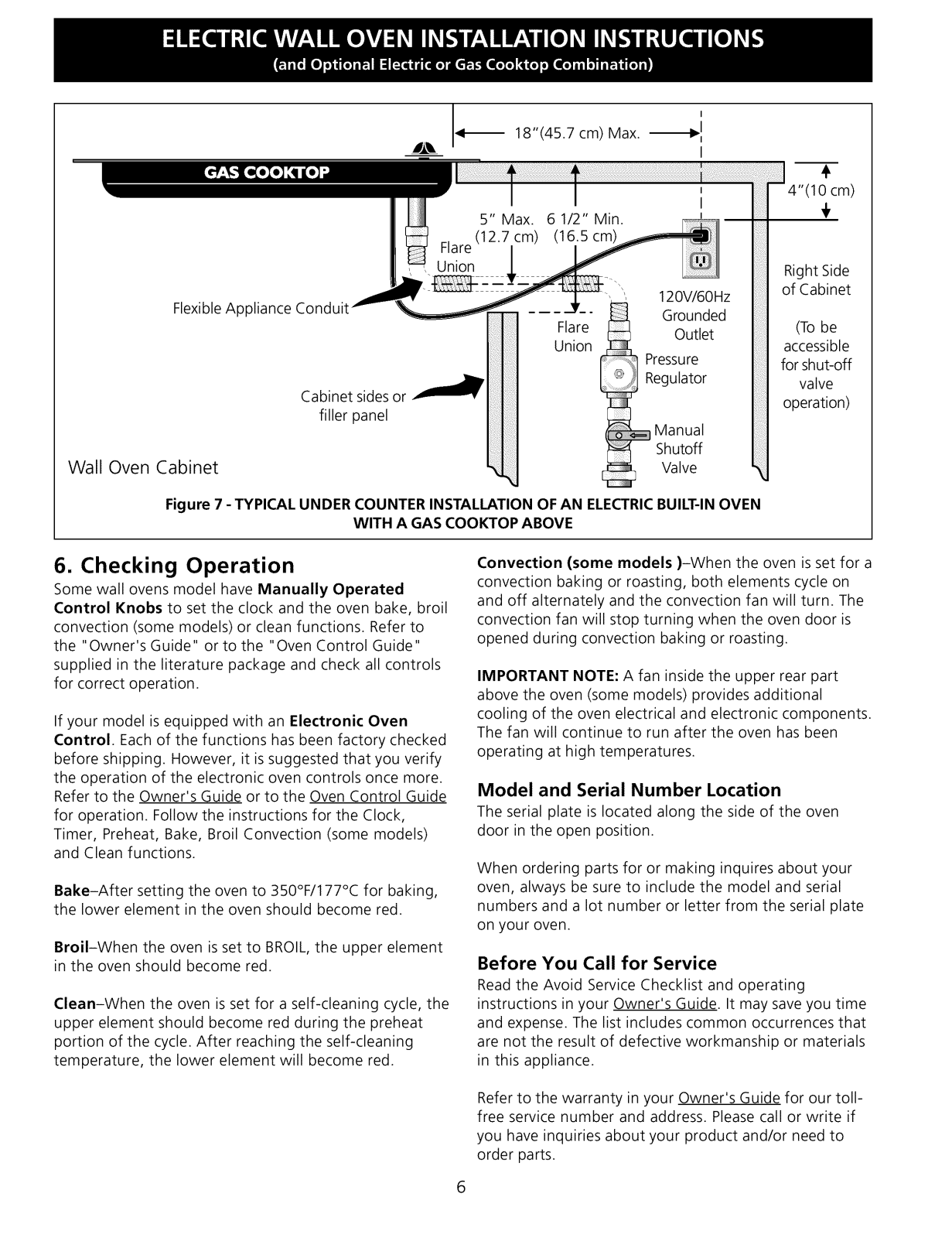

Figure 7 - TYPICAL UNDER COUNTER INSTALLATION OF AN ELECTRIC BUILT-IN OVEN
Cabinet sides or
filler panel
WITH A GAS COOKTOP ABOVE
Flare
Union
18"(45.7 cm) Max. _1
5" Max.
(12.7 cm)
6 1/2" Min.
(16.5 cm)
Flare
Union
120V/60Hz
Grounded
Outlet
Pressure
Regulator
Manual
Shutoff
Valve
I
I
4L
4"(10 cm)
Right Side
of Cabinet
(To be
accessible
for shut-off
valve
operation)
6. Checking Operation
Some wall ovens model have Manually Operated
Control Knobs to set the clock and the oven bake, broil
convection (some models) or clean functions. Refer to
the "Owner's Guide" or to the "Oven Control Guide"
supplied in the literature package and check all controls
for correct operation.
If your model isequipped with an Electronic Oven
Control. Each of the functions has been factory checked
before shipping. However, it is suggested that you verify
the operation of the electronic oven controls once more.
Refer to the Owner's Guide or to the Oven Control Guide
for operation. Follow the instructions for the Clock,
Timer, Preheat, Bake, Broil Convection (some models)
and Clean functions.
Bake-After setting the oven to 350°F/177°C for baking,
the lower element in the oven should become red.
Broil-When the oven isset to BROIL,the upper element
in the oven should become red.
Clean-When the oven is set for a self-cleaning cycle, the
upper element should become red during the preheat
portion of the cycle. After reaching the self-cleaning
temperature, the lower element will become red.
Convection (some models )-When the oven is set for a
convection baking or roasting, both elements cycle on
and off alternately and the convection fan will turn. The
convection fan will stop turning when the oven door is
opened during convection baking or roasting.
IMPORTANT NOTE: A fan inside the upper rear part
above the oven (some models) provides additional
cooling of the oven electrical and electronic components.
The fan will continue to run after the oven has been
operating at high temperatures.
Model and Serial Number Location
The serial plate is located along the side of the oven
door in the open position.
When ordering parts for or making inquires about your
oven, always be sure to include the model and serial
numbers and a lot number or letter from the serial plate
on your oven.
Before You Call for Service
Read the Avoid Service Checklist and operating
instructions in your Owner's Guide. It may save you time
and expense. The list includes common occurrences that
are not the result of defective workmanship or materials
in this appliance.
Refer to the warranty in your Owner's Guide for our toll-
free service number and address. Please call or write if
you have inquiries about your product and/or need to
order parts.
6
Loading...
