Page 1
Product No. FEB30T5GCB
37054343E70S2
Series 30" double
Color stainless
Market North America
Wiring Diagram 318046123
Owner's Guide 318205115
Installation Instructions 318201514
Service Data Sheet 318047309
Timer Guide 318200129
FEB30T5DC.eps CPLEB30T9FCA.eps BUFEB30T5GCA.eps BLFEB30T5DSC.eps
DCFEB30S5GC2.eps 318046123.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995494159
07/07/02
(EN/SERVICE/ECL)
377
DOUBLE ELECTRIC
WALL OVEN
Model No.
FEB30T5G
Copyright © 2007 Electrolux Home Products, Inc.
All rights reserved.
Page 2
Publication No: 5995494159 FEB30T5GCB
CONTROL PANEL
07/07 2
Page 3
FEB30T5GCB Publication No: 5995494159
CONTROL PANEL
POS. NO PART NO. DESCRIPTION
2A 318257300 Shield, oven top
2B 318260100 Cover, box
19 318271544 Control Panel Assembly, steel/glass, stainless/black, w/touch pad
20 # 316443833 Control, electronic, ES610W1, dual oven
20* 5303311306 Screw, 8-18 x 0.375, (8)
77 316247 90 0 Spacer, power bo ard, (4)
77A 316114100 Spacer, (2)
97 316443913 Board, relay, dual oven
* 318231769 Wiring Harness, timer, to relay board
* 5303211311 Screw, 8 x 0.500
# Functional Parts
3 07/07
* Non-Illustrated Parts
Page 4
Publication No: 5995494159 FEB30T5GCB
UPPER OVEN
07/07 4
Page 5
FEB30T5GCB Publication No: 5995494159
UPPER OVEN
POS. NO PART NO. DESCRIPTION
1 318259205 Back, main
2 318258902 Shield, insulation, upper
6 318345207 Rack, oven
9 5303317977 Pan, broilerOPTIONAL ACCESS0RY
10 5303317976 Insert, broiler panOPTIONAL ACCESS0RY
12 316445501 Switch, oven light, door frame
14 318224000 Receptacle, oven light
14* 318268099 Insulation, oven light
15 5303013071 Bulb/Lamp, light
16 08011086 Lens, oven light, glass
17 5304400195 Retainer, light cover
29 318147411 Bumper, (2)
37 # 316217002 Probe, oven temp
41 5303310526 Cover, hinge cutout
54 318222400 Housing, oven light
58A 318285055 Insulation, oven wrapper
58B 318285056 Insulation, oven back
58D 318285058 Insulation, 1/2" thick, 43 x 9.5
59 318072560 Duct, oven vent
59A 318261600 Bracket, vent tube
66 # 318255600 Element, broil, 2750W
67 # 318255401 Element, bake, 3400W
68 5304403015 Support, hanger, (2), broil element
70 318259 10 0 Shield, insulation, sides, (2)
71 318260007 Panel, rear box
71* 318340201 Bracket, insul. panel
76 318056217 Front, oven
80 5303320846 Plate, oven mtg
81 318192400 Spring, oven
82 318258 70 7 Shield, insulation, lower
83 318261403 Liner, oven assy
86 318342400 Receptacle, hinge
89 # 318261211 Motor, latch assy
* # 318231750 Harness, wiring, main, latch
* # 318199744 Wiring Harness, latch, BAS
* # 318199746 Wiring Harness, latch, NO BAS
99 318252800 Support, side
* 5303300265 Screw, 8-18 X 1/2, (2)
108# 318073018 Motor, blower
* 08016432 Screw, truss head, 8-18 x 0.375
108A 318251300 Bracket, fan support
119# 318004900 Switch, thermal
127 318317100 Adapter Assembly, vent tube, w/converter
131 318272900 Box, vent
132 318 003000 Plate, shield
142 318 123910 Deflector
143 318 172904 Support, wire
163 318014111 Spacer
185 318 014700 Spacer, oven shield, (4)
264 318 257701 Trim, oven, black, front
310 5304440067 Cabinet Mounting Kit
311 318 246010 Bracket, cabinet mtg, (2)
311* 5304438005 Screw, 6 x 1, black
312 318246702 Tool, cabinet bracket, RH
312 318246703 Tool, cabinet bracket, LH
* 5303211311 Screw, 8 x 0.500
* 5303323139 Screw, 10-24 x 0.906
* 5303323277 Screw, 8-18 X 13/32
* 5303325980 Screw, 10-32 x 0.437
* 5304436875 Screw, 8-18 X 1/2, black
# Functional Parts
5 07/07
* Non-Illustrated Parts
Page 6
Publication No: 5995494159 FEB30T5GCB
LOWER OVEN
07/07 6
Page 7
FEB30T5GCB Publication No: 5995494159
LOWER OVEN
POS. NO PART NO. DESCRIPTION
1 318259205 Back, main
2 318258902 Shield, insulation, upper
6 318345207 Rack, oven
12 316445501 Switch, oven light, door frame
14 318224000 Receptacle, oven light
14* 318268099 Insulation, oven light
15 5303013071 Bulb/Lamp, light
16 08011086 Lens, oven light, glass
17 5304400195 Retainer, light cover
29 318147411 Bumper, (2)
37 # 316217002 Probe, oven temp
41 5303310526 Cover, hinge cutout
54 318222400 Housing, oven light
56 318903604 Trim, side filler, black, RH
56A 318903605 Trim, side filler, black, LH
58A 318285055 Insulation, oven wrapper
58B 318285056 Insulation, oven back
58D 318285058 Insulation, 1/2" thick, 43 x 9.5
59 318072560 Duct, oven vent
59A 318261600 Bracket, vent tube
62 316056000 Terminal Block
62* 5303323139 Screw, 10-24 x 0.906
62* 5303323144 Nut, 10-32
66 # 318255600 Element, broil, 2750W
67 # 318255401 Element, bake, 3400W
68 5304403015 Support, hanger, (2), broil element
70 318259 10 0 Shield, insulation, sides, (2)
71 318260007 Panel, rear box
71* 318340201 Bracket, insul. panel
76 318056217 Front, oven
80 5303320846 Plate, oven mtg
81 318192400 Spring, oven
82 318258 70 7 Shield, insulation, lower
83 318261403 Liner, oven assy
86 318342400 Receptacle, hinge
87 318260600 Bracket, cable mtg.
89 # 318261211 Motor, latch assy
* # 318231750 Harness, wiring, main, latch
* # 318199744 Wiring Harness, latch, BAS
* # 318199746 Wiring Harness, latch, NO BAS
90 318259701 Trim, oven front, black, bottom
99 318256200 Bracket, side, bottom, (2)
108# 318073018 Motor, blower
* 08016432 Screw, truss head, 8-18 x 0.375
108A 318251300 Bracket, fan support
119# 318004900 Switch, thermal
127 318317100 Adapter Assembly, vent tube, w/converter
142 318 123910 Deflector
143 318 172904 Support, wire
163 318014111 Spacer
185 318 014700 Spacer, oven shield, (4)
264 318 257801 Trim, oven, black, front
* # 318078543 Box & wires assy
* # 318370311 Wriring Harness, main
* 5303211311 Screw, 8 x 0.500
* 5303323136 Screw ground
* 5303323277 Screw, 8-18 X 13/32
* 5303325980 Screw, 10-32 x 0.437
* 5304436875 Screw, 8-18 X 1/2, black
# Functional Parts
7 07/07
* Non-Illustrated Parts
Page 8
Publication No: 5995494159 FEB30T5GCB

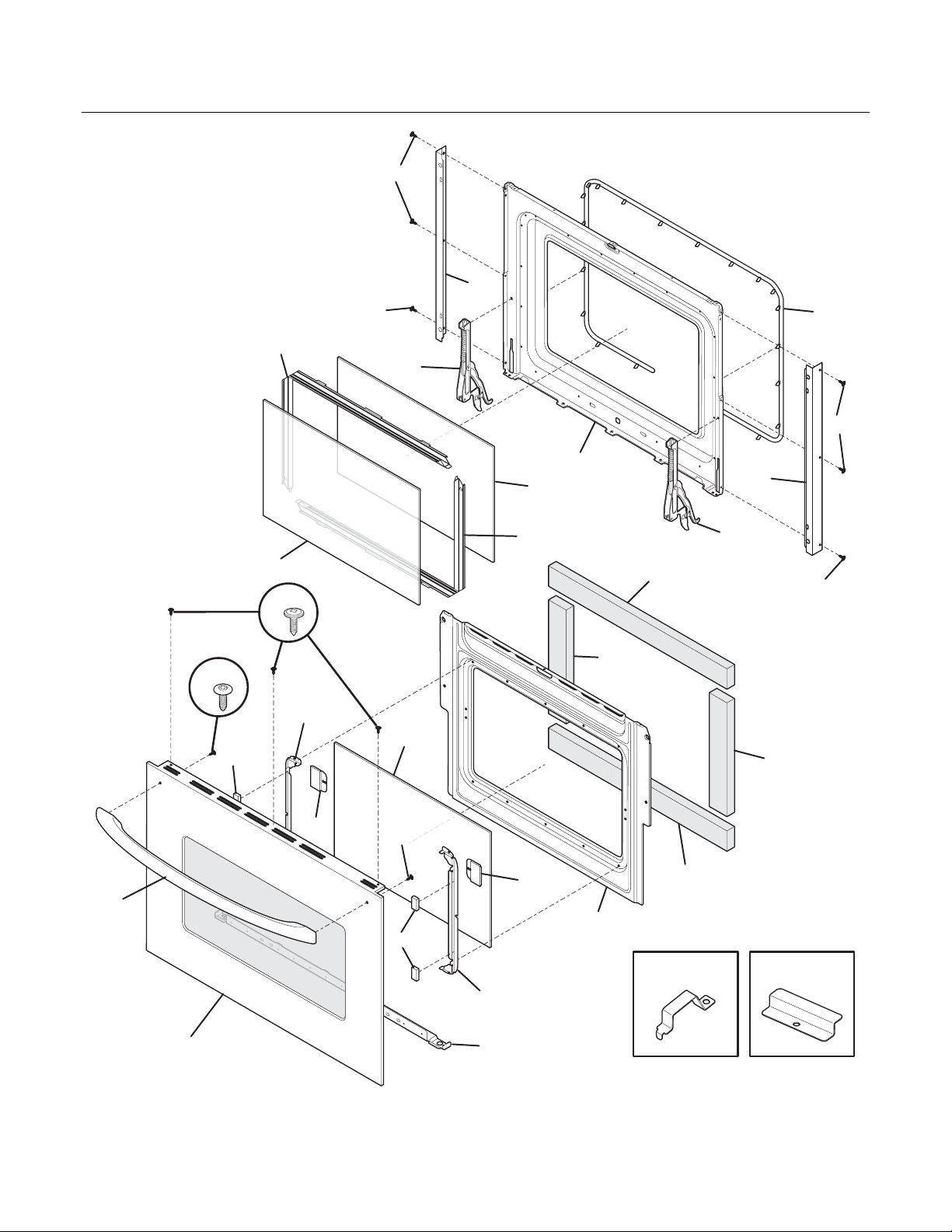

DOORS
56
3A
56
17
23
12
56
39
10
64
8
56
40
3B
10
64
9
16
17
3A
23
7A
56
7
8
7
3B
7A
6
40
13
24
DCFEB30S5GC2
07/07 8
4142
Page 9
FEB30T5GCB Publication No: 5995494159
DOORS
POS. NO PART NO. DESCRIPTION
3A 318260401 Trim, oven door, side, (2)
3B 318262101 Cover, rear door, black, (2)
6 318260520 Baffle, door
7 318372000 Insulation, door, (2)
7A 318372002 Insulation, door, (2)
8 316117500 Glass, oven door, heat barrier
9 318259605 Liner, door
10 5304452028 Screw, handle mtg, 10-14 x 1/2, (2)
12 318053130 Seal, oven door, upper
13 318272183 Door Assy, glass, stainless steel, outer
16 318212210 Glass, oven door, heat barrier
17 316402 40 3 Spacer, door glass, (2)
23 318024714 Hinge, door, (2)
24 318260301 Trim, door, black, lower
39 316270200 Handle, door, black
40 318242702 Bracket, glass holder, upper door, (2)
41 318370600 Bracket, glass retainer, (2)
42 318382301 Bracket, glass retainer, (4)
56 5304436875 Screw, 8-18 X 1/2, black
64 318165800 Spacer
* 318163602 Cleaner, stainless steel
* 08016432 Screw, truss head, 8-18 x 0.375
* 5303211311 Screw, 8 x 0.500
* 5303300265 Screw, 8-18 X 1/2, (2)
* 5303323277 Screw, 8-18 X 13/32
# Functional Parts
9 07/07
* Non-Illustrated Parts
Page 10
Publication No: 5995494159 FEB30T5GCB
WIRING DIAGRAM
07/07 10
