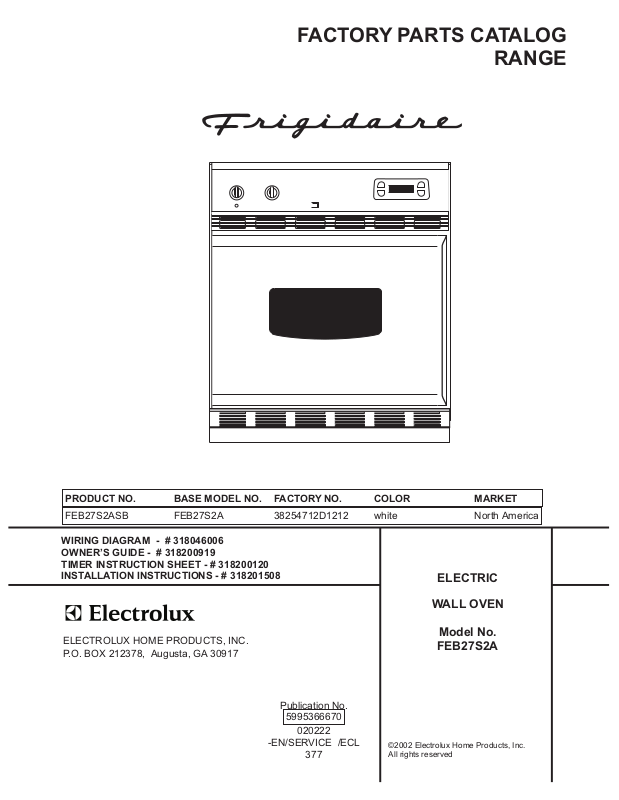

FACTORY PARTS CATALOG
RANGE
PRODUCT NO. BASE MODEL NO. FACTORY NO. COLOR MARKET
FEB27S2ASB FEB27S2A 38254712D1212 white North America
WIRING DIAGRAM - # 318046006
OWNER’S GUIDE - # 318200919
TIMER INSTRUCTION SHEET - # 318200120
INSTALLATION INSTRUCTIONS - # 318201508
ELECTRIC
WALL OVEN
ELECTROLUX HOME PRODUCTS, INC.
P.O. BOX 212378, Augusta, GA 30917
Publication No.
5995366670
020222
-EN/SERVICE /ECL
377
©2002 Electrolux Home Products, Inc.
All rights reserved
Model No.
FEB27S2A
Publication No. FEB27S2ASB
5995366670
CONTROL PANEL
02/02 2
FEB27S2ASB Publication No.
CONTROL PANEL
POS. NO PART NO DESCRIPTION
12 # 318059310 Thermostat,oven
13 # 318057910 Switch,selector
14 # 3200297 Light/Lamp,indicator
19 318129618 Panel,control ,white
20 # 318013926 Clock/Timer,white
21 5303299529 Trim,canopy ,white ,top
23 318015721 Bracket,timer
23* 5303320423 Rivet,(2)
24 # 316005607 Switch,rocker ,white
31 318196639 Knob,oven selector ,white
32 318196641 Knob,oven thermostat ,white
42 318026908 Trim,vent ,white
46 5303297274 Lens,indicator light
65 318038802 Cover,control housing
68 318182300 Housing-control
69 5303323134 Screw,switch mtg. ,8-32 x 0.188
99 5303316956 Screw,6-32 x 3/8 ,white ,(2)
100 318112200 Plate,mounting ,rocker switch
* 3201861 Screw,6 x 0.375
* 5303211311 Screw,8 x 0.500
* 5303308458 Screw,10-24 x 1/4
5995366670
# = Functional Parts 3 02/02
* = Non-Illustrated Parts
Publication No. FEB27S2ASB
5995366670
BODY
02/02 4
FEB27S2ASB Publication No.
BODY
POS. NO PART NO DESCRIPTION
6 5303299719 Rack,oven
9 5303317977 Pan,broiler
10 5303317976 Insert,broiler pan
14 # 5308011085 Receptacle,oven light
15 # 3201908 Light,oven
16 3201911 Cover,oven light ,glass
17 5304400195 Retainer,light cover
18 318090300 Latch,door
27 5303284616 Clip,thermo bulb mtg
54 5303310514 Housing,oven light
56 318034104 Trim,bodyside ,white ,RH
56A 318034105 Trim,bodyside ,white ,LH
58A 318133710 Insulation,oven wrapper
58B 318133704 Insulation,oven back
62 # 5303310518 Terminal Block
62* 5303323144 Nut,10-32
66 # 5303322963 Element,broil
67 # 5303299718 Element,bake
68 5304403015 Support,element hanger
71 318071110 Shield,rear wall
76 318056107 Front,oven
80 318192400 Spring,oven
82 5303304699 Shield,insulation
83 318089511 Liner,oven
96 5303300093 Wrapper,oven top
97 318066702 Wrapper,back and sides
99 5303299686 Support,adjustable
103 5303316903 Trim,base ,white ,lower
121 318145002 Wrapper,base
127 318072800 Adaptor assy
130 5303299671 End,cap ,white ,RH
130A 5303299672 End,cap ,white ,LH
141# 318003600 Thermostat,safety
158 318053311 Seal,oven door
186 318039502 Bracket,trim ,white
189 318042500 Plate,retainer
190 5303299666 Tube,oven vent
227 5303323955 Clip,retainer
5995366670
* # 318078522 Box & wires assy
* 5303320489 Plug,hinge hole
* 5303211311 Screw,8 x 0.500
* 5303935083 Screw 10-16X1-1/4
# = Functional Parts 5 02/02
* = Non-Illustrated Parts
Publication No. FEB27S2ASB
5995366670
DOOR
02/02 6
FEB27S2ASB Publication No.
DOOR
POS. NO PART NO DESCRIPTION
3A 5303299730 Trim,oven door ,white ,upper
3B 5303299731 Trim,oven door ,white ,upper
4 318210402 Glass,oven door ,white ,outer
6 5303316954 Shield,insulation
7 318133705 Insulation,oven door
9 5303320491 Liner,oven door
10 5303308458 Screw,10-24 x 1/4
11 5303320493 Cover,hinge cutout
16 5303324250 Glass,door ,13 1/2x61/2
18 318053204 Seal,rope ,lower oven
23 5303299712 Hinge,oven door ,upper ,assy
23A 5303299711 Hinge,oven door ,lower ,assy
28 318090220 Strike,door
39 5303299726 Handle,door ,white ,oven
41 5303299746 Hinge,oven door ,upper
41A 5303299744 Hinge,oven door ,lower
51 5303299738 Bracket,handle mtg ,white ,upper
51A 5303299739 Bracket,handle mtg ,white ,lower
* 5303211311 Screw,8 x 0.500
5995366670
# = Functional Parts 7 02/02
* = Non-Illustrated Parts
Publication No. FEB27S2ASB
5995366670
WIRING DIAGRAM
02/02 8
