ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Product No. FDBB945DC0
Series Built-in 24"
Color stainless
Owner's Guide 154448401
Service Data Sheet 154459001
Energy Guide 154485214
Installation Instructions 154427301
Market North America
24-INCH BUILT-IN
DISHWASHER
Model No.
FDBB945D
Publication No.
5995416699
04/09/20
(EN/SERVICE/ECL)
821
Copyright © 2004 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995416699 FDBB945DC0
CONTROL PANEL
09/04 2
FDBB945DC0 Publication No: 5995416699
CONTROL PANEL
POS. NO PART NO. DESCRIPTION
1 154370303 Panel, control, black
2 154445003 Insert, control panel, black
3 # 154445801 Control, electronic
3* 154200401 Screw, 6-10 x 3/8, pan plask
4 154287901 Cover, control
18 154422303 Nameplate, black
20 154433001 Vent assy, static dry
20* 154436201 Screw, dry duct, (3)
34 # 154442101 Keypad, 9pad
* # 154460001 Wiring Harness, main
* 154227501 Thermistor
* 154485214 Energy Guide
# Functional Parts
3 09/04
* Non-Illustrated Parts
Publication No: 5995416699 FDBB945DC0
DOOR
09/04 4
FDBB945DC0 Publication No: 5995416699
DOOR
POS. NO PART NO. DESCRIPTION
1 154430501 Spring, door, (2)
1A 154325201 Linkage, door spring, (2)
2 154093301 Screw, arm assy, (4)
3 154325306 Arm Assy, LH
3A 154325305 Arm Assy, RH
* 154400601 Pin, arm assy
5 154079601 Nut, arm assy, and handle mtg.
7 154299004 Door, inner assy
9 154230103 Dispenser, det/rinse aid, includes #22
9* 154294701 Screw, #7 plas .375, (6), disp. assy.
10 154103702 Screw, latch mtg, (2)
12 # 154475203 Latch assy, black
20 154493001 Door, stainless
20* 5304428306 Screw, door mtg., (2)
22 154388801 Cap, Rinse aid
49 154297603 Gasket, door, bottom
50 154211401 Support, door hinge
51 154320301 Clamp, drip loop, wire
* 316279700 Cleaner, stainless steel
* 154200601 Screw, #10-16 x 3/8
# Functional Parts
5 09/04
* Non-Illustrated Parts
Publication No: 5995416699 FDBB945DC0
TUB
09/04 6
FDBB945DC0 Publication No: 5995416699
TUB
POS. NO PART NO. DESCRIPTION
1 # 154209301 Tub assy, w/frame parts
2 154429101 Strike, door
3 # 154211801 Gasket, tub
4 154200602 Screw, 10-16 x 3/8, hex
5 154333902 Roller, tub
6 5303943103 Screw, w/washer, (8)
22 154239801 Tubing, water inlet
23 5303318539 Clamp, tubing, (2)
24 # 154411003 Hose, drain
25 # 154209701 Float
28 154408701 Switch Assy, float
29 # 154290204 Thermostat, re-settable
30 154241101 Retainer, thermostat
30* 154297701 Screw, retainer-thermo
* 154447102 Insulation , blanket
* 154041001 Screw, plask #1, 10-10 x 9/16
* 5300807270 Screw, (2), countertop mtg.
# Functional Parts
7 09/04
* Non-Illustrated Parts
Publication No: 5995416699 FDBB945DC0
MOTOR & PUMP
09/04 8
FDBB945DC0 Publication No: 5995416699
MOTOR & PUMP
POS. NO PART NO. DESCRIPTION
1 154247601 Heater
1* 154106201 Nut, heater, (2)
1* 154289801 Shield, heater terminal
2 154479601 Bracket, heater, (2)
10 154245501 Cover, volute
13 154246801 Gasket, sump
14 154365902 Housing, sump
16 154246502 Retainer, sump
24 154414101 Spray arm, lower, w/heat shield
24A 154313601 Spray arm, center
24A* 154252001 Nut, spray arm, center
32 154406601 Tube, delivery
32A 154406401 Gasket, delivery tube
40 154348401 Clamp, red, pump
40 154348502 Clamp, red, pump
40* 154106801 Clamp, hose, (2)
40* 154380601 Clamp, hose, (1)
54 154234401 Hose, connector
55 154362301 Bracket, motor, askoll
55* 5303316032 Screw, truss ss, 8 .625
58 154246402 Check ball
59 154246901 O-ring, rear
59A 154247001 O-ring, front
60 154474101 Drain Pump Assy
60* 154426201 Bracket, motor, drain
60* 5303318719 Screw, mtg.
61 154406501 Nozzle, 3rd level, spray arm
62 154294101 Support, spray arm, lower
63 154252201 Base, soil director
64 154252301 Filter, soil director
65 154252401 Filter, polypro
66 154252701 Trap, glass
70 154523501 Motor & Pump Assy
* 154200601 Screw, #10-16 x 3/8
# Functional Parts
9 09/04
* Non-Illustrated Parts
Publication No: 5995416699 FDBB945DC0
FRAME
09/04 10
FDBB945DC0 Publication No: 5995416699

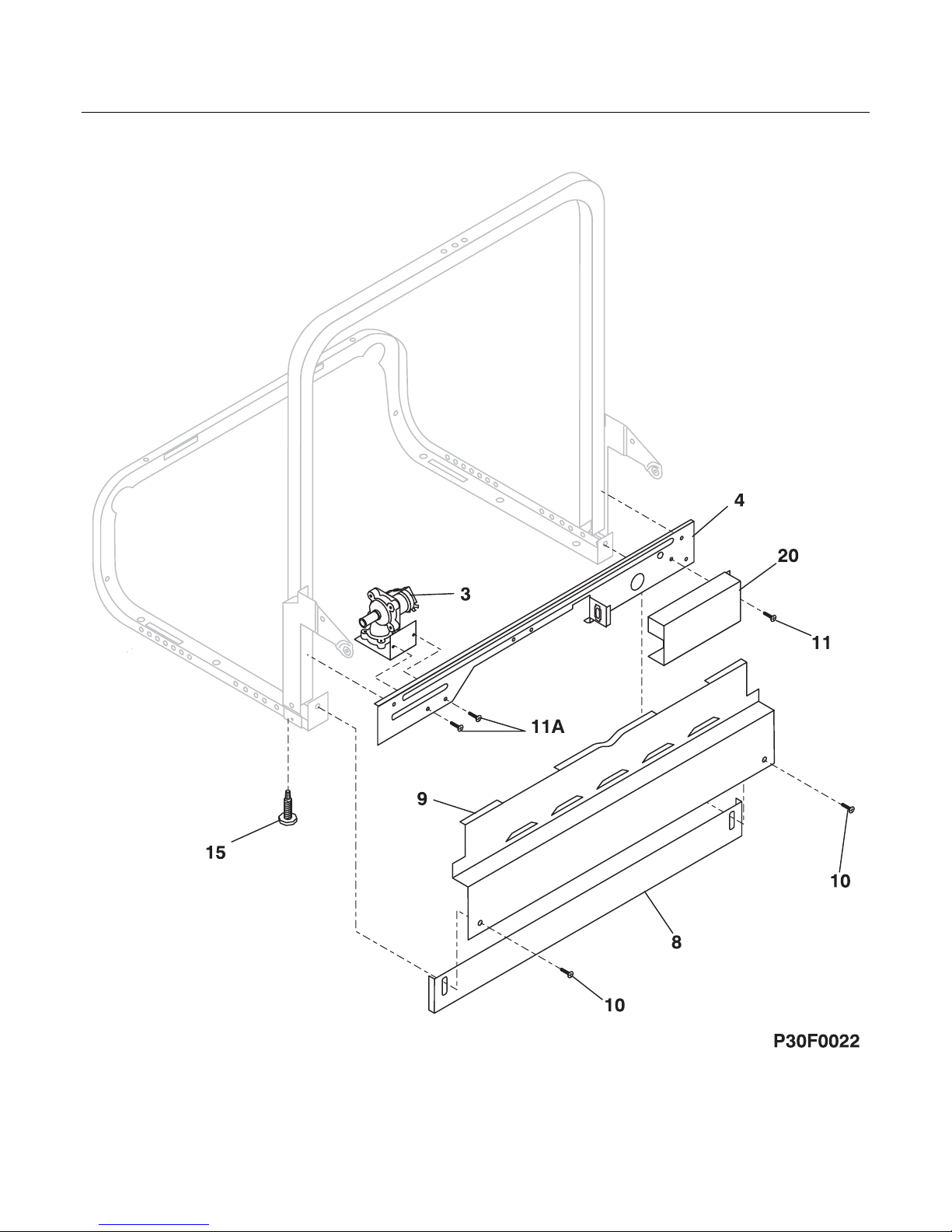

FRAME
POS. NO PART NO. DESCRIPTION
3 # 154445901 Valve, water
4 154208701 Brace, front frame
8 154322903 Toeplate, adjustable, black
9 154397203 Kickplate Assy, black, w/foam
10 5300808658 Screw, #8A x .375", black
11 154409401 Screw, #8-18 x .375
11A 154200601 Screw, #10-16 x 3/8
15 154419301 Screw, leveling
20 154209601 Cover, junction box
* 154041001 Screw, plask #1, 10-10 x 9/16
* 154200602 Screw, 10-16 x 3/8, hex
# Functional Parts
11 09/04
* Non-Illustrated Parts
Publication No: 5995416699 FDBB945DC0
RACKS
9
10
11
8
6
3
4
11
5
16A
16A
5
2A
1
2
2A
7
P30R0066
09/04 12
FDBB945DC0 Publication No: 5995416699
RACKS
POS. NO PART NO. DESCRIPTION
1 154319706 Rack assy, lower
2 154424001 Basket, silverware, main
2A 154424101 Basket, silverware, (2), side
3 154319524 Rack assy, upper
4 154522901 Wheel & bushing assy, upper rack, (8)
5 5300809927 Cap, slide, (4)
6 154232701 Slide, rack, (2)
7 154174502 Wheel & bracket assy, lower rack
8 154304001 Base, funnel
9 154251801 Funnel
10 154238801 Basket, utility, white
11 154436101 Shelf, cup, half width, white
# Functional Parts
13 09/04
* Non-Illustrated Parts
