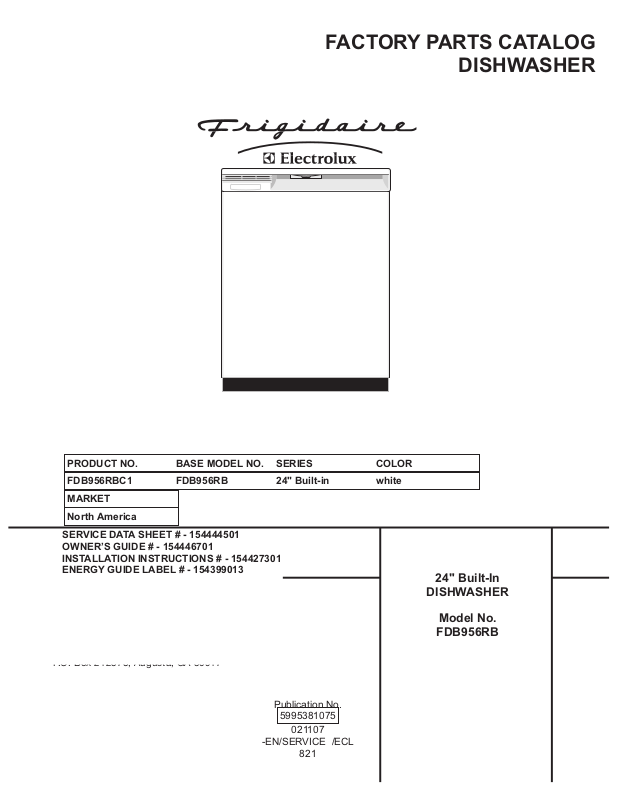

Page 1
FACTORY PARTS CATALOG
DISHWASHER
PRODUCT NO. BASE MODEL NO. SERIES COLOR
FDB956RBC1 FDB956RB 24" Built-in white
MARKET
North America
SERVICE DATA SHEET # - 154444501
OWNER’S GUIDE # - 154446701
INSTALLATION INSTRUCTIONS # - 154427301
ENERGY GUIDE LABEL # - 154399013
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995381075
021107
-EN/SERVICE /ECL
821
24" Built-In
DISHWASHER
Model No.
FDB956RB
All rights reserved
Page 2
Publication No. FDB956RBC1
5995381075
CONTROL PANEL
11/02 2
Page 3
FDB956RBC1 Publication No.
CONTROL PANEL
POS. NO PART NO DESCRIPTION
1 154370303 Panel,control ,black
2 154445003 Insert,control panel ,black
3 # 154445801 Control,electronic
3* 154200401 Screw,6-10 x 3/8 ,pan plask
4 154287901 Cover,control
18 154422303 Nameplate,black
20 154423601 Vent assy,active dry ,w/actuator
20* 154436201 Screw,dry duct ,(3)
27 154433501 Actuator,active dry vent
34 # 154442101 Keypad,9pad
* # 154444801 Wiring Harness
* 154227501 Thermistor
* 154399013 Label,energy guide
* 154283901 Screw,#8-10 ,3/8 phillips
5995381075
# = Fast Moving Part 3 11/02
* = Non-Illustrated Part
Page 4
Publication No. FDB956RBC1
5995381075
DOOR
11/02 4
Page 5
FDB956RBC1 Publication No.
DOOR
POS. NO PART NO DESCRIPTION
1 154414001 Spring,door ,(2)
1A 154325201 Linkage,door spring ,(2)
2 154093301 Screw,arm assy ,(4)
3 154325304 Arm Assy,LH
3A 154325303 Arm Assy,RH
* 154400601 Pin,arm assy
5 154079601 Nut,arm assy ,and handle mtg.
7 154299004 Door,inner assy
9 154230103 Dispenser,det/rinse aid ,includes #22
9* 154294701 Screw,#7 plas .375 ,(6) ,disp. assy.
10 154103702 Screw,latch mtg ,(2)
12 # 154361203 Latch assy,black
20 154436806 Door assy,stainless ,outer
20* 154253201 Insulation,door
20* 5304428306 Screw,door mtg. ,(2)
22 154388801 Cap,Rinse aid
49 154297603 Gasket,door ,bottom
50 154211401 Support,door hinge
51 154320301 Clamp,drip loop ,wire
5995381075
# = Fast Moving Part 5 11/02
* = Non-Illustrated Part
Page 6
Publication No. FDB956RBC1
5995381075

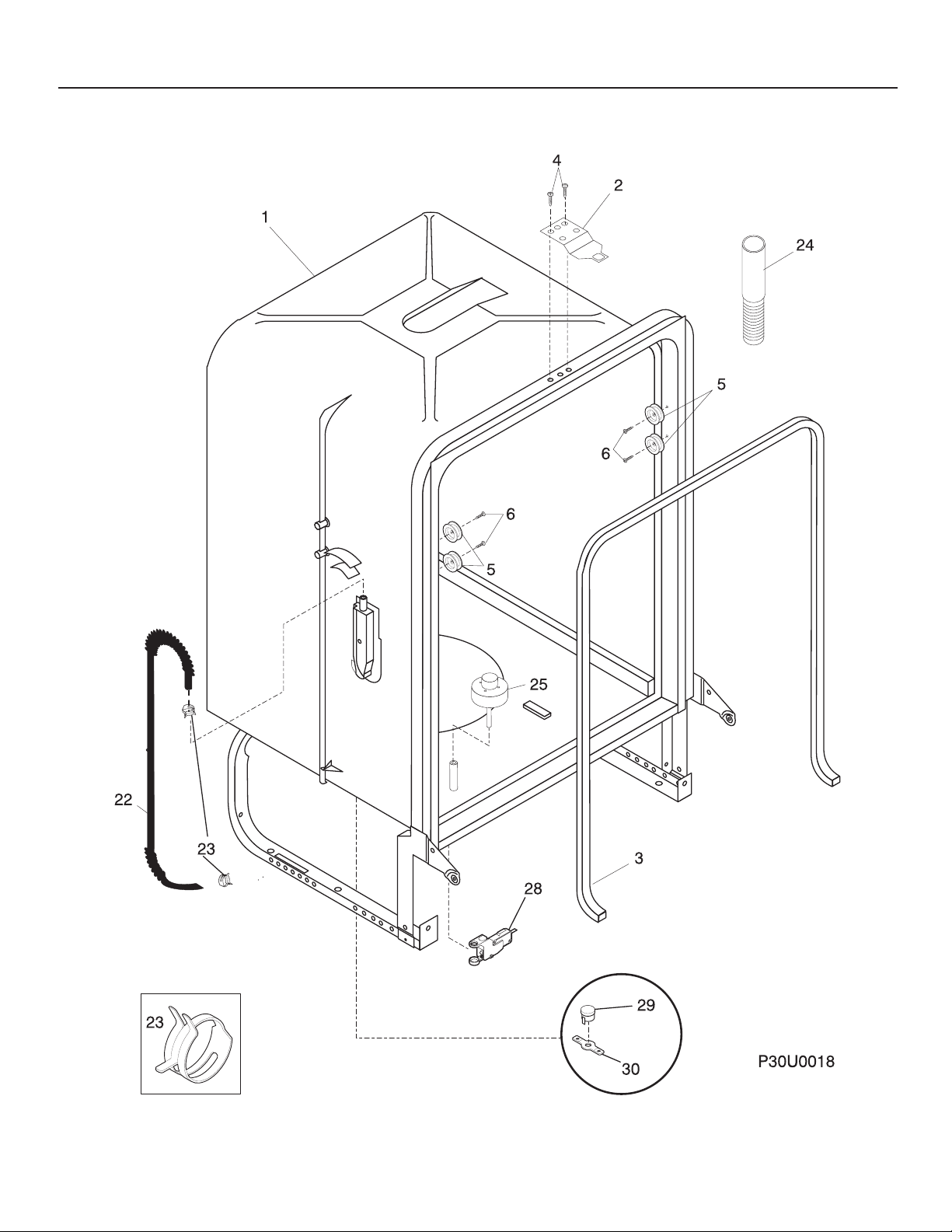

TUB
11/02 6
Page 7
FDB956RBC1 Publication No.
TUB
POS. NO PART NO DESCRIPTION
1 # 154209301 Tub assy,w/frame parts
2 154429101 Strike,door
3 # 154211801 Gasket,tub
4 154200602 Screw,10-16 x 3/8 ,hex
5 154333902 Roller,tub
6 5303943103 Screw,w/washer ,(8)
22 154239801 Tubing,water inlet
23 5303318539 Clamp,tubing ,(2)
24 # 154411003 Hose,drain
25 # 154209701 Float
28 154408701 Switch assy,float
29 # 154290204 Thermostat,re-settable
30 154241101 Retainer,thermostat
30* 154297701 Screw,retainer-thermo
* 154238304 Insulation,tub
* 154360201 Insulation,blanket ,back
* 154041001 Screw,plask #1 ,10-10 x 9/16
* 5300807270 Screw,(2) ,countertop mtg.
* 154200601 Screw,#10-16 x 3/8
5995381075
# = Fast Moving Part 7 11/02
* = Non-Illustrated Part
Page 8
Publication No. FDB956RBC1
5995381075

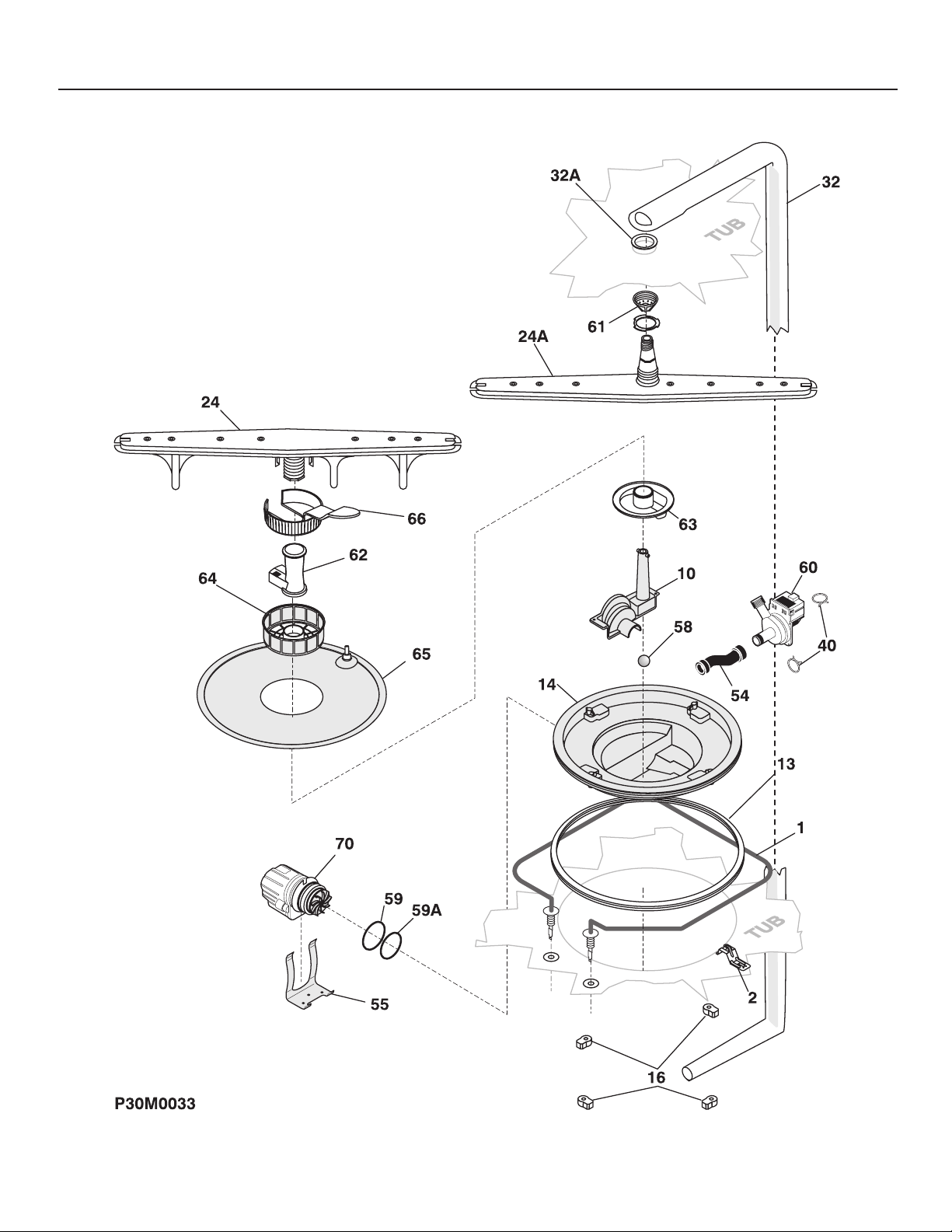

MOTOR & PUMP
11/02 8
Page 9
FDB956RBC1 Publication No.
MOTOR & PUMP
POS. NO PART NO DESCRIPTION
1 # 154247601 Heater
1* 154106201 Nut,heater ,(2)
1* 154289801 Shield,heater terminal
2 154359701 Bracket,heater ,(2)
10 154245501 Cover,volute
13 154246801 Gasket,sump
14 154365902 Housing,sump
16 154246502 Retainer,sump
24 154414101 Spray arm,lower ,w/heat shield
24A 154313601 Spray arm,center
24A* 154252001 Nut,spray arm ,center
32 154406601 Tube,delivery
32A 154406401 Gasket,delivery tube
40 154348401 Clamp,red ,pump
40 154348501 Clamp,silver ,pump
40* 154106801 Clamp,hose ,(2)
54 154234401 Hose,connector
55 154362301 Bracket,motor ,askoll
55* 5303316032 Screw,truss ss ,8 .625
58 154246402 Check ball
59 154246901 O-ring,rear
59A 154247001 O-ring,front
60 154407401 Drain Pump Assy
60* 154426201 Bracket,motor ,drain
61 154406501 Nozzle,3rd level ,spray arm
62 154294101 Support,spray arm ,lower
63 154252201 Base,soil director
64 154252301 Filter,soil director
65 154252401 Filter,polypro
66 154252701 Trap,glass
70 # 154395403 Motor assembly,circulation ,w/o o’rings
5995381075
* 154380601 Clamp,hose ,(1)
* 154200601 Screw,#10-16 x 3/8
# = Fast Moving Part 9 11/02
* = Non-Illustrated Part
Page 10
Publication No. FDB956RBC1
5995381075

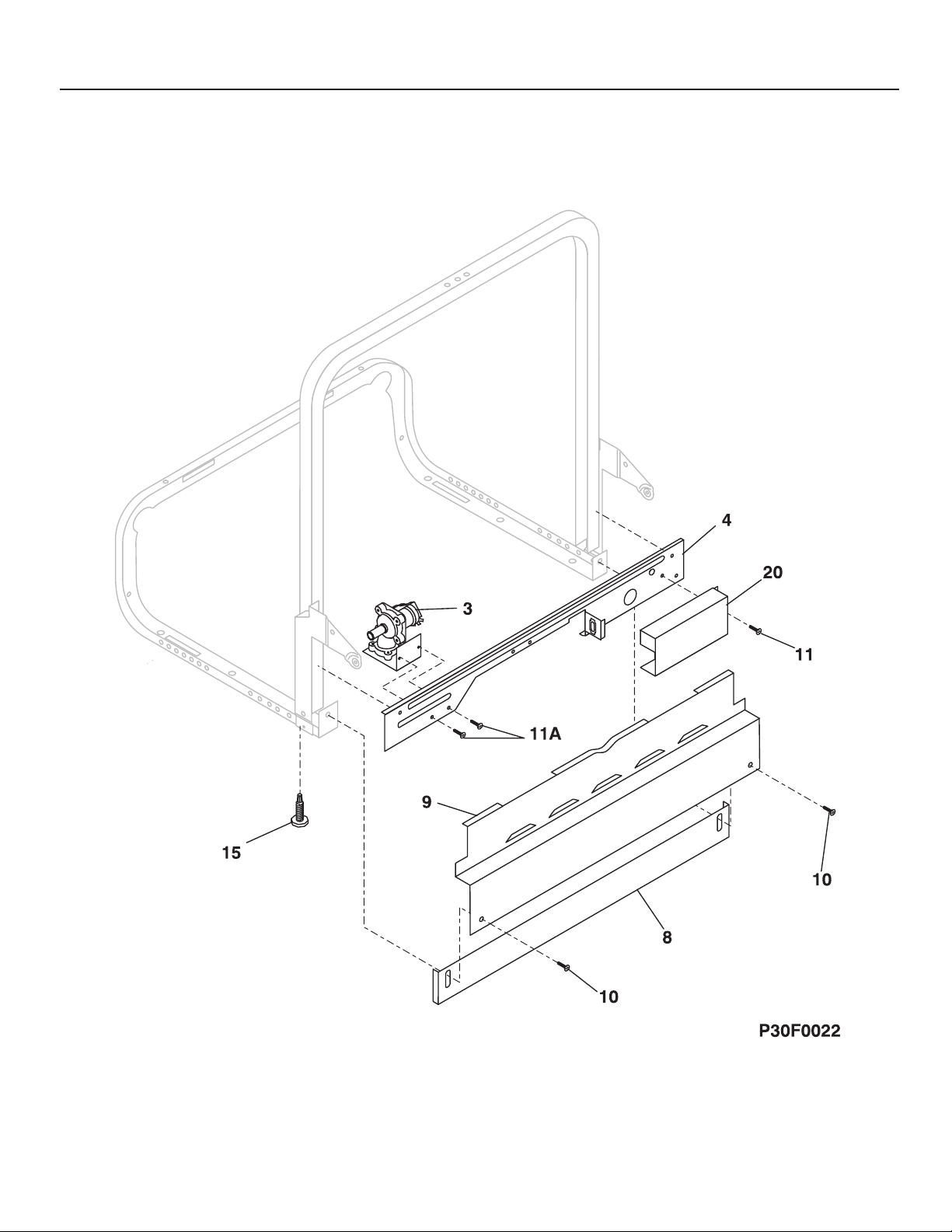

FRAME
11/02 10
Page 11
FDB956RBC1 Publication No.
FRAME
POS. NO PART NO DESCRIPTION
3 # 154373303 Valve,water
4 154208701 Brace,front frame
8 154322903 Toeplate,adjustable ,black
9 154397203 Kickplate Assy,black ,w/foam
10 5300808658 Screw,#8A x .375" ,black
11 154409401 Screw,#8-18 x .375
11A 154200601 Screw,#10-16 x 3/8
15 154419301 Screw,leveling
20 154209601 Cover,junction box
* 154412301 Baffle,sound
* 154290101 Guard,sound baffle ,wire
* 154290001 Insulation,sound baffle ,side
* 154041001 Screw,plask #1 ,10-10 x 9/16
5995381075
# = Fast Moving Part 11 11/02
* = Non-Illustrated Part
Page 12
Publication No. FDB956RBC1
5995381075

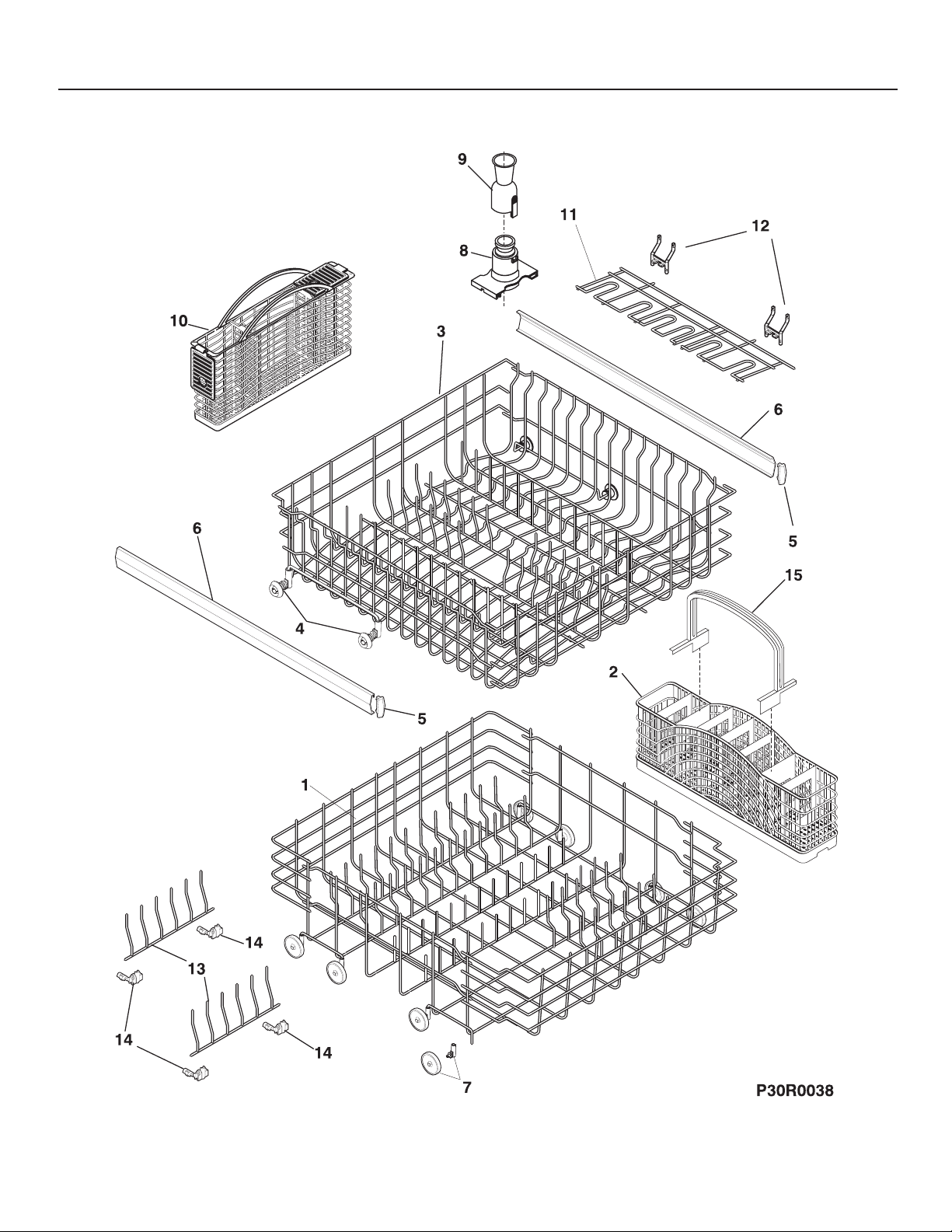

RACKS
11/02 12
Page 13
FDB956RBC1 Publication No.
RACKS
POS. NO PART NO DESCRIPTION
1 154319708 Rack assy,lower
2 154295201 Basket,silverware
3 154319506 Rack assy,upper
4 5304407064 Wheel & bushing assy,upper rack
5 5300809927 Cap,slide ,(4)
6 154232701 Slide,rack ,(2)
7 154174501 Wheel & bracket assy,lower rack
8 154304001 Base,funnel
9 154251801 Funnel
10 154238801 Basket,utility ,white
11 154225203 Shelf,cup
12 154352401 Bracket,cup shelf ,(4)
13 154224902 Fence,fold down ,white ,lower rack ,(2)
14 154376501 Bracket,fold down fence ,lower rack ,(4)
15 154254001 Handle,basket ,silverware
5995381075
# = Fast Moving Part 13 11/02
* = Non-Illustrated Part
