FACTORY PARTS CATALOG
DISHWASHER
PRODUCT NO. BASE MODEL NO. COLOR
FDB834RFR0 FDB834RF reversible
FDB834RFS0 FDB834RF white
FDB834RFT0 FDB834RF almond
SERVICE DATA SHEET # - 154330401
OWNER’S GUIDE # - 154329401
INSTALLATION INST - 154329601
101 Masters Blvd.
Anderson, SC 29624
Publication No.
5995308052
980603
-EN/SERVICE /ECL
24" BUILT-IN
DISHWASHER
Model No.
FDB834RF
911
©1998 White Consolidated Industries, Inc.
All rights reserved
Publication No. FDB834RF
5995308052
CONTROL PANEL
6/98 2
A = FDB834RF (FDB834RFS0)
B = FDB834RF (FDB834RFT0)
C = FDB834RF (FDB834RFR0)
POS. NO PART NO DESCRIPTION
1 154253101 A - - Panel-control,white
1 154253102 - B - Panel-control,almond
1 154253103 - - C Panel-control,black
2 154329901 A - - Insert-control pnl,white
2 154329902 - B - Insert-control pnl,almond
2 154329903 - - C Insert-control pnl,black
3 # 154227701 A B C Control
4 154287901 A B C Cover-control
4A 154301301 A B C Cover-pc protector
20 154283701 A B C Vapor Weldment Assy
25 154229201 A B C Seal-chamber
26 154303901 A B C Gasket-vent
27 154226701 A B C Actuator-wax
28 154226901 A B C Valve-vent
29 154226401 A B C Gasket-valve
33 154292402 A B C Gasket-cover
34 # 154251201 A B C Keypad
FDB834RF Publication No.
5995308052
CONTROL PANEL
* 154200401 A B C Screw,6-10 x 3/8 ,pan plask
* 154283901 A B C Screw,#8-10 ,3/8 phillips
* 154330001 A - - Nameplate,white
* 154330002 - B - Nameplate,almond
* 154330003 - - C Nameplate,black
* # 154329101 A B C Harness-wiring
# = Fast Moving Part 3 6/98
* = Non-Illustrated Part
Publication No. FDB834RF
5995308052
DOOR
6/98 4
A = FDB834RF (FDB834RFS0)
B = FDB834RF (FDB834RFT0)
C = FDB834RF (FDB834RFR0)
POS. NO PART NO DESCRIPTION
1 154226002 A B C Spring-door,(2)
1* 154325201 A B C Spring linkage
2 154093301 A B C Screw-arm assy
3 154325303 A B C Arm Assy,RH
3 154325304 A B C Arm Assy,LH
3* 154211501 A B C Pin-arm
5 154079601 A B C Nut-arm assy
7 154299002 A B C Door-inner assy
9 154230101 A B C Dispenser-det/rinse aid
10 154304301 A B C Screw-latch mtg,(2)
12 # 154308101 A - - Latch assy,white
12 # 154308102 - B - Latch assy,almond
12 # 154308103 - - C Latch assy,black
20 154210602 A B C Mid Door Assy
27 154257601 A - - Trim-door,white ,bottom
27 154309502 - B - Trim-door,almond ,bottom
27 154257603 - - C Trim-door,black ,bottom
32 5303943154 A B C Insert-door kit,wht/alm&blk/wht
32A 154229004 A B C Spacer-insert,door
36 154309305 A - - Trim-door,white ,side
36 5304404926 - B - Trim-door,almond ,side
36 154309307 - - C Trim-door,side
49 154297602 A B C Gasket-door,bottom
50 154211401 A B C Support-door hinge
FDB834RF Publication No.
5995308052
DOOR
* 154200601 A B C Screw-#10-16 x 3/8
* 5300808749 A B C Screw,C.R. truss ,#8 .625
# = Fast Moving Part 5 6/98
* = Non-Illustrated Part
Publication No. FDB834RF
5995308052

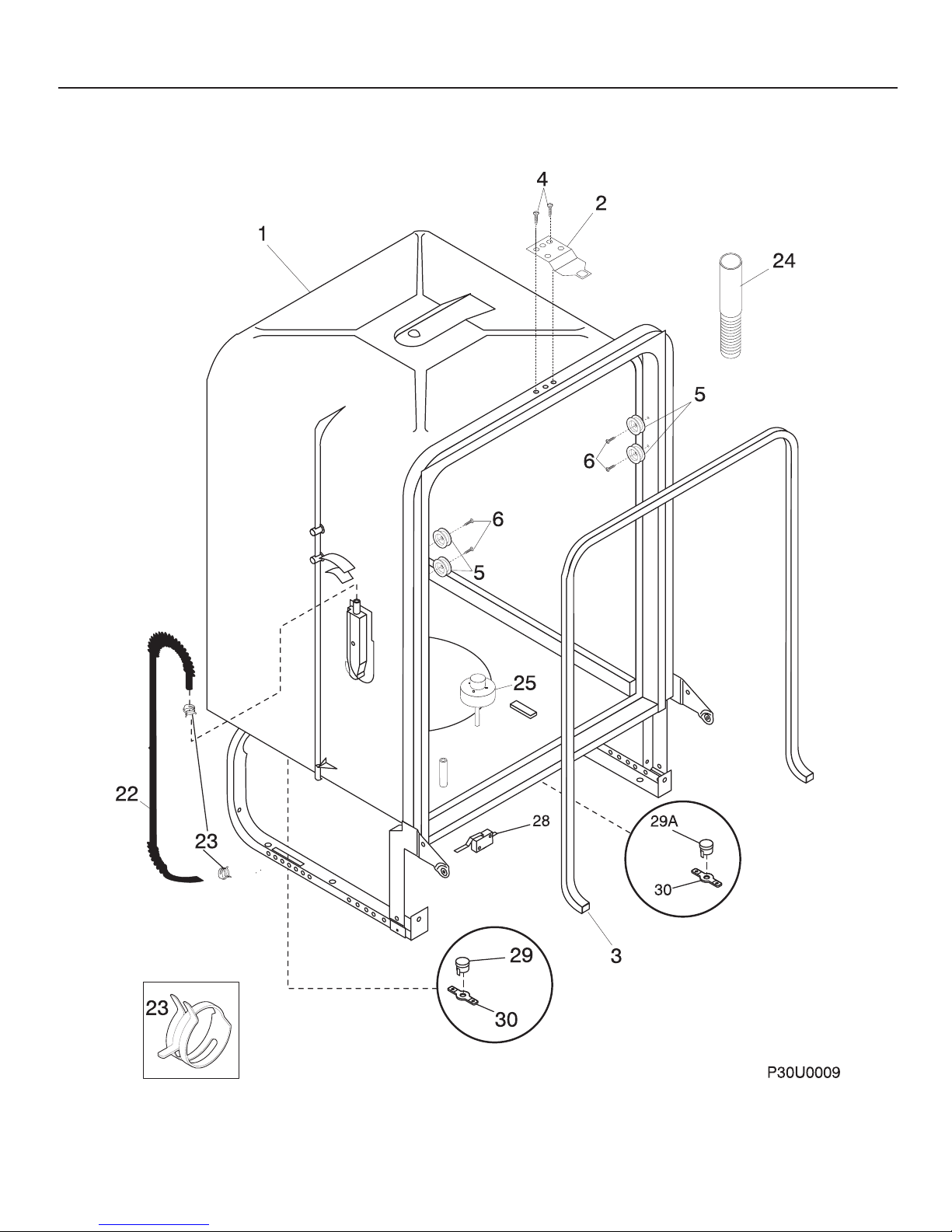

TUB
6/98 6
A = FDB834RF (FDB834RFS0)
B = FDB834RF (FDB834RFT0)
C = FDB834RF (FDB834RFR0)
POS. NO PART NO DESCRIPTION
1 # 154209301 A B C Tub assy,w/frame parts
2 154211601 A B C Strike-door
3 # 154211801 A B C Gasket-tub
4 5300807270 A B C Screw
5 154080001 A B C Roller-tub
6 5303943103 A B C Screw w/washer,(8)
22 154239801 A B C Tubing-water inlet
23 5303318539 A B C Clamp-tubing,(2)
24 # 154225602 A B C Hose-drain
25 # 154209701 A B C Float
28 # 154225501 A B C Switch-float
28* 154200701 A B C Screw-#10-32 x 3/8
28* 154209801 A B C Bracket-float switch
29 # 154290204 A B C Thermostat,re-settable
29A# 154227501 A B C Thermister
30 154241101 A B C Retainer-thermostat
30* 154297701 A B C Screw,retainer-thermo
FDB834RF Publication No.
5995308052
TUB
* 154041001 A B C Screw,plask #1 ,10-10 x 9/16
# = Fast Moving Part 7 6/98
* = Non-Illustrated Part
Publication No. FDB834RF
5995308052
MOTOR & PUMP
6/98 8
A = FDB834RF (FDB834RFS0)
B = FDB834RF (FDB834RFT0)
C = FDB834RF (FDB834RFR0)
POS. NO PART NO DESCRIPTION
1 # 154247601 A B C Heater
1* 154106201 A B C Nut-heater,(2)
1* 154289801 A B C Shield-heater terminal
2 154322501 A B C Bracket-heater
7 154245901 A B C Macerator
10 154245501 A B C Cover-volute
12 154245801 A B C Impeller
12* 154282701 A B C Screw,ss impeller
13 154246801 A B C Gasket-sump
14 154335403 A B C Housing-sump
15 # 154246701 A B C Check valve
16 154246502 A B C Retainer,sump
24 # 154250901 A B C Spray arm-lower,w/cover
24* 154252001 A B C Nut-spray arm
24A 154313601 A B C Spray arm-center
32 154251701 A B C Tube-delivery
32A 154251601 A B C Gasket-delivery tube
34 154064901 A B C Washer-insulating
40 154106801 A B C Clamp-hose
40 154247301 A B C Clamp,drain pump
54 154234401 A B C Hose-connector
55 154245601 A B C Bracket-motor
55A 154246201 A B C Bracket-motor,front
56 # 154245706 A B C Motor,circulation
57 154246001 A B C Barrel,front
57* 154246101 A B C Barrel,rear
58 154246402 A B C Check ball
59 154246901 A B C O-ring,rear
59A 154247001 A B C O-ring,front
60 154247502 A B C Drain Pump Assy
60* 154234501 A B C Bracket-motor,drain
61 154250201 A B C Nozzle,3rd level ,spray arm
62 154294101 A B C Support-spray arm
63 154252201 A B C Base-soil director
64 154252301 A B C Filter-soil director
65 154252401 A B C Filter-polypro
66 154252701 A B C Trap-glass
67 154246601 A B C Hose-drain,shunt
70 # 154291504 A B C Motor & Pump Assy,includes#7,#12 ,
FDB834RF Publication No.
5995308052
MOTOR & PUMP
#57A,#59 & #59A,#55A,#56,#57
* 154200601 A B C Screw-#10-16 x 3/8
* 154247101 A B C Clamp,drain side
* 154247201 A B C Clamp,intake
* 154247401 A B C Clamp,connector pump
* 154287201 A B C Screw,motor mounting
* 154329001 A B C Cover-fan
* 5303316032 A B C Screw,truss ss ,8 .625
* # 154289901 A B C Transformer
# = Fast Moving Part 9 6/98
* = Non-Illustrated Part
Publication No. FDB834RF
5995308052
FRAME
6/98 10
A = FDB834RF (FDB834RFS0)
B = FDB834RF (FDB834RFT0)
C = FDB834RF (FDB834RFR0)
POS. NO PART NO DESCRIPTION
3 # 154219601 A B C Valve-water
4 154208701 A B C Brace-front
8 154322903 A B C Toeplate-adjustable
9 154323003 A B C Kickplate/Baffle Assy,black
10 5300808658 A B C Screw,#8A x .375"
11 154294701 A B C Screw,#7 plas .375
15 154210901 A B C Screw-leveling
20 154209601 A B C Cover-junction box
49 154227401 A B C Guard-motor
* 154041001 A B C Screw,plask #1 ,10-10 x 9/16
* 154200601 A B C Screw-#10-16 x 3/8
* 5300807373 A B C Washer
* 5300808749 A B C Screw,C.R. truss ,#8 .625
FDB834RF Publication No.
5995308052
FRAME
# = Fast Moving Part 11 6/98
* = Non-Illustrated Part
Publication No. FDB834RF
5995308052
RACKS
6/98 12
A = FDB834RF (FDB834RFS0)
B = FDB834RF (FDB834RFT0)
C = FDB834RF (FDB834RFR0)
POS. NO PART NO DESCRIPTION
1 154320904 A B C Rack assy-lower
2 154295201 A B C Basket-Silverware
2* 154254101 A B C Cover-silverware basket,white
3 154321104 A B C Rack assy-upper
4 5300809974 A B C Wheel & bracket assy,upper rack
5 5300809927 A B C Cap-slide,(4)
6 154232701 A B C Slide-rack,(2)
7 154174501 A B C Wheel & bracket assy,lower rack
8 154304001 A B C Base-funnel
9 154251801 A B C Funnel
FDB834RF Publication No.
5995308052
RACKS
# = Fast Moving Part 13 6/98
* = Non-Illustrated Part
