Product No. FDB700BFB0 FDB700BFC0 FDB700BFQ0 FDB700BFS0
Series Built-in 24" Built-in 24" Built-in 24" Built-in 24"
Color black stainless bisque white
Owner's Guide English 154590901 154590901 154590901 154590901
Owner's Guide Spanish 154590903 154590903 154590903 154590903
Owner's Guide French 154590902 154590902 154590902 154590902
Service Data Sheet 154457601 154457601 154457601 154457601
Energy Guide 154540012 154540012 154540012 154540012
Installation Instructions 154427301 154427301 154427301 154427301
Market North America North America North America North America
P30L0053.eps P30C0138.eps P30B0041.eps P30U0018.eps P30M0041.eps P30F0022.eps
P30R0089.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995474490
06/09/18
(EN/SERVICE/ECL)
821
24-INCH BUILT-IN
DISHWASHER
Model No.
FDB700BF
Copyright © 2006 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995474490 FDB700BF
CONTROL PANEL
09/06 2
FDB700BF Publication No: 5995474490
CONTROL PANEL
POS. NO PART NO. DESCRIPTION
1 154454203 A B - - Panel, control, black
1 154454204 - - C - Panel, control, bisque
1 154454201 - - - D Panel, control, white
2 154458203 A B - - Insert, control panel, black
2 154458204 - - C - Insert, control panel, bisque
2 154458201 - - - D Insert, control panel, white
3 # 154412901 A B C D Timer
3* 154131203 A B C D Shield, timer
3* 154095701 A B C D Screw, thread rolling, (2), timer
8 # 154470001 A B C D Switch, selector, 6 button
8* 154248601 A B C D Shield, switch
8* 5303318719 A B C D Screw, mtg.
13 154426903 A B - - Knob, timer, black
13 154426904 - - C - Knob, timer, bisque
13 154426901 - - - D Knob, timer, white
20 154433001 A B C D Vent assy, static dry
20* 154436201 A B C D Screw, dry duct, (3)
* 154545501 A B C D Wiring Harness
* 154540012 A B C D Energy guide label
Model Index: A FDB700BF (FDB700BFB0)
B FDB700BF (FDB700BFC0)
C FDB700BF (FDB700BFQ0)
D FDB700BF (FDB700BFS0)
# Functional Parts
3 09/06
* Non-Illustrated Parts
Publication No: 5995474490 FDB700BF
DOOR
09/06 4
FDB700BF Publication No: 5995474490
DOOR
POS. NO PART NO. DESCRIPTION
1 154430501 A B C D Spring, door, (2)
1A 154325201 A B C D Linkage, door spring, (2)
2 154093301 A B C D Screw, arm assy, (4)
3 154558102 A B C D Arm Assy, LH
3A 154558502 A B C D Arm Assy, RH
* 154529101 A B C D Pin, arm assy
5 154079601 A B C D Nut, arm assy, and handle mtg.
7 154299005 A B C D Door, inner assy
9 154574401 A B C D Dispenser, det/rinse aid, w/o reed
9* 154294701 A B C D Screw, #7 plas .375, (6), disp. assy.
10 154103702 A B C D Screw, latch mtg, (2)
12 # 154537303 A B - - Latch assy, black
12 # 154537304 - - C - Latch assy, bisque
12 # 154537301 - - - D Latch assy, white
20 154359107 A - - - Door, black
20 154533901 - B - - Door, stainless
20 154359110 - - C - Door, bisque
20 154359105 - - - D Door, white
20* 5304428306 A B C D Screw, door mtg., (2)
22 154388801 A B C D Cap, Rinse aid
49 154576501 A B C D Gasket, door, bottom
50 154211401 A B C D Support, door hinge
51 154320301 A B C D Clamp, drip loop, wire
* # 154227805 A B C D Thermostat, temp assure
* # 154227808 A B C D Thermostat, temp boost, hi temp wash
* 154200601 A B C D Screw, #10-16 x 3/8
Model Index: A FDB700BF (FDB700BFB0)
B FDB700BF (FDB700BFC0)
C FDB700BF (FDB700BFQ0)
D FDB700BF (FDB700BFS0)
# Functional Parts
5 09/06
* Non-Illustrated Parts
Publication No: 5995474490 FDB700BF
TUB
09/06 6
FDB700BF Publication No: 5995474490
TUB
POS. NO PART NO. DESCRIPTION
1 # 154209301 A B C D Tub assy, w/frame parts
2 154429101 A B C D Strike, door
3 # 154561001 A B C D Gasket, tub
4 154200602 A B C D Screw, 10-16 x 3/8, hex
5 154333902 A B C D Roller, tub
6 5303943103 A B C D Screw, w/washer, (8)
22 154577401 A B C D Tubing, water inlet
23 5303318539 A B C D Clamp, tubing, (2)
24 # 154525301 A B C D Hose, drain
25 # 154209701 A B C D Float
28 154408701 A B C D Switch Assy, float
29 # 154290204 A B C D Thermostat, re-settable
30 154241101 A B C D Retainer, thermostat
30* 154297701 A B C D Screw, retainer-thermo
* 154456902 A B C D Insulation, blanket
* 154041001 A B C D Screw, plask #1, 10-10 x 9/16
* 154200601 A B C D Screw, #10-16 x 3/8
* 5300807270 A B C D Screw, (2), countertop mtg.
Model Index: A FDB700BF (FDB700BFB0)
B FDB700BF (FDB700BFC0)
C FDB700BF (FDB700BFQ0)
D FDB700BF (FDB700BFS0)
# Functional Parts
7 09/06
* Non-Illustrated Parts
Publication No: 5995474490 FDB700BF
MOTOR & PUMP
09/06 8
FDB700BF Publication No: 5995474490
MOTOR & PUMP
POS. NO PART NO. DESCRIPTION
1 154247601 A B C D Heater
1* 154106201 A B C D Nut, heater, (2)
1* 154289801 A B C D Shield, heater terminal
2 154479601 A B C D Bracket, heater, (2)
10 154245501 A B C D Cover, volute
13 154246801 A B C D Gasket, sump
14 154365902 A B C D Housing, sump
16 154246502 A B C D Retainer, sump
24 154568001 A B C D Spray arm, white, lower, w/heat shield
24A 154313601 A B C D Spray arm, center
24A* 154252001 A B C D Nut, spray arm, center
32 154406601 A B C D Tube, delivery
32A 154406401 A B C D Gasket, delivery tube
40 154348401 A B C D Clamp, red, pump
40 154348502 A B C D Clamp, red, pump
40* 154106801 A B C D Clamp, hose, worm/drain
40* 154380601 A B C D Clamp, hose, worm/gear
54 154234401 A B C D Hose, connector
55 154362301 A B C D Bracket, motor
55* 5303316032 A B C D Screw, truss ss, 8 .625
58 154246402 A B C D Check ball
59 154246901 A B C D O-ring, rear
59A 154247001 A B C D O-ring, front
60 154474101 A B C D Drain Pump Assy
60* 154426201 A B C D Bracket, motor, drain
60* 5303318719 A B C D Screw, mtg.
61 154406501 A B C D Nozzle, 3rd level, spray arm
62 154294101 A B C D Support, spray arm, lower
63 154252201 A B C D Base, soil director
64 154252301 A B C D Filter, soil director, white
65 154252401 A B C D Filter, polypro
66 154252701 A B C D Trap, glass
70 # 154574701 A B C D Motor & Pump Assy
* 154200601 A B C D Screw, #10-16 x 3/8
Model Index: A FDB700BF (FDB700BFB0)
B FDB700BF (FDB700BFC0)
C FDB700BF (FDB700BFQ0)
D FDB700BF (FDB700BFS0)
# Functional Parts
9 09/06
* Non-Illustrated Parts
Publication No: 5995474490 FDB700BF
FRAME
09/06 10
FDB700BF Publication No: 5995474490

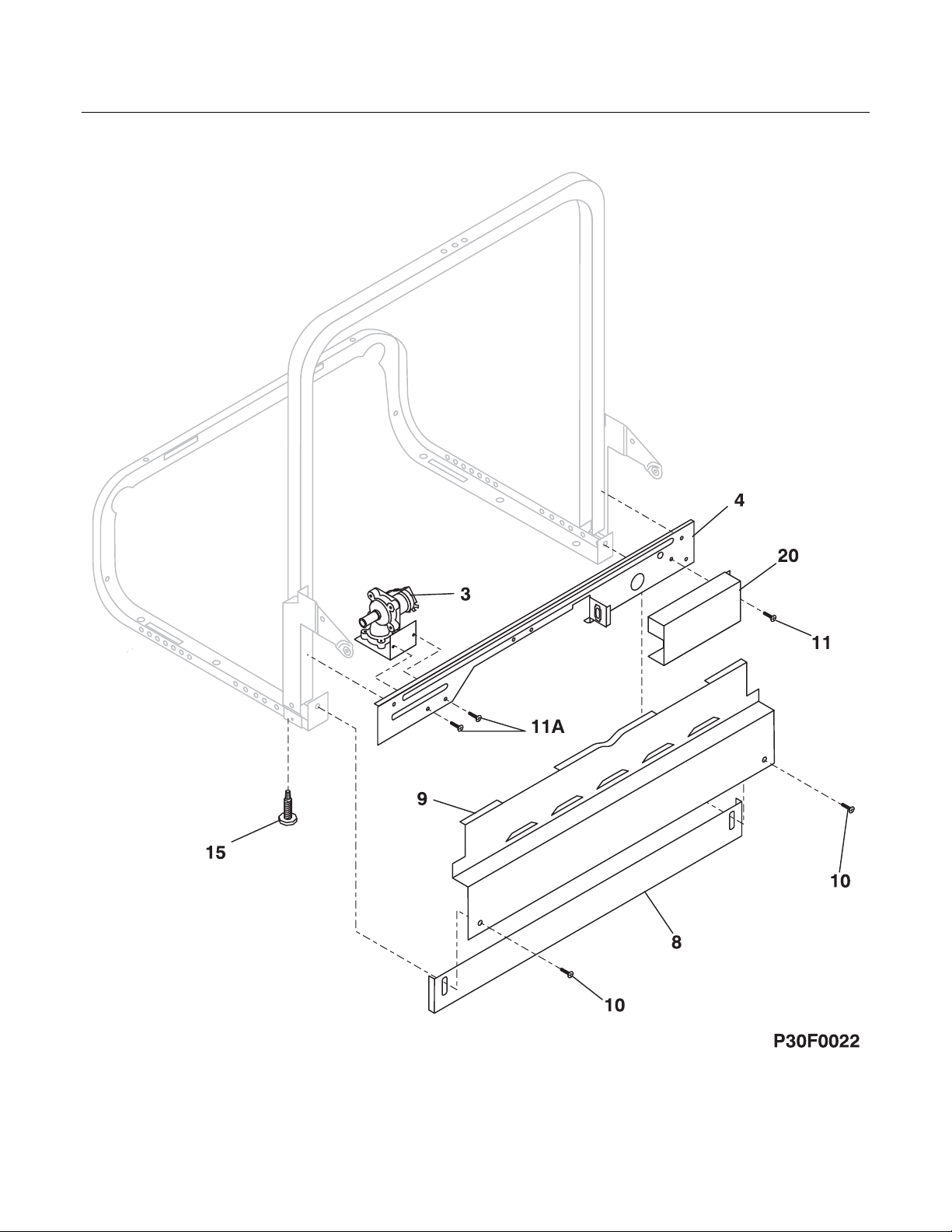

FRAME
POS. NO PART NO. DESCRIPTION
3 # 154476101 A B C D Valve, water
4 154595801 A B C D Brace, front frame
8 154589403 A B - - Toeplate, adjustable, black
8 154589405 - - C - Toeplate, adjustable, bisque
8 154589401 - - - D Toeplate, adjustable, white
9 154589503 A B - - Kickplate Assy, black
9 154589505 - - C - Kickplate Assy, bisque
9 154589501 - - - D Kickplate Assy, white
10 5300808658 A B - - Screw, #8A x .375", black
10 154371303 - - C - Screw, phillips head, bisque
10 154371301 - - - D Screw, phillips head, white
11 154200701 A B C D Screw, #10-32 x 3/8
11A 154200601 A B C D Screw, #10-16 x 3/8
15 154571101 A B C D Leg, leveling, (4)
20 154597001 A B C D Cover, junction box
* 154041001 A B C D Screw, plask #1, 10-10 x 9/16
* 154200602 A B C D Screw, 10-16 x 3/8, hex
* 154409401 A B C D Screw, #8-18 x .375
Model Index: A FDB700BF (FDB700BFB0)
B FDB700BF (FDB700BFC0)
C FDB700BF (FDB700BFQ0)
D FDB700BF (FDB700BFS0)
# Functional Parts
11 09/06
* Non-Illustrated Parts
Publication No: 5995474490 FDB700BF
RACKS
09/06 12
FDB700BF Publication No: 5995474490
RACKS
POS. NO PART NO. DESCRIPTION
1 154336009 A B C D Rack assy, lower, w/rollers
2 5300808994 A B C D Basket, silverware
3 154331502 A B C D Rack assy, upper
4 154522901 A B C D Wheel & bushing assy, upper rack, (8)
5 5300809927 A B C D Cap, slide, (4)
6 154232701 A B C D Slide, rack, (2)
7 154174502 A B C D Wheel & bracket assy, lower rack
8 154304001 A B C D Base, funnel
9 154251801 A B C D Funnel
Model Index: A FDB700BF (FDB700BFB0)
B FDB700BF (FDB700BFC0)
C FDB700BF (FDB700BFQ0)
D FDB700BF (FDB700BFS0)
# Functional Parts
13 09/06
* Non-Illustrated Parts
