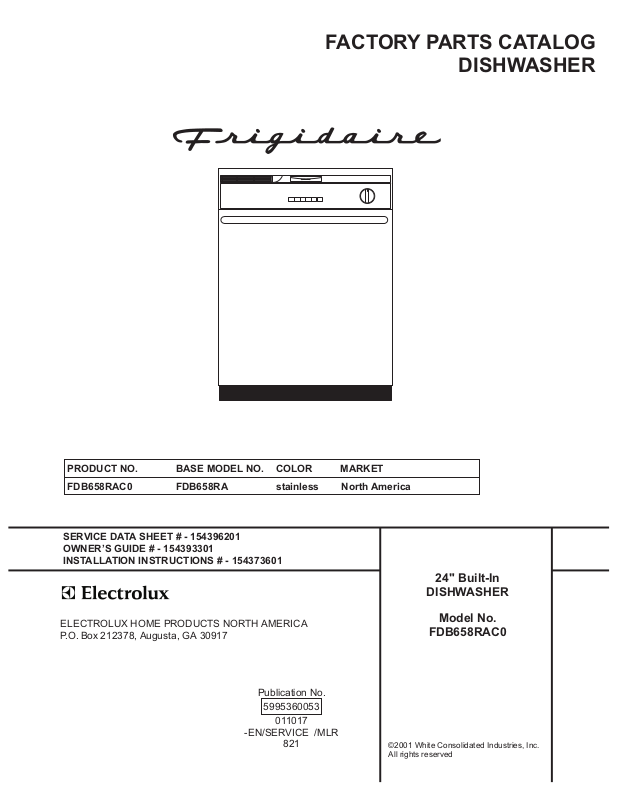

FACTORY PARTS CATALOG
DISHWASHER
PRODUCT NO. BASE MODEL NO. COLOR MARKET
FDB658RAC0 FDB658RA stainless North America
SERVICE DATA SHEET # - 154396201
OWNER’S GUIDE # - 154393301
INSTALLATION INSTRUCTIONS # - 154373601
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995360053
011017
-EN/SERVICE /MLR
821
©2001 White Consolidated Industries, Inc.
All rights reserved
24" Built-In
DISHWASHER
Model No.
FDB658RAC0
Publication No. FDB658RAC0
5995360053
CONTROL PANEL
10/01 2
FDB658RAC0 Publication No.
CONTROL PANEL
POS. NO PART NO DESCRIPTION
1 154368206 Panel,control ,black
2 154401503 Insert-control pnl,black
3 # 154367901 Timer
3* 154095701 Screw,thread rolling ,(2) ,timer
3* 154131203 Shield,timer
8 # 154368601 Switch,selector ,6 button
8* 154248601 Shield,switch
8* 5303318719 Screw,mtg.
13 154239509 Knob,timer ,black
20 154283701 Vapor Weldment Assy
25 154229201 Seal,chamber
27 154226701 Actuator,wax
28 154226901 Valve,vent
29 154226403 Gasket,valve
* # 154391901 Harness-wiring
* 154283901 Screw,#8-10 ,3/8 phillips
* 154294701 Screw,#7 plas .375 ,(6) ,disp. assy.
5995360053
# = Fast Moving Part 3 10/01
* = Non-Illustrated Part
Publication No. FDB658RAC0
5995360053
DOOR
10/01 4
FDB658RAC0 Publication No.
DOOR
POS. NO PART NO DESCRIPTION
1 154365701 Spring,door ,(2)
1A 154325201 Linkage,door spring ,(2)
2 154093301 Screw,arm assy ,(4)
3 154325304 Arm Assy,LH
3A 154325303 Arm Assy,RH
* 154211501 Pin,arm
5 154079601 Nut,arm assy ,(4)
7 154299002 Door,inner assy
7A 154226601 Grate,liner
9 154230101 Dispenser,det/rinse aid ,includes #22
9* 154294701 Screw,#7 plas .375 ,(6) ,disp. assy.
10 154103702 Screw,latch mtg ,(2)
12 # 154361203 Latch assy,black
20 154359108 Door,stainless
20* 154253201 Insulation,door
22 154388801 Cap,Rinse aid
49 154297602 Gasket,door ,bottom
50 154211401 Support,door hinge
51 154320301 Clamp,drip loop ,wire
5995360053
* # 154227808 Thermostat,temp boost
* 154227807 Thermostat,temp hotrinse
* 154200601 Screw,#10-16 x 3/8
* 154213801 Cleaner,stainless steel
# = Fast Moving Part 5 10/01
* = Non-Illustrated Part
Publication No. FDB658RAC0
5995360053
TUB
10/01 6
FDB658RAC0 Publication No.
TUB
POS. NO PART NO DESCRIPTION
1 # 154209301 Tub assy,w/frame parts
2 154211601 Strike,door
3 # 154211801 Gasket,tub
4 154200602 Screw,10-16 x 3/8 ,hex
5 154333901 Roller,tub
6 5303943103 Screw,w/washer ,(8)
22 154239801 Tubing,water inlet
23 5303318539 Clamp,tubing ,(2)
24 # 154225602 Hose,drain
25 # 154209701 Float
28 # 154225501 Switch,float
28A 154386601 Bracket,float switch
28A* 154333301 Screw,bracket mtg ,ph truss head
29 # 154290204 Thermostat,re-settable
30 154241101 Retainer,thermostat
30* 154297701 Screw,retainer-thermo
5995360053
* 154238304 Insulation,tub
* 154360201 Insulation,blanket ,back
* 5300807270 Screw,(2) ,countertop mtg.
* 154041001 Screw,plask #1 ,10-10 x 9/16
* 154200601 Screw,#10-16 x 3/8
* 154200701 Screw-#10-32 x 3/8
# = Fast Moving Part 7 10/01
* = Non-Illustrated Part
Publication No. FDB658RAC0
5995360053
MOTOR & PUMP
10/01 8
FDB658RAC0 Publication No.
MOTOR & PUMP
POS. NO PART NO DESCRIPTION
1 # 154247601 Heater
1* 154106201 Nut,heater ,(2)
1* 154289801 Shield,heater terminal
2 154359701 Bracket,heater ,(2)
10 154245501 Cover,volute
13 154246801 Gasket,sump
14 154365902 Housing,sump
16 154246502 Retainer,sump
24 154250801 Spray arm,lower
24A 154313601 Spray arm,center
24A* 154252001 Nut,spray arm ,center
32 154251701 Tube,delivery
32A 154358901 Gasket,delivery tube
40 154348401 Clamp,red ,pump
40 154348501 Clamp,silver ,pump
40* 154106801 Clamp,hose ,(2)
54 154234401 Hose,connector
55 154362301 Bracket,motor ,askoll
55* 5303316032 Screw,truss ss ,8 .625
58 154246402 Check ball
59 154246901 O-ring,rear
59A 154247001 O-ring,front
60 154247502 Drain Pump Assy
60* 154234501 Bracket,motor ,drain
61 154359601 Nozzle,3rd level ,spray arm
62 154294101 Support,spray arm ,lower
63 154252201 Base,soil director
64 154252301 Filter,soil director
65 154252401 Filter-polypro
66 154252701 Trap,glass
70 # 154395402 Motor assembly,circulation ,w/o o’rings
5995360053
* 154200601 Screw,#10-16 x 3/8
* 154338601 Clamp-P,nylon
# = Fast Moving Part 9 10/01
* = Non-Illustrated Part
Publication No. FDB658RAC0
5995360053
FRAME
10/01 10
FDB658RAC0 Publication No.
FRAME
POS. NO PART NO DESCRIPTION
3 # 154373301 Valve,water
4 154208701 Brace,front frame
8 154322903 Toeplate,adjustable ,black
9 154397203 Kickplate Assy,black ,w/ foam
9* 154249301 Insulation,kickplate
9* 154294701 Screw,#7 plas .375 ,(6) ,disp. assy.
10 5300808658 Screw,#8A x .375" ,black
11 154320101 Screw,serr ,#8-18 x 3/8
15 154405301 Screw,leveling
20 154209601 Cover,junction box
* 154041001 Screw,plask #1 ,10-10 x 9/16
* 154200602 Screw,10-16 x 3/8 ,hex
* 154290001 Insulation,sound baffle ,side
* 154290101 Guard,sound baffle ,wire
* 154321801 Baffle,sound
5995360053
# = Fast Moving Part 11 10/01
* = Non-Illustrated Part
Publication No. FDB658RAC0
5995360053
RACKS
10/01 12
FDB658RAC0 Publication No.
RACKS
POS. NO PART NO DESCRIPTION
1 154319708 Rack assy,lower
2 154295201 Basket,silverware
3 154319506 Rack assy-upper
4 5304407064 Wheel & bushing assy,upper rack
5 5300809927 Cap,slide ,(4)
6 154232701 Slide,rack ,(2)
7 154174501 Wheel & bracket assy,lower rack
8 154304001 Base,funnel
9 154251801 Funnel
10 154238801 Basket,utility ,white
11 154225203 Shelf,cup
12 154352401 Bracket,cup shelf
13 154224902 Fence,fold down ,white ,lower rack ,(2)
14 154376501 Bracket,fold down fence ,lower rack ,(4)
15 154254001 Handle,basket ,silverware
5995360053
# = Fast Moving Part 13 10/01
* = Non-Illustrated Part
