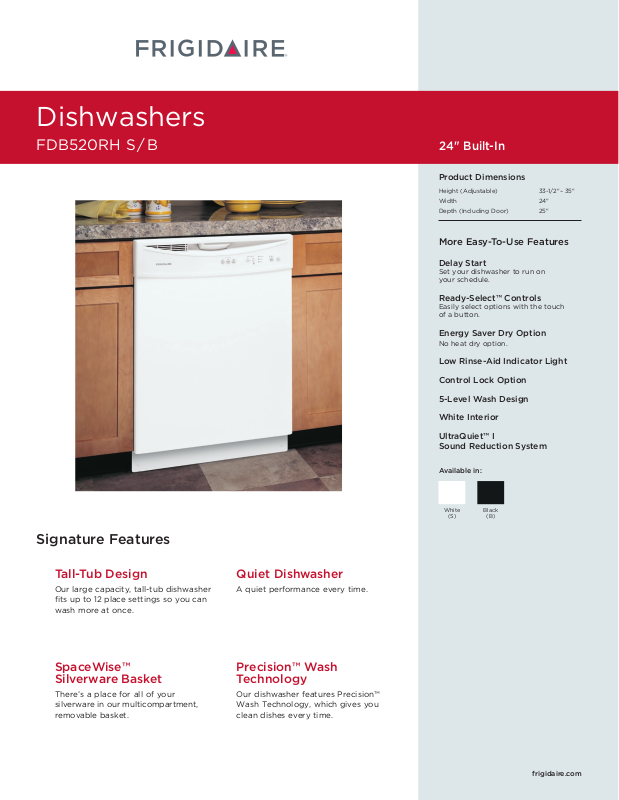

Frigidaire FDB520RH B, FDB520RH S DATASHEET
Drop-In Cooktop
Dishwashers
FPEC3085K S
FDB520RH S / B
30" Electric24" Built-In
Product Dimensions
Height (Adjustable) 33-1/2" – 35"
Width 24"
Depth (Including Door) 25"
More Easy-To-Use Features
Delay Start
Set your dishwasher to run on
your schedule.
Ready-Select™ Controls
Easily select options with the touch
of a button.
Energy Saver Dry Option
No heat dry option.
Low Rinse-Aid Indicator Light
Control Lock Option
5-Level Wash Design
White Interior
UltraQuiet™ I
Sound Reduction System
Signature Features
Tall-Tub Design
Our large capacity, tall-tub dishwasher
fits up to 12 place settings so you can
wash more at once.
SpaceWise™
Silverware Basket
There’s a place for all of your
silverware in our multicompartment,
removable basket.
Quiet Dishwasher
A quiet performance every time.
Precision™ Wash
Technology
Our dishwasher features Precision™
Wash Technology, which gives you
clean dishes every time.
Available in:
White
(S)
Black
(B)
frigidaire.com
Features
B
A
D
C
Control Design
Digital Display
Door Latch
Stay-Put Door Hinge Design
Low Rinse-Aid Indicator Light
Interior Design
Interior Color
Wash System
Wash Levels
Wash Speeds
Smart Soil Sensor™
Sound Package
Filter
Filter Trap
Soft Food Disposer
dB Level
Drying System
Ready-Select™
Yes
Yes
Tall Tub
White
Precision™ Wash
5
1
UltraQuiet™ 1
Plastic
Removable
Yes
61
Static
Cycles
Number of Cycles
Heavy
Normal
Light
Favorite
China Crystal
Rinse Only
Energy Saver
Upper Rack Wash Only
Cycle Indicator Light
Control Lock
3
Yes
Yes
Yes
Yes
Yes
Options
Heat / No Heat Dry
Hi-Temp Wash
NSF® Certified Sanitize Rinse
Delay Start
Yes
Yes
2-4-6 Hour
Rack System
SpaceWise™ Silverware Basket
Rack System
Rack Coating
Rack Handles
Stemware Holders
Fold-Down Tines
Cup Shelf
Small Items Cover
Standard
Standard
PVC
Specifications
Water Inlet Location
Water Usage (Gallons)
Water Pressure (PSI)
Integral Air Gap on Supply
Leveling Legs
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts
Amps @ 120 Volts
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having
2-wire service with a separate ground wire. Appliance must be
grounded for safe operation.
Left Bottom Front
6.0
20 – 120
Yes
4
Right Bottom Front
120V / 60 Hz / 15A
1
1.44
10
64 Lbs.
NOTE: Always consult local and national electric and plumbing codes. Refer to Product
Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Adjustable)
B - Width
C - Depth (Including Door)
D - Depth (To Tub Flange)
Depth with Door Open 90˚
33-1/2" – 35"
24"
25"
22-1/2"
49-1/4"
Cutout Dimensions
Height (Min.)
Height (Max.)
Width (Min.)
Depth (Min.)
Dishwashers
FDB520RH S/ B 24" Built-In
Meets requirements
of ASSE 1006
34-1/4"
35-1/4"
24"
24"
•
USA
250 Bobby Jones Expressway
•
CANADA
FDB520RH 03/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Martinez, GA 30907
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
