Product No. FDB520RHB0 FDB520RHS0
Series Built-in 24" Built-in 24"
Color black white
Owner's Guide English 154659801 154659801
Owner's Guide Spanish 154659803 154659803
Owner's Guide French 154659802 154659802
Service Data Sheet 154737301 154737301
Energy Guide 154678526 154678526
Installation Instructions 154427301 154427301
Market North America North America
P30L0081.eps P30C0162.eps P30B0045.eps P30U0024.eps P30M0041.eps P30F0022.eps
P30R0111.eps

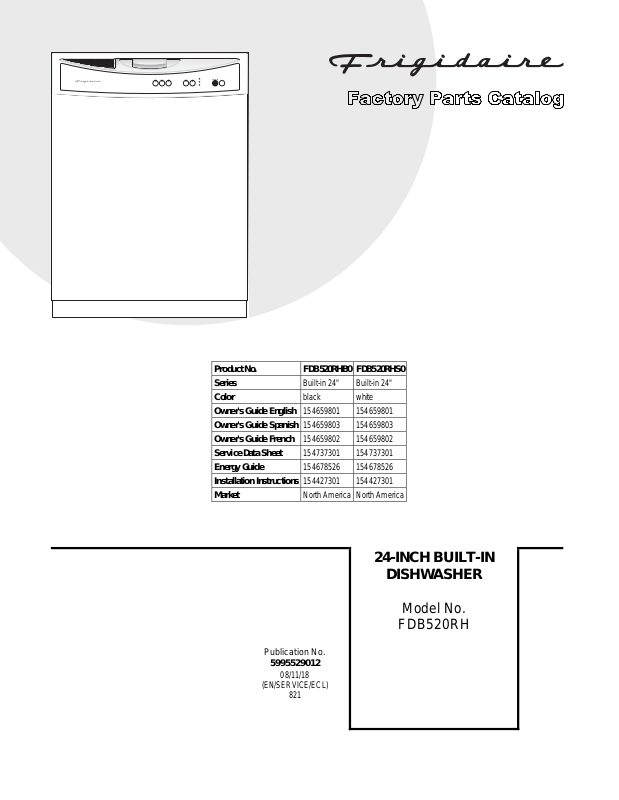

24-INCH BUILT-IN
DISHWASHER
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995529012
08/11/18
(EN/SERVICE/ECL)
821
Copyright ©
Model No.
FDB520RH
All rights reserved.
Page 2
Publication No: 5995529012 FDB520RH
CONTROL PANEL
11/08 2
Page 3
FDB520RH Publication No: 5995529012
CONTROL PANEL
POS. NO PART NO. DESCRIPTION
1 154645201 A - Panel, control, white
1 154645203 - B Panel, control, black
2 154737601 A - Overlay, control panel, white
2 154737603 - B Overlay, control panel, black
3 # 154718501 A B Control, board
4 154552101 A B Cover, control
8 # 154737701 A B Switch Assembly, 7 button
20 154433001 A B Vent assy, static dry
20* 154436201 A B Screw, dry duct, (3)
33 154553501 A B Gasket, cover
* # 154646301 A B Harness, wiring, main
* # 154738201 A B Harness, wiring, switch, to main harness
* 154227501 A B Thermistor
* 154678526 A B Energy guide label
* 154294701 A B Screw, #7 plas .375, (6), disp. assy.
* 154409401 A B Screw, #8-18 x .375
Model Index: A FDB520RH (FDB520RHS0)
B FDB520RH (FDB520RHB0)
# Functional Parts
3 11/08
* Non-Illustrated Parts
Page 4
Publication No: 5995529012 FDB520RH
DOOR
11/08 4
Page 5
FDB520RH Publication No: 5995529012
DOOR
POS. NO PART NO. DESCRIPTION
1 154430501 A B Spring, door, (2)
1A 154325201 A B Linkage, door spring, (2)
2 154093301 A B Screw, arm assy, (4)
3 154691401 A B Arm Assy, LH
3A 154691301 A B Arm Assy, RH
* 154647101 A B Hinge Pin, arm assy
* 154686401 A B Bearing, hinge pin
5 154079601 A B Nut, arm assy, and handle mtg.
7 154494601 A B Liner, door assy.
9 154574401 A B Dispenser, det/rinse aid, w/o reed
9* 154294701 A B Screw, #7 plas .375, (6), disp. assy.
10 154103702 A B Screw, latch mtg, (2)
12 # 154556701 A - Latch assy, white
12 # 154556703 - B Latch assy, black
20 154538301 A - Door, white
20 154538303 - B Door, black
20* 5304428306 A B Screw, door mtg., (2)
22 154388801 A B Cap, Rinse aid
49 154576501 A B Gasket, door, bottom
51 154320301 A B Clamp, drip loop, wire
* 154409401 A B Screw, #8-18 x .375
Model Index: A FDB520RH (FDB520RHS0)
B FDB520RH (FDB520RHB0)
# Functional Parts
5 11/08
* Non-Illustrated Parts
Page 6
Publication No: 5995529012 FDB520RH
TUB
11/08 6
Page 7
FDB520RH Publication No: 5995529012

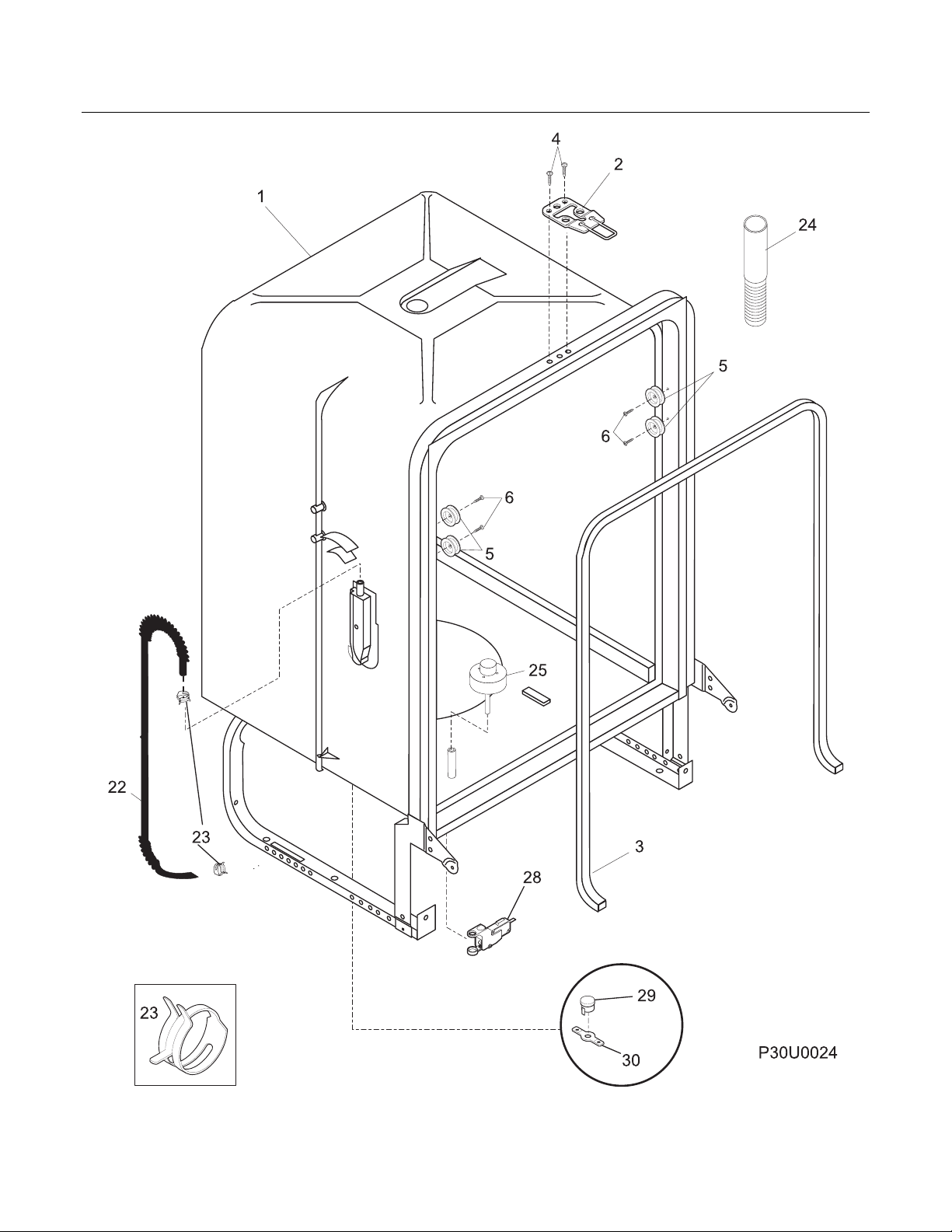

TUB
POS. NO PART NO. DESCRIPTION
1 # 154729301 A B Tub assy, w/frame parts, white, PW
2 154662601 A B Strike, door
3 # 154561001 A B Gasket, tub
4 154200602 A B Screw, 10-16 x 3/8, hex
5 154333902 A B Roller, tub
6 5303943103 A B Screw, w/washer, (8)
22 154577401 A B Tubing, water inlet
23 5303318539 A B Clamp, tubing, (2)
24 # 154606701 A B Hose, drain
25 # 154209701 A B Float
28 154408701 A B Switch Assy, float
29 # 154290204 A B Thermostat, re-settable
30 154241101 A B Retainer, thermostat
30* 154297701 A B Screw, retainer-thermo
* 154685101 A B Gasket, tub, corner, (2)
* 5300807270 A B Screw, (2), countertop mtg.
* 154041001 A B Screw, plask #1, 10-10 x 9/16
* 154200601 A B Screw, #10-16 x 3/8
Model Index: A FDB520RH (FDB520RHS0)
B FDB520RH (FDB520RHB0)
# Functional Parts
7 11/08
* Non-Illustrated Parts
Page 8
Publication No: 5995529012 FDB520RH
MOTOR & PUMP
11/08 8
Page 9
FDB520RH Publication No: 5995529012

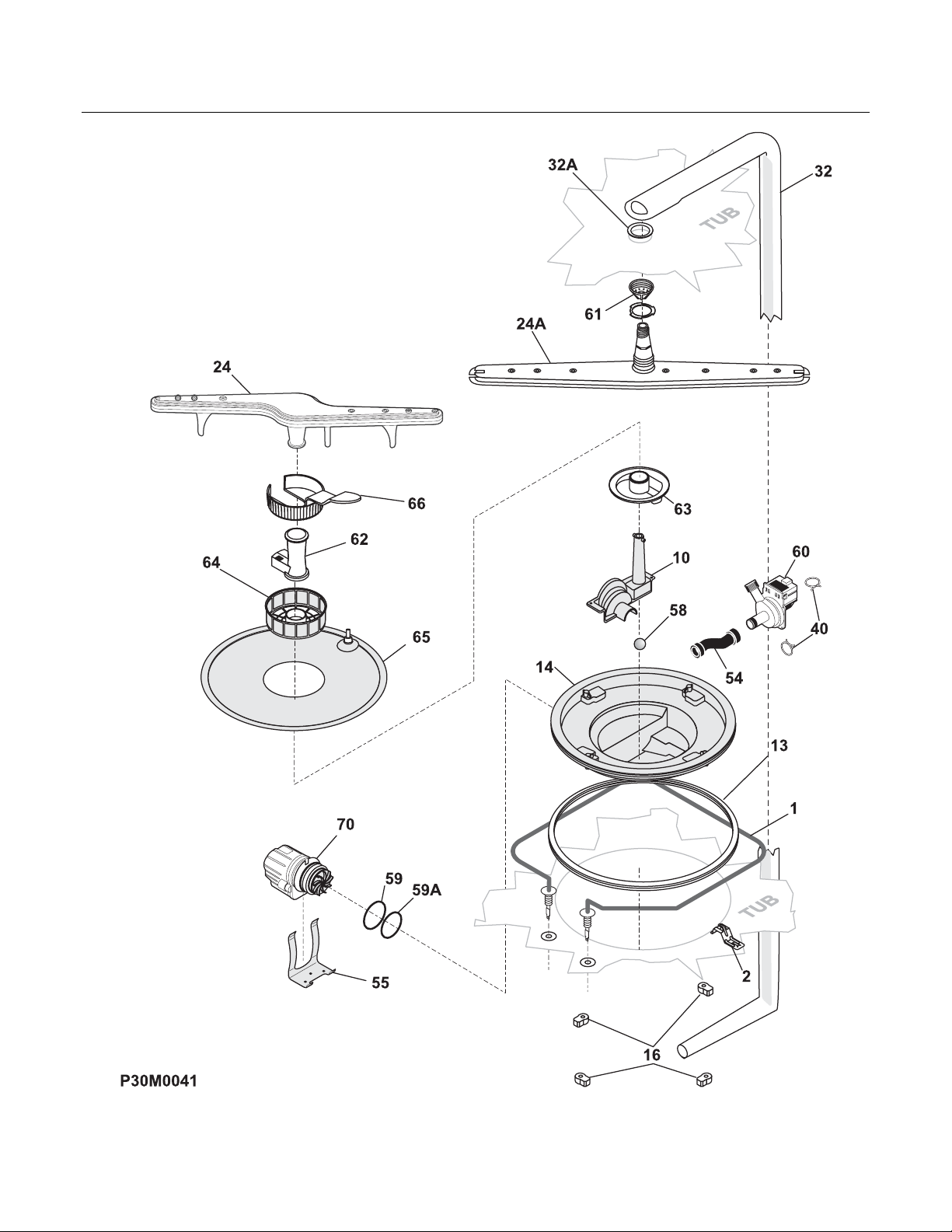

MOTOR & PUMP
POS. NO PART NO. DESCRIPTION
1 154247601 A B Heater
1* 154106202 A B Nut, heater, (2)
1* 154289801 A B Shield, heater terminal
2 154479601 A B Bracket, heater, (2)
10 154245501 A B Cover, volute
13 154246801 A B Gasket, sump
14 154365902 A B Housing, sump
16 154246502 A B Retainer, sump
24 154568001 A B Spray arm, white, lower, w/heat shield
24A 154313601 A B Spray arm, center
24A* 154252001 A B Nut, spray arm, center
32 154406601 A B Tube, delivery
32A 154406401 A B Gasket, delivery tube
40 154348401 A B Clamp, hose, red, push spring, (3)
40 154348502 A B Clamp, red, hose
40* 154106801 A B Clamp, hose, 1.29" open, worm gear, (2)
40* 154380601 A B Clamp, hose, 1.5" open, worm gear, (5)
54 154234401 A B Hose, connector
55 154595901 A B Bracket, motor
55* 5303316032 A B Screw, truss ss, 8 .625, (7)
58 154246402 A B Check ball
59 154246901 A B O-ring, rear
59A 154247001 A B O-ring, front
60 # 154640201 A B Drain Pump Assy
60* 154426201 A B Bracket, motor, drain
60* 154581501 A B Screw, drain motor, (3)
61 154606801 A B Nozzle, 3rd level, spray
62 154294101 A B Support, spray arm, lower
63 154252201 A B Base, soil director
64 154252301 A B Filter, soil director, white
65 154252401 A B Filter, polypro
66 154252701 A B Trap, glass
70 # 154700101 A B Motor & Pump Assy, johnson, 2900
* 154200601 A B Screw, #10-16 x 3/8
Model Index: A FDB520RH (FDB520RHS0)
B FDB520RH (FDB520RHB0)
# Functional Parts
9 11/08
* Non-Illustrated Parts
Page 10
Publication No: 5995529012 FDB520RH
FRAME
11/08 10
Page 11
FDB520RH Publication No: 5995529012

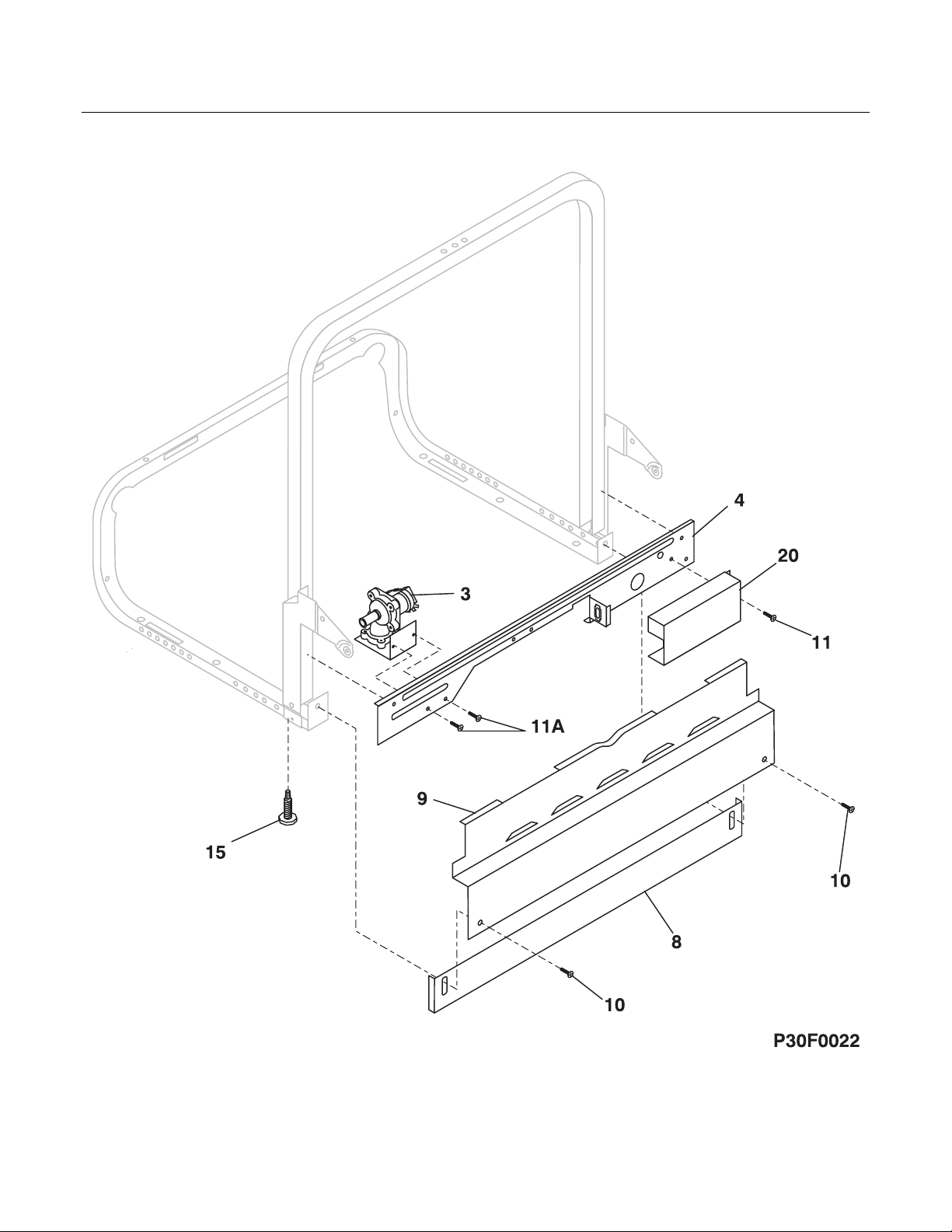

FRAME
POS. NO PART NO. DESCRIPTION
3 # 154637401 A B Valve, water
4 154669301 A B Brace, front frame
8 154589401 A - Toeplate, adjustable, white
8 154589403 - B Toeplate, adjustable, black
9 154589501 A - Kickplate Assy, white
9 154589503 - B Kickplate Assy, black
10 154371301 A - Screw, Phillips head, white
10 5300808658 - B Screw, #8A x .375", black
11 154200701 A B Screw, #10-32 x 3/8
11A 154200601 A B Screw, #10-16 x 3/8
15 154571101 A B Leg, leveling, (4)
20 154597001 A B Cover, junction box
* 154041001 A B Screw, plask #1, 10-10 x 9/16
* 154200602 A B Screw, 10-16 x 3/8, hex
* 154409401 A B Screw, #8-18 x .375
Model Index: A FDB520RH (FDB520RHS0)
B FDB520RH (FDB520RHB0)
# Functional Parts
11 11/08
* Non-Illustrated Parts
Page 12
Publication No: 5995529012 FDB520RH
RACKS
11/08 12
Page 13
FDB520RH Publication No: 5995529012

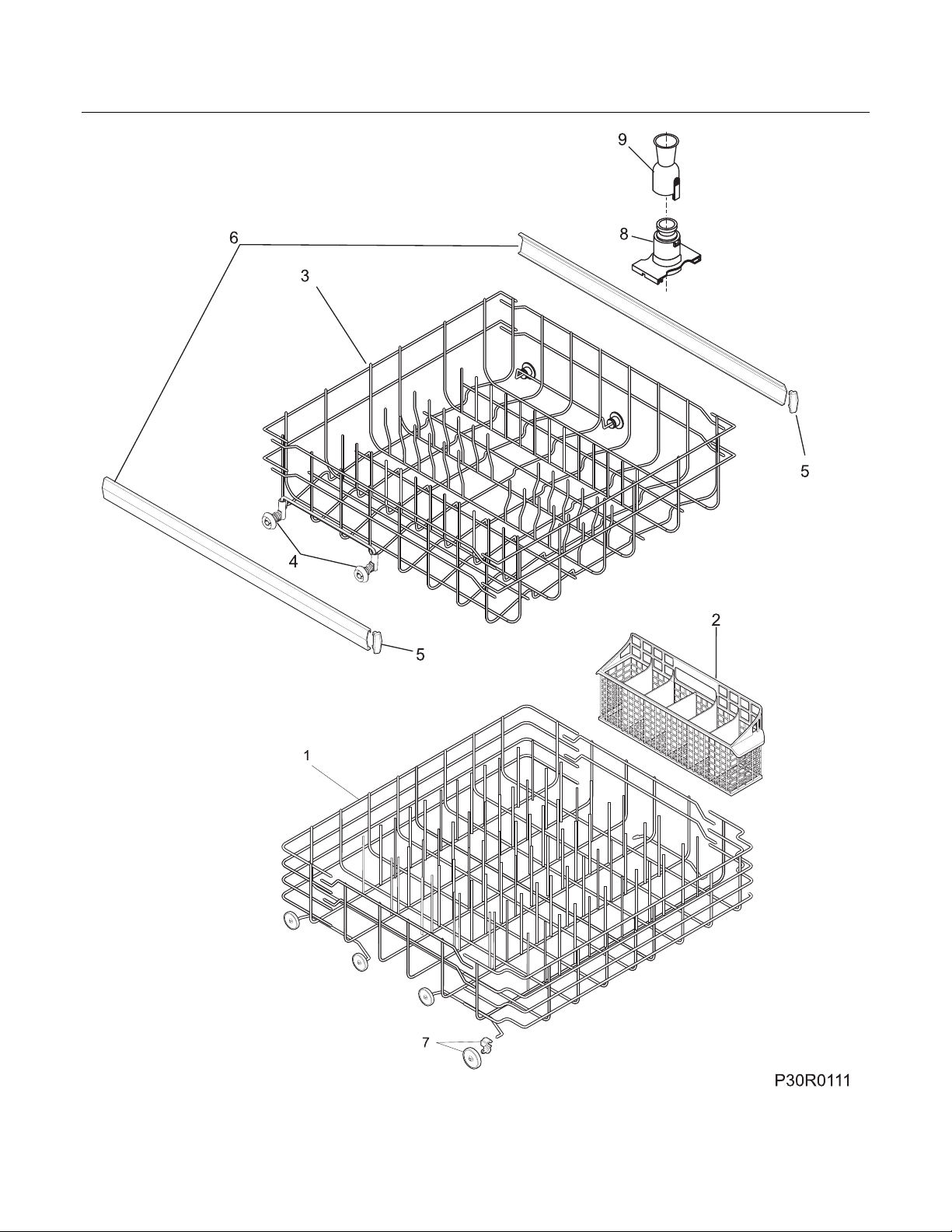

RACKS
POS. NO PART NO. DESCRIPTION
1 154336020 A B Rack assy, lower, w/rollers
2 5300808994 A B Basket, silverware
3 154331502 A B Rack assy, upper
4 154522901 A B Wheel & bushing assy, upper rack, (8)
5 5300809927 A B Cap, slide, (4)
6 154597801 A B Slide, rack, upper, (2)
7 154174502 A B Wheel & bracket assy, lower rack
8 154304001 A B Base, funnel
9 154251801 A B Funnel
Model Index: A FDB520RH (FDB520RHS0)
B FDB520RH (FDB520RHB0)
# Functional Parts
13 11/08
* Non-Illustrated Parts
