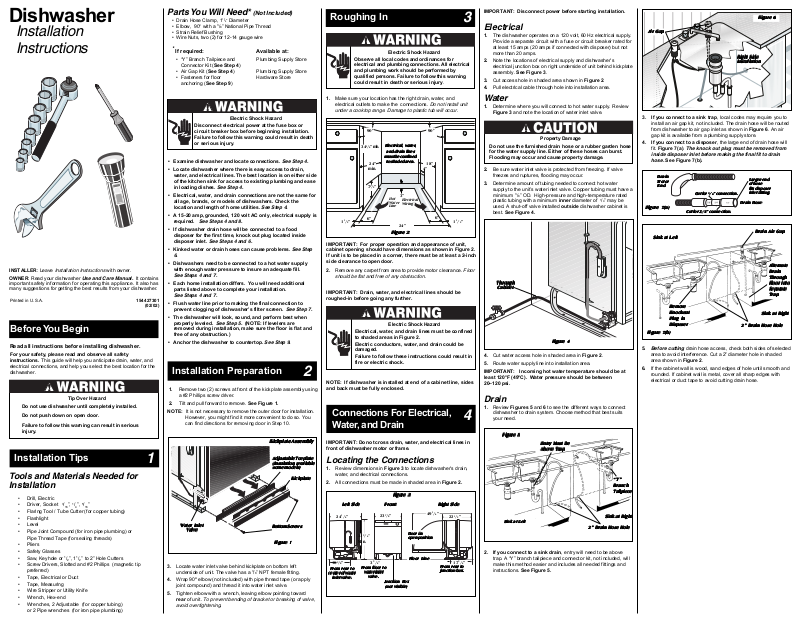

Frigidaire FDB1450CHB0 Installation Instruction

Dishwasher

Installation Instructions

Parts You Will Need*

• Drain Hose Clamp, 1

• Elbow, 90° with a 3/8” National Pipe Thread

• Strain Relief Bushing

• Wire Nuts, two (2) for 12-14 gauge wire

If required: Available at:

• “Y” Branch Tailpiece and Plumbing Supply Store Connector Kit (See Step 4)

• Air Gap Kit (See Step 4) Plumbing Supply Store

• Fasteners for floor Hardware Store anchoring (See Step 9)

” Diameter

(Not Included)

Roughing In

Observe all local codes and ordinances for electrical and plumbing connections. All electrical and plumbing work should be performed by qualified persons. Failure to follow this warning could result in death or serious injury.

Electric Shock Hazard

IMPORTANT: Disconnect power before starting installation.

Electrical

1. The dishwasher operates on a 120 volt, 60 Hz electrical supply. Provide a separate circuit with a fuse or circuit breaker rated for at least 15 amps (20 amps if connected with disposer) but not more than 20 amps.

2. Note the locations of electrical supply and dishwasher’s electrical junction box on right underside of unit behind kickplate assembly. See Figure 3.

3. Cut access hole in shaded area shown in Figure 2.

4. Pull electrical cable through hole into installation area.

Air GapAir Gap

Air Gap

Air GapAir Gap

Right SideRight Side

Right Side

Right SideRight Side InstallationInstallation

Installation

InstallationInstallation

Figure 6Figure 6

Figure 6

Figure 6Figure 6

INSTALLER: Leave

OWNER: Read your dishwasher

important safety information for operating this appliance. It also has many suggestions for getting the best results from your dishwasher.

Printed in U.S.A.

Installation Instructions

Use and Care Manual.

with owner.

It contains

154427301

(02/02)

Before You Begin

Read all instructions before installing dishwasher.

For your safety, please read and observe all safety instructions. This guide will help you anticipate drain, water, and

electrical connections, and help you select the best location for the dishwasher.

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Failure to follow this warning can result in serious injury.

Electric Shock Hazard

Disconnect electrical power at the fuse box or circuit breaker box before beginning installation. Failure to follow this warning could result in death or serious injury.

• Examine dishwasher and locate connections.

• Locate dishwasher where there is easy access to drain, water, and electrical lines. The best location is on either side of the kitchen sink for access to existing plumbing and ease in loading dishes.

• Electrical, water, and drain connections are not the same for all age, brands, or models of dishwashers. Check the location and length of home utilities.

• A 15-20 amp, grounded, 120 volt AC only, electrical supply is required.

• If dishwasher drain hose will be connected to a food disposer for the first time, knock out plug located inside disposer inlet.

• Kinked water or drain hoses can cause problems.

• Dishwashers need to be connected to a hot water supply with enough water pressure to insure an adequate fill.

See Steps 4 and 7.

• Each home installation differs. You will need additional parts listed above to complete your installation.

See Steps 4 and 7.

• Flush water line prior to making the final connection to prevent clogging of dishwasher’s filter screen.

• The dishwasher will look, sound, and perform best when properly leveled. removed during installation, make sure the floor is flat and free of any obstruction.)

• Anchor the dishwasher to countertop.

See Steps 4 and 8.

See Step 4.

See Steps 4 and 6.

See Step 5.

(NOTE: If levelers are

See Step 4.

See Step 9.

Installation Preparation

1. Remove two (2) screws at front of the kickplate assembly using

a #2 Phillips screw driver.

2. Tilt and pull forward to remove. See Figure 1.

NOTE: It is not necessary to remove the outer door for installation.

However, you might find it more convenient to do so. You can find directions for removing door in Step 10.

See Step 4.

See Step

See Step 7.

Kickplate AssemblyKickplate Assembly

Kickplate Assembly

Kickplate AssemblyKickplate Assembly

1. Make sure your location has the right drain, water, and electrical outlets to make the connections.

under a cooktop range. Damage to plastic tub will occur.

90°

Electrical, water,Electrical, water,

Electrical, water,

341/4” min.

24”

min.

71/2”

/2”

IMPORTANT: For proper operation and appearance of unit, cabinet opening should have dimensions as shown in Figure 2. If unit is to be placed in a corner, there must be at least a 2-inch side clearance to open door.

2. Remove any carpet from area to provide motor clearance.

should be flat and free of any obstruction.

IMPORTANT: Drain, water, and electrical lines should be roughed-in before going any further.

NOTE: If dishwasher is installed at end of a cabinet line, sides and back must be fully enclosed.

6”

Electrical, water, and drain lines must be confined to shaded areas in Figure 2.

Electric conductors, water, and drain could be damaged.

Failure to follow these instructions could result in fire or electric shock.

Electrical, water,Electrical, water,

and drain linesand drain lines

and drain lines

and drain linesand drain lines

must be confinedmust be confined

must be confined

must be confinedmust be confined

to shaded area.to shaded area.

to shaded area.

to shaded area.to shaded area.

3”

Hot

Electrical

Water

Wiring

Line

24”

Figure 2Figure 2

Figure 2

Figure 2Figure 2

Electric Shock Hazard

Connections For Electrical,

Do not install unit

90°

18”

4”

6”

1 1/2”

Floor

Water, and Drain

IMPORTANT: Do not cross drain, water, and electrical lines in front of dishwasher motor or frame.

Water

1. Determine where you will connect to hot water supply. Review Figure 3 and note the location of water inlet valve.

Property Damage

Do not use the furnished drain hose or a rubber garden hose for the water supply line. Either of these hoses can burst. Flooding may occur and cause property damage.

2. Be sure water inlet valve is protected from freezing. If valve

freezes and ruptures, flooding may occur.

3. Determine amount of tubing needed to connect hot water supply to the unit’s water inlet valve. Copper tubing must have a minimum plastic tubing with a minimum inner diameter of 1/4” may be used. A shut-off valve installed outside dishwasher cabinet is best. See Figure 4.

ThroughThrough

Through

ThroughThrough

CabinetCabinet

Cabinet

CabinetCabinet

4. Cut water access hole in shaded area in Figure 2.

5. Route water supply line into installation area.

IMPORTANT: Incoming hot water temperature should be at least 120°F (49°C). Water pressure should be between 20–120 psi.

/8” OD. High-pressure and high-temperature rated

Figure 4Figure 4

Figure 4

Figure 4Figure 4

Drain

1. Review Figures 5 and 6 to see the different ways to connect dishwasher to drain system. Choose method that best suits your need.

Figure 5Figure 5

Figure 5

Figure 5Figure 5

Entry Must beEntry Must be

Entry Must be

Entry Must beEntry Must be Above TrapAbove Trap

Above Trap

Above TrapAbove Trap

3. If you connect to a sink trap, local codes may require you to install an air gap kit, not included. The drain hose will be routed from dishwasher to air gap inlet as shown in Figure 6. An air gap kit is available from a plumbing supply store.

4. If you connect to a disposer, the large end of drain hose will fit. Figure 7(a).

inside disposer inlet before making the final fit to drain hose.

See Figure 7(b).

DrainDrain

Drain

DrainDrain MotorMotor

Motor

MotorMotor EndEnd

End

EndEnd

Figure 7(a)Figure 7(a)

Figure 7(a)

Figure 7(a)Figure 7(a)

Sink at LeftSink at Left

Sink at Left

Sink at LeftSink at Left

RemoveRemove

Remove

RemoveRemove KnockoutKnockout

Knockout

KnockoutKnockout Plug inPlug in

Plug in

Plug inPlug in DisposerDisposer

Disposer

DisposerDisposer

Figure 7(b)Figure 7(b)

Figure 7(b)

Figure 7(b)Figure 7(b)

Before cutting

area to avoid interference. Cut a 2” diameter hole in shaded area shown in Figure 2.

6. If the cabinet wall is wood, sand edges of hole until smooth and rounded. If cabinet wall is metal, cover all sharp edges with electrical or duct tape to avoid cutting drain hose.

The knock out plug must be removed from

Larger endLarger end

Larger end

Larger endLarger end of hoseof hose

of hose

of hoseof hose fits disposerfits disposer

fits disposer

Cut for Cut for

” connection.” connection.

Cut for

Cut for Cut for

Cut for 3/4” connection.Cut for 3/4” connection.

Cut for 3/4” connection.

Cut for 3/4” connection.Cut for 3/4” connection.

drain hose access, check both sides of selected

” connection.

” connection.” connection.

fits disposerfits disposer inlet fitting.inlet fitting.

inlet fitting.

inlet fitting.inlet fitting.

Drain HoseDrain Hose

Drain Hose

Drain HoseDrain Hose

Drain Air GapDrain Air Gap

Drain Air Gap

Drain Air GapDrain Air Gap

AlternateAlternate

Alternate

AlternateAlternate DrainDrain

Drain

DrainDrain ThroughThrough

Through

ThroughThrough Floor intoFloor into

Floor into

Floor intoFloor into SeparateSeparate

Separate

SeparateSeparate TrapTrap

Trap

TrapTrap

Sink at RightSink at Right

Sink at Right

Sink at RightSink at Right

2” Drain Hose Hole2” Drain Hose Hole

2” Drain Hose Hole

2” Drain Hose Hole2” Drain Hose Hole

Installation Tips

Tools and Materials Needed for Installation

• Drill, Electric

• Driver, Socket 3/16”, 1/4” , 5/16”

• Flaring Tool / Tube Cutter (for copper tubing)

• Flashlight

• Level

• Pipe Joint Compound (for iron pipe plumbing) or Pipe Thread Tape (for sealing threads)

• Pliers

• Safety Glasses

• Saw, Keyhole or 1/2”, 11/2” to 2” Hole Cutters

• Screw Drivers, Slotted and #2 Phillips (magnetic tip preferred)

• Tape, Electrical or Duct

• Tape, Measuring

• Wire Stripper or Utility Knife

• Wrench, Hex-end

• Wrenches, 2 Adjustable (for copper tubing) or 2 Pipe wrenches (for iron pipe plumbing)

Adjustable ToeplateAdjustable Toeplate

Adjustable Toeplate

Adjustable ToeplateAdjustable Toeplate (Insulation available(Insulation available

(Insulation available

(Insulation available(Insulation available some models)some models)

some models)

some models)some models)

KickplateKickplate

Kickplate

KickplateKickplate

Water InletWater Inlet

Water Inlet

Water InletWater Inlet

ValveValve

Valve

ValveValve

3. Locate water inlet valve behind kickplate on bottom left underside of unit. The valve has a 3/8” NPT female fitting.

4. Wrap 90° elbow (not included) with pipe thread tape (or apply joint compound) and thread it into water inlet valve.

5. Tighten elbow with a wrench, leaving elbow pointing toward rear of unit.

avoid overtightening.

To prevent bending of bracket or breaking of valve,

Bottom ScrewsBottom Screws

Bottom Screws

Bottom ScrewsBottom Screws

Figure 1Figure 1

Figure 1

Figure 1Figure 1

Locating the Connections

1. Review dimensions in Figure 3 to locate dishwasher’s drain, water, and electrical connections.

2. All connections must be made in shaded area in Figure 2.

Figure 3Figure 3

Figure 3

Figure 3Figure 3

FrontFront

Front

Left SideLeft Side

Left Side

Left SideLeft Side

24 1/4”

16 3/8”

From rear toFrom rear to

From rear to

From rear toFrom rear to

center of watercenter of water

center of water

center of watercenter of water

inlet valve.inlet valve.

inlet valve.

inlet valve.inlet valve.

/4 ”

Min.

3 3/4”

From floor toFrom floor to

From floor to

From floor toFrom floor to

water inletwater inlet

water inlet

water inletwater inlet

valve.valve.

valve.

valve.valve.

FrontFront

23 7/8”

Junction BoxJunction Box

Junction Box

Junction BoxJunction Box

(not visible)(not visible)

(not visible)

(not visible)(not visible)

Door inDoor in

Door in

Door inDoor in open positionopen position

open position

open positionopen position

Floor LineFloor Line

Floor Line

Floor LineFloor Line

49 1/4”

Right SideRight Side

Right Side

Right SideRight Side

22 1/2”

17 3/4”

From rear toFrom rear to

From rear to

From rear toFrom rear to junction box.junction box.

junction box.

junction box.junction box.

“Y”“Y”

“Y”

“Y”“Y” BranchBranch

Branch

BranchBranch TailpieceTailpiece

Tailpiece

TailpieceTailpiece

Sink at RightSink at Right

Sink at Right

Sink at LeftSink at Left

Sink at Left

Sink at LeftSink at Left

2” Drain Hose Hole2” Drain Hose Hole

2” Drain Hose Hole

2” Drain Hose Hole2” Drain Hose Hole

2. If you connect to a sink drain, entry will need to be above trap. A “Y” branch tailpiece and connector kit, not included, will make this method easier and includes all needed fittings and instructions. See Figure 5.

Sink at RightSink at Right

Leveling Dishwasher

within Cabinets

1. Measure height of cabinet opening

from underside of countertop to floor. Check chart for height opening and suggested adjustment.

Leg Leveler Adjustment Chart

Height of

Cabinet Opening

34” (86.4cm)

341/8” (86.7cm)

/16” (87.2cm)

341/2” (87.6cm)

For additional height add shims under levelers.

2. Move dishwasher to front of installation area.

3. Loosen the front and rear leveling legs by turning counterclockwise. Refer to chart for number of turns. See Figure 8. Front levelers should allow 1/4” below underside of

countertop.

” Socket” Socket

1616

” Socket

1616

” Socket” Socket

Wrench Wrench

Wrench

Front Leveler Front Leveler

Front Leveler

Front Leveler Front Leveler

Figure 8Figure 8

Figure 8

Figure 8Figure 8

4. If levelers have to be removed, make sure floor is free of obstructions.

5. Place dishwasher inside cabinet area so that it is centered in opening. Use caution when moving dishwasher to prevent damage to dishwasher, floor, and cabinets.

6. Check that dishwasher is level from side to side by placing a level against the top front section of the tub. See Figure 9a.

Figure 9aFigure 9a

Figure 9a

Figure 9aFigure 9a

7. Check that dishwasher is level from front to back by placing level on side of opened door. See Figure 9b.

8. Adjust levelers up or down until dishwasher is level.

Wrench Wrench

Finishing the Drain

Number of Turns to

Adjust Levelers

Rear LevelerRear Leveler

Rear Leveler

Rear LevelerRear Leveler

Figure 9bFigure 9b

Figure 9b

Figure 9bFigure 9b

1616

” Socket” Socket

” Socket

” Socket” Socket

Connection

Electric Shock Hazard

Plumbing material and drain hose must not come in contact with wiring or electrical components.

Failure to follow this warning could result in personal injury from exposed wiring.

1. Pull out unit and check to see if drain hose is correctly attached

to the drain pump assembly. If drain hose drain pump, follow the instruction sheet (included with drain hose) on how to correctly install the drain hose to the drain pump assembly.

2. Move unit back in place while routing drain hose through access

hole. Use caution to prevent damage to the dishwasher, floor and cabinets. IMPORTANT: Make sure there are no sharp

bends or kinks that might restrict drain flow.

3. Secure drain hose to sink drain, disposer, or separate trap with a

clamp. IMPORTANT: Be careful not to overtighten clamp or you may damage end of hose. Do not connect hose to

horizontal pipe between sink drain and disposer.

4. Be sure unit does not rest on drain hose. It should be free of

electrical components and door springs. Do not cut corrugated drain hose. Pull excess through cabinet and place under sink. Make sure hose does not come in contact with any sharp edges.

See Figure 10.

is not attached

Sink at LeftSink at Left

Sink at Left

Sink at LeftSink at Left

ClampClamp

Clamp

ConnectorConnector

Connector

ConnectorConnector

32”32”

32”

32”32”

Pump MotorPump Motor

Pump Motor

Pump MotorPump Motor

RemoveRemove

Remove

RemoveRemove knockoutknockout

knockout

knockoutknockout plug inplug in

plug in

plug inplug in disposerdisposer

disposer

disposerdisposer

The drain hose loop must be at least 32” high from the floorThe drain hose loop must be at least 32” high from the floor

The drain hose loop must be at least 32” high from the floor

The drain hose loop must be at least 32” high from the floorThe drain hose loop must be at least 32” high from the floor to insure proper drainage.to insure proper drainage.

to insure proper drainage.

to insure proper drainage.to insure proper drainage.

ClampClamp

Figure 10Figure 10

Figure 10

Figure 10Figure 10

Finishing the Water Connection

Property Damage

Do not solder within 6” of the water inlet valve. Damage to the plastic parts in the valve may occur.

Use care that no sealer, dirt, or other objects enter the valve. Damage to the filter screen may occur.

Be sure the dishwasher is placed where the water inlet valve will be kept from freezing. If the valve freezes, it may rupture and flooding may occur.

Water Line

1. Flush water line before connecting it to water inlet valve to prevent early clogging of filter screen. Place a bunched towel over end of line to prevent splashing. Open valve for a few seconds and let water drain into a pan.

at shut-off valve.

Figure 11Figure 11

Figure 11

Figure 11Figure 11

2. Route water line to water inlet valve as shown in Figure 11.

3. While firmly pulling water supply line into 90° elbow, tightly

connect water supply to water inlet valve. Supply line must be free of kinks, scales, chips, and lubricants.

4. Turn on water supply and check for leaks.

5. If water inlet valve clogs, make sure water supply is off.

Remove four (4) screws at inlet end of valve and clean filter screen.

ThroughThrough

Through

ThroughThrough WallWall

Wall

WallWall

ThroughThrough

Through

ThroughThrough CabinetCabinet

Cabinet

CabinetCabinet

Finishing the Electrical

Turn off water supply

ThroughThrough

Through

ThroughThrough FloorFloor

Floor

FloorFloor

Connection

Electric Shock Hazard

Make sure electrical power has been disconnected at fuse box or circuit breaker box.

The dishwasher must be connected to a grounded metal, permanent wiring system. The equipment-grounding conductor must be run with the circuit conductors and connected to the appliance’s equipment grounding terminal or lead. It is the consumer’s responsibility to contact a qualified installer to make sure the electrical installation conforms with the National Electrical Code and local codes and ordinances.

Do not connect the dishwasher to the power supply until the appliance is permanently grounded.

All wiring connections must be enclosed in the junction box. This unit has copper lead wires.

Joining aluminum building wire to stranded copper wire should be done by a qualified electrician using materials recognized by UL and local codes.

Do not use an extension cord. Such use can result in fire, electrical shock, or other personal injury.

Failure to follow these instructions could result in death or serious injury.

Electrical Supply

1. Remove junction box cover and pull house wiring into junction box. See Figures 12 and 13.

2. Use a UL listed strain-relief bushing, not included, at box to stabilize wiring.

IMPORTANT: Be sure electrical cable is not routed behind dishwasher’s motor.

ThroughThrough

Through

ThroughThrough CabinetCabinet

Cabinet

CabinetCabinet

ThroughThrough

Through

ThroughThrough WallWall

Wall

WallWall

ThroughThrough

Through

ThroughThrough FloorFloor

Floor

FloorFloor

Junction BoxJunction Box

Junction Box

Junction BoxJunction Box (in place)(in place)

(in place)

(in place)(in place)

Figure 12Figure 12

Figure 12

Figure 12Figure 12

3. Inside junction box, attach ground wire under head of grounding screw and tighten. See Figure 13.

4. Connect incoming black lead to dishwasher’s black lead and incoming white lead to dishwasher’s white lead with wire nuts or other suitable connectors, not included. Wire nuts should be tight.

Strain ReliefStrain Relief

Strain Relief

Strain ReliefStrain Relief (not included)(not included)

(not included)

(not included)(not included)

White Wire toWhite Wire to

White Wire to

White Wire toWhite Wire to White WireWhite Wire

White Wire

White WireWhite Wire (Neutral)(Neutral)

(Neutral)

(Neutral)(Neutral)

Black Wire toBlack Wire to

Black Wire to

Black Wire toBlack Wire to Black Wire (Hot)Black Wire (Hot)

Black Wire (Hot)

Black Wire (Hot)Black Wire (Hot)

Figure 13Figure 13

Figure 13

Figure 13Figure 13

5. Replace junction box cover. See Figure 13.

Securing the Dishwasher

The dishwasher must be secured to keep it from tilting when door is opened. Choose one of the methods described below to secure unit.

Ground WireGround Wire

Ground Wire

Ground WireGround Wire

JunctionJunction

Junction

JunctionJunction Box CoverBox Cover

Box Cover

Box CoverBox Cover

Countertop Anchoring

1. Adjust levelers (see Step 5) so mounting brackets touch underside of countertop. IMPORTANT: Dishwasher must rest

on floor—do not hang from countertop. See Figure 14.

2. Screw mounting brackets firmly to countertop using screws

provided in literature packet.

3. Open and close dishwasher door slowly. If door hits mounting bracket screw heads, adjust front levelers.

Note: Open and close door to make sure it does not hit surrounding cabinets or countertop.

Use Phillips Head Screws #8 x Use Phillips Head Screws #8 x

Use Phillips Head Screws #8 x

Use Phillips Head Screws #8 x Use Phillips Head Screws #8 x (included in the literature packet).(included in the literature packet).

(included in the literature packet).

(included in the literature packet).(included in the literature packet).

Figure 14Figure 14

Figure 14

Figure 14Figure 14

””

”

””

Floor Anchoring

This procedure is difficult and should be used only if countertop mounting brackets cannot be used.

1. Screw frame rail. See Figure 15.

2. Use expansion fasteners if floor is concrete.

Installing Wood Panel

/4” lag screws, not included, through holes provided in

Use Use

” Lag Screws” Lag Screws

Use

” Lag Screws

Use Use

” Lag Screws” Lag Screws

(not included)(not included)

(not included)

(not included)(not included)

Figure 15Figure 15

Figure 15

Figure 15Figure 15

Removing & Replacing Door

Electric Shock Hazard

Disconnect electrical power at the fuse box or circuit breaker box before beginning installation.

Failure to follow this warning could result in death or serious injury.

Cut Hazard

Metal color panels are sharp and should be handled with care. Wear gloves to protect hands.

Failure to follow this warning may result in injury.

To Install a Custom Wood Panel

The dishwasher door panel can be customized to match wood cabinets. This will require a kit that includes a mid-door with side and bottom trim, heavy-duty door springs and instructions.

Kits are available from your dealer or parts supplier. Order kit based on desired color of trim and length of door. See Figure 16a.

6” Console6” Console

6” Console

6” Console6” Console

Part 154362701 - white trim

Part 154362702 - almond trim

Part 154362703 - black trim

Part 154362704 - bisque trim

Figure 16aFigure 16a

Figure 16a

Figure 16aFigure 16a

23 11/32”

Part 154310301 - white trim

Part 154310302 - almond trim

Part 154310303 - black trim

Part 154310304 - bisque trim

3” Console3” Console

3” Console

3” Console3” Console

25 15/16”

To Remove and Replace Outer Door

1. Unlatch and open door. Using a Phillips head screw driver, remove two (2) screws from inner door. Save screws to reassemble.

See Figure 16b.

2. Close and latch door

while holding both sides.

3. Place one hand on each side of door and pull down at top approximately 1/4”. Pull entire door assembly toward you to remove. See Figure 16c.

Appearance of console and door mayAppearance of console and door may

Appearance of console and door may

Appearance of console and door mayAppearance of console and door may

Figure 16bFigure 16b

Figure 16b

Figure 16bFigure 16b

Figure 16cFigure 16c

Figure 16c

Figure 16cFigure 16c

vary from your model.vary from your model.

vary from your model.

vary from your model.vary from your model.

4. Place door where it will not get scratched or damaged while completing installation.

5. When ready to replace door, fit the slots on each side of top door edge over the tabs on the metal liner. Push on sides to insure the door is flat. Push up from bottom until there is no gap between door and console. See Figure 16d.

Figure 16dFigure 16d

Figure 16d

Figure 16dFigure 16d

Console

Metal Liner

Door

SideSide

Side

SideSide ViewView

View

ViewView

Appearance of console and door mayAppearance of console and door may

Appearance of console and door may

Appearance of console and door mayAppearance of console and door may

6. Unlatch door and open while supporting outer door on both sides at bottom to keep in place. Align screw holes and replace screws.

Checking the Installation

vary from your model.vary from your model.

vary from your model.

vary from your model.vary from your model.

Before starting the dishwasher, check these items:

S Drain hose is assembled to drain pump. S All packing materials and consumer literature have been

removed from unit.

S Dishwasher is level and securely fastened. S Open and close door to make sure it does not hit

surrounding cabinet or countertop.

S Water and drain lines have no kinks. S Wiring connections to junction box are tight. S Water supply is turned on. S Joints are free of leaks.

Replacing Door

1. Refer to Step 10, numbers 5 and 6, for replacing outer door.

2. Adjust door springs to balance weight of door. A correct spring

setting allows door to remain horizontal in opened position, yet will rise to close with slight lift of finger.

3. If necessary, increase tension by moving springs to a hole toward rear of unit or decrease by moving them toward front.

See Figure 17.

Figure 17Figure 17

Figure 17

Figure 17Figure 17

Move springs towardMove springs toward

Move springs toward

Move springs towardMove springs toward rear of dishwasher torear of dishwasher to

rear of dishwasher to

rear of dishwasher torear of dishwasher to increase tension.increase tension.

increase tension.

increase tension.increase tension.

4. Turn electrical supply on.

Operate the machine through at least one fill and pump-out, checking the following items:

S At first fill, make sure water completely covers filter surface.

(Motor pump sound may be heard before water enters unit).

S At pump-out, make sure all water is pumped out. S Check water connections again for leaks.

Electric Shock Hazard If all connections are correct, there are no leaks, and unit runs properly, replace the kickplate assembly before placing unit into operation.

Failure to follow this warning could result in electric shock.
