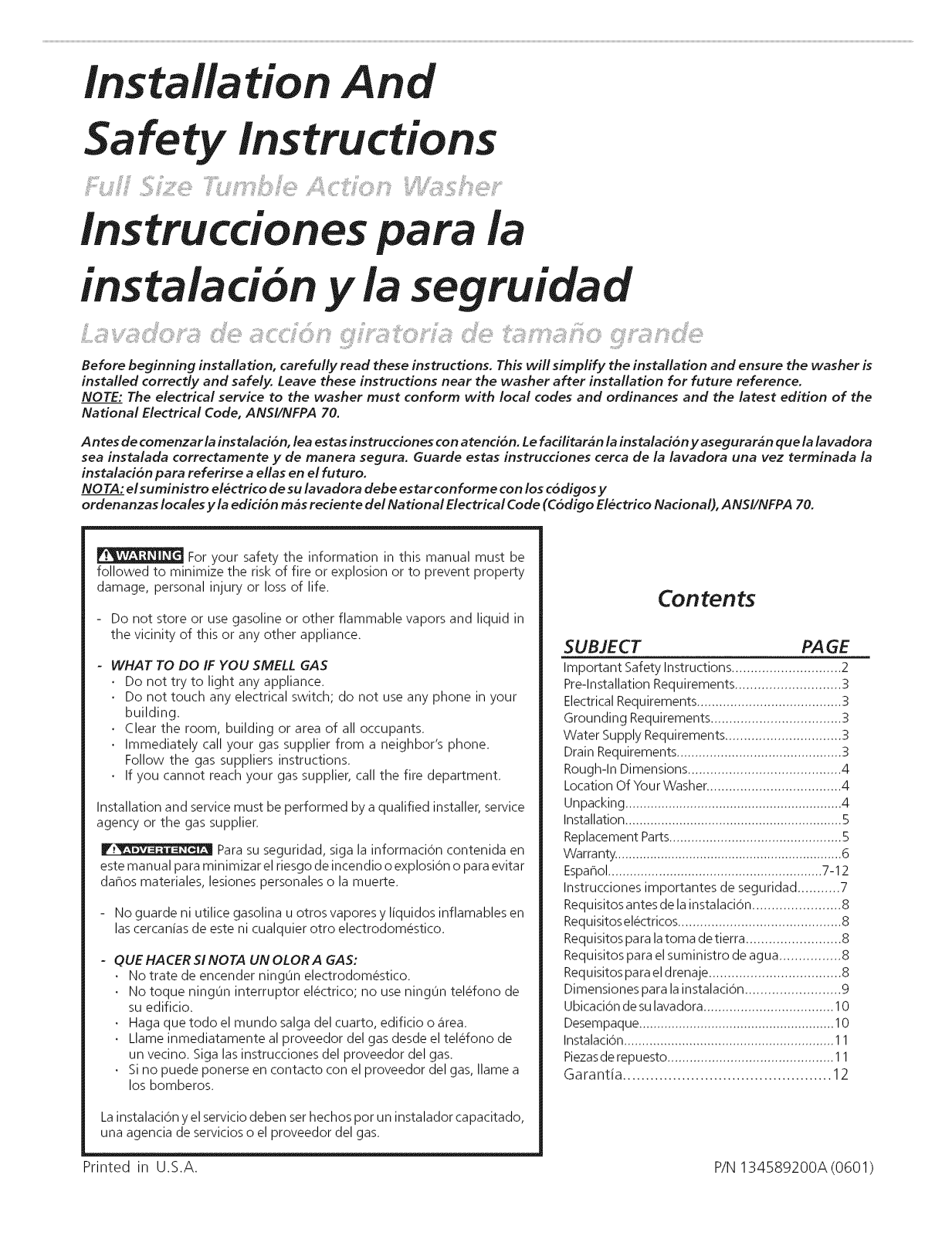

Frigidaire FCCW3000ES0 Installation Guide

Installation And

Safety Instructions

Instrucciones para la

instalacidn y la segruidad

Before beginning installation, carefully read these instructions. This will simplify the installation and ensure the washer is
installed correctly and safely. Leave these instructions near the washer after installation for future reference.

NOTE: The electrical service to the washer must conform with local codes and ordinances and the latest edition of the
National Electrical Code, ANSI/NFPA 70.

Antes de comenzar la instalacion, lea estas instrucciones con atenci6n, Le facilitar_n la instalacion y asegurar_n que la lavadora

sea instalada correctamente y de manera segura. Guarde estas instrucciones cerca de la lavadora una vez terminada la
instalaci6n para referirse a elias en el futuro.
NO TA: el su ministro electrico de su lavadora debe estar conforme con los codigos y
ordenanzas locales y la edici6n mas reciente del National Electrical Code (Codigo Electrico Nacional), A NSI/NFPA 70.

For your safety the information in this manual must be

followed to minimize the risk of fire or explosion or to prevent property

damage, personal injury or loss of life.

Do not store or use gasoline or other flammable vapors and liquid in

the vicinity of this or any other appliance.

- WHAT TO DO IF YOU SMELL GAS

Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your
building.
Clear the room, building or area of all occupants.
Immediately call your gas supplier from a neighbor's phone.
Follow the gas suppliers instructions.
If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service

agency or the gas supplier.

IF_ Parasu seguridad, siga la informaciOn contenida en
este manual para minimizar el riesgo de incendio o explosi6n o paraevitar

dar_osmateriales, lesiones personales o la muerte.

No guarde ni utilice gasolina u otros vapores y liquidos inflamables en
las cercanias de este ni cualquier otro electrodomestico.

- QUEHACERSINOTA UNOLORA GAS:

No trate de encender ningun electrodomestico.
No toque ningOn interruptor electrico; no use ningOn telefono de

su edificio.
Haga que todo el mundo salga del cuarto, edificio o _irea.
Llame inmediatamente al proveedor del gasdesde el telefono de

un vecino. Siga las instrucciones del proveedor del gas.
Si no puede ponerse en contacto con elproveedor del gas, Ilame a
los bomberos.

Contents

SUBJECT PAGE

Important Safety Instructions ............................. 2

Pre-lnstallation Requirements............................ 3

ElectricalRequirements ....................................... 3

Grounding Requirements................................... 3

Water Supply Requirements............................... 3

Drain Requirements............................................. 3

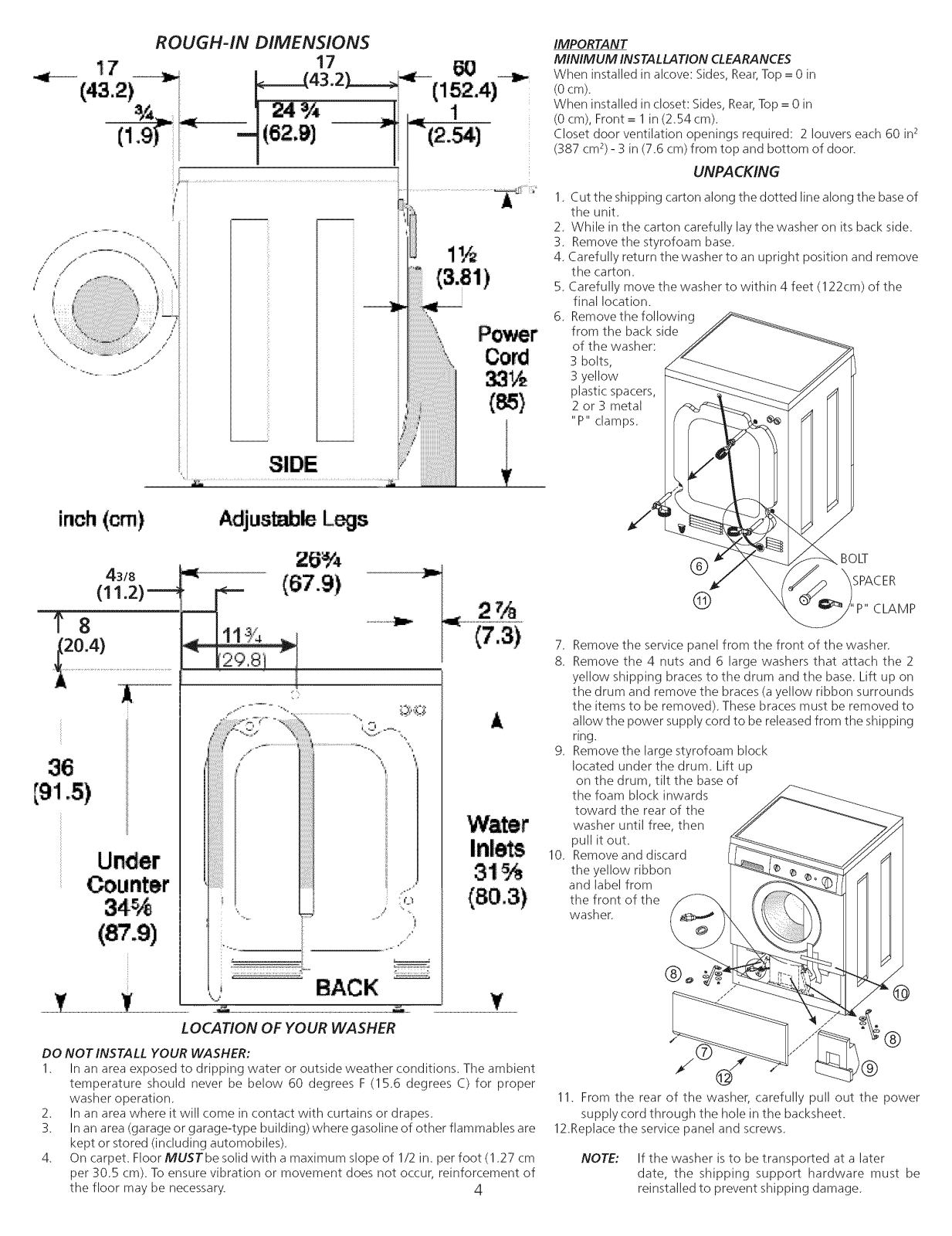

Rough-In Dimensions......................................... 4

Location OfYour Washer.................................... 4

Unpacking............................................................ 4

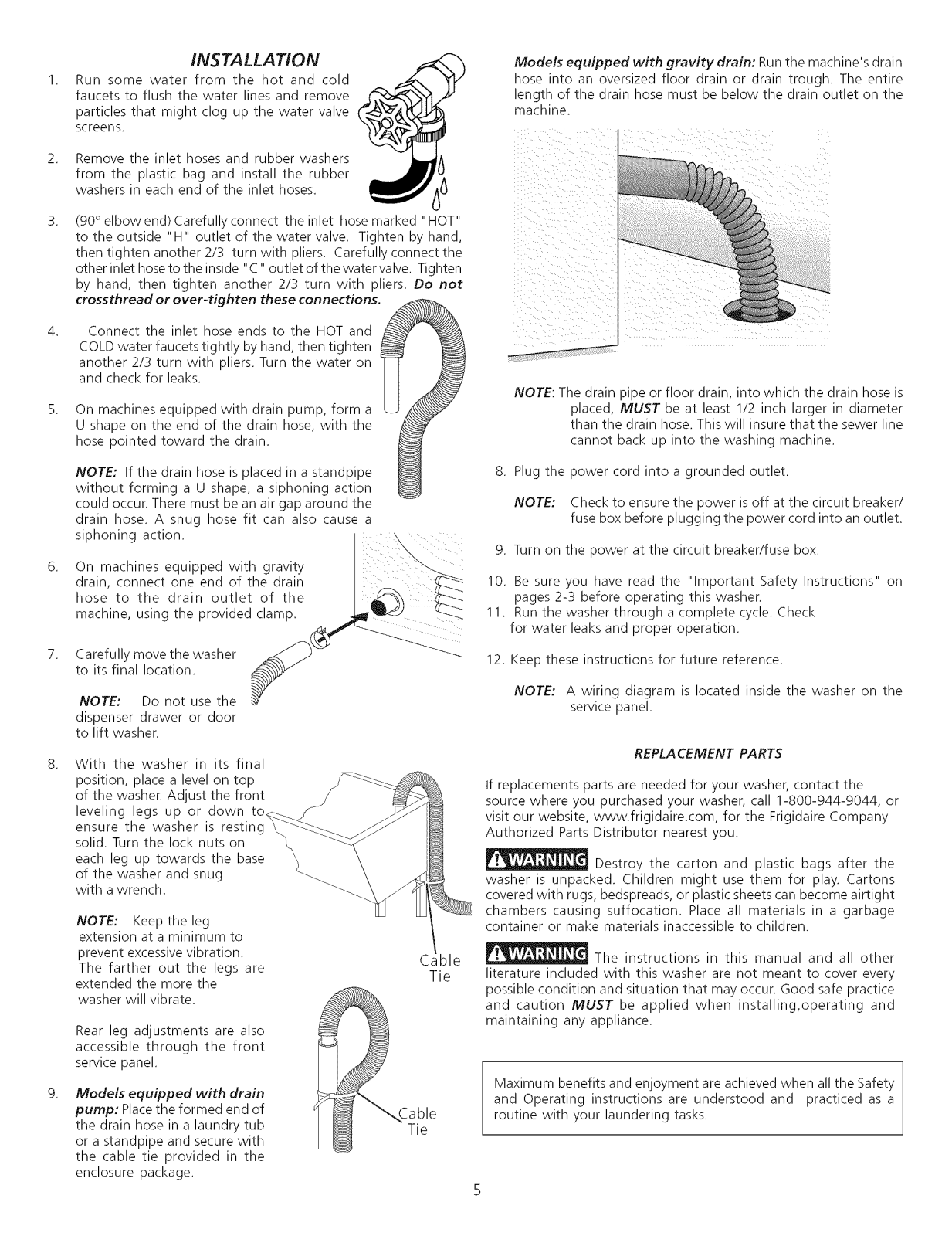

Installation............................................................ 5

Replacement Parts............................................... 5

Warranty................................................................ 6

Espar_ol........................................................... 7-12

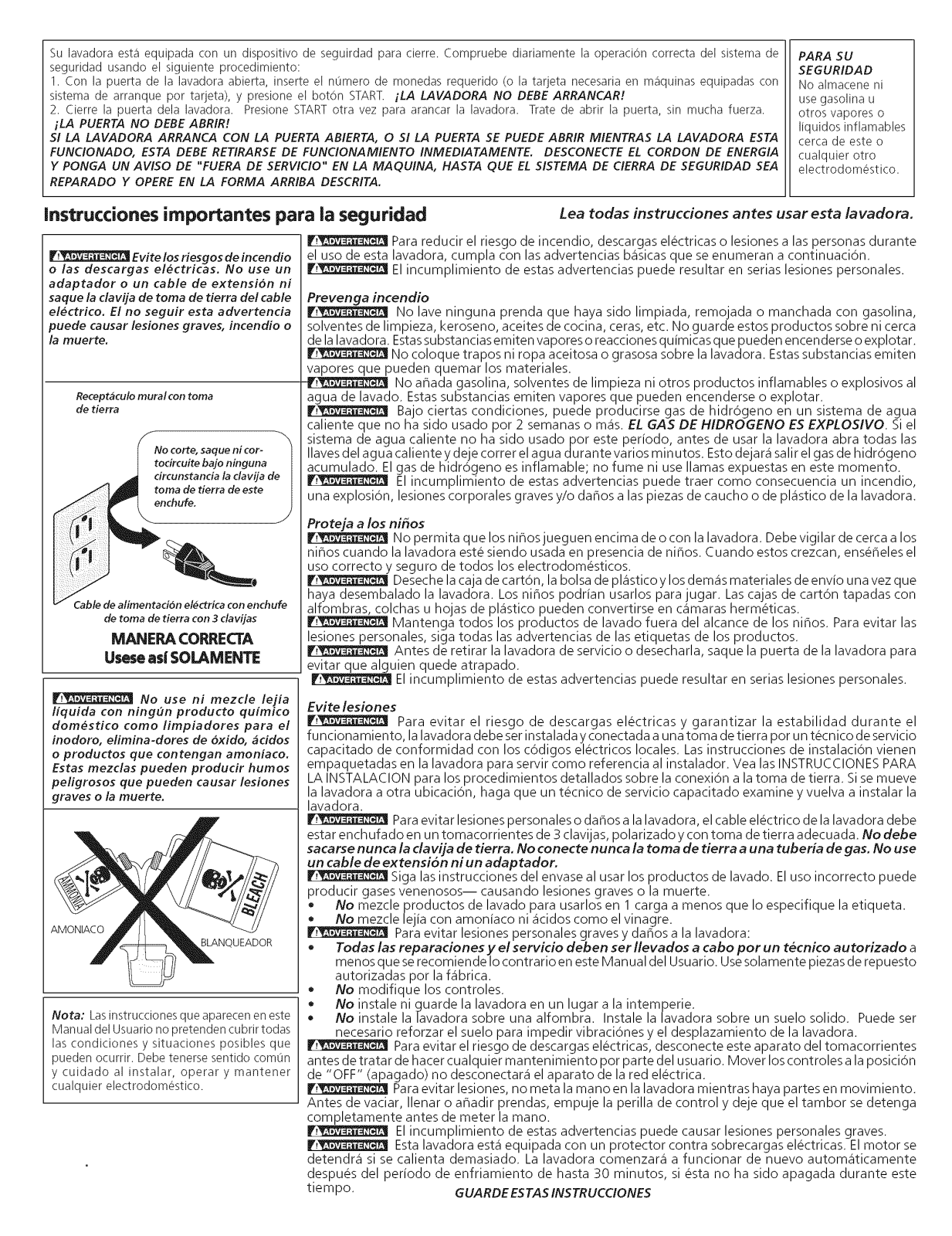

Instrucciones importantes de seguridad ........... 7

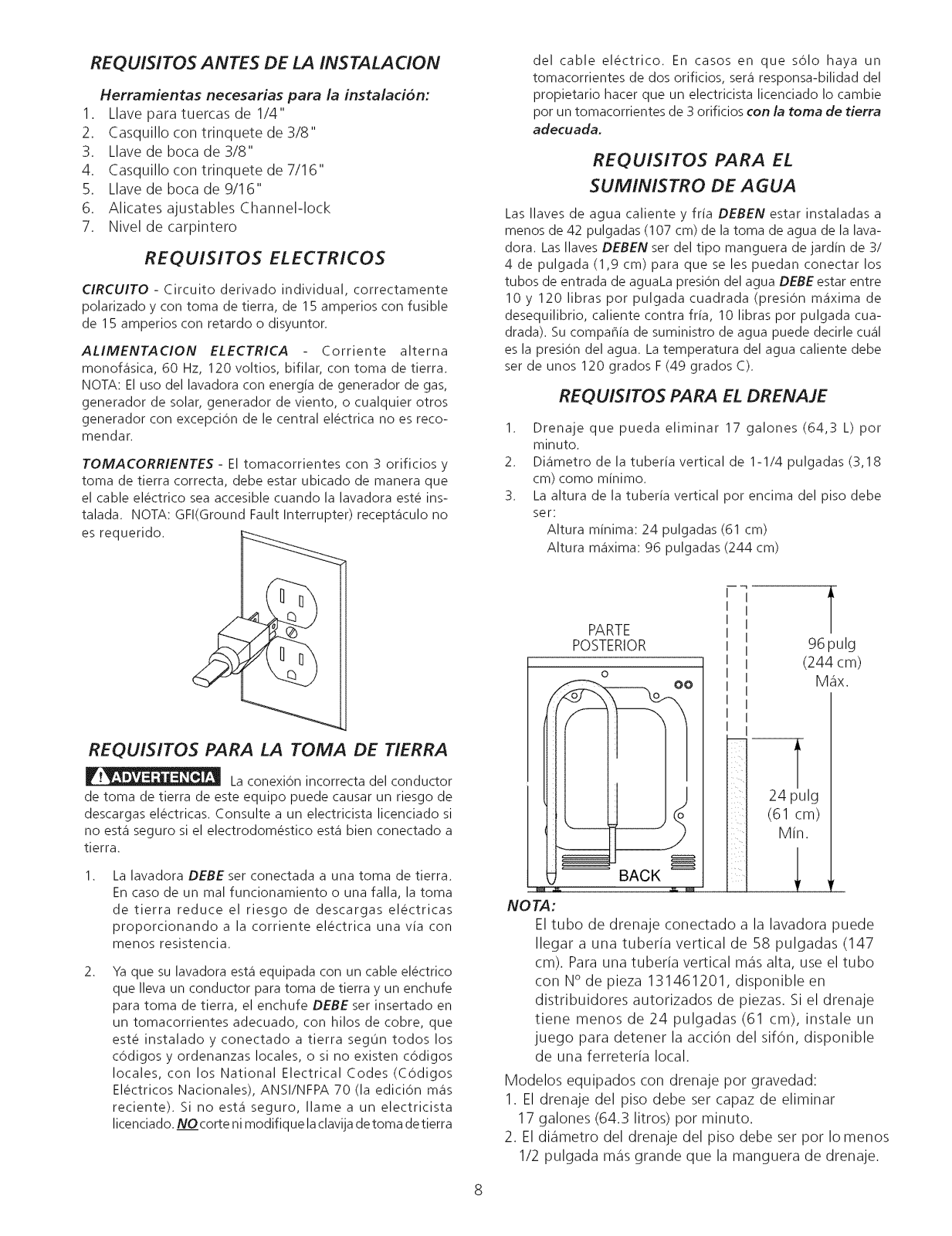

Requisitosantes de la instalacion ....................... 8

Requisitoselectricos............................................ 8

Requisitospara latoma detierra ......................... 8

Requisitospara el suministro de agua ................ 8

Requisitospara eldrenaje................................... 8

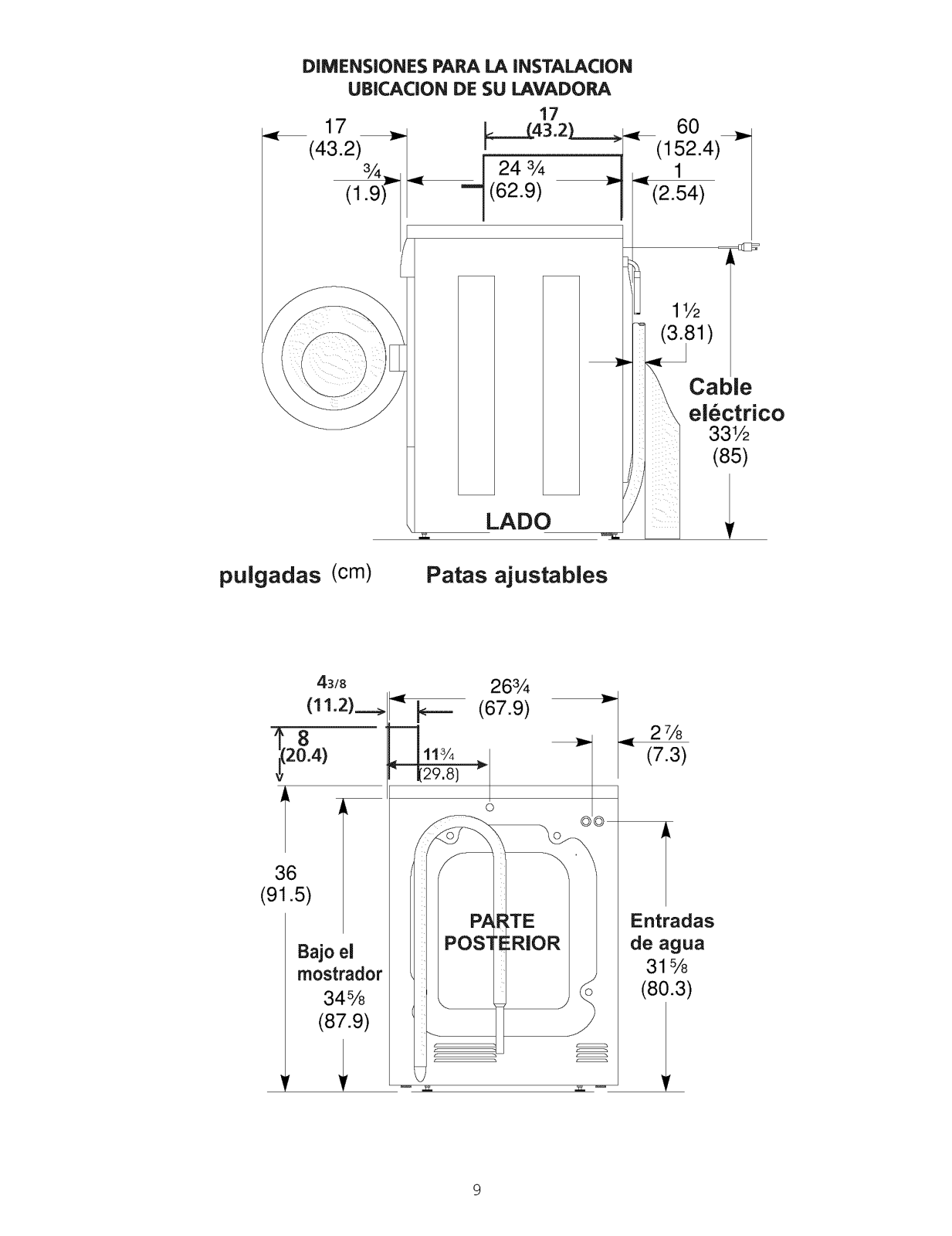

Dimensiones paralainstalacion ......................... 9

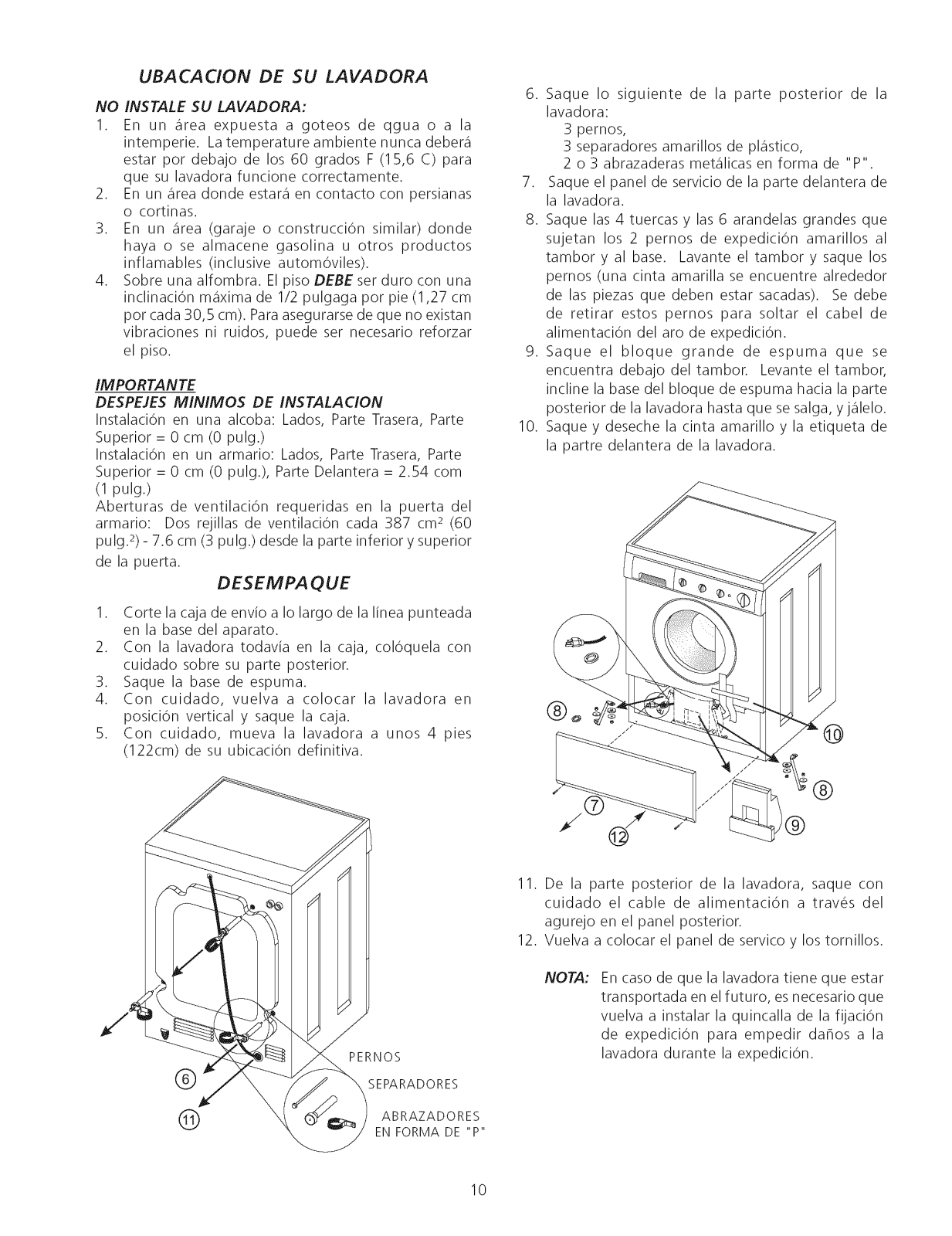

UbicaciOndesulavadora................................... 10

Desempaque...................................................... 10

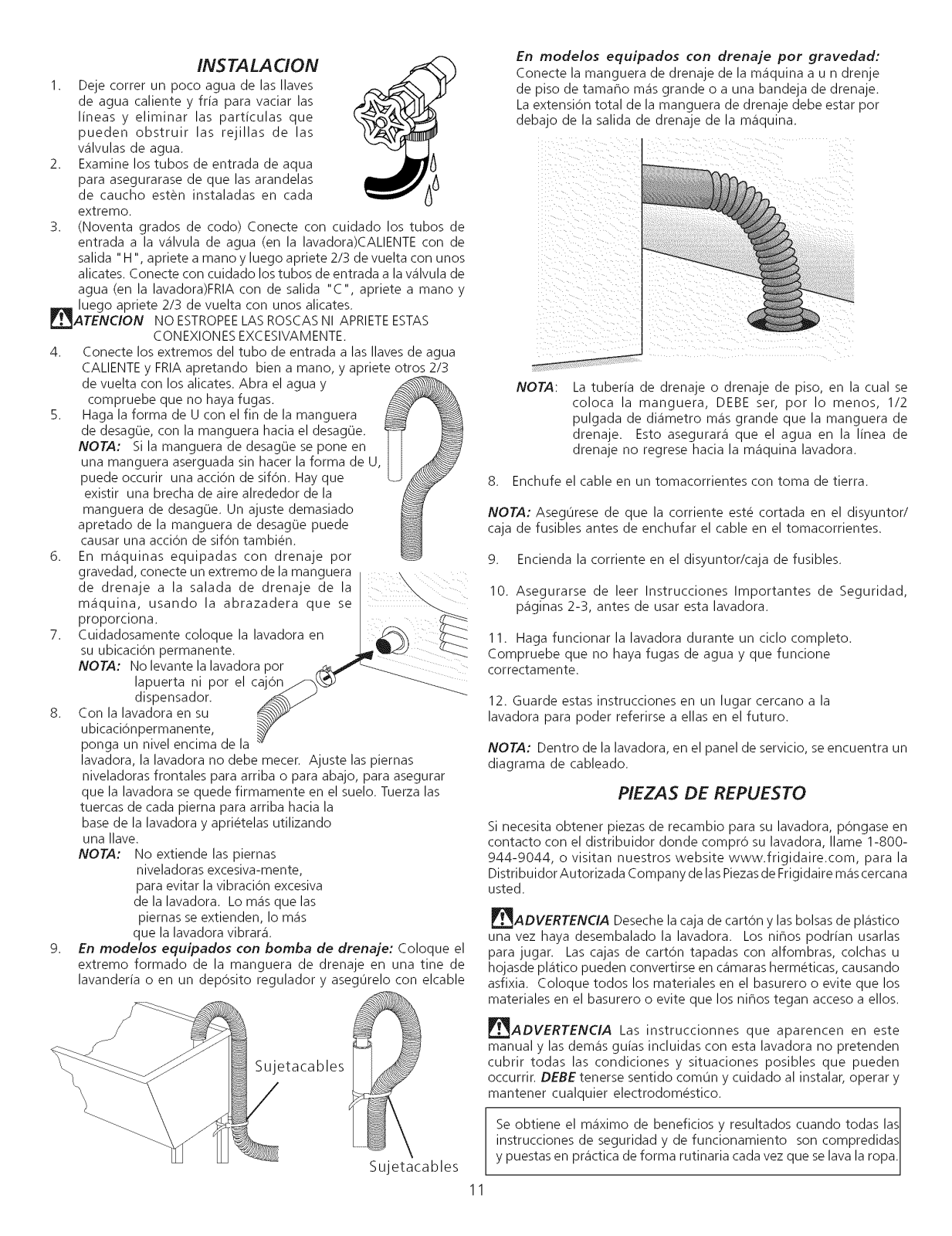

Instalacion.......................................................... 11

Piezasde repuesto............................................. 11

Garantia .............................................. 12

Lainstalaci6n yel servicio deben ser hechos pot un instalador capacitado,
una agencia de servicios o el proveedor del gas.

Printed in U.S.A. P/N 134589200A (0601)

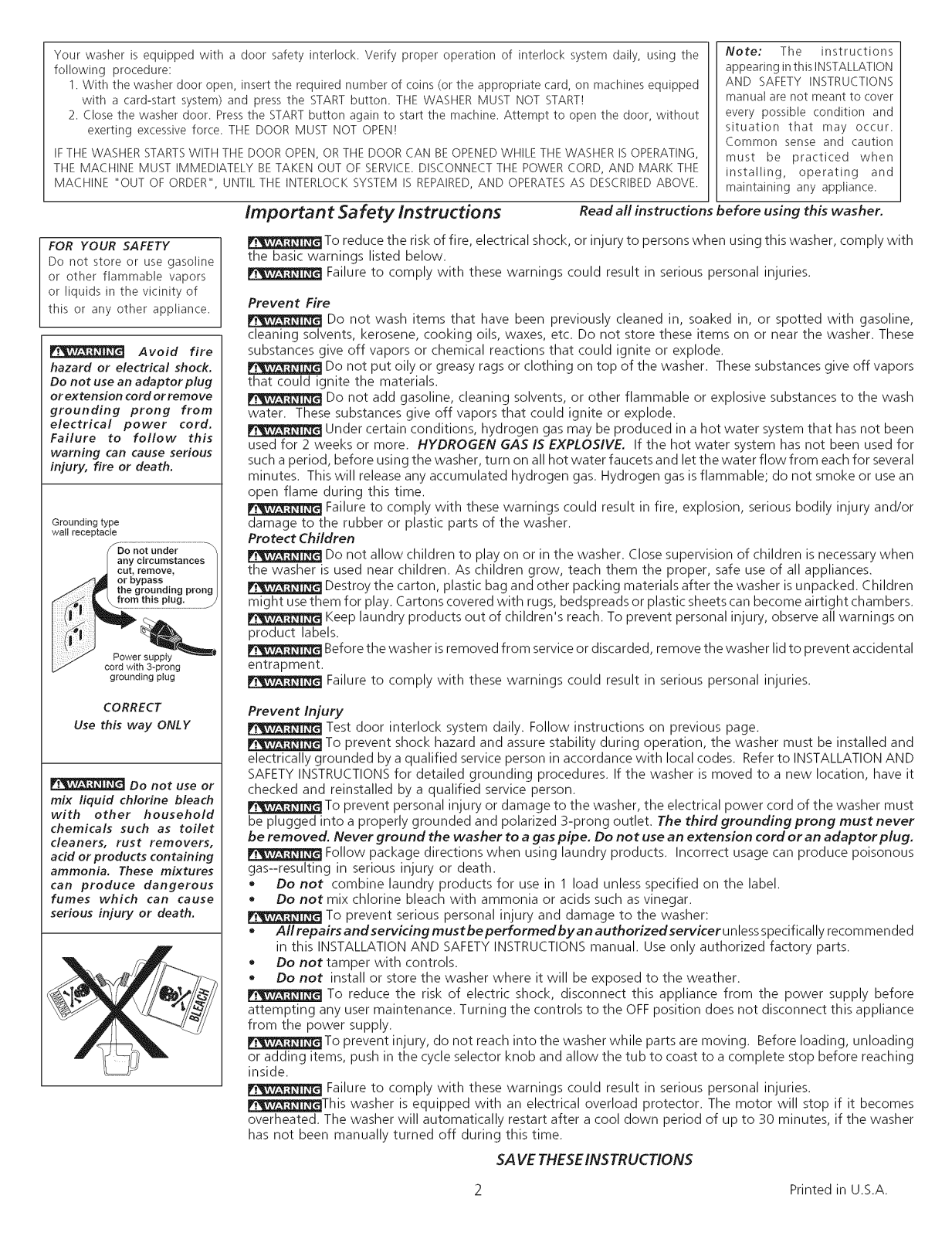

Your washer is equipped with a door safety interlock. Verify proper operation of interlock system daily, using the
following procedure:

1. With the washer door open, insert the required number of coins (or the appropriate card, on machines equipped
with a card-start system) and press the START button. THE WASHER MUST NOT START!

2. Close the washer door. Pressthe START button again to start the machine. Attempt to open the door, without

exerting excessive force. THE DOOR MUST NOT OPEN!

IFTHE WASHER STARTSWITH THE DOOR OPEN, OR THE DOOR CAN BE OPENED WHILE THE WASHER IS OPERATING,

THE MACHINE MUST IMMEDIATELY BETAKEN OUT OF SERVICE.DISCONNECT THE POWER CORD, AND MARK THE

MACHINE "OUT OF ORDER", UNTIL THE INTERLOCK SYSTEM IS REPAIRED,AND OPERATESAS DESCRIBED ABOVE.

important Safety instructions Read all instructions before using this washer.

FOR YOUR SAFETY

Do not store or use gasoline
or other flammable vapors

or liquids in the vicinity of

this or any other appliance.

Avoid fire

hazard or electrical shock.
Do not use an adaptor plug

or extension cord or remove

grounding prong from

electrical power cord.
Failure to follow this

warning can cause serious
injury, fire or death.

Grounding type
wall receptacle

the grounding prong

grounding plug

CORRECT

Use this way ONLY

DO not use or

mix liquid chlorine bleach
with other household

chemicals such as toilet
cleaners, rust removers,

acid or products containing

ammonia, These mixtures

can produce dangerous
fumes which can cause

serious injury or death.

_To reduce the risk of fire, electrical shock, or injury to persons when using this washer, comply with
the basic warnings listed below.

Failure to comply with these warnings could result in serious personal injuries.

Prevent Fire

Do not wash items that have been previously cleaned in, soaked in, or spotted with gasoline,
cleaning solvents, kerosene, cooking oils, waxes, etc. Do not store these items on or near the washer. These
substances give off vapors or chemical reactions that could ignite or explode.

Do not put oily or greasy rags or clothing on top of the washer. These substances give off vapors

that could ignite the materials.

Do not add gasoline, cleaning solvents, or other flammable or explosive substances to the wash

water. These substances give off vapors that could ignite or explode.

Under certain conditions, hydrogen gas may be produced in a hot water system that has not been
used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for
such a period, before using the washer, turn on all hot water faucets and let the water flow from each for several
minutes. This will release any accumulated hydrogen gas. Hydrogen gas is flammable; do not smoke or use an
open flame during this time.

Failure to comply with these warnings could result in fire, explosion, serious bodily injury and/or

damage to the rubber or plastic parts of the washer.

Protect Children

Do not allow children to play on or in the washer. Close supervision of children is necessary when
the washer is used near children. As children grow, teach them the proper, safe use of all appliances.

Destroy the carton, plastic bag and other packing materials after the washer is unpacked. Children
might usethem for play. Cartons covered with rugs, bedspreads or plastic sheets can become airtight chambers.

Keep laundry products out of children's reach. To prevent personal injury, observe all warnings on
product labels.

Before the washer isremoved from serviceor discarded, remove the washer lid to prevent accidental
entrapment.

Failure to comply with these warnings could result in serious personal injuries.

Prevent Injury

Test door interlock system daily. Follow instructions on previous page.

To prevent shock hazard and assure stability during operation, the washer must be installed and
electrically grounded bya qualified service person in accordance with local codes. Refer to INSTALLATIONAND
SAFETYINSTRUCTIONSfor detailed grounding procedures. If the washer is moved to a new location, have it
checked and reinstalled by a qualified service person.
_To prevent personal injury or damage to the washer, the electrical power cord of the washer must
be plugged into a properly grounded and polarized 3-prong outlet. The third grounding prong mustnever

be removed. Never ground the washer to a gas pipe, Do not use an extension cord or an adaptor plug,

Follow package directions when using laundry products. Incorrect usage can produce poisonous
gas--resulting in serious injury or death.

Do not combine laundry products for use in 1 load unless specified on the label.
Do not mix chlorine bleach with ammonia or acids such as vinegar.

To prevent serious personal injury and damage to the washer:

• A__re_airsandservicingmustbe_erf_rmedbyanauth_rizedservicerun_essspe_ifi_a__yre__mmended

in this INSTALLATION AND SAFETYINSTRUCTIONSmanual. Use only authorized factory parts.

Do not tamper with controls.
Do not install or store the washer where it will be exposed to the weather.

To reduce the risk of electric shock, disconnect this appliance from the power supply before
attempting any user maintenance. Turning the controls to the OFFposition does not disconnect this appliance
from the power supply.

To prevent injury, do not reach into the washer while parts are moving. Before loading, unloading

or adding items, push in the cycle selector knob and allow the tub to coast to a complete stop before reaching
inside.

Failure to comply with these warnings could result in serious personal injuries.
_This washer is equipped with an electrical overload protector. The motor will stop if it becomes
overheated. The washer will automatically restart after a cool down period of up to 30 minutes, if the washer
has not been manually turned off during this time.

SAVE THESEINSTRUCTIONS

Note: The instructions

appearing in this INSTALLATION
AND SAFETY INSTRUCTIONS

manual are not meant to cover

every possible condition and
situation that may occur.

Common sense and caution

must be practiced when
installing, operating and

maintaining any appliance.

2 Printed in U.S.A.

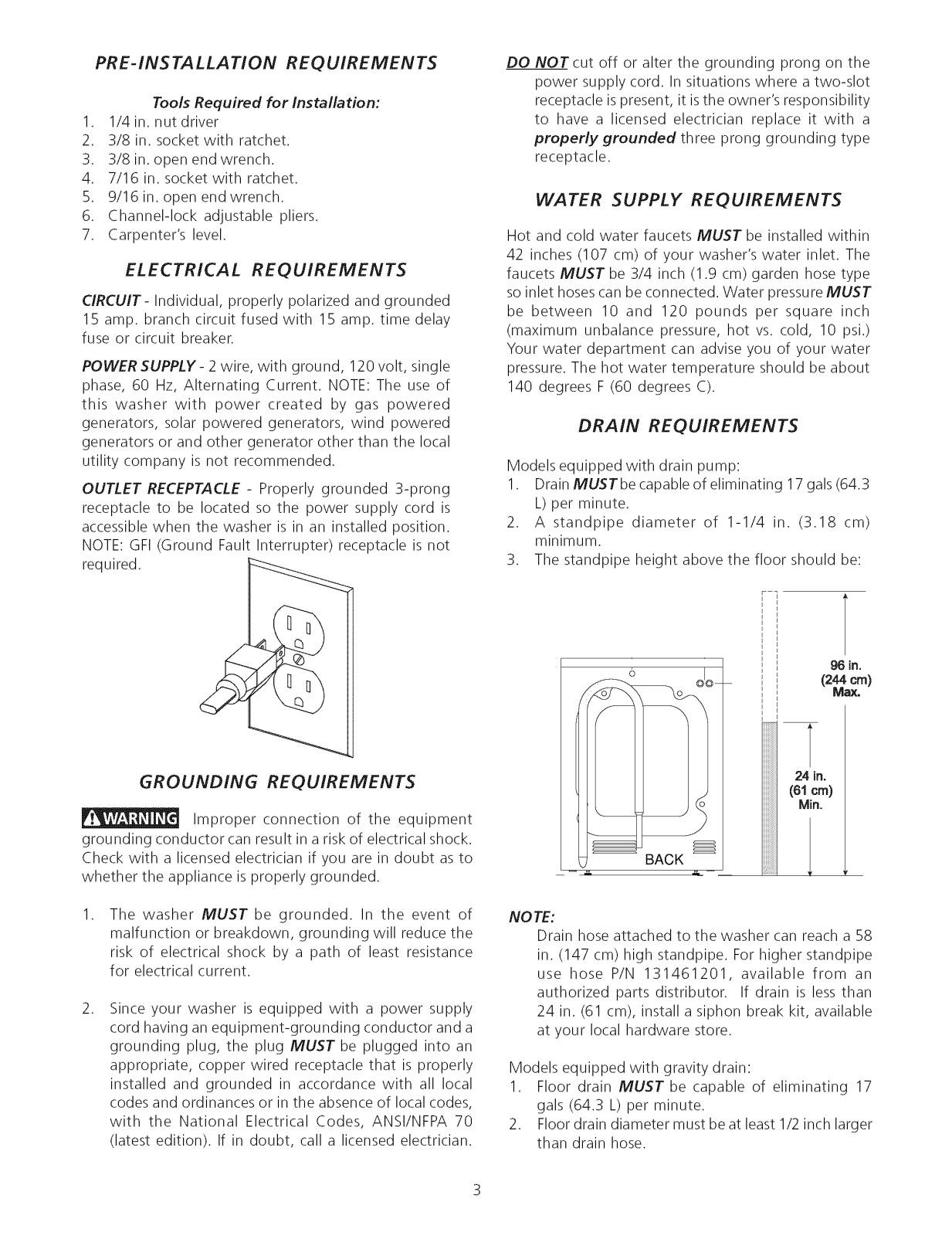

PRE-INSTALLATION REQUIREMENTS

Tools Required for Installation:

1. 1/4 in. nut driver

2. 3/8 in. socket with ratchet.

3. 3/8 in. open end wrench.

4. 7/16 in. socket with ratchet.

5. 9/16 in. open endwrench.

6. Channel-lock adjustable pliers.

7. Carpenter's level.

ELECTRICAL REQUIREMENTS

CIRCUIT- Individual, properly polarized and grounded

15 amp. branch circuit fused with 15 amp. time delay

fuse or circuit breaker.
POWER SUPPLY- 2 wire, with ground, 120 volt, single

phase, 60 Hz, Alternating Current. NOTE: The use of
this washer with power created by gas powered
generators, solar powered generators, wind powered
generators or and other generator other than the local
utility company is not recommended.

OUTLET RECEPTACLE- Properly grounded 3-prong
receptacle to be located so the power supply cord is

accessible when the washer is in an installed position.
NOTE: GFI (Ground Fault Interrupter) receptacle is not

required.

DO NOTcut off or alter the grounding prong on the

power supply cord. In situations where a two-slot

receptacle is present, it isthe owner's responsibility
to have a licensed electrician replace it with a
properly grounded three prong grounding type

receptacle.

WATER SUPPLY REQUIREMENTS

Hot and cold water faucets MUST be installed within
42 inches (107 cm) of your washer's water inlet. The

faucets MUST be 3/4 inch (1.9 cm) garden hose type
so inlet hoses can be connected. Water pressure MUST
be between 10 and 120 pounds per square inch
(maximum unbalance pressure, hot vs. cold, 10 psi.)
Your water department can advise you of your water
pressure. The hot water temperature should be about

140 degrees F (60 degrees C).

DRAIN REQUIREMENTS

Models equipped with drain pump:

1. Drain MUSTbe capable of eliminating 17gals (64.3
L) per minute.

2. A standpipe diameter of 1-1/4 in. (3.18 cm)
minimum.

3. The standpipe height above the floor should be:

GROUNDING REQUIREMENTS

Improper connection of the equipment

grounding conductor can result in a risk of electrical shock.
Check with a licensed electrician if you are in doubt as to

whether the appliance is properly grounded.

The washer MUST be grounded. In the event of
malfunction or breakdown, grounding will reduce the

risk of electrical shock by a path of least resistance
for electrical current.

.

Since your washer is equipped with a power supply
cord having an equipment-grounding conductor and a

grounding plug, the plug MUST be plugged into an
appropriate, copper wired receptacle that is properly

installed and grounded in accordance with all local
codes and ordinances or in the absence of local codes,

with the National Electrical Codes, ANSI/NFPA 70
(latest edition). If in doubt, call a licensed electrician.

96 in.

(244 cm)

Max.

24 in.

(61 cm)

Min.

NOTE:

Drain hose attached to the washer can reach a B8
in. (147 cm) high standpipe. For higher standpipe

use hose P/N 131461201, available from an
authorized parts distributor. If drain is lessthan
24 in. (61 cm), install a siphon break kit, available
at your local hardware store.

Models equipped with gravity drain:

1. Floor drain MUST be capable of eliminating 17
gals (64.3 L) per minute.

2. Floor drain diameter must beat least I/2 inch larger
than drain hose.

ROUGH-IN DIMENSIONS

17 17

(43.2)

¾¾ --

SIDE

Cord

331/2

IMPORTANT
MINIMUM INSTALLATIONCLEARANCES

When installedin alcove: Sides,Rear,Top= 0 in
(0 cry]).

When installed in closet: Sides,Rear,Top= 0 in
(0 cm),Front = 1in (2.54 cm).

Closet door ventilation openings required: 2 louvers each 60 in2
(387 cm2)- 3 in(7.6 cry])from top and bottom of door.

UNPACKING

1. Cut the shipping carton along the dotted line along the base of
the unit.

2. While in the carton carefully lay the washer ors its back side.

3. Remove the styrofoam base.

4. Carefully return thewasher to an upright position and remove
the carton.

5. Carefully move the washer to within 4 feet (122cm) of the

final location.

6. Remove the following
from the back side

of the washer;

3 bolts,

3 yellow
plastic spacers,

2 or 3 metal
"P" clamps,

inch (cm) Adjustable L_s

43/8

(I 1.2)

t .>

36

[91.5)

Counter

(_) BOLT

2%

(7.3)

A

%

S

Inlets

(so.3)

7. Remove the service panel from the front of the washer.

8. Remove the 4 nuts and 6 large washers that attach the 2

yellow shipping braces to the drum and the base. Lift up on
the drum and remove the braces (a yellow ribbon surrounds
the items to be removed). These braces must be removed to

allow the power supply cord to be released from the shipping

ring.

9. Remove the large styrofoam block
located under the drum. Lift up

ors the drum, tilt the base of

the foam block inwards

toward the rear of the

washer until free, then

pull it out.

10. Remove and discard
the yellow ribbon

and label from

the front of the
washer.

(_) CLAMP

SPACER

Y Y

LOCATION OF YOUR WASHER

DO NOT INSTALL YOUR WASHER:

1. In an area expose(] to dripping water or outside weather conditions. The ambient
temperature should never be below 60 degrees F (15.6 degrees C) for proper

washer operation.

2. In an area where it will come in contact with curtains or drapes.

3. In an area (garage or garage-type building) where gasoline of other flammables are

kept or stored (including automobiles).

4. On carpet. Floor MUSTbe solid with a maximum slope of 1/2 in. per foot (I .27 cm
per 30.5 cm). To ensure vibration or movement does not occur, reinforcement of

the floor may be necessary. 4

@

11. From the rear of the washer, carefully pull out the power
supply cord through the hole in the backsheet.

12.Replace the service panel and screws.

NOTE: If the washer is to be transported at a later

date, the shipping support hardware must be
reinstalled to prevent shipping damage.
