Page 1
FACTORY PARTS CATALOG
ROOM AIR CONDITIONER
PRODUCT NO. BASE MODEL NO. VOLTS BTU-COOLING
FAS185J2A5 FAS185J2A 230 18000 BTU
MARKET
USA
WIRING DIAGRAM - # 309343701
OWNER’S GUIDE - # 309000825
ROOM AIR CONDITIONER
ELECTROLUX HOME PRODUCTS, INC
P.O.BOX 212378, AUGUSTA, GA 30917
Model No.
FAS185J2A5
Publication No.
5995366977
020226
-EN/SERVICE /KC
345
©2002 Electrolux Home Products, Inc.
All rights reserved
Page 2
Publication No. FAS185J2A5
5995366977
CABINET FRONT AND WRAPPER
02/02 2
Page 3
FAS185J2A5 Publication No.
CABINET FRONT AND WRAPPER
POS. NO PART NO DESCRIPTION
1 309632704 Cabinet,sleeve ,top louvers
* 5303212504 Seal,sleeve/chassis ,bottom
2 309632804 Grille,rear ,with rail
7 309631104 Link,vertical louver ,with handle
8 309633305 Louver Assy,Incl-7,8,9
8 309630804 Louver,horizontal
9 309631004 Louver,vertical
12 309631404 Filter,air ,molded plastic
17 309633205 Front Assembly,w/7,8,9,12,43
19 309341002 Overlay,Frig Gallery
25 309321401 Door,vent ,with actuator
26 309330404 Handle,vent ,gray
26A 309330202 Detent,vent
29 3015312 Screw,8-18AB x 0.500
43 309630904 Panel,cabinet front
70 309342401 Enclosure,elec control mt
78 309350502 Remote Control,transmitter ,with batteries
5995366977
# = Fast-moving Parts 3 02/02
* = Non-Illustrated Parts
Page 4
Publication No. FAS185J2A5
5995366977
CONTROLS
02/02 4
Page 5
FAS185J2A5 Publication No.
CONTROLS
POS. NO PART NO DESCRIPTION
7 309630403 Control Box
* 5303015427 Screw,truss head ,8-18AB x 0.47
10 309623602 Bulkhead,control system
10* 309111201 Grommet,wire protector
12 5304413782 Holder,temp sensor ,with seal
12A 309331801 Clip,sensor retainer ,(2)
13 # 5304426451 Capacitor,450 V ,35+6 mfd
14 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,ground
15 5303303077 Strap,capacitor mtg.
17 # 309343112 Cord-electric power,type C ,16 AWG
61 5304414095 Thermistor,defrost sensor
70 309342401 Enclosure,elec control mt
71 # 309350401 PC Board,power ,w/temp sensor
72 # 309350403 PC Board,input
72* 5304417643 Ribbon Protector
74 5303301590 Screw,6-20AB x 0.38
75 5304413781 Support,PC board
76 309111602 Transformer,240/12 Volt
* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs
5995366977
# = Fast-moving Parts 5 02/02
* = Non-Illustrated Parts
Page 6
Publication No. FAS185J2A5
5995366977
AIR HANDLING PARTS
02/02 6
Page 7
FAS185J2A5 Publication No.
AIR HANDLING PARTS
POS. NO PART NO DESCRIPTION
1 # 5303311048 Fan Blade,with clamp
2 3202975 Screw,10-16AB x 0.72 ,square drive
3 309623201 Shroud,cond fan motor
4 5303212504 Seal,sleeve/chassis ,bottom
5 5303015311 Seal,fan housing ,lower
7 5303015427 Screw,truss head ,8-18AB x 0.47
8 # 309630607 Motor,fan
10 309623401 Bulkhead,air system
11 309633001 Blower Wheel,plastic ,with clamp
13 309630302 Cover,blower wheel ,top
15 309630101 Housing,blower scroll
20 309630201 Plate,scroll cover
5995366977
# = Fast-moving Parts 7 02/02
* = Non-Illustrated Parts
Page 8
Publication No. FAS185J2A5
5995366977
COMPRESSOR PARTS
02/02 8
Page 9
FAS185J2A5 Publication No.
COMPRESSOR PARTS
POS. NO PART NO DESCRIPTION
1 # 309647101 Compressor
2 5303283877 Grommet,compressor mtg ,(3)
3 5308006948 Nut,compressor mtg ,(3)
6 309364303 Gasket,terminal cover
7 309364301 Cover,compr terminal
8 # 5304426453 Overload Protector
9 309364302 Nut,terminal cover
11 # 309634103 Evaporator
* # 5304414095 Thermistor,defrost sensor
12 # 5303306719 Condenser
13 309623501 Tray,evap drip
14 309632912 Base,compressor mtg ,with studs
16 # 5304417693 Capillary Tube,37 inch long
17 # 5300265301 Drier-filter,service kit
19 5303002664 Washer,compressor mtg
19* 309112501 Washer,metallic
20 309364304 Spring,overload
5995366977
# = Fast-moving Parts 9 02/02
* = Non-Illustrated Parts
Page 10
Publication No. FAS185J2A5
5995366977
WINDOW MOUNTING PARTS
02/02 10
Page 11
FAS185J2A5 Publication No.
WINDOW MOUNTING PARTS
POS. NO PART NO DESCRIPTION
1 5304407729 Seal,window stuffer
2 5303211056 Bracket,sash lock
4 5304419163 Frame,cab extension ,LH ,sliding
5 5304409250 Seal,top rail/cab
6 5304414933 Retainer,accordian
7 5304414105 Bracket,support ,RH
8 3001815 Bracket,sill/unit sprt.
9 3007756 Screw,1/4-20 x 0.750
10 3007759 Nut,lock ,1/4-20 ,support bracket
11 5304414106 Bracket,support ,LH
12 3017023 Nut,hex ,10-32 ,2
13 5303281649 Screw,10-32 x 0.500 ,support
14 5304419162 Frame,cab extension ,RH ,sliding
15 5304414930 Closure,accordian type ,window mount
16 5304414116 Rail,top
17 3002803 Screw,wood, type 17 ,10-12 x 0.750
18 5308012680 Screw,rail
21 5303212504 Seal,sleeve/chassis ,bottom
24 3002801 Screw,8-18B x 0.500
* 309313303 Kit-window mounting,heavy duty
* 309313204 Kit-mounting support
* 5304409248 Kit-Hardware,mounting
* 5304409249 Seal-hole,shipping screws
5995366977
# = Fast-moving Parts 11 02/02
* = Non-Illustrated Parts
Page 12
Publication No. FAS185J2A5
5995366977

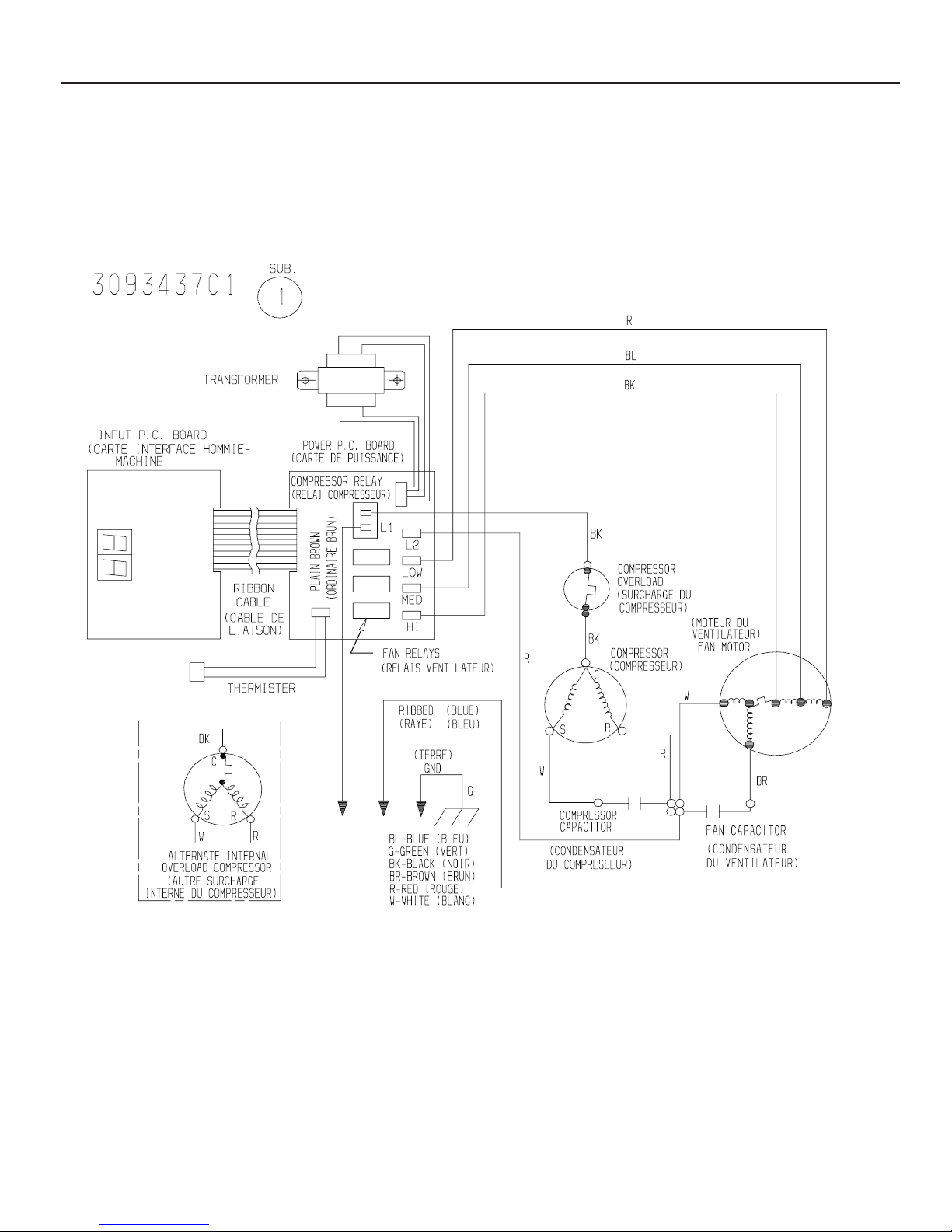

WIRING DIAGRAM
02/02 12
