Page 1
Dryer
FARE1011MW
8 Dry Cycles
7.0 Cu. Ft. D.O.E. Electric
Product Dimensions
Height 43"
Width 27"
Depth 29"
More Easy To Use Features
8 Dry Cycle Selections
No Heat Air Flu
Chime On / O Alert
4 Temperature Selections
Available in:
Classic
White
(W)
Signature Features
Fits-More™ Dryer
Dry more in one load with our large,
7.0 cu. ft. interior.
TimeWise® Technology
TimeWise® Technology ensures wash
time equals dry time — so you don’t
wait for clothes to dry.
One-Touch™ Wrinkle Release
This option features Wrinkle Release
Technology that finishes by tumbling
without heat, preventing wrinkles, so
your clothes look great every time.
Express-Select® Controls
Easily select options with the touch
of a button.
frigidaire.com
Page 2
Features
CB
A
Total Capacity D.O.E. (Cu. Ft.)
Controls
Dryer Drum Interior
Interior Light
Framed Glass Window Door
DrySense™ Technology
Wrinkle Release Technology
TimeWise® Technology
Moisture Sensor
Estimated Time Remaining
Cycle Status Lights
Cycle Signal
Cycle Signal “On/O ”
Control Lock
Start / Pause / Cancel Knobs
Delay Start
Tumble Speed (RPM)
Reversible Door
Lint Screen
Sound Package
Adjustable Leveling Legs
7.0
Express-Select®
Painted Steel
Yes
Yes
Yes
Chime
Yes
Yes
50
Yes
Yes
4
Cycles
Dry Cycles
Specialty Cycles
8
0
Options
Temperature Selections
Dryness Level Selections
Timed Dry
Energy Saver Option
4
0
15, 30, 60, 90
Optional Accessories
Mobile Home Installation Kit
Drying Rack
PN # 137067200
PN # 137067300
Certifications
NSF® Certified
Specifications
Maximum Exhaust Duct Length1 (Ft.)
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 240 Volts
Amps @ 240 Volts
Heating Element @ 240 Volts (Watts)
Shipping Weight (Approx.)
1
Rigid metal duct preferred, semi-rigid optional and allow deductions for
elbows and vents. Refer to Installation Guide on web for additional information.
64
Rear
240V / 60Hz / 30A
5.4
24
4,700
143 Lbs.
Dryer
FARE1011MW 7.0 Cu. Ft. D.O.E. Electric
NOTE: For planning purposes only. Always consult local and national
electric codes. Refer to Product Installation Guide for detailed
installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
Depth with Door Open 90˚
•
USA
10200 David Taylor Drive
•
CANADA
FARE1011M 09/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
43"
27"
29"
50"
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
Page 3
Top Load Laundry - Electric Dryer
Frigidaire Affinity (M models)
Dryer
FARE1011MW 7.0 Cu. Ft. D.O.E. Electric
Top Load Dryer Specifications
• Product Shipping Weight (approx.) – 143 Lbs.
• Designed for HOME USE only, not recommended for commercial
application.
• An electrical supply with grounded three-prong receptacle is required.
• Voltage Rating – 240V / 60 Hz / 30 Amps
• Single phase 3- or 4-wire cable, 240 Volt, 60 Hertz AC only electrical
supply with ground required on separate circuit fused on both sides
of line. (Do not use same circuit as washer.)
• Connected Load (kW Rating) @ 240 Volts = 5.4 kW
• Amps @ 240 Volts = 24 Amps
• Dryer MUST employ a 3-conductor NEMA 10-30 type SRDT or
4-conductor NEMA 14-30 type SRDT or ST (as required), rated at
240 volt AC minimum, 30 amp power supply cord marked for
use with clothes dryers (not supplied).
• Grounding through neutral link prohibited in specific applications and
certain locales, requiring use of 4-wire system. (For detailed electrical
requirements, refer to Product Installation Guide on web.)
• Always consult local and national electric codes.

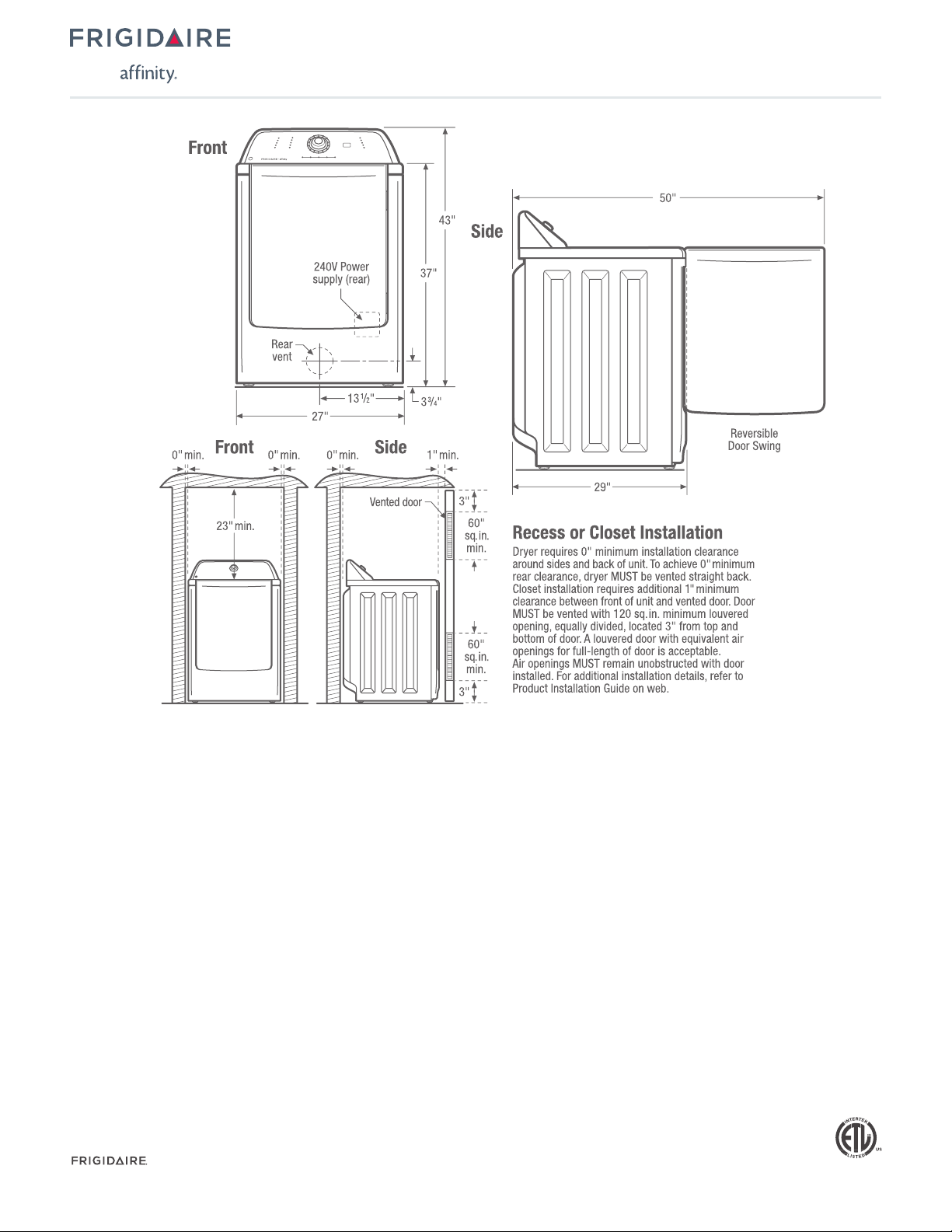

• Dryer can be installed in recess or closet requiring 0" minimum
installation clearance around sides and back of unit. To achieve 0"
minimum rear clearance, dryer MUST be vented straight back. Closet
installation requires additional 1" minimum clearance between front of
unit and vented door. Door MUST be vented with 120 sq. in. minimum
louvered opening, equally divided, located 3" from top and bottom
of door. A louvered door with equivalent air openings for full-length
of door is acceptable. Air openings MUST remain unobstructed with
door installed. (For additional installation details, refer to Product
Installation Guide on web.)
• Do NOT install in area exposed to dripping water or outdoor weather
conditions; where gasoline or other flammables are kept or stored; or
where dryer comes in contact with curtains, drapes or anything that
will obstruct flow of combustion and ventilation air.
• For garage installation, dryer MUST be located minimum 18" above floor.
• Floor MUST be solid with 1" maximum slope. Do NOT install on
carpeted surface.
• Dryer MUST exhaust to outside of building, NOT into any concealed
space.
• Exhaust installation requires minimum 4"-diameter rigid or semi-rigid
metal duct with approved, unobstructed vent hood having swing-out
damper(s). If installing rigid metal duct (preferred), do not exceed
MAXIMUM venting run length of 64 ft., allow deductions for elbows
and vents. If installing semi-rigid metal duct, do not exceed MAXIMUM
venting run length of 8 ft., always allow deductions for elbows and
vents (Refer to Product Installation Guide on web for additional
information). Do NOT use flexible plastic or metal foil duct and use
shortest run possible.
• Leveling legs supplied to level dryer properly and reduce excessive
noise and vibration.
• For manufactured or mobile home installation optional Mobile Home
Installation Kit (PN # 137067200) required. (For specific installation
details, refer to Product Installation Guide on web.)
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
• Mobile Home Installation Kit – (PN # 137067200).
• Drying Rack – (PN # 137067300).
•
USA
10200 David Taylor Drive
•
CANADA
FARE1011M 09/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
