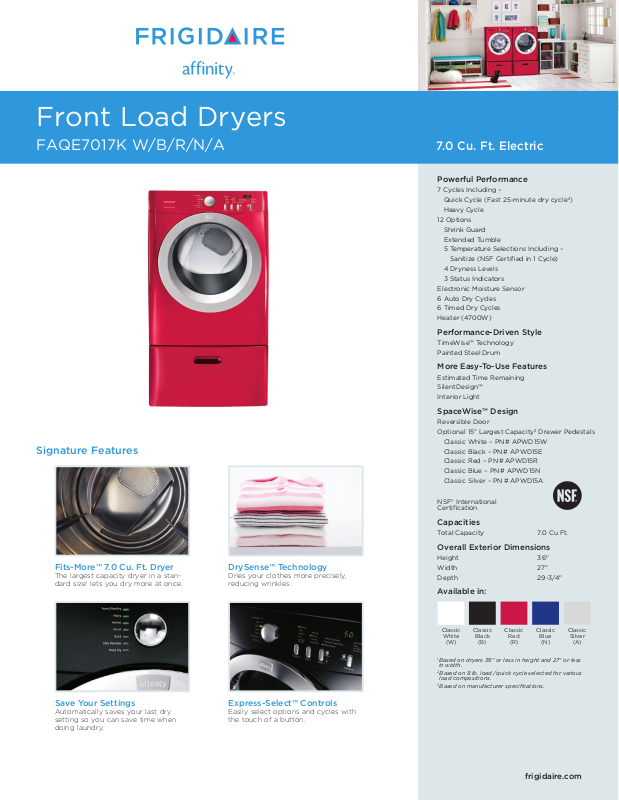

Frigidaire FAQE7017KA User Manual
Front Load Dryers
FAQE7017K W/B/R/N/A
Signature Features
7.0 Cu. Ft. Electric
Powerful Performance
7 Cycles Including –
Quick Cycle (Fast 25-minute dry cycle
Heavy Cycle
12 Options
Shrink Guard
Extended Tumble
5 Temperature Selections Including –
Sanitize (NSF Certified in 1 Cycle)
4 Dryness Levels
3 Status Indicators
Electronic Moisture Sensor
6 Auto Dry Cycles
6 Timed Dry Cycles
Heater (4700W)
Performance-Driven Style
TimeWise™ Technology
Painted Steel Drum
More Easy-To-Use Features
Estimated Time Remaining
SilentDesign™
Interior Light
SpaceWise™ Design
Reversible Door
Optional 15" Largest Capacity
Classic White – PN# APWD15W
Classic Black – PN# APWD15E
Classic Red – PN# APWD15R
Classic Blue – PN# APWD15N
Classic Silver – PN# APWD15A
3
Drawer Pedestals
2
)
Fits-More™ 7.0 Cu. Ft. Dryer
The largest capacity dryer in a standard size
1
lets you dry more at once.
Save Your Settings
Automatically saves your last dry
setting so you can save time when
doing laundry.
DrySense™ Technology
Dries your clothes more precisely,
reducing wrinkles.
Express-Select™ Controls
Easily select options and cycles with
the touch of a button.
NSF® International
Certification
Capacities
Total Capacity 7.0 Cu Ft.
Overall Exterior Dimensions
Height 36"
Width 27"
Depth 29-3/4"
Available in:
White
(W)
Classic
Classic
1
Based on dryers 36" or less in height and 27" or less
in width.
2
Based on 8 lb. load / quick cycle selected for various
load compositions.
3
Based on manufacturer specifications.
Black
(B)
Classic
Red
(R)
Classic
Blue
(N)
Classic
Silver
(A)
frigidaire.com
Front Load Laundry - Electric Dryers
Frigidaire Affinity
Front Load Dryers
FAQE7017K W/B/R/N/A 7.0 Cu. Ft. Electric
Front Load Dryer Specifications
•
Product Shipping Weight (approx.) – 140 Lbs.
•
An electrical supply with grounded three-prong receptacle is required.
•
Voltage Rating – 240V / 60 Hz / 30 Amps
•
Single phase 3- or 4-wire cable, 240 Volt, 60 Hertz AC only electrical
supply with ground required on separate circuit fused on both sides
of line. (Do not use same circuit as washer.)
•
Connected Load (kW Rating) @ 240 Volts = 5.0 kW
•
Amps @ 240 Volts = 24 Amps
•
Dryer MUST employ a 3-conductor NEMA 10-30 type SRDT or
4-conductor NEMA 14-30 type SRDT or ST (as required), rated at
240 volt AC minimum, 30 amp power supply cord marked for
use with clothes dryers (not supplied).
•
Grounding through neutral link prohibited in specific applications and
certain locales, requiring use of 4-wire system. (For detailed electrical
requirements, refer to Product Installation Guide on web.)
•
Always consult local and national electric codes.
•
Can be installed alone, with or without optional 15" Drawer Pedestal,
or stacked above matching Frigidaire® Affinity Washer, which requires
installation of optional Dryer Stacking Kit. (For installation details, refer
to instructions included with optional pedestal or stacking kit or on web.)
•
Can be built in with matching Frigidaire® Affinity Washer in under-
counter, recessed or closet installation. (Refer to Built-In Installations
on this page for cutout dimensions. For additional installation details,
refer to Product Installation Guide on web.)
•
Closet installation requires vented door with 2 unobstructed louvered
openings, minimum 60 sq. in. each, located 3" from top and bottom
FRIGIDAIRE®
•
USA
10200 David Taylor Drive
•
CANADA
FAQE7017K 07/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
of door. Full-length 120 sq. in. opening also acceptable. Allow additional
1" clearance between fronts of units and closed door.
•
Do NOT install in area exposed to dripping water or outdoor
weather conditions, or where gasoline or other flammables, including
automobiles, are kept or stored.
•
Floor MUST be solid with 1" maximum slope. Do NOT install on
carpeted surface.
•
Dryer MUST exhaust to outside of building, NOT into any
concealed space.
•
Exhaust installation requires minimum 4"-diameter rigid or flexible metal
duct with approved vent hood having swing-out damper(s). Do NOT
use flexible plastic or metal foil duct and use shortest run possible.
•
Leveling legs supplied to level dryer properly and reduce excessive
noise and vibration.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
Dryer Stacking Kit – (PN # 134700600).
•
15" Classic White Drawer Pedestal – (PN # APWD15W).
•
15" Classic Black Drawer Pedestal – (PN # APWD15E).
•
15" Classic Red Drawer Pedestal – (PN # APWD15R).
•
15" Classic Blue Drawer Pedestal – (PN # APWD15N).
•
15" Classic Silver Drawer Pedestal – (PN # APWD15A).
•
Mobile Home Installation Kit – (PN # 137067200).
•
LP Gas Conversion Kit – (PN # PCK4200).
•
Drying Rack – (PN # 137067300).
Specifications
Specifications
subject to change.
subject to change.
