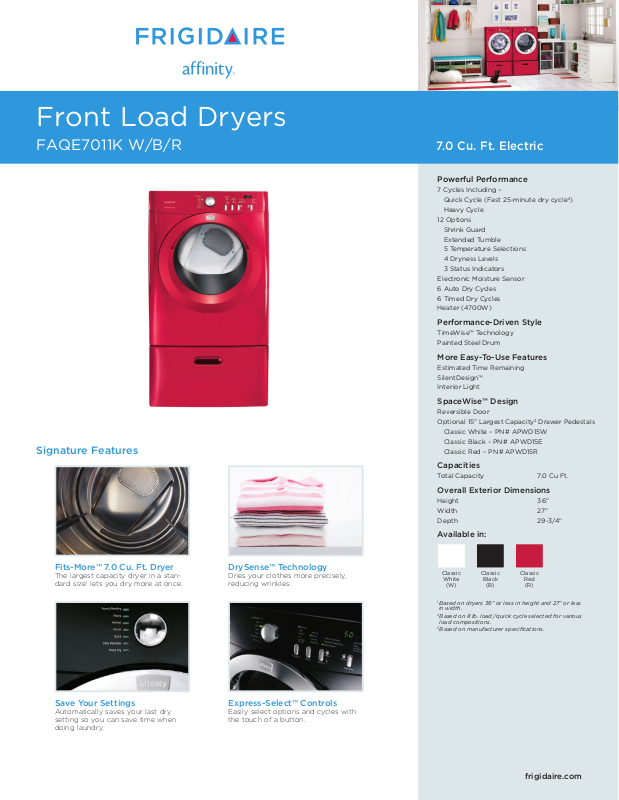

Frigidaire FAQE7011K R, FAQE7011K W DATASHEET

Front Load Dryers

FAQe7011K W/B/R

Signature Features

Fits-More™ 7.0 Cu. Ft. Dryer		DrySense™ Technology
The largest capacity dryer in a stan-		Dries your clothes more precisely,
dard size1 lets you dry more at once.		reducing wrinkles.

Save Your Settings	Express-Select™ Controls
Automatically saves your last dry	Easily select options and cycles with
setting so you can save time when	the touch of a button.
doing laundry.

7.0 Cu. Ft. Electric

Powerful Performance

7 Cycles Including –

Quick Cycle (Fast 25-minute dry cycle2)

Heavy Cycle

12 Options

Shrink Guard

Extended Tumble

5 Temperature Selections

4 Dryness Levels

3 Status Indicators

Electronic Moisture Sensor

6 Auto Dry Cycles

6 Timed Dry Cycles

Heater (4700W)

Performance-Driven Style

TimeWise™ Technology

Painted Steel Drum

More Easy-To-Use Features

Estimated Time Remaining

SilentDesign™

Interior Light

SpaceWise™ Design

Reversible Door

Optional 15" Largest Capacity3 Drawer Pedestals

Classic White – PN # APWD15W

Classic Black – PN # APWD15E

Classic Red – PN # APWD15R

Capacities

Total Capacity 7.0 Cu Ft.

Overall Exterior Dimensions

Height	36"
Width	27"
Depth	29-3/4"

Available in:


Classic	Classic	Classic
White	Black	Red
(W)	(B)	(R)

1Based on dryers 36" or less in height and 27" or less in width.

2Based on 8 lb. load / quick cycle selected for various load compositions.

3Based on manufacturer specifications.

frigidaire.com

Frigidaire FAQE7011K R, FAQE7011K W DATASHEET

Front Load Dryers

FAQE7011K W/B/R 7.0 Cu. Ft. Electric

Front Load Dryer Specifications

•Product Shipping Weight (approx.) – 140 Lbs.

•An electrical supply with grounded three-prong receptacle is required.

•Voltage Rating – 240V / 60 Hz / 30 Amps

•Single phase 3- or 4-wire cable, 240 Volt, 60 Hertz AC only electrical supply with ground required on separate circuit fused on both sides of line. (Do not use same circuit as washer.)

•Connected Load (kW Rating) @ 240 Volts = 5.0 kW

•Amps @ 240 Volts = 24 Amps

•Dryer MUST employ a 3-conductor NEMA 10-30 type SRDT or 4-conductor NEMA 14-30 type SRDT or ST (as required), rated at 240 volt AC minimum, 30 amp power supply cord marked for use with clothes dryers (not supplied).

•Grounding through neutral link prohibited in specific applications and certain locales, requiring use of 4-wire system. (For detailed electrical requirements, refer to Product Installation Guide on web.)

•Always consult local and national electric codes.

•Can be installed alone, with or without optional 15" Drawer Pedestal, or stacked above matching Frigidaire® Affinity Washer, which requires installation of optional Dryer Stacking Kit. (For installation details, refer to instructions included with optional pedestal or stacking kit or on web.)

•Can be built in with matching Frigidaire® Affinity Washer in undercounter, recessed or closet installation. (Refer to Built-In Installations on this page for cutout dimensions. For additional installation details, refer to Product Installation Guide on web.)

•Closet installation requires vented door with 2 unobstructed louvered openings, minimum 60 sq. in. each, located 3" from top and bottom

of door. Full-length 120 sq. in. opening also acceptable. Allow additional 1" clearance between fronts of units and closed door.

•Do NOT install in area exposed to dripping water or outdoor weather conditions, or where gasoline or other flammables, including automobiles, are kept or stored.

•Floor MUST be solid with 1" maximum slope. Do NOT install on carpeted surface.

•Dryer MUST exhaust to outside of building, NOT into any concealed space.

•Exhaust installation requires minimum 4"-diameter rigid or flexible metal duct with approved vent hood having swing-out damper(s). Do NOT use flexible plastic or metal foil duct and use shortest run possible.

•Leveling legs supplied to level dryer properly and reduce excessive noise and vibration.

Note: For planning purposes only. Refer to Product Installation Guide on the web at frigidaire.com for detailed instructions.

Optional Accessories

•Dryer Stacking Kit – (PN # 134700600).

•15" Classic White Drawer Pedestal – (PN # APWD15W).

•15" Classic Black Drawer Pedestal – (PN # APWD15E).

•15" Classic Red Drawer Pedestal – (PN # APWD15R).

•Mobile Home Installation Kit – (PN # 137067200).

•Drying Rack – (PN # 137067300).

FRIGIDAIRE®

USA • 250 Bobby Jones Expressway • Martinez, GA 30907	• 1-800-FRIGIDAIRE • frigidaire.com	Specifications
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4	• 1-800-265-8352 • frigidaire.ca
		subject to change.

FAQE7011K 10/09

Printed in the U.S.A.
