Page 1
FACTORY PARTS CATALOG
ROOM AIR CONDITIONER
PRODUCT NO. BASE MODEL NO. VOLTS BTU-COOLING
FAK103J1V3 FAK103J1V3 115 10000 BTU
MARKET
USA
WIRING DIAGRAM - # A232012
OWNER’S GUIDE - # 309000816
ENERGY GUIDE - # 309367405
ELECTROLUX HOME PRODUCTS, INC
P.O.BOX 212378, AUGUSTA, GA 30917
ROOM AIR CONDITIONER
Model No.
FAK083J1V3
Publication No.
5995367918
020309
-EN/SERVICE /BLT
345
©2002 Electrolux Home Products, Inc.
All rights reserved
Page 2
Publication No. FAK103J1V3
5995367918
CABINET FRONT AND WRAPPER
03/02 2
Page 3
FAK103J1V3 Publication No.
CABINET FRONT AND WRAPPER
POS. NO PART NO DESCRIPTION
1 309622004 Cabinet,sleeve ,complete assy
2 5303317604 Grille,rear
7 5304414087 Link,vertical louver
8 309622204 Louver,horizontal
8 309622504 Louver Assy,Incl-7,8,9,10
9 309622103 Louver,vertical
10 309622104 Louver,vertical ,w/handle
12 309622304 Filter,air ,front
17 309622404 Front Assy,complete ,7,8,9,10,12,43
19 309622609 Dial Plate
20 309307013 Knob,control
39 3015312 Screw,8-18AB x 0.500
43 309621804 Frame,cabinet front
* 309367405 Energy Guide,FAK103J1V3
5995367918
# = Fast-moving Parts 3 03/02
* = Non-Illustrated Parts
Page 4
Publication No. FAK103J1V3
5995367918
CONTROLS
03/02 4
Page 5
FAK103J1V3 Publication No.
CONTROLS
POS. NO PART NO DESCRIPTION
7 309606501 Panel-mounting,controls
8 # 5303323284 Switch,selector ,7 posn,3 speed
9 # 5304409252 Control temperature
12 309321201 Clip,temp sensor mtg ,thermostat
13 # 5304416302 Capacitor,370 V ,40+15 uF
14 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,ground
15 5303303077 Strap,capacitor mtg.
17 # 309343105 Cord-electric power,type A ,16 AWG
* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs
18 5303007754 Screw,6-32 x 0.188
28 309625301 Door Opener,vent mechanism
29 309606402 Control Box
5995367918
# = Fast-moving Parts 5 03/02
* = Non-Illustrated Parts
Page 6
Publication No. FAK103J1V3
5995367918

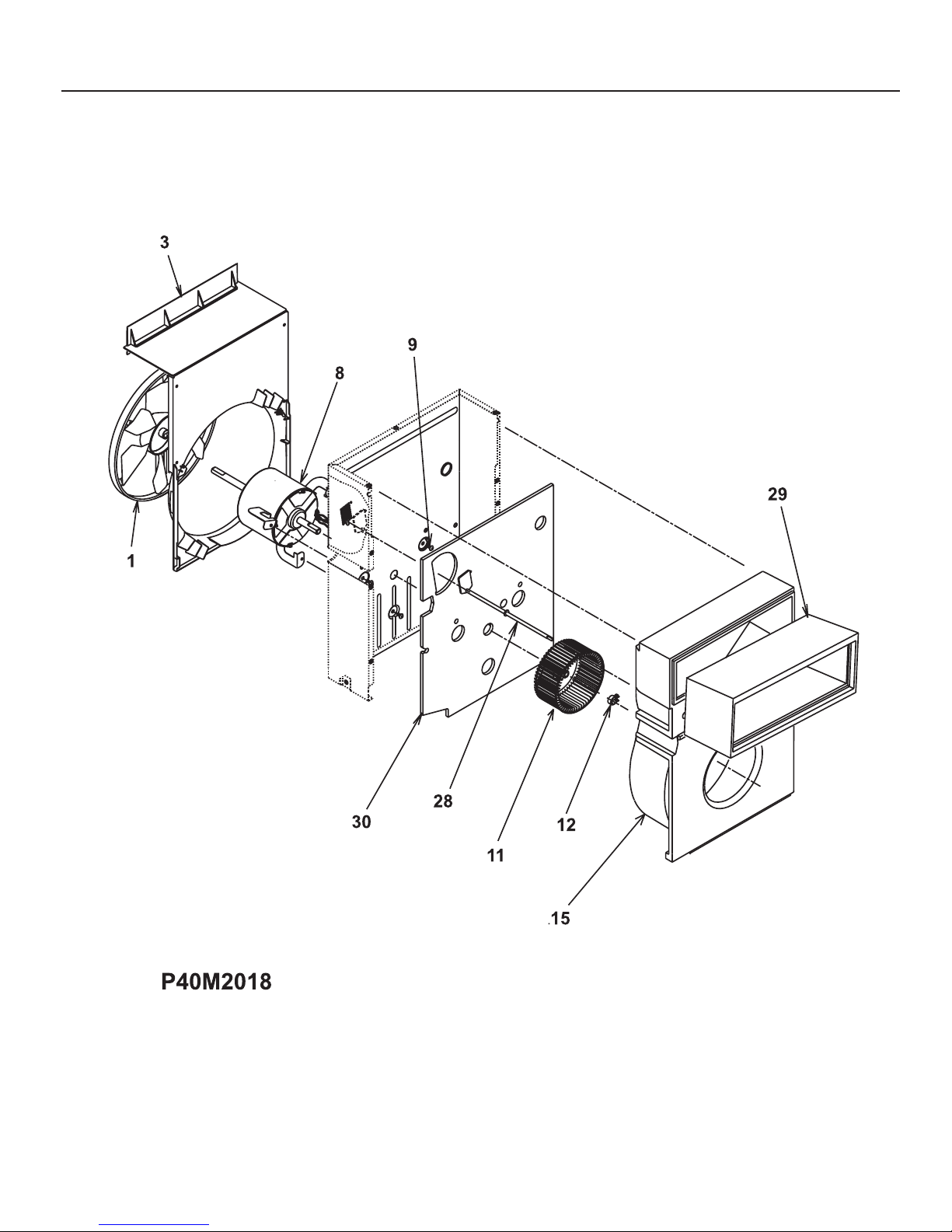

AIR HANDLING PARTS
03/02 6
Page 7
FAK103J1V3 Publication No.
AIR HANDLING PARTS
POS. NO PART NO DESCRIPTION
1 # 309626001 Fan Blade
3 309642301 Housing,fan shroud
8 # 309646001 Motor,fan
9 3202975 Screw,10-16AB x 0.72 ,square drive
11 # 309625201 Blower Wheel,plastic
12 5303012110 Clamp,blower wheel mt
15 309624801 Housing,blower scroll
28 309625301 Door Opener,vent mechanism
29 309624901 Adapter,scroll/housing ,front
30 309624601 Plate,scroll/housing ,back
5995367918
# = Fast-moving Parts 7 03/02
* = Non-Illustrated Parts
Page 8
Publication No. FAK103J1V3
5995367918

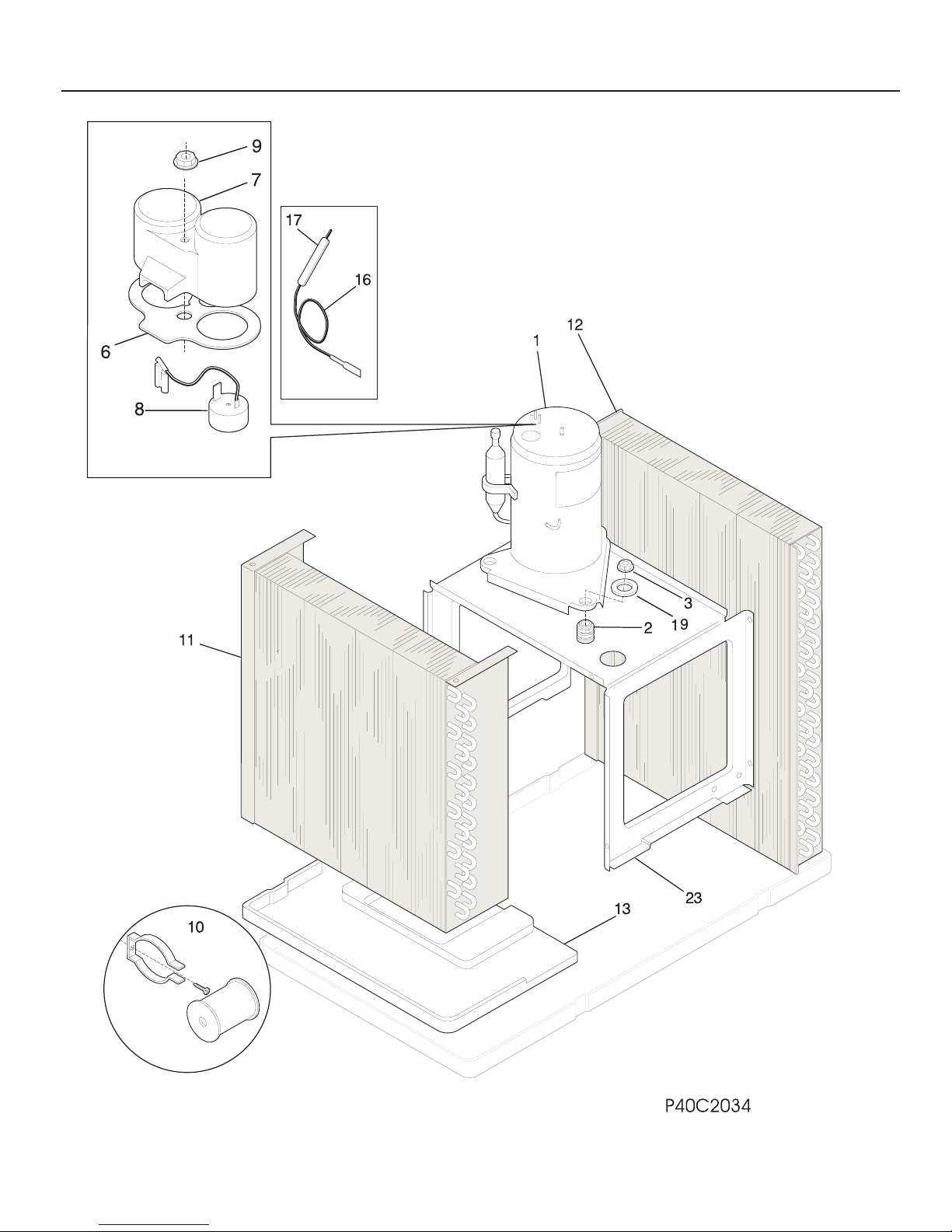

COMPRESSOR PARTS
03/02 8
Page 9
FAK103J1V3 Publication No.
COMPRESSOR PARTS
POS. NO PART NO DESCRIPTION
1 5304414964 Compressor
2 5303283877 Grommet,compressor mtg ,(3)
3 5308006948 Nut,compressor mtg ,(3)
6 3200282 Gasket,terminal cover
7 3200281 Cover,compr terminal
8 # 5303203064 Overload Protector
9 5303211017 Nut,terminal cover ,compressor elec
10 # 5303317601 Start Assist Kit,compressor
11 # 309617009 Evaporator
12 # 309617311 Condenser
13 309624101 Tray-evaporator
16 5303289577 Capillary Tube,40 inch long ,cut-to-length
17 # 5300265301 Drier-filter,service kit
19 5303002664 Washer,compressor mtg
19* 309112501 Washer,metallic
23 309627602 Base,compressor mt.
5995367918
03/02 9
Page 10
Publication No. FAK103J1V3
5995367918

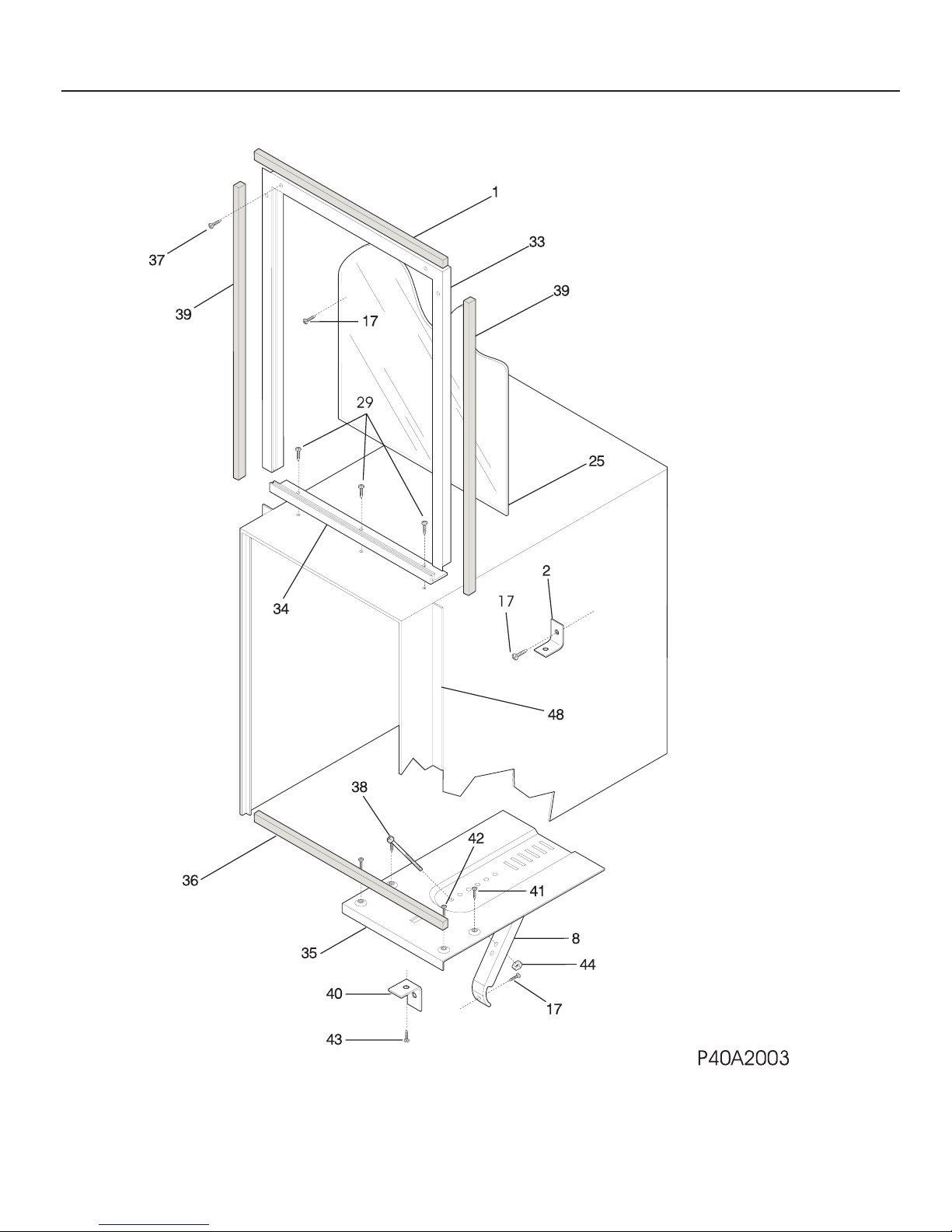

WINDOW MOUNTING PARTS
03/02 10
Page 11
FAK103J1V3 Publication No.
WINDOW MOUNTING PARTS
POS. NO PART NO DESCRIPTION
1 5303313968 Seal,frame ,top
1* 5304407729 Seal,window stuffer
2 5303211056 Bracket,sash lock
8 5304414113 Support,mounting plate
17 5304411997 Screw,8-18 x 0.750
25 309335103 Panel,window ,crctd. plastic
29 3015312 Screw,8-18AB x 0.500
33 5304414118 Frame,expander ,sliding
33* 5304414119 Divider,expander frame
34 5304414112 Retainer,window panel
35 5304414114 Plate,mounting ,grey
36 5308047524 Seal,mounting plate
37 5308047558 Screw,pan head ,8-32D x 0.75 ,slotted
38 5308047562 Screw,adjusting ,1/4-20 x 6.00 ,mounting plate
39 5303313967 Seal,frame ,side ,(2)
40 5304414085 Bracket,safety
41 5300125233 Screw,pan head ,10-12A x 1.00 ,slotted
42 5300507212 Screw,pan head ,10-12A x 1.75 ,slotted
43 5300507693 Screw,flat head wood ,10-12A x 2.50 ,slotted
44 3007759 Nut,lock ,1/4-20 ,support bracket
48 309305302 Channel,slide ,side mt. ,(2)
* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs
48* 5314930813 Seal,slide channel
* 309625802 Window Mounting Kit
5995367918
# = Fast-moving Parts 11 03/02
* = Non-Illustrated Parts
Page 12
Publication No. FAK103J1V3
5995367918

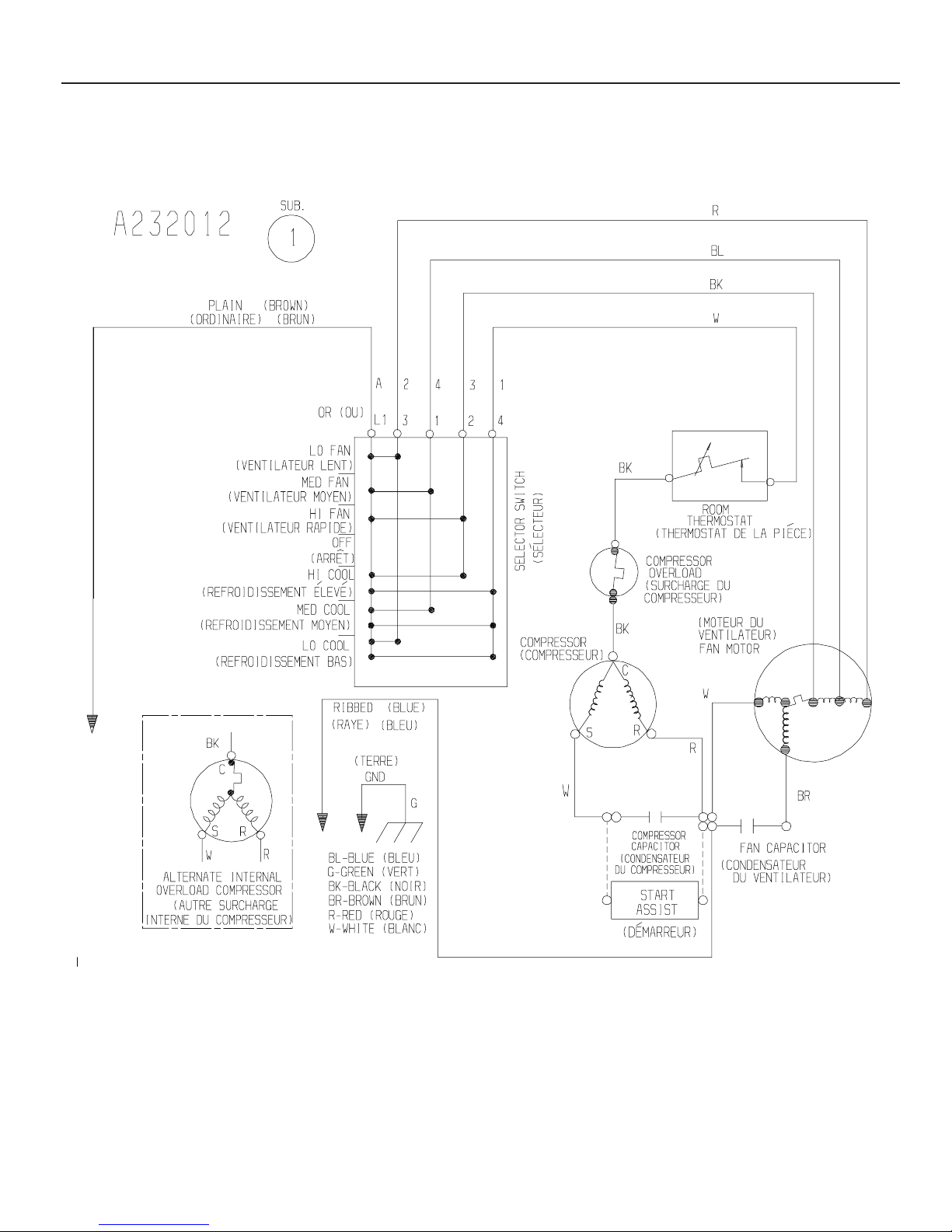

WIRING DIAGRAM
03/02 12
