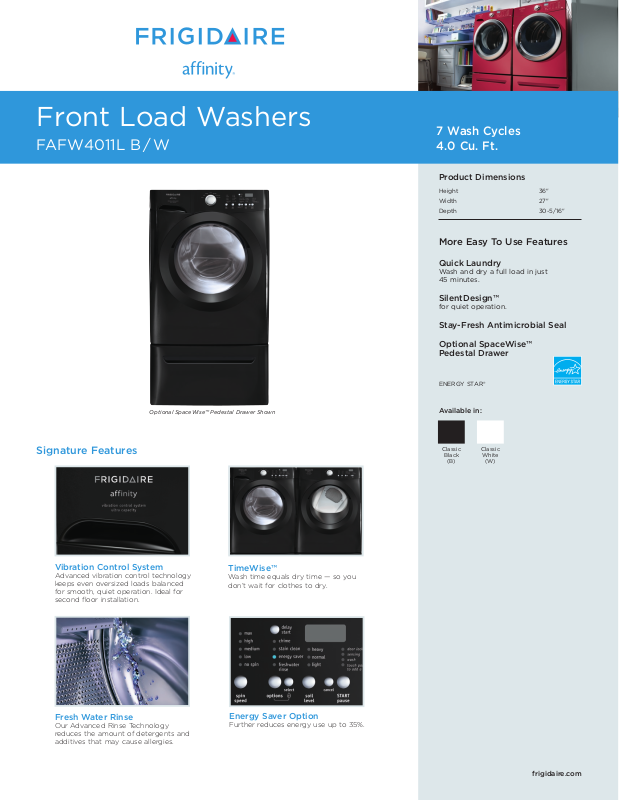

Frigidaire FAFW4011L B-W User Manual
Front Load Washers
FAFW4011L B / W
7 Wash Cycles
4.0 Cu. Ft.
Product Dimensions
Height 36"
Width 27"
Depth 30-5/16"
More Easy To Use Features
Quick Laundry
Wash and dry a full load in just
45 minutes.
SilentDesign™
for quiet operation.
Stay-Fresh Antimicrobial Seal
Optional SpaceWise™
Pedestal Drawer
ENERGY STAR®
Signature Features
Vibration Control System
Advanced vibration control technology
keeps even oversized loads balanced
for smooth, quiet operation. Ideal for
second floor installation.
Optional SpaceWise™ Pedestal Drawer Shown
TimeWise™
Wash time equals dry time — so you
don’t wait for clothes to dry.
Available in:
Classic
Black
(B)
Classic
White
(W)
Fresh Water Rinse
Our Advanced Rinse Technology
reduces the amount of detergents and
additives that may cause allergies.
Energy Saver Option
Further reduces energy use up to 35%.
frigidaire.com
B
C
A
B
A
C
Features
Total Capacity I.E.C. (Cu. Ft.)
Controls
Washer Drum Interior
Interior Light / Door Trim
Vibration Control System
Wash System
Advanced Rinse Technology
TimeWise™ Technology
Ready Clean™ / Ready Steam™
Freshwater Rinse
Stay-Fresh Antimicrobial Seal
Automatic Temperature Control
Automatic Water Level Adjustments
Auto Prewash Detergent Dispenser
Auto Bleach Dispenser
Auto Detergent Dispenser
Auto Fabric Softener Dispenser
Time Remaining Indicator
Cycle Status Lights
Cycle Signal / Cycle Signal “On/O ”
Cycle Signal Volume Control
Door Lock Indicator Light
Control Lock / Stay-Put Door
Start / Pause / Cancel Buttons
Energy Saver Option
Delay Start
Integral Water Heater
Tumble Speed (RPM)
Spin Speed (Maximum RPM)
Reversible Door
Sound Package
Adjustable Leveling Legs
4.0
Express-Select™
Stainless Steel
Yes / Color-Coordinated
Yes
Tumble Action
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Chime / Yes
Yes
Yes
Yes / Yes
Yes
Yes
1 to 10 Hours
33 / 47
1100
SilentDesign™
Yes
Cycles
Wash Cycles / Specialty Cycles
7 / 0
Options
Water Temperature Selections
Water Levels
Spin Speed / Soil Level Selections
Allergen
5
Automatic
5 / 3
Optional Accessories
Dryer Stacking Kit
15" Frigidaire Anity® Pedestal Drawers
Classic Red (R)
Classic Blue (N)
Classic Silver (A)
Classic Black (B)
Classic White (W)
Mobile Home Installation Kit
Drain Hose Extension Kit
PN # STACKIT4X
(B) PN # CFPWD15B
(W) PN # CFPWD15W
PN # 137067200
PN # 137098000
Certifications
ENERGY STAR®
NSF® Certified Sanitize / Allergen
Yes
Specifications
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts
Watts @ 120 Volts / Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.
Right Top Rear
Left Top Rear
120V / 60Hz / 15A
1
1.4
1,000 / 8
20
222 Lbs.
Front Load Washers
FAFW4011L B / W 4.0 Cu. Ft.
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Single)
Height (Stacked)
B - Width
C - Depth
Depth with Door Open 90˚
Pedestal Dimensions
A - Height
B - Width
C - Depth
36"
71-1/2"
27"
30-5/16"
51-7/16"
15-1/4"
27"
26-1/4"
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FAFW4011L 07/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
