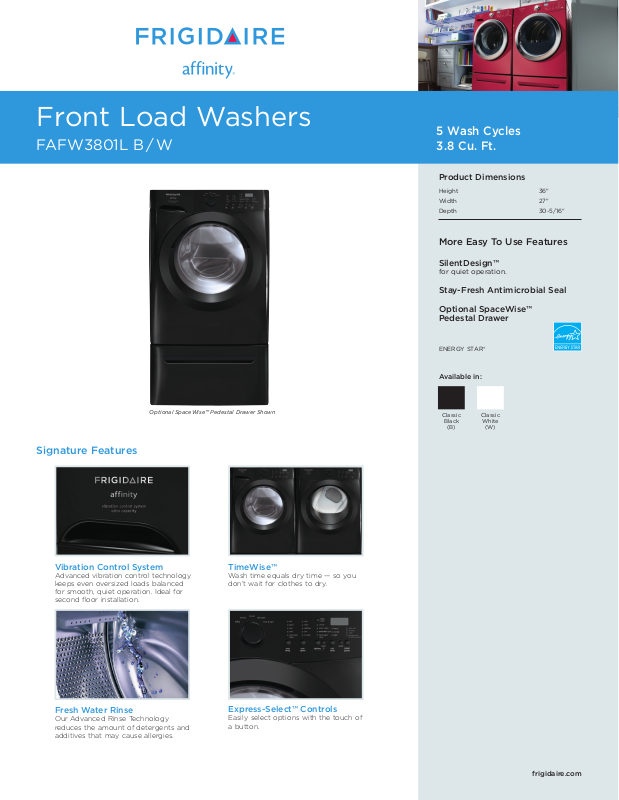

Frigidaire FAFW3801L DATASHEET

Front Load Washers

FAFW3801L B / W

Optional SpaceWise™ Pedestal Drawer Shown

Signature Features

Vibration Control System		TimeWise™
Advanced vibration control technology		Wash time equals dry time — so you
keeps even oversized loads balanced		don’t wait for clothes to dry.
for smooth, quiet operation. Ideal for
second floor installation.

Fresh Water Rinse	Express-Select™ Controls
Our Advanced Rinse Technology	Easily select options with the touch of
reduces the amount of detergents and	a button.
additives that may cause allergies.

5 Wash Cycles

3.8 Cu. Ft.

Product Dimensions

Height	36"
Width	27"
Depth	30-5/16"

More Easy To Use Features

SilentDesign™ for quiet operation.

Stay-Fresh Antimicrobial Seal

Optional SpaceWise™

Pedestal Drawer

ENERGY STAR®

Available in:

Classic		Classic
Black		White

(B)(W)

frigidaire.com

Features
Total Capacity I.E.C. (Cu. Ft.)	3.8
Controls	Express-Select™
Washer Drum Interior	Stainless Steel
Interior Light / Door Trim	No / Color-Coordinated
Vibration Control System	Yes
Wash System	Tumble Action
Advanced Rinse Technology	Yes
TimeWise™ Technology	Yes
Ready Clean™ / Ready Steam™
Freshwater Rinse	Yes
Stay-Fresh Antimicrobial Seal	Yes
Automatic Temperature Control	Yes
Automatic Water Level Adjustments	Yes
Auto Prewash Detergent Dispenser
Auto Bleach Dispenser	Yes
Auto Detergent Dispenser	Yes
Auto Fabric Softener Dispenser	Yes (LED Segment)
Time Remaining Indicator	Yes
Cycle Status Lights	Yes
Cycle Signal / Cycle Signal “On/Off ”	Chime / Yes
Cycle Signal Volume Control	Yes
Door Lock Indicator Light	Yes
Control Lock / Stay-Put Door	Yes / Yes
Start / Pause / Cancel Buttons	Yes
Energy Saver Option
Delay Start	1 to 10 Hours
Integral Water Heater
Tumble Speed (RPM)	33 / 47
Spin Speed (Maximum RPM)	1100
Reversible Door
Sound Package	SilentDesign™
Adjustable Leveling Legs	Yes
Cycles
Wash Cycles / Specialty Cycles	5 / 0
Options
Water Temperature Selections	5
Water Levels	Automatic
Spin Speed / Soil Level Selections	5 / 3
Allergen
Optional Accessories
Dryer Stacking Kit	PN # STACKIT4X
15" Frigidaire Affinity® Pedestal Drawers
Classic Red (R)
Classic Blue (N)
Classic Silver (A)
Classic Black (B)	(B) PN # CFPWD15B
Classic White (W)	(W) PN # CFPWD15W
Mobile Home Installation Kit	PN # 137067200
Drain Hose Extension Kit	PN # 137098000
Certifications
ENERGY STAR®	Yes
NSF® Certified Sanitize / Allergen
Specifications
Power Supply Connection Location	Right Top Rear
Water Inlet Connection Location	Left Top Rear
Voltage Rating	120V / 60Hz / 15A
Connected Load (kW Rating) @ 120 Volts1	1.4
Watts @ 120 Volts / Amps @ 120 Volts	1,000 / 8
Minimum Circuit Required (Amps)	20
Shipping Weight (Approx.)	222 Lbs.

Front Load Washers

FAFW3801L B / W 3.8 Cu. Ft.

B C

A

B								C

A

NOTE: For planning purposes only. Always consult local and national electric and plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

Product Dimensions
A - Height (Single)	36"
Height (Stacked)	71-1/2"
B - Width	27"
C - Depth	30-5/16"
Depth with Door Open 90˚	51-7/16"
Pedestal Dimensions
A - Height	15-1/4"
B - Width	27"
C - Depth	26-1/4"

1For use on adequately wired 120V, dedicated circuit having 2-wire service with	Accessories information available
a separate ground wire. Appliance must be grounded for safe operation.	on the web at frigidaire.com

	USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com	Specifications
	CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
		subject to change.

FAFW3801L 08/10

© 2010 Electrolux Home Products, Inc.

Printed in the U.S.A.
