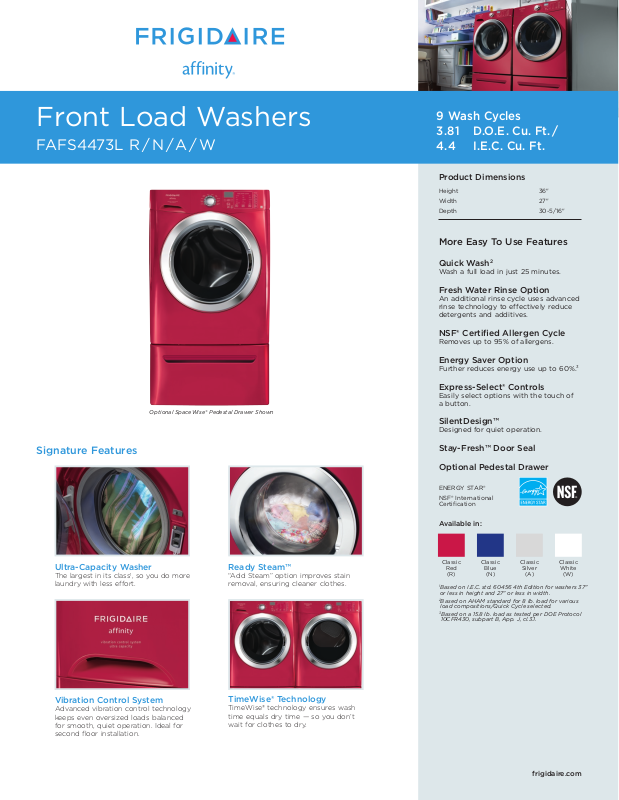

Frigidaire FAFS4473L User Manual
Front Load Washers
FAFS4473L R / N / A / W
9 Wash Cycles
3.8 1 D.O.E. Cu. Ft. /
4.4 I.E.C. Cu. Ft.
Product Dimensions
Height 36"
Width 27"
Depth 30-5/16"
More Easy To Use Features
Signature Features
Optional SpaceWise® Pedestal Drawer Shown
Quick Wash
Wash a full load in just 25 minutes.
2
Fresh Water Rinse Option
An additional rinse cycle uses advanced
rinse technology to effectively reduce
detergents and additives.
NSF® Certified Allergen Cycle
Removes up to 95% of allergens.
Energy Saver Option
Further reduces energy use up to 60%.
Express-Select® Controls
Easily select options with the touch of
a button.
SilentDesign™
Designed for quiet operation.
Stay-Fresh™ Door Seal
Optional Pedestal Drawer
ENERGY STAR®
NSF® International
Certification
Available in:
3
Ultra-Capacity Washer
The largest in its class1, so you do more
laundry with less effort.
Vibration Control System
Advanced vibration control technology
keeps even oversized loads balanced
for smooth, quiet operation. Ideal for
second floor installation.
Ready Steam™
“Add Steam” option improves stain
removal, ensuring cleaner clothes.
TimeWise® Technology
TimeWise® technology ensures wash
time equals dry time — so you don’t
wait for clothes to dry.
Classic
Red
(R)
1
Based on I.E.C. std. 60456 4th Edition for washers 37"
or less in height and 27" or less in width.
2
Based on AHAM standard for 8 lb. load for various
load compositions/Quick Cycle selected.
3
Based on a 15.8 lb. load as tested per DOE Protocol
10CFR430, subpart B, App. J, cl.3.1.
Classic
Blue
(N)
Classic
Silver
(A)
frigidaire.com
Classic
White
(W)
B
C
A
B
A
C
Features
Total Capacity D.O.E. / I.E.C. (Cu. Ft.)
Controls
Washer Drum Interior
Interior Light / Door Trim
Vibration Control System
Wash System
Advanced Rinse Technology
TimeWise® Technology
Ready Clean™ / Ready Steam™
Fresh Water Rinse Option
Stay-Fresh™ Door Seal
Automatic Temperature Control
Automatic Water Level Adjustments
Auto Prewash Detergent Dispenser
Auto Bleach Dispenser
Auto Detergent Dispenser
Auto Fabric Softener Dispenser
Time Remaining Indicator
Cycle Status Lights
Cycle Signal / Cycle Signal “On/O ”
Cycle Signal Volume Control
Door Lock Indicator Light
Control Lock / Stay-Put Door
Start / Pause / Cancel Buttons
Energy Saver Option
Delay Start
Integral Water Heater
Tumble Speed (RPM)
Spin Speed (Maximum RPM)
Sound Package
Adjustable Leveling Legs
3.81 / 4.4
Express-Select®
Stainless Steel
Yes, LED / Chrome
Yes
Tumble Action
Yes
Yes
No / Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Chime / Yes
Yes
Yes
Yes / Yes
Yes
Yes
1 to 18 Hours
Yes, 1000 Watts
33 / 47
1300
SilentDesign™
Yes
Cycles
Wash Cycles / Specialty Cycles
13 / 4
Options
Water Temperature Selections
Water Levels
Spin Speed / Soil Level Selections
Allergen
5
Automatic / Max Fill
5 / 5
Yes
Optional Accessories
Dryer Stacking Kit
15" Frigidaire Anity® Pedestal Drawers
Classic Red (R)
Classic Blue (N)
Classic Silver (A)
Classic Black (B)
Classic White (W)
Mobile Home Installation Kit
Drain Hose Extension Kit
Certifications
ENERGY STAR®
NSF® Certified Sanitize / Allergen
PN # STACKIT4X
(R) PN # CFPWD15R
(N) PN # CFPWD15N
(A) PN # CFPWD15A
(W) PN # CFPWD15W
PN # 137067200
PN # 137098000
Yes
Yes / Yes
Specifications
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts
Watts @ 120 Volts / Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.
Right Top Rear
Left Top Rear
120V / 60Hz / 15A
1
1.4
1,000 / 8
20
222 Lbs.
Front Load Washers
FAFS4473L R / N / A / W 3.81 D.O.E. Cu. Ft. / 4.4 I.E.C. Cu. Ft.
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.

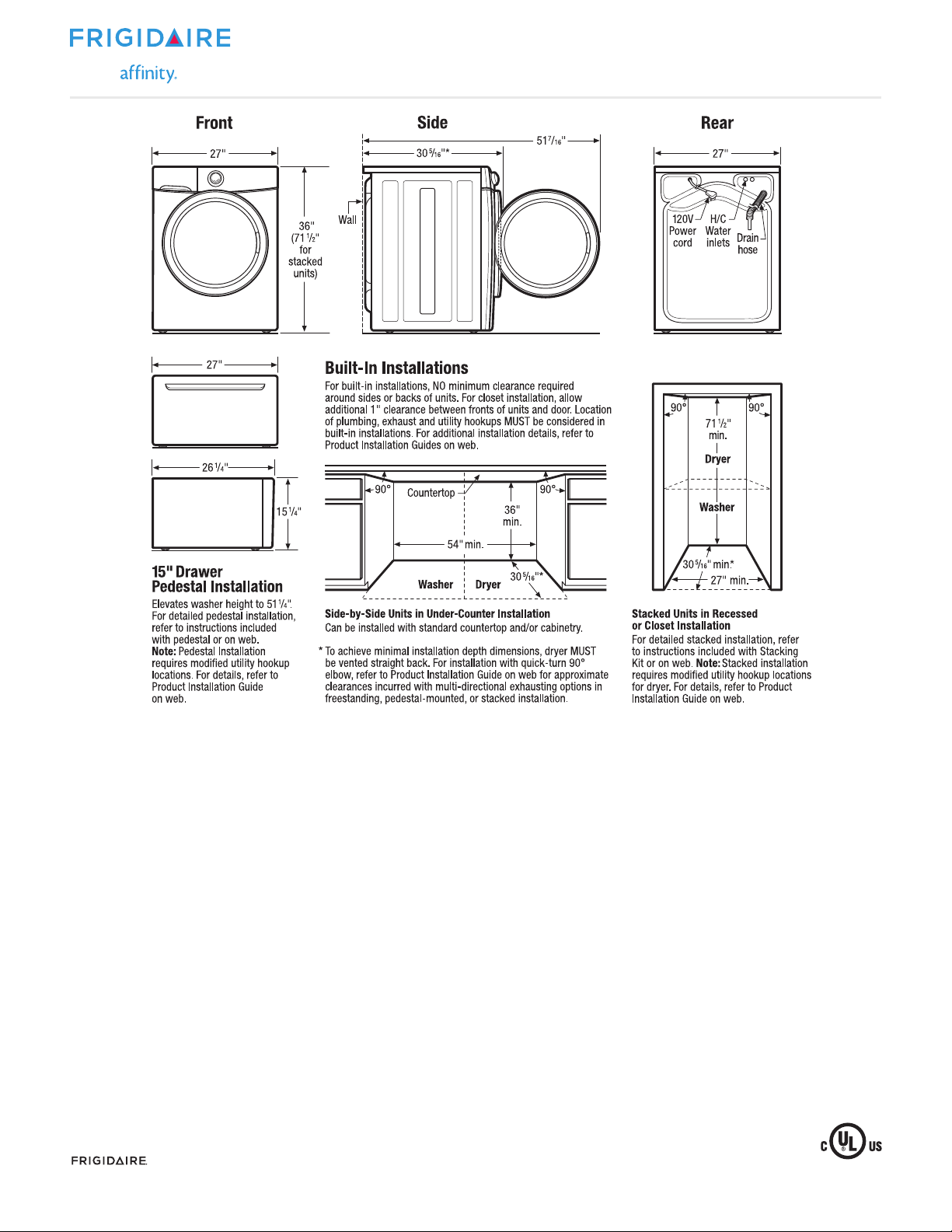

Product Dimensions
A - Height (Single)
Height (Stacked)
B - Width
C - Depth
Depth with Door Open 90˚
Pedestal Dimensions
A - Height
B - Width
C - Depth
36"
71-1/2"
27"
30-5/16"
51-7/16"
15-1/4"
27"
26-1/4"
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FAFS4473L 04/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
