M40L0001.eps M40C0002.eps M40M0002.eps 2202049160.eps
Product No. FAC107P1A1 FAC107P1A2 FAC107P1A3 FAC107P1A4 FAC107P1A5 FAC107P1A6
Series ROOM AIR ROOM AIR ROOM AIR ROOM AIR ROOM AIR ROOM AIR
Color white white white white white white
Volts 115 115 115 115 115 115
BTU-Cooling 10,000BTU 10,000BTU 10,000BTU 10,000BTU 10,000BTU 10,000BTU
Owner's Guide 220202d019 220202d019 220202d019 220202d019 220202d019 220202d019
Installation Instructions COMINSTALLEN COMINSTALLEN COMINSTALLEN COMINSTALLEN COMINSTALLEN COMINSTALLEN
Market North America North America North America North America North America North America
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995436994
05/05/17
(EN/SERVICE/WC)
099
ROOM AIR
CONDITIONER
Model No.
FAC107P1
Copyright © 2005 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995436994 FAC107P1
CABINET, FRONT, CONTROLS
05/05 2
FAC107P1 Publication No: 5995436994
CABINET, FRONT, CONTROLS
POS. NO PART NO. DESCRIPTION
1 5304446456 A B C - - - Base, unit chassis
1 5304436521 - - - D E F Base, unit chassis
2 5304436523 A B C D E F Rail, shutter track, bottom
3 5304436544 A B C D E F Frame, shutter panel, LH
4 5304436545 A B C D E F Retainer, shutter lock
5 5304436546 A B C D E F Shutter, accordion panel
6 5304436547 A B C D E F Retainer, shutter mount, cabinet sides
7 5304446442 A B C D E F Cabinet, wrapper/sleeve
8 5304436549 A B C D E F Rail, shutter track, top
9 5304436550 A B C D E F Frame, shutter panel, RH
10 5304448302 A B C D E F Front Assembly, complete panel
11 5304448297 A B C D E F Panel, front grille, tilt-out
12 5304448298 A B C D E F Filter, air, plastic frame
13 5304448299 A B C D E F Frame, front assembly
14 5304448300 A B C D E F Louver, horizontal
15 5304448301 A B C D E F Louver, vertical
17 5304447868 A B C D E F Console, control cover
17* 5304447869 A B C D E F Panel, control display, overlay
18 # 5304436534 A B C D E F PC Board, display/input
19 5304446441 A B C D E F Panel, ctrl mtg board
20 # 5304436531 A B C D E F PC Board, control/power
21 # 5304436543 A B C D E F Sensor, ambient temp
22 # 5304436542 A B C D E F Sensor, evap temp, defrost
23 5304436530 A B C D E F Strap, capacitor mtg.
24 5304446457 A B C - - - Capacitor
24 # 5304436525 - - - D E F Capacitor
25 5304436524 A B C D E F Control Box
26 5304447875 A B C D E F Remote Control
* 5304458023 A B C D E F Hardware Kit, installation
Model Index: A FAC107P1A (FAC107P1A1)
B FAC107P
C FAC107P
D FAC107P
E FAC107P
F FAC10
1A (FAC107P1A2)
1A (FAC107P1A3)
1A (FAC107P1A4)
1A (FAC107P1A5)
7P1A (FAC107P1A6)
# Functional Parts
3 05/05
* Non-Illustrated Parts
Publication No: 5995436994 FAC107P1
COOLING & AIR FLOW SYSTEMS
6
5
7
3
4
2
9
8
10
15
1
14
13
12
11
16
M40M0002
05/05 4
FAC107P1 Publication No: 5995436994
COOLING & AIR FLOW SYSTEMS
POS. NO PART NO. DESCRIPTION
1 5304436556 A B C D E F Scroll, blower housing, bottom, w/drain tray
2 # 5304436557 A B C D E F Blower Wheel, centrifugal fan
3 5304436559 A B C D E F Scroll, blower housing, top
4 5304436558 A B C D E F Door, fresh air vent, with lever
5 5304436564 A B C D E F Guide, vent door/lever
6 5304436565 A B C D E F Cover, blower scroll, top
7 # 5304436563 A B C D E F Fan Blade, propeller, axial flow
8 # 5304436562 A B C D E F Shroud, fan housing
9 # 5304441405 A - - D - - Motor, fan
9 # 5304441406 - B - - E - Motor, fan
9 5304446455 - - C - - F Motor, fan
10 5304436560 A B C D E F Seal, fan motor, rubber ring, water proof
11 # 5304436566 A B C D E F Evaporator
12 5304446461 A B C - - - Capillary Tube
12 # 5304436582 - - - D E F Capillary Tube, assy w/strainer
13 5304448238 A B C - - - Tube-discharge
13 # 5304436574 - - - D E F Discharge Tube
14 5304446459 A B C - - - Compressor Assy
14 # 5304437082 - - - D E F Compressor Assy
15 # 5304436572 A B C - - - Condenser
15 # 5304436571 - - - D E F Condenser
16 5304448237 A B C - - - Suction Tube
16 # 5304436569 - - - D E F Suction Tube
* 5304446449 A B C D E F Power Cord, electric, 115 V
Model Index: A FAC107P1A (FAC107P1A1)
B FAC107P
C FAC107P
D FAC107P
E FAC107P
F FAC10
1A (FAC107P1A2)
1A (FAC107P1A3)
1A (FAC107P1A4)
1A (FAC107P1A5)
7P1A (FAC107P1A6)
# Functional Parts
5 05/05
* Non-Illustrated Parts
Publication No: 5995436994 FAC107P1

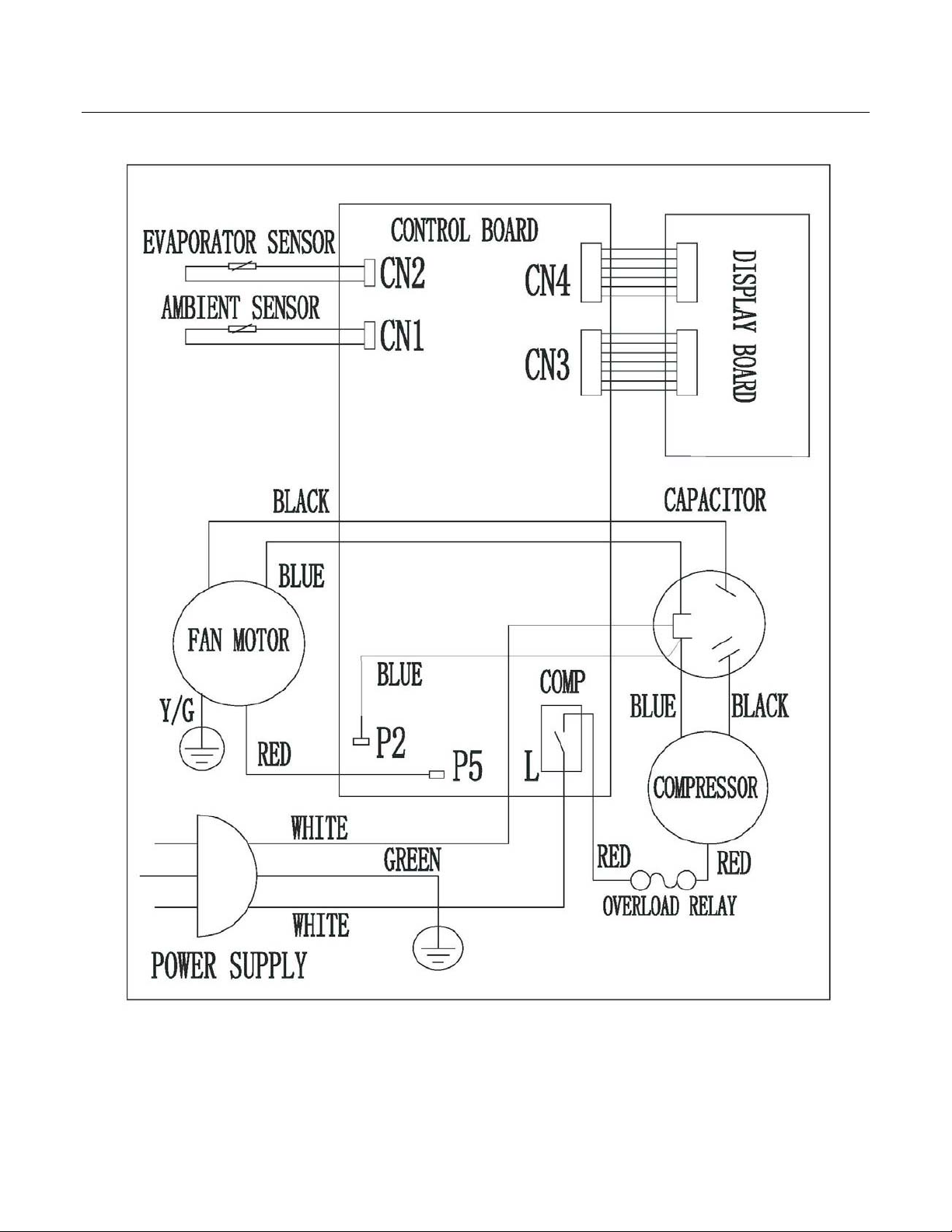

WIRING DIAGRAM
2202019160
05/05 6
