Page 1
Product No. FAA064P7A1 FAA064P7A2 FAA064P7A3 FAA064P7A4
Series MS II MS II MS II MS II
Color N/A N/A N/A N/A
Volts 115 115 115 115
BTU-Cooling 6000 6000 6000 6000
Owner's Guide 220201d011 220201d011 220201d011 220201d011
Installation Instructions msinstalleng msinstalleng msinstalleng msinstalleng
Market North America North America North America North America
M40L0002.eps M40C0003.eps M40M0003.eps 2202049160.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995438412
05/06/02
(EN/SERVICE/WC)
099
ROOM AIR
CONDITIONER
Model No.
FAA064P7
Copyright © 2005 Electrolux Home Products, Inc.
All rights reserved.
Page 2
Publication No: 5995438412 FAA064P7

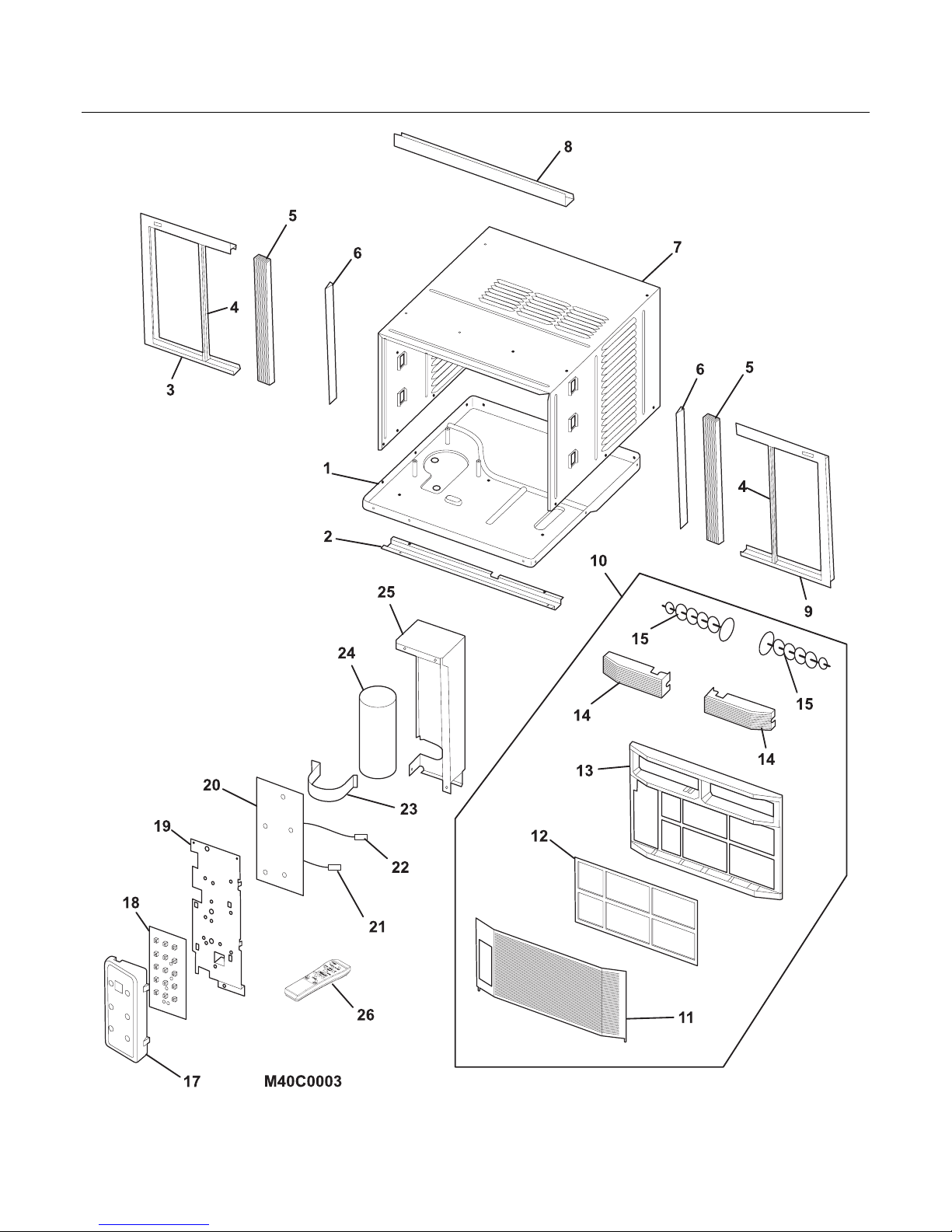

CABINET, FRONT, CONTROLS
06/05 2
Page 3
FAA064P7 Publication No: 5995438412
CABINET, FRONT, CONTROLS
POS. NO PART NO. DESCRIPTION
1 5304446364 A - - D Base, unit chassis
1 5304446365 - B C - Base, unit chassis
2 5304437068 A B C D Rail, shutter track, bottom
3 5304437055 A B C D Frame, shutter panel, LH
4 5304437052 A B C D Retainer, shutter lock
5 5304437053 A B C D Shutter, accordion panel
6 5304437057 A B C D Retainer, shutter mount, cabinet sides
7 5304446348 A B C D Cabinet, wrapper/sleeve
8 5304437069 A B C D Rail, shutter track, top
9 5304437054 A B C D Frame, shutter panel, RH
10 5304437065 A B C D Front Assembly, complete panel, includes
11 5304437059 A B C D Panel, front grille, tilt-out
12 5304437062 A B C D Filter, air, plastic frame
13 5304437058 A B C D Frame, front assembly
14 5304437061 A B C D Louver, horizontal
15 5304437060 A B C D Louver, vertical
17 5304436536 A B C D Enclosure, control, pcb display
17* 5304436537 A B C D Control Panel, display, electronic
18 # 5304437075 A B C D PC Board, display/input
19 5304446346 A B C D Panel, ctrl mtg board
20 # 5304436531 A B C D PC Board, control/power
21 # 5304436543 A B C D Sensor, ambient temp
22 # 5304436542 A B C D Sensor, evap temp, defrost
23 5304436530 A B C D Strap, capacitor mtg.
24 # 5304437111 A B C D Capacitor
25 5304437070 A B C D Control Box
26 # 5304436595 A B C D Remote Control, transmitter
Model Index: A FAA064P7A (FAA064P7A1)
B FAA064P7A (FAA064P7A2)
C FAA064P7A (FAA064P7A3)
D FAA064P7A (FAA064P7A4)
# Functional Parts
3 06/05
* Non-Illustrated Parts
Page 4
Publication No: 5995438412 FAA064P7
COOLING & AIR FLOW SYSTEMS
06/05 4
Page 5
FAA064P7 Publication No: 5995438412
COOLING & AIR FLOW SYSTEMS
POS. NO PART NO. DESCRIPTION
1 5304446349 A B C D Scroll, blower housing, bottom
2 # 5304446350 A B C D Blower Wheel, centrifugal fan
3 5304446351 A B C D Scroll, blower housing, top
6 5304446355 A B C D Cover, blower scroll, top
7 # 5304437049 A B C D Fan Blade, propeller, axial flow
8 # 5304447863 A B C D Shroud, fan housing
9 # 5304446369 A - C - Motor, fan
9 # 5304446370 - B - D Motor, fan
11 # 5304446356 A B C D Evaporator
12 # 5304446360 A B C D Capillary Tube
13 # 5304446368 A - - D Discharge Tube
13 # 5304437099 - B C - Discharge Tube
14 # 5304446367 A - - D Compressor Assy
14 # 5304437079 - B C - Compressor Assy
15 # 5304437085 A B C D Condenser
16 # 5304446366 A - - D Suction Tube
16 # 5304437098 - B C - Suction Tube
* # 5304446361 A B C D Power Cord, electric, 115 V
Model Index: A FAA064P7A (FAA064P7A1)
B FAA064P7A (FAA064P7A2)
C FAA064P7A (FAA064P7A3)
D FAA064P7A (FAA064P7A4)
# Functional Parts
5 06/05
* Non-Illustrated Parts
Page 6
Publication No: 5995438412 FAA064P7
WIRING DIAGRAM
2202019160
06/05 6
